USER MANUAL Sonicare HX7562 PHILIPS

the sonic toothbrush

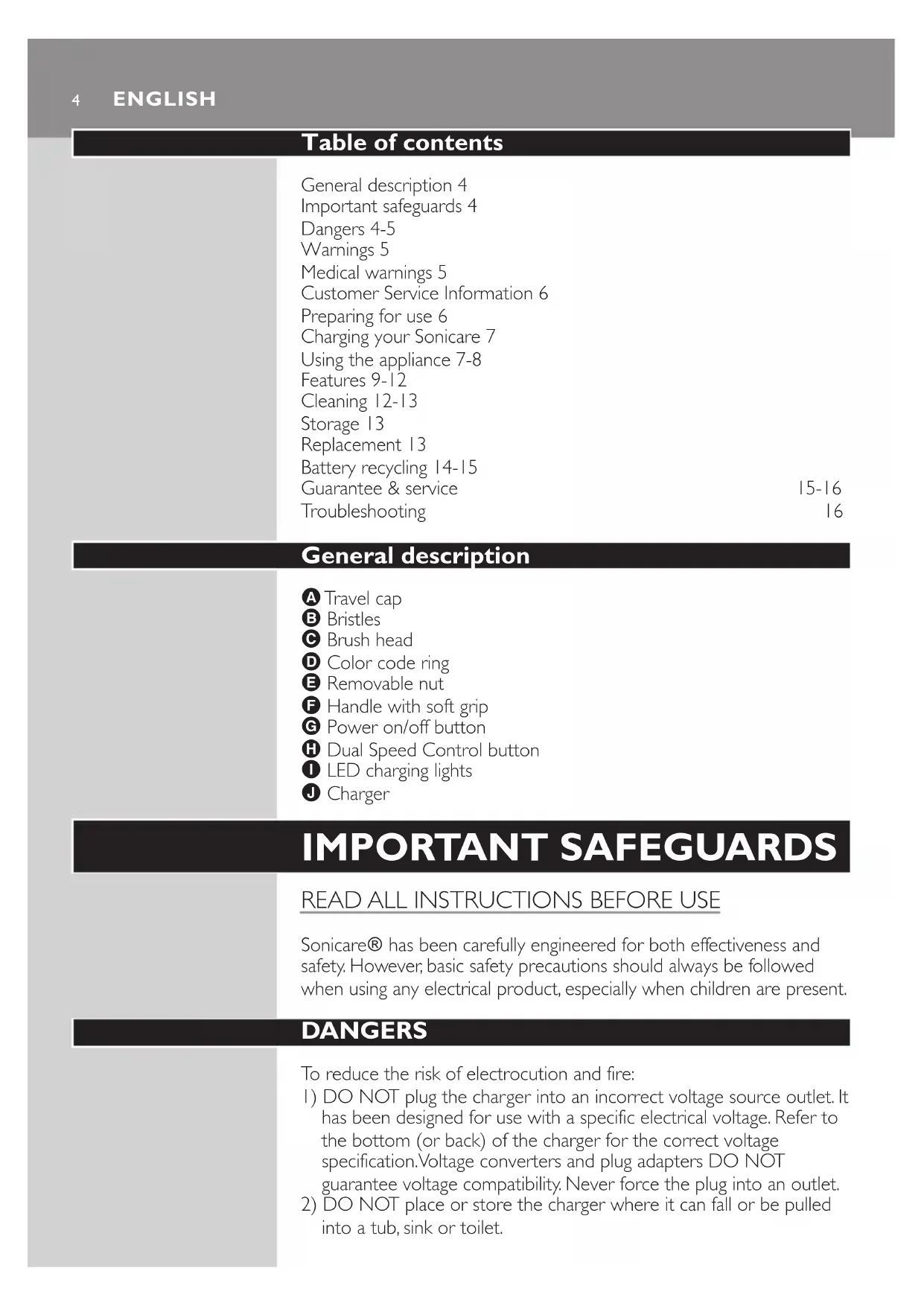

Important safeguards 4

Charging your Sonicare 7

Using the appliance 7-8

Battery recycling 14-15

F Handle with soft grip

G Power on/off button

H Dual Speed Control button

I LED charging lights

IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE USE Sonicare\ has been carefully engineered for both effectiveness and

safety. However, basic safety precautions should always be followed

when using any electrical product, especially when children are present.

DANGERS To reduce the risk of electrocution and fire:

1) DO NOT plug the charger into an incorrect voltage source outlet. It

has been designed for use with a specific electrical voltage. Refer to

the bottom (or back) of the charger for the correct voltage

specification.Voltage converters and plug adapters DO NOT

guarantee voltage compatibility. Never force the plug into an outlet.

2) DO NOT place or store the charger where it can fall or be pulled

into a tub, sink or toilet.

ENGLISH43) DO NOT place or drop the charger into water or other liquid.

4) DO NOT reach for a charger that has fallen into water. Unplug

5) DO NOT use while taking a bath.

WARNINGS To reduce the risk of burns, electrocution, fire or injury:

1) Close supervision is necessary when this product is used by or on

children or the disabled.

2) If you are unable to handle this product properly, discontinue use.

3) Use this product only for its intended use as described in this

booklet. Do not use attachments other than those recommended

by the manufacturer. See voltage information above.

4) Never operate the charger if it has a damaged cord or plug, if it has

been dropped or if the toothbrush handle has been damaged in any

way.This product contains no serviceable parts. If repair is needed

please refer to the Customer Service Information section of this

manual and contact one of our representatives.

5) Keep the cord away from heated surfaces.

6) If your favorite toothpaste includes peroxide, baking soda or other

bicarbonate (common in whitening toothpastes), it is important that

you thoroughly clean your brush head with soap and water after

7) Do not use charger base outdoors.

8) Unplug the charger base before cleaning and assure that it is dry

before plugging it into an electrical outlet.

9) Brush heads and charger base should never be placed in a

dishwasher for cleaning.

1) Consult your dental professional before using this product if you

have had oral or gum surgery in the previous 2 months.

2) Contact your dental professional if excessive bleeding occurs after

using this product or bleeding continues to occur after 1 week of

3) If you have any questions concerning usage with a pacemaker or

other implanted device, consult your physician or the implanted

device manufacturer prior to use. Sonicare has been tested and is

compliant with safety standards for electromagnetic devices.

4) Avoid using a brush head with crushed or bent bristles. Damaged

bristles may break off while brushing. In order to prevent this,

replace the brush head with a new one every 6 months or sooner if

signs of wear appear.

5) The Sonicare toothbrush is a personal care device and is not

intended for use on multiple patients in a dental office or institution.

6) This product is designed for cleaning teeth, gums and tongue only.

Do not use for any other purpose.

ENGLISH 5Customer Service Information If you have any questions after reading this manual, feel free to contactour Customer Service Center or visit our website.◗ Customer Service Center1-800-682-7664 (North America), outside North America contactyour local Philips Customer Care Center.◗ Internet Informationwww.sonicare.com (North America) www.philips.com (outside NorthAmerica)

SAVE THESE INSTRUCTIONS Preparing for use

To attach the Sonicare brush head:

C 1 Align the front of the brush head with the front of thetoothbrush handle. Match the bars on the brush head with thenotches inside the top of the handle and slide the brush headonto the handle. C 2 Screw the brush head nut clockwise until it is firmly tightened.If the brush head rattles during use, tighten the nut further.3 Remove the travel cap from your brush head when you areready to brush. C 4 Use the cord wrap in the bottom of the charger to storeexcess cord. ENGLISH6Charging your Sonicare\

Sonicare comes with the batteries completely discharged and should

be charged for at least 24 hours during the first few days of use.

◗ It is recommended that you keep your Sonicare in the charger

when not in use to maintain a full battery charge. It takes at least

24 hours to fully charge Sonicare's battery.

1 Be sure the bottom of the handle sits back securely in the

charger, making complete contact.

◗ Handles of other Sonicare models do not fit in this charger and

will therefore not charge effectively. Do not attempt to force a

handle into this charger as this will cause damage.

◗ The brush head comes with a convenient travel cap. Remove the

travel cap from the brush head before turning on your Sonicare.

◗ Place the brush head in your mouth before turning on your

Sonicare, and be sure it is turned off before removing it from your

mouth, otherwise toothpaste may splatter.

◗ Rinse the brush head and bristles after each use.

◗ Clean the brush head weekly, including under the nut.

◗ A fully charged Sonicare will provide approximately 2 weeks of

typical use (2 minutes of brushing twice a day), making it easy to

travel without the charger.

Remember: voltage converters and plug adapters DO NOT guarantee

voltage compatibility. Always check for voltage compatibility.

Follow these simple steps to maximize your brushing experience:

1 Before turning the Sonicare on, place the bristles of the brush

head on your gumline at a 45-degree angle.

2 Hold the handle with a light grip, turn the Sonicare on, and

gently move the bristles in a small circular motion so the

longer bristles reach between your teeth.After a few seconds

glide the bristles to the next secion. Continue this routine

throughout your 2-minute brushing cycle.

3 To maximize Sonicare's effectiveness apply only light pressure

and let the Sonicare toothbrush do the brushing for you.

4 To make sure you brush evenly throughout the mouth, divide

your mouth into 4 sections: outside top, inside top, outside

bottom and inside bottom teeth. Begin brushing in section 1

(outside top teeth) and brush for 30 seconds before moving to

section 2 (inside top teeth). Continue brushing for 30 seconds

in each section progressing through all 4 sections until you've

brushed for 2 minutes.

5 After having completed the 2-minute brushing cycle, additional

time should be spent brushing the chewing surfaces of your

6 Press the power button to turn the brush on and off as

◗ You may also brush your tongue, with the toothbrush turned on

or off, as you prefer.

Tips for specific oral care needs

In areas where staining occurs, spend extra brushing time to assist with

The brush should be placed at a 45-degree angle between your

brackets and gumline. Using light pressure, gently move the bristles in a

small circular motion so that the long bristles reach between your

teeth for 2 seconds.Then gently turn (roll) the brush handle so the

bristles clean the bracket and the rest of the tooth before you move

the bristles to the next tooth. Continue this until you have brushed all

of your teeth. Please note that brush heads will wear out sooner when

◗ Dental restorations (dental work)

Use Sonicare on dental restorations (such as implants, caps, crowns,

bridges and fillings) as you would on your normal tooth surfaces to

reduce plaque build-up and improve gum health.Work the bristles

around all areas of the restoration for thorough cleaning.

◗ Periodontal pockets

Your dental professional may have indicated that you have periodontal

pockets, deep pockets where plaque bacteria collect. If this is the case,

after brushing for a full 2 minutes, spend extra time gently brushing

these areas to improve your gum health.

Easy-start\ brushing power ramp-up

◗ All Sonicare models come with the Easy-start feature activated,

which helps you get used to brushing with Sonicare.

◗ Brushing power will gently increase to full power over the first

◗ The Easy-start feature is active if you hear 2 beeps immediately

after turning on your Sonicare. Once the appliance has reached

optimal brushing power (after the 14th brushing), you will no

longer hear the double beep at the beginning of your brushing

B Note: Each of the first 14 brushings must be at least 1 minute in length

to properly advance through the Easy-start ramp-up cycle.

To deactivate or activate the Easy-start feature:

1 Attach your brush head to the handle.

2 Place the handle in the plugged-in charger.

3 To deactivate Easy-start feature: while handle is still in the

charger, press and hold the power button for 5 seconds.You

will hear 1 beep to indicate that the Easy-start feature has

4 To reactivate Easy-start: while handle is still in the charger,

press and hold the power button for 5 seconds.You will hear 2

beeps to indicate that the Easy-start feature has been activated.

Using the Easy-start feature beyond the initial ramp-up period is not

recommended and reduces Sonicare's effectiveness in removing

The Easy-start feature should be deactivated when Sonicare is used in

Smartimer\ 2-minute timer

◗ All Sonicare models come with the Smartimer feature, which

automatically sets the brushing time to the 2 minutes

recommended by dental professionals.

◗ After 2 minutes, your Sonicare will automatically turn off the

◗ If you wish to pause or stop brushing during your 2-minute cycle,

press the power button. Press the power button again and the

Smartimer will pick up where you left off.

ENGLISH 9B The Smartimer will automatically reset to the beginning of a 2-minute

- brushing is paused for 30 seconds or longer;

- the handle is returned to the charger.

Quadpacer\ 30-second interval timer

◗ Quadpacer makes sure that you brush all sections of your mouth

evenly and thoroughly.When using a two-minute brushing cycle,

you will hear a short beep and a pause in brushing action at 30, 60

and 90 second intervals.

Programmable Quadpacer timer (select models only)

The Programmable Quadpacer timer offers you the option of

customizing the Quadpacer performance in 1 of 3 ways:

◗ You may opt to keep the factory default setting of a 2-minute

brushing time with Quadpacer feature activated.

◗ You may choose to extend your brushing time to 2 1/2 minutes

by adding an additional timing interval of 30 seconds with

Quadpacer feature active.

◗ You may choose a 2-minute brushing time, but with the

Quadpacer feature turned off.

To change the Quadpacer settings:

1 Place the handle in the charger that is plugged into a live

2 Press the Dual Speed Control button briefly and note which

3 Press and hold the Dual Speed Control button. Continue to

hold the button while the LEDs slowly cycle through the timing

interval setting options:

◗ Green LED in position 4: Quadpacer active (factory default

◗ Green LED in top (5th) position: 2 1/2 minute setting -

Quadpacer active with additional timing interval of 30 seconds.

◗ Yellow LED in bottom (1st) position: no timing intervals set -

Quadpacer not active.

4 To program the desired setting, release the button when the

LED corresponding to your choice lights up.

B Note: Selecting 2 1/2 minutes brushing time reduces the number of

brushings available from a fully charged battery.

The Dual Speed Control feature allows you to choose between 2 speed

settings: Normal speed for optimum brushing performance, or

Reduced speed when an even more gentle action is desired.

Each time you turn your Sonicare on, it will begin brushing at the

Normal speed setting.To change the speed setting:

1 From Normal to Reduced speed: press the Dual Speed Control

button once during brushing.

2 From Reduced to Normal speed: press the Dual Speed Control

button a second time during brushing.

A distinctive two-tone beep indicates that the speed setting has been

It is recommended that you brush at the Normal speed setting to

maintain optimal results.

The Normal setting should be selected when Sonicare is used in clinical

ENGLISH 11Battery Charge Indicator

◗ If the battery charge of your Sonicare is low, you will hear 3 beeps

after you have brushed your teeth for 2 minutes and the charge

indicator LED will blink yellow for 30 seconds.

A low charge indication signifies that 3 or fewer 2-minute brushings

When not in use, keep your Sonicare in the charger to maintain a full

Multiple-LED charge indicator

◗ When the handle is placed in the charger, the green charge

indicator LEDs will blink in a rising pattern as the battery charges.

The number of blinking LEDs indicates the level to which the

battery has been charged.

When the battery reaches full charge, the LEDs stop blinking and

illuminates continuously.About once a minute, the charge indicator

LEDs go out momentarily and then come back on.This indicates that

the battery is being maintained at full charge.The full charge indication

will persist until the handle is removed from the charger.

The blinking yellow LED indicates that fewer than 3 brushings remain.

By following these simple steps, you should get years of worry-free

1 Rinse the brush head and bristles after each use, and air dry

2 Clean the brush head at least once a week, including under the

3 To remove the nut:

Press down gently on the white area.

Pull the nut over the top of the brush head.

Avoid using sharp objects to push on the seal as this may cause

4 To replace the nut, slip the nut over the brush head shaft and

pull until it clicks back on.

5 Clean the handle weekly.

6 Clean the charger periodically.

UNPLUG the charger before cleaning. After cleaning the charger

completely dry the charger before plugging it into an electrical outlet.

Mild soap, water and a moist cloth are recommended for cleaning your

Sonicare handle and charger.

Additional Cleaning Tip:

- The Sonicare handle is dishwasher safe. Remove the brush head and

charger before placing the handle only in the top rack of dishwasher.

NOTE: Brush heads and charger base should never be placed in the

If the product is not to be used for an extended period of time it

should be unplugged from the electrical outlet, cleaned, stored in a cool

and dry area away from direct sunlight.The cord wrap can be used to

store power cord in an organized manner.

Replacing your brush head every 6 months is clinically proven to

Use only Sonicare replacement brush heads for this model.

ENGLISH 13Battery recycling

HANDLE CONTAINS A NICKEL CADMIUM BATTERY. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.

◗ The battery inside your Sonicare cannot be replaced, but is easily

removed for recycling.At the end of product life and prior to

disposal, please remove the battery from the handle by following

the instructions below.

Please note that this process is NOT reversible.

◗ Do not throw the appliance away with the normal household

waste at the end of its life, but hand it in at an official collection

point for recycling. By doing this you will help to preserve the

Removing the batteries

◗ Please note that this process is NOT reversible.

To remove the batteries yourself, you will need a flat-head (standard)

screwdriver. Basic safety precautions should be observed when

following the procedure outlined below. Be sure to protect your eyes,

hands, fingers and the surface on which you are working.

CAUTION Caution should be exercised when using any household tools (such as

a screwdriver) to remove the battery.

1 Deplete the battery of any charge by removing the handle from

the charger, turning the Sonicare on and allowing it to run until

it stops. Repeat this step until the product will no longer

2 Remove the soft-touch rib by inserting a screwdriver under it

and breaking it out.

3 Remove the nut from the brush head and place it onto the

handle.Tighten the nut onto the handle (A) until the housing

comes loose and then pull the nut forward (B).

The handle internals will come out of the housing along with the nut.

4 Insert a screwdriver between the electronic circuit board and

the plastic part close to each end of the battery; twist and

break the connection between the battery and the electronic

circuit board in 2 locations.

5 Separate the rechargeable battery from the appliance by means

Please note that this process is NOT reversible.

For information on proper battery recycling, please visit the

Rechargeable Battery Recycling Corporation website at www.rbrc.org

or call (678)419-9990. (Philips Oral Healthcare. Inc. is not affiliated with

- NORMAL WEAR AND TEAR, INCLUDING CHIPS, SCRATCHES,

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

LIMITATION OF REMEDIES IN NO EVENT SHALL PHILIPS ORAL HEALTHCARE, INC. OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR ENGLISH 15Solution

Recharge your Sonicare for at least 24 hours.

Verify your Sonicare is plugged into a live electrical outlet and not into

an outlet controlled by a light switch.

You may need to re-attach or replace the brush head.

You may experience a slight tickling/tingling sensation when using

Sonicare for the first time. As you become accustomed to brushing

with Sonicare, this sensation will diminish.

Sonicare should produce a gentle hum during operation.Tightening

the brush head nut can eliminate excessive rattling. If rattling does not

stop, you may need to replace the brush head.

Make sure you have removed your travel cap before switching the

This can be avoided by keeping the brush head properly oriented,

with the brush head placed on the gumline at an angle of 45 degrees.

The handle may need recharging.

The Easy-start feature may be on and needs to be deactivated (see

You may need to clean your brush head.

You may need to replace your brush head.

The Dual speed button may be set to reduced speed.

Clean the handle, brush head and charger thoroughly (see 'Cleaning').

Replace the brush head with a new one.

The blinking yellow LED indicates that fewer than 3 brushings remain.

Recharge your Sonicare for at least 24 hours.

This function provides additional time for brushing troublesome areas

where plaque collects and gum disease starts. It is recommended you

use the extra 30 seconds of brushing time to re-brush troublesome

areas, massage your gums, or brush your tongue (see 'Features').

The Sonicare toothbrush does not work

I feel a tickling sensation when I use Sonicare.

The brush head rattles when I use Sonicare.

The brush head chatters against my teeth.

Brushing seems less powerful.

The LED blinks yellow.What does this mean?

The appliance has an extra 30 seconds of

brushing time.What is this for?

Troubleshooting Guide

If you are unable to solve your problem by means of the troubleshooting guide below, in North

ESPAÑOL454647Printed in U.S.A.

Printed on 100% recycled paper

Protected by U.S. and international patents. Other patents pending.

© 2005 Philips Oral Healthcare, Inc. All rights reserved. PHILIPS and the Philips shield are registered

trademarks of Koninklijke Philips Electronics N.V. Quadpacer, Sonicare, Elite, and the Sonicare logo

are trademarks of Philips Oral Healthcare, Inc. and/or KPENV.

Philips Oral Healthcare, Inc.

Outside North America:
