ECO TS - Toaster IMETEC - Free user manual and instructions

Product type	Toaster
Brand	Imetec
Model	ECO TS
Reference	G3701
Power supply	220-240 V ~ 50 Hz
Power	750 W
Capacity	1 slice
Functions	Eco (energy saving) and Normal Use (quick cooking)
Timer	Yes, rotary with cooking time adjustment
End of cooking signal	Acoustic signal
Crumb tray	Removable, dishwasher safe (max 60°C)
Rack	Removable, hand wash or dishwasher safe (max 60°C)
Rack material	Steel
Cleaning of the housing	Well-wrung damp sponge
Safety	Hot surface – do not immerse – do not use near water – do not insert utensils
Use	Household use only
Warranty	Manufacturer's warranty (see enclosed leaflet)
Support	Toll-free number (see website) – www.imetec.com
Manufacturer	Tenacta Group S.p.A., Via Piemonte 5/11, 24052 Azzano S. Paolo (BG), Italy

Frequently Asked Questions - ECO TS IMETEC

How to use the Imetec ECO TS toaster?

Press the handle to open the rack, insert the slice of bread, then release the handle to close. Put the rack into the cooking compartment, plug in the appliance, select the mode (Eco or Normal Use) with the function button, then turn the timer to set the cooking time. An acoustic signal indicates the end of cooking.

What to do if the bread is not cooked enough?

The cooking time was too short. Turn the timer again to add extra cooking time, then wait for the acoustic signal before removing the rack.

Why does my toaster smoke during first uses?

This is normal: the new appliance may emit a little smoke. During first uses, wait a few minutes before inserting food.

How to clean the toaster?

Remove the rack and the crumb tray. They can be washed by hand with soap and water, or in the dishwasher at a maximum temperature of 60°C. The housing and cable are cleaned with a well-wrung damp sponge. Never immerse the appliance in water.

Can I put the rack in the dishwasher?

Yes, the rack and the crumb tray are dishwasher safe. Make sure the water temperature does not exceed 60°C.

What to do if the power cord is damaged?

The cord must be replaced by an approved technical assistance center to prevent any risk. Do not use the appliance if the cord is damaged.

Can I insert food wrapped in aluminum foil?

No, never insert food wrapped in aluminum foil into the rack. This could damage the appliance or cause a fire.

How to empty the crumb tray?

Pull the crumb tray (5) outward to remove it. Empty the crumbs, then clean it by hand or in the dishwasher. Put it back in the appliance before next use.

What is the difference between Eco and Normal Use modes?

The Eco mode limits energy consumption during cooking, ideal for toasting regular bread. The Normal Use mode speeds up the cooking process, suitable for filled bread slices or faster cooking.

Where to find spare parts for the Imetec ECO TS toaster?

For repairs and purchase of spare parts, contact the IMETEC approved support service via the toll-free number indicated on the website www.imetec.com.

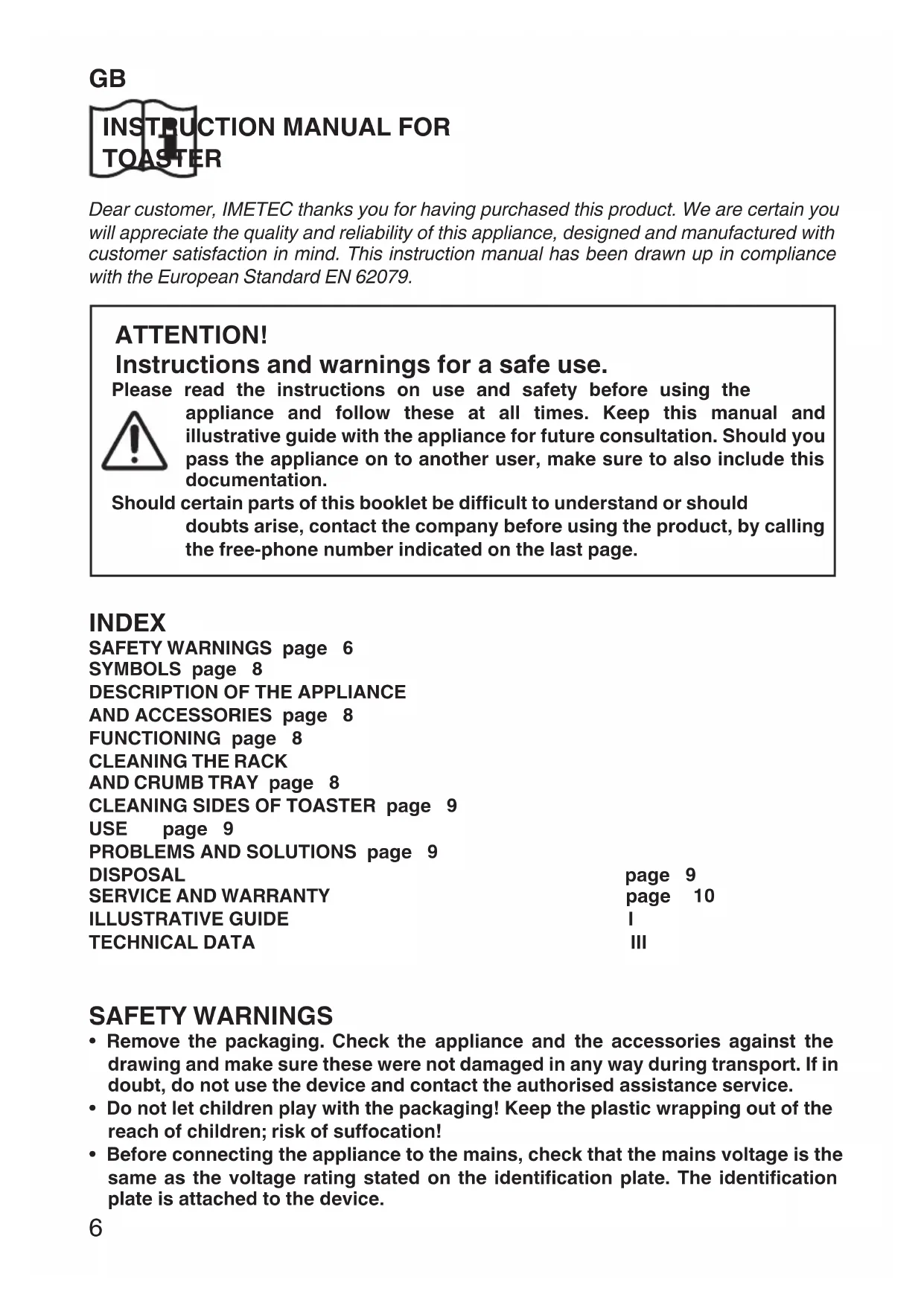

USER MANUAL ECO TS IMETEC

Instructions for use

Bedienungsanleitung

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. This instruction manual has been drawn up in compliance with the European Standard EN 62079.

ATTENTION!

Instructions and warnings for a safe use.

Please read the instructions on use and safety before using the

appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

Should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, by calling the free-phone number indicated on the last page.

INDEX

SAFETYWARNINGS page 6

SYMBOLS page 8

DESCRIPTION OF THE APPLIANCE

AND ACCESSORIES page 8

FUNCTIONING page 8

CLEANING THE RACK

AND CRUMB TRAY page 8

CLEANING SIDES OF TOASTER page 9

USE page 9

PROBLEMS AND SOLUTIONS page 9

DISPOSAL

SERVICE AND WARRANTY

ILLUSTRATIVE GUIDE

TECHNICAL DATA

page 9

page 10

1

III

SAFETYWARNINGS

• Remove the packaging. Check the appliance and the accessories against the drawing and make sure these were not damaged in any way during transport. If in doubt, do not use the device and contact the authorised assistance service.
• Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
• Before connecting the appliance to the mains, check that the mains voltage is the same as the voltage rating stated on the identification plate. The identification plate is attached to the device.

GB

• This appliance must be used only for the purpose for which it was designed, that is as a TOASTER for home use. Any other use is improper and therefore dangerous.
• This appliance may be used by children below 12 years of age, by persons with reduced physical, sensorial or mental abilities or by unskilled persons only if they have been instructed beforehand concerning its safe use and if they have been informed on the risks linked to the product. Children cannot play with the appliance. The appliance cannot be cleaned or serviced by children without adult supervision. Keep the appliance and the power cable away from the reach of children below 12 years of age when it is on or heating up.
  DO NOT use the appliance with damp or wet hands or feet.
  DO NOT pull on the power cable or appliance to unplug it from the mains socket.
  DO NOT expose the appliance to humidity or weather conditions (rain, sunlight).
  Always unplug the appliance before cleaning or maintenance and whenever you do not need to use it.
• In case of fault or malfunctioning of the appliance, switch it off tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• If the power cable is damaged, it must be replaced by an authorised technical service centre, so as to prevent all risks.
  NEVER submerge the appliance in water and never place it underneath a tap with running water.
• The appliance is not intended to be operated by an external timer, by a separate remote control system or by other similar devices.

DO NOT use the appliance near a washbasin full of water. During use, the appliance must be placed in such a way that it cannot fall into the washbasin.
DO NOT use near the kitchen hob. Be careful not to let the cable touch hot, incandescent surfaces, open flames, pans or other utensils.

GB SYMBOLS

Instruction manual

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES [Fig. A]

1. Rack
2. Cooking unit
3. Toaster sides
4. Power supply cable
5. Crumb tray
6. Timer
7. Operating knob Eco Normal use
8. Grip

FUNCTIONING

The operating knob (8) has the following positions:

SYMBOL ON PRODUCT	FUNCTION
ECO	To limit energy consumption during cooking. To toast bread and to make toast with garlic & olive oil.
NORMAL USE	To speed up the cooking process. To cook stuffed toast.

CLEANING THE RACK (1) AND CRUMB TRAY (5)

• Remove the rack (1) from the cooking unit (2) [Fig B].

• Remove the crumb tray (5) [Fig C].
  The rack (1) and crumb tray (5) can be washed:

• by hand, with water and cleanser;

• in the dishwasher; make sure that the temperature of the water does not exceed 60^ .

CLEANING SIDES OF TOASTER (3)

• Use a moist and well wrung sponge to clean the sides of the toaster (3) and the power cable (4).

USE

IMPORTANT!

Never place hands, forks or other utensils inside of the cooking unit (2) even when the appliance is off.

Do not insert food wrapped in metallic foil inside the rack (1).

• The first time you use the appliance, wait a few minutes before inserting food: when the appliance is new it could emit some smoke.

• Press the grip (8) to open the rack (1) and then insert the bread [Fig D].

• Release the grip (8) to close the rack (1) [Fig E].
• Insert the rack (1) into the cooking unit (2) [Fig F].
  Plug the power cable (4) into the socket.
• Turn the operating knob (7) to either Eco or Normal use.
• Turn the timer (6) to the desired cooking time.
• Wait for the acoustic signal to sound at the end of cooking and then take the rack out (1).

PROBLEMS AND SOLUTIONS

If the problem indicated occurs, adopt the suggested solution:

Problem Possible cause Solution
The toast is not cooked well enough.	The cooking time was too short.	Turn the timer (6) to the desired cooking time once again. Wait for the acoustic signal to sound at the end of cooking and then take the rack out (1).
The toaster emits smoke.	When the appliance is new it could emit some smoke.	The first time you use the appliance, wait a few minutes before inserting food.

DISPOSAL

The product is packaged in recyclable materials. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The recyclable materials contained in the appliance must be recovered so as to prevent environmental pollution. For further information, contact the local waste disposal facility or the appliance dealer.

GB

SERVICE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's customer assistance service by calling the free-phone number below (only in Italy) or consulting the website. The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet.

Failure to comply with the use and maintenance instructions provided in this user manual will invalidate all and any rights to the manufacturer's warranty.

IMETEC

www.imetec.com

Tenacta Group S.p.A. Via Piemonte 5/11 24052 Azzano S. Paolo (BG) ITALY

Tel. +39.035.688.111 Fax +39.035.320.149

110(MMYY

M100639

Tel. +39.035.688.111 Fax +39.035.320.149

110 (MMYY)

69000IN
