Product Type	Pedestal for front-loading washer and dryer
Brand	Whirlpool
Model	WHP1000S
Use	For front-loading washers and dryers only
Dimensions (W × D × H)	68.6 × 60.3 × 25.4 cm (27 × 23.75 × 10 in)
Weight	Approximately 15 kg
Material	Steel
Color	White
Power	None (non-electric pedestal)
Storage drawer	Yes, built-in drawer
Adjustable legs	Yes, four legs with lock nuts
Anti-vibration pads	Yes, included
Installation level	Required to ensure stability
Required tools	Utility knife, 1/4" ratchet wrench, 9/16" open-end wrench, level, pliers, bucket
Included parts	4 hex-head sheet metal screws #12 x 5/8", installation instructions
Maintenance	Clean with a damp cloth and mild detergent
Safety	Follow warnings regarding flammable materials and minimum garage height (46 cm above floor)
Warranty	1 year (per Whirlpool or Kenmore terms)
Additional height	10 in (25.4 cm) to raise the appliance
Compatibility	Fits Whirlpool and Kenmore front-loading washers and dryers (check dimensions)

Frequently Asked Questions - WHP1000S - INSTALLATION PEDESTRAL WHIRLPOOL

How to install the WHP1000S pedestal?

Installation requires first uninstalling the washer or dryer if already in place. Follow the steps in the manual: lay the appliance on its back, attach the screws to the bottom, engage the pedestal onto the lower screws, then tighten the remaining screws. Use a level to adjust the legs and tighten the lock nuts.

Is this pedestal compatible with my top-loading washer?

No, the WHP1000S pedestal is designed only for front-loading washers and dryers. It does not fit top-loading appliances.

What is the height of the pedestal?

The pedestal measures 10 inches (25.4 cm) in height. It raises the appliance by that height.

How to level the washer/dryer on the pedestal?

Place a level on top of the appliance. Inside the pedestal, use a 1/4" ratchet wrench to turn the hex section of each foot, then tighten the lock nuts with a 9/16" open-end wrench.

Can I install the pedestal in a garage?

Yes, but if the unit is in a garage, the dryer must be at least 46 cm (18 in) above the floor. Since the pedestal is 25.4 cm, add a 20.3 cm (8 in) riser under the pedestal to meet this safety requirement.

What maximum weight does the pedestal support?

The manual does not specify a specific weight limit, but it is designed to support standard household front-loading washers and dryers. Make sure the feet are in full contact with the floor.

Does the pedestal have a storage drawer?

Yes, the WHP1000S pedestal is equipped with a convenient storage drawer for laundry products or accessories.

How to clean the pedestal?

Use a damp cloth with mild detergent. Avoid abrasive products that could scratch the surface. Dry with a clean cloth.

What to do if the pedestal vibrates or moves?

Check that all four feet are in firm contact with the floor and that the unit is well leveled. Retighten the lock nuts. Make sure the anti-vibration pads are in place on top of the pedestal.

What is the warranty of the WHP1000S pedestal?

The warranty is one year from the date of purchase, covering defects in materials and workmanship. Keep your receipt. For Sears appliances, the Kenmore warranty applies; for others, the Whirlpool warranty.

USER MANUAL WHP1000S - INSTALLATION PEDESTRAL WHIRLPOOL

INSTALLATION INSTRUCTIONS PEDESTAL

For use only with front load washer and dryers

Tools and Parts .....2

INSTALLATION INSTRUCTIONS .....3

Before Installing Pedestal .....3

Installing the Pedestal .....4

Complete Installation .....4

KENMORE LAUNDRY WARRANTY .....6

WHIRLPOOL LAUNDRY WARRANTY ....7

ÍNDICE

SEGURIDAD DEL PEDESTAL .....8

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18 inches (46 cm) above the floor for a garage installation.

Failure do to so can result in death, explosion, or fire.

Tools and Parts

Gather the required tools and parts before starting installation.

Tools needed

■ utility knife
■ 14 " hex head ratchet or open-end wrench
level
■ 9/16" open-end wrench
■ pliers or slip-joint pliers
bucket

Parts supplied

■ four #12 x 5/8" hex head sheet metal screws (in parts bag)
■ Installation Instructions

INSTALLATION INSTRUCTIONS

Before Installing Pedestal

IMPORTANT: If your washer and dryer are already installed, they must be uninstalled.

If you need to uninstall your washer or dryer, see the installation instructions that came with your model for tools required.

Uninstalling your washer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall washer.

Failure to do so can result in back or other injury.

NOTE: If the washer is to be transported, call your local service center. To prevent suspension and structural damage, your machine must be properly set up for relocation by a certified technician.

1. Turn off the hot and cold water faucets.
2. Unplug the power supply cord.
3. Slowly loosen the fill hoses at the faucets to relieve the water pressure. Use a sponge or towel to absorb the released water.
4. Remove the "HOT" and "COLD" fill hoses from the back of the washer. Drain the water from the hoses into a bucket.
5. Squeeze the ears of the drain hose clamp with pliers to open and slide the clamp down the hose. Disconnect the drain hose from the washer and drain any water in the hose into a bucket.
6. Pull the washer away from wall so it can be tipped on its back.

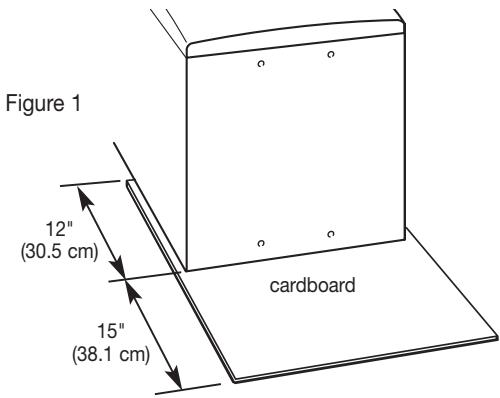

7. Protect the floor with a large piece of cardboard cut from the pedestal carton. Lay the washer on its back (make sure that the power supply cord is not under the washer) so that the cardboard is under the entire lower back edge of the washer.

An additional small amount of water will drain out of the washer when it is tipped back. Go to “Installing the Pedestal” section.

Uninstalling your electric dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord.
2. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
3. Pull the dryer away from wall so that it can be tipped on its back.
4. Protect the floor with a large piece of cardboard cut from the pedestal carton. Lay the dryer on its back (make sure that the power supply cord is not under the dryer) so that the cardboard is under the entire lower back edge of the dryer (see Figure 1). Go to “Installing the Pedestal” section.

Uninstalling your gas dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
4. Disconnect the flexible gas supply line from the dryer. Put a piece of tape over the open ends of the gas line connection fittings.
5. Pull the dryer away from wall so that it can be tipped on its back.
6. Protect the floor with a large piece of cardboard cut from the pedestal carton. Lay the dryer on its back (make sure that the power supply cord is not under the dryer) so that the cardboard is under the entire lower back edge of the dryer (see Figure 1). Go to “Installing the Pedestal” section.

WARNING

Excessive Weight Hazard

Use two or more people to move washer or dryer.

Failure to do so can result in back or other injury.

1. Position the packaged washer/dryer close to its final position. Cut the packaging as follows:

Washer: Cut plastic film along dotted cut line around the base. Do not remove the packaging.

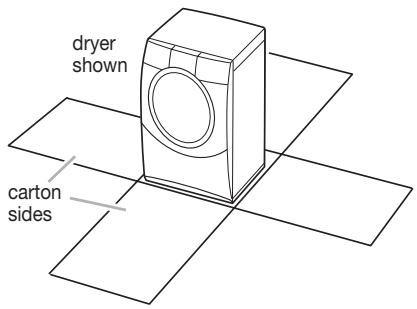

Dryer: Cut carton around top and down corners along dotted cut lines. Lay all four carton sides on floor. Discard carton top and corner posts.

IMPORTANT: Leave carton bottom underneath dryer.

1. Lay washer/dryer on its back.

NOTE: When laying the washer on its back, hold the bottom cap down on the floor. Do not remove the plastic film, corner posts or top cap. These protect the floor and washer back.

When laying the dryer on its back, the floor and dryer back are protected by cartoning.

Installing the Pedestal

Follow these instructions to install the pedestal on a washer or dryer.

WARNING

Excessive Weight Hazard

Use two or more people to move and install pedestal.

Failure to do so can result in back or other injury.

The parts bag contains four #12 x 5/8" hex head sheet metal screws used in step 3, and the Installation Instructions.

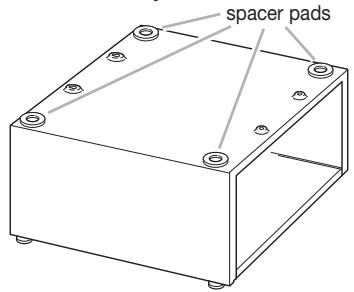

1. Make sure that all four spacer pads are in place on the top of the pedestal. These pads reduce vibration between the pedestal and the washer/dryer.

1. If your washer/dryer has feet installed, remove them. Do not install the feet that came with a new washer/dryer.
2. Partially install the two #12 x 58 " hex head sheet metal screws in the lower holes. Leave a space of about 38 " (1 cm) between the screw head and the bottom of the washer/dryer.

washer bottom

Pure technical diagram of a mechanical component with no text, numbers, or symbols

install screws

dryer bottom

Pure technical diagram of a mechanical component with no text, numbers, or symbols

install screws

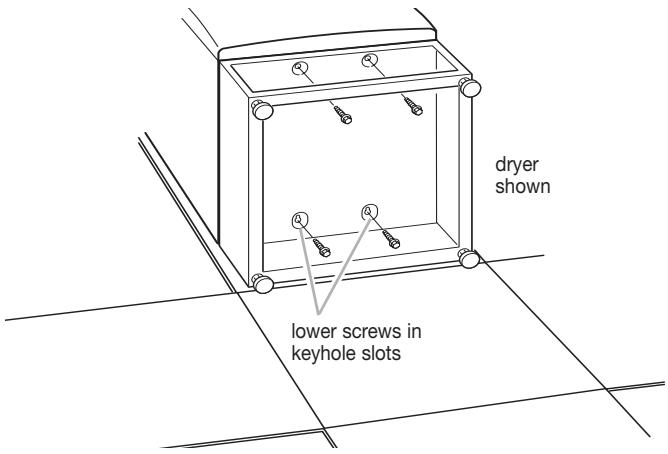

1. Move the pedestal against the washer/dryer bottom. Slide the pedestal's keyhole slots over the lower two partially installed screws.
2. Position the pedestal toward the front of the washer/dryer and install the two remaining hex head sheet metal screws. Do not tighten completely.
3. Align the sides of the pedestal so that they are even with the sides of the washer/dryer. Reach inside pedestal opening and securely tighten all four pedestal screws.

1. Tip the washer/dryer back to its upright position. Remove and discard packaging including the washer's plastic film, corner posts and top cap.

Complete installation

1. Slide the washer/dryer close to its final location.
2. Follow the installation instructions that came with your model to finish installing or reinstalling your washer/dryer (i.e., hoses, vents, etc.).
3. Level the washer/dryer from side to side and front to back.

NOTE: Make sure all four pedestal feet are in solid contact with the floor.

Place a level on the top. Locate the 14 " hex head screws on the top of each pedestal foot. Reach inside the pedestal and use a 14 " hex head ratchet or open-end wrench to adjust the feet up or down as needed to level the washer/dryer.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

1. When the washer/dryer is level, use a 116 " open-end wrench to securely tighten all four locknuts against the pedestal. The locknuts must be tightened to prevent vibration.

1. Align front panel with pedestal and snap in place.

For washer/dryer models that are 38" (96.5 cm) high, the wide edge should be placed on top.

For washer/dryer models that are 36" (91.4 cm) high, the wide edge should be placed on bottom.

LAUNDRY PRODUCT WARRANTY

Before you call for Service

If this laundry product was purchased at Sears, the Kenmore ^® Laundry Product Warranty" applies (see following).

If this laundry product was purchased elsewhere, the “Whirlpool Corporation Laundry Product Warranty” applies (see following). Please have your sales receipt available when you call Whirlpool Corporation for service under the “Whirlpool Corporation Laundry Product Warranty.”

KENMORE® LAUNDRY PRODUCT WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this laundry product fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME to arrange for free repair. If this laundry product is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this laundry product is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your laundry product.

Model number

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

WHIRLPOOL CORPORATION LAUNDRY PRODUCT WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this product is operated and maintained according to instructions attached to or furnished with the product, Whirlpool or Whirlpool Canada (hereafter “Whirlpool”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your product, to instruct you how to use your product, to replace or repair house fuses or to correct house wiring or plumbing.
2. Repairs when your product is used for other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. This product is designed to be repaired in the home.
6. Repairs to parts or systems resulting from unauthorized modifications made to the product.
7. Expenses for travel and transportation for product service in remote locations.
8. The removal and reinstallation of your product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, in the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 6/06

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major product to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name
Address
Phone number
Model number
Serial number
Purchase date

SEGURIDAD DEL PEDESTAL

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

instalar tornillos

Pure technical diagram of a mechanical component with no text, numbers, or symbols

instalar tornillos

Line drawing of a hand holding a tool, next to a vertical line (no text or symbols)

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

REGISTRO DEL PRODUCTO

Line drawing of a hand holding a small object, next to a vertical line (no text or symbols)

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

ENREGISTREMENT DU PRODUIT

GARANTIE DES APPAREILS DE BUANDERIE WHIRLPOOL CORPORATION

GARANTIE LIMITÉE DE UN AN

KENMORE, KENMORE ELITE, are trademarks of Sears, Roebuck and Co.

WHIRLPOOL, is a trademark of Whirlpool, U.S.A.

©2006 Whirlpool Corporation. All rights reserved.

KENMORE, KENMORE ELITE, son marcas de comercio de Sears, Roebuck and Co.

WHIRLPOOL, son marcas de comercio de Whirlpool, U.S.A.
