USER MANUAL BAAN 33 NF S INDESIT

involontaria (black out).

Positioning and connection

Description of the appliance, 13-14

Start-up and use, 15-16

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 17

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Replacing the light bulb

Precautions and tips, 18

Respecting and conserving the environment

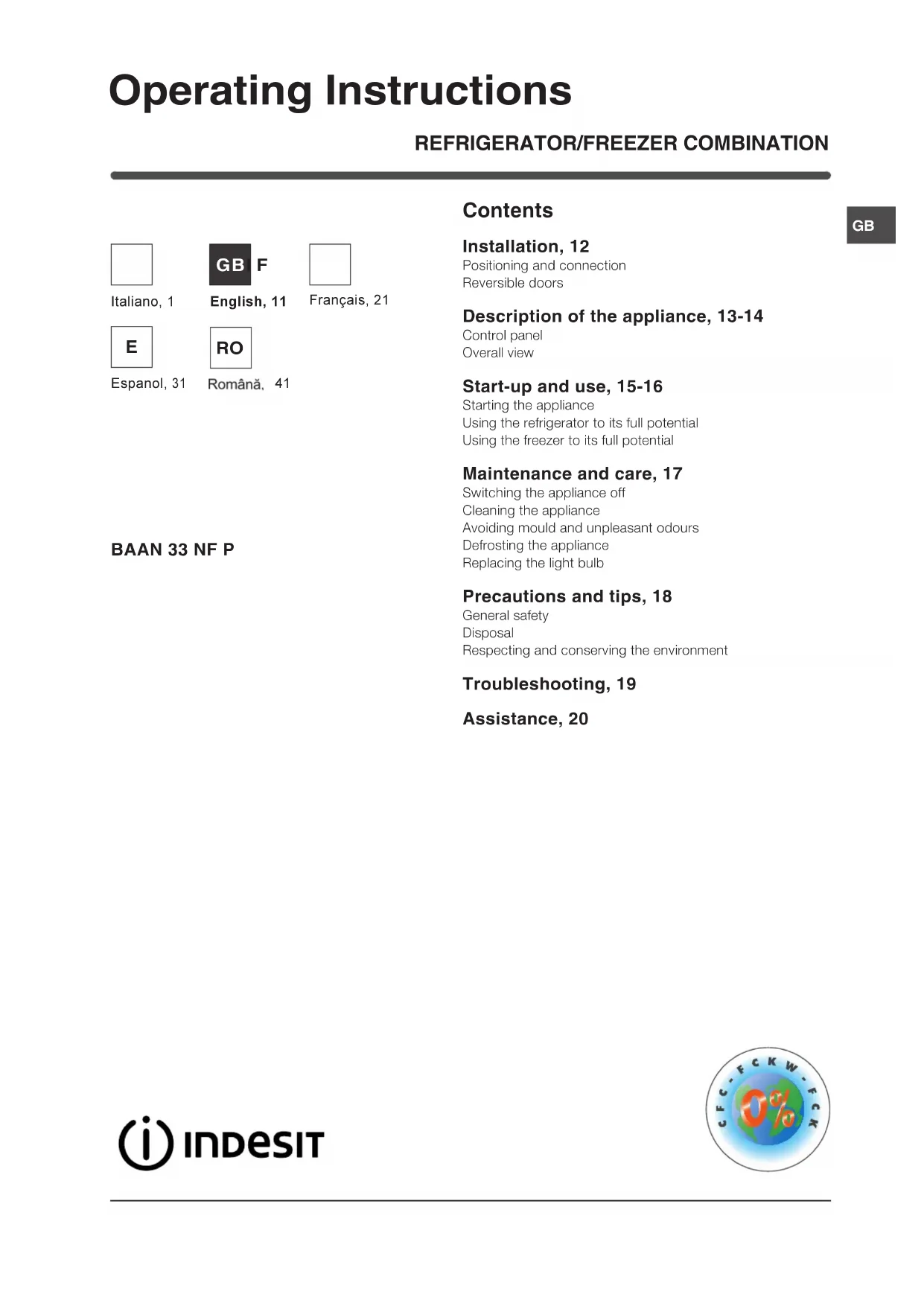

Operating Instructions

! Before placing your new appliance into operation please

read these operating instructions carefully. They contain

important information for safe use, for installation and for care

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

Positioning and connection

1. Place the appliance in a well-ventilated humidity-free room.

2. Do not obstruct the rear fan grills. The compressor and

condenser give off heat and require good ventilation to

operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of

the appliance and any furniture above it, and at least 5 cm

between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of heat

(direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the

appliance and the wall behind it, fit the spacers supplied in

the installation kit, following the instructions provided.

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the refrigerator

by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it

vertically and wait at least 3 hours before connecting it to the

electricity mains. Before inserting the plug into the electrical

socket ensure the following:

 The appliance is earthed and the plug is compliant with the

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate located on

the bottom left side of the fridge (e.g. 150 W).

 The voltage must be in the range between the values

indicated on the data plate located on the bottom left side

 The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an

authorised technician to replace it (see Assistance). Do not

use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

The manufacturer declines any liability should these

safety measures not be observed.

FREEZER OPERATION Knob

 SUPER COOL (quick cool) to lower the temperature of

the refrigerator compartment rapidly. When it is pressed,

the SUPER COOL indicator light illuminates (see Start-up

 REFRIGERATOR OPERATION Knob

to regulate the temperature of the refrigerator

ECO is the optimal temperature for energy saving levels.

HOLIDAY is the holiday function (see Maintenance and

switches the refrigerator compartment off.

 SUPER COOL Yellow indicator light (rapid cooling)

illuminates when the SUPER COOL button is pressed.

 POWER Indicator light illuminates when the appliance is

connected to the electricity network.

 SUPER FREEZE Yellow indicator light (rapid freezing)

illuminates when the SUPER FREEZE button is

 FREEZER OPERATION Knob

to regulate the temperature of the freezer compartment:

ECO is the optimal temperature for energy saving levels.

switches the appliance off, including the refrigerator.

 SUPER FREEZE button (rapid freezing) to freeze fresh food.

When it is pressed, the SUPER FREEZE indicator light

illuminates (see Start-up and use).

! The indicator lights are also used to indicate an unusual

temperature increase in the freezer compartment (see

GB Description of the

Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directlyrepresent the appliance purchased. For more complex features, consult the following pages.  Varies by number and/or position.

* Available only on certain models. Levelling FEETRemovable liddedshelf with EGG TRAYRemovablemultipurposeSHELVESBOTTLE shelf Ice 3 ice tray SHELVES Ice

3 ice trayFREEZER andSTORAGEcompartmentSTORAGEcompartment LAMP (see Maintenance)FRUIT andVEGETABLE

Starting the appliance ! Before starting the appliance, follow the installationinstructions (see Installation).! Before connecting the appliance, clean thecompartments and accessories well with lukewarm waterand bicarbonate.! The appliance comes with a motor protection controlsystem which makes the compressor start approximately 8minutes after being switched on. The compressor alsostarts each time the power supply is cut off whethervoluntarily or involuntarily (blackout).1. Set the FREEZER OPERATION knob on . 2. Insert the plug into the socket and ensure that the greenPOWER indicator light illuminates.3. Turn the FREEZER OPERATION knob to an averagevalue and press the SUPER FREEZE button (rapidfreezing): the SUPER FREEZE indicator light willilluminate. Once the refrigerator has reached the optimaltemperature, the indicator light goes out and you canbegin food storage.4. Turn the REFRIGERATOR OPERATION knob to anaverage value. After a few hours you will be able to putfood in the refrigerator. Using the refrigerator to its full potential No FrostIt is recognisable byaeration cells located on theback walls of thecompartments.The No Frost systemcirculates cold aircontinuously to collecthumidity and prevent iceand frost formation. Thesystem maintains anoptimal humidity level in thecompartment, preservingthe original quality of the food, preventing the food fromsticking together and making defrosting a thing of the past.Do not block the aeration cells by placing food orcontainers in direct contact with the refrigerating backpanel. Close bottles and wrap food tightly. Use the REFRIGERATOR OPERATION knob to adjust thetemperature (see Description). Press the SUPER COOL button (rapid cooling) to lowerthe temperature quickly. For example, when you place alarge number of new food items inside a fridge theinternal temperature will rise slightly. The function quicklycools the groceries by temporarily reducing thetemperature until it reaches the ideal level. Place only cold or lukewarm foods in the compartment, nothot foods (see Precautions and tips). Remember that cooked foods do not last longer thanraw foods. Do not store liquids in open containers. They will increasehumidity in the refrigerator and cause condensation toform.SHELVES: with or without grill.Due to the special guides theshelves are removable and theheight is adjustable (see diagram),allowing easy storage of largecontainers and food. Height canbe adjusted without completeremoval of the shelf.PLAY ZONE * : Thanks to the new Play Zone bottle rack,you can cool several bottles, cans and energy drinksquickly to have them constantly at hand.If the Play Zone is placed on the glass shelf, you can storelarge and medium sized bottles on it simply by laying thebottle on the flat rack.

This is ideal for storing wine bottles.When folded and secured in place on either side of the shelf,the rack can be used to store cans (at the top), energy drinks(in the centre) and other cans and energy drinks can berested horizontally on the remaining part of the shelf.

When placing cans (onto the Play zone rack), make sure they donot touch the back of the refrigerator interior.The Play Zone can be used just like a normal shelf (whenplaced flat) and moved up or down along the fridge wallstogether with the rest of the shelf. It can be washed easily,and is also dishwasher safe. The ideal position for the Playzone rack is the central shelf. 1

* Available only on certain models.16

GB Using the freezer to its full potential

 Use the FREEZER OPERATION knob to adjust the

temperature (see Description).

 Do not re-freeze food that is defrosting or that has already

been defrosted. These foods must be cooked and eaten

 Fresh food that needs to be frozen must not come into

contact with food that has already been defrosted. Fresh

food must be stored in the top FREEZER and STORAGE

compartment where the temperature drops below -18°C

and guarantees rapid freezing.

 Do not place glass bottles which contain liquids, and which

are corked or hermetically sealed in the freezer because

 The maximum quantity of food that may be frozen daily is

indicated on the plate containing the technical properties

located on the bottom left side of the refrigerator

compartment (for example: Kg/24h: 4).

 To freeze (if the freezer is already operating):

press the rapid freezing SUPER FREEZE button

(corresponding yellow indicator light illuminates), insert the

food and close the door. The function is disabled

automatically after 24 hours or when optimal temperatures

have been reached (indicator light goes out);

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the

freezer door. This will help maintain the temperature inside

the freezer, ensuring that foods are conserved for at least 9 -

to avoid blocking the air circulation inside the freezer

compartment, it is advisable not to obstruct the ventilation

holes with food or containers.

WATER LEVEL MAX WATER LEVEL MAX WATER LEVEL MAX Ice

The fact that they are situated on the top part of the freezer

drawers ensures greater cleanliness: the ice no longer

comes into contact with the food placed inside the freezer

compartment; furthermore, the dripping of the water during

filling is avoided (a lid to cover up the hole after filling with

water is also provided).

1. Pull out the tray by pushing it up.

Check that the tray is ompletely empty and fill it with

water through the opening provided.

2. Take care not to exceed the level indicated (MAX WATER LEVEL). Excess water prevents the ice cubes

from dispensing (if this happens, wait for the ice to melt

and empty the tray).

3. Turn the tray 90°: due to the connected compartments

each mould fills with water (see diagram).

4. Close the opening with the lid provided and put the tray

5. When the ice has formed (minimum time approximately

8 hours) knock the tray against a hard surface and wet

the outside so that the ice cubes come loose and take

them out through the opening.GB

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to

disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on

2. pull the plug out of the socket

! If this procedure is not followed, the alarm may sound.

This alarm does not indicate a malfunction. To restore

normal operation, it is sufficient to set the FREEZER OPERATION knob on the desired value. To disconnect the

appliance, follow point 1 and 2.

Cleaning the appliance

 The external and internal parts, as well as the rubber

seals may be cleaned using a sponge that has been

soaked in lukewarm water and bicarbonate of soda or

neutral soap. Do not use solvents, abrasive products,

 The removable accessories may be soaked in warm

water and soap or dishwashing liquid. Rinse and dry

 The back of the appliance may collect dust which can

be removed by delicately using the hose of a vacuum

cleaner set on medium power. The appliance must be

switched off and the plug must be pulled out before

cleaning the appliance.

Avoiding mould and unpleasant odours

 The appliance is manufactured with hygienic materials

which are odour free. In order to maintain an odour free

refrigerator and to prevent the formation of stains, food

must always be covered or sealed properly.

 If you want to switch the appliance off for an extended

period of time, clean the inside and leave the doors

To minimise energy usage when on holiday, it is not

necessary to switch the appliance off. The appliance has a

function which allows it to maintain the temperature of the

refrigerator compartment at approximately 15°C (which can

also be used to conserve make-up and beauty products).

The freezer temperature must be set to the minimum value

in order to preserve the food.

To enable the function:

set the REFRIGERATOR OPERATION knob on

HOLIDAY (see diagram).

A double acoustic signal

informs you when it has

been enabled. A single

acoustic signal informs you

when it has been disabled.

Replacing the light bulb

To replace the light bulb in the refrigerator compartment,

pull out the plug from the electrical socket. Follow the

Access the light bulb by removing the cover as indicated in

Replace it with a similar light bulb within the power range

indicated on the cover (15W or 25W).18

GB Precautions and tips

 Observe local environmental standards when disposing

packaging material for recycling purposes.

 The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE), requires that old

household electrical appliances must not be disposed of

in the normal unsorted municipal waste stream. Old

appliances must be collected separately in order to

optimise the recovery and recycling of the materials they

contain and reduce the impact on human health and the

environment. The crossed out wheeled bin symbol on

the product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their

Respecting and conserving the

 Install the appliance in a fresh and well-ventilated room.

Ensure that it is protected from direct sunlight and do

not place it near heat sources.

 Try to avoid keeping the door open for long periods or

opening the door too frequently in order to conserve

 Do not fill the appliance with too much food:

cold air must circulate freely for food to be preserved

properly. If circulation is impeded, the compressor will

 Do not place hot food directly into the refrigerator. The

internal temperature will increase and force the

compressor to work harder and will consume more

 Defrost the appliance if ice forms (see Maintenance). A

thick layer of ice makes cold transference to food

products more difficult and results in increased energy

 Regularly check the door seals and wipe clean to ensure

they are free of debris and to prevent cold air from

escaping (see Maintenance).

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons and

must be read carefully.

This appliance complies with the following

Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and

subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments.

 The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

 The appliance must be used to store and freeze food

products by adults only and according to the instructions

 The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

 Do not touch the appliance with bare feet or with wet or

moist hands and feet.

 Do not touch the internal cooling elements:

this could cause skin abrasions or frost/freezer burns.

 When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.

 Before cleaning and maintenance, always switch off the

appliance and disconnect it from the electrical supply. It is

not sufficient to set the temperature adjustment knobs on

(appliance off) to eliminate all electrical contact.

 In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause

injury or further malfunctioning of the appliance.

 Do not use any sharp or pointed utensils or electrical

equipment - other than the type recommended by the

manufacturer - inside the frozen food storage

 Do not put ice cubes taken directly from the freezer into

 Do not allow children to tamper with the controls or play

with the appliance. Under no circumstance should they be

allowed to sit on the bins or to hang from the door.

 Keep packaging material out of the reach of children! It can

become a choking or suffocation hazard.GB

The green POWER indicator light does

The motor does not start.

The indicator lights are on but the light

a) The alarm sounds.

b) The alarm sounds and the two

yellow indicator lights flash.

c) The alarm sounds and the two

yellow indicator lights as well as the

The green POWER indicator light

The refrigerator and the freezer do not

The food inside the refrigerator is

beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

Some of the external parts of the

refrigerator become hot

Possible causes / Solutions:

 The plug has not been inserted into the electrical socket, or not far enough

to make contact, or there is no power in the house.

 The appliance comes with a motor protection control (see Start-up and use).

 Pull out and reverse the plug before putting it back in the socket.

a) The refrigerator door has remained open for more than two minutes (the

buzzer will stop sounding when you shut the door) or the correct

switching-off procedure was not followed (see Maintenance).

b) The temperature in the freezer is too high. Check the quality of the food

products and dispose if necessary.

c) The temperature in the freezer has reached a dangerous level. The food

must be disposed immediately.

b/c) In the first case the freezer will maintain a temperature of about 0°C so

that the food does not re-freeze. In the second case, however, the

temperature will remain at approximately -18°C.

To turn off the acoustic signal open and close the refrigerator door. To

restore normal operation bring the FREEZER OPERATION knob setting

(off) and turn the appliance on again.

 The appliance is not operating correctly. Contact the Technical Assistance

 The doors do not close properly or the seals are damaged.

 The doors are opened too frequently.

 The OPERATION knobs are not on the correct setting (see Description).

 The refrigerator or the freezer have been over-filled.

 The REFRIGERATOR OPERATION knob is not on the correct setting (see

 The food is in contact with the back inside wall of the refrigerator.

 The SUPER FREEZE button has been pressed (rapid freezing): the yellow

SUPER FREEZE light is on (see Description).

 The door is not closed properly or is continuously opened.

 The outside ambient temperature is very high.

 The appliance has not been installed on a level surface (see Installation).

 The appliance has been installed between cabinets that vibrate and make

 The internal refrigerant makes a slight noise even when the compressor is

off. This is not a defect, it is normal.

 Temperaturile ridicate sunt necesare pentru a evita formarea apei de

Before calling for Assistance:

 Check if the malfunction can be solved on your own (see Troubleshooting).

 If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service

 type of malfunction

 appliance model (Mod.)

 serial number (S/N)

This information can be found on the data plate

located on the bottom left side of the

refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

 RAFTRecipient gheaþã Ice

WATER LEVEL MAX WATER LEVEL MAX WATER LEVEL MAX Recipientul de gheaþã Ice3.
