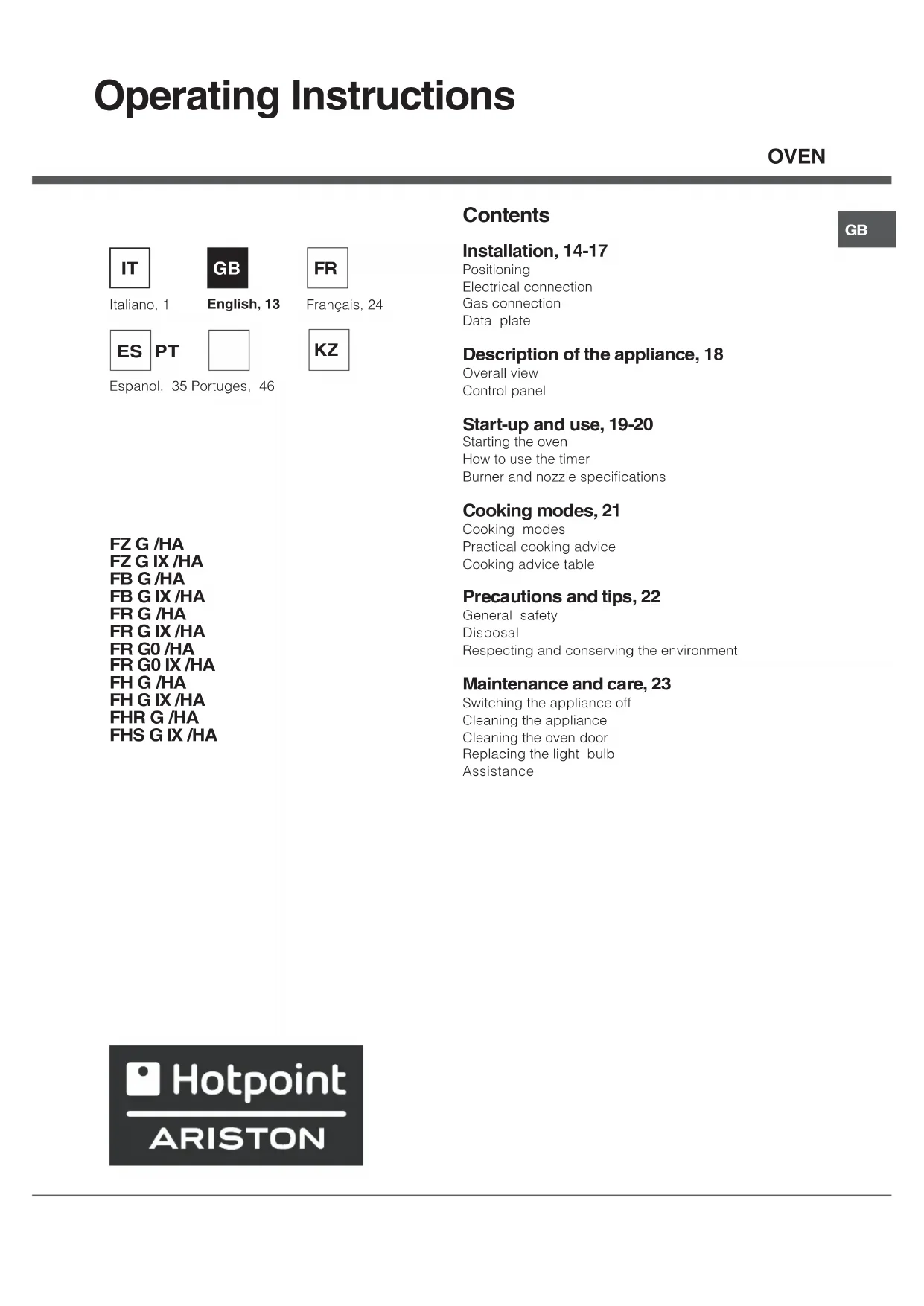

USER MANUAL FHR G (AN)HA HOTPOINT-ARISTON

Before operating your new appliance please read this instruction manual carefully. It contains important information for safe use, installation and care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips). The appliance must be installed by a qualified person according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. This appliance should only be installed and used in permanently ventilated rooms in compliance with current National regulations. The following requirements must be observed: The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on. The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air needed for combustion must not be less than 2 m

/h per kW of installed power. The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm

; the opening must not be vulnerable to any type of blockages. The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard. Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is a good idea to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc. ) which could raise the temperature of the cylinder above 50°C. Fitting the appliance Use a suitable kitchen unit to ensure that the appliance functions properly. The panels adjacent to the oven must be made from heat-resistant material. Cabinets with a veneer exterior must be assembled with a glue that can withstand temperatures of up to 100°C. To install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions: The appliance must not come into contact with electrical parts once it has been installed. The figures indicated on the data plate have been calculated for this type of installation. Installation In a chimney stack or branched flue. (exclusively for cooking appliances)Directly to the Outside Examples of ventilation holesfor comburant air. Examples of ventilation holesfor comburant air. 595 mm. 595 m

Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams). Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: 20 mm thick: take off the removable part of the tab (see diagram). 18 mm thick: use the first groove, which has already been set in the factory (see diagram). 16 mm thick: use the second groove (see diagram). Secure the appliance to the cabinet by opening the oven door and fastening 4 screws into the 4 holes of the outer frame. All parts ensuring the safe operation of the appliance must not be removable without the aid of a tool. Electrical connections Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable

1. Open the terminal board by

inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

2. Loosen the cable clamp

screw and remove it, using a screwdriver as a lever (see figure).

3. Remove the wire contact

screws L-N- , then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde (

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see adjacent box). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit- breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that: the appliance is earthed and the plug is compliant with the law. the socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below). the voltage is in the range between the values indicated on the data plate (see below). the socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorised technicians only (see Assistance). The manufacturer declines any liability should these safety measures not be observed. Gas connection The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current National regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph Adapting to different types of gas. When using liquid gas from a cylinder, install a pressure regulator that complies with current National regulations. Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (Burner and nozzle specifications) since this will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption. Should you need to install a gas hob on top of a built-in gas oven, it is strictly forbidden to connect the two or to use a single cut-off tap. The two appliances should be connected separately, and each one should have its own stop tap in order to make them completely independent from one another (see figures). Connection with a rigid pipe (copper or steel) Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (the seal is provided with the appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. Connecting a flexible jointless stainless steel pipe to a threaded attachment The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed. Only use pipes and seals that comply with current National regulations. Checking the tightness of the connection When installation has been completed, check the pipe fittings for leaks using a soapy solution. Never use a flame. Adapting to different types of ga s In order to adapt the oven to a type of gas other than the type for which it was manufactured (indicated on the label), follow these simple steps: Replacing the oven burner nozzle

1. Open the oven door fully.

4. Remove screw V and

then the oven burner.

5. Unscrew the oven burner

nozzle using the special socket spanner for the nozzles, or better still a 7 mm socket spanner, and replace it with a nozzle suited to the new type of gas (see Table 1).

6. Replace all the parts, following the steps

described above in the reverse order. Take particular care when handling the spark plug wires and the thermocouple pipes. Primary air regulation for the oven burner The burner was designed not to need any adjustments to the primary air. Setting the oven burner to minimum

1. Turn the knob first to the Max setting for about 10

minutes and then to Min.

3. Remove the disk fastened to the control panel.

4. Adjust the screw located outside the thermostat

cock pin until the flame is small but stead y (the flame can be seen through the slots on the oven bottom).

5. Make sure the burner does not switch off when

you turn the knob from Max to Min quickly, or when you open and close the oven door quickly. If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. This sticker is available from any of our Service Centres. If the gas pressure is different from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe in accordance with current National Regulations.

DATA PLATE Dimensions width 43.5 cm height 31 cm depth 43.5 cm Volume 58 l Electrical connections see data plate Gas features see data plate This appliance conforms to the following European Economic

ommunity directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic compatibility) and subsequ ent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. 90/336/EEC dated

29.06.90 (Gas) and subsequent

amendments. 2002/96/EC and subsequent amendments.18

The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process. Starting the oven This knob is used not only to select the different oven modes, but also to choose the right cooking temperature for various foods from among the temperatures shown on the knob itself (the range is from 140°C to 240°C inclusive). The electronic ignition device of the oven is built into the control knob. To light the oven burner, press the OVEN knob in as far as possible and turn it anti-clockwise, setting it to position (keeping the oven door shut). The oven is equipped with a safety device. After lighting the burner allow the gas to circulate until the safety thermocouple is heated by keeping the OVEN knob pressed in for about 6 seconds. The electronic ignition device of the oven burner must not be activated for more than 15 seconds. If the burner fails to light after 15 seconds, stop pressing the OVEN knob, open the oven door and wait for at least one minute before you try to light the burner again. The cooking temperature is selected by matching the desired temperature with the reference mark on the control panel; the complete range of temperatures is shown below: Min 150 180 220 Max The oven will automatically reach the temperature set, and the thermostat, which is controlled by the knob, will keep the temperature constant. Switching the oven on manually In the event of a power failure, the oven burner can be lit manually:

1. Open the oven door.

lighter near the burner hole as shown in the figure, press knob F (see figure) in fully and turn it anticlockwise, setting it to the Max position. The oven is equipped with a safety device. After lighting the burner allow the gas to circulate until the safety thermocouple is heated by keeping the OVEN knob pressed in for about 6 seconds.

3. Once the burner is lit, shut the oven door.

If the burner flame is accidentally extinguished, turn the OVEN control knob to the off position, open the oven door and wait for at least one minute before trying to light the burner again. The GRILL knob Your oven is equipped with an electric grill. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high surface temperature: beef steaks, veal, rib steak, fillets, hamburgers etc... Some examples of how the grill may be used are included in the Practical Cooking Advice section. When using the grill, the oven door must be kept shut. Never put objects directly on the bottom of the oven - this could result in damage to the enamel coating. Always place cookware on the rack(s) provided. Start-up and use F20

Cooling ventilation In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows air out between the control panel and the oven door. Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently. Turnspit (only available in certain models) To operate the rotisserie (see diagram) proceed as follows:

1. Place the dripping

support in position 3 and insert the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie using the knob to select

Oven light This is switched on by pressing the LIGHT button. How to use the timer

1. To set the buzzer, turn the TIMER knob

clockwise almost one complete revolution.

2. Turn the knob anticlockwise to set the desired

time: align the minutes shown on the knob with the indicator on the control panel.

3. The timer operates in minutes: when the selected

time has elapsed, a buzzer will sound. The timer does not switch the oven on or off. Burner and Nozzle specifications Table 1 Liquid gas Natural gas Burner Thermal Power kW (gross heat value)* By-pass 1/100 Nozzle 1/100 Flow* g/h Nozzle 1/100 Flow* l/h Nominal Reduced (mm)

Cooking modes GRILL mode The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high surface temperature: beef steaks, veal, rib steak, fillets, hamburgers etc... Always cook in this mode with the oven door closed. Practical cooking advice In the GRILL cooking mode, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). Cooking modes GRILL Place the grill in position 3 or 4, making sure that the food is in the centre of the grill. We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time). If the pizza has a lot of toppings, we recommend adding the mozzarella cheese to the top of the pizza halfway through the cooking process. Cooking advice table Selector knob settingFood to be cooked Weight(in kg)Cooking rack positionfrom ovenbottomPreheating time(minutes)Thermostat knob settingCooking time (minutes) Oven LasagneCannelloniPasta bakes Veal ChickenTur k ey r o ll Duck RabbitPork loinLeg of lambMackerelsDentexTrout baked in foilNeapolitan-style pizzaDry biscuitsTar tChocolate cakeLeavened cakes 2,5 2,5 2,2 1,7 1,5 2,5 1,8 2,0 1,5 1,8 1,3 1,5 1,0 0,6 0,5 1,1 1,0 1,0

80-9080-9080-90 Cooking times are approximate and may vary according to personal taste. When cooking using the grill, thedripping pan must always be placed on the 1st oven rack from the bottom.22

Precautions and tips This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety This is a class 3 built-in appliance. Gas appliances require regular air exchange t o maintain efficient operation. When installing t

cooker, follow the instructions provided in the paragraph on Positioning the appliance. The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. When moving or positioning the appliance, always use the handles provided on the sides of the oven. Do not touch the appliance with bare feet or with wet or damp hands and feet. The appliance must be used by adults only, to cook food according to the instructions in this manual. Do not tou ch the heating elements and parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children

ell away from the appliance. Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. The openings used for ventilation and dispersion of heat must never be covered. Always grip the oven door handle in the centre: the ends may be hot. Always use oven gloves to place cookware in the oven or to remove it. Do not use aluminium foil to line the bottom of the oven. Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire. Always make sure the knobs are in the l/ position when the appliance is not in use. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. Never carry out any cleaning or maintenance work without having unplugged the plug from the mains. In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). Do not place heavy objects on the open oven door. The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Do not let children play with the appliance. Disposal When disposing of packaging material: observe local legislation so that the packaging may be reused. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment By using the appliance in the hours between late afternoon and early morning, you can help reduce the workload placed on electrical companies. Always keep the oven door closed when using the GRILL mode in order to attain the best results and to save energy (approximately 10%). Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.GB

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance Never use steam cleaners or pressure cleaners onthe appliance. The stainless-steel or enamel-coated externalparts as well as the rubber seals may be cleanedusing a sponge that has been soaked inlukewarm water and neutral soap. If these stainsare difficult to remove, use only specialisedproducts. After cleaning, rinse and drythoroughly. Do not use abrasive powders orcorrosive substances. Ideally, the inside of the oven should be cleanedafter each use, when it is still lukewarm. Use hotwater and detergent, rinse and dry with a softcloth. Do not use abrasive products. The accessories can be washed like everydaycrockery and may even be cleaned in thedishwasher. Cleaning the oven door Clean the glass part of the oven door using asponge and a non-abrasive cleaning product, thendry thoroughly with a soft cloth. Do not use roughabrasive material or sharp metal scrapers as thesecould scratch the surface and cause the glass tocrack.To clean the oven morethoroughly, you can removeits door:1. Open the oven door fully(see diagram).2. Lift up and turn the small levers situated on thetwo hinges (see diagram).*2. Use a screwdriver to lift up and turn the small levers F located on the two hinges (see diagram).* 3. Grip the door on the twoexternal sides and close itapproximately half way. Unlockthe door by pressing on theclamps F, then pull the doortowards you lifting it out of itsseat (see diagram).*3. Grip the door on the twoexternal sides and close itapproximately half way. Pullthe door towards you,extracting it from its hinges(see diagram).*To replace the door, reverse this sequence. Inspecting the seals Check the door seals around the oven regularly. Ifthe seals are damaged, please contact your nearestAfter-sales Service Centre (see Assistance). Werecommend that you do not use the oven until theseals have been replaced. Replacing the light bulb To replace the ovenlight bulb:1. Remove the glasscover of the lamp-holder.2. Remove the lightbulb and replace it witha similar one: Wattage25 W, cap E 14.3. Replace the glasscover (see diagram). Assistance Never use the services of an unauthorisedtechnician. Please have the following information handy: The type of problem encountered. The appliance model (Mod.). The serial number (S/N).The latter two pieces of information can be found onthe data plate located on the appliance. Maintenance and care
