OVEN Contents Installation, 14-15 Positioning Electrical connection Technical data Description of the appliance, 16 Overall view Control panel Display Start-up and use, 17 Setting the clock Setting the timer Starting the oven Cooking modes, 18-20 Cooking modes Programming cooking Practical cooking advice Cooking advice table Precautions and tips, 21 General safety Disposal Respecting and conserving the environment Care and maintenance, 22-23 Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb Automatic cleaning using the FAST CLEAN function Assistance, 24 Italiano, 1 Français, 25 Espanol, 37 Portuges, 49 English, 13

Ventilation To ensure adequate ventilation is provided, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams). Centring and fixing Position the 4 tabs on the side of the oven, in line with the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: 20 mm thick: take off the removable part of the tab (see diagram). 18 mm thick: use the first groove, which has already been set in the factory (see diagram). 16 mm thick: use the second groove (see diagram). Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool. ! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. (see Precautions and tips). ! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. Built-in appliance Use the appropriate cabinet to ensure that the appliance functions properly. The panels adjacent to the oven must be made of heat-resistant material. Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C. to install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions: ! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation. 595 mm. 595 mm.24 mm.545 mm. 5 mm. 567 mm. 23 mm. 593 mm. 45 mm.558 mm.547 mm. min. Installation 560 mm. 45 mm.15

Electrical connection ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable

1. Open the terminal

board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

clamp screw and remove it, using a screwdriver as a lever (see figure).

then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde

Connecting the electricity supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. ! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that: The appliance is earthed and the plug is compliant with the law. The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below). The voltage is in the range between the values indicated on the data plate (see below). The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

TABLE OF CHARACTERISTICS

Dimensions width 43.5 cm height 32 cm depth 40 cm Volume 56 l Dimensions * width 43.5 cm height 32 cm depth 41.5 cm Volume * 58 l Electrical connections voltage: 220 - 240 V~ 50/60Hz maximum power absorbed 2800 W (see data plate) ENERGY LABEL Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Energy consumption for Natural convection – heating mode: Traditional mode

Declared energy consumption for Forced convection Class – heating mode: Baking

This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments – 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EC and subsequent amendments. 1275/2008 stand-by/off mode * With

lass panel fitted to the inside of the door16

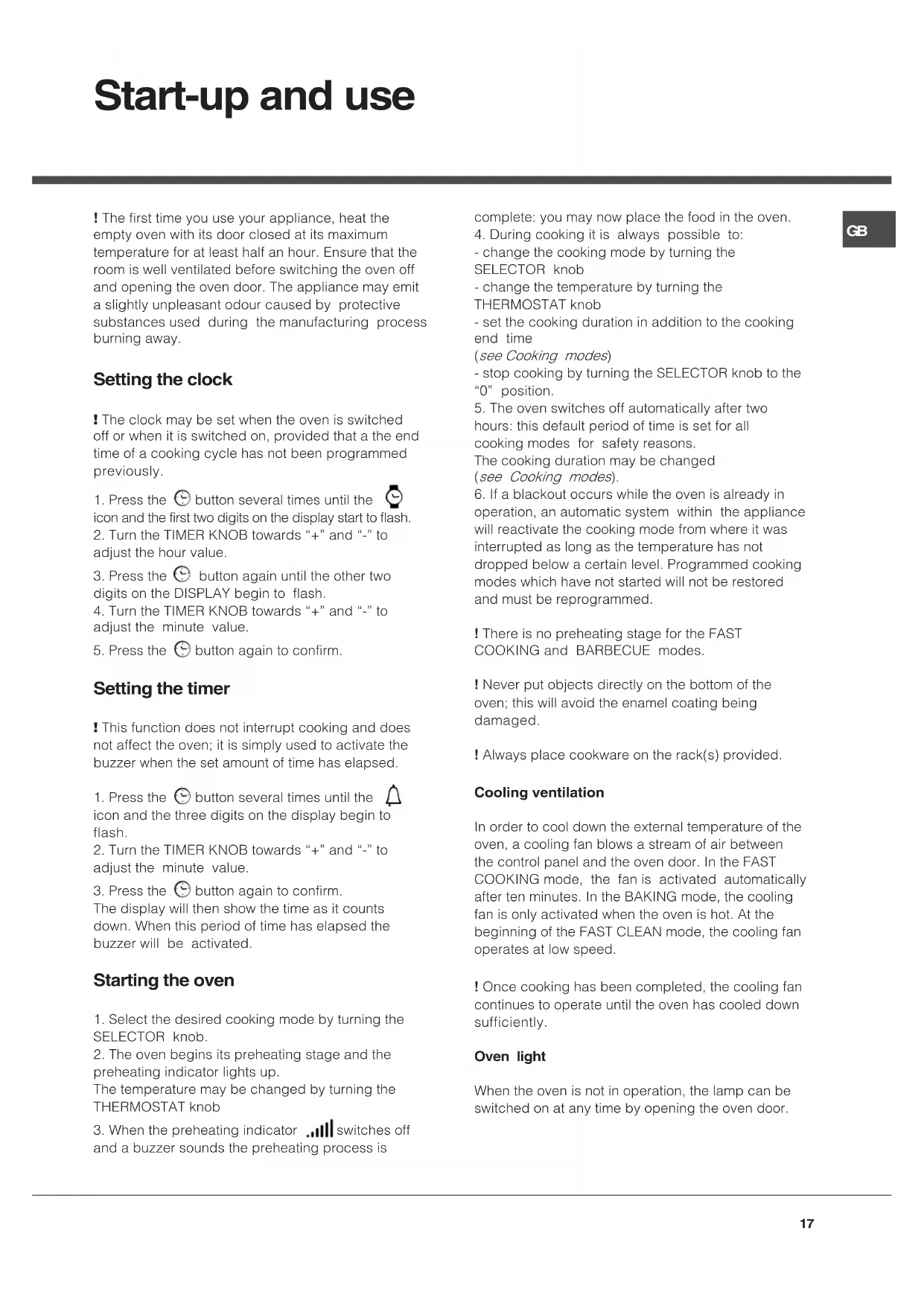

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. Setting the clock The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously.

button several times until the icon and the first two digits on the display start to flash.

2. Turn the TIMER KNOB towards + and - to

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards + and - to

button again to confirm. Setting the timer This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

button several times until the icon and the three digits on the display begin to flash.

2. Turn the TIMER KNOB towards + and - to

button again to confirm. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Starting the oven

1. Select the desired cooking mode by turning the

2. The oven begins its preheating stage and the

preheating indicator lights up. The temperature may be changed by turning the THERMOSTAT knob

3. When the preheating indicator

switches off and a buzzer sounds the preheating process is complete: you may now place the food in the oven.

4. During cooking it is always possible to:

- change the cooking mode by turning the SELECTOR knob - change the temperature by turning the THERMOSTAT knob - set the cooking duration in addition to the cooking end time (see Cooking modes) - stop cooking by turning the SELECTOR knob to the 0 position.

5. The oven switches off automatically after two

hours: this default period of time is set for all cooking modes for safety reasons. The cooking duration may be changed (see Cooking modes).

6. If a blackout occurs while the oven is already in

operation, an automatic system within the appliance will reactivate the cooking mode from where it was interrupted as long as the temperature has not dropped below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. ! There is no preheating stage for the FAST COOKING and BARBECUE modes. ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control panel and the oven door. In the FAST COOKING mode, the fan is activated automatically after ten minutes. In the BAKING mode, the cooling fan is only activated when the oven is hot. At the beginning of the FAST CLEAN mode, the cooling fan operates at low speed. ! Once cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door. Start-up and use18

Cooking modes ! All cooking modes have a default cooking temperature which may be adjusted manually between 40°C and 250°C as desired. In the BARBECUE mode, the default power level value is indicated as a percentage (%) and may also be adjusted manually. TRADITIONAL OVEN mode When using this traditional cooking mode, it is best to use one cooking rack only. if more than one rack is used, the heat will be distributed unevenly. MULTI-COOKING mode Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. BARBECUE mode By turning the THERMOSTAT knob, the different power levels which may be set will appear on the display; these range between 50% and 100%. The high and direct temperature of the grill is recommended for food which requires a high surface temperature. Always cook in this mode with the oven door closed. GRATIN mode This combination of features increases the effectiveness of the unidirectional thermal radiation provided by the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. PIZZA OVEN mode This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the element at the bottom. If you use more than one rack at a time, switch the position of the dishes halfway through the cooking process. BAKING mode This mode is ideal for baking temperature sensitive foods (such as cakes, which need to rise) and for the preparation of bitesize pastries on 3 shelves simultaneously. FAST COOKING mode Preheating is not necessary for this cooking mode. This mode is particularly suitable for cooking pre- packed food quickly (frozen or pre-cooked). The best results are achieved using one cooking rack only. PROVING mode The oven reaches and maintains a temperature of 40°C irrespective of the position of the THERMOSTAT knob. This mode is ideal for leavening dough made with yeast. Spit roast (only available in certain models) To operate the spit roast function (see diagram) proceed as follows:

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 3 and

insert the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie using the SELECTOR knob to

select mode or . When the programmes or are activated, the rotisserie will stop if the door is opened. Cooking modes19

Programming cooking A cooking mode must be selected before programming can take place. Programming the cooking duration

button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards + and - to

adjust the duration.

button again to confirm.

4. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds. For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode A cooking duration must be set before the end cooking time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed

button until the icon and the two digits on the DISPLAY begin to flash.

3. Turn the TIMER KNOB towards + and - to

button again until the other two digits on the DISPLAY begin to flash.

5. Turn the TIMER KNOB towards + and - to

button again to confirm.

7. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately. To cancel programming, turn the SELECTOR knob to the 0 position. Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie spit, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING Use positions 2 and 4, placing the food which requires more heat on 2. Place the dripping pan on the bottom and the rack on top. BARBECUE Place the rack in position 3 or 4. Position the food in the centre of the rack. We recommend that the power level is set to maximum. The top heating element is regulated by a thermostat and may not always operate constantly. PIZZA OVEN Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time. If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.20

Cooking advice table Rack position Cooking modes Foods Weight (in kg) Standard guide rails Sliding guide rails Preheating Recommended Temperature (°C) Cooking duration (minutes) Convection Oven Duck Chicken Roast veal or beef Roast pork Biscuits (shortcrust pastry) Pies / Tarts

Yes Yes Yes Yes Yes Yes 200-210 200-210

70-80 60-70 70-75 70-80 15-20 30-35 Multi-cooking Pizza on 2 racks Pies on two racks/cakes on 2 racks Sponge cake on 2 racks (on the dripping pan) Roast chicken + potatoes Lamb Mackerel Lasagne Cream puffs on 2 racks Biscuits on 2 racks Cheese puffs on 2 racks Savoury pies

2 and 4 2 and 4 2 and 4 1 and 2/3

2 and 4 2 and 4 2 and 4 1 and 3 1 and 3 1 and 3 1 and 3 1 and 3

1 and 3 1 and 3 1 and 3 1 and 3 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes 220-230

15-20 20-25 Baking mode Pies / Tarts Fruit cakes Sponge cake made with yoghurt Small cakes on 2 racks Sponge cake Cream puffs on 3 racks Biscuits on 3 racks Filled pancakes Meringues on 3 racks Cheese puffs

1 or 2 1 or 2 1 or 2 1 and 3 1 or 2 1, 2 and 4 1, 2 and 4

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

25-30 15-20 Pre-cooked food Golden chicken wings

20-25 Fast cooking Fresh Food Biscuits (shortcrust pastry) Sponge cake made with yoghurt Cheese puffs

10-12 Proving Rising process for dough made with yeast (brioches, bread, sugar pie, croissants, etc.) 2 1 40 30-60 ! The cooking times listed above are intended as guidelines only and may be modified according to personal tastes. Oven preheating times are set as standard and may not be modified manually.21

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. When moving or positioning the appliance, always use the handles provided on the sides of the oven. Do not touch the appliance with bare feet or with wet or damp hands and feet. The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance. Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. The openings used for the ventilation and dispersion of heat must never be covered. Always grip the oven door handle in the centre: the ends may be hot. Always use oven gloves when placing cookware in the oven or when removing it. Do not use aluminium foil to line the bottom of the oven. Do not place flammable materials in the oven: If the appliance is switched on accidentally, the materials could catch fire. Always make sure the knobs are in the l/ position when the appliance is not in use. When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable. Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). Do not rest heavy objects on the open oven door. The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Do not let children play with the appliance. Disposal When disposing of packaging material: observe local legislation so that the packaging may be reused. The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer. Respecting and conserving the environment You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, the delayed cooking mode (see Cooking modes) and delayed automatic cleaning mode (see Care and Maintenance) in particular, enable the user to organise their time efficiently. Always keep the oven door closed when using the BARBECUE and GRATIN modes: This will achieve improved results while saving energy (approximately 10%). Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion. This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, the appliance automatically switches to the standby mode. The standby mode is visualised by the high luminosity "Watch Icon". As soon as interaction with the machine resumes, the system's operating mode is restored.22

Care and maintenance Switching the appliance off Disconnect your appliance from the electricitysupply before carrying out any work on it. Cleaning the appliance The stainless steel or enamel-coated externalparts and the rubber seals may be cleaned usinga sponge that has been soaked in lukewarm waterand neutral soap. Use specialised products forthe removal of stubborn stains. After cleaning,rinse and dry thoroughly. Do not use abrasivepowders or corrosive substances. The inside of the oven should ideally be cleanedafter each use, while it is still lukewarm. Use hotwater and detergent, then rinse well and dry witha soft cloth. Do not use abrasive products. The accessories can be washed like everydaycrockery, and are even dishwasher safe. Never use steam cleaners or pressure cleaners onthe appliance. Cleaning the oven door Clean the glass part of the oven door using asponge and a non-abrasive cleaning product, thendry thoroughly with a soft cloth. Do not use roughabrasive material or sharp metal scrapers as thesecould scratch the surface and cause the glass tocrack. For more thorough cleaning purposes, theoven door may be removed:1. Open the oven door fully(see diagram).2. Lift up and turn the small levers located on thetwo hinges (see diagram).With glass panel fitted tothe inside of the doorGlass door Seal Lamp Oven compartment3. Grip the door on the twoexternal sides and close itapproximately half way. Pullthe door towards you, lifting itout of its slot (see diagram).3. (With glass panel fitted tothe inside of the door) Grip thedoor on the two external sidesand close it approximatelyhalf way. Unlock the door bypressing on the clamps F,then pull the door towards youlifting it out of its seat (seediagram).To replace the door, reverse this sequence.Inspecting the sealsCheck the door seals around the oven periodically. Ifthe seals are damaged, please contact your nearestAfter-sales Service Centre (see Assistance). Werecommend that the oven is not used until the sealshave been replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover using a screwdriver.2. Unscrew the light bulb and replace it with asimilar one: Wattage 15 W, cap E 14.Replace the glass cover, making sure the seal ispositioned correctly (see diagram).

Automatic cleaning with the FAST CLEAN function With the FAST CLEAN mode, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated, burning away food and grime residues. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven due to the combustion process. There is no cause for concern: this process is both normal and hazard- free. Before initiating the FAST CLEAN mode: Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents. Remove all accessories. Do not place tea towels or pot holders over the oven handle. Turn the SELECTOR knob to the 0 position. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The programme may only be started once the oven door has been closed. To activate the FAST CLEAN cycle press and hold the button for approximately 4 seconds. The TIMER KNOB may be used to select the desired cleaning level; there are three default time settings which cannot be modified.

1. Economy (ECO): turn the knob towards -.

2. Normal (NOR): initial level. Duration 1 hour and 30

3. Intensive (INT): turn the knob towards +.

button to confirm. An end time for the FAST CLEAN cycle (as for a normal cooking cycle) may be programmed (see Programming the automatic cleaning end time). Safety devices The icon on the display, when lit, indicates that the oven door was automatically locked as soon as the temperature reached a high value. The icon indicates that the cleaning cycle may be cancelled at any time by pressing the button. If a malfunction occurs, the heating elements will be switched off. Once the oven door has been locked, you cannot change the duration and cycle end time settings. Programming the automatic cleaning end time

button until the icon and the two digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards + and - to

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards + and - to

button again to confirm.

6. When the set time has elapsed, the text END

appears on the display and a buzzer sounds. For example: it is 9:00 a.m. and the Economy (ECO) FAST CLEAN level has been selected, with the default duration of 1 hour. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Programming has been set when the and buttons are illuminated. The display shows the FAST CLEAN end time and duration alternately. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.24

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are displayed by messages of the following type: F followed by numbers. Call for technical assistance should a malfunction occur. Never use the services of an unauthorised technician. Please have the following information to hand: The type of problem encountered. The appliance model (Mod.). The serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance. AssistanceFZ 99 P.1 /HA FZ 99 P.1 IX /HA FQ 99 P.1 /HA FB 89 P.1 /HA FB 89 P.1 IX /HA FZ 99 P.1 F /HA FZ 99 P.1 IX F /HA FQ 99 P.1 F /HA F 89 P.1/HA F 89 P.1 IX/HA FB 89 GP.1/HA FB 89 GP.1 IX/HA FD 99 GP.1/HA FQ 99 GP.1 F/HA
