USER MANUAL WorkForce Pro WP4530 EPSON

After you set up your WorkForce

Pro WP-4530 (see the Start Here sheet), turn to this

Quick Guide and your online User’s Guide for instructions on using your product.

Note: Your product may look different from the illustrations in this guide, but the

instructions are the same.

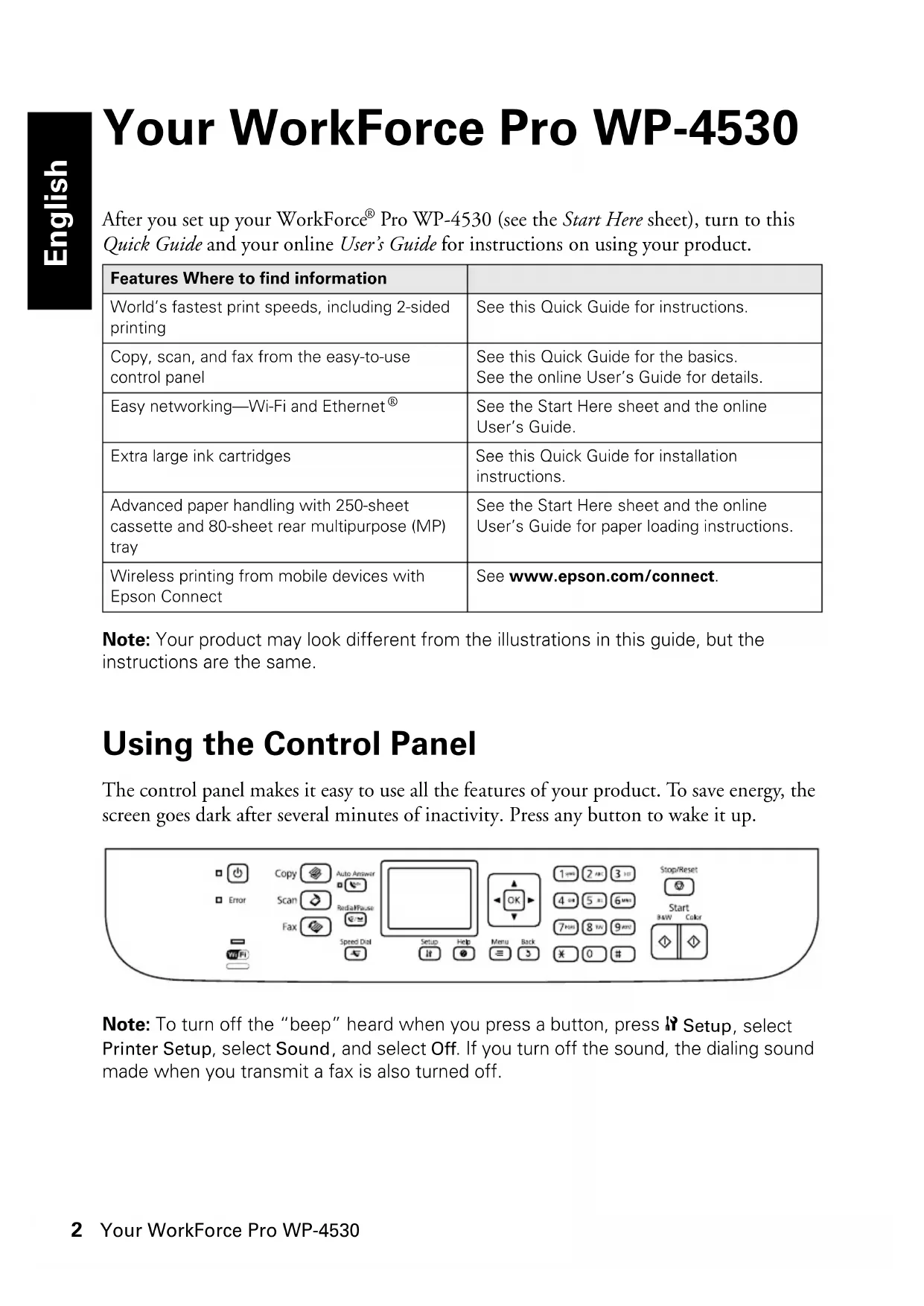

Using the Control Panel

The control panel makes it easy to use all the features of your product. To save energy, the

screen goes dark after several minutes of inactivity. Press any button to wake it up.

Note: To turn off the “beep” heard when you press a button, press F Setup , select Printer Setup , select Sound , and select

. If you turn off the sound, the dialing sound

made when you transmit a fax is also turned off. Features Where to find informationWorld’s fastest print speeds, including 2-sided printingSee this Quick Guide for instructions.Copy, scan, and fax from the easy-to-use control panel See this Quick Guide for the basics. See the online User’s Guide for details. Easy networking—Wi-Fi and Ethernet ®

See the Start Here sheet and the online User’s Guide. Extra large ink cartridges See this Quick Guide for installation instructions.Advanced paper handling with 250-sheet cassette and 80-sheet rear multipurpose (MP) tray

See the Start Here sheet and the online User’s Guide for paper loading instructions.Wireless printing from mobile devices with Epson ConnectSee www.epson.com/connect. EnglishUsing Special Papers

Using Special Papers

You can load letter-, A4-, or legal-size plain paper (or Epson Bright White paper) in

the cassette, as described on the Start Here sheet.

You can use the rear multipurpose (MP) tray to load envelopes and various sizes of

Epson offers a wide array of high quality papers, making it easy to maximize the impact of

your documents, photos, presentations, and other projects.

You can purchase genuine Epson ink and paper at Epson Supplies Central

www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also

purchase supplies from an Epson authorized reseller. To find the nearest one, call

800-GO-EPSON (800-463-7766).

Epson Presentation Paper Matte Letter (8.5 × 11 inches

Legal (8.5 × 14 inches

Epson Premium Presentation Paper

8 × 10 inches (203 × 254 mm) S041467 50

Letter (8.5 × 11 inches

Epson Premium Presentation Paper

Letter (8.5 × 11 inches

Letter (8.5 × 11 inches

Epson Bright White Paper Letter (8.5 × 11 inches

Epson Ultra Premium Photo Paper

Letter (8.5 × 11 inches

Epson Premium Photo Paper Semi-

4 × 6 inches (102 × 152 mm) S041982 40

Letter (8.5 × 11 inches

Using Special Papers

Note: Media availability varies by country.

For detailed paper loading instructions, see the online User’s Guide.

Fan and align the edges of the paper before loading.

Do not use paper with binder holes, except in the rear multipurpose (MP) tray.

When using the rear MP tray, load paper printable side up; it is usually whiter or

brighter. Always load paper and envelopes short edge first, at the center of the tray.

Then squeeze and slide the edge guides against the paper, but not too tightly.

After loading paper, set the paper size for each paper source. Press F Setup

Letter (8.5 × 11 inches

Letter (8.5 × 11 inches

countPlacing Originals for Copying, Scanning, or Faxing

Placing Originals for Copying,

Before you copy, scan, or fax, place your documents on the scanner glass or in the

Automatic Document Feeder (ADF). Place photos on the scanner glass.

Using the Scanner Glass

You can place a photo or a document up to letter-size (or A4-size) on the scanner glass.

1. Open the document cover.

2. Place your original face down on the scanner

glass, with the top against the back left corner.

3. Close the cover gently to keep your original in

Using the Automatic Document Feeder

You can place up to 30 letter- or A4-size sheets (single- or double-sided), or 10 legal-size

sheets (single-sided only), in the ADF.

1. Slide out the edge guide.

2. Fan the originals, then tap them on a flat surface to even the edges.6

3. Insert the originals face up, top edge first. The

icon appears on the screen.

Note: If you’re using the 2-up Copy layout, make sure the originals are loaded as

4. Slide the edge guide against the originals, but not too tight.Printing

This section describes the basic steps for printing from a Windows

For detailed instructions on printing, see the online User’s Guide.

Before you start, make sure you have installed your printer software and connected your

product to your computer, as described on the Start Here sheet.

1. Select the print command in your application.

2. Select your product, then click the

3. On the Main tab, select basic print settings. Make sure you choose the correct paper

setting for your paper (see page 9).

Tip: For more information about print settings, click Help.

4. For automatic duplex printing, select

5. For resizing and other print settings, click the

to save your settings.

to start printing. Select your Paper Source

Click here for 2-sided printingClick here for quick access to presets for your favorite settingsSelect your Paper Type8

Follow the steps below to print from Mac OS

1. Open a photo or document in a printing program, open the

2. Select your product as the

3. Select basic copy and page settings.

Note: If the setting you want isn’t shown (for example, Scale), check for it in your

application before printing or check for it at the bottom of this window.

from the pop-up menu, and select your

, and other print settings.

Select your Epson product

Pop-up menuSelecting the Correct Paper Type

5. For automatic duplex printing, choose

Two-sided Printing Settings

up menu, and select the binding option you want.

6. Choose any other printing options you may need from the pop-up menu. See the

online User’s Guide for details, or click

when it appears on the screen.

Selecting the Correct Paper Type

(see page 8) setting in your

printer software so the ink coverage can be adjusted accordingly.

For this paper/media Select this setting

Epson Bright White Paper

Epson Presentation Paper Matte

Plain Paper/Bright White Paper

Epson Ultra Premium Photo Paper Glossy Ultra Premium Photo Paper Glossy

Epson Premium Photo Paper Glossy Premium Photo Paper Glossy

Epson Photo Paper Glossy Photo Paper Glossy

Epson Premium Photo Paper Semi-gloss Premium Photo Paper Semi-Gloss

Epson Premium Presentation Paper Matte

Epson Premium Presentation Paper Matte

Epson Brochure & Flyer Paper Matte Double-sided

Premium Presentation Paper Matte

Card stock up to 68 lb Thick-Paper10

Your product lets you send faxes by entering fax numbers or selecting entries from a speed

dial list. Using the ADF, you can fax up to 30 pages at a time.

Note: You can also send or receive a fax from your computer using the Epson FAX Utility. For more information, see the online User’s Guide.

Breakdown or repair of this product may cause loss of fax data and settings. Epson is

not responsible for backing up or recovering data and settings during or after the

warranty period. We recommend that you make your own backup or print out your fax

This product allows you to store names, telephone numbers, and fax data in its memory

even when the power is turned off. Use the following procedure to erase the memory if

you give away or dispose of the product: Select F Setup

This procedure will erase all of your network settings and fax data.

Connecting a Phone or Answering Machine

1. Connect the phone cable from the wall

port on the back of the

Note: If you’re connecting the product

to a DSL phone line, you must plug a

DSL filter into the wall jack or you won’t

be able to use the fax or telephone

equipment. Contact your DSL provider

for the necessary filter.

2. To use a telephone or answering machine

on the same line, you need a second

phone cable. Remove the cap from the

port on the back of the product.

Connect one end of the cable to the

telephone or answering machine, and

connect the other end to the

In Auto Answer mode, if the incoming call is a fax and you pick up the phone or the

answering machine answers, the product automatically begins receiving the fax. If the

other party is a caller, the phone can be used as normal or a message can be left on the

Note: Any phone or answering machine must be connected to the EXT. port for your

product to detect an incoming fax call when the phone is picked up. Epson cannot

guarantee compatibility with VoIP, cable phone systems, or fiberoptic digital services such

Setting Up Fax Features

Before sending or receiving faxes, you should create a fax header and select the number of

rings before the fax answers.

Note: To select other settings or use the Epson FAX Utility, see the online

Entering Fax Header Information

You should enter your name and phone number in the fax header before sending faxes so

that recipients can identify the origin of the fax.

Note: If you leave your product unplugged for a long period of time, the date and time

settings may be lost. See the online User’s Guide for instructions on resetting them.

Entering Your Sender Name

4. Use the keyboard to enter the header information. You

can enter up to 40 characters or digits for your name

and other contact information.

Press u, d, l, or r on the control panel to highlight a

letter or function button, then press

Sending a Fax From the Control Panel

from the Header menu.

2. Use the numeric buttons on the control panel to enter your phone number, up to 20

digits. You don’t need to use dashes. Use the # button to type the + symbol for an

international number.

Press r to enter a space, and l to delete.

to return to the Header menu.

Selecting the Number of Rings to Answer

If you connected an answering machine and it is set to pick up on the fourth ring, you

should set the product to pick up on the fifth ring or later:

. Select more rings than you use for the

Sending a Fax From the Control Panel

You can send a fax by manually entering a fax number, as described below.

Note: To set up and use a speed dial list or send a fax from your computer using the

Epson FAX Utility, see your online User’s Guide.

1. Place your original(s) for faxing (see page 5).

To fax a two-sided document, place your document in

3. Use the numeric buttons on the control panel to enter

the fax number (up to 64 digits).

4. Press one of the x

buttons to start scanning and

Note: If the recipient’s fax machine prints only in black and white, your fax is

automatically sent in black and white even if you press the

If you are scanning with the ADF (see page 5), your document is automatically

If you placed your document on the scanner glass, you can scan additional pages

after the first one is sent.

If the fax number is busy, you see a redialing message and the product redials

after one minute. To redial immediately, press

Note: If you turn off the product, the following data stored in the product’s temporary

memory will be lost: received faxes that haven’t yet been printed, faxes scheduled to

be sent later, and faxes being retransmitted automatically.

Before receiving faxes, make sure you load plain paper and select the correct settings for the

paper you’ve loaded.

Paper Source to Print.

5. Select the paper source you want to change, then change the setting.

Note: If the incoming fax is larger than the paper you loaded, it is reduced to fit or

printed on multiple pages, depending on the Auto Reduction setting you select.

6. To receive faxes automatically, make sure you see a green light next to (

on the control panel. If the light is off, press .

Note: To change the number of rings before the product answers, see page 12.

If you run out of paper during printing, you see an error message. Load more paper and

buttons to continue.14

Manually Receive a Fax

If you use a voicemail service provided by the phone company instead of an answering

machine, you should set the product to receive faxes manually. Then you can check for a

fax tone from the sending fax machine and press a button on the touch screen to receive

To receive a fax manually, press (

to turn off this feature (and the light).

Then follow these steps:

1. When your telephone rings, lift the phone off the

hook. You see this screen.

3. Press one of the x

buttons to receive the fax.

4. After all the pages are received, you see this screen

again. Replace the phone on the hook.

5. Press one of the x

buttons to print the fax.Scanning a Document or Photo

Scanning a Document or

You can use your product to scan original documents and photos and save them on your

computer or on a thumb drive or other USB device. The u

button lets you scan

quickly using preselected settings, or you can use the Epson Scan software to access more

advanced features. For example, you can use Epson Scan to restore faded colors in old

Quick Scanning With the Scan Button

button to quickly scan a photo or document. You can even scan a photo

and have it automatically included in an email message.

To scan to a thumb drive or other device, first insert the drive into the USB port on the

front of the product:

Note: For Mac OS X 10.6, see “Scanning With Mac OS X 10.6” on page 17.

1. Place your original document or photo as shown on page 5.

3. Select one of the following options:

■ Scan to USB Device

lets you scan and save the image on a thumb drive. You can

select the file format, resolution, and other settings, including 2-sided scanning

(for documents in the ADF).

automatically creates a JPG image and saves it to your computer;

ideal for scanning photos.

automatically creates a PDF file and saves it to your computer;

ideal for scanning documents.16

Scanning With Epson Scan Software

■ Scan to PC (Email)

automatically scans a photo, resizes it, launches your email

application, and attaches a JPG image to a new outgoing message. This works

with MAPI-type email such as Microsoft

Outlook, Windows Live Mail, Mac

Mail, and Entourage, but not web-based email such as Gmail.

lets you manage wireless scanning in Windows 7 or

(English only). For more information, see your online

4. If you’re scanning to a USB device, select your scan settings, then press one of the

buttons to begin scanning.

connected by a USB cable, or select the name of your computer if your product is

connected over a network.

To select 2-sided scanning, press x

Scan Settings > 2 Sided

Once your image is scanned, you see its icon in Windows Explorer or Mac Finder, or

as an attachment in your email application.

Scanning With Epson Scan Software

You can scan from any TWAIN-compliant application using Epson Scan. Or you can start

Epson Scan directly from your computer and save your image to a file.

Note: For detailed scanning instructions, see the online User’s Guide. For Mac OS X

10.6, see “Scanning With Mac OS X 10.6” on page 17.

1. Place your original document or photo as shown on page 5.

2. Do one of the following to start Epson Scan:

Windows: Double-click the

icon on your desktop.

Mac OS X 10.4 and 10.5: Double-click

Applications > Epson

To scan from an application, start your application. Then open the

, and select your product.Scanning With Mac OS X 10.6

3. Epson Scan opens in Office Mode the first time you use it. (You can change the scan

mode using the Mode selector in the upper right corner.)

Note: You cannot use Home Mode to scan with the ADF.

The image is scanned and you see its icon in Windows Explorer or Mac Finder.

Scanning With Mac OS X 10.6

You can scan original documents and photos and save them as files on your computer.

1. Open an image editing application, such as Preview, and select

menu, then select your product.

For network scanning, select

Import From Scanner > Include Networked Devices

again and select your product.

2. If you would like to select scan settings, such as Color Restoration and file save

button to begin scanning. Your image is saved to the folder selected in

the Scan To pop-up menu.

Click here to change

Maintaining Your Product

Maintaining Your Product

Follow the instructions in this chapter to check and clean the print head nozzles, check ink

levels, and replace ink cartridges. If you need to align the print head, or replace the

maintenance box, see the online User’s Guide.

Checking the Print Head Nozzles

If your printouts are faint or have gaps in them, some of the nozzles in the print head may

be clogged or ink may be running low in one or more of the ink cartridges. Follow the

steps below to check the print head nozzles.

1. Load a few sheets of plain paper in the cassette.

4. Press one of the x

5. Examine the nozzle check pattern that prints to see if there are gaps in the lines.

6. If there are no gaps, the print head is clean. Select

If there are gaps or the pattern is faint, select

the print head (see page 19).

Nozzles need cleaningCleaning the Print Head

Cleaning the Print Head

If print quality has declined and the nozzle check indicates clogged nozzles, you can clean

the print head. Print head cleaning uses ink, so clean it only if necessary.

Note: You cannot clean the print head if an ink cartridge is expended, and may not be

able to clean it when a cartridge is low. You must replace the cartridge first (see

3. When you see the first screen, press

, then choose the colors you want to clean.

Tip: Use the nozzle check pattern to determine which colors need cleaning. You

can save ink by cleaning only selected colors.

Cleaning takes a few minutes. When it’s finished, you see a message on the LCD

Caution: Never turn off the product during head cleaning or you may damage it.

buttons to run a nozzle check

and confirm that the print head is clean.

Note: If you don’t see any improvement after cleaning the print head four times, leave

the product on and wait at least six hours to let any dried ink soften. Then try cleaning

the print head again. If quality does not improve, one of the ink cartridges may need to

be replaced. If that doesn’t help, contact Epson as described on page 28.

If you do not use your product often, it is a good idea to print a few pages at least once

a month to maintain good print quality.

If an ink cartridge is expended, you see a message on your printer’s LCD screen:

Note: You cannot print or copy when an ink cartridge is expended even if the other

cartridges are not expended. Replace any expended cartridges before printing or

Purchasing Epson Ink Cartridges

A window may also appear on your computer screen when you try to print when ink is

low. This window can optionally display ink offers and other updates from Epson.

Note: To disable checking for ink offers or updates from Epson, see the instructions in

your online User’s Guide.

Purchasing Epson Ink Cartridges

You can purchase genuine Epson ink and paper at Epson Supplies Central at

www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also

purchase supplies from an Epson authorized reseller. To find the nearest one, call

800-GO-EPSON (800-463-7766).

Use the following list when you order or purchase new ink cartridges:

Note: We recommend that you use genuine Epson cartridges and do not refill them.

The use of other products may affect your print quality and could result in product

Yields vary considerably based on images printed, print settings, paper type, frequency

of use, and temperature. For print quality, a small amount of ink remains in the cartridge

after the “replace cartridge” indicator comes on. The included cartridges prime the

printer and print about 1000 black pages/900 color pages. Actual page count will vary.

For best printing results, use up a cartridge within six months of opening the package

and before the expiration date on the cartridge box.

Store ink cartridges in a cool, dark place. If cartridges have been exposed to cold

temperatures, allow them to warm up to room temperature for at least 3 hours before

Replacing Ink Cartridges

Make sure you have a new ink cartridge before you begin.

Caution: Do not open ink cartridge packages until you are ready to install the ink.

Cartridges are vacuum packed to maintain reliability.

Leave the expended cartridge installed until you have obtained a replacement, or the ink

remaining in the print head nozzles may dry out.

1. Turn on the product.

2. If an ink cartridge is expended, you see a message on

the LCD screen. Note which cartridges need to be

If a cartridge is expended, you must replace it to be

able to print. If a cartridge is low, you can continue

printing until a cartridge needs replacement.

3. Open the front cover.

4. Push in the ink cartridge that you want to replace, then pull it out as shown.

Warning: If ink gets on your hands, wash them thoroughly with soap and water. If

ink gets into your eyes, flush them immediately with water. Keep ink cartridges out

of the reach of children and don’t drink the ink.

5. Remove the new cartridge from its package.

Caution: Do not remove any other labels or seals, or ink will leak. Do not touch the

green chip on the side of the cartridge. This can damage the ink cartridge.22

Replacing Ink Cartridges

6. Shake the cartridge as shown for about 5 seconds.

Caution: Do not shake used cartridges, or ink may leak.

7. Insert the new ink cartridge into the slot and push it in until it

8. Close the front cover.

After the product checks the cartridge, ink replacement is complete.

Caution: Never turn off the product while replacing ink cartridges. If you remove a low

or expended ink cartridge, you cannot reinstall and use the cartridge.Solving Problems

Check the messages on the display screen to diagnose the cause of most problems. For

more information, press the

button on the product.

You can also check the basic troubleshooting suggestions below, or in your online

Problems and Solutions

Check the solutions below if you’re having trouble using your Epson product.

Note: If the screen is dark, press any button to wake the printer from sleep mode.

Network Setup and Printing Problems

Try connecting to the router or access point with your computer or another device to

confirm that it is working correctly.

Try resetting the router (turn it off and then on), then try to connect to it again.

Print a Network Status Sheet (see page 24). Verify that the network settings are correct

and check the signal strength. If it’s poor, try moving the product closer to your router

or access point. Avoid placing it next to a microwave oven, 2.4 GHz cordless phone,

or large metal object such as a filing cabinet.

If your wireless router doesn’t broadcast its network name (SSID), see your online

User’s Guide for instructions on manually entering your wireless network name.

If your wireless router has security enabled, make sure you entered the WEP key or

WPA passphrase correctly.

When using TCP/IP, make sure your network’s DHCP option is enabled (your router

manufacturer or your IT department will be able to assist you with this setting).

Remove and reinsert the CD to reinstall your product software.

Disable the firewall temporarily to see if that may be causing the problem. Contact

your firewall manufacturer for assistance.

Make sure your firewall or security software is not set to block port 3629 (TCP/

UDP). Contact your firewall manufacturer for assistance.24

Problems and Solutions

Cannot scan over the network

Epson Scan is not available in Mac OS X 10.6; see page 17 for scanning instructions.

If you cannot scan from the product’s control panel, make sure you restarted your

computer after installing the product software. Make sure Epson Event Manager is

not being blocked by your firewall or security software. Try turning off the firewall.

If you are scanning a large document at high resolution, a communication error may

occur. If the scan did not complete, lower the resolution.

If network communication was interrupted while starting Epson Scan, exit Epson

Scan, and restart it after a few seconds. If Epson Scan cannot restart, turn the product

off and on, and then try again. Check the

. For details, see the Epson Scan Help.

Make sure Epson Event Manager is set up to communicate with your product.

Wi-Fi/Network Settings

Confirm Wi-Fi/Network Settings

4. Press one of the x

buttons to print the status sheet.

Printing and Copying Problems

Make the paper size and source selected on the control panel or in your printer

software matches the paper loaded in the printer.

Letter-size paper is automatically selected for copying. If your legal-size document is

Paper and Copy Settings

Position your original against the back left corner of the scanner glass. If the edges are

cropped, move your original away from the edges slightly. Place the document flat

against the scanner glass.

Printing stops when an ink cartridge is expended. If a cartridge is expended, you must

replace it to continue printing.Problems and Solutions

Paper Feeding Problems

If paper doesn’t feed correctly, remove the paper and fan the sheets, then reload them as

shown on the Start Here sheet. Don’t load paper above the tabs on the edge guides.

If paper has jammed, follow the steps on the LCD screen. If necessary, check the following

1. Push in the buttons and remove the duplexer from the back of the product. Remove

2. Remove any paper stuck in the duplexer, then reattach it to the back of the product.

3. Open the front cover and remove any paper inside, including any torn pieces. Then

close the front cover.26

Problems and Solutions

4. Remove the paper cassette, then check for jammed paper inside the product.

5. Reload paper in the cassette, then carefully insert it back into the product.

ADF Document Feeding Problems

If documents don’t feed correctly in the Automatic Document Feeder (ADF), make sure

the paper is not bent, folded, or curled.

1. If documents have jammed, open the ADF cover and remove any jammed pages.

Then close the ADF cover.

Caution: Do not try to remove the pages without opening the ADF cover or you

could damage the mechanism.

2. Raise the document cover and remove any pages caught beneath it. Close the cover.Problems and Solutions

3. If documents are still jammed, raise the ADF input tray and carefully remove the

Make sure the recipient’s fax machine is turned on and working.

port on the product is connected to a telephone wall jack. Verify

that the telephone wall jack works by connecting a phone to it.

Make sure the light is turned on to receive faxes automatically.

If you use a voicemail service, you should turn off Auto Answer. Otherwise, calls or

faxes may be inadvertently received by your voicemail.

If the line has static, press

(Error Correction Mode) settings.

If the product is connected to a DSL phone line, you must have a DSL filter

connected to the phone jack. Contact your DSL provider for the filter.

If you connected a telephone or answering machine, make sure it is connected to the

port. Do not use a phone line splitter.

Print Quality Problems

Make sure your paper is loaded printable side down (usually the whiter or brighter

side) in the cassette (or printable side up in the rear MP tray).

For the best print quality, use Epson papers (see page 3) and genuine Epson ink

cartridges (see page 21).

Make sure the paper type setting on the control panel or in your printer software

matches the type of paper loaded in the printer (see page 9).

If you notice light or dark bands across your printouts or they are too faint, run a

nozzle check (see page 18) to see if the print head needs cleaning.

If you notice jagged vertical lines, you may need to align the print head. See the online

User’s Guide for instructions.28

The ink cartridges may be low on ink. Check your cartridge levels (see page 19) and

replace cartridges, if necessary (see page 21).

Clean the scanner glass with a soft, dry, lint-free cloth (paper towels are not

recommended), or use a small amount of glass cleaner on a soft cloth, if necessary. Do

not spray glass cleaner directly on the glass.

Visit epson.com/support (U.S.) or epson.ca/support (Canada), where you can download

drivers, view manuals, get FAQs, or e-mail Epson.

Speak to a Support Representative

Before you call Epson for support, please have the following information ready:

Product name (WorkForce Pro WP-4530)

Product serial number (located on the label in back)

Proof of purchase (such as a store receipt) and date of purchase

Computer configuration and description of the problem

U.S.: (562) 276-4382, 6 AM to 8 PM, Pacific Time, Monday through Friday, and

Canada: (905) 709-3839, 6 AM to 8 PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance

Purchase Supplies and Accessories

You can purchase genuine Epson ink and paper at Epson Supplies Central at

www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also

purchase supplies from an Epson authorized reseller. To find the nearest one, call

800-GO-EPSON (800-463-7766).

Other Software Technical Support

support@abbyyusa.comNotices

Important Safety Instructions

Before using your Epson product, read and follow these safety instructions:

Be sure to follow all warnings and instructions marked on the product.

Use only the type of power source indicated on the product label.

Use only the power cord that comes with the product. Use of another cord may cause fires or

shock. Do not use the cord with any other equipment.

Place the product near a wall outlet where the plug can be easily unplugged.

Avoid plugging the product into an outlet on the same circuit as a photocopier or air

conditioning system that regularly switches on and off, or on an outlet controlled by a wall

Do not let the power cord become damaged or frayed. Place it to avoid abrasions, cuts, fraying,

crimping, and kinking. Do not place objects on top of it and do not allow it to be stepped on or

run over. Be careful to keep the cord straight at each end.

If you use an extension cord with the product, make sure the total ampere rating of the devices

plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the

total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet’s

Always turn off the product using the

power button, and wait until the

light stops flashing before unplugging the product or cutting off power to the electrical outlet.

If you won’t be using the product for a long period, unplug the power cord from the electrical

Place the product on a flat, stable surface that extends beyond its base in all directions. It will

not operate properly if it is tilted or at an angle.

Make sure the back of the product is at least 4 inches (10 cm) away from the wall.

Allow space behind the printer for the cables, and space above the printer so that you can fully

raise the document cover.

Leave enough space in front of the product for the paper to be fully ejected.

Avoid locations that are subject to rapid changes in heat or humidity, shocks or vibrations, or

Do not place or store the product outdoors.

Do not place the product near excessive heat sources or in direct sunlight.

Leave enough room around the product for sufficient ventilation. Do not block or cover

openings in the case or insert objects through the slots in the product.

Keep the product away from potential sources of electromagnetic interference, such as

loudspeakers or the base units of cordless telephones.30

Important Safety Instructions

When connecting the printer to a computer or other device with a cable, ensure the correct

orientation of the connectors. Each connector has only one correct orientation. Inserting a

connector in the wrong orientation may damage both devices connected by the cable.

Do not touch the flat white cable inside the product.

Do not move the print head by hand; this may damage the product.

Do not spill liquid on the product or use the product with wet hands.

Do not use aerosol products that contain flammable gases inside or around the product. Doing

Except as specifically explained in your documentation, do not attempt to service the product

Unplug the product and refer servicing to qualified service personnel under the following

conditions: if the power cord or plug is damaged; if liquid has entered the product; if the

product has been dropped or the case damaged; if the product does not operate normally or

exhibits a distinct change in performance. Adjust only those controls that are covered by the

operating instructions.

If damage occurs to the plug, replace the cord or consult a qualified electrician. If there are fuses

in the plug, make sure you replace them with fuses of the correct size and rating.

Leave the ink cartridges installed. Removing cartridges can dehydrate the print head and may

prevent the product from printing.

Before transporting the product, make sure that the print head is in the home (far right)

position and the ink cartridges are in place.

When storing or transporting the product, do not tilt it, stand it on its side, or turn it upside

down; otherwise ink may leak from the cartridges.

To avoid adversely affecting the operation of the following equipment and causing an accident,

do not use the product: near medical equipment in a medical facility; within 8.7 inches (22 cm)

of a cardiac pacemaker; near automatically controlled devices such as automatic doors or fire

Do not press too hard on the scanner glass when placing originals. Be careful not to trap your

fingers when closing the scanner cover.

Do not open the scanner section while the product is copying, printing, scanning, or faxing.

LCD Screen Safety Instructions

Use only a dry, soft cloth to clean the LCD screen. Do not use liquid or chemical cleansers.

If the screen is damaged, contact Epson. If the liquid crystal solution gets on your hands, wash

them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush

them immediately with water. If discomfort or vision problems remain after a thorough

flushing, see a doctor immediately.Important Safety Instructions

Ink Cartridge Safety Instructions

Keep ink cartridges out of the reach of children.

Be careful when you handle used ink cartridges; there may be ink remaining around the ink

supply port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes,

flush them immediately with water. If ink gets in your mouth, spit it out and see a doctor right

Do not put your hand inside the product or touch any cartridges during printing.

Install a new ink cartridge immediately after removing a used one. Leaving cartridges

uninstalled can dry out the print head and may prevent the product from printing.

Do not touch the green IC chip on the side of the cartridge. This may prevent normal

If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and

store it in the same environment as the product. Note that there is a valve in the ink supply

port, making covers or plugs unnecessary, but care is needed to prevent the ink from staining

items that the cartridge touches. Do not touch the ink cartridge ink supply port or surrounding

Use an ink cartridge before the date printed on its package.

Do not dismantle an ink cartridge. This could damage the print head.

Store ink cartridges in a cool, dark place.

After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room

temperature for at least three hours before using it.

Store ink cartridges with their labels facing upward. Do not store cartridges upside down.

Telephone Equipment Safety Instructions

When using telephone equipment, you should always follow basic safety precautions to reduce the

risk of fire, electric shock, and personal injury, including the following:

Avoid using a telephone during an electrical storm. There may be a remote risk of electric shock

Do not use a telephone to report a gas leak in the vicinity of the leak.

Caution: To reduce the risk of fire, use only a No. 26 AWG or larger telecommunication line

Declaration of Conformity

Declaration of Conformity

According to 47CFR, Part 2 and 15 for: Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal Computers:

We: Epson America, Inc.

Telephone: (562) 290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and

15 of the FCC rules as a Class B digital device. Each product marketed is identical to the

representative unit tested and found to be compliant with the standards. Records maintained

continue to reflect the equipment being produced can be expected to be within the variation

accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909.

Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Trade Na m e : Epson

Type of Product: Multifunction printer

Model: C451C FCC Compliance Statement

For United States Users

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the

ACTA. On the back side is a label that contains, among other information, the FCC registration

number and the ringer equivalence number (REN) for this equipment. You must, upon request,

provide this information to your local telephone company. The information associated with the

services the equipment is to be connected are REN: 0.1B

, Jack type: RJ-11C.

The REN is useful to determine the quantity of devices that you may connect to your telephone line

and still have all of those devices ring when your telephone number is called. In most, but not all

areas, the sum of the RENs of all devices connected to one line should not exceed five (5.0). To be

certain of the number of devices that you may connect to your line, you may want to contact your

local telephone company to determine the maximum REN for your calling area. For products

approved after July 23, 2001, the REN for this product is part of the product identifier that has the

format US: BKMFA01BC451C

. The digits represented by 01 are the REN without a decimal point

(e.g., 01 is a REN of 0.1). For earlier products, the REN is separately shown on the label.

This equipment may not be used on coin service provided by the telephone company. Connection to

party lines is subject to state tariffs.FCC Compliance Statement

Should this equipment cause harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible they will notify you in advance that temporary

discontinuance of service may be required. But if advanced notice isn’t practical, the telephone

company will notify you as soon as possible. You will be informed of your right to file a complaint

with the FCC. The telephone company may make changes in its facilities, equipment, operations or

procedures that could affect the proper functioning of your equipment. If they do, you will be

notified in advance to give you an opportunity to maintain uninterrupted telephone service.

This product is not intended to be repaired. If you experience trouble with this equipment, please

Name: Epson America, Inc.

Address: 3840 Kilroy Airport Way, Long Beach, CA 90806 U.S.A.

Telephone: (562) 981-3840

The telephone company may ask that you disconnect this equipment from the network until the

problem has been corrected or until you are sure that the equipment is not malfunctioning.

A plug and jack used to connect this equipment to the premises wiring and telephone network must

comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant

telephone cord and modular plug is provided with this product. It is designed to be connected to a

compatible modular jack that is also compliant. See installation instructions for details.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a

computer or other electronic device, including fax machines, to send any message unless such

message clearly contains in a margin at the top or bottom of each transmitted page or on the first

page of the transmission, the date and time it is sent and an identification of the business or other

entity, or other individual sending the message and the telephone number of the sending machine or

such business, other entity, or individual. In order to program this information into your fax

machine, follow the instructions in “Entering Fax Header Information” on page 11.

According to the FCC’s electrical safety advisory, we recommend that you may install an AC surge

arrestor in the AC outlet to which this equipment is connected. Telephone companies report that

electrical surges, typically lightning transients, are very destructive to customer terminal equipment

connected to AC power sources and that this is a major nationwide problem.

If your home has specially wired alarm equipment connected to the telephone line, ensure the

installation of this equipment Model C451C does not disable your alarm equipment. If you have

questions about what will disable alarm equipment, consult your telephone company or a qualified

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause interference to

radio and television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.34

Epson America, Inc., Limited Warranty

Connect the equipment into an outlet on a circuit different from that to which the receiver is

Consult the dealer or an experienced radio/TV technician for help.

WARNING The connection of a non-shielded equipment interface cable to this equipment will invalidate the

FCC Certification of this device and may cause interference levels which exceed the limits

established by the FCC for this equipment. It is the responsibility of the user to obtain and use a

shielded equipment interface cable with this device. If this equipment has more than one interface

connector, do not leave cables connected to unused interfaces. Changes or modifications not

expressly approved by the manufacturer could void the user’s authority to operate the equipment.

1. This product meets the applicable Industry Canada technical specifications.

2. The Ringer Equivalence Number is an indication of the maximum number of devices allowed to

be connected to a telephone interface. The termination on an interface may consist of any

combination of devices subject only to the requirement that the sum of the RENs of all the devices

does not exceed five.

This Class B digital apparatus complies with Canadian ICES-003.

Le présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Epson America, Inc., Limited Warranty

What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser that the

Epson printer covered by this limited warranty statement, if purchased and operated only in the

United States, Canada, or Puerto Rico, will be free from defects in workmanship and materials for a

period of one (1) year from the date of original purchase. For warranty service, you must provide

proof of the date of original purchase.

What Epson Will Do To Correct Problems: Should your Epson printer prove defective during the

warranty period, please call the Epson Connection

at (562) 276-4382 (U.S.) or (905) 709-3839

(Canada) for warranty repair instructions and return authorization. An Epson service technician will

provide telephone diagnostic service to determine whether the printer requires service. If service is

needed, Epson will, at its option, exchange or repair the printer without charge for parts or labor. If

Epson authorizes an exchange for the defective unit, Epson will ship a replacement printer to you,

freight prepaid, so long as you use an address in the United States, Canada, or Puerto Rico.Epson America, Inc., Limited Warranty

Shipments to other locations will be made freight collect. You are responsible for securely packaging

the defective unit and returning it to Epson within five (5) working days of receipt of the

replacement. Epson requires a debit or a credit card number to secure the cost of the replacement

printer in the event that you fail to return the defective one. If Epson authorizes repair instead of

exchange, Epson will direct you to send your printer to Epson or its authorized service center, where

the printer will be repaired and sent back to you. You are responsible for packing the printer and for

all costs to and from the Epson authorized service center. When warranty service involves the

exchange of the printer or a part, the item replaced becomes Epson property. The replacement

printer or part may be new or refurbished to the Epson standard of quality, and, at Epson’s option,

may be another model of like kind and quality. Exchange products and parts assume the remaining

warranty period of your original product covered by this limited warranty.

What This Warranty Does Not Cover: This warranty covers only normal use in the United States,

Canada, or Puerto Rico. Using this product for continuous production or similar high duty purposes

is not considered normal use; damage, maintenance or service from such use will not be covered

under this warranty. This warranty is not transferable. This warranty does not cover any color change

or fading of prints or reimbursement of materials or services required for reprinting. This warranty

does not cover damage to the Epson product caused by parts or supplies not manufactured,

distributed or certified by Epson. This warranty does not cover ribbons, ink cartridges or third party

parts, components, or peripheral devices added to the Epson product after its shipment from Epson,

e.g., dealer or user-added boards or components. Epson is not responsible for warranty service should

the Epson label or logo or the rating label or serial number be removed or should the product fail to

be properly maintained or fail to function properly as a result of misuse, abuse, improper installation,

neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper

electrical current, software problems, interaction with non-Epson products, or service other than by

an Epson Authorized Servicer. If a claimed defect cannot be identified or reproduced, you will be

held responsible for the costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE VOID. IN NO EVENT SHALL EPSON OR ITS AFFILIATES BE LIABLE FOR ANY SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY. IN NO EVENT SHALL EPSON OR ITS AFFILIATES BE LIABLE FOR DAMAGES OF ANY KIND IN EXCESS OF THE ORIGINAL RETAIL PURCHASE PRICE OF THE PRODUCT.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts, and some

jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitations and exclusions may not apply to you. This warranty gives you specific legal rights

and you may have other rights which vary from jurisdiction to jurisdiction.36

To find the Epson Authorized Reseller nearest you, visit our website at: http://www.epson.com.

To find the Epson Customer Care Center nearest you, visit http://www.epson.com/support.

You can also write to: Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or

otherwise, without the prior written permission of Seiko Epson Corporation. The information

contained herein is designed only for use with this Epson product. Epson is not responsible for any

use of this information as applied to other equipment.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or

third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result

of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to

this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s

operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or

Epson Approved Products by Seiko Epson Corporation.

In addition to software program rights owned by Seiko Epson Corporation, this product also

includes open source software. Refer to OSS.pdf on your product software CD-ROM for a list of

open source software and software license terms applied to this printer.

Responsible Use of Copyrighted Materials

Epson encourages each user to be responsible and respectful of the copyright laws when using any

Epson product. While some countries’ laws permit limited copying or reuse of copyrighted material

in certain circumstances, those circumstances may not be as broad as some people assume. Contact

your legal advisor for any questions regarding copyright law.

Epson and Supplies Central are registered trademarks and Epson Exceed Your Vision is a registered

logomark of Seiko Epson Corporation.

WorkForce is a registered trademark and Epson Connection is a service mark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be

trademarks of their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

© 2011 Epson America, Inc. 4/11Votre WorkForce Pro WP-4530

support@abbyyusa.com70

visitez http://www.epson.ca/support.
