USER MANUAL MUSWN2 Gembird

WIRELESS OPTICAL MOUSE

WIRELESS OPTICAL MOUSE

DRAADLOZE OPTISCHE MUIS

SOURIS OPTIQUE SANS FIL

• Wireless optical mouse with USB receiver

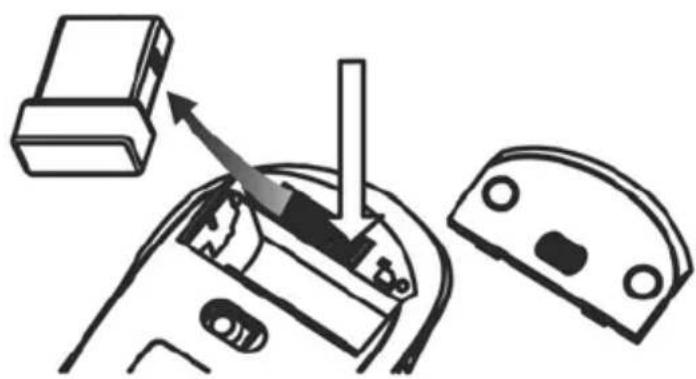

  The tiniest receiver in the world can be stored inside the mouse
• Smart power saving provides extra long batteries life

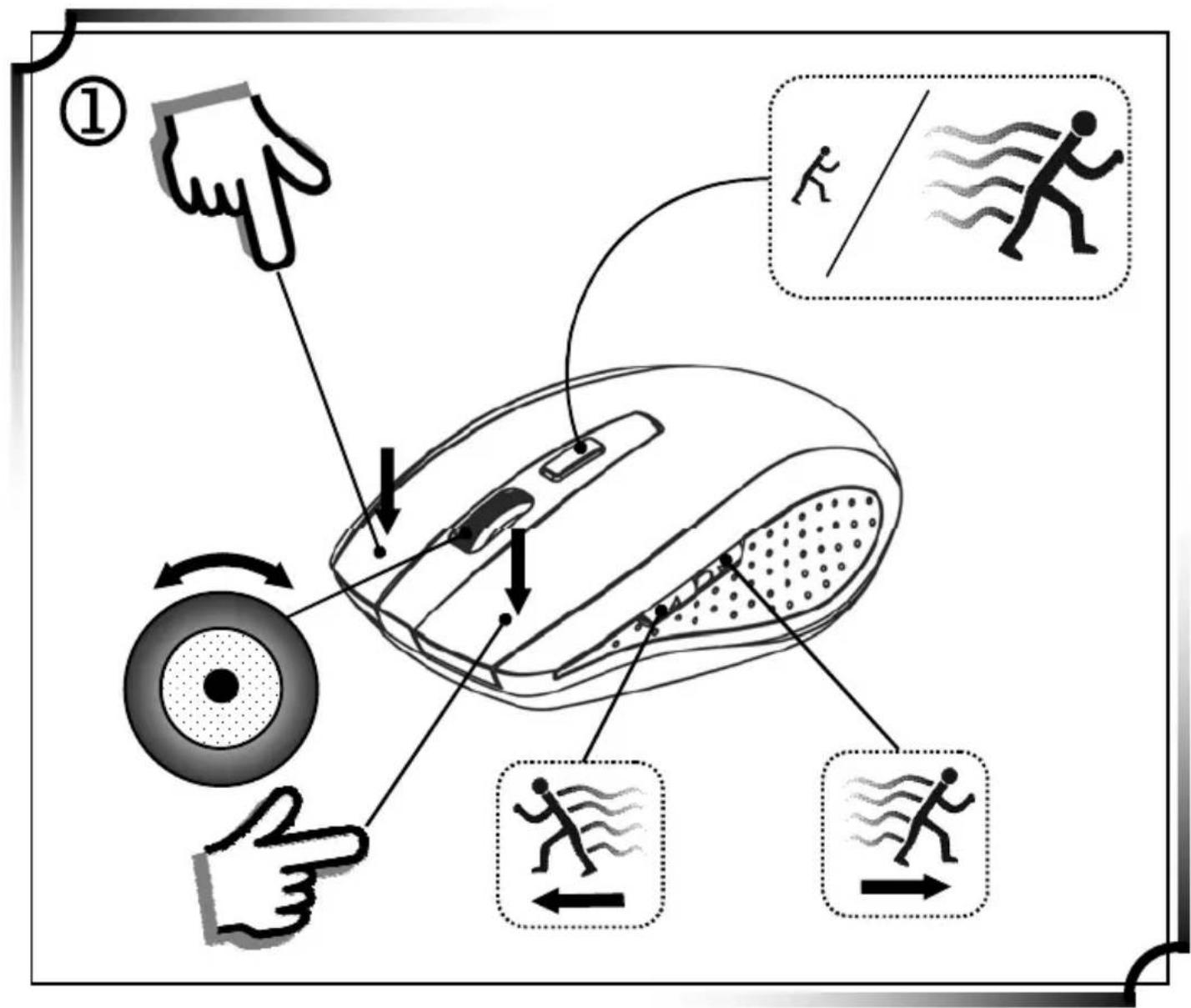

• Special button for switching the resolution 800/1600 DPI

Specifications

• Wireless technology: 2.4 GHz, GFSK RF modulation, 80 channels, 32 bit device ID, RF power < 2 mW
• Operating distance: up to 8m
• Optical resolution: 800 or 1600 DPI selectable by the button

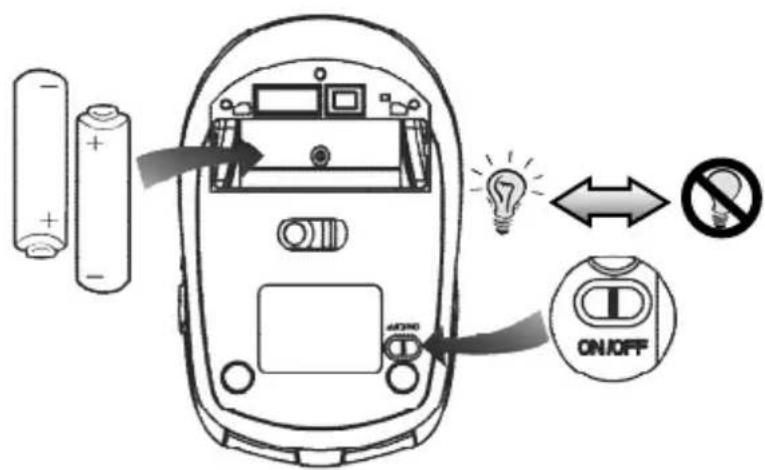

  Power supply: AAA battery x 2 pcs
• Power consumption: 5 ~V DC , up to 30 ~mA , saving modes < 3 ~mA and < 0.5 ~mA , up to 35 hours continuous work with 1000 mAh batteries

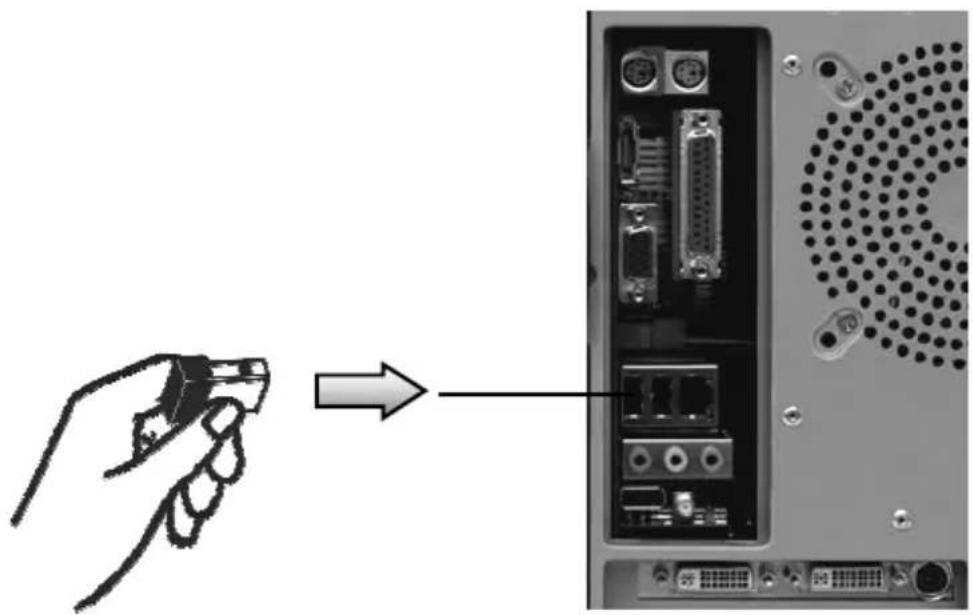

• Nano receiver: USB 1.1 compatible, weight 2g,6× 14× 21mm
• Mouse: dimensions 99 × 62 × 35 ~mm , net weight 60 ~g (without batteries)
• Operating conditions: -5...45 Celsius degrees, 10-80 % humidity

(2)

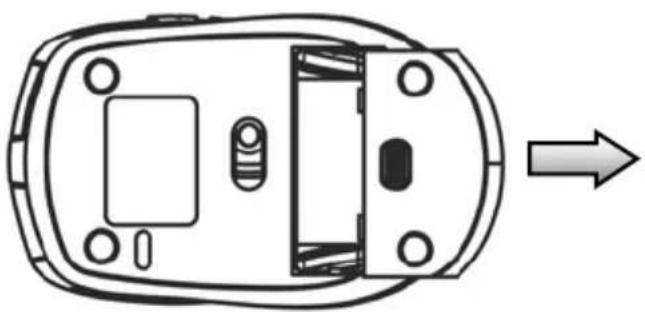

(3)

(4)

5

(6)

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

MUSWN2

Product description :

MUSWN2 Wireless optical mouse

European standards:

EN65022:2008; EN65024:1998+A1:2001+A2:2003; EN6100-3-2:2000+

A2:2005; EN61000-3-3:1995+A1:2001+A2:2005;

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone].Fax:[phone]

Director

The Netherlands/Aug 19,2010

Place and Date

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the baSIS of the current market value of the defective products

(0900-4362473 inside The Netherlands, 0,15p / m mobile costs not included)

GARANTIE BEDINGUNGEN

CONDITIONS DE GARANTIE

1358CD Almere, The Netherlands

www.gembird.nl/support

[e-mail]

Tel. [phone]

M.I. CycIOBHHIpaHTTHO3HAKOMJIEN H COITACCH:

IpoJabeI: TkynateIb:

YMOBNI TAPAHINTINHOO OBCJYTOBYAHH

1. RapaHTIiHe 06cTyROyBaHnHaHaetcb IpoTAROM TepMHy rapaHTII, npH HABHOCTI RapaHTIiHOrO TaIOHy, ZaIOBHeHOrO HATeKHHM YHHOM, Ta BHPoSy B IOBHII KOMIIeKTAII.

2. 拉帕尼尼HcO6ClyOByBaHHHe HnTPhMcyTBcB B pasi npuyiHnnpaBnEcknIpyataa,36epirAHnA 6o nepeBe3EHn BHPo6y,IO3a3Haeni BInCTpykuiNo eKcnIpyataaBHPo6y.

3. FapaiHIIIE 06cIyROByaHHIckacOByCTbC8 y BnHaIKax: HABBHOCTI MEXAHINHX IIOHKoJKeHb a6o CnIiB CTOPOHbOTo BTpyaHHI;

4. IOIIKOJKeHHBHKINKaHCTHXIHHMJHXOMa60HeIIACHHBMHaIKOM, BKIOHOAHUH6BHCKABky,HOTpaJIHHHMyBnpiOcHHIXpCIMcRIB, piHH,KoMAx,TOHIO; -IOIIKOJKeHHBHKINKaH3actocyBaHHMa60PiKIOHOeHHM HectaIapTIHx a6oIEcPbAHHxepHΦepiHHx pHcTpoIB,akcccyapib;

5. RapaTHI He HIOHmPcEbC Hb BHrpaTHI MaTePiH Ta JoatKOBi akcccyapn;

3 rapaHTIIHHMm yMOBaMH 3roHe.

Пдпс покупс:

TAPAHITINHIMTAJIOH No

Tobap/MoJcJIb

CepiiHII HOMep

Tepmin rapahii

Дага пожду
