MUSG05 - Mouse Gembird - Free user manual and instructions

Product type	Wired mouse
Brand	Gembird
Model	MUSG05
Dimensions (L x W x H)	Approximately 12 x 7 x 4 cm
Weight	Approximately 100 g
Material	ABS plastic
Color	Black (typical)
Connection type	Wired USB
Cable length	Approximately 1.5 m
Number of buttons	3 (left click, right click, scroll wheel)
Scroll wheel	Yes, with click function
Sensor type	Optical
Resolution (DPI)	1000 DPI (fixed or switchable, unspecified)
Power supply	Via USB port (5 V)
Supported operating systems	Windows, macOS, Linux
Installation	Plug and Play, driverless
Warranty	24 months
Maintenance	Clean with a soft, dry cloth
Package contents	Mouse, user manual
Reparability	Not user-serviceable, contact customer support

Frequently Asked Questions - MUSG05 Gembird

How to connect the Gembird MUSG05 mouse?

Simply plug the USB cable into a free port on your computer. The mouse is automatically recognized (Plug and Play). No driver is needed.

Does the mouse work on macOS?

Yes, the Gembird MUSG05 mouse is compatible with Windows, macOS, and Linux. Plug it in and it works immediately.

How to clean the mouse?

Use a soft, dry cloth to dust the surface. Avoid chemicals or water. For the sensor, use a dry cotton swab.

What is the warranty period?

The warranty is 24 months from the date of purchase. Keep the receipt for any claim.

What to do if the cursor does not move?

First check that the USB cable is fully inserted. Try another USB port. Restart the computer. If the problem persists, test on another computer to confirm a hardware defect.

Is the mouse compatible with games?

Yes, it works for office use and casual gaming. However, it is not designed for intensive gaming (fixed DPI, no programmable buttons).

Can I use the mouse on a glass surface?

It is not recommended to use the mouse on glass or reflective surfaces. Preferably use a mouse pad for optimal tracking.

How to adjust the sensitivity (DPI)?

The MUSG05 model has a fixed resolution of 1000 DPI. There is no adjustment button. To change the speed, adjust the mouse settings in your computer's control panel.

What to do if the scroll wheel stops working?

Clean the scroll wheel with a dry cloth. If the problem persists, it may be a mechanical defect. Contact Gembird's customer service.

Where to find the user manual?

The manual is available for free download on the notice-facile.com website in PDF format. You can also request it by email.

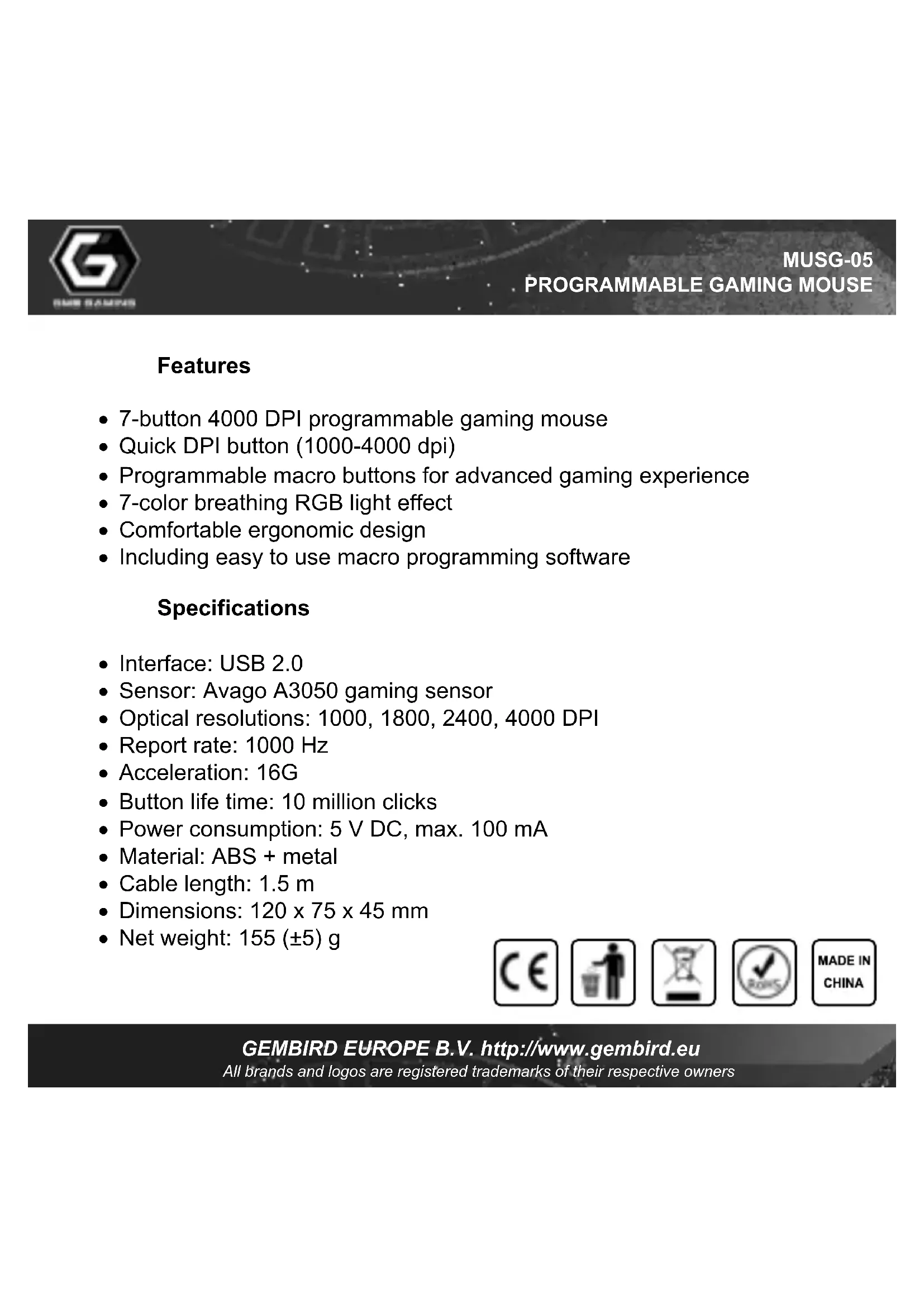

USER MANUAL MUSG05 Gembird

• 7-button 4000 DPI programmable gaming mouse
• Quick DPI button (1000-4000 dpi)
• Programmable macro buttons for advanced gaming experience
  7-color breathing RGB light effect
• Comfortable ergonomic design
• Including easy to use macro programming software

Specifications

• Interface: USB 2.0
• Sensor: Avago A3050 gaming sensor
  Optical resolutions: 1000, 1800, 2400, 4000 DPI
  Report rate: 1000 Hz
  Acceleration: 16G
• Button life time: 10 million clicks
• Power consumption: 5 ~V DC, . 100 ~mA
  Material: ABS + metal
• Cable length: 1.5 m
• Dimensions: 120 × 75 × 45 mm
  Net weight: 155 (±5) g

(1)

2

GEMBIRD EUROPE B.V. http://www.gembird.eu brands and logos are registered trademarks of their respective owners

图图

MUSG-05

PROGRAMMABLE GAMING MOUSE

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
