USER MANUAL TG 300 CASO

10.1 General 26
10.2 Information on this manual 26
10.3 Warning notices 27
10.4 Limitation of liability 28
10.5 Copyright protection 28

11 Safety 28

11.1 Intended use 28
11.2 General Safety information 29
11.3 Sources of danger 30
11.3.1 Danger of Burning 30
11.3.2 Danger of Explosion 31
11.3.3 Danger of Fire 31
11.3.4 Dangers due to electrical power 31

12 Commissioning. 32

12.1 Safety information 32
12.2 Delivery scope and transport inspection 32
12.3 Unpacking 33
12.4 Disposal of the packaging 33
12.5 Setup 33
12.5.1 Setup location requirements: 33
12.6 Electrical connection 34

13 Design and Function 35
13.1 Overview 35
13.1.1 Rating plate 35
14 Operation and Handing 36
14.1 Operating the device 36
15 Cleaning and Maintenance 37
15.1 Safety information 37
15.2 Cleaning 38
15.2.1 The base station 38
15.2.2 The grill plate 38
16 Disposal of the Old Device. 38
17 Guarantee 39
18 Technical Data 40
19 Mode d'emploi 42
19.1 Généralités 42

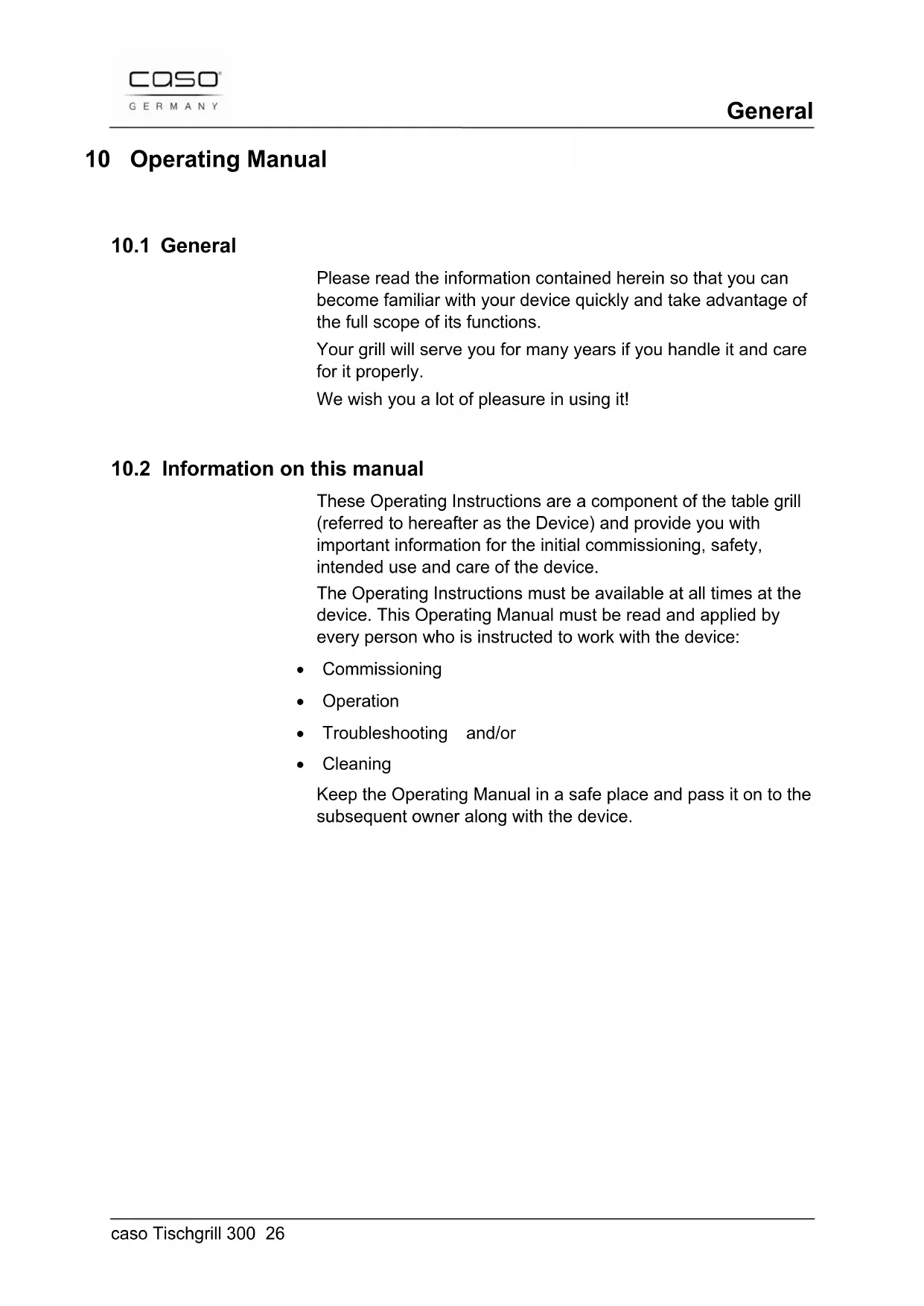

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your grill will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the table grill (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning
Operation
Troubleshooting and/or
- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
Uses for non-intended purposes
- Improper repairs
Technical alterations
- Use of unauthorized spare parts

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for warming up, cooking and roasting foods.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
  Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person.
  Do not permit children to use the device, unless they are supervised.
  Do not leave the device unsupervised when it is in operation.
  Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
  Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.

Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled
- Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
Connector must be removed before the appliance is cleaned. Turn the control knob to minimum and remove the plug from the socket.
The appliance inlet must be dried before the appliance is used again.
Only the appropriate connector must be used.
The appliance is not intended to be operated by means of an external timer or a separate remote-control system
This appliance is not intended for use by persons (including children) with reduced physical, sensory or learning disabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
The unit is also under the direct operation is still very hot! Allow to cool all parts before touching them.

11.3 Sources of danger

11.3.1 Danger of Burning

▲WARNING WARNING

The items cooked on this appliance as well as the grill and the surface of the appliance can become very hot.

Adhere to the following safety instructions in order to avoid burning or scalding yourself or others:

Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar.
- Do not put kitchen utensils, cooking or frying pan lid, knife or other metal objects on the grill. If the device is turned on, these objects are very hot.
The unit does not be moved, while in use.
Do not come too close to the grill with your face and hands as hot steam may be produced.

11.3.2 Danger of Explosion

WARNING WARNING

Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced.

Adhere to the following safety instructions in order to prevent a danger of explosion:

• Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressure generated.

11.3.3 Danger of Fire

▲WARNING WARNING

There is a risk of fire if the appliance is used incorrectly.

Adhere to the following safety instructions in order to avoid a risk of fire:

During operation remove all easily inflammable items (e.g. detergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance.
- Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly.
The unit may not be used with charcoal, wood or other fuels!

11.3.4 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.

• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
  Do not touch the appliance or the mains plug with wet hands.
• Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carrying connections.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

WARNING Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

• Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Table grill is delivered with the following components:

1. Barbeque area
2. Cord receptacle
3. Power cord
4. Base
5. Operating Instructions

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.
• Select an installation location where children cannot reach the appliance's hot surface.

• The appliance is not intended as a built-in appliance.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• To operate correctly, the appliance requires a sufficient flow of air. Leave a 15cm gap on all sides when setting up the appliance.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device.
  If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.

The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

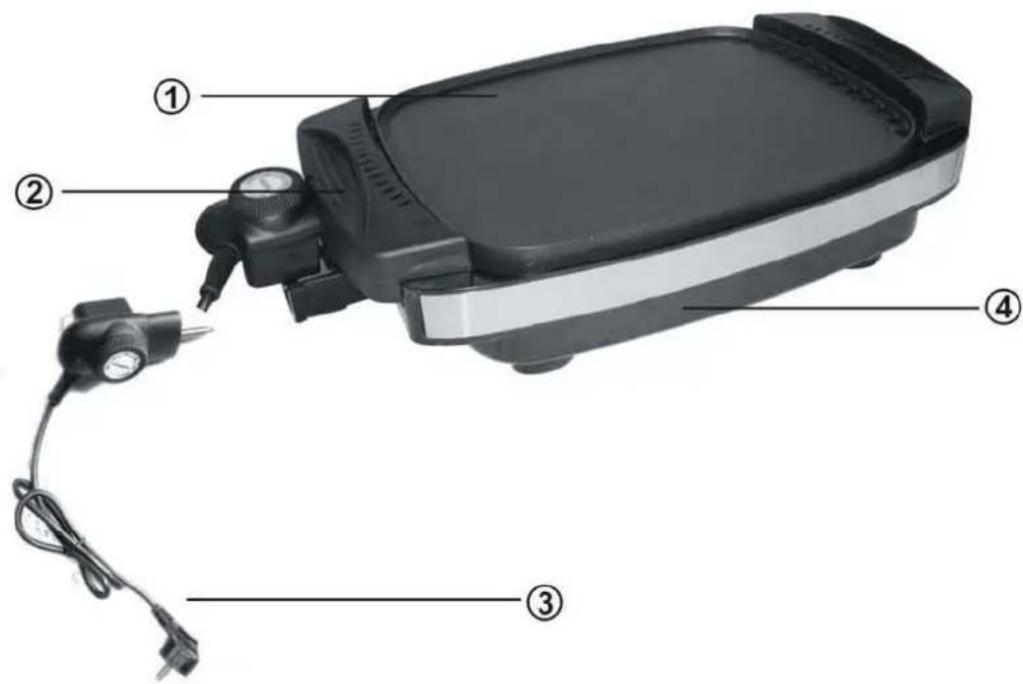

13.1 Overview

1. Barbeque area
2. Cord receptacle
3. Power cord
4. Base

WARNING

Observe the safety instructions in this warning notice in order to avoid the personal injuries.

When you remove the power cord, do not touch the plug of the power cord, it could be hot!

13.1.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Operating the device

HINWEIS Please note

• Switch the appliance off after use. This avoids unnecessary use of energy, and ensures your safety.
  If the appliance is unused for extended periods of time, we recommend that the appliance be unplugged from the mains.

First set down the barbeque area to the base station.

Plug the power cord into the cable holder on the table grill.

Only then plug the cord into the socket.

The indicator lights on on the power cord.

Preheat the grill 7-14 minutes before.

The grilling surface is nonstick-coated, use only plastic cooking utensils.

If your vegetables, grilled fish or lean meat, spread a little vegetable oil on the grill.

When you grill meat with a little fat or marinated meat, it is not necessary to treat the grill.

If you use wooden skewers, leave this lie in water about 12 minutes before food impaled on it.

For strongly oil-based marinade, place the grill under a fume hood.

When you are finished grilling, remove the plug from the outlet, then plug the power cord from the receptacle on the device.

Pull the plug after use. Let the grill cool completely.

Discard the fat carefully. Clean the grill.

HINWEIS Please note

Never put metal foil packages or utensils on the grill plate.
The grill is suitable for all kinds of juicy meat such as beef steak, pork chop, chicken fillet, sausage, fish and also vegetables.
- Grill the food according to your own taste. Grilling time depends on the kinds of food, initial temperature of the food and its thickness.
During grilling, turn the food from time to time. You can also spread salt or sauce on the food.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
- Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The grill can be hot after use. There is a danger of burning! Wait until the appliance has cooled down.
Clean the grill after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.

If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
- Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.
Do not use a sharp metal pusher
Do not cut the food with a knife on the surface.
No cleansing agents (except liquid soap), nylon brushes or metallic brushes must be used as the surface of the hot plate could be damaged.
In order not to damage the plastic components, do not use any solvent-based cleaning detergents such as, for example, petrol.

15.2 Cleaning

15.2.1 The base station

The base station must be cleaned after each use with a damp cloth. Food particles or grease that is caked on the surface leads to adhesion or baking.

15.2.2 The grill plate

The grill plate must be cleaned in hot soapy water after each use. Food particles or grease that is caked on the surface leads to adhesion or baking.

It also can be cleaned in the dishwasher.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

Meaning of crossed -out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

18 Technical Data

Device	Caso Table Grill 300
Model	DF-608-E1
Item No.	2810
Mains data	230 V, 50 Hz
Power	1800 W
External measurements (W x H x D)	600 x 115 x 325 mm
Net weight	9,5 kg

Mode d'emploi
