Product type	Mobile air conditioner (portable)
Brand	Daitsu
Model	ADP 9AM
Power supply	220-240 V, 50 Hz
Operating modes	Cooling, dehumidification, heating, ventilation
Cooling capacity	9000 Btu/h (approx. 2.6 kW)
Temperature range (cooling)	17°C - 30°C
Temperature range (dehumidification)	10°C - 30°C
Temperature range (heating)	17°C - 30°C
Timer	Yes, 0-24 h
Drain pump	Yes, max height 3.5 m
Duct length	500 - 2000 mm (adjustable)
Remote control type	Yes, with alkaline batteries included
Air filter	Washable, clean every 2 weeks
Included accessories	Duct, adapters A and B, window kit, remote control, batteries, drainage hose
Safety	Automatic shutdown on overheating (70°C), overflow protection (code P1)
Refrigerant gas type	Not specified (R32 or R410A likely)

Frequently Asked Questions - ADP 9AM DAITSU

My air conditioner does not turn on, what should I do?

Check that the appliance is plugged in and the socket works. If the water fill indicator flashes, the tank is full: empty it. Otherwise, press the ON/OFF button after waiting 3 minutes.

The water fill indicator flashes and the appliance stops.

This indicates that the drainage tank is full. Unplug the appliance, remove the rubber plug at the back and drain the water. Plug it back in and restart.

The blown air is not cold enough.

Make sure all doors and windows are closed. Check that the exhaust duct is properly connected and not obstructed. Clean the air filter. Lower the set temperature.

The appliance makes noise.

Place the appliance on a flat, level floor. The 'milling' sound is normal as it comes from the refrigerant flow. If the noise persists, check that the duct is not obstructed.

How to clean the air filter?

Remove the filter cover, take out the filter, wash it in warm water (about 40°C) with a neutral detergent, rinse and dry in the shade. Put it back every 2 weeks.

Can I use the air conditioner without the duct?

No, the exhaust duct is essential in cooling or dehumidification mode to expel hot air. In fan-only mode, you can remove it.

How to install the duct for permanent installation?

Attach adapter A to the wall with screws and the wall socket, then connect the duct. Use the minimum length (500 mm) for better efficiency. Plug the orifice when the appliance is not in use.

The remote control does not work.

Check that the batteries are installed correctly (2 AAA alkaline batteries provided). If they are worn out, replace them. Make sure no obstacle blocks the signal between the remote and the appliance.

Code P1 appears on the panel.

This is the safety signal for water level too high in the tray. Turn off the appliance, unplug it, drain the water through the rear opening, then plug it back in. The code will disappear.

The appliance shuts off in heating mode.

This is normal: an automatic protection stops the appliance if the temperature of the blown air exceeds 70°C. Wait for the appliance to cool down, then turn it back on.

USER MANUAL ADP 9AM DAITSU

PLEASE READ THIS OPERATION MANUAL BEFORE USING THE AIR CONDITIONER.

CONTENIDOS

Safety rules 32
Names of parts 33
Accessories 33
Operation panel of the air conditioner 34
Operating instructing for the air conditioner 35-36
Installation 37-38
Maintenance 39
Trouble shooting 40

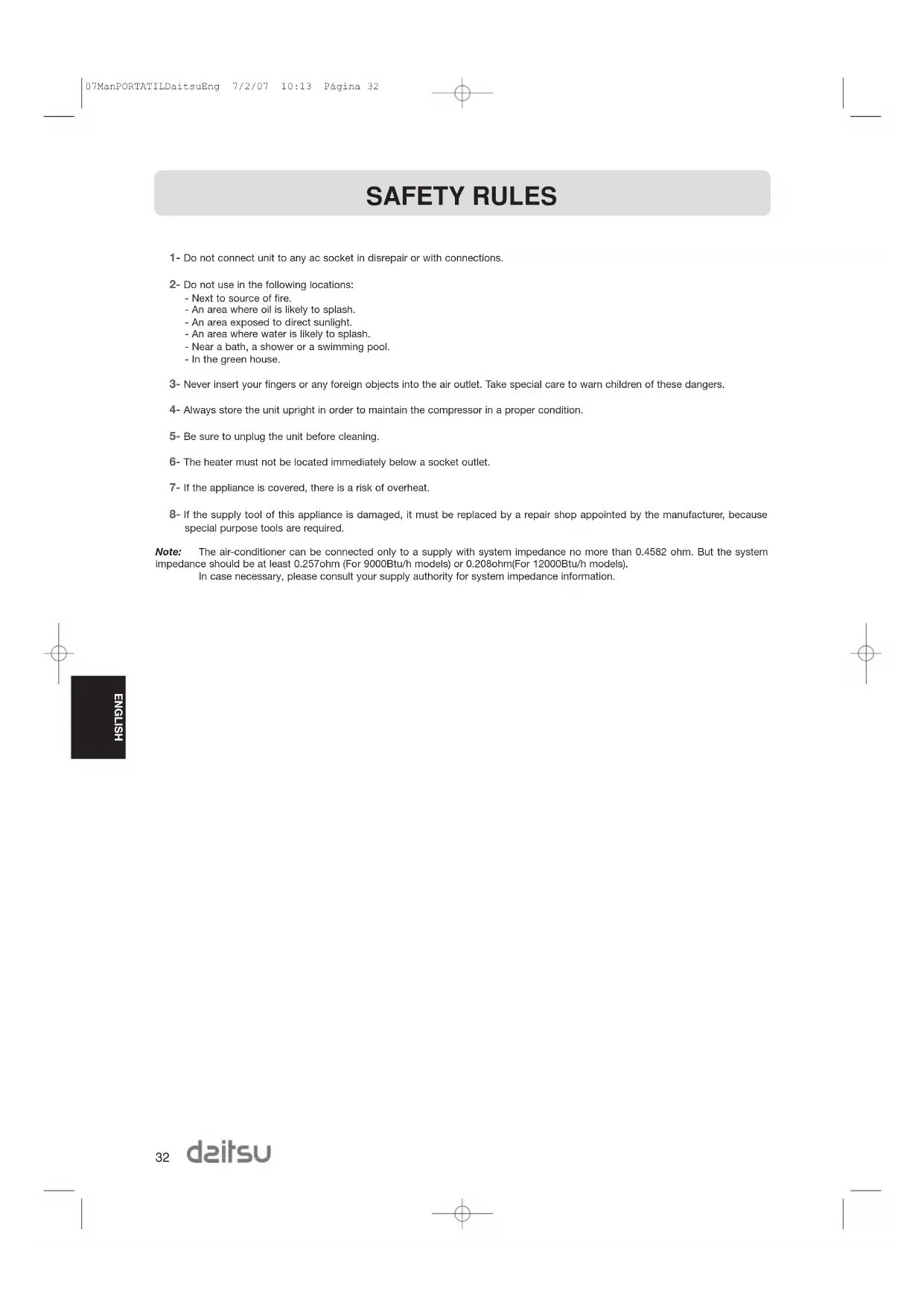

SAFETY RULES

1- Do not connect unit to any ac socket in disrepair or with connections.
2- Do not use in the following locations:

• Next to source of fire

• An area where oil is likely to splash.

• An area exposed to direct sunlight.

• An area where water is likely to splash.

• Near a bath, a shower or a swimming pool.

• In the green house.

3- Never insert your fingers or any foreign objects into the air outlet. Take special care to warn children of these dangers.
4- Always store the unit upright in order to maintain the compressor in a proper condition.

5- Be sure to unplug the unit before cleaning.
6- The heater must not be located immediately below a socket outlet.
7- If the appliance is covered, there is a risk of overheat.
8- If the supply tool of this appliance is damaged, it must be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

Note: The air-conditioner can be connected only to a supply with system impedance no more than 0.4582 ohm. But the system impedance should be at least 0.257ohm (For 9000Btu/h models) or 0.208ohm(For 12000Btu/h models).

In case necessary, please consult your supply authority for system impedance information.

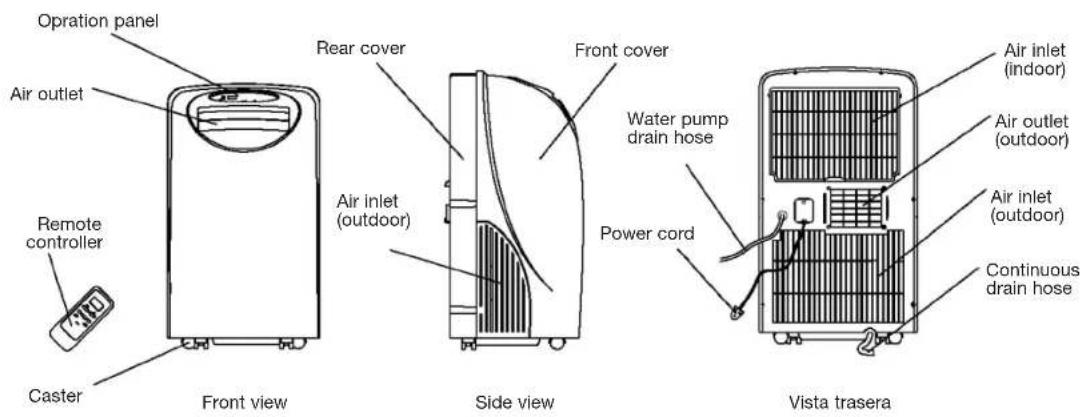

NAMES OF PARTS

ACCESSIONS

PARTS	PARTS NAME	QUANTITY
	Duct 1
	Adaptor A (for permanent ductmounting) 1
	Adaptor B (for temporary ductmounting) 1
	Wall plug 4
	Screws 4
	Alkaline batteries 2
	Remote controller 1
	Water pump drain hose 1

• Check all the accessories are included in the package and please refer to the installation instructions for their usage.

OPERATION PANEL OF THE AIR CONDITIONER

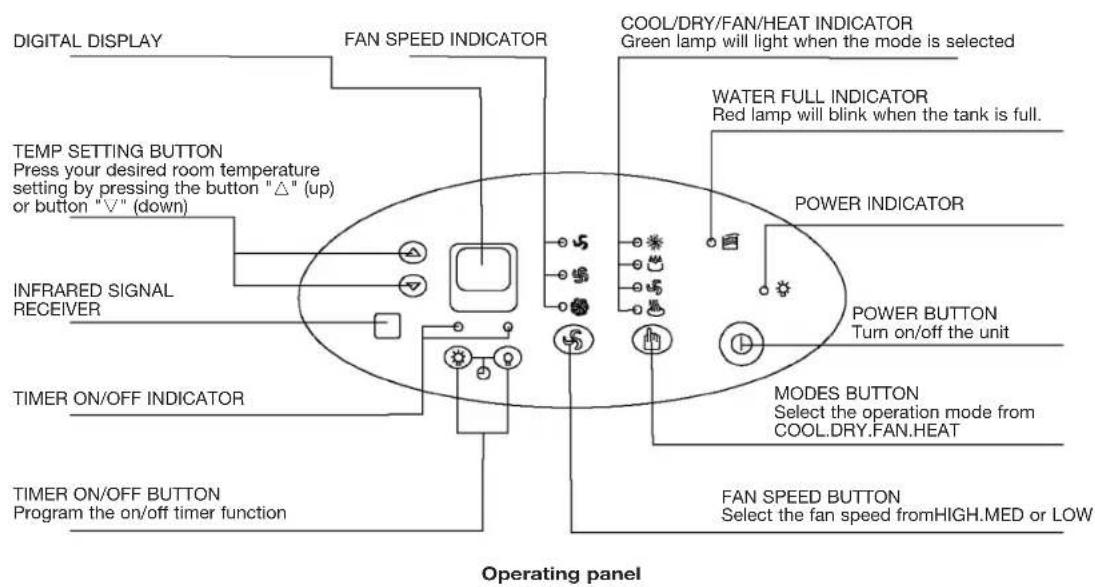

Cooling and heating

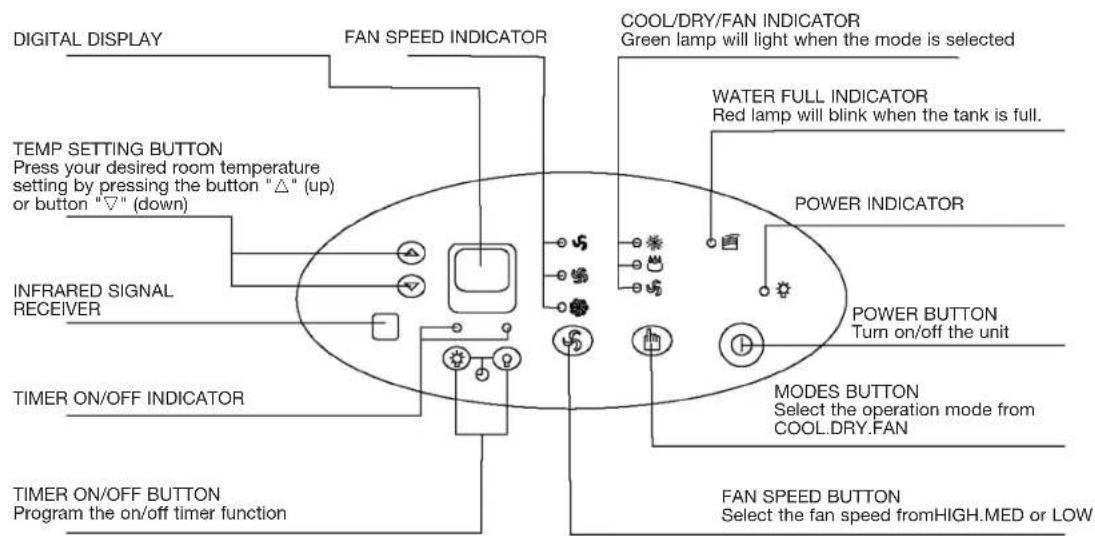

Cooling only type
Operating panel

OPERATING INSTRUCTING FOR THE AIR CONDITIONER

Before starting this unit

1- Select a suitable location, make sure you have easy access to an electrical outlet.
2- Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit as depicted in Fig.

Note: Step 2 is required only while using the "cooling mode".

3- Plug the unit into a 220V-240V-50Hz grounded electrical outlet.

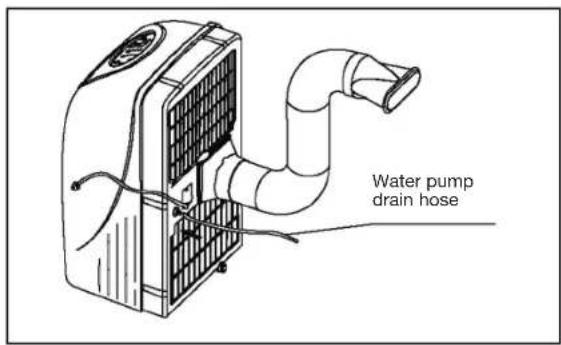

4- Make sure the water pump drain hose is correctly installed.
5- Press the "on/off" button to turn on the unit.

(1) Before use

Dehumidifying and Cooling Operations

The operating range for dehumidifying is 10^ - 30^ / 50^ - 86^ , and the operating range for cooling operating is 17^ - 30^ / 63^ - 86^ .
- If the cooling or dehumidifying operations have been switched off and need switching on again in a short time, allow approximately three minutes for the cooling or dehumidifying operations to resume.
- Make sure the water pump drain hose is correctly connected to the unit.

Power supply:

• Insert the AC Power Plug to a AC socket.
• Do not connect the air conditioner to a multiple socket outlet which is also being used for other electrical appliance.
• Be sure the power supply is AC 220V-240V~50Hz

OPERATING INSTRUCTING FOR THE AIR CONDITIONER

(2) Cooling operation

• Press the "MODE" button several times until the "COOL" indicator light comes on.
• Press the "TEMP SETTING" buttons "▲" or "▼" to select your desired room temperature. (17°C-30°C/63°F-86°F)
• Press the "FAN SPEED" button to choose the fan speed.

(3) Dehumidifying operation

• Press the "MODE" button several times until the "DRY" indicator light comes on.
• Press the "TEMP SETTING" buttons "▲" or "▼" to select your desired room temperature. (10°C-30°C/50°F-86°F)
• The fan will run at a fixed speed at this setting.
• Keep windows and doors closed for the best dehumidifying effect.
• Do not put the duct to window.

(4) Heating operation (Cooling only type without heat feature)

• Press the "MODE" button several times until the "HEAT" indicator light comes on.
• Press the "TEMP SETTING" buttons "▲" or "▼" to select your desired room temperature. (17°C-30°C/63°F-86°F)
• Press the "FAN SPEED" button to choose the fan speed.
• Do not put the duct to window.

(5) Fan operation

• Press the "MODE" button several times until the "FAN" indicator light comes on.
• Press the "FAN SPEED" button to choose the fan speed.
• Do not put the duct to window.

(6) Timer operation

Setting the on timer:
- Press the "TIMER ON" button when the air conditioner is off. Select the time you need the unit start to operate.
- The Operation Paned Window will display "ON"
- The starting time is adjustable from 0.00 to 24.

Setting the off timer:

• Press the "TIMER OFF" button when the air conditioner is on. Select the time you need the unit turn off. The Operation Panel Window will display "OFF".
• The turning off time is adjustable from 0.00 to 24.

(7) Water pump drainage

• Connect the water pump drain hose to the unit before operate. When the water level of the internal water tank reaches a predetermined level, the water pump will be activated and drain the condensed water outside through the connected drain hose. The maximum delivery lift is 3.5m . (Under this condition, attach the rubber blockage to the back hole to prevent continuous drainage.)

(8) Continuous drainage

• When you plan to leave this unit unused for a long time, remove the rubber blockage form the back hole and attach a section of the continuous drain hose to drain hose connector. All the water in the water tank would drain outside through the drain hose. (Under this condition, the water pump is not activated.)

INSTALLATION

(1) Important

Install the mobile ir conditioner in a flat and spacious location where the air outlets will not be covered up. A minimum clearance of 30cm from a wall or other obstacles should be kept. The appliance shall not be used in the laundry. The plug shall accessible after appliance is positioned. Wiring shall be done according to National rules.

(2) Duct mount instructions

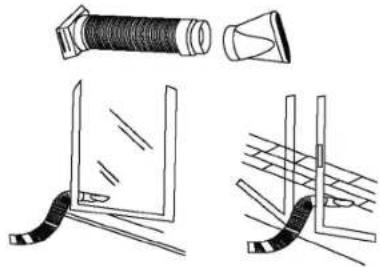

Temporary

1- Attach one end of the duct to the exhaust air outlet of the mobile air condition, first fit the left side of the duct on the exhaust air panel, then the right side duct. Push it downwards, be sure to fix thoroughly. (See the figures)
2- Attach the other end of the duct to adaptor B.
3- Put the end of duct to a nearby window.

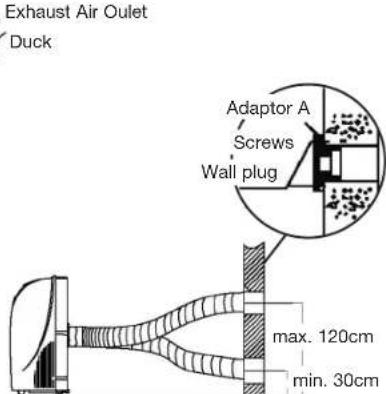

Permanent

1- Attach one end of the duct to the exhaust air outlet of the mobile air conditioner. According to the arrow direction, first fit the left side of the duct on the exhaust air panel, then the right side duct. Push it downwards, be sure to fix thoroughly. (See the figures)
2- Install the adaptor A onto the wall by using 4 wall plug and screws, be sure to fix thoroughly. (See the figures)
3- Attach the other end of the duct to adaptor A.
4- Cover the hole using the adaptor cap when not in use.
- The duct can be compressed or extended between 500mm and 2000mm, but it is desirable to keep the duct length to a minimum.

IMPORTANT

Do not over bend the duct (see figure)

INSTALLATION

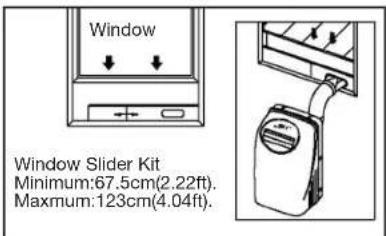

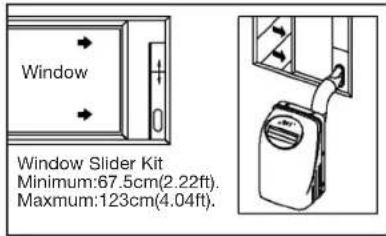

Window Kit Installation

Your window kit has been designed to fit most standard Vertical and horizontal window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig.for minimum and maximum window openings.

Drain Tank Safety Feature

This unit is equipped with a internal water tank, two full-safe switch mechanisms, one is used to control the water pump drainage, the other is used to monitor the water level inside the internal water tank. When the water level reaches a predetermined level, the full-safe switch mechanism is activated. The digital display shows P1 and the water full indicator light illuminates. Carefully move the unit outside, remove the rubber blockage from the back drainage hole and drain the water off. The unit will continue operating properly.

MAINTENANCE

IMPORTANT

1- Be sure to unplug the unit before cleaning.
2- Do not use gasolng, thinner or other chemicals to clean the unit.
3- Do not wash the unit directly under a tap or using a hose. The electrical cause danger.
4- If the power cord is damaged, it should be repaired by manufacture or its agency.

Air filter

• Clean the air filter at least once every two weeks to prevent inferior fan operation because of dust.

- Removal

Pull out the filter cover and remove the air filter from the filter cover.

- Cleaning

Wash the air filter by immersing it gently in warm water (about 40^ / 104^ ) with a neutral detergent. Rinse the filter and dry it in a shady place.

- Mounting

Attach the air filter to the filter cover using the attachment hooks on the inner surface of the cover. Put the filter cover back to the unit.

Unit enclosure

• Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.

TROUBLE SHOOTING

Troubles	Possible causes Suggest remedies
Unit does not start when pressing 1/0 button	Water full indicator blinks, water tank is full.	Dump the water in the water tank.
	Room temperature is higher than the set temperature.(Heating mode)	Reset the temperature.
	Room temperature is lower than the set temperature.(Cooling mode)	Reset the temperature.
Not cool enough	The windows or doors in the room are not closed.	Make sure all the windows anddoors are closed.
	There are heat sources inside the room.	Remove the heat sources if possible.
	Exhaust air duct is not connected or blocked.	Connect the duct and makesure it can function properly.
	Temperature setting is too high.	Decrease the set temperature.
	Air filter is blocked by dust. Clean the air filter.
Power shut off at heating mode	The automatic over heat protection function. When the temperature at the air outlet exceeds 70°C/158°F, the device will stop.	Switch on again after the unit has cool down.
Noisy or vibration	The ground is not level or not flat enough.	Place the unit on a flat, levelground if possible.
Gurgling sound	The sound comes from the flowing of the refrigerant inside the air-conditioner.	It is normal.
