USER MANUAL CNE 47540 GW BEKO

dans votre appareil.

temperaturesensor food

MILK juice etc. temperaturesensorFR

L’ensemble Li (Lithium), Na (Sodium),

K (Potassium) Rb (Rubidium), Cs

(Cesium) et métaux artificiels et

temperaturesensor food

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

For products with a water dispenser; .6

Things to be done for energy saving ..7

Points to be considered when re-

transporting your refrigerator 8

Before operating your refrigerator 8

Electric connection 8

Disposing of the packaging 9

Disposing of your old refrigerator 9

Placing and Installation 9

Changing the illumination lamp 10

Installing the lower ventilation cover .10

Adjusting the feet 10

Changing the door opening direction 10

Dual cooling system: 15

Freezing fresh food 16

Recommendations for preservation of

Icematic and ice storage container ..18

Chiller compartment 19

Protection of plastic surfaces 20

7 Recommended solutions

for the problems 21EN

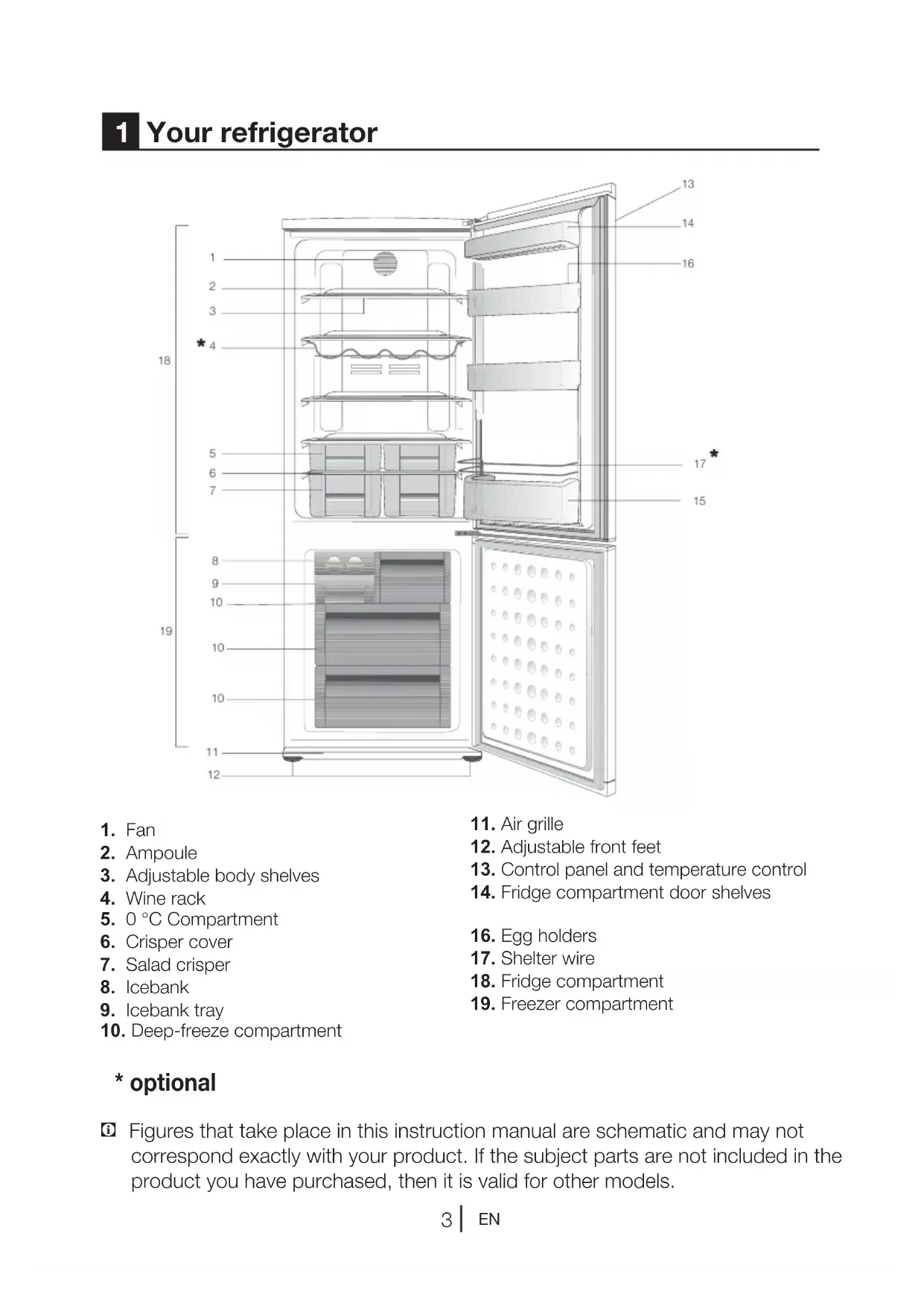

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

10. Deep-freeze compartment

12. Adjustable front feet

13. Control panel and temperature control

14. Fridge compartment door shelves

18. Fridge compartment

19. Freezer compartment

132310108461112751817191109141516 *

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Do not pull by the cable when pulling

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Never place containers filled with

water on top of the refrigerator,

otherwise this may cause electric

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fallEN

down and hurt you and damage

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objects

may fall down when you open or

close the refrigerator's door.

• As they require a precise

temperature, vaccines, heat-sensitive

medicine and scientific materials

and etc. should not be kept in the

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product's cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

freshfood compartment

• Please do not let any foodstuff to

come to contact with the temperature

sensor in freshfood compartment.

In order to maintain freshfood

compartment at ideal storage

temperature, the sensor must not be

blocked by fodstuffs.

• Do not place hot foodstuff in your

temperaturesensor food

MILK juice etc. temperaturesensorEN

BPlease remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1.Your refrigerator must be emptied and

cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3.Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

Before operating your

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and

can the air circulate freely in the rear

2.Please install the 2 plastic wedges

as illustrated in the figure. Plastic

wedges will provide the required

distance between your refrigerator

and the wall in order to allow the air

circulation. (The illustrated figure is

only an example and does not match

exactly with your product.)

3.Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

4.You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

5.Front edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

• Extension cables and multiway plugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.EN

BProduct must not be operated before

it is repaired! There is danger of

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose of them by

classifying them in accordance with the

waste instructions. Do not dispose of

them along with the normal household

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old refrigerator without

giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your

municipality about the disposal of

Before disposing of your refrigerator, cut

out the electric plug and, if there are

any locks on the door, make them

inoperable in order to protect children

Placing and Installation

A If the entrance door of the room

where the refrigerator will be

installed is not wide enough for the

refrigerator to pass through, then call

the authorised service to have them

remove the doors of your refrigerator

and pass it sideways through the

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct

3. There must be appropriate air

ventilation around your refrigerator

in order to achieve an efficient

operation. If the refrigerator is to be

placed in a recess in the wall, there

must be at least 5 cm distance with

the ceiling and at least 5 cm with

the wall. If the floor is covered with

a carpet, your product must be

elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.EN

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs as shown in the

illustration below. The corner where

the leg exists is lowered when you turn

it in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

Changing the illumination

To change the lamp used for

illumination of your refrigerator, please

call your Authorized Service.

Installing the lower

You can install the lower ventilation

cover as illustrated in the figure.

Changing the door opening

Door opening direction of your

refrigerator can be changed according

to the place you are using it. If this is

necessary, please call your nearest

Authorized Service.EN

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

5 Using your refrigerator

Fast Freeze indicator will remain

lit when the Fast Freeze function

is enabled. To cancel this function

press Fast Freeze button again. Fast

Freeze indicator will turn off and return

to its normal settings. If you do not

cancel it, Fast Freeze will cancel itself

automatically after 4 hours or when the

freezer compartment reaches to the

required temperature.

If you want to freeze large amounts

of fresh food, press the Fast Freeze

button before putting the food into the

freezer compartment. Compressor will

not start running immediately if you

press the Fast Freeze button for more

then once with short intervals since the

electronic circuit protection system will

This function is not recalled when

power restores after a power failure.

2- Fast Freeze Indicator

This icon flashes in an animated style

when the Fast Freeze function is

3- Freezer Set Function

This function allows you to make the

freezer compartment temperature

setting. Press this button to set

the temperature of the freezer

compartment to -18, -20, -22, -24

4- Freezer Compartment

Temperature Setting Indicator

Indicates the temperature set for the

Freezer Compartment.

5- Fridge Set Function

This function allows you to make

the fridge compartment temperature

setting. Press this button to set the

temperature of the fridge compartment

to 8, 6, 4, 2 respectively.

6- Fridge Compartment

Temperature Setting Indicator

Indicates the temperature set for the

7- Quick Fridge Function

When you press Quick Fridge button,

the temperature of the compartment

will be colder than the adjusted values.

This function can be used for food

placed in the fridge compartment and

required to be cooled down rapidly.

If you want to cool large amounts of

fresh food, it is recommended to active

this feature before putting the food

into the fridge. Quick Fridge indicator

will remain lit when the Quick Fridge

function is enabled. To cancel this

function press Quick Fridge button

again. Quick Fridge indicator will turn

off and return to its normal settings.

If you do not cancel it, Quick Fridge

will cancel itself automatically after 2

hours or when the fridge compartment

reaches to the required temperature.

This function is not recalled when

power restores after a power failure.

8- Quick Fridge Indicator

This icon flashes in an animated style

when the Quick Fridge function is

Press Freezer Set and Fridge Set

buttons simultaneously for 3 sec. to

activate the Lock function. Not other

function can be selected from the

display panel when the lock function

is active. Press Freezer Set and Fridge

Set buttons simultaneously for 3 sec.

again to deactivate the Lock function.

10- Eco-Fuzzy (Special Economic

Press the Fast Freeze button for 3

seconds to activate the Eco Fuzzy

Function. If this function is activated,

refrigerator will start to operate at

the most economic mode minimum

6 hours later and economic usage

indicator will turn on. Press the Fast

Freeze button for 3 seconds again to

deactivate the Eco Fuzzy Function.

11- High Temperature/ Error

This light comes on during high

temperature failures and error

12. Economic Usage Indicator

when the Freezer Compartment is set

to -18°C. Economic Usage Indicator

turns off when the Quick Fridge or

Quick Freeze function is selected.EN

13- Ionizer Indicator Light

Indicator light lights up continuously.

This light indicates that your

refrigerator is protected against the

14- Humidity Indicator

Indicator light lights up continuously.

This light indicates that the food kept

in the refrigerator is preserved for a

long time under ideal humidity.EN

A audio warning signal will be given

when the fridge compartment door of

your product is left open for at least

1 minute. This audio signal will mute

when any button on the indicator is

pressed or when the door is closed.

Dual cooling system:

Your refrigerator is equipped with

two separate cooling systems to

cool the fresh food compartment and

freezer compartment. Thus, air in the

fresh food compartment and freezer

compartment do not get mixed.

Thanks to these two separate cooling

systems, cooling speed is much higher

then other refrigerators. Odors in the

compartments do not get mixed. Also

additional power saving is provided

since the defrosting is performed

Maximum frozen food storage volume

is achieved without using the drawers

and the upper shelf cover provided

in the freezer compartment. Energy

consumption of your appliance is

declared while the frezer compartment

is fully loaded without the use of he

drawers and upper shelf cover.

-18°C 4°C This is the normal recommended setting.

-20,-22 or -24°C 4°C These settings are recommended when the ambient

temperature exceeds 30°C.

4°C Use when you wish to freeze your food in a short time.

Your refrigerator will return to its previous mode when

the process is over.

-18°C or colder 2°C If you think that your fridge compartment is not cold

enough because of the hot conditions or frequent

opening and closing of the door.

You can use it when your fridge compartment is

overloaded or if you wish to cool down your food

rapidly. It is recommended that you activate quick

fridge function 4-8 hours before placing the food.EN

• It must be preferred to wrap or cover

the food before placing them in the

• Hot food must cool down to the

room temperature before putting

them in the refrigerator.

• The foodstuff that you want to freeze

must be fresh and in good quality.

• Foodstuff must be divided into

portions according to the family’s

daily or meal based consumption

• The foodstuff must be packaged in

an airtight manner to prevent them

from drying even if they are going to

be kept for a short time.

• Materials to be used for packaging

must be tear-proof and resistant to

cold, humidity, odor, oils and acids

and they must also be airtight.

Moreover, they must be well closed

and they must be made from easy-

to-use materials that are suitable for

• Food to be frozen must be put in the

freezer compartment. (They should

not be allowed to come in contact

with the previously frozen items to

prevent their partial thawing. Freezing

capacity of our product is given in

the technical specifications of your

• Periods given in the information about

deep freeze must be obeyed for

• Frozen food must be used

immediately after they are thawed

and they should never be re-frozen.

• Please observe the following

instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of

the food is best preserved when it

is frozen right through to the core as

quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling

system to operate continuously until

the food is frozen solid.

3. Take special care not to mix already

frozen food and fresh food.

preservation of frozen food

• Prepacked commercially frozen

food should be stored in accordance

with the frozen food manufacturer’s

frozen food storage compartment.

• To ensure that the high quality

achieved by the frozen food

manufacturer and the food retailer is

maintained, the following should be

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

3. Do not exceed “Use By”, “Best

Before” dates on the packaging.

If there is a power failure do not open

the freezer door. Even if the power

failure lasts up to the “Temperature

Increasing Time” indicated in the

“Technical specifications of your

refrigerator” section, frozen food

will not be affected. In case the

failure lasts longer, the food must be

checked and when necessary, must

be consumed immediately or must

be frozen after cooked.EN

The freezer compartment defrosts

ice cream, vegetables

Food in pans, covered

food or drinks (such

as milk, fruit juice and

Crisper Vegetables and fruits

Delicatessen products

(cheese, butter, salami

Deep-freeze information

Food must be frozen as rapidly as

possible when they are put in a

refrigerator in order to keep them in

The TSE norm requires (according to

certain measurement conditions) the

refrigerator to freeze at least 4.5 kg of

foodstuff at 32°C ambient temperature

to -18°C or lower within 24 hours for

every 100-liters of freezer volume.

It is possible to keep the food for

a long time only at -18°C or lower

You can keep the freshness of food

for many months (at -18°C or lower

temperatures in the deep freeze).

• Foodstuff must be divided into

portions according to the family’s daily

or meal based consumption needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from

drying even if they are going to be kept

Materials necessary for packaging:

Materials to be used for packaging

the foodstuff must be tear-proof and

resistant to cold, humidity, odor, oils

Foodstuff to be frozen should not be

allowed to come in contact with the

previously frozen items to prevent their

Always follow the values in the tables

for storage periods.

Frozen food must be used immediately

after they are thawed and they should

never be re-frozen.EN

Hygiene+: The photocatalyst filter in

the air channel of refrigerator helps

to clean the air inside. Also this filter

Ion+: Ionizer, that is in the air channel

of refrigerator, ionizers the air. With the

help of this system airborne bacteria

and bad smells originated from these

bacteria will be reduced.

Icematic and ice storage

Fill the Icematic with water and place

it into its seat. Your ice will be ready

approximately in two hours. Do not

remove the Icematic from its seating to

Turn the knobs on it clockwise by 90

Ice cubes in the cells will fall down into

the ice storage container below.

You may take out the ice storage

container and serve the ice cubes.

If you wish, you may keep the ice

cubes in the ice storage container.

Ice storage container

Ice storage container is only intended

for accumulating the ice cubes. Do not

put water in it. Otherwise, it will break.EN

Chiller compartments enable the

foods to be frozen become ready

for freezing. You can also use these

compartments to store your food at a

temperature a few degrees below the

You can increase the inner volume of

your refrigerator by removing any of

the chiller compartments. To do this,

pull the compartment towards yourself;

the compartment will lean against the

stopper and stop. This compartment

will be released when you lift it about 1

cm and pull it towards yourself.

Odour filter in the air duct of the fridge

compartment prevents the build-up of

unpleasant odours in the refrigerator.EN

C Remove the protective foil on the

C There is a coating on the surface of

the glasses. This coating minimizes

the stain build-up and helps to

remove the possible stains and dirt

easily. Glasses that are not protected

with such a coating may be subject

to persistent binding of air or water

based organic or inorganic dirt such

as limescale, mineral salts, unburned

hydrocarbons, metal oxides and

sliciones that can easily and quickly

cause stains or material damage.

Keeping the glass clean becomes too

difficult despite the regular cleaning.

Consequently, the appearance

and the transparency of the glass

deteriorates. Harsh and corrosive

cleaning methods and compounds

will intensify these defects and speed

up the deterioration process.

C Water-based cleaning products that

are not alkaline and corrosive must be

used for regular cleaning purposes.

C Non-alkaline and non-corrosive

materials must be used for cleaning

so that the service life of this coating

lasts for a long time.

C These glasses are tempered to

increase their durability against

impacts and breaking.

C A safety film is also applied to their

rear surfaces as an extra safety

measure in order to prevent them

from causing damage to their

surrounding in case of a breakage.

*Alkali is a base that forms hydroxide ions

(OH¯) when it is dissolved in water.

Li (Lithium), Na (Sodium), K (Potassium)

Rb (Rubidium), Cs (Cesium) and

artificial and radioactive Fr (Fan-sium)

metals are called ALKALI METALS.

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.EN

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.EN

The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

• The food might be touching the ceiling of the drawer. Rearrange food in the

temperaturesensor food

MILK juice etc. temperaturesensorDE

mohly by chladničku poškodit.

temperaturesensor food

temperaturesensor food

MILK juice etc. temperaturesensorSK

temperaturesensor food

MILK juice etc. temperaturesensorEL

temperaturesensor food

• V napravo ne nalagajte vročih živil.

temperaturesensor food

MILK juice etc. temperaturesensorSL

(Quick Fridge), bodo temperature

(Freezer Set) in hladilnika (Fridge Set) 3

Majhna in zapakirana

temperaturesensor food

temperaturesensor food

MILK juice etc. temperaturesensorRU
