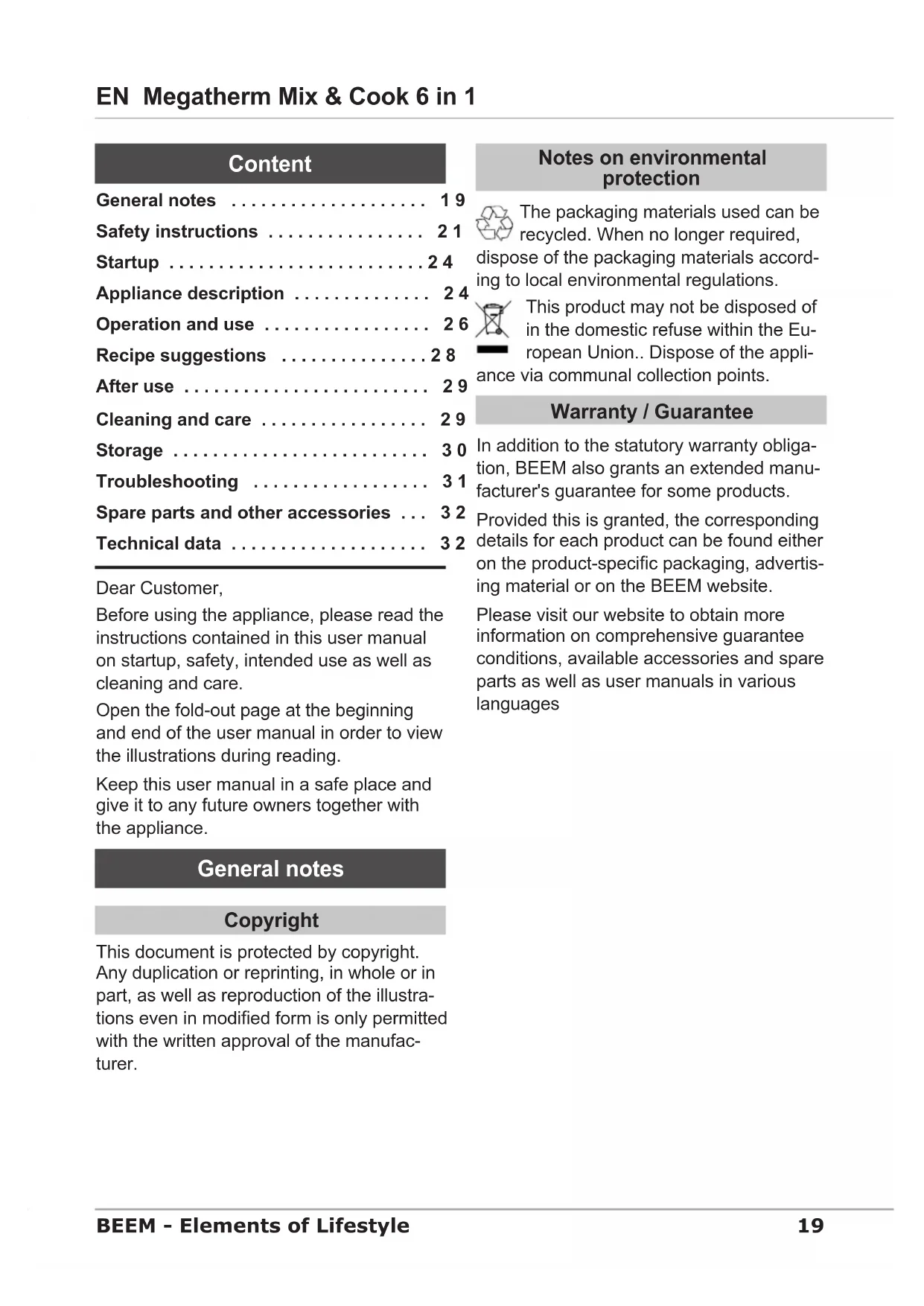

USER MANUAL D2000875 BEEM

Megatherm Mix & Cook 6 in 1

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

General notes 19
Safety instructions 21
Startup 24
Appliance description 24
Operation and use 26
Recipe suggestions 28
After use 29
Cleaning and care 29
Storage 30
Troubleshooting 31
Spare parts and other accessories 32
Technical data 32

Dear Customer,

Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and give it to any future owners together with the appliance.

General notes

Copyright

This document is protected by copyright. Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.
This product may not be disposed of in the domestic refuse within the European Union.. Dispose of the appliance via communal collection points.

Warranty / Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for preparing soups, sauces and mixed drinks. Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Only use the appliance for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Limitation of liability

We assume no liability for damage or follow-up damage in the case of:

failure to observe the instructions in the user manual,
use for other than the intended purpose, improper or unsuitable handling, incorrectly performed repairs, unauthorised modifications, use of non-approved parts or spare parts,
use of unsuitable supplementary or accessory parts.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC and und 2009/125/EC directives.

Safety instructions

This appliance is not intended for use by children under 8 years of age or persons with limited physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appliance. Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

Do not leave the appliance unattended during operation.

Store the appliance and accessory parts out of the reach of children under 8 years of age.

Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. This will also invalidate the warranty or guarantee.

Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer otherwise the warranty or guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Danger of electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Pull the plug out of the mains socket, if you are not using the appliance, - if a malfunction occurs during operation,

before you clean the appliance. -

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

WARNING

Do not operate the appliance without the corresponding lid.

Danger from sharp blades!

Do not touch the blades.

Use gloves or a cloth to remove the blades.

Danger from moving parts!

Always disconnect the mains plug before assembling, disassembling, cleaning or storing the appliance.

• Never put your figures or objects into the steamer jug when the appliance is in operation.
  Do not use the appliance for warming up food.

CAUTION

Always switch off the appliance before removing the upper parts.
Only operate the appliance when the lid is closed.
Do not pull the connecting cable to remove the plug from the mains socket.
Remove any stones from the fruit before extracting the juice.

Frozen fruit must be defrosted before chopping otherwise the jug could be damaged.

CAUTION

Do not use sharp objects or abrasive cleaning agents to clean the surfaces.

When using for prolonged periods of time, allow the appliance to cool down occasionally to avoid overheating.

The jug is not suitable for ovens or microwave ovens.

Never lift or move the appliance with the mains cable.

Requirements for the place of peration

For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:

Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.

Do not install the appliance in a hot, wet or very humid environment.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions must on the electrical connection be observed:

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 16 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over sharp edges.

The mains cable must not be pulled tightly, bent or come into contact with hot surfaces.

Place the cable in such a way as to avoid danger from tripping.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance.

Keep the original packaging during the guarantee period in order to pack the appliance properly in the event of a guarantee or warranty claim.

Transport damage will invalidate the warranty or guarantee.

Checking the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Before using for the first time

Clean the appliance and the accessories as described in the section Cleaning and care (page 29).

NOTE

When using for the first time, it is possible that production-related additives such as grease could cause slight odour or smoke. This is completely normal. Ensure sufficient ventilation.

Appliance description

(See illustration on the left fold-out page)

Lid for filling hole1

Steamer jug lid2

Steamer jug3

Connecting cable with mains plug4

Motor unit5

Operating panel6

7 On/Off button
8 Programme for thick/creamy soups
9 Programme for soups with fine chunks
10 Programme for soups with course chunks
11 Chopper blade

Locking ring12

13 Rotary switch
14 Steamer jug socket
15 User manual (not illustrated)

Rotary switch

Level Function

Intermittent operation.

Run the appliance intermittently at maximum power for short intervals.

Switch mixer function on/on.

1

Low rotation speed for mashing and chopping.

2

High rotation speed for mashing or chopping.

Operating panel

ButtonProgramme

Switch programme on/off.

Programme for thick/creamy soups.

Programme for soups with fine chunks

Programme for soups with course chunks

Safety switch

The appliance is equipped with safety switch and can only be operated when the steamer jug is correctly placed on the motor unit and the jug has been filled with the minimum quantity (see marking on the jug).

WARNING

Before using each time, check the function of the safety switch. Switch on the appliance with the lid on but without ingredients. If the motor turns, the safety switch is defective and the appliance may not be used.

Putting on/taking off the lid (images A1 and A2)

Put the lid onto the steamer jug with the locking latch slightly raised (image A1).

Turn the lid on the steamer jug clock- wise in the direction of the to lock it (image A2).

Open the lid by turning it anticlockwise clockwise in the direction of the unlock it (image A2).

Take the lid off the steamer jug.

Putting on/taking off the lid for the filling hole

Put the lid (1) onto the large lid (2). The keyways on the small lid fit into the recesses of the large lid.

To lock the lid, turn it clockwise until it stops.

To take off the lid, turn it anticlockwise until the keyways are located at the recesses and take off the small lid.

Inserting/removing the chopping blade (image B1)

Put the chopping blade (11) into the steamer jug (3) from above.

Put the locking ring (12) onto the blade from below and turn it anticlockwise in the direction of

To remove the blade, turn the locking ring (12) clockwise in the direction of O and remove the locking ring and the blade.

Operation and use

Switching the mixer function on/off

To mash and chop food, proceed as follows:

Turn the rotary switch to level 1 or 2 or to Pulse

To finish, turn the rotary switch to

NOTE

To mash and chop, the ingredients (liquid or solid) must be filled up to the minimum filling level (see marking on the jug). The sensor must be covered with liquid.

Pay attention to the maximum filling capacity of the jug: 1.2 l for soups and 1.5 l for mixed drinks (see marking on the jug).

Automatic operation

NOTE

An acoustic signal sounds when the mains plug is inserted.

If the steamer jug contains too little or no ingredients, the on/off button (7) flashes and an acoustic signal sounds. Fill the ingredients (liquid) up to the minimum level and press the on/off switch. An acoustic signal sounds the on/off switch lights up continuously.
For the minimum filling quantity (the liquid must cover the sensor) and the maximum capacity, pay attention to the marking on the jug.

To achieve optimum results when preparing soup, fill the appliance with lukewarm water.

The appliance is equipped with 3 preset programmes for preparing soups, sauces or jam.

fine and thick (8),
with small chunks (9),
with larger chunks (10).

To use these programmes, proceed as follows:

Fill the steamer jug with the ingredients for the dish. Pay attention to the minimum filling quantity.

Put on the small and large lids as described in the section Putting on/taking off the lid (page 25) and Putting on/taking off the lid for the filling hole (page 26).

Insert the plug into the mains socket. The on/off button (7) flashes.

Press the on/off button (7) to activate the standby function. An acoustic signal sounds and the on/off button lights up continuously when the liquid ingredients reach the marking for the minimum filling quantity. Otherwise add more ingredients and press the on/off button once again.

Press the desired programme selection button (8-10) to start the programme.

Preparing soup

To prepare soup, proceed as follows:

Cut the ingredients into chunks with an edge length of approx. 1.5cm

Put the steamer jug onto the appliance so that it snaps in.

Fill the steamer jug with the ingredients. Pay attention to the minimum filling quantity (see marking on the jug.

Insert the mains plug into the mains socket and press the on/off button.

Press the desired programme button:

fine and thick (8),

with small chunks (9),

with larger chunks (10).

The end of the programme is indicated by an acoustic signal.

Open the lid and season the food, if required.

Preparing jam

To prepare jam, proceed as follows:

Cut the ingredients into small chunks.
Put the steamer jug onto the appliance.
Put roughly 600g of the chopped fruit and 250ml fruit juice into the jug. The following programmes are suitable for jams:

without chunks and

for a fine and thick jam with very small chunks.

The end of the programme is indicated by an acoustic signal.

NOTE

Pay attention to the minimum filling quantity and the maximum capacity (see markings on the jug).

Check the consistence of the jam by taking a sample: put 2 TS of hot fruit mixture onto a small plate. As it cools, the jam will become firmer and thicker until it no longer runs.

Preparing sauces

To prepare sauces, proceed as follows:

Put all ingredients into the jug and start the desired programme. All three programmes are suitable for sauces:

sauces,

for very fine and thick

for fine and thick sauces

with very small chunks,

for sauces with a bite, i.e.

with large chopped chunks.

The end of the programme is indicated by an acoustic signal.

NOTE

Pay attention to the minimum filling quantity and the maximum capacity (see markings on the jug).

Cold mixed drinks such as milk shakes and smoothies

For mixing, simply put the ingredients into the jug, close the lid and turn the rotary switch to level 1 or 2. For drinks, the pulse function is usually sufficient.

NOTE

Pay attention to the minimum filling quantity (the liquid must cover the sensor) and the maximum capacity, pay attention to the markings on the jug.
- Frozen fruit should be defrosted before chopping and added to the minimum quantity of liquid.

Recipe suggestions

Potato cream soup

Ingredients (for 4 persons):

400 g mealy cooking potatoes

750 ml vegetable broth

2 tablespoons of sour cream

Salt, white pepper

1 tablespoon of Worcester sauce

a little freshly-chopped herbs

(parsley, cress)

Peel, wash and dice the potatoes and then put them into the jug. Add vegetable broth and start the selected cooking pro

gramme 1 When the.

programme has completed, refine the soup with sour cream to taste. Season with salt, pepper and the Worcester sauce, fill a bowl and garnish with herbs.

Apple-orange-banana jam

Ingredients:

2 apples

1 banana

roughly 300ml of orange juice

1 pinch of cinnamon

500 g preserving sugar 1:1 (or 250 g of preserving sugar 2:1)

Peel the apples, remove the stalk and cut into pieces. Peel the banana and cut into pieces. Put the juice, fruit and preserving sugar into the jug and start the selected programme. When the programme has completed, pour the jam into clean jars and close them with suitable lids.

Tomato sauce

Ingredients:

2-3 large tins of tomatoes (use tomatoes and the juice)

1 small onion
1 clove of garlic
1 pinch of sugar
salt, pepper
3-4 basil leaves

Peel the onions and garlic and finely chop. Put them and the other ingredients - with the exception of the basil leaves - into the jug. Start the desired cooking programme .or. Serve the tomato sauce with pasta or rice and garnish with the basil leaves.

Banana milk

Ingredients:

3 bananas

800 ml of milk

Cut the peeled bananas into chunks and put into the jug with 250ml of milk. Mash the bananas. Pour in the rest of the milk gradually.

Strawberry smoothie

Ingredients:

150 g strawberries

150 g bananas

300 ml orange juice

crushed ice

Put all ingredients into the jug and mash. Finally add some crushed ice and stir thoroughly.

After use

Pull the plug out of the mains socket.
Rinse the jug and the accessories used with water.
Clean the appliance and the accessory parts as described in the section Cleaning and care (page 29).

Cleaning and care

Before beginning any work, pay attention to the safety instructions in the section Safety instructions (page 21)!

Cleaning the appliance

Wipe the housing (6) with a slightly damp cloth.
Wipe the steamer jug with a damp cloth. For easy cleaning of the cooking jug, remove the blades as described in the section Inserting/removing the chopping blade (page26).
The steamer jug and the housing may not be immersed into the dishwater.
All other parts can be cleaned in a warm washing-up liquid solution or in the dish washer.

After cleaning, dry all parts of the appliance thoroughly.

NOTE

Pour warm washing-up water into the steamer jug to soak stubborn dried food residues for approx. 10 minutes before cleaning.

Rinse the chopping blade immediately after processing very salty ingredients.

After processing strongly coloured ingredients, the plastic parts of the appliance can become discoloured. Rub these parts with cooking oil before cleaning them.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 29).

Store the appliance and all accessory parts at a dry, clean and frost-free location which is protected against direct sunlight.

Troubleshooting

The following table will help you locate and eliminate minor faults:

Fault Possible cause Remedy
The appliance does not function after switching on.	Plug not inserted into socket. Insert plug.
	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
	The jug is not fitted properly.	Fit and lock the jug properly.
	Ingredients do not reach the minimum filling quantity.	Fill the jug up to the minimum level with the ingredients.
The automatic circuit breaker in the electrical distribution board trips.	Too many appliances connect-ed to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected.	Contact customer service.
Motor runs extremely slowly or stops.	The blade is caught up in larger pieces of food.	Cut the food into chunks.

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

Spare parts and other accessories

Item* Article No. Designation
1-3, 11, 12 900 926 001 Steamer jug, complete
2 900 926 006 Steamer jug lid
1 900 926 011 Lid for filling hole
11, 12 900 926 036 Chopper blade with locking ring
12 900 926 031 Locking ring

• numbering according to the description of the appliance

Technical data

Model	Thermoelectric mixer Megatherm Mix & Cook 6 in 1
Type number M37.001
Dimensions	185 x 245 x 405 mm (L x W x H)
Approx. net weight. 2.6 kg
Operating voltage 220-240V~
Mains frequency 50 Hz
Power	1350 W
Protection class	I
Degree of protection	IPX0

Sommaire

modifications non-authorises;

Elements of Lifestyle

BEEM

Subject to printing error.

Subject to technical modifications.

For service in other countries contact your local dealer.
