USER MANUAL FPP 829 XL CANDY

TABELLA TEMPI DI COTTURA

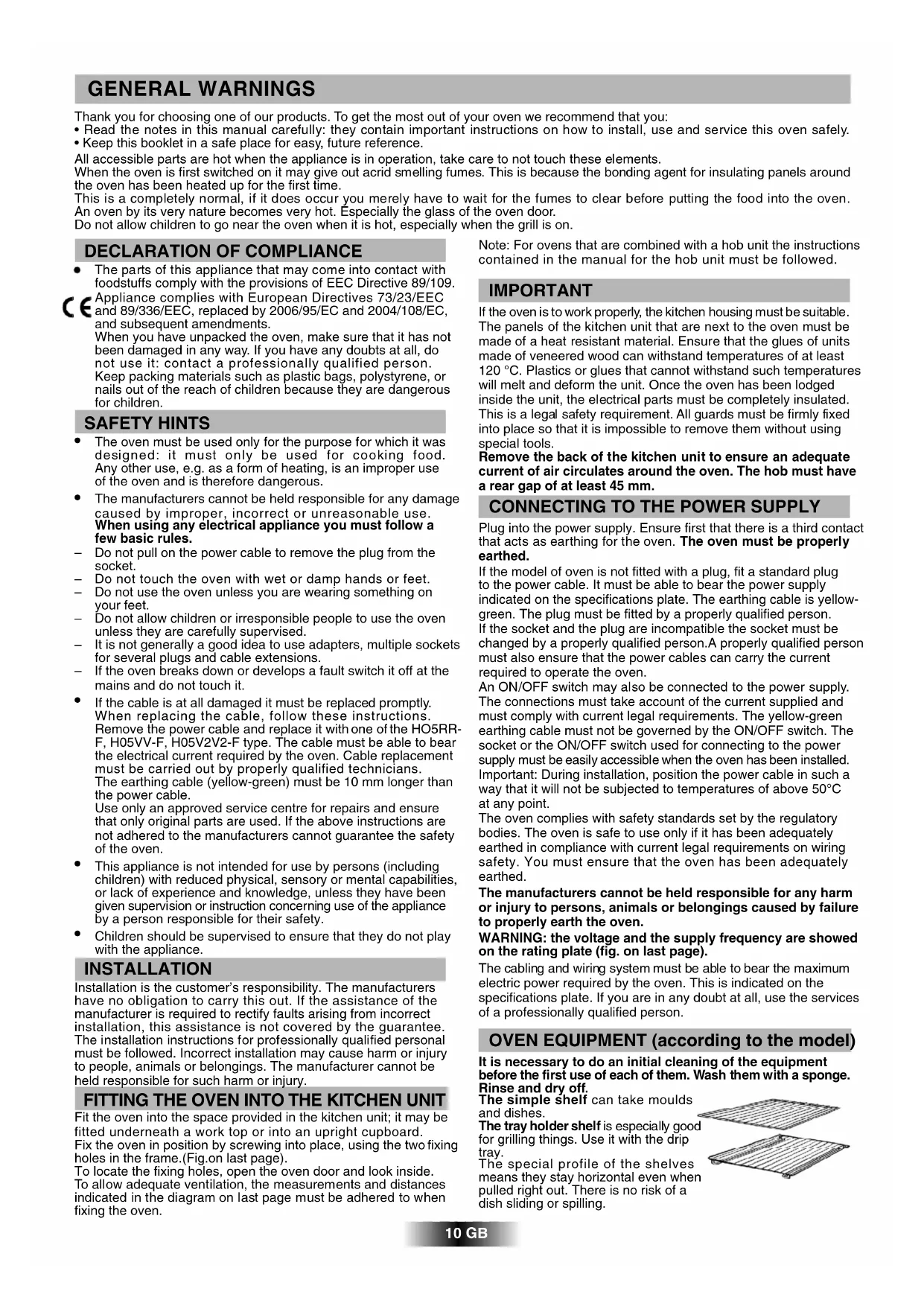

9 ITEN BUILT-IN OVENS USER MANUALThank you for choosing one of our products. To get the most out of your oven we recommend that you:

• Read the notes in this manual carefully: they contain important instructions on how to install, use and service this oven safely.

• Keep this booklet in a safe place for easy, future reference.

All accessible parts are hot when the appliance is in operation, take care to not touch these elements.

When the oven is first switched on it may give out acrid smelling fumes. This is because the bonding agent for insulating panels around

the oven has been heated up for the first time.

This is a completely normal, if it does occur you merely have to wait for the fumes to clear before putting the food into the oven.

An oven by its very nature becomes very hot. Especially the glass of the oven door.

Do not allow children to go near the oven when it is hot, especially when the grill is on.

10 GB Note: For ovens that are combined with a hob unit the instructions

contained in the manual for the hob unit must be followed.

IMPORTANT If the oven is to work properly, the kitchen housing must be suitable.

The panels of the kitchen unit that are next to the oven must be

made of a heat resistant material. Ensure that the glues of units

made of veneered wood can withstand temperatures of at least

120 °C. Plastics or glues that cannot withstand such temperatures

will melt and deform the unit. Once the oven has been lodged

inside the unit, the electrical parts must be completely insulated.

This is a legal safety requirement. All guards must be firmly fixed

into place so that it is impossible to remove them without using

Remove the back of the kitchen unit to ensure an adequate

current of air circulates around the oven. The hob must have

a rear gap of at least 45 mm.

CONNECTING TO THE POWER SUPPLY Plug into the power supply. Ensure first that there is a third contact

that acts as earthing for the oven. The oven must be properly

If the model of oven is not fitted with a plug, fit a standard plug

to the power cable. It must be able to bear the power supply

indicated on the specifications plate. The earthing cable is yellow-

green. The plug must be fitted by a properly qualified person.

If the socket and the plug are incompatible the socket must be

changed by a properly qualified person.A properly qualified person

must also ensure that the power cables can carry the current

required to operate the oven.

An ON/OFF switch may also be connected to the power supply.

The connections must take account of the current supplied and

must comply with current legal requirements. The yellow-green

earthing cable must not be governed by the ON/OFF switch. The

socket or the ON/OFF switch used for connecting to the power

supply must be easily accessible when the oven has been installed.

Important: During installation, position the power cable in such a

way that it will not be subjected to temperatures of above 50°C

The oven complies with safety standards set by the regulatory

bodies. The oven is safe to use only if it has been adequately

earthed in compliance with current legal requirements on wiring

safety. You must ensure that the oven has been adequately

The manufacturers cannot be held responsible for any harm

or injury to persons, animals or belongings caused by failure

to properly earth the oven.

WARNING: the voltage and the supply frequency are showed

on the rating plate (fig. on last page).

The cabling and wiring system must be able to bear the maximum

electric power required by the oven. This is indicated on the

specifications plate. If you are in any doubt at all, use the services

of a professionally qualified person.

OVEN EQUIPMENT (according to the model)

The simple shelf can take moulds

The tray holder shelf is especially good

for grilling things. Use it with the drip

The special profile of the shelves

means they stay horizontal even when

pulled right out. There is no risk of a

dish sliding or spilling.

It is necessary to do an initial cleaning of the equipment

before the first use of each of them. Wash them with a sponge.

DECLARATION OF COMPLIANCE

• The parts of this appliance that may come into contact with

foodstuffs comply with the provisions of EEC Directive 89/109.

Appliance complies with European Directives 73/23/EEC

and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC,

and subsequent amendments.

When you have unpacked the oven, make sure that it has not

been damaged in any way. If you have any doubts at all, do

not use it: contact a professionally qualified person.

Keep packing materials such as plastic bags, polystyrene, or

nails out of the reach of children because they are dangerous

The oven must be used only for the purpose for which it was

designed: it must only be used for cooking food.

Any other use, e.g. as a form of heating, is an improper use

of the oven and is therefore dangerous.

The manufacturers cannot be held responsible for any damage

caused by improper, incorrect or unreasonable use.

When using any electrical appliance you must follow a

– Do not pull on the power cable to remove the plug from the

– Do not touch the oven with wet or damp hands or feet.

– Do not use the oven unless you are wearing something on

– Do not allow children or irresponsible people to use the oven

unless they are carefully supervised.

– It is not generally a good idea to use adapters, multiple sockets

for several plugs and cable extensions.

– If the oven breaks down or develops a fault switch it off at the

mains and do not touch it.

If the cable is at all damaged it must be replaced promptly.

When replacing the cable, follow these instructions.

Remove the power cable and replace it with one of the HO5RR-

F, H05VV-F, H05V2V2-F type. The cable must be able to bear

the electrical current required by the oven. Cable replacement

must be carried out by properly qualified technicians.

The earthing cable (yellow-green) must be 10 mm longer than

Use only an approved service centre for repairs and ensure

that only original parts are used. If the above instructions are

not adhered to the manufacturers cannot guarantee the safety

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play

INSTALLATION Installation is the customer’s responsibility. The manufacturers

have no obligation to carry this out. If the assistance of the

manufacturer is required to rectify faults arising from incorrect

installation, this assistance is not covered by the guarantee.

The installation instructions for professionally qualified personal

must be followed. Incorrect installation may cause harm or injury

to people, animals or belongings. The manufacturer cannot be

held responsible for such harm or injury.

FITTING THE OVEN INTO THE KITCHEN UNIT Fit the oven into the space provided in the kitchen unit; it may be

fitted underneath a work top or into an upright cupboard.

Fix the oven in position by screwing into place, using the two fixing

holes in the frame.(Fig.on last page).

To locate the fixing holes, open the oven door and look inside.

To allow adequate ventilation, the measurements and distances

indicated in the diagram on last page must be adhered to when

fixing the oven.SELF-CLEANING OVEN WITH CATALYTIC Special self-cleaning panels covered in a micro-porous coating

are available as optional extras for all models. If they are fitted,

the oven no longer needs to be cleaned by hand.

The fat that is splattered onto the sides of the oven during roasting

is eliminated by the microporous coating which breaks the fat

down by catalysis and transforms it into gas.

Excessive splattering may nevertheless block the pores and

therefore hinder self-cleaning. The self-cleaning capacity may be

restored by switching on the empty oven to maximum for about

Do not use abrasive products, metal cleaning wads, sharp objects,

rough cloths, or chemical products and detergents that may

permanently damage the catalytic lining.

It is a good idea to use deep roasting trays to roast fatty foods

such as joints of meat etc. and to put a tray underneath the grill

to catch surplus fat.If the walls of the oven are so thickly coated

in grease that the catalytic lining is no longer effective remove

surplus grease with a soft cloth or sponge soaked in hot water.

The lining must be porous for self-cleaning to be effective.

N.B.: All catalytic linings currently on the market have a working

life of about 300 hours. They should therefore be replaced after

The drip tray catches the juices from grilled foods. It is only used with the Grill, Rotisserie, or Fan Assisted Grill ;

remove it from the oven for other cooking methods.

Never use the drip tray as a roasting tray as this creates smoke and fat will spatter your oven making it dirty.

The tray holder shelf is ideal for grilling. Use it in

conjunction with the drip tray. A handle is included to

assist in moving the both accessories safely. Do no

leave the handle inside the oven.

The pizza set is designed for pizza

cooking. In order to obtain the best

results the set must be used together

with Pizza function.

11 GB USEFUL TIPS SHELF SAFETY SYSTEM The oven features a new shelf safety

This allows you to pull out the oven shelves

when inspecting the food without danger

of food spillages or shelves falling

accidentally out of the oven.

To remove the shelves pull out and lift.

GRILLING Grilling makes it possible to give food a rich brown colour quickly.

For browning we recommend that you insert the grill onto the

fourth level, depending on the proportions of the food (see fig.

Almost all food can be cooked under the grill except for very lean

game and meat rolls.

Meat and fish that are going to be grilled should first be lightly

COOKING TIME For recommended cooking times and temperatures the first time

you use the oven, refer to the tables on pages 16, 17. You may

then wish to vary these times and settings in the light of your own

SERVICE CENTRE Before calling the Service Centre

If the oven is not working, we recommend that:

you check that the oven is properly plugged into the power supply.

If the cause of the fault cannot be detected:

disconnect the oven from the mains, do not touch the oven and

call the after sales service.

Before calling the Service Centre remember to make a note

of the serial number on the specifications plate (see fig. on

The oven is supplied with a guarantee certificate that ensures that

it will be repaired free of charge by the Service Centre.

ovens have an electronic control of the fan speed,

called and patented VARIOFAN. During the cooking, this system

changes automatically the speed of the fan (in multifunction mode)

in order to optimize the air flow and the internal temperature in

the cavity of the oven.

All ovens feature the function.

This allows a management of the distribution of moisture

and temperature. It reduces the loss of humidity of the

50 %, which guarantees the food remains tender and

tastes better. This a delicate cooking is recommended

for the baking of the bread and pastry.

It reduces the time of preheating of ovens: only 8 minutes

to reach 200 degrees Celsius.

It gives the possibility of setting level and intensity of

grilling, up to 50 % more power in comparison with a

traditional multifunction oven.

Some ovens are equipped with the new door " WIDE DOOR "

which has a bigger window area, this allows better maintenance

and a improved thermal insulation.

According to the model

Is an illumination system which replaces the traditional « light bulb ».

14 LED lights are integrated within the door. These produce white

high quality illumination which enables to view the inside of the

oven with clarity without any shadows on all the shelves.

CLEANING AND MAINTENANCE Never use a steam or high pressure spray to clean the appliance.

Never use abrasive cleaners, wire wool or sharp objects to clean

the glass oven door.

Clean the stainless steel and enamelled surfaces with warm,

soapy water or with suitable brand products. On no account use

abrasive powders that may damage surfaces and ruin the oven’s

appearance. It is very important to clean the oven each time that

it is used. Melted fat is deposited on the sides of the oven during

cooking. The next time the oven is used this fat could cause

unpleasant odours and might even jeopardise the success of the

cooking. Use hot water and detergent to clean; rinse out thoroughly.

To make this chore unnecessary all models can be lined with

catalytic self-cleaning panels: these are supplied as an optional

extra (see the section SELF-CLEANING OVEN WITH CATALYTIC LINING).

Use detergents and abrasive metal pads like «brillo pads» for the

stainless steel grills.

The glass surfaces as the top, oven door and warming compartment

door must be cleaned when they are cold. Damage that occurs

to them because this rule was not adhered to are not covered by

To replace the interior light:

. switch off the mains power supply and unscrew bulb.

Replace with an identical bulb that can withstand very high

system, besides providing excellent illumination inside

the oven, lasts longer than the traditional light bulb its easier and

to maintain and most of all saves energy.

• Long life illumination

• Very low energy consumption, -95% in

comparison with the traditional

“Appliance with white light LED of the 1M Class according to IEC 60825-

2002 + A2: 2001); the maximum light power emitted

Not observed directly with optical instruments. "WARNING : the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing ) is setting the correct time. This is achieved as follows• Press and hold the TIMER and END buttons ( and TIMER on somemodels• Set time with buttons• Release all buttons• Sounds an alarm at theend of the set time.• To check how long isleft to run press thebutton To set the time, push the control knob and turn anti-clockwise to position at the correct time.

To set as minute minder, set the cooking time by turning anticlockwise the knob without pushing,

until the desired time is shown at the small window on the left of the clock (max. 180 minutes). When the preset time is elapsed the alarm will ring and the oven must be switched off manually. To stop the alarm turn the knob until appears in the window. • When the set time aselapsed an audible alarmis activated (this alarm willstop on its own, howeverit can be stoppedimmediately by pressingthe button)• Press and hold thebutton• Press the buttons orto set the required time• Release all the buttons• Press and hold the ENDbutton• Press the buttons to set the time at which you wish the oven to switch off• Release the buttons• Set the cooking functionwith the oven functionselector

USE OF THE ELECTRONIC PROGRAMMER FUNCTION HOW TO ACTIVATE IT HOW TO SWITCH IT OFF WHAT IT DOES WHAT IT IS FOR MINUTE MINDER • Allows to use the oven asalarm clock (could beactivated either withoperating the oven orwith out operating theoven)• For cooking the desiredrecipes

MANUAL FUNCTION • Turn the oven functionselector to position O.• Enables you to operatethe oven.

COOKING TIME • Press and hold theTIMER button• Press the buttons orto set the lenght of coo-king required• Release all buttons• Set the cooking function withthe oven function selector• When the time is elapsedthe oven will switch offautomatically. Should youwish to stop cookingearlier either turn thefunction selector to 0, orset time to 0:00(TIMER and buttons)• It allows to preset thecooking time requiredfor the recipe chosen• To check how long isleft to run press theTIMER button.• To alter/change thepreset time pressTIMER and buttons• At the end of thecooking set time,the oven will switchoff automatically and anaudible alarm will ring.

END OF COOKING • This function is typicallyused with “cooking time”function. For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the requiredfunction, set the cookingtime to 45 minutes and theend of cooking time to12:30.• Cooking will start automa-tically at 11:45 (12:30minus 45 mins) and willcontinue until the pre-setend-of-cooking-time, whenthe oven will switch itselfoff automatically.WARNING. If the END of cooking is selected without settingthe length of cooking time,the oven will start cookingimmediately and it will stop at the END of cooking time set.• At the time set, the ovenwill switch off. To switchoff manually, turn theoven function selectorto position O.• Enables you to set theend of cooking time• To check the presettime press the ENDbutton• To modify the presettime press buttonsEND +• Press the button• Set the cooking functionwith the oven functionselector ATTENTION the oven only operates if set on manual function or preset time.

N.B.: on some models the symbols are replaced by + and - .

SETTING THE CORRECT TIME Reading of thetime selected

12 GB USING THE MINUTE TIMER To set the cooking time, turn dial onecomplete revolution and then positionthe index to the required time. Whenthe time has lapsed, the signal will ringfor a few seconds. USING THE END OF COOKING TIMER This control enables to set the desiredcooking time (max. 120 min.) the ovenwill automatically switch off at the endof the set time.The timer will count down from the settime return to the O position and switchoff automatically.For normal use of oven set the timer tothe position. To set the oven ensure the timer is not on the O position.USE OF ANALOGUE CLOCK/PROGRAMMER

13 GB FUNCTION HOW TO ACTIVATE IT HOW TO SWITCH IT OFF WHAT IT DOES WHAT IT IS FOR • At the end of the set timethe oven switches off automatically, this isindicated by an audiblealarm.• To cancel the setting turnthe control knob until thesymbol appears in thewindow (E)• It allows you to preset thecooking time required forthe recipe chosen.• Example: if the dish hasto be cooked for 45 minutes and needs to beready by 12:30;- Select the requiredfunction- Set start cooking time at11:45 (12:30 minus 45minutes)- Set cooking time at 45minutesAt the end of cooking theoven will automaticallyswitch off.• Enables you to operatethe oven.• At the end of cooking timeset the oven will switch offautomatically and an audible alarm will ring.• To cancel the set functionturn the control knob anti-clockwise until the symbol appears in the window (E) • The alarm have to bestopped by turning thecontrol knob until thesymbol appears in thewindow (E)• For cooking the desiredrecipes

MANUAL FUNCTION • Turn the control knob anti-clockwise, without pushing,until the symbol appearsin the window (E)• Turn the oven functionselector to position O.• First of all select thecooking function and thetemperature required• Set the length of cooking required by turning the control knob anticlockwiseuntil the time matches thelength of time shown in thewindow (E)• The oven will startimmediately and it willswitch off automatically atthe end of the preset time• Max time 180 minutes(3 hours)• At the end of the cookingtime set, the oven willswitch off automaticallyand an audible alarm willring.• First of all select thecooking function and thetemperature required.• To set the cooking starttime pull and turn thecontrol knob anticlockwiseuntil the hand F is in theposition indicating the starttime required.• To set the length ofcooking required turnclockwise the control knobwithout pushing it, until thetime required appears in the window (E).• Enables to program theoven so that the recipe isready at the desired timeCOOKING TIME END OFCOOKING(Not availableon model 2D 364.) ATTENTION : the oven only operates if set on manual function or preset time.

SETTING THE CORRECT TIME To set the correct time push and turn anti-clockwise the knob until the clock shows the correct time. Once this is donerelease the control.Display forTemperature or TimeLights:Minute Minder orAuto lightFunctionTimer knobLights: Function with fanFunction with VARIOFANDefrostSetting buttons *

/ Function selector knob 1

• To set the timeNB : Set the time whenyou first install your ovenor just after a black out(the clock is showing apulsating 12.00) • Rotate the left functionselector to the position“Set the time ”.

• Use the buttons " + " or" - " to set the time • Rotate the left functionselector to the position" Silence mode "

FUNCTION HOW TO ACTIVATE IT?

To turn off the sound of the minute minder • Rotate the functionselector to the position OFF.

• Enables you to set thetime which appears on thedisplay

SILENCE MODE SET THE TIME MINUTE MINDER

• Sounds an alarm at a fewseconds at the end of theset time • Allow to use the oven asalarm even if the oven isswitch off • Turn the left functionselector to the positionMinute Minder • Set the time of cookingby using buttons " + " and"-" • Set the time on 00.00 byturning the left functionselector to the positionMinute Minder, and usingthe button " - " CHILD LOCK

• Turn back the left functionselector to Child lock andpress button " + " during 3seconds• Indication STOPdisappears • The oven cannot be used • Useful especially whenchildren are at home • Turn the left functionselector to the positionChild lock.Press the button " + "during 3 seconds • Child lock is available when " STOP " appearson display • For cooking the desiredrecipes • When the cooking time haselapsed, the oven switch offautomatically and the alarmrings for few secondsTo stop the cookingfunctions early, turn thefunction control to OFF orset the time on 00.00 ; byrotating the function selectorto Cooking Time Durationand by using the buttons "+ " and " - " • It allows to preset thecooking time required forthe recipe chosen.• When the cooking time isset, turn the functionselector to OFF to go backto actual time.• To view the cooking timeselected, turn the leftfunction selector toCooking Time duration .

• Turn the right functionselector to a cooking function • Rotate the left functionselector to the position"Cooking Time Duration" • Set the time of cookingby using buttons " + " and"-" • Lighting Auto appears

COOKING TIME DURATION

• Enables you to turn off thesound of the minuteminder • This function is used forcooking we want to programin advance. For example,your recipe needs to becooked 45 min and to beready at 12.30pm ; simplyset the cooking timeduration on 45 min and theend of cooking time on12.30pm.The cooking will startautomatically at 11.45(12.30 minus 45 min) andwill continue until the pre-set end of cooking time,then the oven will switchitself off automatically • Turn the right functionselector to a cooking function • Rotate the left functionselector to the position"End of cooking" • Set the end time ofcooking by using buttons" + " and " - " • Lighting Auto appears. • When the cooking timehas elapsed, the ovenswitch off automatically. • To stop the cookingfunctions early, turn thefunction control to OFF • It allows to preset the endof cooking time you want. • When the cooking time isset, turn the functionselector to OFF to go backto actual time. • To view the cooking timeselected, turn the leftfunction selector to End ofcooking Time

• Rotate the functionselector to the position OFF.

The Led “°” of the temperature indicator pulsates until the pre-set temperature is not reached.

HOT : When a cooking program is finished, if the oven is still hot, « HOT » appears on the display, alternately with the time

displays, even if the two function selectors are switched on OFF. * according to the model 1. Minute Minder or Auto light 2. Lights3. Function with fan4. Function with VARIOFAN5. Defrost6. Display for Temperature or Time7. Setting buttons8. Function selector knob9. Function Timer knob The first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing12:00) is setting the correct time.WARNING !

515 GB OPERATING INSTRUCTIONS

* Tested in accordance with the CENELEC EN 50304.

** Tested in accordance with the CENELEC EN 50304 used for definition of energy class.

Bottom and top oven elements are used. This is the traditional form of baking and roasting. It

is ideal for roasting joints of meat and game, baking biscuits and apples and making the food

Both top and bottom heating elements are used with the fan circulating the air inside the oven.

We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates

into the food better and both the cooking and preheating times are reduced. You can cook

different foods at the same time with or without the same preparation in one or more positions.

This cooking method gives even heat distribution and the smells are not mixed. Allow about

ten minutes extra when cooking foods at the same time.

Fan plus lower element

This function is ideal for delicate dishes (pies-souffle).

FAN ASSISTED GRILL (a): use the turbo-grill with the door closed.

The top heating element is used with the fan circulating the air inside the oven. Preheating

is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole

pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally,

at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the

food is not too close to the grill. Turn the food over halfway through cooking.

GRILL: use the grill with the door closed.

The top heating element is used alone and you can adjust the temperature. Five minutes

preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs

and gratin dishes. White meats should be put at a distance from the grill; the cooking time is

longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the

drip tray underneath.

This is used for roasting on the spit.

SUPER GRILL: the oven has two grill positions

Grill : 2200 W Grill SUPER : 3000 W Defrosting

When the dial is set to this position. The fan circulates air at room temperature around the,

frozen food so that it defrosts in a few minutes without the protein content of the food being

(a) on some models : function with “Vario Fan” is the exclusive system developed by Candy to optimize the cooking results, temperature

management and damp management. The Vario Fan system is a self-activating system that changes automatically fan speed when a fan function

is chosen: the fan functions are the one inside the outlined area on control panel.

Soft Cook is the function for the confectionery and the bread. Thanks to its reduced fan speed,

this function increases oven internal damp. The increased damp creates the ideal conditions

of cooking for those foods that need to maintain an elastic consistence while they are cooking

(ex. cakes, bread, biscuits) avoiding surface breakages.

This function with hot air circulated in the oven ensure perfect result for

dishes such as pizza or focaccia.

Turns on the oven light

This will automatically activate the cooling fan (on fan cooled models only)

This function allows to set food crunchiness. The Super Grill function is characterized by a

50% power increase in comparison to the standard grill.

(Type A)TABLES OF COOKING TIMES The overall suggested cooking times set out below are intended as a rough guide only. They may in fact vary according to the quality,

the freshness, the size and the thickness of the food cooked and of course cooking time is also partly a matter of taste. Let the food

stand for a few minutes before serving because the ingredients continue cooking after they

have been removed from the oven.

Static electric oven Electric fan oven

Form the dough into a loaf and make a

cross with a knife on top of the dough leave

the dought to rise for at least 2 hours.

Grease the baking tin and put the dough in

Put the lasagne into an unheated oven

Lasagne Kg 3,5 2 70 ÷ 75 220 2 60 ÷ 65 200

Put the cannelloni into an unheated oven

Cannelloni Kg 1,8 2 50 ÷ 60 220 2 40 ÷ 50 200

Put the oven baked pasta into an unhea-

Oven baked pasta Kg 2,5 2 55 ÷ 60 220 2 45 ÷ 50 200

Warm the oven for 15 minutes and place

the pizzas on the greased baking tray.

Garnish them with tomatoes, mozzarella,

ham, oil, salt and origano.

Pizza Kg 1 1 190 1 19025 ÷ 35 20 ÷ 25

All meats can be roasted in shallow or deep roasting trays.

It is advisable to cover the shallow trays to avoid splattering the sides of the oven with grease.

The roasting times are the same whether the meat has been covered up or not.

Put the meat into a deep Pyrex dish and

season with salt and pepper; turn the meat

half way through cooking.

Kg 1 3 220 3 20070 ÷ 80 50 ÷ 60

Cook the meat in a covered Pyrex dish with

herbs, spice, oil and butter.

Cook as indicated above.

Cook as indicated above.

2 220 2 20040 ÷ 45 35 ÷ 40

Cover the trout with salt, oil and onions and

cook in a Pyrex dish.

2 220 2 20030 ÷ 35 30 ÷ 25

Cook the salmon in an open Pyrex dish with

salt, pepper and oil.

Sole Kg 1 2 220 2 20040 ÷ 45 35 ÷ 40

Cook the sole with salt and a spoonful of

Bream 2 whole ones 2 220 2 20040 ÷ 45 35 ÷ 40

Cook the bream in oil and salt in a covered

HANDY TIP: Lower the temperature so as to avoid the

surface of the food becoming hard and dry.

• Baking (not cakes)

Warm the oven for 15 minutes, grease the

baking tray, season the 4 focaccia with oil

and salt and leave them to

rise at room temperature for at least 2 hours

before putting them in the oven.

16 GBTABLES OF COOKING TIMES Food Quantity Shelf Oven

• Rabbits and Poultry

Place the guinea fowl in a deep Pyrex or

pottery dish with very little oil and season with

chicken Kg 1,5-1,7 2 110 ÷ 120 220 2 100 ÷ 110 200

Follow the procedure for cooking the guinea

Rabbit pieces Kg 1-1,2 2 55 ÷ 65 220 2 50 ÷ 60 200

Put all the pieces of the same size in the

glazed tray. Season with herbs and spices.

Turn the pieces as and when required.

Use a tin that is 22 cm deep. Pre-heat for

Fennel 800 gr 1 70 ÷ 80 220 1 60 ÷ 70 200

Cut the fennel into four pieces, add butter,

salt and potatoes if required and place in

a Pyrex face up. Cover the dish.

Courgettes 800 gr 1 70 220 1 60 ÷ 70 200

Slice the courgettes, place in a Pyrex

dish and add butter and salt.

Potatoes 800 gr 2 60 ÷ 65 220 2 60 ÷ 65 200

Cut the potatoes into equal parts and place

in a Pyrex dish. Season with salt, origano

and rosemary. Cook in oil.

Carrots 800 gr 1 80 ÷ 85 220 1 70 ÷ 80 200

Slice the carrots, place in a Pyrex dish and

Whole apples Kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200

Bake the fruit in an open Pyrex or earthen-

ware dish. Leave it to cool inside the oven.

Follow procedure above.

Pears Kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200

Follow procedure above.

Peaches Kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200

Place the food to be grilled underneath the infra-red grill. Warning: When the grill is on it takes on a bright red colour. Place the tray

underneath the grill to collect juices and fat from the food being grilled.

(5 to heat up grill)

(10 to heat up grill)

Lay the bread on the grill tray. When one

side of the bread has been toasted, turn

over and toast the other side. Remember:

keep the toast warm at the bottom of the

oven until you are ready to serve it.

(10 to heat up grill)

(10 to heat up grill)

Lay the bread on the grill tray. When one

side of the sandwich has been toasted, turn

over and toast the other side.

Sausages n°6 / Kg 0,9 4

(5 to heat up grill)

(10 to heat up grill)

Cut the sausages in half and lay them face

down on the grill. Half way through grilling

turn them over. Every so often, check that

they are being cooked equally all over. (If

this is not happening, turn and reposition

the ones being cooked ether less or more

Ribs of beef n°4 / Kg 1,5 4

(5 to heat up grill)

(10 to heat up grill)

Make sure that the ribs of beef are exposed

to the full effect on the main grill.

Chicken legs n°4 / Kg 1,5 3

(5 to heat up grill)

(10 to heat up grill)

Turn them over twice during grilling.

Use a tin that is 22 cm deep. Pre-heat for

Use a tin that is 22 cm deep. Pre-heat for

Use a tin that is 22 cm deep. Pre-heat for

17 GB This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and

human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over tothe applicablecollection

point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for

waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your

household waste disposal service or the shop where you purchased the product.— Lire attentivement les instructions contenues dans cette brochure, elles fournissent d’importantes indications sur la sécurité d’installation,
