USER MANUAL CFU 195 E CANDY

BEFORE USING THE APPLIANCE Your new appliance is designed exclusively

To ensure best use of your appliance,

carefully read the operating instructions

which contain a description of

the appliance and advice on storing

and preserving food.

Keep this handbook for future reference.

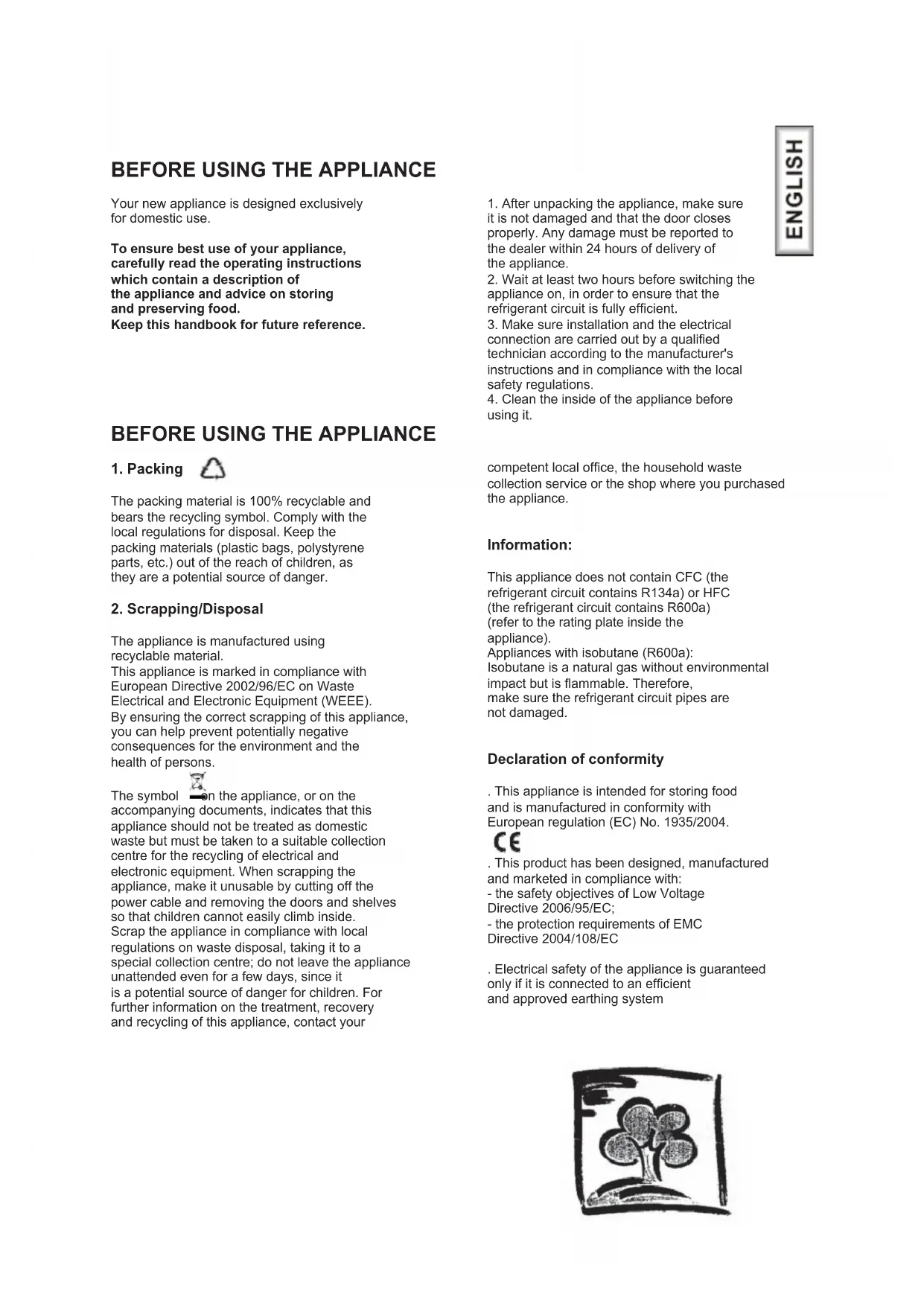

BEFORE USING THE APPLIANCE

1. After unpacking the appliance, make sure

it is not damaged and that the door closes

properly. Any damage must be reported to

the dealer within 24 hours of delivery of

2. Wait at least two hours before switching the

appliance on, in order to ensure that the

refrigerant circuit is fully efficient.

3. Make sure installation and the electrical

connection are carried out by a qualified

technician according to the manufacturer's

instructions and in compliance with the local

4. Clean the inside of the appliance before

The packing material is 100% recyclable and

bears the recycling symbol. Comply with the

local regulations for disposal. Keep the

packing materials (plastic bags, polystyrene

parts, etc.) out of the reach of children, as

they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using

recyclable material.

This appliance is marked in compliance with

European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

By ensuring the correct scrapping of this appliance,

you can help prevent potentially negative

consequences for the environment and the

The symbol on the appliance, or on the

accompanying documents, indicates that this

appliance should not be treated as domestic

waste but must be taken to a suitable collection

centre for the recycling of electrical and

electronic equipment. When scrapping the

appliance, make it unusable by cutting off the

power cable and removing the doors and shelves

so that children cannot easily climb inside.

Scrap the appliance in compliance with local

regulations on waste disposal, taking it to a

special collection centre; do not leave the appliance

unattended even for a few days, since it

is a potential source of danger for children. For

further information on the treatment, recovery

and recycling of this appliance, contact your

competent local office, the household waste

collection service or the shop where you purchased

This appliance does not contain CFC (the

refrigerant circuit contains R134a) or HFC

(the refrigerant circuit contains R600a)

(refer to the rating plate inside the

Appliances with isobutane (R600a):

Isobutane is a natural gas without environmental

impact but is flammable. Therefore,

make sure the refrigerant circuit pipes are

Declaration of conformity

. This appliance is intended for storing food

and is manufactured in conformity with

European regulation (EC) No. 1935/2004.

. This product has been designed, manufactured

and marketed in compliance with:

- the safety objectives of Low Voltage

Directive 2006/95/EC;

- the protection requirements of EMC Directive 2004/108/EC

. Electrical safety of the appliance is guaranteed

only if it is connected to an efficient

and approved earthing systemIMPORTANT SAFETY INSTRUCTIONS These warnings are provided in the interests of your safety. Ensure that you understand

all before installing or using this appliance. Your safety is of paramount importance.

If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

• This appliance is heavy. Care should be taken

• It is dangerous to alter the specifications or

attempt to modify this product in any way.

• Ensure that the appliance does not stand on

the electrical supply cable. If the supply cord is

damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified

persons in order to avoid a hazard.

• Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

• Parts which heat up should not be exposed.

Whenever possible, the back of the appliance

should be close to a wall but leaving the

required distance for ventilation as stated in

the installation instructions.

• The appliance should be left for 2 hours after

installation before it is turned on, in order to

allow the refrigerant to settle.

WARNING: Keep ventilation opening, in the

ppliance enclosure or in the built-in structure,

clear of obstruction.

This appliance is not intended for use by young

children or infirm persons unless they have

been adequately supervised by a responsible

person to ensure that they can use the appliance

• Young children should be supervised to ensure

that they do not play with the appliance.

• This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs only.

• Frozen food should not be refrozen once it has

• Do not place carbonated or fizzy drinks in the

• Ice lollies can cause 'frost/freezer burns' if

consumed straight from the freezer.

• Do not remove items from the freezer if your

hands are damp/wet, as this could cause

skin abrasions or frost/freezer burns.

Maintenance and Cleaning

Switch off, and unplug the appliance before

carrying out any cleaning or maintenance

• Do not use sharp instruments to scrape

off frost or ice. (See defrosting instructions).

WARNING: Do not use mechanical devices

r other means to accelerate the defrosting

process, other than those recommended by the

WARNING: Do not use electrical appliance

inside the food storage compartments of the

appliance, unless they are of the recommended

WARNING: Do not damage the refrigerant circuit.

This product should be serviced by an

authorised engineer, and only genuine spare

parts should be used.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried

out by inexperienced persons may cause injury

or serious malfunctioning. Contact your local

Service Force Centre.

At the End of the Appliance Life

Before discarding an old PRODUCT, switch off and

disconnect it from the power supply, Cut off and render

• Ensure that the door cannot jam (removing it is best),

regardless of whether or not it can be pushed open

AN OLD PRODUCT CAN BE A DEADLY PLAYTHING FOR CHILDREN CAUTION: At the end of the function life of

the appliance it must be disposed in accordance

with the W.E.E.E directive (See below). You

appliance contains R600a refrigerant and

inflammable gas in the insulating foam.

instruction book carefully

before use and retain

for future reference.Well Ventilating

There is need of good ventilation around the appliance for easy dissipation of heat, high efficiency of refrigeration

and low power consumption. For this purpose, sufficient clear space should be need around the

back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height

from over its top is not less than 200mm. A clear space should be left to open its doors to 160

The product is only applied with power supply of single phase alternating current of (220-

240)V~/50Hz;230V~/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the

above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The

must employ a special power socket instead of common one with other electric appliances. Its plug must match

the socket with ground wire.

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord

is kept close onto the compressor at the back of the

product, the surface temperature of which is quite

high when operating. Touching with it would deactivatethe insulation or cause leakage for electricity.

Protection from Moisture

Avoiding placing the product in a place where heavy moisture is present so as to minimize possibility of rusty

or its metal parts. Still more, the appliance is forbidden to be directly sprayed by water, otherwise, poor insulation

and current leakage would occur.

Protection from Heat

should be far away from any heat source or direct sunshine.

2. CORRECTLY POSITIONINGFixing Stable

product will be placed must be flat and solid.

It should not be laid on any soft material such as foam plastic, etc. If the

appliance is not on the same level,

adjust the screws suitably.

The product should not be placed near anything which may echo.

Keep Away from Danger

It is inadvisable that the

product is placed near any volatilizable or combustible such as gas, petrol,

alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the

When fixed or moved, the appliance can not be set horizontally or declinet to more than 45° or upside-

down.• Water contained in food or getting into air inside the product by opening doors may form a layer of

frost inside, It will weaken the product when the frost is thick, while it is more than 2mm thick, you

• Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the

shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to

position"0"(where the compressor will stop working) and leave the door open until ice and frost dissolve

thoroughly deposited at the bottom of the freezer chamber, wipe off the water with soft cloth.,In the case

of speeding up the defrosting, you may put a bowl of warm water (about 50 C )into the freezer chamber,

and be sure to set the knob of the temperature regulator to original position after defrosting.

• It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent

deformation of the inner case.

• It's also inadvisable to scrape of ice and frost or separate food from the containers which have been

congealed together with the food with sharp tool or wooden bars, so as not to damage the inner casing

or the surface of the evaporator.

• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by

the manufacturer, because special purpose tools are required.
