USER MANUAL ICSPTM1T03 Chief

Technical line drawing of a mechanical linkage or rail assembly with two vertical posts and a central rod, labeled 'ICXPFM2' (no other text or symbols)

Technical line drawing of two mechanical clamps with no visible text or symbols

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8" (1.6cm).

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the iCXPFM2/iCXPTM2 does not exceed 250 lbs (113.4 kg).

ASSEMBLY AND INSTALLATION

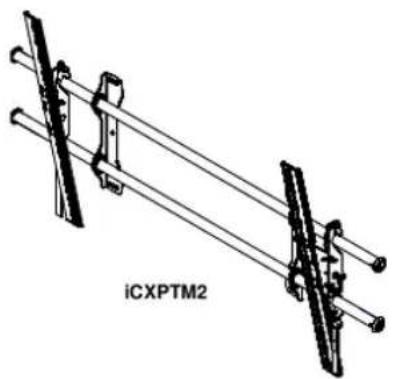

The iCXPFM2 and iCXPTM2 have been designed to be mounted directly onto either a wood stud or concrete wall. The iCXPFM2 has static brackets which keep the TV in an upright position. The iCXPTM2 has brackets which allow the TV to be tilted.

WARNING: IMPROPER INSTALLATION CAN LEAD TO MOUNT FALLING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installers responsibility to make certain the structure to which the mount is being attached is capable of supporting five times the weight of the iCXPFM2 or iCXPTM2 and all attached equipment not to exceed 250 lbs (113.4 kg).

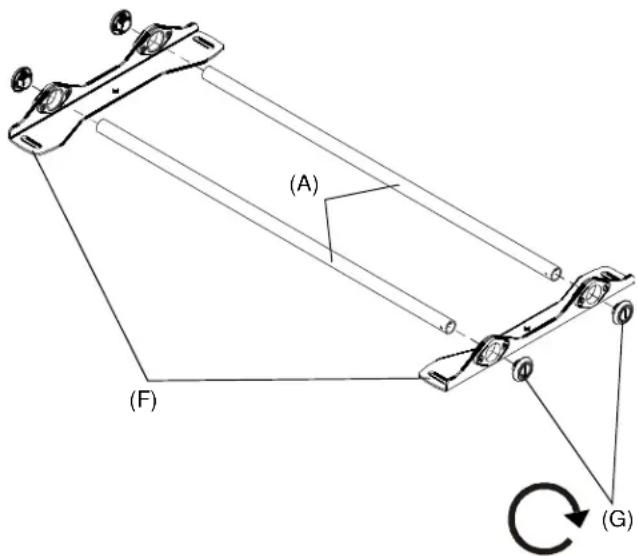

Assembling the Wall Mount

1. Place both wall uprights (F) on the floor.
2. Slide rails (A) into wall uprights.
3. Thread endcaps (G) into the end of each rail.

NOTE: Proceed to either the Installing to a Wood Stud Wall (2a) section or the Installing to a Concrete Wall (2b) section.

2a

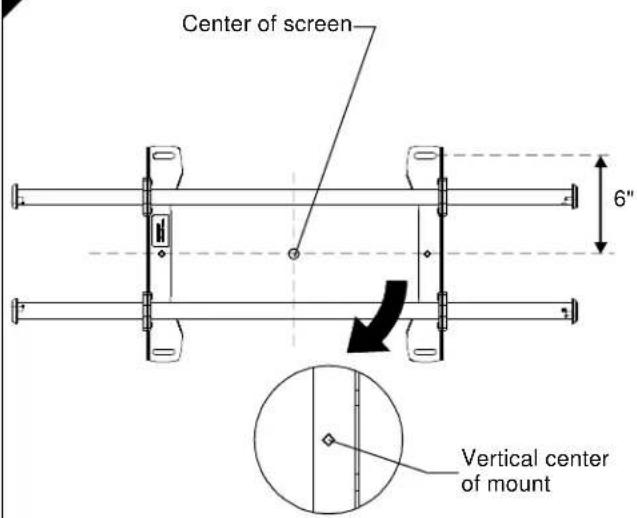

Center of screen 6" Vertical center of mount

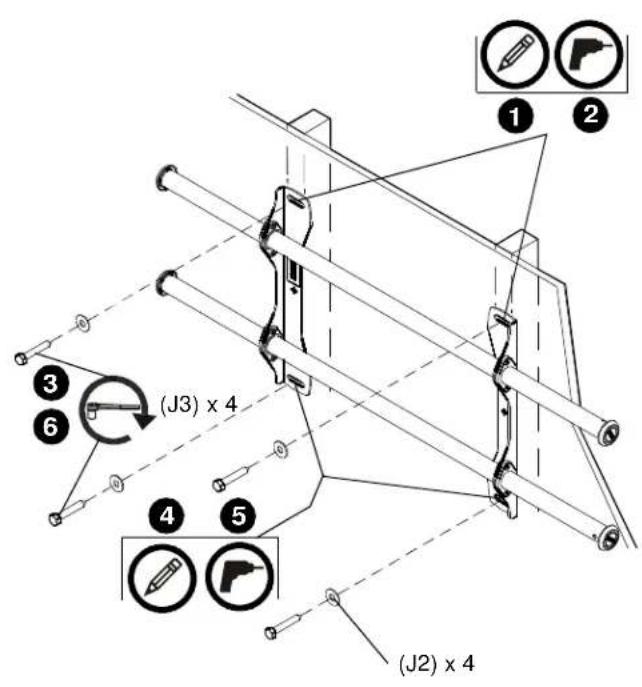

Installing to a Wood Stud Wall

1. Determine the center of the TV screen, and where it should be located on the wall.
2. Locate the stud to the left and right of the selected location.

CAUTION: MINIMUM HORIZONTAL DISTANCE BETWEEN WALL BRACKETS IS 24". Do not place mounting brackets closer together than 24".

CAUTION: When attaching to a wall containing studs located 16" on center, space the uprights 32" apart.

1. Line up the diamond on mount with center of screen marking to determine vertical center.
2. Measure up 6" from the center point to mark location of the upper mounting slots.

2a

(J3) x 4 (J2) x 4

1. Using a level, mark the wall on each stud to attach the mount through the upper mounting slots.

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

CAUTION: MINIMUM HORIZONTAL DISTANCE BETWEEN WALL BRACKETS IS 24". Do not place mounting brackets closer together than 24".

1. Drill one 7/32" (5.5mm) pilot hole in each stud.
2. Use two 5/16 x 2-1/2" lag bolts (J3) and two 5/16" flat washers (J2) to attach top of mount to wall.
3. Mark the attachment points for the lower mounting slots, making sure the attachment points are located on the studs.
4. Drill 7/32" (5.5mm) pilot holes at markings for lower mounting holes.
5. Use two 5/16 x 2-1/2" lag bolts (J3) and two 5/16" flat washers (J2) to attach the mount to the wall through the lower mounting holes.
6. Slide rails to approximate center of screen location.

2b

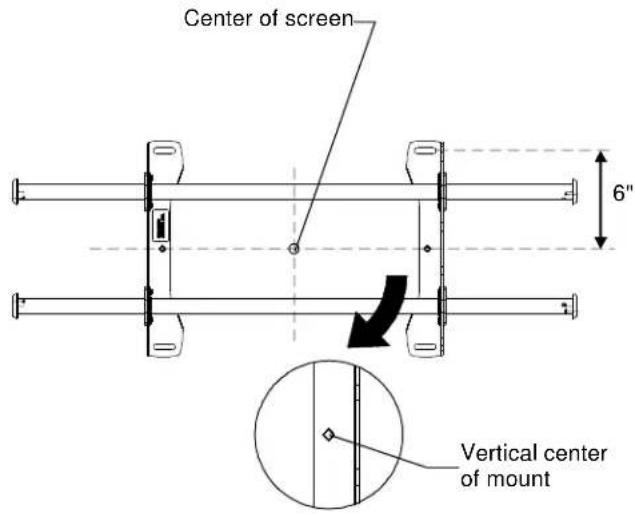

Center of screen 6" Vertical center of mount

Installing to a Concrete Wall

1. Determine the center of the TV screen, and where it should be located on the wall.
2. Line up the diamonds on mount with center of screen marking to determine vertical center.
3. Measure up 6" from the center point to mark location of the upper mounting slots.

CAUTION: MINIMUM HORIZONTAL DISTANCE BETWEEN WALL BRACKETS IS 24". Do not place mounting brackets closer together than 24".

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

2b

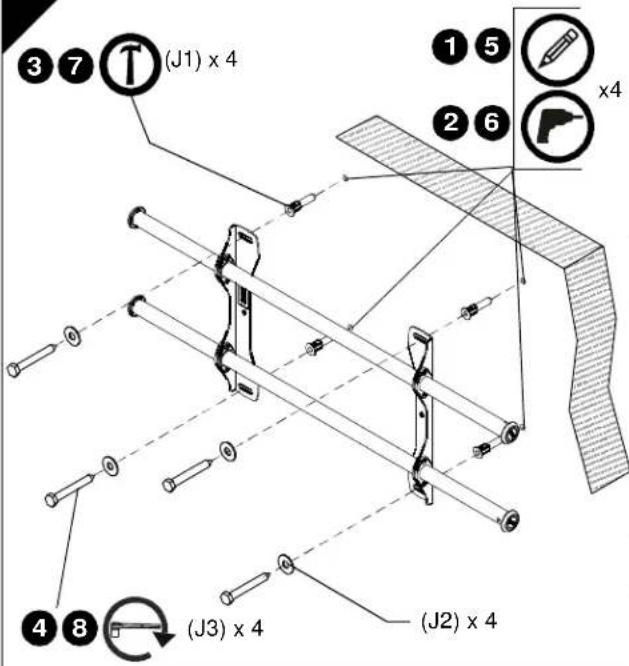

1. Using a level, mark the wall through both upper mounting slots.2. Drill one 25/64" (10mm) pilot hole at each marking.3. Install an anchor (J1) into each pilot hole using a hammer.4. Use two 5/16 x 2-1/2" lag bolts (J3) and two 5/16" flat washers (J2) to attach top of mount to anchors in wall.5. Mark the attachment points for the lower mounting slots.6. Drill one 25/64" (10mm) pilot hole at each marking for lower mounting holes.7. Install an anchor (J1) into each pilot hole using a hammer.8. Use two 5/16 x 2-1/2" lag bolts (J3) and two 5/16" flat washers (J2) to attach the mount to the wall through the lower mounting holes.9. Slide rails to approximate center of screen location.

3

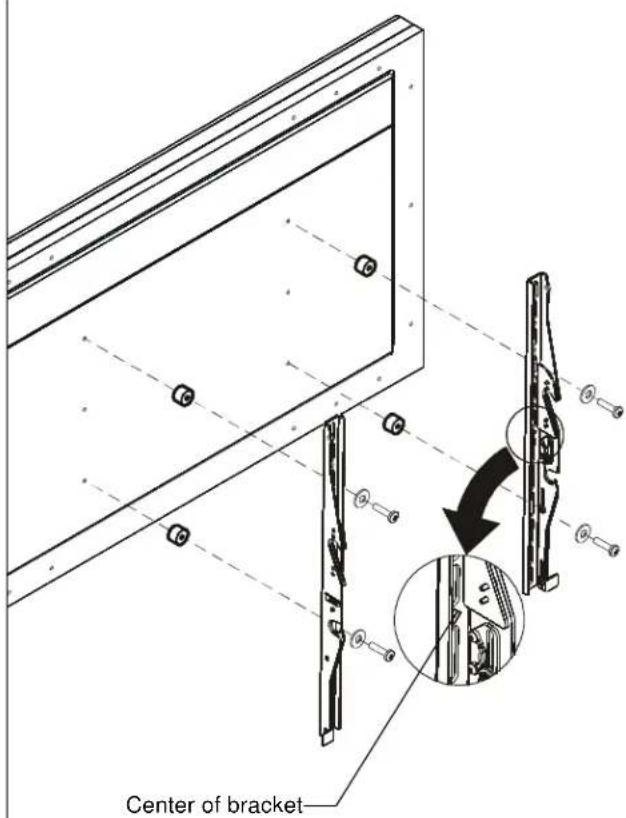

Attaching Interface Brackets to TV1. Align the center of the bracket with center of screen.NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.2. Select correct screws, spacers (if necessary) and universal washers from the hardware bag (H) and attach brackets to back of screen.


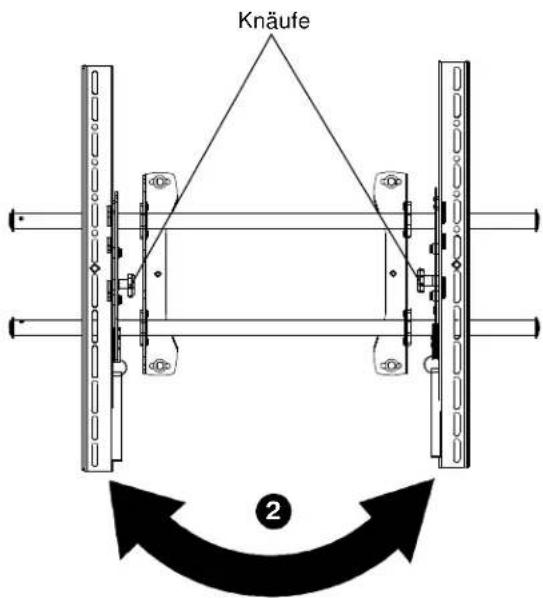

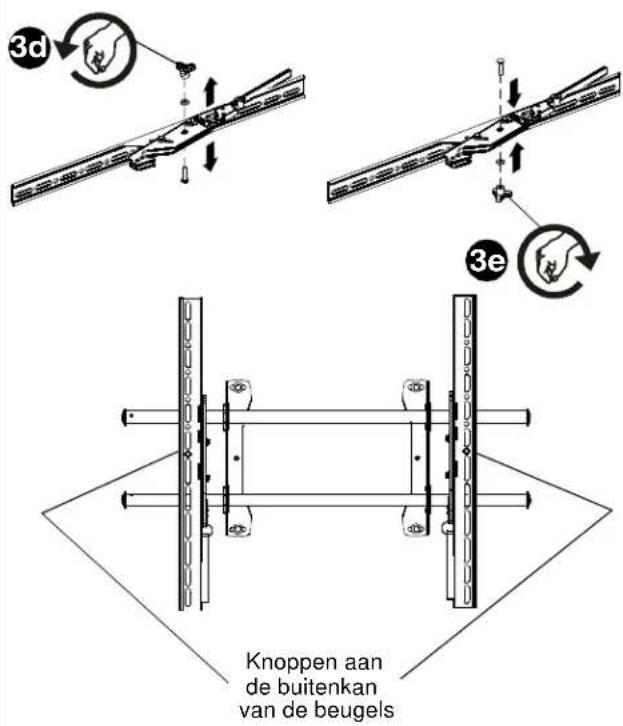

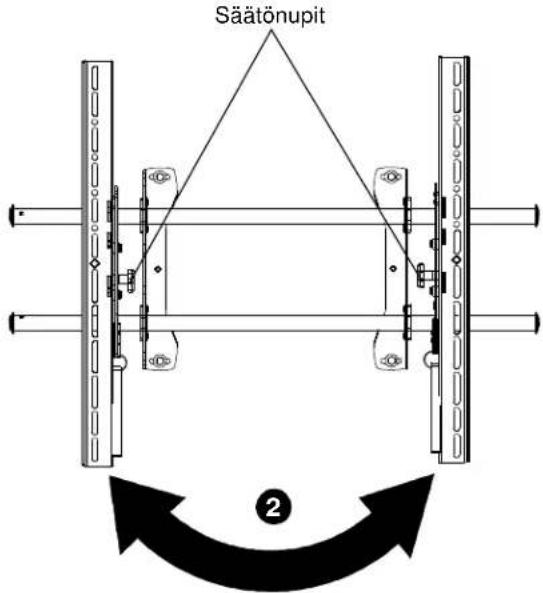

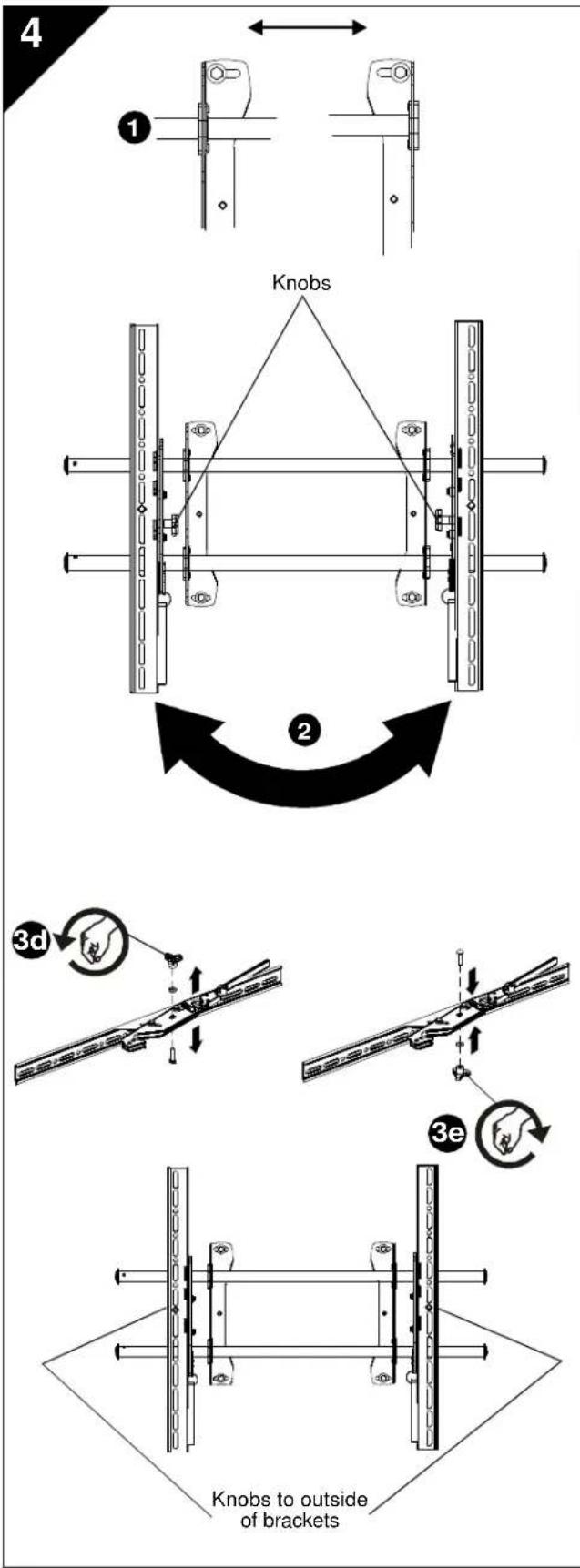

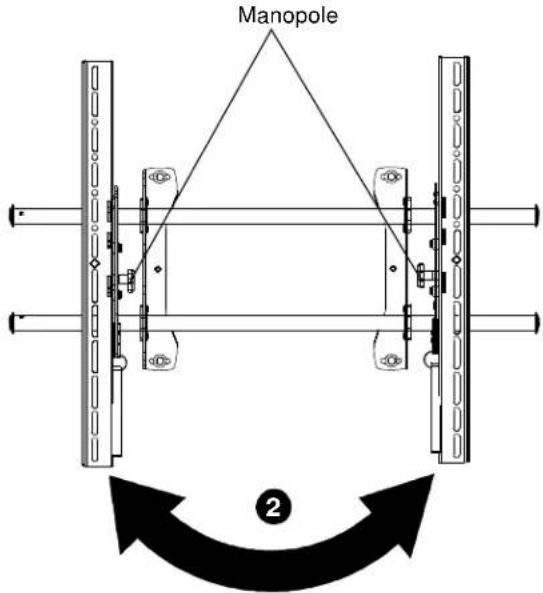

Switching Interface Brackets (Optional)

If an installation situation makes adjusting the location of interface brackets necessary, there are several options.

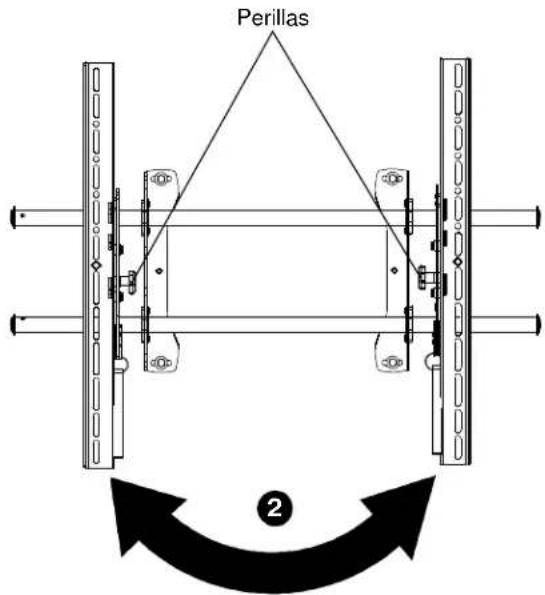

1. The wall brackets may be adjusted side to side at the point of attachment.

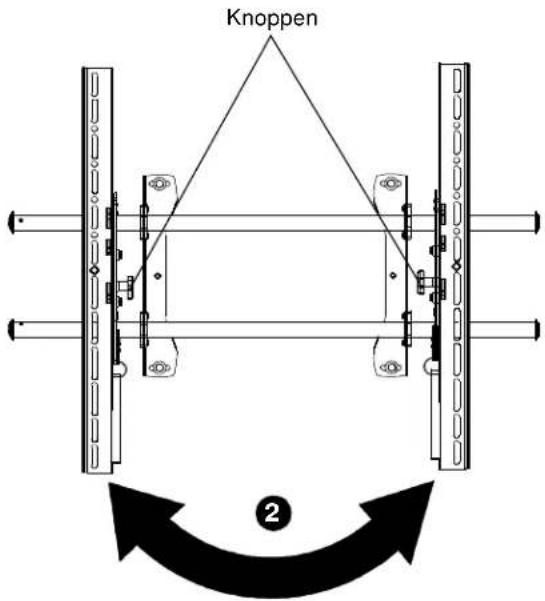

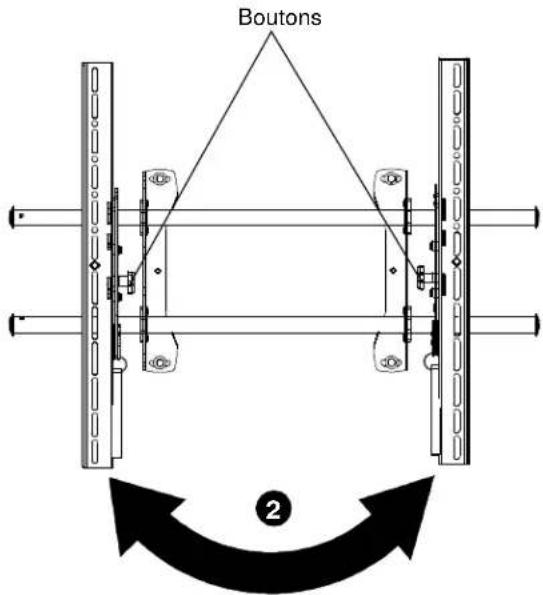

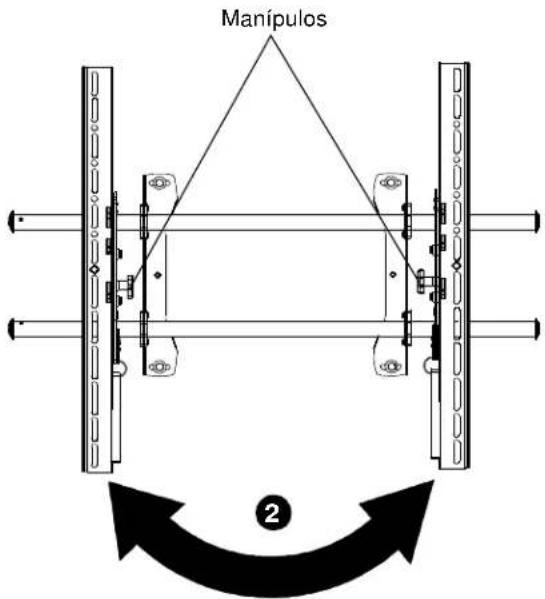

2. The location of the left and right interface brackets may be switched, with the knobs on the iCLPTM2 interface brackets facing the inside of the mount.
3. If necessary, the tilt interface bracket knobs may be switched to allow the interface brackets to be reversed.
   a. Remove display from mount.
   b. Remove interface brackets from display.
   c. Hold the right interface bracket horizontally, tightly gripping it so that spacers do not move.

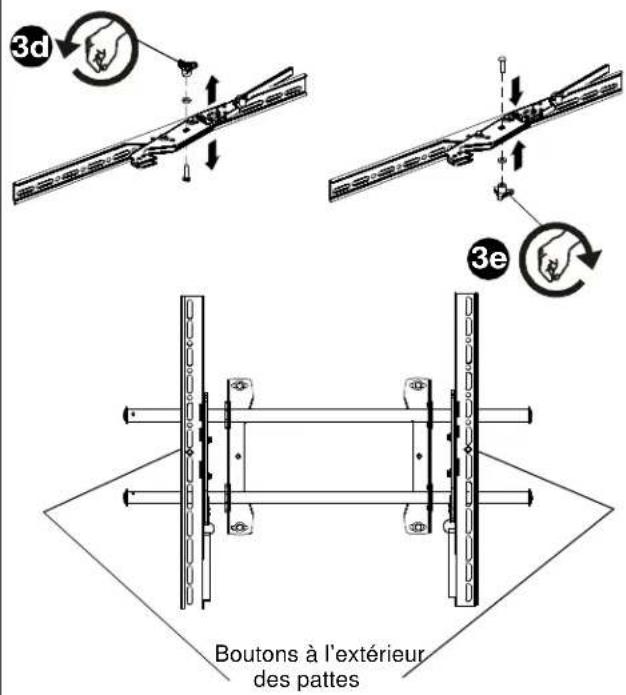

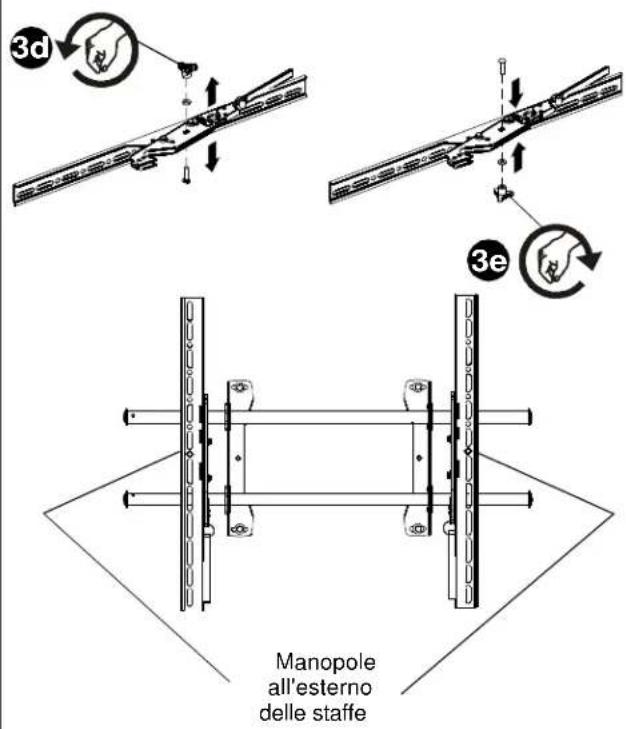

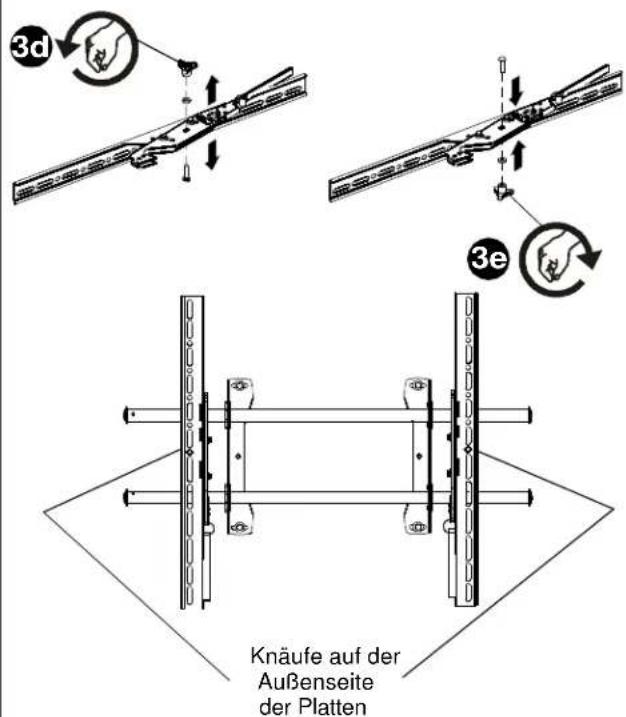

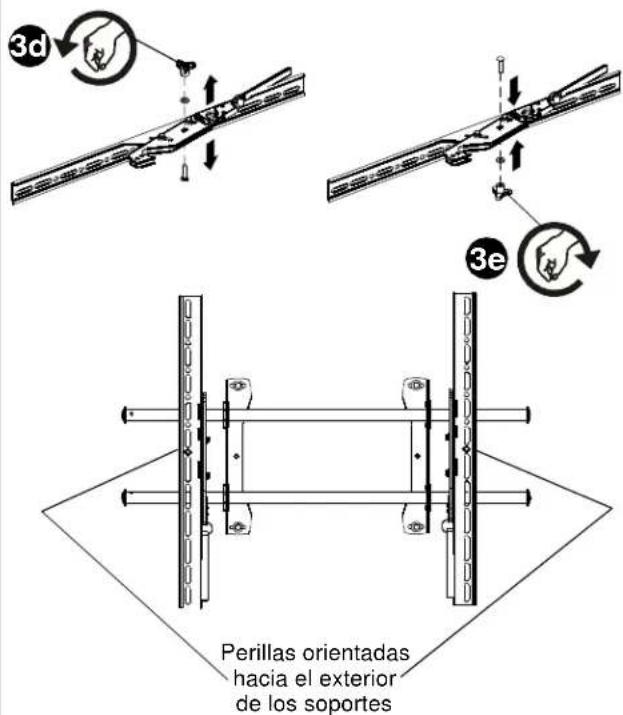

   d. Remove the knob, washer and screw.
   e. Replace the knob, washer and screw in the opposite order, with the knob on the inside of the bracket.
   f. Switch the right interface bracket to the left side of the wall mount.
   g. Repeat Steps 3c through 3f with the left interface bracket.

Tilting the Interface Brackets (iCXPTM2 only)

The brackets may be tilted by loosening the knob on the brackets, tilting to desired location, and tightening knob on the brackets.

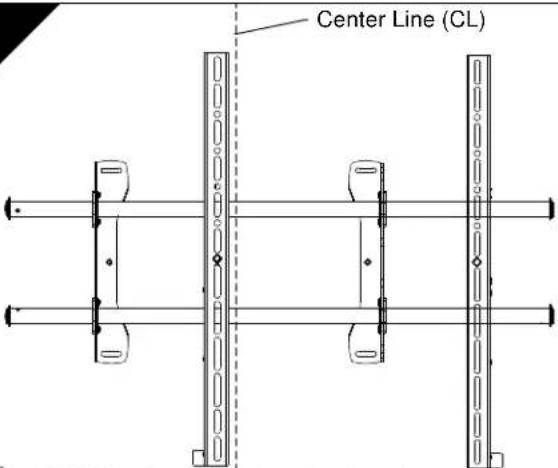

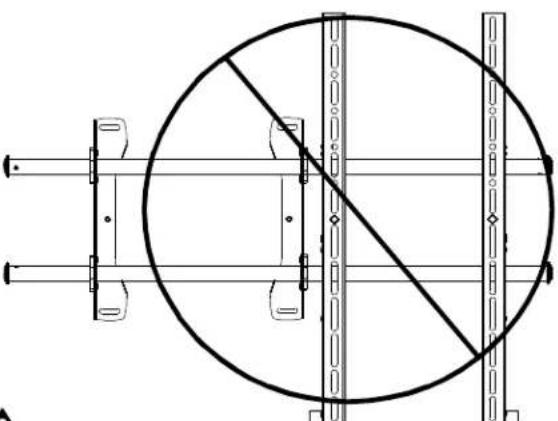

5▲ NEVER place both interface brackets to one side of the wall mount center line (CL)!	Attaching Screen to Wall Mount1. (iCXPTM2 only) Adjust Velcro® pull strap (if necessary) so it does not extend beyond bottom of screen.NOTE: Do NOT allow both interface brackets to be located on same side of wall bracket.NOTE: NEVER place both interface brackets to one side of the wall mount center line!NOTE: Proceed to either Step 5a Attaching to iCXPTM2, or Step 5b Attaching to iCXPFM2.
▲ Both interface brackets must NEVER be located to one side of the wall brackets!

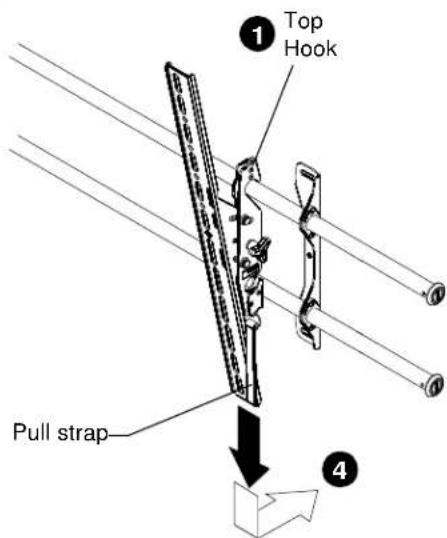

5a	Attaching to iCXPTM21. Hang top hook of interface brackets onto the top bar of the mount.NOTE: The screen initially installs into the "kickstand mode" to allow easy cable access.2. Slide screen and bars to desired viewing position.3. Route cables between wall and bars.CAUTION: PINCH POINTS! Keep fingers, hands and cables out of pinch point areas.4. Pull downward on the pullstraps and swing inward toward wall, latching interface brackets to lower bar and locking bottom of screen to the mount.

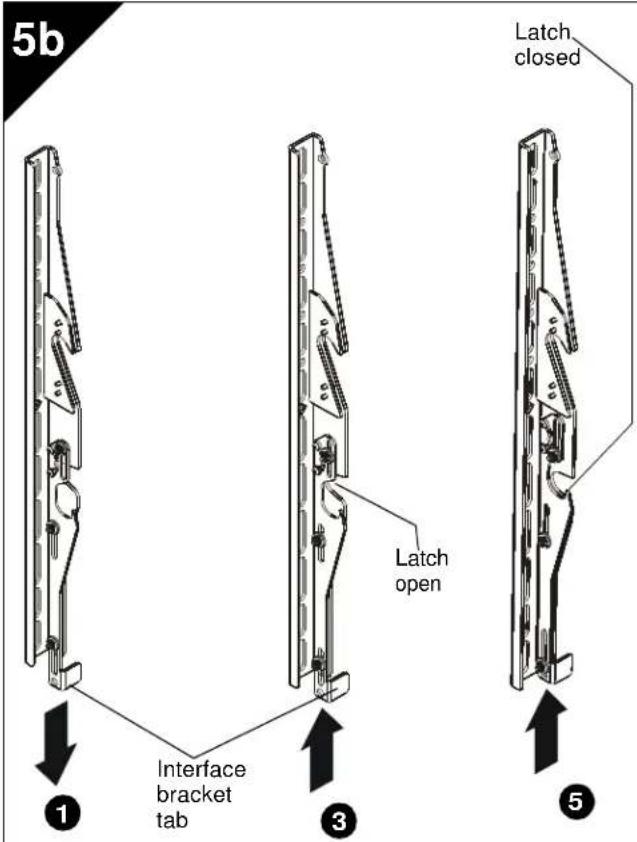

5b Latch closed 1 Interface bracket tab 3 Latch open 5

Attaching to iCXPFM2

1. Push interface bracket tab all the way down so that the lower mounting slot is blocked.
2. Hang the top hook of interface brackets onto the top bar of the mount. The bottom of the screen will be away from the wall.
3. Move screen towards the wall by pulling display bottom away from wall and pushing the interface bracket tabs up one notch to the detent which you will be able to feel (approximately half way up).
4. Push bottom of display toward the wall bracket so that lower latch on interface bracket surrounds lower bar of wall mount.
5. Raise interface brackets tabs all the way to secure the brackets onto the wall mount.

1

(A) (F) (G)

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Perillas 2

Technical diagram showing two mechanical assembly steps with alignment indicators and directional arrows

Knäufe 2

Pure technical diagram of a circular mechanical assembly with no text, numbers, or symbols

Technical diagram showing two mechanical clamping or bracketing setups with labeled components and directional arrows

Manipulos 2

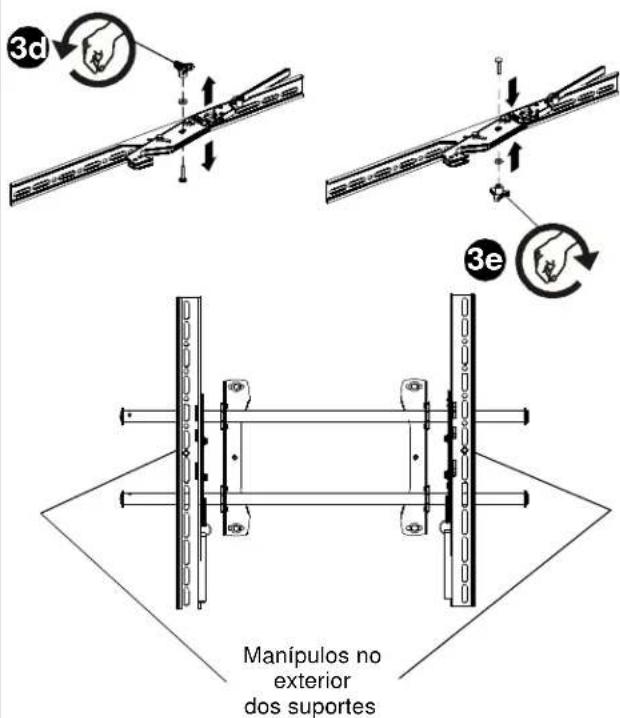

3d 3e Manípulos no exterior dos suportes

Trocar os Suportes da Interface (Opcional)

Technical diagram showing two mechanical clamping or locking mechanism steps with labeled components and directional arrows

Manopole 2

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Knoppen 2

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Boutons 2

Pure geometric line drawing of a right-angled corner bracket (no text or symbols)

Technical diagram showing two mechanical clamping or locking mechanism steps with labeled components and directional arrows

Pure geometric line drawing of a right-angled bracket or corner (no text or symbols)

Technical line drawing of a circular mechanical assembly with vertical supports and diagonal braces (no text or symbols)

Simple line drawing of a right-angle bracket with no text or symbols

Technical diagram of a circular mechanical assembly with vertical rods and mounting brackets (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and cross-sectional views (J2, J3)

Simple line drawing of a right-angled bracket or angle (no text or symbols)

4 Gombak 3d

©2011 Milestone AV Technologies. The iC Logo and StowAway are trademarks of Chief Manufacturing, a products division of Milestone AV Technologies, a Duchossois Group Company. All rights reserved Patents and patents pending. Milestone AV Technologies, Savage, MN 55378, USA 8805-

8805-002022 Rev 00

08/11
