PFFP2B - Flat screen mount Chief - Free user manual and instructions

Product Type	Floor stand for flat screen
Brand	Chief
Model	PFFP2B
Screen Compatibility	30 to 50 inches
Maximum Load Capacity	59 kg
Materials	Steel and tempered glass
Package Contents	Base, column, two glass shelves (large and small), mounting brackets, monitor brackets, hardware
Functions	Adjustable height of shelves and monitor mount
Security	Security bolts included to lock the TV
Care and Cleaning	Clean with a soft, dry cloth; do not use abrasive cleaners
Repairability	Spare parts available from the manufacturer
Required Tools	Wrench or socket set, Phillips screwdriver, Allen key (included)
Number of Shelves	2 (one large, one small)
Mounting Type	Column on base, sliding shelves, suspended monitor
Estimated Support Weight	Approximately 15 kg
Color	Black (likely)

Frequently Asked Questions - PFFP2B Chief

What is the maximum weight that the Chief PFFP2B stand can support?

The Chief PFFP2B stand can support a TV weighing up to 59 kg.

What screen size is compatible with this stand?

It is compatible with flat screens from 30 to 50 inches.

How to install the glass shelves?

First attach the shelf brackets to the column, then slide the glass shelf with the appropriate washer into the bracket and tighten the 1/4-20 Allen screws with a plastic washer. See step 6 of the manual.

What tools are needed for assembly?

You will need a wrench or socket set, a Phillips screwdriver, and an Allen key (included).

How to attach the TV to the stand?

First hang the monitor brackets on the mounting bracket, then insert the security bolts into the threaded holes at the bottom of the brackets. Tighten with an Allen key. See step 9.

Are the shelves adjustable in height?

Yes, the shelf brackets can slide along the column to adjust the height. Tighten the M8 Allen screws to lock them.

What if a part is missing?

Contact Sanus Systems (distributor) customer service at 1-800-359-5520 (USA) or 31 (0) 20 5708938 (Europe) to obtain replacement parts.

Can I mount this stand on the wall?

No, the Chief PFFP2B is a floor stand designed to be placed on the floor. It does not attach to the wall.

How to clean the glass shelves?

Use a soft, dry cloth. Avoid abrasive or ammonia-based cleaners that could damage the glass.

How to secure the TV once installed?

Use the provided security bolts. Insert them into the holes at the bottom of the monitor brackets and tighten them against the mounting bracket to prevent the TV from detaching.

USER MANUAL PFFP2B Chief

THE UNION OF FORM AND FUNCTION International Assembly Instructions for model PFFP2

SANUS SYSTEMS

THE UNION OF FORM AND FUNCTION

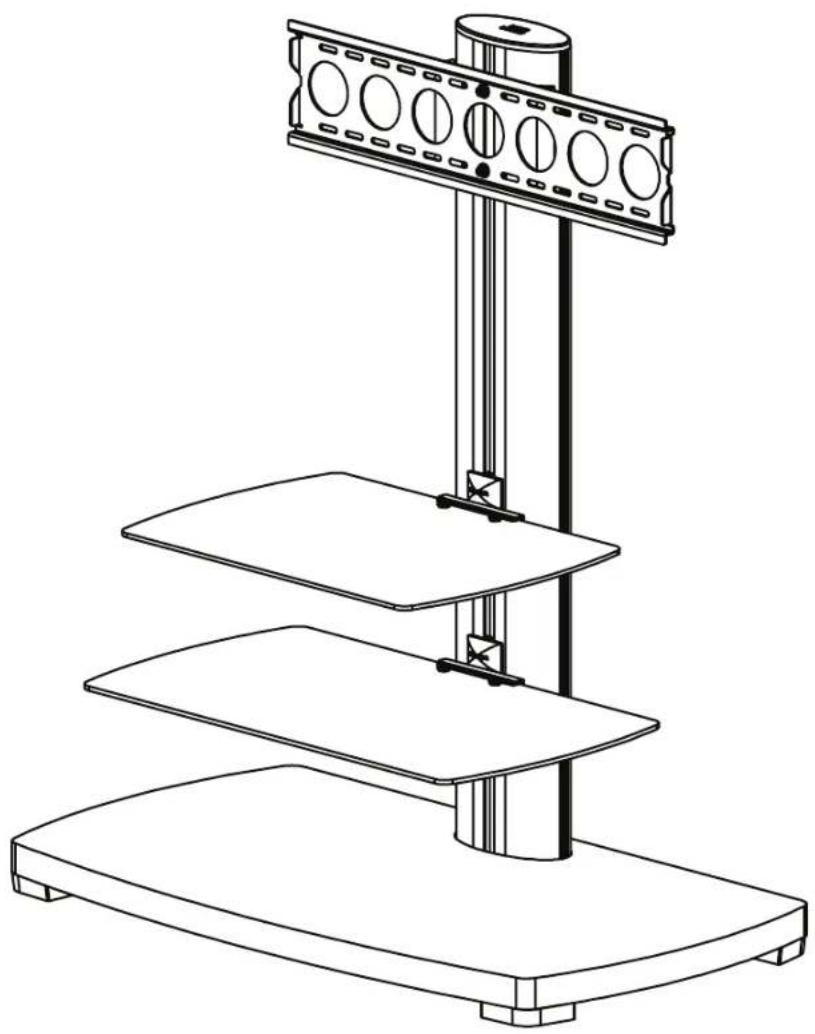

Assembly Instructions for Sanus Systems Platinum Furniture Model: PFFP2

Thank you for choosing Sanus Systems Platinum Furniture. The PFFP2 is designed to support a 30" to 50" flat panel television up to 130 lbs. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to make sure none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an authorized dealer will be shipped directly to you. Please call Sanus Systems before returning products to the retail store where you purchased them.

Required Tools: Wrench or Socket Set, Phillips Screw Driver

Parts: Some parts not shown at same scale*

(1) Base - a

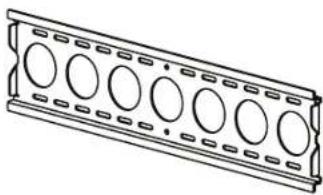

(1) Wall Bracket - b
(1) Large Glass Shelf - c
(1) Small Glass Shelf - d

(1) Right Monitor Bracket - e
(1) Left Monitor Bracket - f

(1) Pillar - g

(1) Wall Plate - h*

(2) Wall Bracket Spacer - i*

(2) Shelf Plate - j*

(2) Shelf Bracket - k*

(2) Glass Shelf Washer - 1*

(2) Shelf Bracket Cap - m*

(1) Top Cap - n*

Hardware: All hardware shown as actual size

(2) M6 x 20 Bolt - o

(2) M12 x 40 Bolt - q

(6) M8 Allen Bolt-r

(2) Safety Bolt - t

(8) M8 Washer - u

(6) Spring Washer - v

(4) Plastic Washer - w

(2) M12 Washer - x

TV Mounting Hardware:

(4) M4 x 12 Bolt - y

(4) M5 x 12 Bolt-z

(4) M6 x 12 Bolt - aa

(4) M8 x 16 Bolt - bb

(4) M4× 30 Bolt-cc

(4) M5× 30 Bolt -dd

(4) M6 x 35 Bolt - ee

(4) M8 x 40 Bolt - ff

(4) M4 Lock Washer - gg

(4) M5 Lock Washer - hh

(4) M6 Lock Washer-ii

(4) M8 Lock Washer - jj

(8) M4/M5 Washer - kk

(4) M6/M8 Washer - ll

(4) M6/M8 Spacer - nn

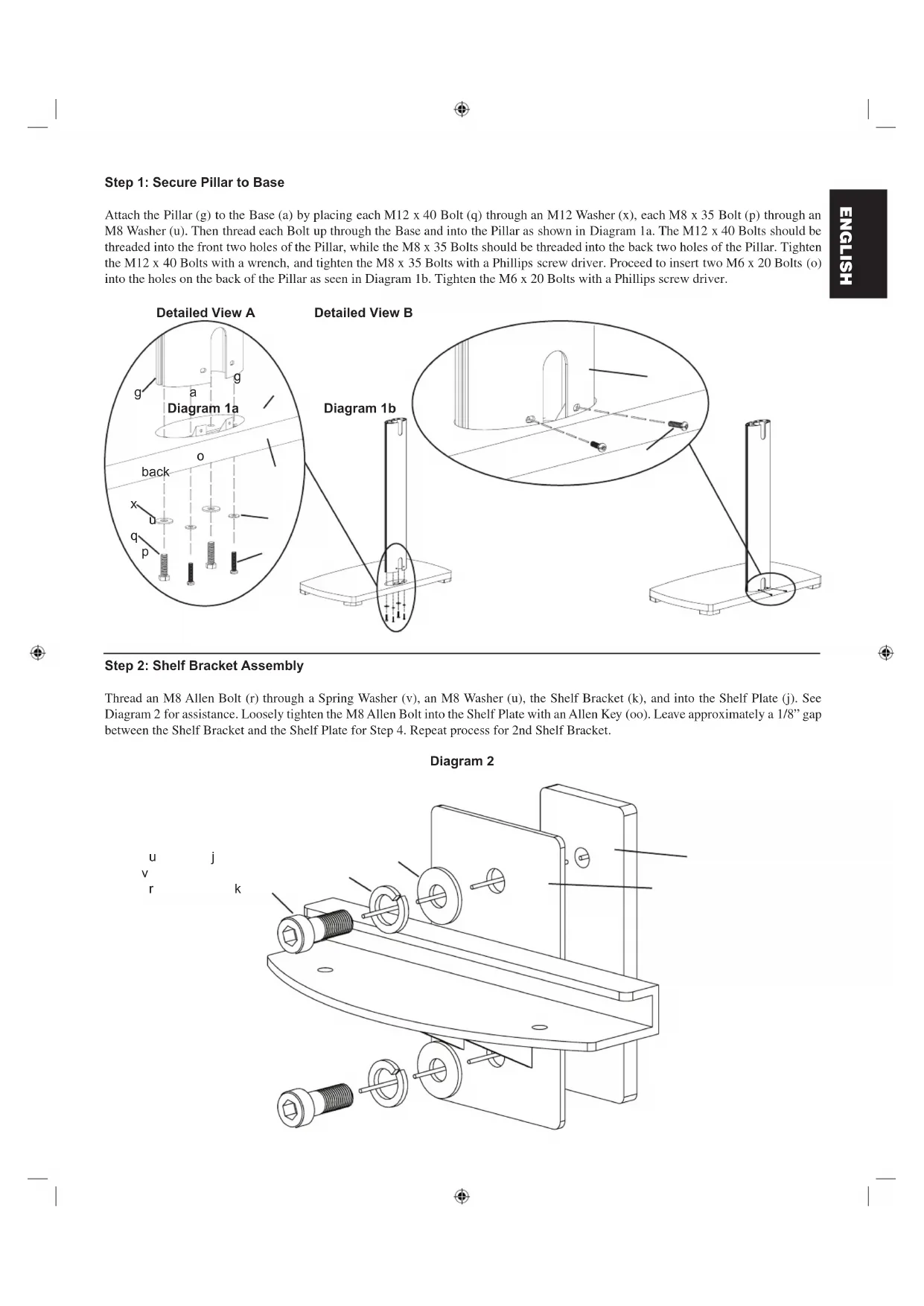

Step 1: Secure Pillar to Base

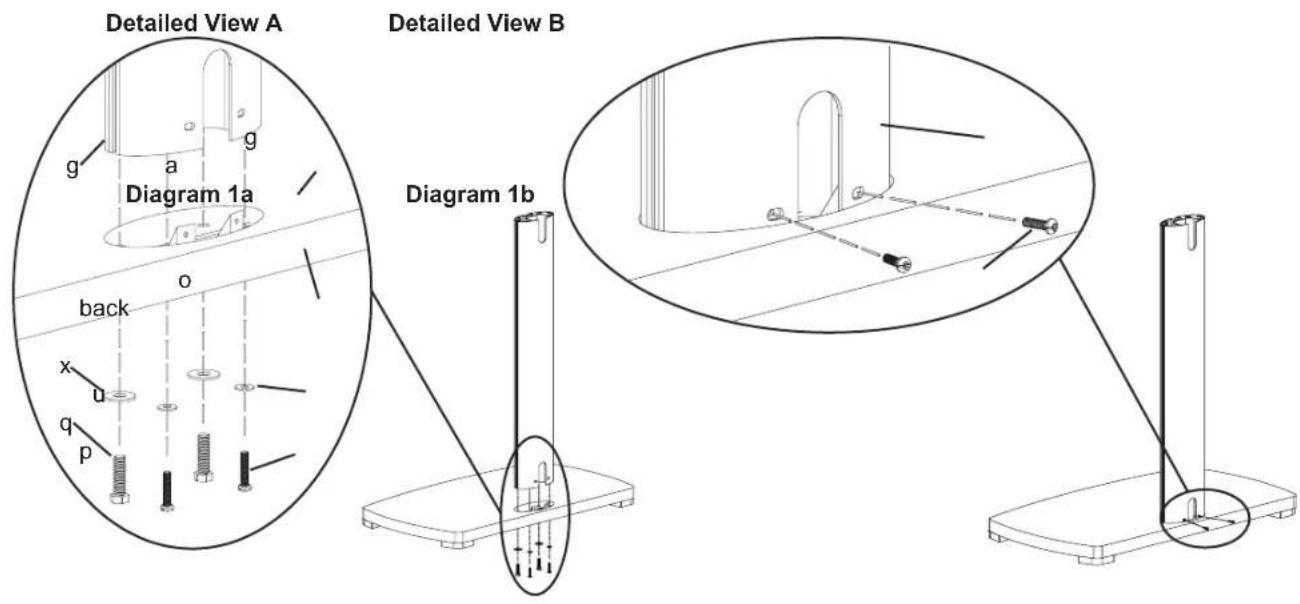

Attach the Pillar (g) to the Base (a) by placing each M12 x 40 Bolt (q) through an M12 Washer (x), each M8 x 35 Bolt (p) through an M8 Washer (u). Then thread each Bolt up through the Base and into the Pillar as shown in Diagram 1a. The M12 x 40 Bolts should be threaded into the front two holes of the Pillar, while the M8 x 35 Bolts should be threaded into the back two holes of the Pillar. Tighten the M12 x 40 Bolts with a wrench, and tighten the M8 x 35 Bolts with a Phillips screw driver. Proceed to insert two M6 x 20 Bolts (o) into the holes on the back of the Pillar as seen in Diagram 1b. Tighten the M6 x 20 Bolts with a Phillips screw driver.

Step 2: Shelf Bracket Assembly

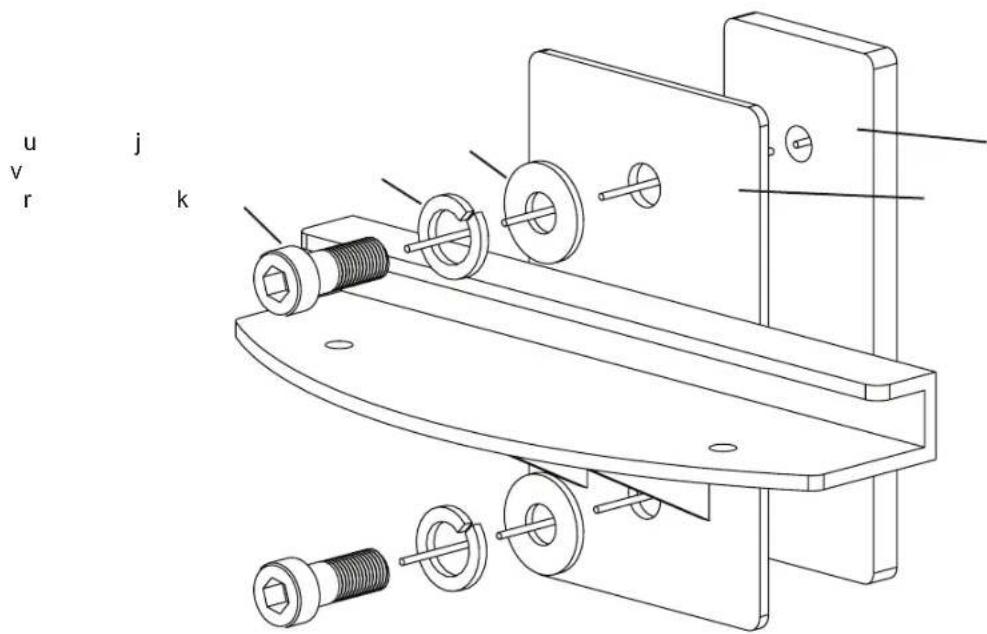

Thread an M8 Allen Bolt (r) through a Spring Washer (v), an M8 Washer (u), the Shelf Bracket (k), and into the Shelf Plate (j). See Diagram 2 for assistance. Loosely tighten the M8 Allen Bolt into the Shelf Plate with an Allen Key (oo). Leave approximately a 1/8 gap between the Shelf Bracket and the Shelf Plate for Step 4. Repeat process for 2nd Shelf Bracket.

Diagram 2

Step 3: Wall Bracket Assembly

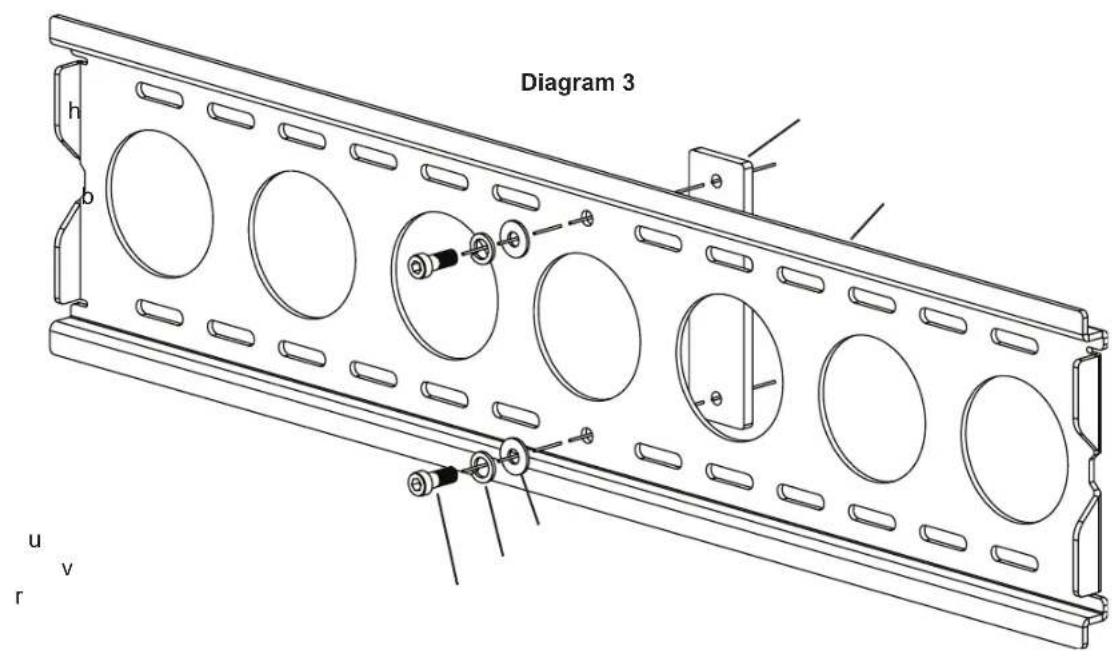

Thread an M8 Allen Bolt (r) through a Spring Washer (v), an M8 Washer (u), through the middle hole in the Wall Bracket (b), and into the Wall Plate (h) as seen in Diagram 3. Loosely tighten the M8 Allen Bolt into the Wall Plate with an Allen Key (oo). Leave approximately a 1/8 gap between the Wall Bracket and the Wall Plate for Step 5.

Step 4: Add Shelf Bracket to Pillar

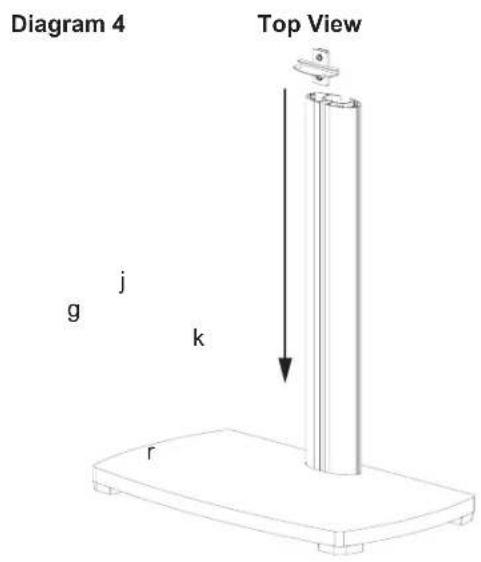

Add the Shelf Bracket Assembly to the Pillar (g) by sliding it down from the top to the desired position on the Pillar. Make sure the Shelf Plate (j) fits into the channel in the Pillar. See the Top View of Diagram 4 for assistance. Once you have the Shelf Bracket Assembly in place, proceed to tighten the M8 Allen Bolts (r) with an Allen Key (oo) so the Shelf Bracket Assembly is firmly in place. Repeat the process for the second Shelf Bracket.

Note: Make Sure The M8 Allen Bolts Are Tight!

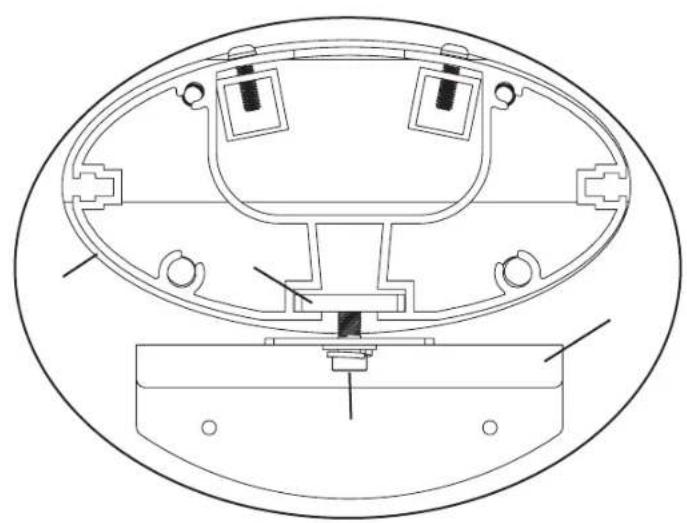

Step 5: Add Wall Bracket

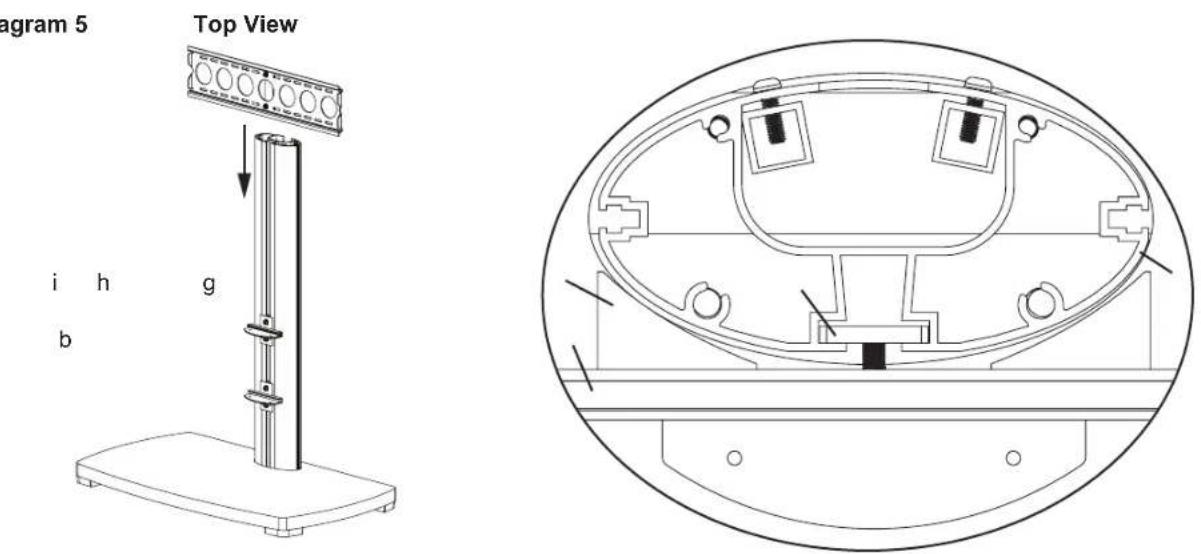

Slide the Wall Bracket Assembly down into place on the Pillar (g). Make sure the Wall Plate (h) fits into the channel in the Pillar as seen in the Top View of Diagram 5. Once the Wall Bracket Assembly is in the desired position, tighten the M8 Allen Bolts (r) with an Allen Key (oo) so the Wall Bracket Assembly is attached to the Pillar. Attach the Wall Bracket Spacers (i) to the Wall Bracket (b) by sliding the Wall Bracket Spacers from the side so the plastic tabs into the correct oval holes on the Wall Bracket. See the Top View of Diagram 5. You may have to loosen the M8 Bolts in the Wall Bracket to have enough space to fit the Wall Bracket Spacers in between the Wall Bracket and the Pillar.

Note: Make Sure The M8 Allen Bolts Are Tight!

Step 6: Add the Glass Shelves

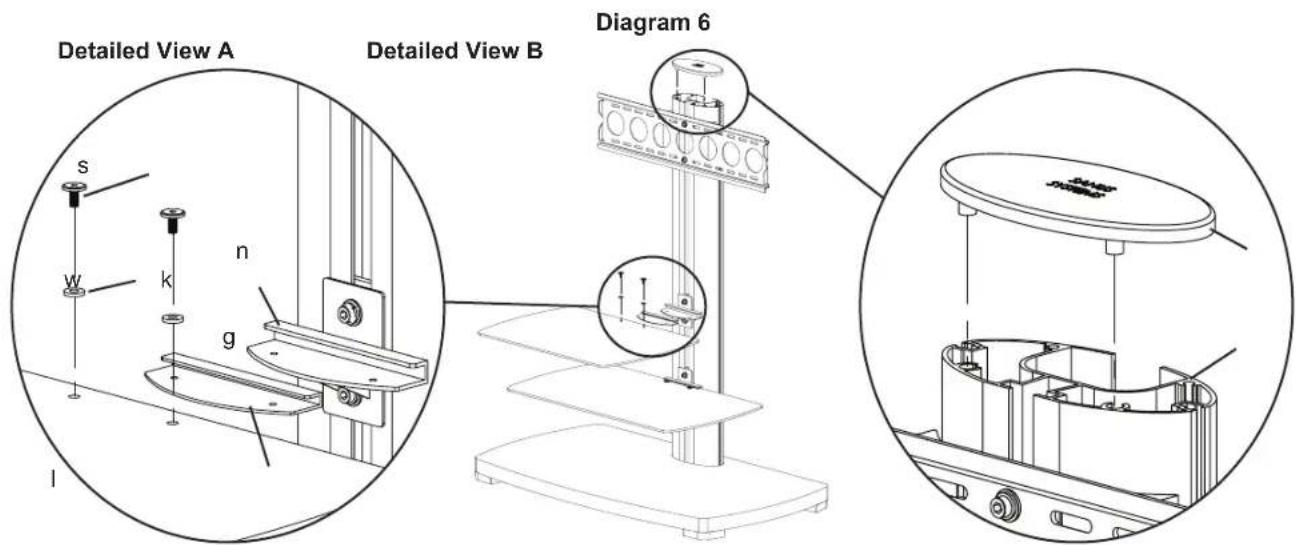

Take the Glass Shelf Washer (l) and insert it onto the Glass Shelf (c,d). Make sure the holes in the Glass Shelf Washer and the Glass Shelf are aligned. Slide the Glass Shelf assembly into the Shelf Bracket (k). Thread each 1/4-20 Allen Bolt (s) down through a Plastic Washer (w), the Glass Shelf and into the Shelf Bracket assembly. Tighten the 1/4-20 Allen Bolts firmly so the Glass Shelf is secured to the Shelf Bracket. See Detailed View A of Diagram 6 for assistance. Repeat the process for the other Glass Shelf.

Next, add the Top Cap (n) to the top of the Pillar (g) by lining up the two plastic dowels on the bottom of the Top Cap with the corresponding pattern on the top of the Pillar as seen in Detailed View B of Diagram 6. Press down firmly on the Top Cap to make sure it is in place.

Note: The smaller Glass Shelf is typically installed above the larger Glass Shelf.

Step 7: Mounting Monitor Brackets to a television with a flat back

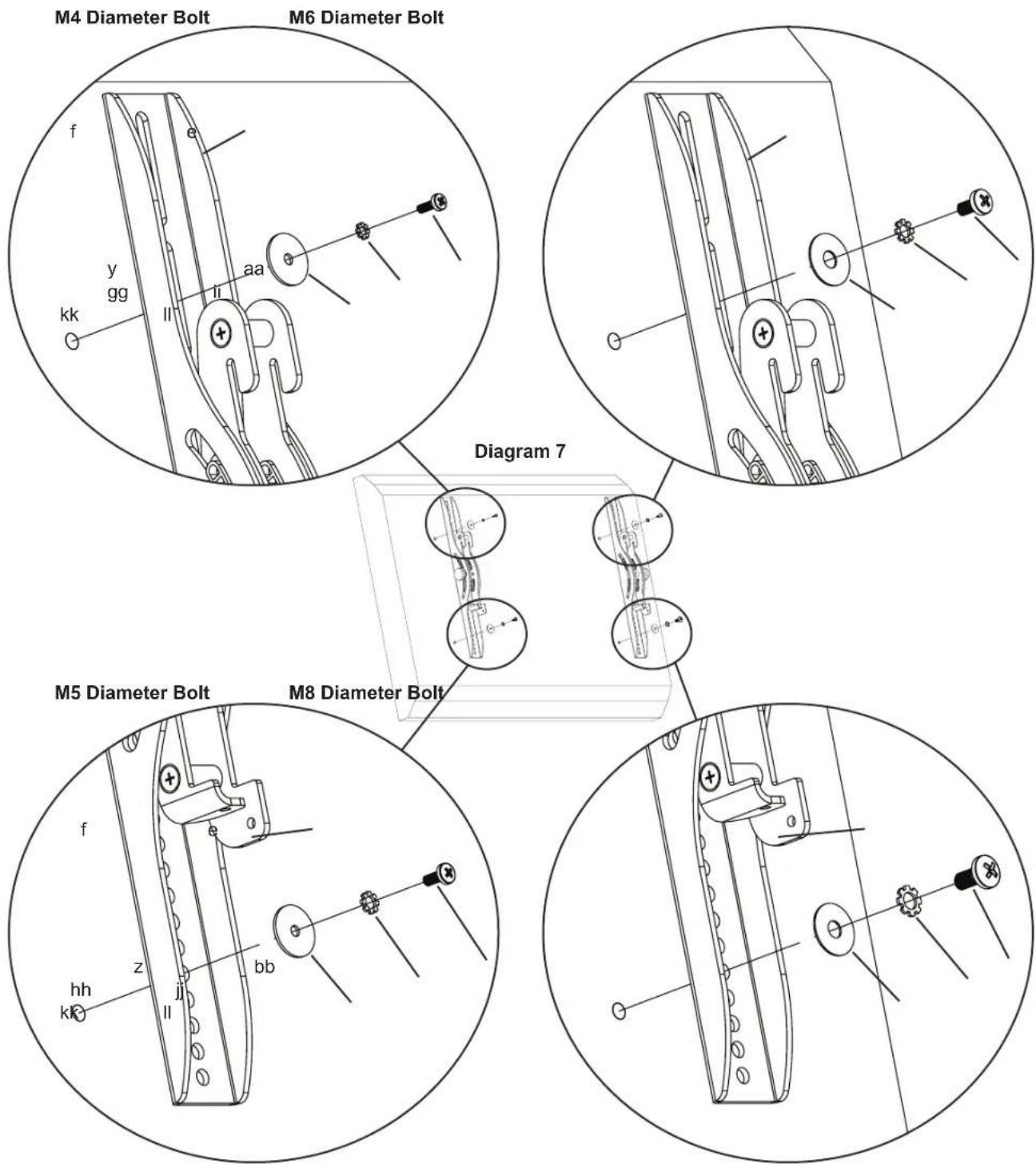

First, determine the diameter of the Bolt (y,z,aa,bb) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the appropriate Diagram below. You will thread the Bolt through the appropriate Lock Washer (gg,hh,ii,jj), a Washer (kk,ll), the Monitor Bracket (c,f), and finally into the TV. Make sure the Monitor Brackets are vertically centered and level with each other. See the appropriate Diagram below.

Note: For televisions with a curved back, or an obstruction near the threaded insert see Step 8.

Step 8: Mounting Monitor Brackets to a television with a curved back or an obstruction near the threaded insert

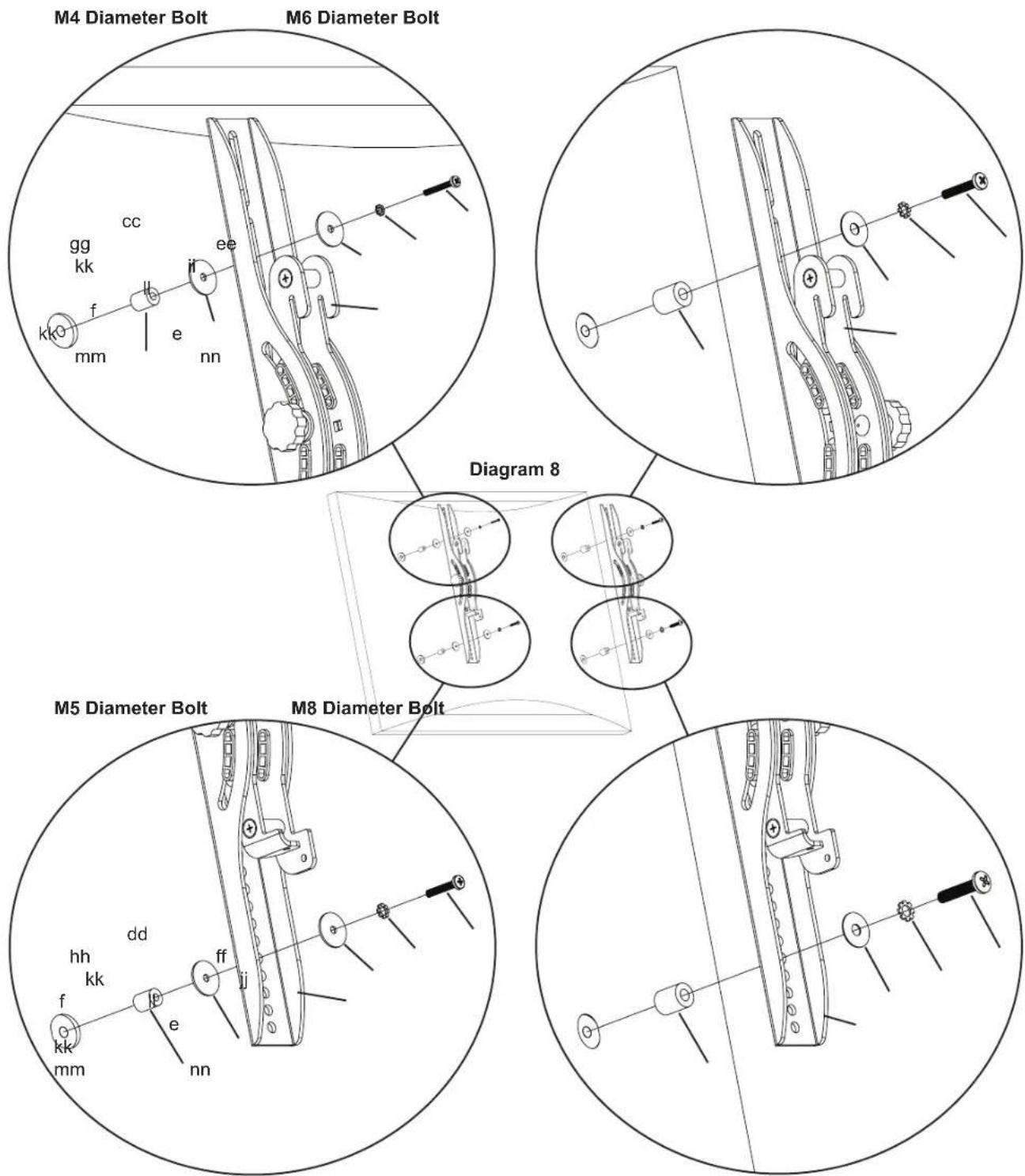

First, determine the diameter of the Bolt (cc,dd,ee,ff) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the appropriate Diagram below. You will thread the Bolt through the appropriate Lock Washer (gg,hh,ii,jj), a Washer (kk,ll), the Monitor Bracket (e,f), a Spacer (mm,nn) and finally into the TV. Make sure the Monitor Brackets are vertically centered and level with each other. See the appropriate Diagram below.

Step 9: Hang TV and Safety Bolt

Warning: Lifting the television may require two people!

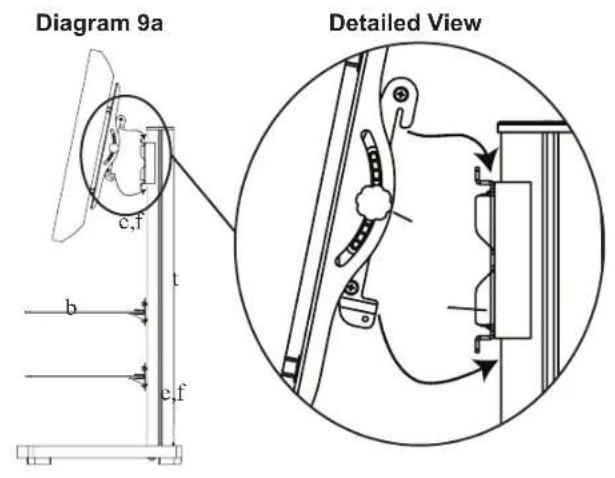

To hang the TV onto the Wall Bracket (b) first hook the Monitor Brackets (e,f) over the top of the Wall Bracket, then let the bottom of the Monitor Brackets rotate in under the bottom of the Wall Bracket as shown in the Detailed View of Diagram 9a.

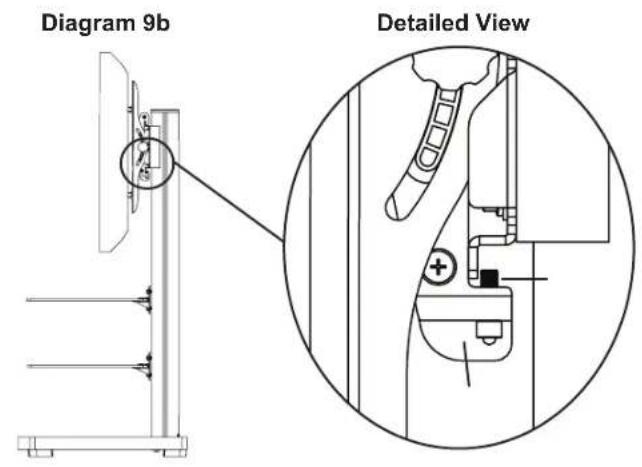

Insert the Safety Bolts (t) into the threaded holes in the bottom of the Monitor Brackets (e,f) and tighten them with the Allen Key (oo) so that they sit behind the bottom tab on the Wall Bracket (b) as shown in the Detailed View of Diagram 9b. Finally set the tension of the knobs on the Monitor Brackets and you are free to adjust your new flat panel TV.

Step 10: Shelf Bracket Cap

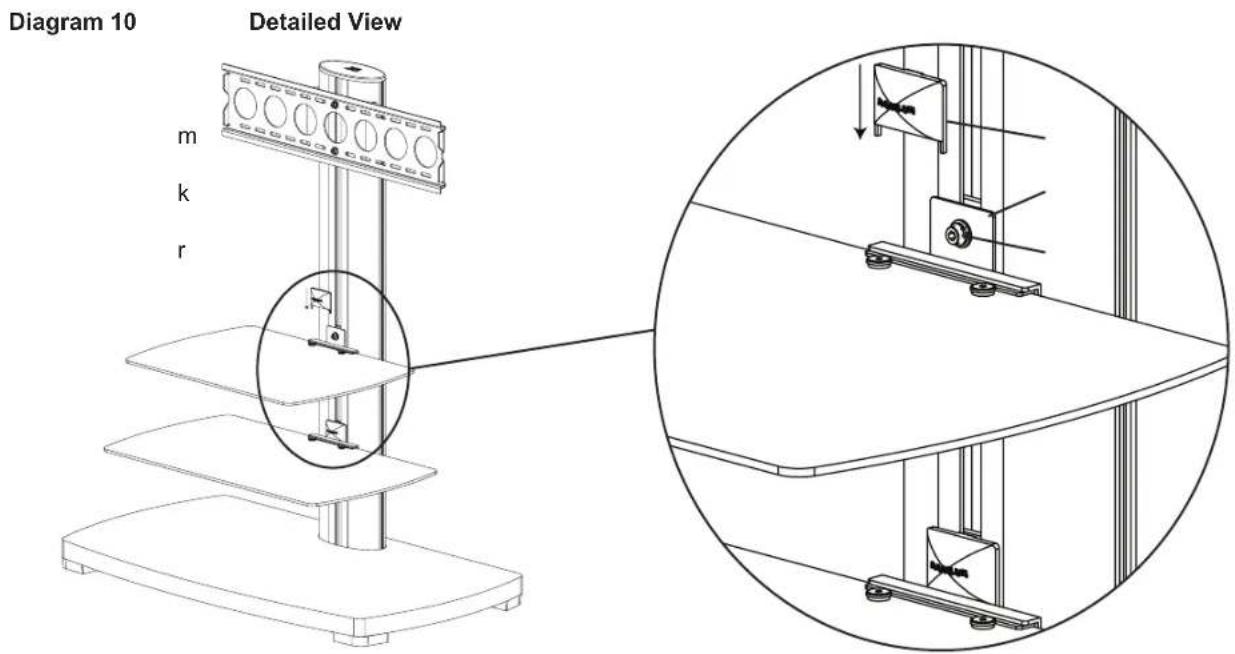

Place the Shelf Bracket Cap (m) over the Shelf Bracket (k) so it hides the M8 Allen Bolt (r) as shown in Diagram 10.

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113, USA
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
