PHD5714 - Hair dryer BOSCH - Free user manual and instructions

USER MANUAL PHD5714 BOSCH

Close-up of intertwined brown fibrous material (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

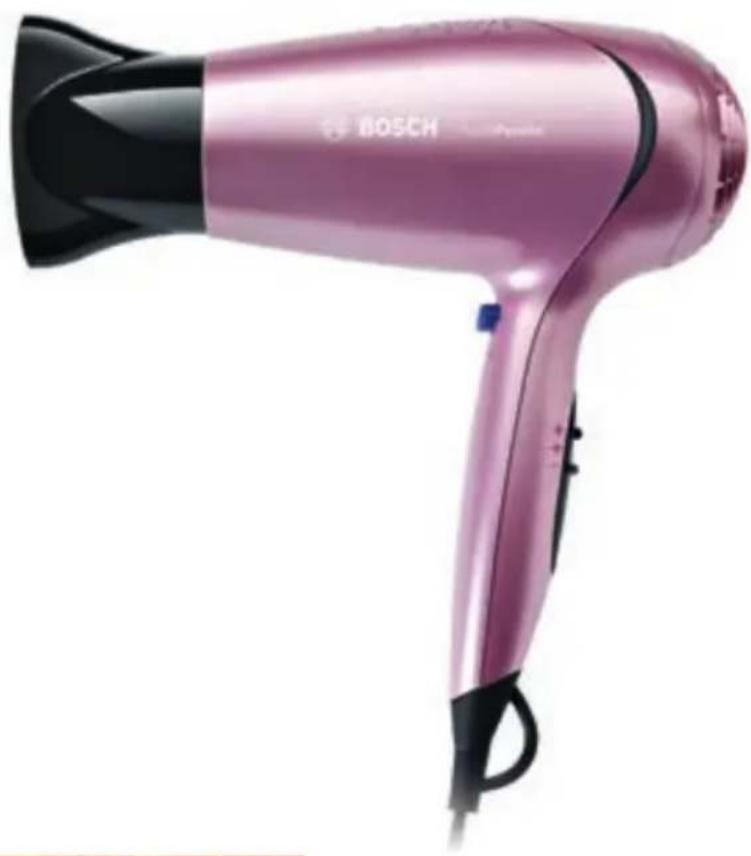

Pink Bosch brand hair dryer with black handle and white head (no visible text or symbols)

Close-up of a textured brown surface with parallel lines, resembling wood grain or fiber texture (no text or symbols)

PHD 5714

BOSCH

Three-panel diagram showing a door with arrows indicating movement or force, labeled in Chinese characters.

Aus sanft kräftig

Temperatur

合心 合心 合心

niedrig mittel hoch

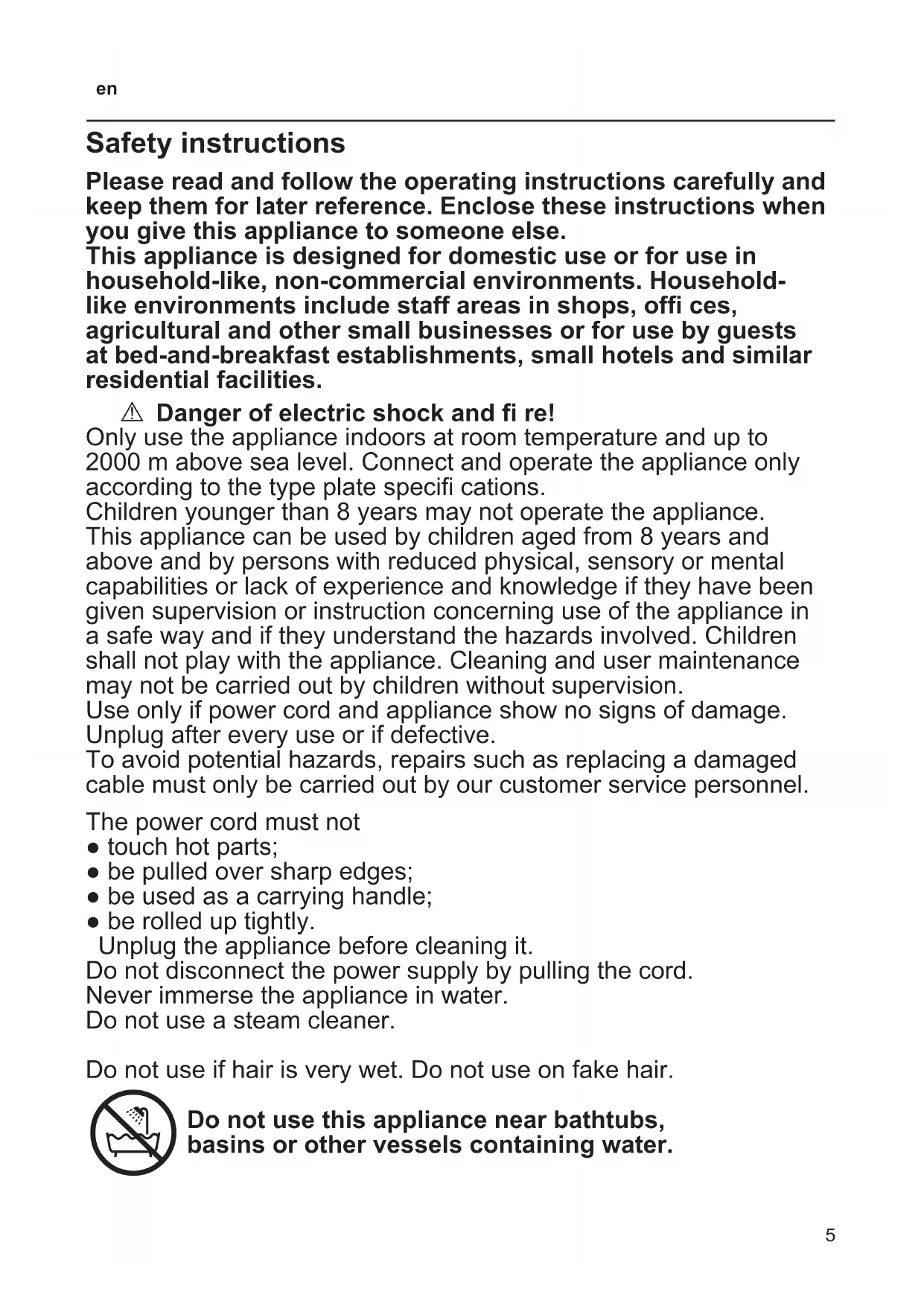

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else.

This appliance is designed for domestic use or for use in household-like, non-commercial environments. Household-like environments include staff areas in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

⚠️ Danger of electric shock and fi re!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. Connect and operate the appliance only according to the type plate specifications.

Children younger than 8 years may not operate the appliance. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance may not be carried out by children without supervision.

Use only if power cord and appliance show no signs of damage. Unplug after every use or if defective.

To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

The power cord must not

• touch hot parts;
• be pulled over sharp edges;
• be used as a carrying handle;
• be rolled up tightly.

Unplug the appliance before cleaning it.

Do not disconnect the power supply by pulling the cord.

Never immerse the appliance in water.

Do not use a steam cleaner.

Do not use if hair is very wet. Do not use on fake hair.

Do not use this appliance near bathtubs, basins or other vessels containing water.

en

Risk of fatal injury!

Never allow the appliance to come into contact with water.

Even an appliance that has been switched off poses a danger; therefore unplug the appliance after every use or when interrupted in its use.

Installing a ground fault circuit interrupter up to 30 mA in the house offers additional protection. Please consult an electrician.

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of burns!

The styling nozzle can become hot. Allow it to cool down before detaching.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

These operating instructions describe a hair dryer and accessories.

Using the appliance

Important:

■ Never cover the fan or air inlet.
■ Ensure that the inlet opening does not become blocked with lint or hair.
■ If the hair dryer overheats, e.g. due to a covered air inlet, it will automatically switch off and then switch on again several minutes later.
■ To predry towel-dry hair, select the powerful fan setting and a high temperature.

Keep the fan opening approx. 10 cm from your head.

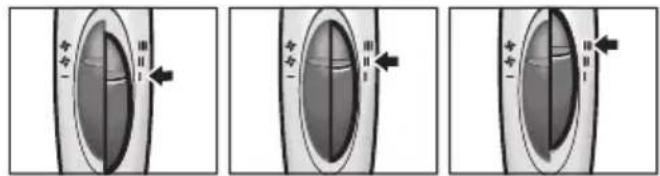

Fan

off gentle strong

Temperature

low medium high

The fan and temperature levels can be combined in any way you wish.

Cool button

ng function is ideal for setting hair after drying. It fixes the individual sections of hair with the cool airflow. Press the

Cool button to activate the cooling function on any setting. Press the Cool button again to switch off the cooling function.

Styling nozzle

g nozzle is specially designed for drying and styling sections of hair. Attach the styling nozzle to the appliance.

Make sure it clicks into place. The nozzle can be turned as required. Select gentle fan with a low temperature.

Important: The nozzle should never actually touch the hair.

For more information on Bosch styling visit www.bosch-personalstyle.com

Cleaning and maintenance

Risk of electric shock!

Before cleaning the appliance, let it cool down and unplug.

Never immerse the appliance in water.

Do not steam-clean the appliance.

■ Only wipe the outside of the appliance with a damp cloth and then dry off. Do not use harsh or abrasive detergents.
■ Regularly remove the air inlet grill, take out the filter at the back, rinse and dry or clean with a soft brush.

Storage

Before putting the appliance away, let it cool down and unplug.

Technical specifications

Electrical connection(voltage – frequency)	220-240 V~50-60 Hz
Output 2000 W

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
