USER MANUAL Satinelle HP6501 PHILIPS

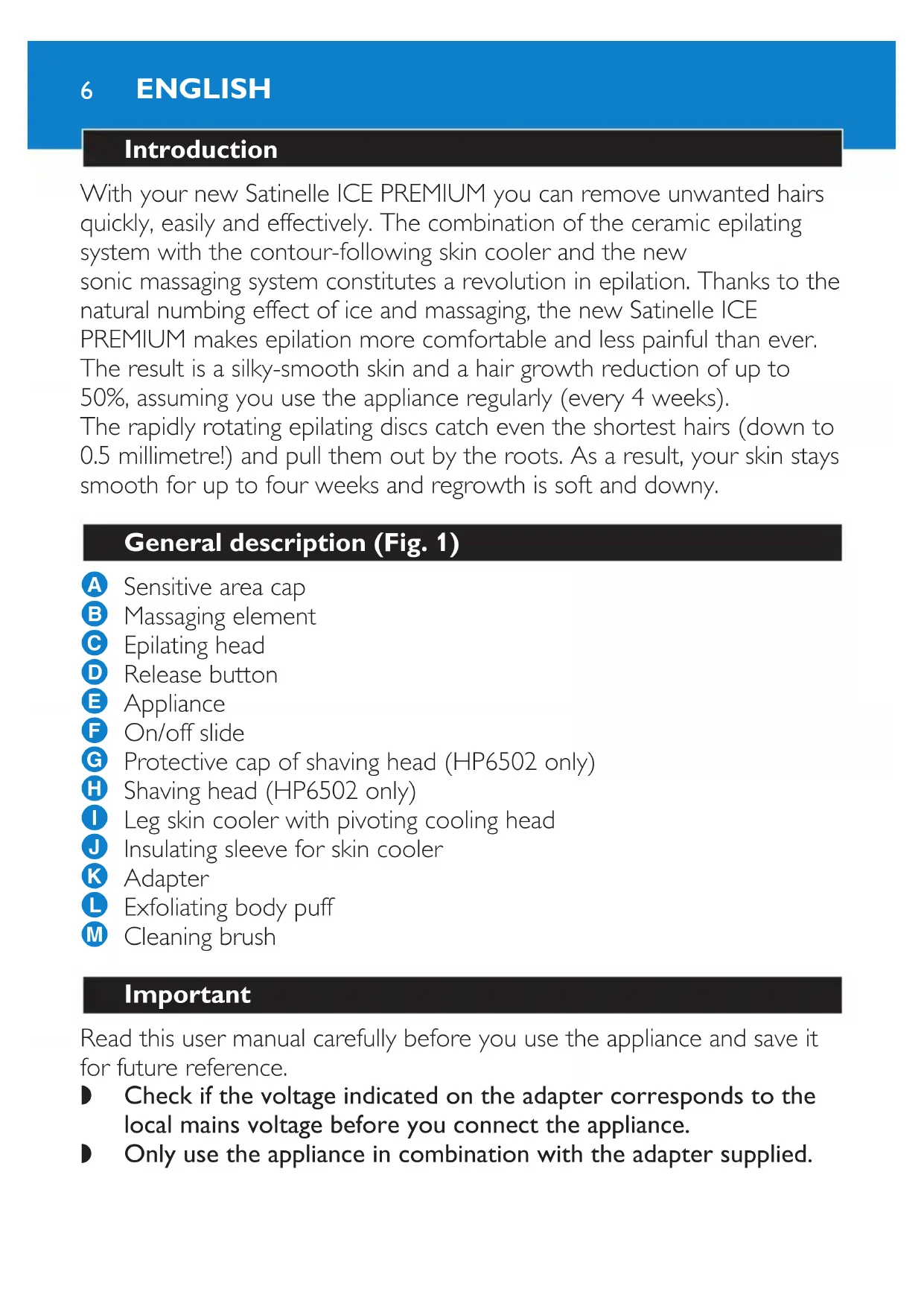

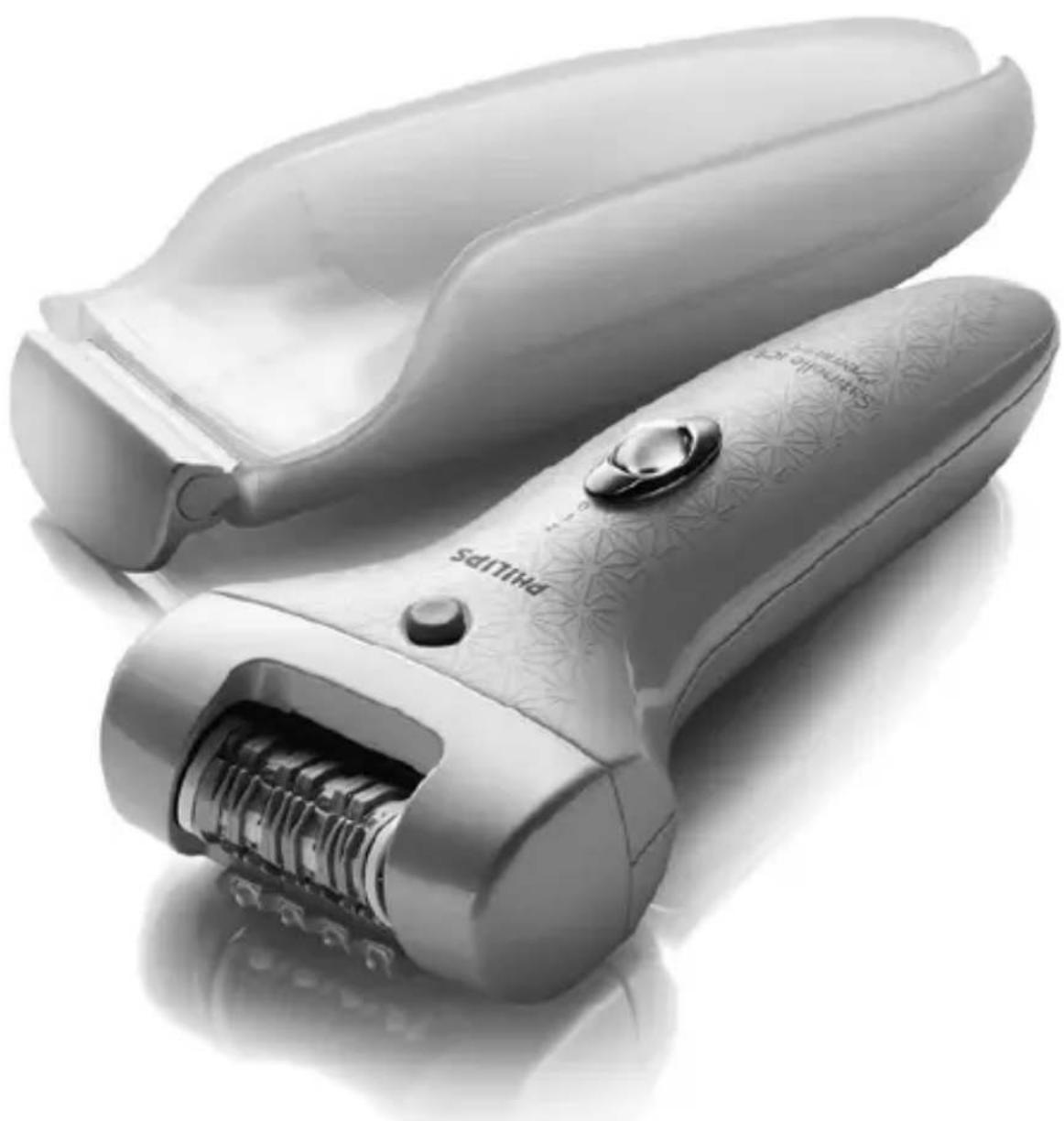

Introduction With your new Satinelle ICE PREMIUM you can remove unwanted hairs quickly, easily and effectively. The combination of the ceramic epilating system with the contour-following skin cooler and the new sonic massaging system constitutes a revolution in epilation. Thanks to the natural numbing effect of ice and massaging, the new Satinelle ICE PREMIUM makes epilation more comfortable and less painful than ever. The result is a silky-smooth skin and a hair growth reduction of up to 50%, assuming you use the appliance regularly (every 4 weeks). The rapidly rotating epilating discs catch even the shortest hairs (down to

0.5 millimetre!) and pull them out by the roots. As a result, your skin stays

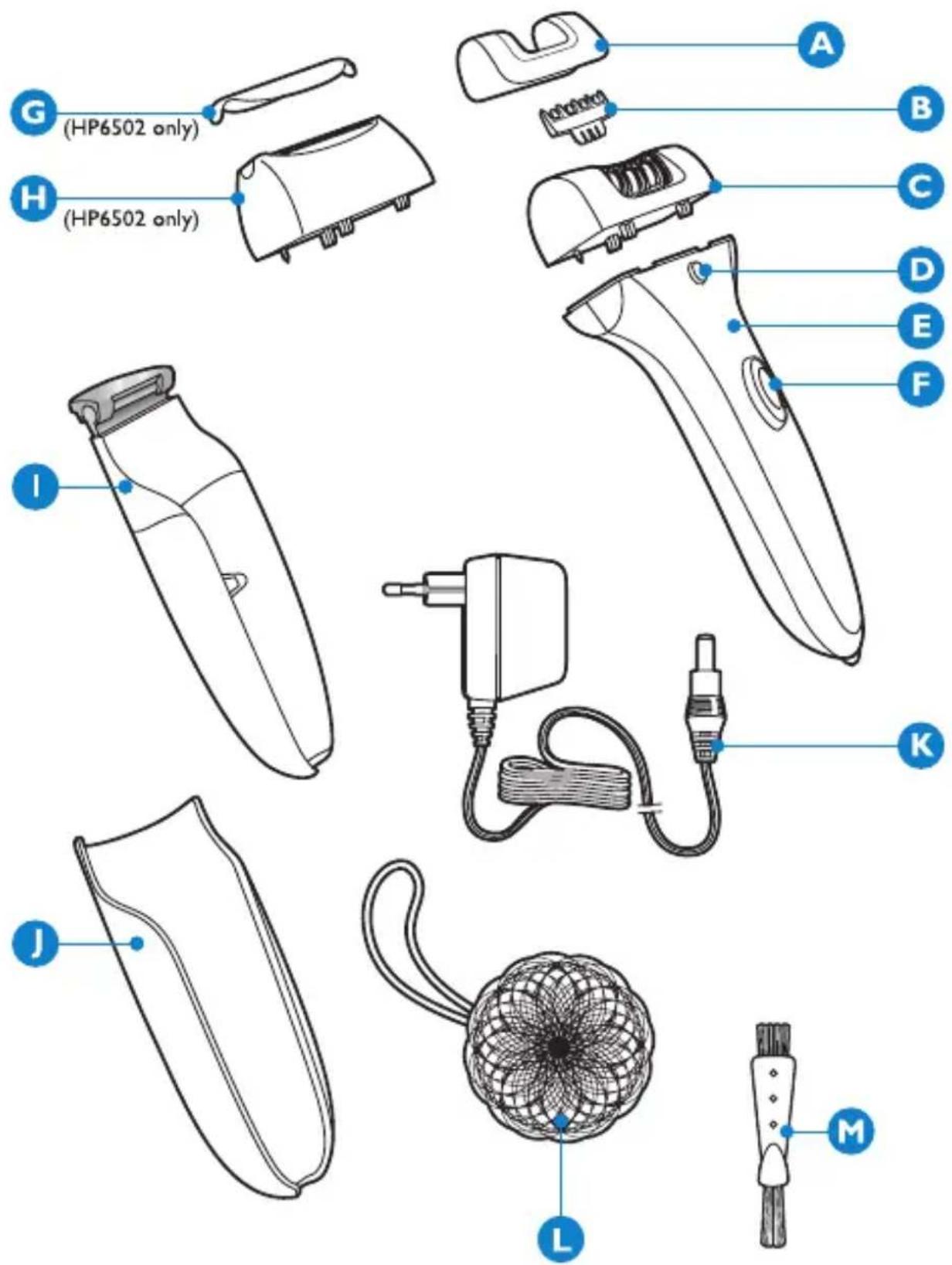

smooth for up to four weeks and regrowth is soft and downy. General description (Fig. 1) A Sensitive area cap B Massaging element C Epilating head D Release button E Appliance F On/off slide G Protective cap of shaving head (HP6502 only) H Shaving head (HP6502 only) I Leg skin cooler with pivoting cooling head J Insulating sleeve for skin cooler K Adapter L Exfoliating body puff M Cleaning brush Important Read this user manual carefully before you use the appliance and save it for future reference. Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance. Only use the appliance in combination with the adapter supplied.

ENGLISHDo not use the appliance if the adapter or the appliance itself is damaged. If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard. The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. Keep the appliance and the adapter dry. Keep the appliance out of the reach of children. Do not expose the appliance to temperatures lower than 5°C or higher than 35°C. To prevent damage and injuries, keep the running appliance away from your scalp hair, eyebrows, eyelashes, clothes, threads, cords, brushes etc. Do not use the epilating head on irritated skin or skin with varicose veins, rashes, spots, moles (with hairs) or wounds without consulting your doctor rst. People with a reduced immune response or people who suffer from diabetes mellitus, Raynaud’s disease or immunodeciency should contact their doctor rst. Always check the shaving head before you use the appliance. Do not use the shaving head if the foil or the trimmers are damaged, as this may cause injury. Electromagnetic elds This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today. Preparing for use Freezing the skin cooler 1 Put the skin cooler WITHOUT the insulating sleeve in the freezer or freezing compartment (***) at least 4 hours before you start to epilate. When the uid has turned completely blue, the skin cooler is ready for use.

ENGLISH 7Make sure the outside of the skin cooler is completely dry before you freeze it. Tip:You can store the skin cooler in the freezer permanently. Using the appliance General information about epilation Epilation is easier just after a bath or shower. Make sure your skin is completely dry when you start to epilate. When you use the appliance for the rst time, we advise you to try it out on an area with only light hair growth. This helps you get accustomed to the epilation process. For optimal epilating results, the hairs should not be longer than 10 millimetres (Fig. 2) To epilate longer hairs: (Fig. 2) shorten the hairs to a maximum length of 10mm with a trimmer. In this case, you can start to epilate right away. shave the hairs completely. In this case you can start to epilate after a few days (the hairs must be at least 0.5mm long). Your skin may become a little red and irritated the rst few times you use the epilator. This phenomenon is absolutely normal and quickly disappears. As you use the appliance more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor. We advise you to epilate before you go to bed at night, as this allows any skin irritation that may develop to diminish overnight. Epilating with the skin cooler Make sure your skin is clean, entirely dry and free from grease. Do not use any cream before you start to epilate. 1 Slide the insulating sleeve onto the skin cooler. (Fig. 3)

ENGLISH8The insulating sleeve prevents an unpleasant sensation of coldness in your hand while you use the appliance. It also keeps the skin cooler cold as long as possible. Sometimes the pivoting cooling head freezes onto the skin cooler and does not move when you take the skin cooler from the freezer. The pivoting cooling head starts to pivot again after you have passed it over your leg a few times. 2 Snap the appliance onto the skin cooler (Fig. 4). 3 Insert the appliance plug into the bottom of the appliance and put the adapter in the wall socket. 4 Select the desired speed to switch on the appliance (Fig. 5). Select speed I for areas with little hair growth and for areas where bones are located directly beneath the skin, such as knees and ankles. Select speed II for larger areas with stronger hair growth. 5 Stretch your skin with your free hand to make the hairs stand upright. 6 Place the appliance perpendicularly onto the skin with the epilating head pointing forward. Move the appliance against the direction of hair growth at a moderate speed. (Fig. 6) Make sure both the epilating discs and the skin cooler are in proper contact with the skin. Press the appliance lightly onto the skin. If you are not completely satised with the epilation result, try moving the epilator more slowly over your skin. 7 Use the tab on the bottom end of the appliance to remove the appliance from the skin cooler (Fig. 7). Epilating without skin cooler If you do not want to use the skin cooler, for instance because you have grown accustomed to the sensation of epilation, you can also use the appliance without the skin cooler. Make sure that you place the epilator perpendicularly onto your skin and that you move it against the direction of hair growth.

ENGLISH 9Epilating the underarms and bikini line Your epilator comes with a sensitive area cap that reduces the number of active epilating discs. This makes the appliance ideal for epilating the more delicate areas of the body, such as the underarms and bikini line. Note:You get the best results when the hairs are not too long (max.1cm). 1 Put the sensitive area cap on the epilating head (Fig. 8). The sensitive area cap can only be tted onto the appliance in one way. 2 Switch on the appliance by selecting the desired speed. (Fig. 5) We advise you to use speed II. 3 Stretch the skin with your free hand. 4 Place the appliance perpendicularly onto your skin, with the on/off slide pointing in the direction in which you are going to move the appliance (Fig. 6). 5 Move the appliance slowly over the skin, against the direction of the hair growth (Fig. 6). Epilate your bikini line as shown in the gure (Fig. 9). Epilate your underarms as shown in the gure (Fig. 10). For a cool sensation, you can dab the area you have just epilated with a cloth soaked in cold water. 6 Remove the sensitive area cap from the epilator after use (Fig. 11). Using the exfoliating body puff Use the exfoliating body puff in the shower. Regular massages with the puff may help to prevent ingrown hairs. Do not use the puff immediately before or after epilation. Shaving (HP6502 only) You can use the shaving head to shave sensitive body parts, such as your underarms and bikini line. With the shaving head, you obtain a smooth result in a comfortable and gentle way. 1 Make sure the appliance is switched off.

ENGLISH102 Remove the skin cooler (Fig. 7). 3 Remove epilating head (Fig. 12). Press the release button (1) and move the epilating head in the direction of the arrow (2). 4 Place the shaving head on the appliance and press it onto the appliance until it snaps home (‘click’) (Fig. 13). 5 Switch on the appliance by selecting speed II. 6 Place the shaving head onto your skin and move the appliance slowly and smoothly against the direction of hair growth. Press the appliance lightly (Fig. 14). Cleaning and maintenance Never rinse the adapter or the appliance itself with water. Do not use any corrosive detergents, scouring pads or cloths, petrol, acetone etc. to clean the appliance. 1 Make sure the appliance is switched off and unplugged. 2 Remove the skin cooler from the appliance and slide the insulating sleeve off the skin cooler. 3 Clean the pivoting cooling head of the leg skin cooler with the brush supplied or with a moist cloth after each use. Make sure the outside of the skin cooler is completely dry before you freeze it again. Cleaning the epilating head Clean the epilating head after every use. 1 Make sure the appliance is switched off and unplugged. 2 Remove the epilating head (Fig. 12). Press the release button (1) and move the epilating head in the direction of the arrow (2). 3 Remove the massaging element (Fig. 15). ENGLISH 114 Clean all accessible parts, including the bottom of the epilating head and the epilating discs, with the brush (Fig. 16). 5 You can also rinse the epilating head (not the appliance!) under the tap to clean it more thoroughly (Fig. 17). Never try to detach the epilating discs from the epilating head. 6 Reattach the massaging element to the epilating head. Then place the epilating head on the appliance and press it until it snaps home (‘click’) (Fig. 18). The epilating head only ts onto the appliance in one way. Cleaning the shaving head (HP6502 only) Clean the shaving head after every use. 1 Make sure the appliance is switched off and unplugged. 2 Remove the shaving head. 3 Pull the cutter unit out of the shaving head. (Fig. 19) 4 Brush the hairs off the cutter unit and the shaving head. Make sure that you also brush away any hairs that have collected under the trimmers (Fig. 20). 5 You can also rinse the cutter unit and the rest of the shaving head (not the appliance!) under the tap (Fig. 21). 6 Put the cutter unit back into the shaving head and snap the shaving head back onto the appliance (‘click’) (Fig. 22). Do not exert pressure on the shaving foil to avoid damage. 7 Rub a drop of sewing machine oil onto the trimmers and shaving foil of the shaving unit twice a year. Storage

Put the protective cap on the shaving head (‘click’). (Fig. 23) 2 Store the appliance and the accessories in the pouch. ENGLISH12Replacement (HP6502 only) If you use the shaving head several times a week, replace the shaving foil and the cutter unit (type HP6193) after one or two years of use or if it is damaged. Environment Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the environment (Fig. 24). Guarantee & service If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you nd its phone number in the worldwide guarantee leaet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV. Troubleshooting Problem Possible cause Solution Reduced epilating performance. You moved the epilator in the wrong direction. Move the appliance against the direction of hair growth. You placed the epilating head on the skin at the wrong angle. Make sure you place the appliance perpendicularly onto the skin.

ENGLISH 13Problem Possible cause Solution The epilating head did not touch the skin. Make sure both the epilating head and the skin cooler are in proper contact with your skin during epilation. You moistened your skin with water or a cream or other skincare product prior to epilation. Make sure your skin is entirely dry and free from grease. Do not put any cream, body milk or other skincare product on your skin before you start to epilate. The sensitive area cap was on the appliance when you epilated your legs. Only use the sensitive area cap to epilate your underarms and bikini line. The appliance has been moved over the skin too fast. Move the appliance over the skin at a moderate speed. The appliance does not work. The socket to which the appliance is connected is not live. Make sure the socket you use is live. If you use a socket in a bathroom cabinet, you may need to switch on the light to activate the socket. The appliance is not switched on. Switch on the appliance. EnglisH14Problem Possible cause Solution You did not attach the epilating head correctly. Place the epilating head on the appliance and press it onto the appliance until it snaps home (‘click’). Skin irritation occurs. You used the epilator for the rst time or after a long period of disuse. Some skin irritation may occur the rst few times you use the appliance. This is absolutely normal and usually disappears quickly. For tips to reduce skin irritation, see the rst section of chapter ‘Using the appliance’. Also make sure you keep the epilating head clean. You have applied too much pressure to the appliance Do not use any pressure when moving the appliance over skin The skin cooler is not cold enough. You did not freeze the skin cooler long enough. Put the skin cooler without the insulating sleeve in the freezer or freezing compartment (***) for at least 4 hours. When the colour of the uid has changed from white to completely blue, the skin cooler is ready for use. You did not put the skin cooler in the freezer or freezing compartment. Put the skin cooler without the insulating sleeve in the freezer or freezing compartment (***) for at least 4 hours. Do not store the skin cooler in the refrigerator. The skin cooler did not touch the skin. Make sure the skin cooler is always in proper contact with your skin during epilation. EnglisH 15Problem Possible cause Solution The pivoting cooling head of the leg skin cooler does not move. The pivoting cooling head is frozen. Pass the skin cooler over your leg a few times to make it pivot again. Always make sure the outside of the skin cooler is completely dry before you freeze it. It is not possible to remove the epilating head. You did not move the epilating head in the right direction. Press the release button and move the epilating head in the direction of the arrow to remove it. (Fig. 12) It is not possible to remove the shaving head (HP6502 only). You did move the shaving head in the right direction. Press the release button and move the shaving head in the direction of the arrow to remove it. (Fig. 12) Reduced shaving performance (HP6502 only). The shaving head is dirty. Switch off the appliance, unplug it and remove the shaving head. Then clean the cutter unit and the shaving head with the cleaning brush supplied. Remove any hairs that are stuck under the trimmers. The cutter unit is damaged or worn. Replace the cutter unit. Stronger skin irritation than usual after shaving (HP6502 only). The cutter unit is damaged or worn. Replace the cutter unit. EnglisH1617 Introduction Le nouvel épilateur Satinelle ICE PREMIUM permet une épilation rapide, facile et efcace. Avec son nouveau système céramique, son applicateur de froid épousant chaque contour du corps et son nouveau système de massage Sonic, il révolutionne l’épilation. En effet, la sensation de massage et l’effet naturellement anesthésiant de la glace garantissent une épilation plus douce et moins douloureuse. Résultat : une peau douce comme de la soie et une diminution de la repousse jusqu’à 50 %, à condition de vous épiler régulièrement (toutes les 4 semaines). Les disques rotatifs attrapent même les poils les plus courts (jusqu’à un demi millimètre !) et les éliminent à la racine, laissant votre peau douce pendant quatre semaines environ. Le poil repousse doux et plus n. Description générale (g. 1) A Adaptateur spécial zones sensibles B Système de massage C Tête d’épilation D Bouton de déverrouillage E Appareil F Bouton coulissant marche/arrêt G Capot de protection de la tête de rasage (HP6502 uniquement) H Tête de rasage (HP6502 uniquement) I Applicateur de froid avec tête pivotante pour l’épilation des jambes J Applicateur de froid K Adaptateur L Éponge exfoliante M Brosse de nettoyage Important Lisez attentivement ce mode d’emploi avant d’utiliser l’appareil et conservez-le pour un usage ultérieur. Avant de brancher l’appareil, vériez que la tension indiquée sur l’adaptateur correspond à la tension du secteur. Utilisez l’appareil uniquement avec l’adaptateur fourni.
