USER MANUAL DNE62020B BEKO

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you an

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

For products with a water dispenser; .6

Things to be done for energy saving ..7

Points to be considered when re-

transporting your refrigerator 8

Before operating your refrigerator 8

Electric connection 8

Disposing of the packaging 9

Disposing of your old refrigerator 9

Placing and Installation 9

Changing the door opening

Adjusting the legs 10

Floor balance adjustment 10

5 Using your refrigerator 12

Setting the temperature of your

Dual cooling system 12

Humidity control in the crisper 13

Sliding Body Shelves 13

Chiller compartment 14

Description and cleaning of odor

Icematic and ice storage container .15

Dual cooling system: 16

Freezing fresh food 16

Recommendations for preservation of

Changing the illumination lamp 18

Protection of plastic surfaces 21

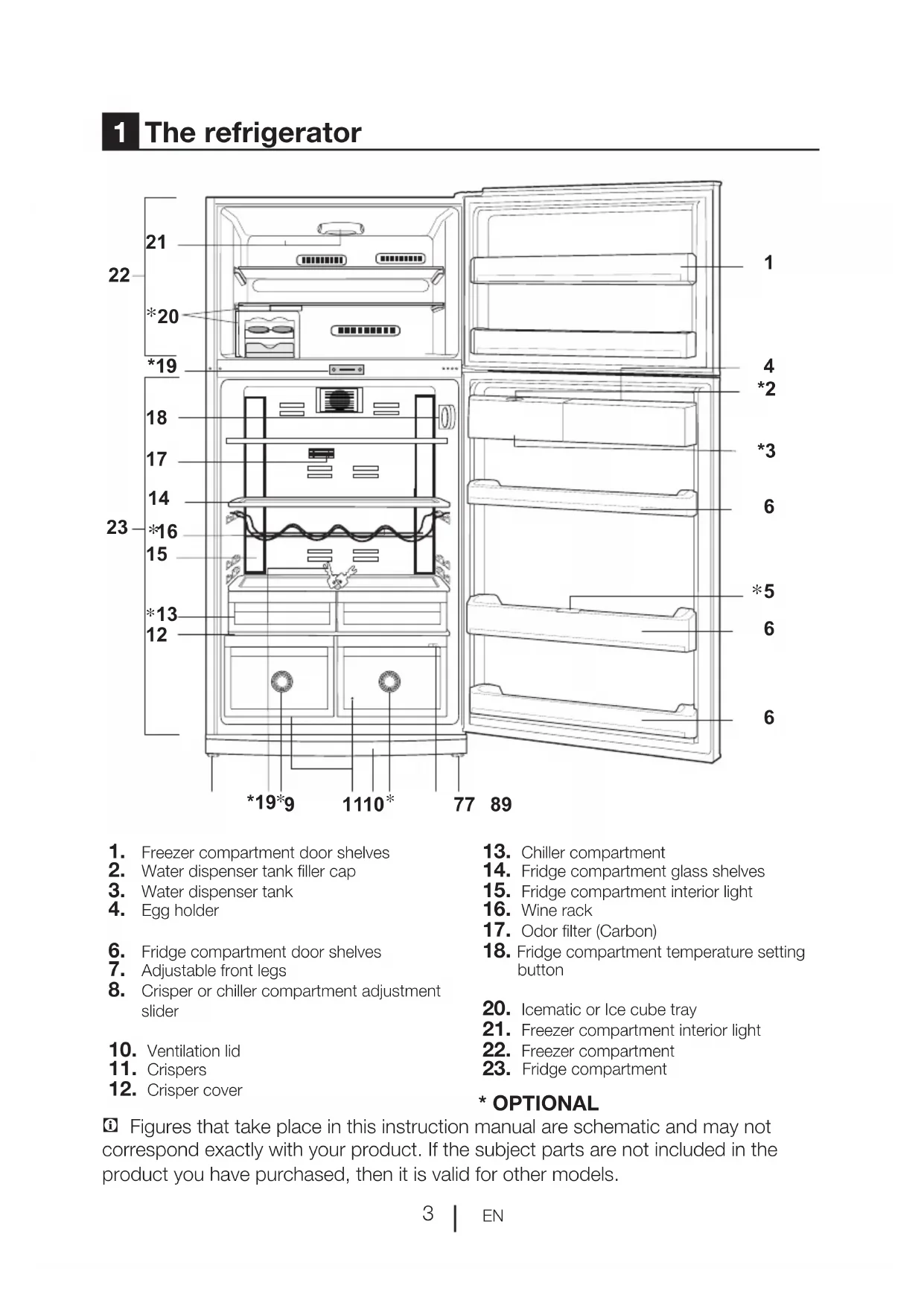

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. 1. Freezer compartment door shelves

2. Water dispenser tank filler cap

3. Water dispenser tank

6. Fridge compartment door shelves

7. Adjustable front legs

8. Crisper or chiller compartment adjustment slider 9. Blue light

13. Chiller compartment

14. Fridge compartment glass shelves

15. Fridge compartment interior light

20. Icematic or Ice cube tray

21. Freezer compartment interior light

22. Freezer compartment

23. Fridge compartment * OPTIONALEN

2 Important Safety Warnings

Please review the following information.

Failure to observe this information may

cause injuries or material damage.

Otherwise, all warranty and reliability

commitments will become invalid.

The usage life of the unit you purchased

is 10 years. This is the period for keeping

the spare parts required for the unit to

operate as described.

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such as

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap the

product, we recommend you to consult

the authorized service in order to learn

the required information and authorized

• Consult your authorized service for all

your questions and problems related to

the refrigerator. Do not intervene or let

someone intervene to the refrigerator

without notifying the authorised

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause frostbite

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand; they

may stick to your hand.

• Unplug your refrigerator before cleaning

• Vapor and vaporized cleaning materials

should never be used in cleaning and

defrosting processes of your refrigerator.

In such cases, the vapor may get in

contact with the electrical parts and

cause short circuit or electric shock.

• Never use the parts on your refrigerator

such as the door as a means of support

• Do not use electrical devices inside the

• Do not damage the parts, where the

refrigerant is circulating, with drilling or

cutting tools. The refrigerant that might

blow out when the gas channels of the

evaporator, pipe extensions or surface

coatings are punctured causes skin

irritations and eye injuries.

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during a

maintenance or repair work, disconnect

your refrigerator’s mains supply by

either turning off the relevant fuse or

unplugging your appliance.

• Do not pull by the cable when pulling off

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances in

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical, sensory

or mental disorders or unlearned or

inexperienced people (including children)

unless they are attended by a person

who will be responsible for their safety

or who will instruct them accordingly for

• Do not operate a damaged refrigerator.

Consult with the service agent if you

• Electrical safety of your refrigerator shall

be guaranteed only if the earth system

in your house complies with standards.

• Exposing the product to rain, snow, sun

and wind is dangerous with respect to

• Contact authorized service when there

is a power cable damage to avoid

• Never plug the refrigerator into the wall

outlet during installation. Otherwise, risk

of death or serious injury may arise.

• This refrigerator is intended for only

storing food items. It must not be used

for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the refrigerator,

do not look at the blue light with optical

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

• Avoid causing damage on power cable

when transporting the refrigerator.

Bending cable may cause fire. Never

place heavy objects on power cable. Do

not touch the plug with wet hands when

plugging the product.

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly on

inner or outer parts of the product for

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire and

• Never place containers filled with water

on top of the refrigerator, otherwise this

may cause electric shock or fire.

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objectsEN

may fall down when you open or close

the refrigerator's door.

• As they require a precise temperature,

vaccines, heat-sensitive medicine and

scientific materials and etc. should not

be kept in the refrigerator.

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigerator may move if adjustable legs

are not properly secured on the floor.

Properly securing adjustable legs on

the floor can prevent the refrigerator to

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water mains

should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should be

kept away from reach of children.

• Children must be supervised to prevent

them from tampering with the product.

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the product

catch a fire and ventilate the room in

which the unit is placed.

Ignore this warning if your product's

cooling system contains R134a.

Type of gas used in the product is stated

in the type plate which is on the left wall

inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator under

direct sunlight or near heat emitting

appliances such as ovens, dishwashers

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store maximum

amount of food items in the freezer

when you remove the shelf or drawer

of the freezer. Energy consumption

value stated for your refrigerator has

been determined by removing freezer

shelf or drawer and under maximum

load. There is no harm to use a shelf or

drawer according to the shapes and

size of food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

freshfood compartment

• Please do not let any foodstuff to come

to contact with the temperature sensor

in freshfood compartment.In order to

maintain freshfood compartment at ideal

storage temperature, the sensor must

not be blocked by fodstuffs.

• Do not place hot foodstuff in your

temperaturesensor food

MILK juice etc. temperaturesensorEN

BPlease remember that the manufacturer

shall not be held liable if the information

given in the instruction manual is not

Points to be considered

when re-transporting your

1.Your refrigerator must be emptied and

cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3.Packaging must be tied with thick tapes

and strong ropes and the rules of

transportation printed on the package

Please do not forget…

Every recycled material is an indispensable

source for the nature and for our

If you wish to contribute to recycling the

packaging materials, you can get further

information from the environmental

bodies or local authorities.

Before operating your

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and

can the air circulate freely in the rear of

2.Please install the 2 plastic wedges as

illustrated in the figure. Plastic wedges

will provide the required distance

between your refrigerator and the wall

in order to allow the air circulation. (The

illustrated figure is only an example

and does not match exactly with your

3.Clean the interior of the refrigerator as

recommended in the “Maintenance and

4.You will hear a noise as the compressor

starts up. The liquid and gases sealed

within the refrigeration system may

also give rise to noise, even if the

compressor is not running and this is

5.Front edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

• Extension cables and multiway plugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.

BProduct must not be operated before it

is repaired! There is danger of electric

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach of

children or dispose of them by classifying

them in accordance with the waste

instructions. Do not dispose of them

along with the normal household waste.

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old refrigerator without

giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your

municipality about the disposal of your

Before disposing of your refrigerator, cut

out the electric plug and, if there are

any locks on the door, make them

inoperable in order to protect children

Placing and Installation

A If the entrance door of the room where

the refrigerator will be installed is not

wide enough for the refrigerator to

pass through, then call the authorised

service to have them remove the doors

of your refrigerator and pass it sideways

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct

3. There must be appropriate air ventilation

around your refrigerator in order to

achieve an efficient operation. If the

refrigerator is to be placed in a recess

in the wall, there must be at least 5 cm

distance with the ceiling and at least 5

cm with the wall. If the floor is covered

with a carpet, your product must be

elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.EN

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs of it as illustrated

in the figure. The corner where the leg

exists is lowered when you turn in the

direction of black arrow and raised when

you turn in the opposite direction. Taking

help from someone to slightly lift the

refrigerator will facilitate this process.

Changing the door opening

Door opening direction of your

refrigerator can be changed according

to the place you are using it. If this is

necessary, please call your nearest

Above description is a general

expression. For information on changing

the opening direction of the door, you

must refer to the warning label located

on the inner side of the door.

Floor balance adjustment

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs of it as illustrated

in the figure. (See Figure A) The corner

where the leg exists is lowered when

you turn in the direction of black arrow

and raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

Door height adjustment

In case there is a problem with the

alignment of the doors with respect

to each other, they may be aligned by

ascension vertically in the order given

below. Ensure that door shelves are

empty when adjusting the door height.

1. Remove the lower ventilation cover by

unscrewing its screws as shown in the

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not be

located under direct sunlight.

C Please make sure that the interior of

your refrigerator is cleaned thoroughly.

C If two refrigerators are to be installed

side by side, there should be at least 2

cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial six

- The door should not be opened

- It must be operated empty without any

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for the

C Original packaging and foam materials

should be kept for future transportations

CThis appliance is designed to operate

at temperatures specified in the table

below is equipped with Advanced

Electronic Temperature Control System

[AETCS] which ensures that at the

advised setting [4 - four on the knob]

the frozen food in the freezer will not

defrost even if the ambient temperature

falls as low as -15 °C. When first

installed the product MUST NOT be

placed in low ambient temperatures

because the freezer will not reduce to

it’s standard operating temperature.

Once it has reached its steady operating

state it can be re-located. So you

may then install your appliance in a

garage or an unheated room without

having to worry about frozen food in

the freezer being spoilt. However at

low ambient temperatures mentioned

above, fridge contents are likely to

freeze, so check and consume food

in the fridge accordingly. When the

ambient temperature returns to normal,

you may change the knob setting to suit

CIf the ambient temperature is below 0°C,

the food in the fridge compartment will

freeze.So, we recommend you don’t

use the fridge compartment in such low

ambient conditions. You can continue

using the freezer compartment as usual.EN

5 Using your refrigerator

Temperature setting button

Temperature setting button allows you

to make the temperature setting of your

Setting the temperature of

The overall temperature setting of your

refrigerator is made by means of the

temperature setting button on the right

wall of the fridge compartment. This

button has 5 different temperature

setting position. Select the position

suitable to your needs.

Your refrigerator is equipped with two

separate cooling systems to cool the

fresh food compartment and freezer

compartment. Thus, air in the fresh food

compartment and freezer compartment

do not get mixed. Thanks to these two

separate cooling systems, cooling speed

is much higher then other refrigerators.

Odours in the compartments do not get

mixed. Also additional power saving is

provided since the automatic defrosting

is performed individually.EN

Humidity control in the

Humidity level can be adjusted by sliding

the humidity adjustment slider to the

• If you want to maintain humidity in

this compartment, set the humidity

adjustment slider to the closed position.

• If you want to eliminate humidity in

this compartment, set the humidity

adjustment slider to the open position.

Sliding Body Shelves

Sliding body shelves can be pulled

by slightly lifting up from the front and

moved back and forth. They come to a

stop point when pulled towards front to

allow you reach the foods placed at the

back of the shelf; when it is pulled after

slightly lifted upwards at the second stop

point, the body shelf will be released.

The shelf should be hold tightly from the

bottom as well in order to prevent it from

tipping over. The body shelf is placed on

the rails at the sides of the refrigerator

body by bringing it to one lower or one

The body shelf should be pushed

backwards to seat it completely.

Hygiene+: The photocatalyst filter in the

air channel of refrigerator helps to clean

the air inside. Also this filter reduces bad

Ion+: Ionizer, that is in the air channel of

refrigerator, ionizers the air. With the help

of this system airborne bacteria and bad

smells originated from these bacteria will

Foodstuff stored in the crispers that are

enlightened with a blue light continue

their photosynthesis by means of the

wavelength effect of blue light and thus,

preserve their freshness and increase

their vitamin content.

This compartment is used to keep

frozen food that needs to be thawed

slowly (such as meat and fish). Chiller

compartment is the coolest place in your

refrigerator where you can keep dairy

products, meat, fish and poultry under

ideal storage conditions. Fruits and

vegetables should not be stored in this

Description and cleaning of

Odor filter prevents unpleasant odor

build-up in your refrigerator.

Pull the cover, into which the odor filter

is installed, downwards and remove as

illustrated. Leave the filter under sunlight

for one day. Filter will be cleaned during

this time. Install the filter back to its

Odor filter must be cleaned once in a

Icematic and ice storage

Fill the Icematic with water and place

it into its seat. Your ice will be ready

approximately in two hours. Do not

remove the Icematic from its seating to

Turn the knobs on it clockwise by 90

Ice cubes in the cells will fall down into

the ice storage container below.

You may take out the ice storage

container and serve the ice cubes.

If you wish, you may keep the ice cubes

in the ice storage container.

Ice storage container

Ice storage container is only intended for

accumulating the ice cubes. Do not put

water in it. Otherwise, it will break.

Making ice (OPTIONAL)

Fill the ice container with water and

place it into its seat. Your ice will be

ready approximately in two hours.

You can easily remove your ice by slightly

twisting the ice container.EN

Dual cooling system:

Your refrigerator is equipped with two

separate cooling systems to cool the

fresh food compartment and freezer

compartment. Thus, air in the fresh food

compartment and freezer compartment

do not get mixed. Thanks to these two

separate cooling systems, cooling speed

is much higher then other refrigerators.

Odours in the compartments do not

get mixed. Also additional power saving

is provided since the defrosting is

performed individually.

• Wrap or cover the food before placing

them in the refrigerator.

• Hot food must cool down to the room

temperature before putting them in the

• The foodstuff that you want to freeze

must be fresh and in good quality.

• Foodstuff must be divided into portions

according to the family’s daily or meal

based consumption needs.

• The foodstuff must be packaged in an

airtight manner to prevent them from

drying even if they are going to be kept

• Materials to be used for packaging

must be tear-proof and resistant to cold,

humidity, odor, oils and acids and they

must also be airtight. Moreover, they

must be well closed and they must be

made from easy-to-use materials that

are suitable for deep freeze usage.

• Frozen food must be used immediately

after they are thawed and they should

• Please observe the following

instructions to obtain the best results.

1. Do not freeze too large quantities of

food at one time. The quality of the

food is best preserved when it is frozen

right through to the core as quickly as

2. Placing warm food into the freezer

compartment causes the cooling

system to operate continuously until the

food is frozen solid.

3. Take special care not to mix already

frozen food and fresh food.EN

-18°C 4°C This is the normal recommended setting.

4°C These settings are recommended when the ambient temperature

Quick Freeze 4°C Use when you wish to freeze your food in a short time. Your

refrigerator will return to its previous mode when the process is

-18°C or colder 2°C If you think that your fridge compartment is not cold enough

because of the hot conditions or frequent opening and closing of

-18°C or colder Quick Fridge

You can use it when your fridge compartment is overloaded or if

you wish to cool down your food rapidly. It is recommended that

you activate quick fridge function 4-8 hours before placing the

preservation of frozen food

• Prepacked commercially frozen food

should be stored in accordance with the

frozen food manufacturer's instructions

( 4 star) frozen food

storage compartment.

• To ensure that the high quality achieved

by the frozen food manufacturer and the

food retailer is maintained, the following

should be remembered:

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

3. Do not exceed "Use By", "Best Before"

dates on the packaging.

The freezer compartment defrosts

such as meat, fish, ice

cream, vegetables and

Food in pans, covered

food or drinks (such

as milk, fruit juice and

Crisper Vegetables and fruits

Delicatessen products

(cheese, butter, salami

Deep-freeze information

Food must be frozen as rapidly as

possible when they are put in a

refrigerator in order to keep them in

The TSE norm requires (according to

certain measurement conditions) the

refrigerator to freeze at least 4.5 kg of

foodstuff at 32°C ambient temperature

to -18°C or lower within 24 hours for

every 100-liters of freezer volume.

It is possible to keep the food for

a long time only at -18°C or lower

You can keep the freshness of food

for many months (at -18°C or lower

temperatures in the deep freeze).

• Foodstuff must be divided into portions

according to the family’s daily or meal

based consumption needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from

drying even if they are going to be kept

Materials necessary for packaging:

Materials to be used for packaging

the foodstuff must be tear-proof and

resistant to cold, humidity, odor, oils and

Foodstuff to be frozen should not be

allowed to come in contact with the

previously frozen items to prevent their

Frozen food must be used immediately

after they are thawed and they should

Changing the illumination

To change the lamp used for illumination

of your refrigerator, please call your

Authorized Service.EN

Water dispenser is a very useful feature

to obtain chilled water without opening

the door of your fridge. Since you do

not have to open the door of your fridge

frequently, you also save on electricitiy.

Using the water dispenser

Push in the lever of the water dispenser

with your glass. By releasing the lever,

you cut off the dispensing.

When operating the water dispenser,

maximum flow is achieved by fully

depressing the lever. Please note, how

much water flows from the dispenser

depends on how far you depress the

lever. As the level of water in your cup /

glass rises, gently reduce the amount of

pressure on the lever to avoid overflow.

If you depress the lever a small amount,

then water will trickle; this is perfectly

normal and is not a fault.

Filling in the water tank of water

Open the cap of the water tank as

illustrated in the figure. Fill in with pure

and clean drinking water. Close the cap.

• Do not fill water tank with any liquid other

than drinking water; beverages such

as fruit juice, carbonated fizzy soda

drinks, alcoholic drinks are not suitable

for use with water dispenser. If such

liquids are used, the water dispenser

will malfunction and may be damaged

beyond repair. The guarantee does

not cover such uses. Some chemical

ingredients and additives in such drinks

/ beverages may also attack and

damage water tank material.

• Only use clean pure drinking water.

• Capacity of water dispenser tank is 3 litres

[6.4 pints], do not overfill.

• Push the water dispenser lever with a

rigid cup. If you are using a plastic

disposable cup, then push the lever with

your fingers from behind the cup.EN

Cleaning the water tank

Remove the water tank,and detach the

top cover mechanism from the water

tank. Clean the water tank with warm

clean water, reinstall the top cover.

When installing the water tank, make

sure that hooks it fits securely into the

hangers on the door. Make sure that

parts removed during cleaning (if any)

are installed correctly into their original

locations. Otherwise, water may leak.

Water tank and components of water

dispenser are not dishwasher-proof.

Water that drips while using the water

dispenser accumulates in the drip

tray. Remove the drip tray by pulling it

towards yourself and empty it from time

Remove the plastic drainer part as

shown in the diagram by pressing down

6 Maintenance and cleaning

A Never use gasoline, benzene or similar

substances for cleaning purposes.

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household cleaner,

detergent and wax polish for cleaning.

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in a

solution of one teaspoon of bicarbonate

of soda to one pint of water to clean the

interior and wipe it dry.

B Make sure that no water enters the

lamp housing and other electrical items.

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food, clean

it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the door

rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the plastic

surfaces of your refrigerator. In case of

spilling or smearing oil on the plastic

surfaces, clean and rinse the relevant

part of the surface at once with warm

Please review this list before calling the service. It will save your time and money. This

list includes frequent complaints that are not arising from defective workmanship or

material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• The plug is not inserted into the socket correctly. >>> Insert the plug into the

• The fuse of the socket which your refrigerator is connected to or the main fuse

have blown out. >>> Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Ambient is vey cold. >>> Do not install the refrigerator in places where the

temperature falls below 10 °C.

• Door has been opened frequently. >>> Do not open and close the door of

refrigerator frequently.

• Ambient is vey humid. >>> Do not install your refrigerator into highly humid

• Food containing liquid is stored in open containers. >>> Do not store food

with liquid content in open containers.

• Door of the refrigerator is left ajar. >>> Close the door of the refrigerator.

• Thermostat is set to a very cold level. >>> Set the thermostat to a suitable

Compressor is not running

C Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system

of the refrigerator has not been balanced yet. The refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The refrigerator is in defrost cycle. >>> This is normal for a full-automatically

defrosting refrigerator. Defrosting cycle occurs periodically.

• The refrigerator is not plugged into the socket. >>> Make sure that the plug is

fit into the socket.

• Temperature settings are not made correctly. >>> Select the suitable

• There is a power failure. >>> Refrigerator returns to normal operation when

the power restores.EN

The operation noise increases when the refrigerator is running.

C The operating performance of the refrigerator may change due to the changes

in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

C New product may be wider than the previous one. Larger refrigerators operate

for a longer period of time.

• The ambient temperature may be high. >>> It is normal that the product

operates for longer periods in hot ambient.

• The refrigerator is plugged in or loaded with food recently. >>> When the

refrigerator is plugged in or loaded with food recently, it will take longer for it

to attain the set temperature. This is normal.

• Large amounts of hot food may have been put in the refrigerator recently. >>>

Do not put hot food into the refrigerator.

• Doors are opened frequently or left ajar for a long time. >>>The warm air that

has entered into the refrigerator causes the refrigerator to run for longer

periods. Do not open the doors frequently.

• Freezer or fridge compartment door is left ajar. >>> Check if the doors are

• The refrigerator is adjusted to a very low temperature. >>> Adjust the

refrigerator temperature to a warmer degree and wait until the temperature

• Door seal of the fridge or freezer may be soiled, worn out, broken or not

properly seated. >>> Clean or replace the seal. Damaged/broken seal

causes the refrigerator to run for a longer period of time in order to maintain

the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low value. >>> Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature is adjusted to a very low value. >>> Adjust the fridge

temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are frozen.

• The fridge temperature is adjusted to a very low value. >>> Adjust the fridge

temperature to a warmer value and check.EN

Temperature in the fridge or freezer is very high.

• The fridge temperature is adjusted to a very high value. >>> Fridge

compartment temperature setting has an effect on the temperature of the

freezer. Change the temperatures of the fridge or freezer and wait until the

relevant compartments attain a sufficient temperature.

• Doors are opened frequently or left ajar for a long time. >>> Do not open the

• Door is ajar. >>> Close the door completely.

• The refrigerator is plugged in or loaded with food recently. >>> This is normal.

When the refrigerator is plugged in or loaded with food recently, it will take

longer for it to attain the set temperature.

• Large amounts of hot food may have been put in the refrigerator recently. >>>

Do not put hot food into the refrigerator.

Vibrations or noise.

• The floor is not level or stable. >>>If the refrigerator rocks when moved

slowly, balance it by adjusting its legs. Also make sure that the floor is

strong enough to carry the refrigerator, and level.

• The items put onto the refrigerator may cause noise. >>> Remove the items

on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing or spraying.

C Liquid and gas flows happen in accordance with the operating principles of

your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

C Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

C Hot and humid weather increases icing and condensation. It is normal and not

• Doors are opened frequently or left ajar for a long time. >>> Do not open the

doors frequently. Close them if they are open.

• Door is ajar. >>> Close the door completely.EN

Humidity occurs on the outside of the refrigerator or between the doors.

C There may be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

• No regular cleaning is performed. >>> Clean the inside of the refrigerator

regularly with a sponge, lukewarm water or sodium bicarbonate diluted in

• Some containers or package materials may cause the smell. >>> Use a

different container or different brand packaging material.

• Food is put into the refrigerator in uncovered containers. >>> Keep the food

in closed containers. Microorganisms spreading out from uncovered

containers can cause unpleasant odors.

C Remove the foods that have expired best before dates and spoiled from the

The door is not closing.

• Food packages are preventing the door from closing. >>> Replace the

packages that are obstructing the door.

• The refrigerator is not completely even on the floor. >>> Adjust the legs to

balance the refrigerator.

• The floor is not level or strong. >>> Make sure that the floor is level and

capable to carry the refrigerator.

• The food is touching the ceiling of the drawer. >>> Rearrange food in the

temperaturesensor food

MILK juice etc. temperaturesensorDE

temperaturesensor food

potable pure. Fermez le couvercle.

of mentale stoornis of ongeschoolde of

temperaturesensor food

MILK juice etc. temperaturesensorNL

temperaturesensor food

MILK juice etc. temperaturesensorSK

nell'elettrodomestico.

temperaturesensor food

MILK juice etc. temperaturesensorIT

temperaturesensor food

MILK juice etc. temperaturesensorRU

]Advanced Electronic Temperature Control

 

 



temperaturesensor food

MILK juice etc. temperaturesensorAR





temperaturesensor food

[Advanced Electronic Temperature Control
