Product type	USB flash drive
Brand	Philips
Model	FM08FD05B
Interface	USB 2.0 high speed (USB 1.1 compatible)
Maximum read speed	14 MB/s
Maximum write speed	5 MB/s
Compatible operating systems	Windows Vista, XP, 2000, ME, 98SE; Mac OS 9.0 or later; Linux 2.4.0 or later
Power supply	Via USB port
Main functions	Data storage and transfer, Plug-and-Play
Maintenance and cleaning	Clean with a dry cloth; avoid moisture and extreme temperatures
Safety	Do not expose to rain or moisture; do not open the casing; avoid strong magnetic fields
Spare parts and repairability	Not user-serviceable; contact a qualified technician
Compliance	FCC Class B, ICES-003, European directives 89/336/EEC, 2006/95/EC, 93/68/EEC
Operating environment	Residential, commercial, light industry
Operating conditions	Avoid shocks, vibrations, corrosive gases, dust, humidity, direct sunlight
Standby power consumption	Low (not specified)

Frequently Asked Questions - FM08FD05B PHILIPS

How to install the USB flash drive on Windows 98SE?

Download the driver from www.philips.com/storage. Remove the cap and insert the drive into a USB port. Follow the installation wizard by pointing to the folder of the downloaded driver.

How to safely disconnect the USB flash drive under Windows?

Under Windows Vista/XP, double-click the 'Safely Remove Hardware' icon in the taskbar, select the device, click 'Stop', then remove the drive after confirmation.

What to do if the USB flash drive is not recognized by the computer?

Check that the driver is correctly installed. Try another USB port. Under Windows 98SE, the driver must be downloaded manually. Visit www.philips.com/support.

Can I use a USB extension cable or hub?

Yes, you can use an optional USB extension cable or USB hub to connect the drive to your computer.

What is the transfer speed of the drive?

The maximum read speed is 14 MB/s and the maximum write speed is 5 MB/s (on a USB 2.0 high-speed port).

How to clean the USB flash drive?

Use a dry soft cloth. Avoid moisture, extreme temperatures, and chemicals.

Is the USB flash drive compatible with Mac?

Yes, it is compatible with Mac OS 9.0 or later. Simply plug it in, the icon appears on the desktop. To remove, drag the icon to the Trash.

What to do in case of data loss?

The company disclaims all liability for data loss. Regularly perform backups on another medium.

Is the USB flash drive resistant to airport X-rays?

Yes, data is safe in airport X-ray environments or magnetic fields below 3500 Oe.

Where to find drivers and updates?

Visit www.philips.com/storage for drivers and www.philips.com/storageupdates for updates.

USER MANUAL FM08FD05B PHILIPS

Register your product and get support at

www.philips.com/welcome

EN Vivid Edition	Click here	2
FR Vivid Edition	Cliquez ici	10
DE Vivid Edition	Hier kicken	18
ES Vivid Edition	Hagaclinicaquí	26
NL Vivid Edition	Klik hier	34
IT Vivid Edition	Fareclinic qui	42
PT Vivid Edition	Cliqueaquí	50
GR Vivid Edition	Kávτε κλικ εδω	58
SV Vivid Edition	Klicka hare	66
FI Vivid Edition	Napsautatātā	74
PL Vivid Edition	Kliknj tutaj	82
CZ Vivid Edition	Klepněte zde	90
SK Vivid Edition	Kliknite sem	98
HU Vivid Edition	Katluntsonide	106
RU Vivid Edition	Lilleakhinite 3aech	114
RO Vivid Edition	Faceti Clinici	122

USB Flash Drive

FMXXFD05B/00

PHILIPS

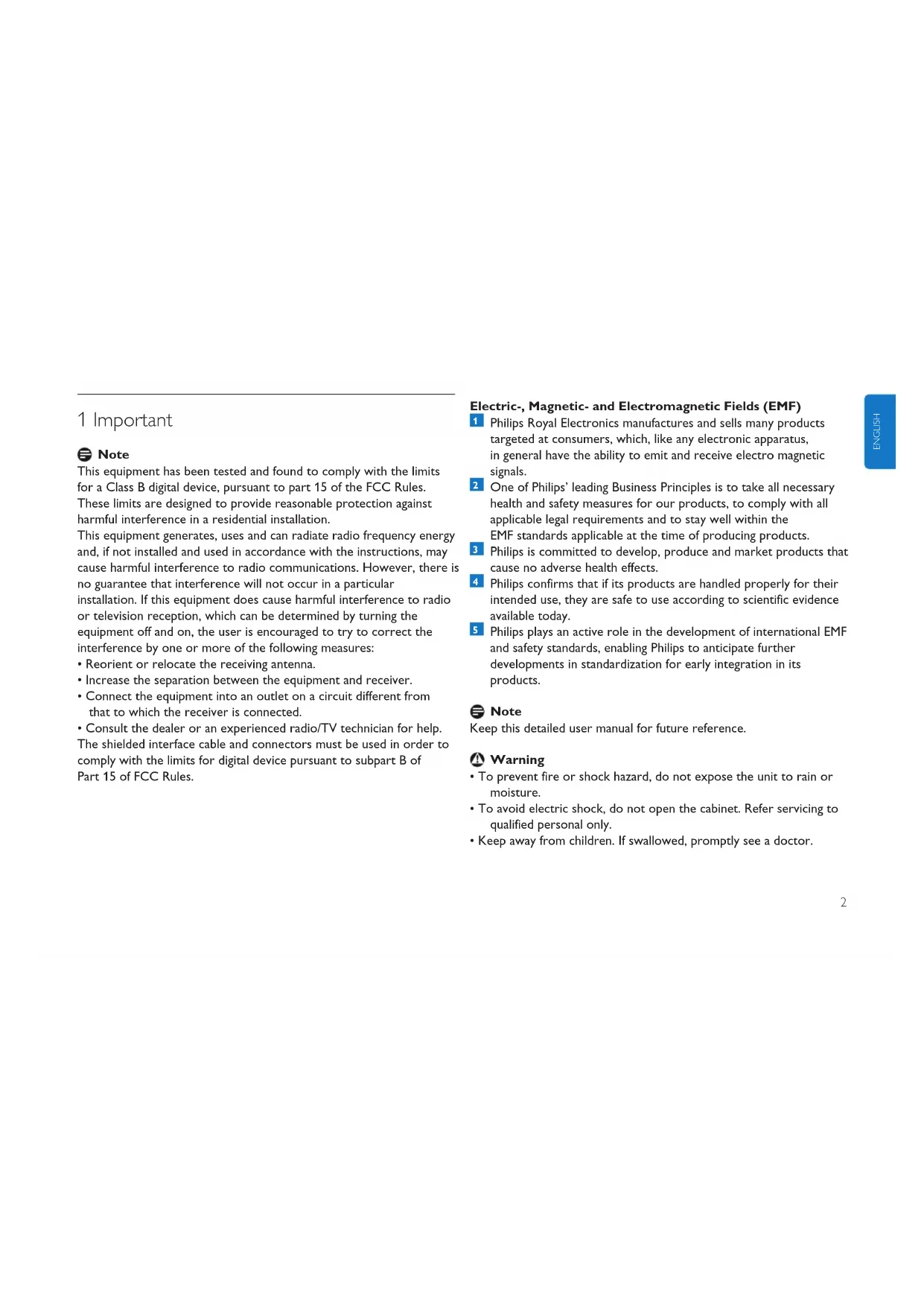

1 Important

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Electric-, Magnetic- and Electromagnetic Fields (EMF)

Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing products. 3 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Note

Keep this detailed user manual for future reference.

Warning

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
• To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only.
• Keep away from children. If swallowed, promptly see a doctor.

Note

Data is safe in the following environments: In X-ray security systems at airports and in magnetic fields with strengths not exceeding 3,500 Oe.

For customers in the U.S.A.

Changes or modifications made to this equipment not expressly approved by company may void the FCC authorization to operate this equipment.

Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and

2 this device must accept any interference received, including interference that may cause undesired operation.

Caution

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

This product conforms to the following European Directives: 89/336/EEC, 2006/95/EEC (safety directive) and 93/68/ECC (EC Marking Directive). This product complies with EN55022 Class B and EN55024 for use in the following areas; residential, commercial, and light-industrial.

Notes on Use

• The USB flash drive may not function correctly if it is connected to the computer when the computer is started up, restarted, or restored from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations.
• Do not place the drive in locations that are:

extremely hot or cold; - vibrating; exposed to corrosive gases; -dusty or dirty; - very humid;

exposed to direct sunlight.

• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• Other system names and product names that appear in this manual are registered trademarks or trademarks of their respective owners. Note that the ™ and ® symbols are not used in this manual.
• Power consumption in standby mode: < 100 mA.
• Our product warranty is limited only to the USB flash drive itself, when used normally in accordance with these operating instructions and with the accessories that were included with this unit in the specified or recommended system environment. Services provided by the Company, such as user support, are also subject to these restrictions. The Company cannot accept liability for damage or loss resulting from the use of this unit, or for any claim from a third party.
• The Company cannot accept any liability for: problems with your computer or other hardware arising from the use of this product; the suitability of this product for specific hardware, software, or peripherals; operating conflicts with other installed software; data loss; or other accidental or unavoidable damage.
• The Company cannot accept any liability for financial damages, lost profits, claims from third parties, etc., arising from the use of the software provided with this unit. The software specifications may be subject to change without notice.

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

2 Your USB flash drive

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

3 Install

Microsoft Windows Vista, XP, 2000, ME, MAC OS 9.0 or higher:

• The device driver is installed automatically when the drive is connected to a USB port of the computer. However, with some USB 2.0 cards or boards, you may need to initiate installation manually. In this case, follow the on-screen instructions to search for a suitable driver. Refer to the operating system's Help file if you need any help.

Note

Do not remove USB flash drive from the computer USB port as long as the download process is in progress.

Windows 98SE:

1 Download the device driver at http://www.philips.com/storage 2 Remove the protective cap from the USB connector and turn it backwards (fig.1). 3 Insert the flash drive USB connector into one of the computer's USB ports (fig. 2).

The New Hardware wizard starts and the drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

4 Click the Next button.

5 Click Search for the best driver for your device. Then click the Next button.

Click Specify a location. Then click the Browse button.

6 When the dialog box appears, specify the folder where the installation program is stored.

7 Click the OK button to close the dialog box. Then click the Next button.

8 Click the Next button.

9 Click the Finish button.

Installation of the driver starts.

Once the installation process is complete, a drive icon for the USB flash drive appears in the My Computer window.

10 After confirming that the drive is in standby mode, you can remove the drive from the computer's USB port.

4 Connect

Connecting the USB flash drive to your computer

Note

You can use a USB extension cable or an optional USB hub to connect the USB flash drive to your computer.

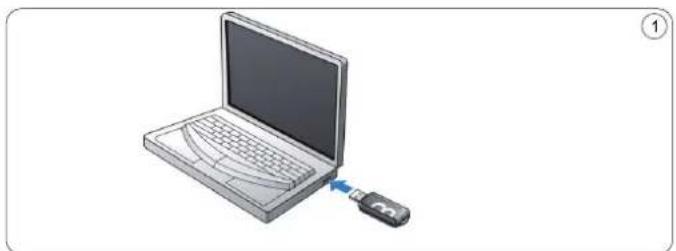

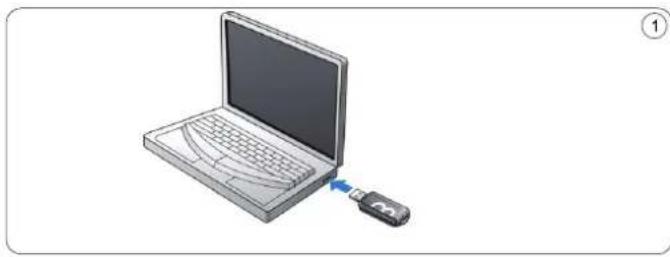

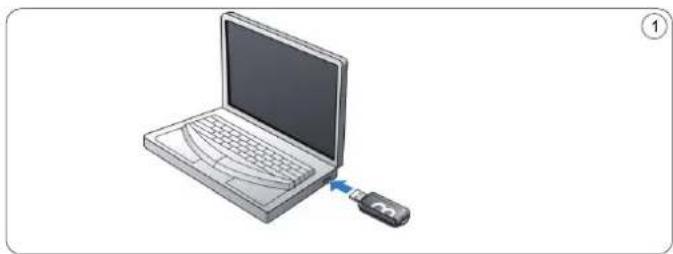

1 Remove the protective cap from the USB connector and turn it backwards (fig. 1).

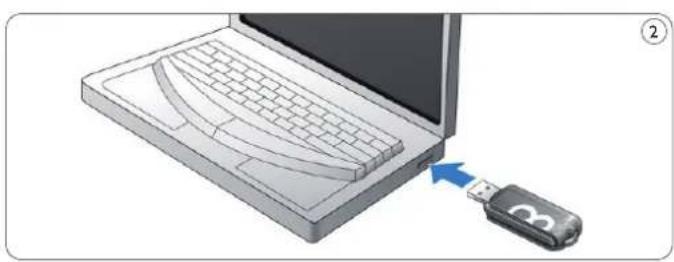

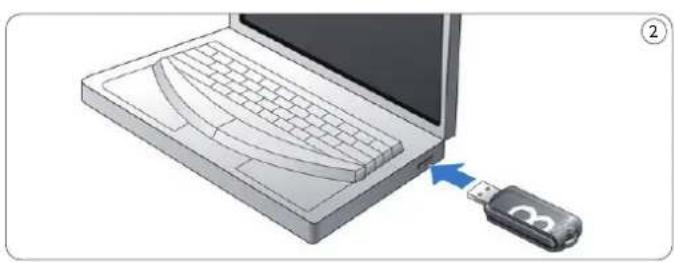

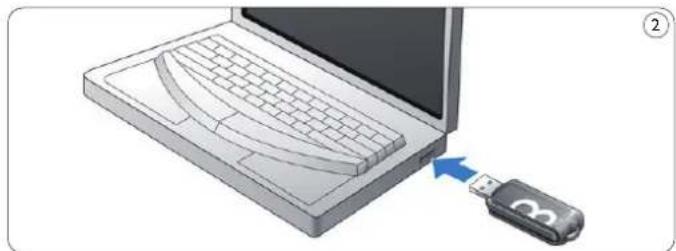

2 Insert the USB flash drive's USB connector into one of the computer's USB ports (fig. 2).

The USB flash drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

5 Enjoy

Operating the USB flash drive

• Once the USB flash drive is connected to the USB port of the computer:
• a software package will automatically start up enabling you to activate various applications. See the software help file for further instructions.

Visit our website www.philips.com/storage for software related questions and software updates.

• The drive icon for the USB flash drive will appear. You can now copy and save data on the drive by dragging files and folders onto the drive icon, just like when you copy data to a hard disk, CD-ROM, DVD, or floppy disk.

When copying data, the LED's light intensity will quickly increase and diminish.

Notes

• Do not remove the USB flash drive from the computer USB port while copying and saving data, otherwise the drive will no longer be recognized by your system.
• When operating under Windows, the drive name varies depending on your Windows version.

Disconnecting the USB flash drive from your computer

Windows 98SE

• After confirming that the USB flash drive is in standby mode, you can remove the flash drive from the computer's USB port.

Windows ME and Windows 2000

1. Double-click the Unplug or eject hardware icon in the task bar in the lower right part of the screen. 2. In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4. When a message appears indicating that the USB flash drive can be safely removed, remove the USB flash drive from the computer's USB port.

Windows Vista, XP

1. Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen. 2. In the window that appears, select the name of the device that is to be removed, then click the STOP button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button. 4. When the message Safe to Remove Hardware appears, remove the USB flash drive from the computer's USB port.

Mac OS 9.0 and higher

Drag the drive icon to the Trash. After confirming that the USB flash drive is in standby mode, remove the USB flash drive from the computer's USB port.

6 Technical specifications

Interface

High-Speed USB 2.0 (backwards compatible with USB 1.1)

Transfer rate

• Read: max. 14MB per second / Write: max. 5MB per second (High-speed USB 2.0 port required to achieve maximum speed)

Compatible OSs

• Microsoft Windows Vista, XP, 2000, ME and 98SE (with driver) Mac OS 9.0 or later Linux 2.4.0 or later

7 Need help?

Online help: www.philips.com/support

For interactive help and frequently asked questions.

For software updates and support: www.philips.com/storageupdates

1 Important

Note

6 Specifications

Interface

For customers in Canada

For customers in Canada

For customers in Canada

This Class B digital equipment complies with Canadian ICES-003. This equipment complies with Part 15 of the FCC Rules and with Industry Canada RSS-210.

For customers in Europe

Any unauthorized copying of the material that bears protection against copying, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense.

Δε ενιπενέτα ν χπρον του εονλαίου για τους οκονους αυτούς.

2 H μονάδα USB flash

Συγχαρητήρια για την αγορά σας και καλώς ήρθατε στη Philips!

Για να επωφεληθείτε πλήρως από την υποστήριξη που προσφέρει η Philips, παρακαλούμε να εγγραφείτε στο προϊόν σας στη διεύθυνση www.philips.com/welcome

3 Εγκατάσταση

Be responsible Respect copyrights

Be responsible Respect copyrights

Visit our website www.philips.com/storage for software related questions and software updates.

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

3KcIayataaH DAOnyCTMa Pn BbIIOAHeHN CaeAUYOuNX ABYX yCAOBN:

1 DaHHoe yCTpoCTBO He OAOXHO CO3aBaBb BpeHbIe IOMEXH 2 DaHHoe yCTPOBCTBO DOAAXHO COXpAHrTa pa6oTOcNOCbHocTb npn PnneMe AIO6bIX NOMEX, BKAIOUaY NOMEXI, CNOcO6HbIE BbIBBaTb HeKeAaTeAbHOe fHKUNOHUPOBaHne.

IpeaoctepexekHe

BbI npeAynpeJaeHbI O TOM, yTO AIO6bIe N3MeHeHnI NAMoAnOfNkauIN, He OAO6peHHbIe B RAHoi fOpMe B daHHOMpyKOBOAcTBe, MOrYT pInBecTn K aHHyANpOBaHNIO BaUeRo PpaBa3KcNAYaTIPOBaTB DaHHoe YCTPOiCtBO.

For Canadian Users

This digital device does not exceed the Class B limits for radio noise emissions from digital devices set out in the Canadian standard ICES-003.

This device complies with Part 15 of the Canadian RSS-210 standard.

For European Users

This product complies with the following European Directives: 89/336/EEC, 2006/95/EC (Low Voltage Directive) and 93/68/EEC (EC Marking Directive). This product complies with the requirements of EN55022 for Class B devices and EN55024 when used in residential, commercial, and light industrial environments.

Intended Use

The USB flash drive may malfunction if it is connected to a computer during startup, restart, or exit from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations. - Do not place the flash drive in the following places:

- In areas with high or low temperatures; - With vibration; - With corrosive gases; - With excessive humidity; - With direct sunlight.

• Microsoft Windows - registered trademarks of Microsoft Corporation in the United States and other countries. Mac and Macintosh - trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Other system and product names mentioned in this manual are registered trademarks or trademarks of their respective owners. Note that this manual does not use the symbols TM and (R) for these trademarks. Power consumption: <100mA.

The warranty for this product covers only the USB flash drive itself when used normally in accordance with the operating instructions and with the accessories included in the package, in the specified or recommended system environment. Provision of such services as user support is also subject to these conditions. The company is not liable for damages or losses caused by the use of this device, nor for any claims by third parties. The company is not liable for problems with the computer or other hardware caused by the use of this product; for the compatibility of this product with specific hardware, software, or peripherals; for conflicts with other installed software; for data loss or other incidental or consequential damages. The company is not liable for financial damages, lost profits, or claims by third parties arising from the use of the software provided with this device. Software specifications may change without notice.

Environmental Information

Disposal of Old Products

Your product is designed and manufactured with high-quality materials and components that can be recycled and reused.

The symbol on the product with a crossed-out wheeled bin means that the product complies with the requirements of the European Directive 2002/96/EC. Please obtain information about the local separate collection system for electrical and electronic products.

Please, follow local rules and do not dispose of your old products with normal household waste. Correct disposal of your old product can help prevent negative consequences for the environment and human health.

Be responsible. Respect copyrights.

Making unauthorized copies of copyrighted material, including computer programs, films, broadcasts, and sound recordings, may be a violation of copyright law and a criminal offense. This device should not be used for such purposes.

We congratulate you on your purchase. Welcome to the Philips family of buyers!

To take full advantage of the support that Philips offers, register your product at www.philips.com/welcome

3 Installation

Microsoft Windows Vista, XP, 2000, ME, MAC OS 9.0 or later:

The device driver is installed automatically when the device is connected to the USB port of the computer. However, when using some cards or USB 2.0, it may be necessary to install the driver manually. In that case, follow the on-screen instructions to find the appropriate driver. If you need help, see the operating system help.

Note

Do not disconnect the USB device from the USB port of the computer during the boot process.

Windows 98SE:

Download the device driver from http://www.philips.com/storage. 2 Remove the protective caps from the USB connector and turn it over (fig. 1). 3 Insert the USB connector into one of the USB ports of the computer (fig. 2).

The hardware installation wizard starts and the LED indicator lights up. The brightness of the indicator gradually increases and then decreases again. This will continue as long as the device is connected to the computer.

Quick start guide: www.philips.com/support

Interactive help and frequently asked questions. Software updates and support: www.philips.com/storageupdates

1 Important

Note

5 Enjoy your experience

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

July 2008
