USER MANUAL DO7263S DOMO

PRODUCT OF Comfort plus

Garantie eingeschlossen.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures that are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The warranty will only be valid if the

warranty application has been completed by the dealer at the time of purchase. All parts,

which are subject to wear, are excluded from the warranty

.DO7263-64-65S LINEA 2000 - Dompel 9 - 2200 Herentals Belgium - Tel 014/21.71.91 - Fax : 014/21.54.63

RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought

to the applicable collection point for recycling of electrical

and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling

of this product, please contact your local city ofce, your

household waste disposal service or the shop where you

purchased the product.

The packaging is recyclable. Please treat package ecologi-

oder einer gleichartig geschulten Person ersetzt werden, um Unglücke zu verhindern.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or a similarly qualied person in order to avoid a hazard.

Cuando el cordón eléctrico está dañado, tiene que ser reemplazado por el fabricante, el

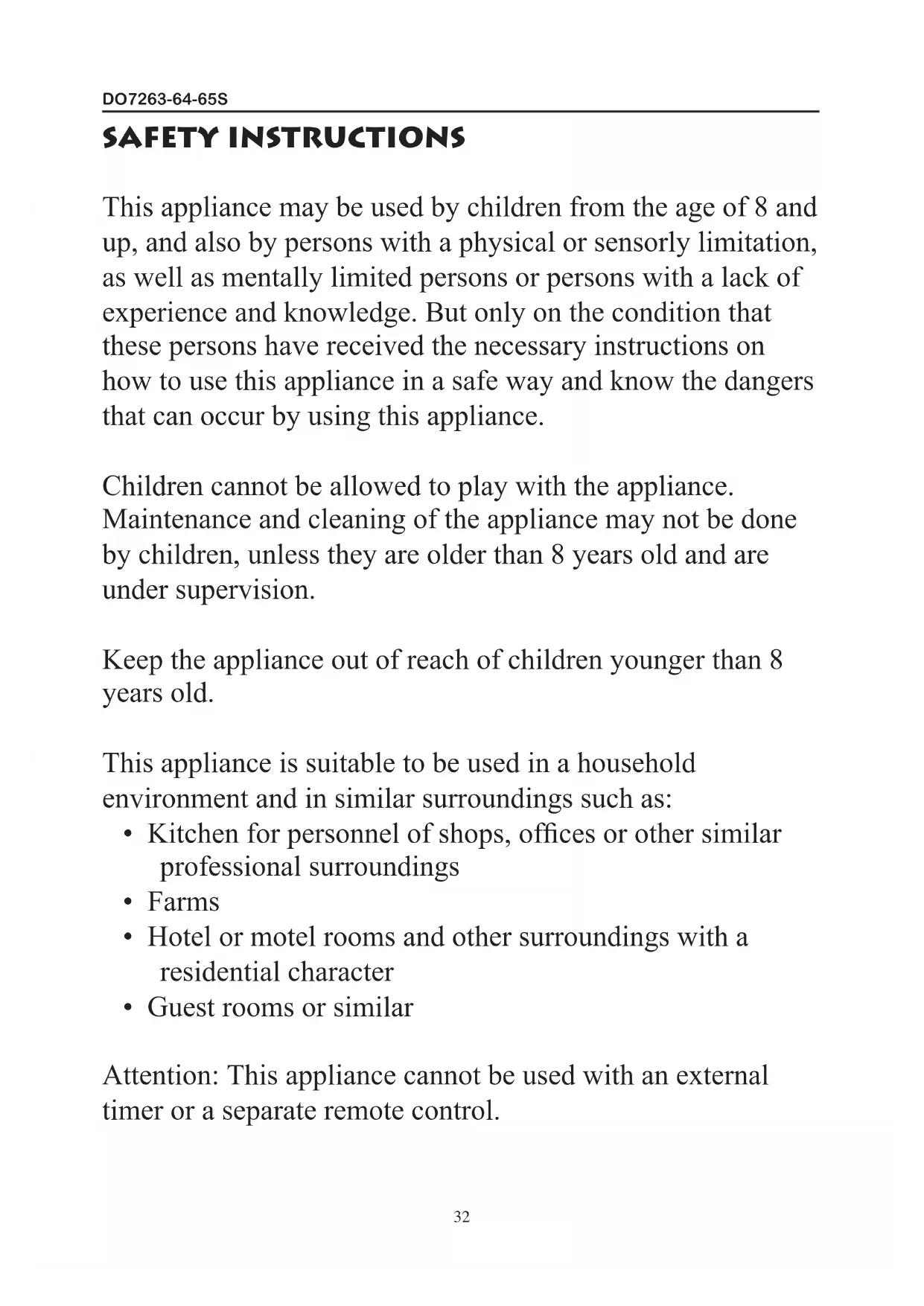

SAFETY INSTRUCTIONS This appliance may be used by children from the age of 8 and

up, and also by persons with a physical or sensorly limitation,

as well as mentally limited persons or persons with a lack of

experience and knowledge. But only on the condition that

these persons have received the necessary instructions on

how to use this appliance in a safe way and know the dangers

that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done

by children, unless they are older than 8 years old and are

Keep the appliance out of reach of children younger than 8

This appliance is suitable to be used in a household

environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other similar

professional surroundings

• Hotel or motel rooms and other surroundings with a

residential character

• Guest rooms or similar

Attention: This appliance cannot be used with an external

timer or a separate remote control.DO7263-64-65S

when using an electrical appliance, several Basic

precautions should Be considered. read and follow all

instructions in this manual to reduce the risk of fire,

electrical shock or injuries.

• Do not leave the vacuum cleaner unattended when the

plug is still plugged in. Unplug the vacuum cleaner when

it is not in use and before carrying out any maintenance or

• Do not use the appliance outdoors or on wet surfaces.

Keep the appliance away from heat sources.

• Only use the vacuum cleaner as described in this

• Only use accessories that have been recommended by the

• This appliance is not a toy. Strict supervision is necessary

when the vacuum cleaner is being used near children.

• Do not use the appliance when the cord or plug has been

damaged. If the vacuum cleaner does not seem to function

properly or if it has been dropped, damaged, left outside or

dropped in water, take your appliance to a service center.

• Do not carry the appliance by the cord, do not use the cord

as a handle, do not close a door on the cord or do not wrap

the cord around sharp edges or corners. Do not run the

vacuum cleaner over the cord. Keep the cord away from

• Do not pull the plug out of the socket by pulling the cord.

Always pull the plug itself.

• Do not use the appliance or the plug with wet hands.

• Do not put any objects into the openings of the vacuum

cleaner. Do not use the vacuum cleaner when an openingDO7263-64-65S

is blocked. Keep the openings in the appliance free of

dust, lint, hair and other objects that may reduce the air

• Immediately switch off the vacuum cleaner when the air

supply, the oor brush or the telescopic tube is blocked.

Remove the objects that cause the blockage before turning

your vacuum cleaner back on.

• Keep hair, loose clothes, ngers and other body parts

away from any openings and moving parts.

• Switch off the appliance before removing the plug from

• Be extra careful when cleaning stairs.

• Never use the vacuum cleaner to pick up any combustible

or inammable liquids like gasoline, or do not use the

appliance in places where such substances might be

• Remove large and sharp objects from the oor before

vacuuming it to prevent possible damage.

• Hold the plug while rewinding the cord onto the cord reel.

Do not let the plug whip back and forth during rewinding.

• Unplug the appliance before connecting the hose.

• Do not pick up any burning or smoking objects, like

cigarettes, matches or hot ashes.

• Do not use the vacuum cleaner without dust bag and/or

2. Button to pull out or retract brushes

3. Slide button to set length of tube

6. Connection for hose

8. Handle lid dust bag compartment

9. Storage space for 2 accessories

10. Full dust bag indicator

11. Button for automatic cord rewinding

12. Button to set the suction power

ASSEMbLY Always unplug the vacuum cleaner before (dis)assembling any parts.

Assembly: Put the hose into the hose connection in the vacuum

cleaner. Push the hose in until it clicks into place.

Disassembly: Unplug the vacuum cleaner. Push the ribbed release

buttons to pull the hose out of the hose connection.

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. To do this, push the slide button

forward and pull out the bottom part of the tube to make it longer. Release the

slide button and let the tube snap into place.

3. Attach the oor nozzle to the telescopic tube by rmly sliding the tube into the

The vacuum cleaner comes with 2 accessories that can be

stored in the storage space inside the vacuum cleaner itself.

1. Crevice nozzle: for hard to reach areas like radiators,

crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

3. Small oor nozzle

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The

yellow label on the cord indicates the maximum length (6m) of the cord, that

should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the symbol.

3. To set the suction power, slide the suction power button to the left or right in

between the MIN and MAX indicators. For delicate materials it is best to use the

minimum power level, a medium power is recommended for matresses, furniture

and carpets and the maximum power level should be used for tiles, wood and

4. When you want to clean hard oors, make sure that the brushes in the oor nozzle

5. When you want to clean carpet, make sure that the brushes in the oor nozzle are

6. When you have nished vacuuming, unplug the vacuum cleaner and

automatically rewind the cord by pressing the foot pedal with the symbol.

Make sure that the plug does not whip back and forth while rewinding the cord,

by guiding the cord with your hand. This to prevent possible damage.

The vacuum cleaner comes with 2 accessories that can be

stored in the storage space inside the vacuum cleaner itself.

1. Crevice nozzle: for hard to reach areas like radiators,

crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

3. Small oor nozzle

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The

yellow label on the cord indicates the maximum length (6m) of the cord, that

should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the symbol.

3. To set the suction power, slide the suction power button to the left or right in

between the MIN and MAX indicators. For delicate materials it is best to use the

minimum power level, a medium power is recommended for matresses, furniture

and carpets and the maximum power level should be used for tiles, wood and

4. When you want to clean hard oors, make sure that the brushes in the oor nozzle

5. When you want to clean carpet, make sure that the brushes in the oor nozzle are

6. When you have nished vacuuming, unplug the vacuum cleaner and

automatically rewind the cord by pressing the foot pedal with the symbol.

Make sure that the plug does not whip back and forth while rewinding the cord,

by guiding the cord with your hand. This to prevent possible damage.

MAINTENANCE Check the hose, dust bag and lter regularly. Empty the hose when it is clogged,

replace the dust bag when it is full and clean the lter when it is dirty.

Disposable dust bags and lters

The dust bag and the motor lter play a very important roll in the efciency of the

vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time

the lter needs to be porous enough to allow air to pass through. If the bag or motor

lter get clogged, no air can pass through the cleaner and no cleaning can take place

regardless of how powerful the unit is.

To keep the cleaner operating at maximum efciency, change the dust bag

frequently and clean the lter when needed. Some ne particles can restrict the

air ow very quickly and will decrease the performance even before the bag appears

to be full. For that reason, the bag and lter may need to be changed more often

when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar ne

Replacing the dust bag and cleaning the motor lter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or

cleaning the lter. Never vacuum without the dust bag or lter in place.

1. Turn off and unplug the vacuum cleaner.

2. Remove the hose from the hose connection and open

the dust bag compartment by pushing the handle

upwards and lifting the lid.

3. Slide the dust bag out of the frame and remove the dust

bag from the dust bag compartment.

4. If at this point you want to clean the motor lter, take

out the lter in its frame by pressing the frame down a

bit. Remove the lter from its plastic frame by pulling

apart the front and back side of the frame at the top.

Clean the lter by rinsing it under warm water. Let the

lter dry completely before reinstalling it. Reinstall

the lter before placing the dust bag into the dust bag

5. Slide a new dust bag (3.5l) in the dust bag frame.

6. Close the dust bag compartment and push the lid back

into place. The spring on the dust bag frame will make

sure that the opening of the dust bag is pushed into the

right position when closing the lid.

Cleaning the air lter or HEPA lter

The exhaust air lter or HEPA lter cleans the air a nal time before it leaves the

vacuum cleaner. This lter and the grid that covers the lter should be cleaned

regularly. You can clean the lter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull

the plug itself, never pull the cord.

2. Open the grid that covers the lter by lifting up the two

clips on the grid, one by one. The lter is visible when

the grid is removed.

3. Take out the lter.

4. Rinse the lter under cold water and let it dry completely.

5. Put the lter back into place or replace the lter by a new

one. Make sure that the lter is placed properly.

6. Seal with the grid. Make sure that the grid clicks into
