USER MANUAL Z68AGD80 MSI

Abstract illustration of a globe with orbiting lines and floating spheres (no text or symbols)

Intel RAID

Contents

English....1

Français 17

한국어....33

日本語 49

繁體中文 65

简体中文 81

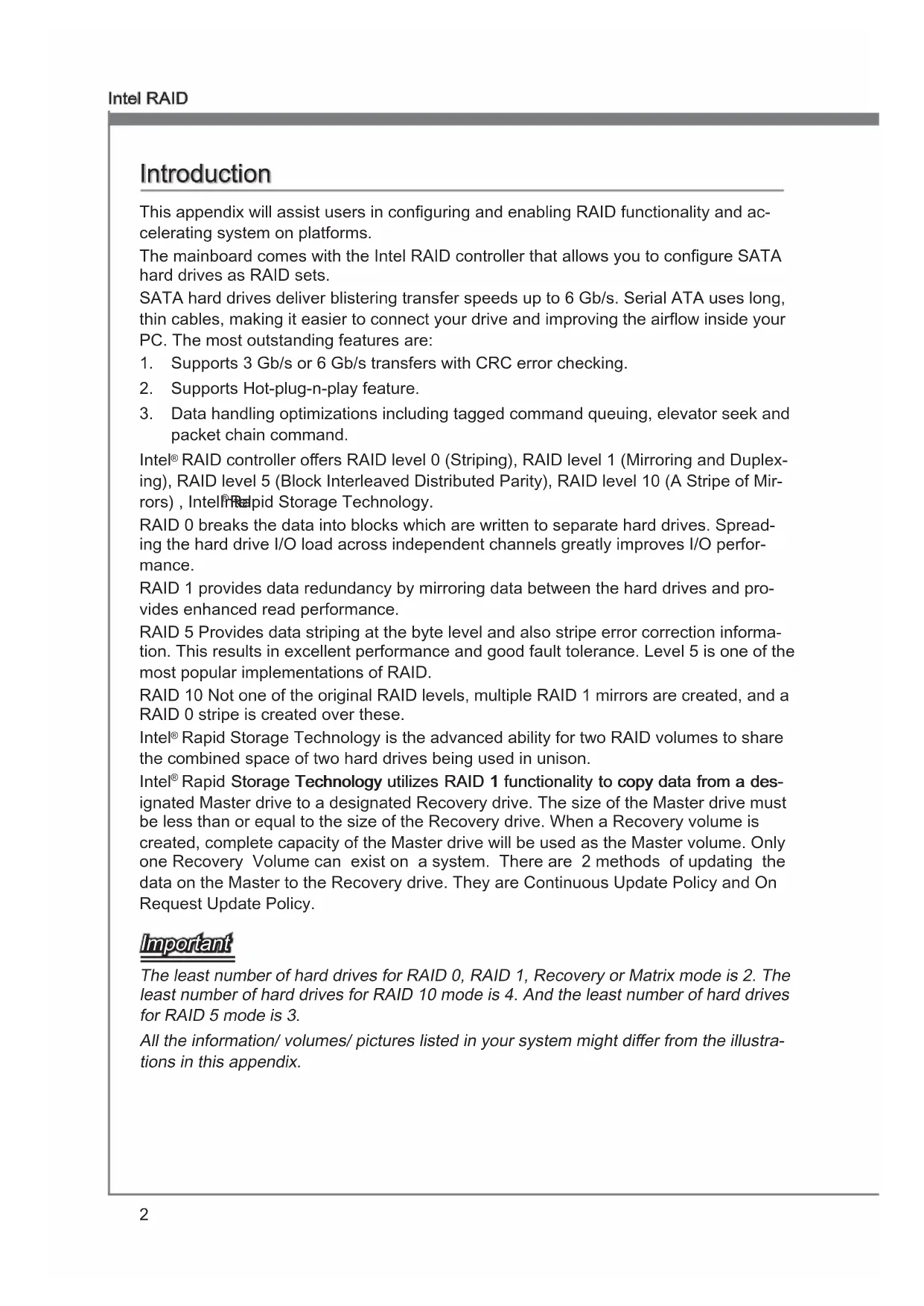

Introduction

This appendix will assist users in configuring and enabling RAID functionality and accelerating system on platforms.

The mainboard comes with the Intel RAID controller that allows you to configure SATA hard drives as RAID sets.

SATA hard drives deliver blistering transfer speeds up to 6 Gb/s. Serial ATA uses long, thin cables, making it easier to connect your drive and improving the airflow inside your PC. The most outstanding features are:

1. Supports 3 Gb/s or 6 Gb/s transfers with CRC error checking.
2. Supports Hot-plug-n-play feature.
3. Data handling optimizations including tagged command queuing, elevator seek and packet chain command.

Intel® RAID controller offers RAID level 0 (Striping), RAID level 1 (Mirroring and Duplexing), RAID level 5 (Block Interleaved Distributed Parity), RAID level 10 (A Stripe of Mirrors), Intel® Rapid Storage Technology.

RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance.

RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.

RAID 5 Provides data striping at the byte level and also stripe error correction information. This results in excellent performance and good fault tolerance. Level 5 is one of the most popular implementations of RAID.

RAID 10 Not one of the original RAID levels, multiple RAID 1 mirrors are created, and a RAID 0 stripe is created over these.

Intel® Rapid Storage Technology is the advanced ability for two RAID volumes to share the combined space of two hard drives being used in unison.

Intel® Rapid Storage Technology utilizes RAID 1 functionality to copy data from a designated Master drive to a designated Recovery drive. The size of the Master drive must be less than or equal to the size of the Recovery drive. When a Recovery volume is created, complete capacity of the Master drive will be used as the Master volume. Only one Recovery Volume can exist on a system. There are 2 methods of updating the data on the Master to the Recovery drive. They are Continuous Update Policy and On Request Update Policy.

Important

The least number of hard drives for RAID 0, RAID 1, Recovery or Matrix mode is 2. The least number of hard drives for RAID 10 mode is 4. And the least number of hard drives for RAID 5 mode is 3.

All the information/ volumes/ pictures listed in your system might differ from the illustrations in this appendix.

Using Intel Rapid Storage Technology Option ROM

The Intel Rapid Storage Technology Option ROM should be integrated with the system BIOS on all mainboards with a supported Intel chipset. The Intel Rapid StorageRapid Storage Technology Option ROM is the Intel RAID implementation and provides BIOS and DOS disk services. Please use + keys to enter the "Intel ^ RAID for Serial ATA" status screen, which should appear early in system boot-up, during the POST (Power-On Self Test). Also, you need to enable the RAID function in BIOS to create, delete and reset RAID volumes.

Creating, Deleting and Resetting RAID Volumes:

The Serial ATA RAID volume may be configured using the RAID Configuration utility stored within the Intel RAID Option ROM. During the Power-On Self Test (POST), the following message will appear for a few seconds.

Important

The "Device Model", "Serial #" and "Size" in the following example might be different from your system.

RAID Volumes

None defined.

Physical Disks:

Port	Device Model	Serial #	Size	Type/Status(Vol ID)
1	XXXXXXXXXXXXXX		XXXXXXXXXXXXXX	XXX.XGB	Non-RAID Disk
2	XXXXXXXXXXXXXX		XXXXXXXXXXXXXX	XXX.XGB	Non-RAID Disk

Press to enter Configuration Utility..

After the above message shows, press and keys simultaneously to enter the Intel Rapid Storage Technology Option ROM.

Important

The following procedure is only available with a newly-built system or if you are reinstalling your OS. It should not be used to migrate an existing system to RAID.

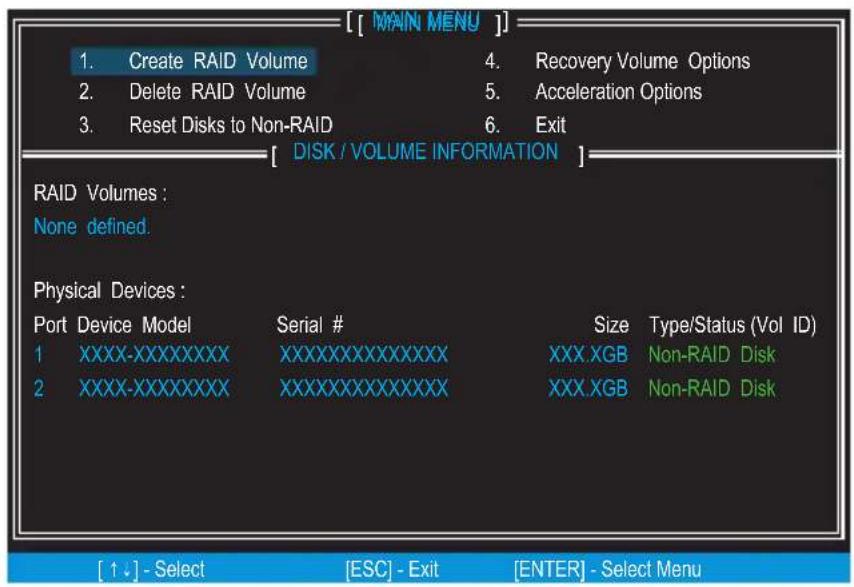

After pressing the and keys simultaneously, the following window will appear:

[ [ MAIN MENU ]] 1. Create RAID Volume 2. Delete RAID Volume 3. Reset Disks to Non-RAID 4. Recovery Volume Options 5. Acceleration Options 6. Exit [ DISK / VOLUME INFORMATION ] RAID Volumes : None defined. Physical Devices : Port Device Model Serial # 1 XXXX-XXXXXXXXXXXXXXX 2 XXXX-XXXXXXXXXXXXXXX Size Type/Status (Vol ID) XXX.XGB Non-RAID Disk XXX.XGB Non-RAID Disk [ ↑ ↓ ] - Select [ESC] - Exit [ENTER] - Select Menu

■ Create RAID Volume

1. Select option 1 "Create RAID Volume" and press key. The following screen appears. Then in the Name field, specify a RAID Volume name and then press the or key to go to the next field.
2. Use the arrow keys to select the RAID level best suited to your usage model in RAID Level.

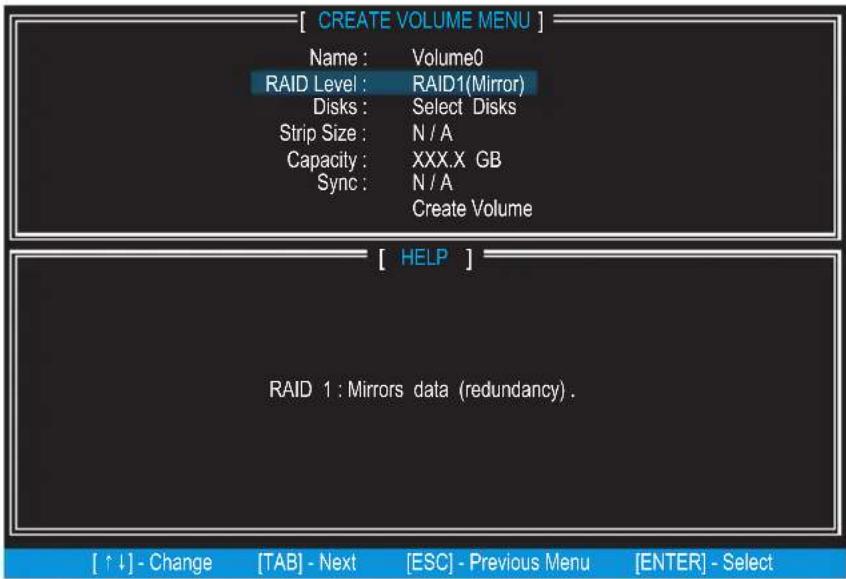

[ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Sync : N / A Create Volume [ HELP ] RAID 1 : Mirrors data (redundancy) . [ ↑ ↓ ] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

1. In the Disk field, press key and use key to select the disks you want to create for the RAID volume, then click key to finish selection. This field will become available according to the selected RAID level.
2. Then select the strip size for the RAID array by using the "upper arrow" or "down arrow" keys to scroll through the available values, and pressing the key to select and advance to the next field. The available values range from 4KB to 128 KB in power of 2 increments. The strip size should be chosen based on the planned drive usage. Here are some typical values: RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB. This field will become available according to the selected RAID level.

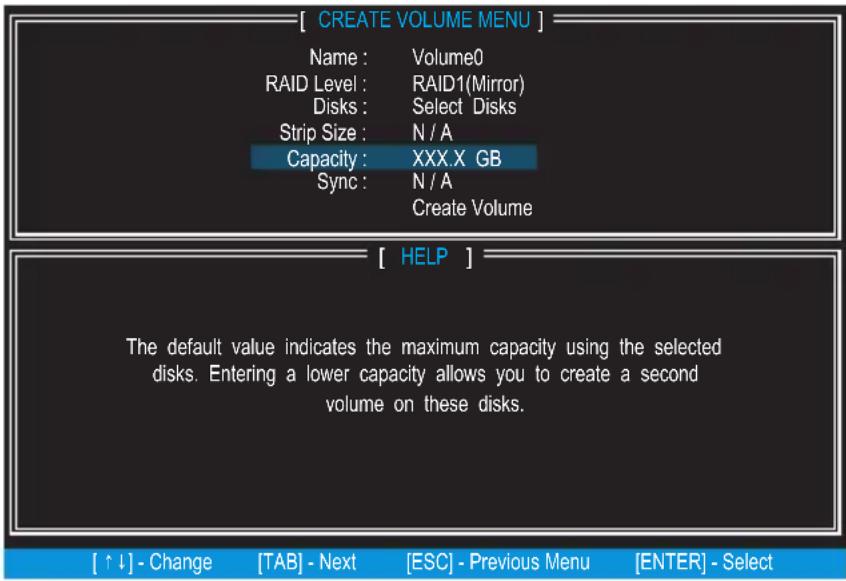

3. Then select the capacity of the volume in the Capacity field. The default value is the maximum volume capacity of the selected disks.
4. In the Disk field, press key and use key to select the disks you want to create for the RAID volume, then click key to finish selection. This field will become available according to the selected RAID level.
5. Then select the strip size for the RAID array by using the "upper arrow" or "down arrow" keys to scroll through the available values, and pressing the key to select and advance to the next field. The available values range from 4KB to 128 KB in power of 2 increments. The strip size should be chosen based on the planned drive usage. Here are some typical values: RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB. This field will become available according to the selected RAID level.
6. Then select the capacity of the volume in the Capacity field. The default value is the maximum volume capacity of the selected disks.

[ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Sync : N / A Create Volume [ HELP ] The default value indicates the maximum capacity using the selected disks. Entering a lower capacity allows you to create a second volume on these disks. [ ↑ ↓ ] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

Important

Since you want to create two volumes, this default size (maximum) needs to be reduced. Type in a new size for the first volume. As an example: if you want the first volume to span the first half of the two disks, re-type the size to be half of what is shown by default. The second volume, when created, will automatically span the remainder of two hard drives.

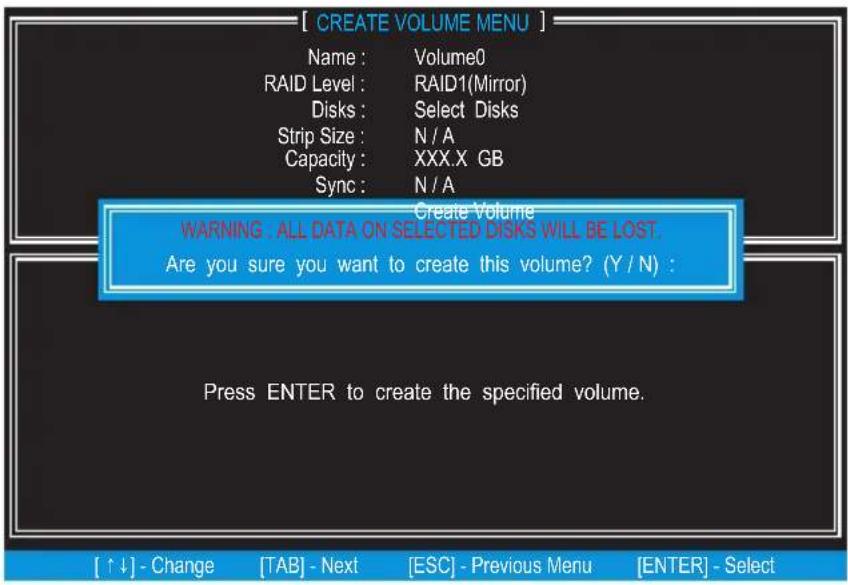

1. Go to the Create Volume field and press , the following screen appears for you to confirm if you are sure to create the RAID volume. Press to continue.

[ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Sync : N / A Create Volume WARNING - ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume? (Y / N) : Press ENTER to create the specified volume. [ ↑ ↓ ] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

Then the following screen appears to indicate that the creation is finished.7.

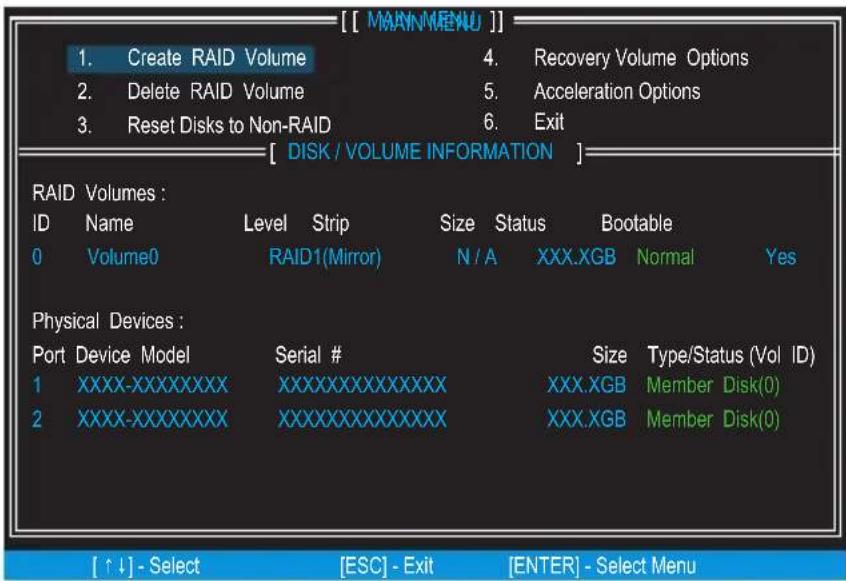

[ [ MANMENU ]] 1. Create RAID Volume 2. Delete RAID Volume 3. Reset Disks to Non-RAID 4. Recovery Volume Options 5. Acceleration Options 6. Exit [ DISK / VOLUME INFORMATION ] RAID Volumes : ID Name Level Strip Size Status Bootable 0 Volume0 RAID1(Mirror) N/A XXX.XGB Normal Yes Physical Devices : Port Device Model Serial # 1 XXXX-XXXXXXXXXXXXXXX 2 XXXX-XXXXXXXXXXXXXXX Size Type/Status (Vol ID) XXX.XGB Member Disk(0) XXX.XGB Member Disk(0) [ ↑ ↓ ] - Select [ESC] - Exit [ENTER] - Select Menu

■ Delete RAID Volume

Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost.

Important

If your system currently boots to RAID and you delete the RAID volume in the Intel RAID Option ROM, your system will become un-bootable.

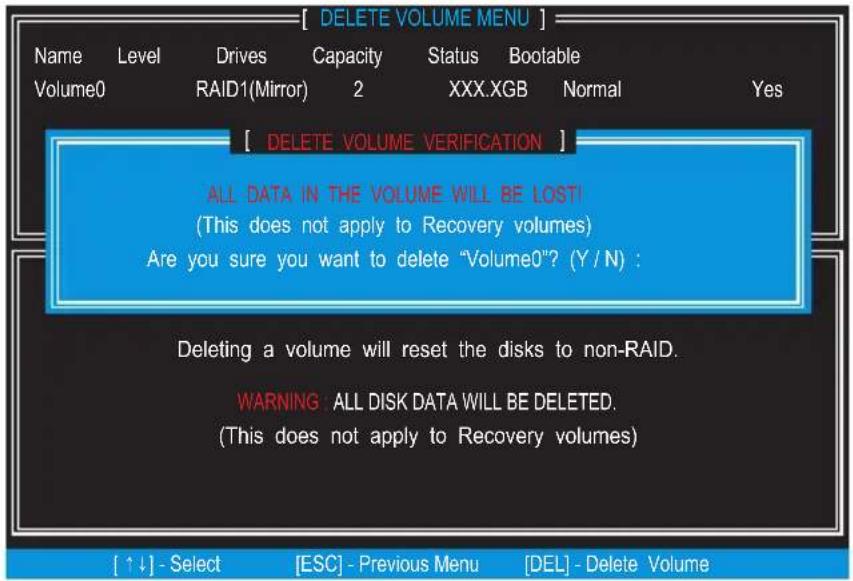

Select option 2 Delete RAID Volume from the main menu screen and press key to select a RAID volume for deletion. Then press key to delete the selected RAID volume. The following screen appears.

[ DELETE VOLUME MENU ] Name Level Drives Capacity Status Bootable Volume0 RAID1(Mirror) 2 XXX.XGB Normal Yes [ DELETE VOLUME VERIFICATION ] ALL DATA IN THE VOLUME WILL BE LOST! (This does not apply to Recovery volumes) Are you sure you want to delete "Volume0"? (Y / N) : Deleting a volume will reset the disks to non-RAID. WARNING: ALL DISK DATA WILL BE DELETED. (This does not apply to Recovery volumes) [ ↑ ↓ ] - Select [ESC] - Previous Menu [DEL] - Delete Volume

Press key to accept the volume deletion.

■ Reset Disks to Non-RAID

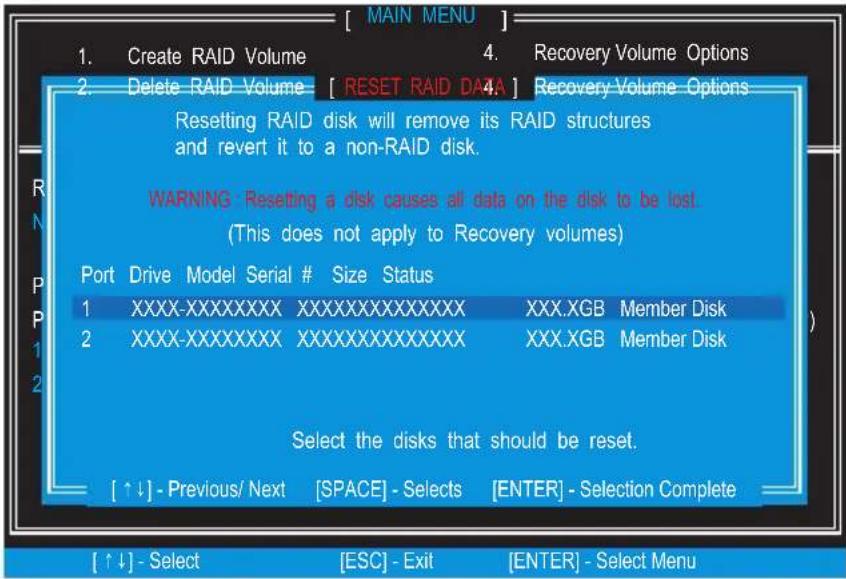

Select option 3 Reset Disks to Non-RAID and press to delete the RAID volume and remove any RAID structures from the drives. The following screen appears:

[ MAIN MENU ] 1. Create RAID Volume 2. Delete RAID Volume - [ RESET RAID DATA ] Recovery Volume Options Resetting RAID disk will remove its RAID structures and revert it to a non-RAID disk. WARNING - Resetting a disk causes all data on the disk to be lost. (This does not apply to Recovery volumes) Port Drive Model Serial # Size Status 1 XXXX-XXXXXXXX XXXXXXXXXXXXXXX XXX.XGB Member Disk 2 XXXX-XXXXXXXXXXXXXXXX XXX.XGB Member Disk Select the disks that should be reset. [ ↑↓] - Previous/ Next [SPACE] - Selects [ENTER] - Selection Complete [ ↑↓] - Select [ESC] - Exit [ENTER] - Select Menu

Use the key to select the disks and press key. A confirmation sentence will appear below, and then press key to accept the selection.

Important

• You will lose all data on the RAID drives and any internal RAID structures when you perform this operation.
• Possible reasons to "Reset Disks to Non-RAID" could include issues such as incompatible RAID configurations or a failed volume or failed disk.

■ Recovery Volume Options

Select option 4 Recovery Volume Options and press to change recovery volume mode. The following screen appears:

[ RECOVERY VOLUME OPTIONS ] 1. Enable Only Recovery Disk 2. Enable Only Master Disk [ HELP ] Enable Only Recovery Disk - enables recovery disk if available and disables master disk. Enable Only Master Disk - enables master disk if available and disables recovery disk. Actions will result in change from Continuous Update mode to On-Request. [ ↑ ↓ ] - select [ESC] - Previous Menu [ENTER] - Select

Recovery mode will change from Continuous Update to On-Request after you enable "Only Recovery Disk" or "Only Master Disk".

Installing Driver

■ New Windows 7/ Windows Vista / Windows XP Installation

The following details the installation of the drivers while installing operating system.

1. When you start installing Windows XP, you may encounter a message stating, "Setup could not determine the type of one or more mass storage devices installed in your system". If this is the case, then you are already in the right place and are ready to supply the driver. If this is not the case, then press F6 when prompted at the beginning of Windows setup.

2. Press the "S" key to select "Specify Additional Device".

3. You should be prompted to insert a floppy disk containing the Intel ^ RAID driver into the A: drive.

Note: For Windows XP, you can use the USB floppy drive only. For Windows Vista/ Windows 7 you can use CD/ DVD/ USB drive.

Important

Please follow the instruction below to make an "Intel® RAID Driver" for yourself.

• Insert the MSI DVD into the DVD-ROM drive.
• Click the "Browse CD" on the Setup screen.
• Copy all the contents in \Storage\Intel\PCH\f6flpy-x86 or f6flpy-x64 to a formatted floppy diskette.
• The driver diskette for Intel® RAID Controller is done.
• For Windows Vista/ Windows 7: During the Operating system installation, after selecting the location to install Vista / Windows 7 click on "Load Driver" button to install a third party SCSI or RAID driver.
• When prompted, insert the floppy disk or media (CD/DVD or USB) you created in step 3 and press Enter.
• You should be shown a list of available SCSI Adapters.
• Select the appropriate Intel RAID controller and press ENTER.
• The next screen should confirm that you have selected the Intel ^ RAID controller. Press ENTER again to continue.
• You have successfully installed the Intel® Rapid Storage Technology driver, and Windows setup should continue.
• Leave the disk in the floppy drive until the system reboots itself. Windows setup will need to copy the files from the floppy again after the RAID volume is formatted, and Windows setup starts copying files.

■ Existing Windows Driver Installation

1. Insert the MSI DVD into the DVD-ROM drive.
2. The DVD will auto-run and the setup screen will appear.
3. Under the Driver tab, click on Intel RAID Drivers.
4. The drivers will be automatically installed.

■ Confirming Windows Driver Installation

1. From Windows, open the Control Panel from My Computer followed by the System icon.
2. Choose the Hardware tab, then click the Device Manager tab.
3. Click the "+" in front of the SCSI and RAID Controllers hardware type. The driver Intel(R) SATA RAID Controller should appear.

Degraded RAID Array

A RAID 1, RAID 5 or RAID 10 volume is reported as degraded when one of its hard drive members fails or is temporarily disconnected, and data mirroring is lost. As a result, the system can only utilize the remaining functional hard drive member. To re-establish data mirroring and restore data redundancy, refer to the procedure below that corresponds to the current situation.

Missing Hard Drive Member

1. Make sure the system is powered off.
2. Reconnect the hard drive.
3. Reboot the system to Windows; the rebuild will occur automatically.

Failed Hard Drive Member

1. Make sure the system is powered off.
2. Replace the failed hard drive with a new one that is of equal or greater capacity.

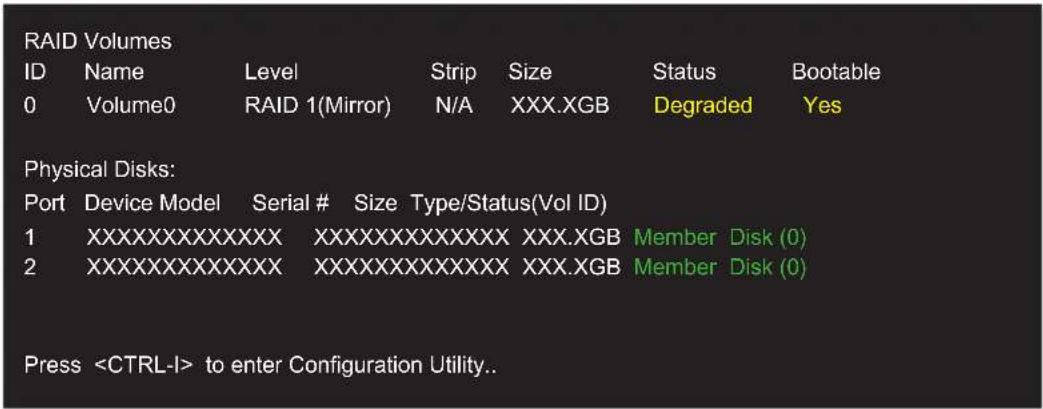

3. Reboot the system to Intel RAID Option ROM by press and keys simultaneously during the Power-On Self Test (POST).

RAID Volumes ID Name Level Strip Size Status Bootable 0 Volume0 RAID 1(Mirror) N/A XXX.XGB Degraded Yes Physical Disks: Port Device Model Serial # Size Type/Status(Vol ID) 1XXXXXXXXXXXX XXXX.XGB Member Disk (0) 2XXXXXXXXXXXX XXXX.XGB Member Disk (0) Press to enter Configuration Utility..

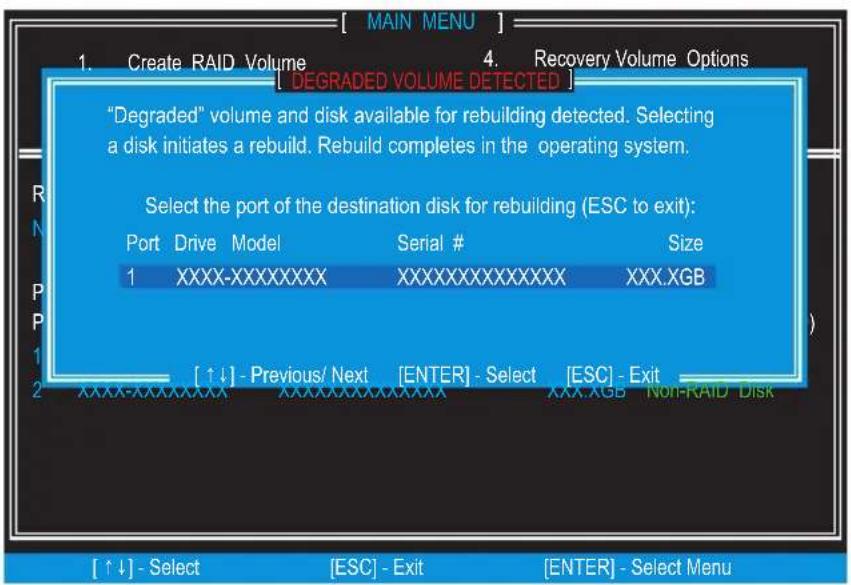

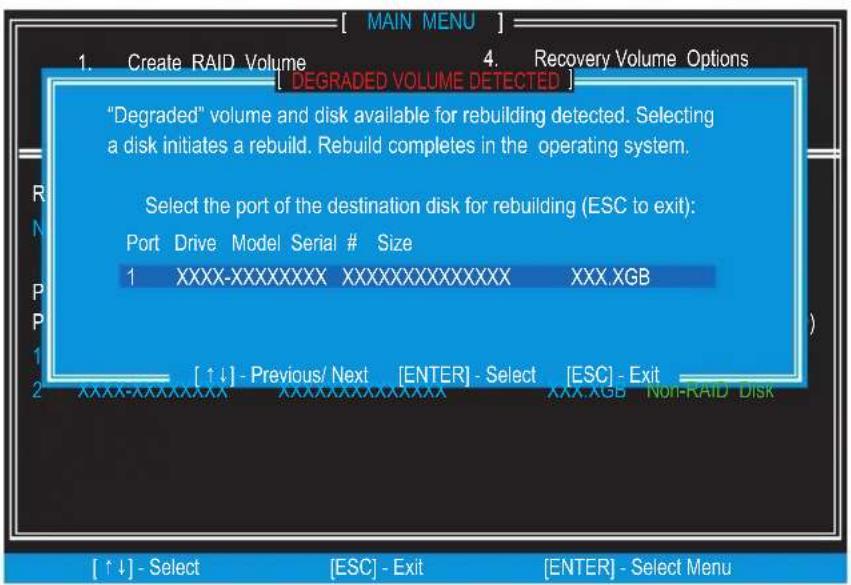

Select the port of the destination disk for rebuilding, and then press ENTER.4.

[ MAIN MENU ] 1. Create RAID Volume 4. Recovery Volume Options [ DEGRADED VOLUME DETECTED ] "Degraded" volume and disk available for rebuilding detected. Selecting a disk initiates a rebuild. Rebuild completes in the operating system. Select the port of the destination disk for rebuilding (ESC to exit): Port Drive Model Serial # Size 1 XXXX-XXXXXXXX XXXXXXXXXXXXXXX XXX.XGB [ ↑↓ ] - Previous/ Next [ENTER] - Select [ESC] - Exit XXXX-XXXXXXXX XXXXXXXXXXXXXXX XXX.XGB Non-RAID Disk [ ↑↓ ] - Select [ESC] - Exit [ENTER] - Select Menu

1. Exit Intel RAID Option ROM, and then reboot to Windows system.
2. When prompted to rebuild the RAID volume, click 'Yes'.

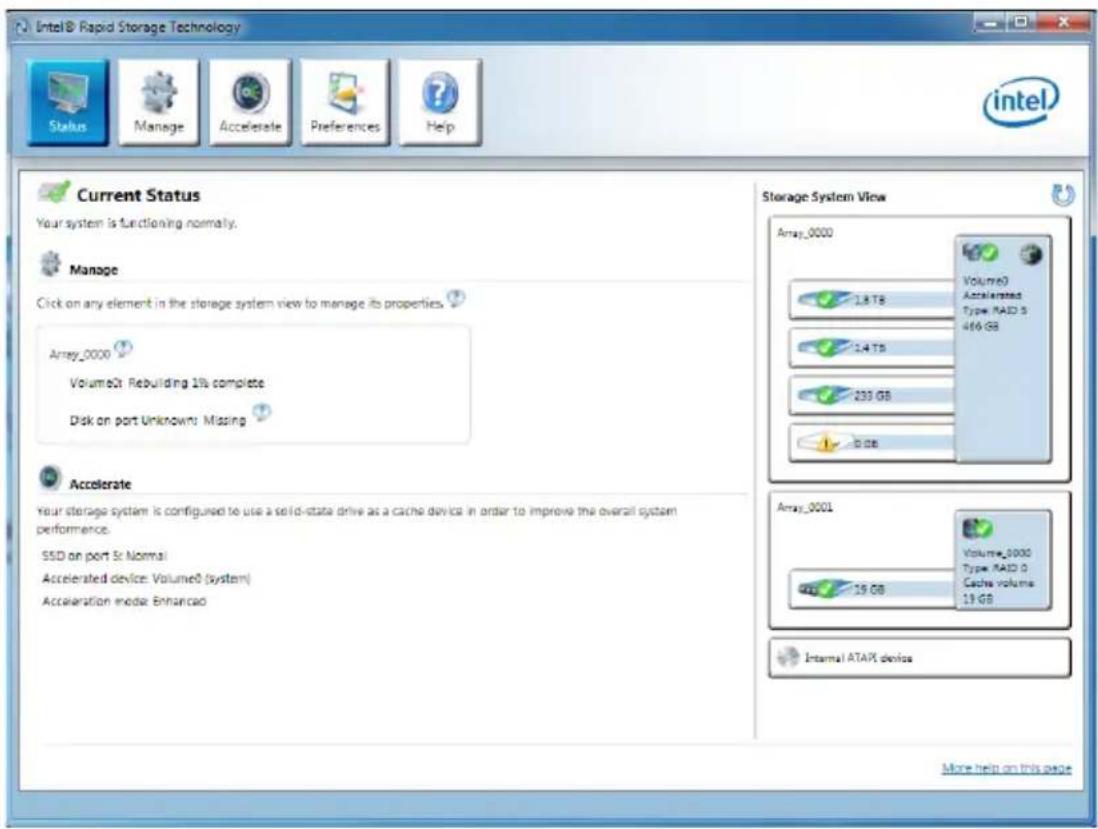

3. The Intel Rapid Storage Technology application will be launched. Right-click the new hard drive and select 'Rebuild to this Disk'. The 'Rebuild Wizard' will be launched which will guide you through the process of rebuilding to the new hard drive.

Intel® Rapid Storage Technology Status Manage Accelerate Preferences Help Current Status Your system is functioning normally. Manage Click on any element in the storage system view to manage its properties. Array_0000 Volume0: Rebuilding 1% complete Disk on port Unknown: Missing Accelerate Your storage system is configured to use a solid-state drive as a cache device in order to improve the overall system performance. SSD on port 3c Normal Accelerated device: Volume0 (system) Acceleration mode: Enancao Storage System View Array_0000 Volume0 Accelerated Type RAID S 466 GB 1.8 TB 1.4 TB 233 GB 0 GB Array_0001 Volume_0000 Type RAID 0 Cache volume 19 GB Internal ATAP device More help on this page

System Acceleration

Intel® Rapid Storage Technology use a SSD as a cache. Which can store frequently used data without having to use a slow virtual disk or depend on RAM. The SSD cache with the advantages of high-speed read/write and non-volatile memory to accelerate the system performance.

Important

Check your SSD manufacturer's website, upgrade firmware in order to support Intel® Rapid Storage Technology.

Intel® Rapid Storage Technology can only work with RAID mode. Even though there is only one hard drive, you must set the SATA Mode to RAID in BIOS. The OS must be installed in the RAID ready disk in order to use the SSD caching.

Follow these steps to enable system acceleration. If Windows has been installed in RAID mode, skip to the step 5.

1. Reboot and enter the BIOS steup.
2. Set the SATA Mode to RAID in BIOS.
3. Install Intel® RAID controller driver. Please refer to the section "Installing Driver".
4. Install Windows operating system.
5. Powered off.
6. Connect the SSD.
7. Reboot the system to Windows.
8. Insert the MSI DVD into the DVD-ROM drive.

msi mainboard Driver Utility Service base Product info Security CHIPSET VGA LAN STORAGE AUDIO OTHERS Total installer Click here Product Registration Browse CD Exit

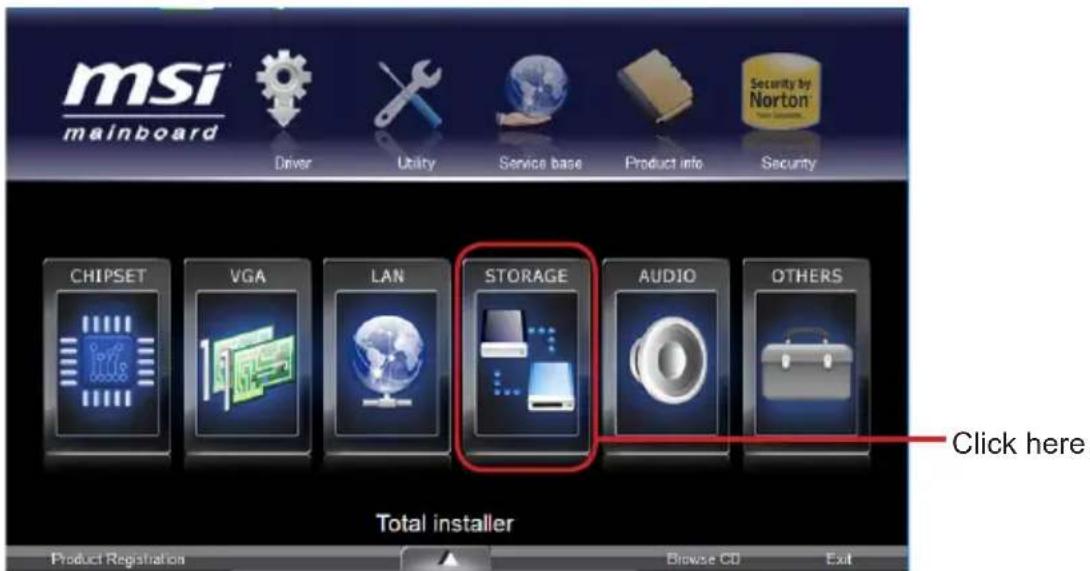

Click the "STORAGE" on the Setup screen.9.

Intel RAID Driver

Click the "Intel RAID Driver" to install Intel® Rapid Storage Technology application.10.

1. Run Intel® Rapid Storage Technology application.

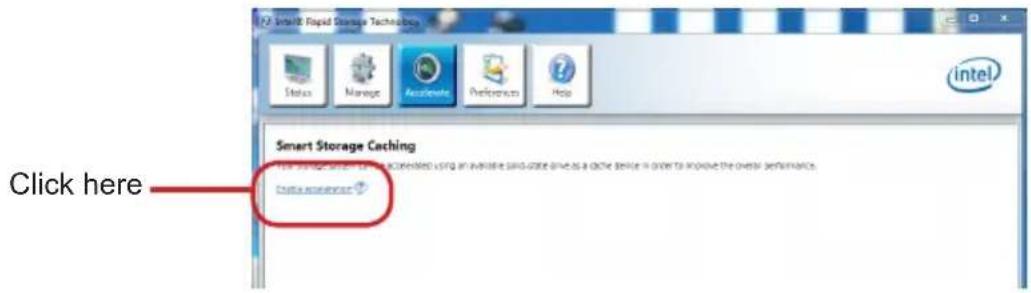

2. Click "Enable acceleration" under Accelerate.

Smart Storage Caching Click here Delta Azerbaijan

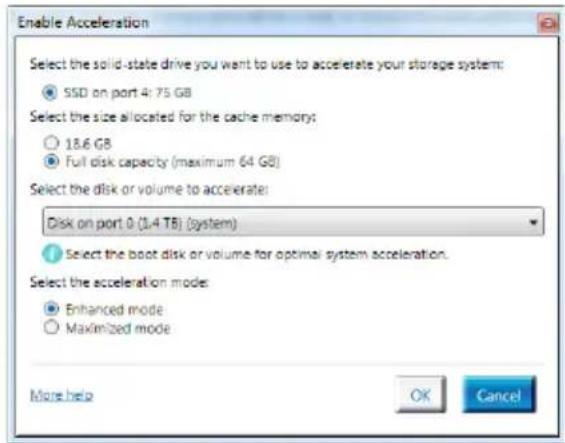

Select the acceleration options.13.

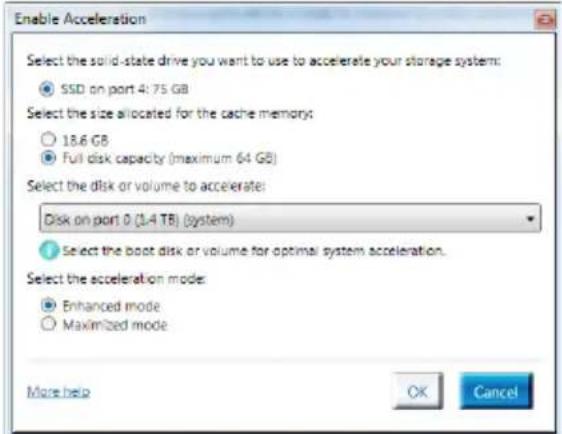

Enable Acceleration Select the solid-state drive you want to use to accelerate your storage system: • SSD on port 4: 75 GB Select the size allocated for the cache memory: ○ 18.6 GB ● Full disk capacity (maximum 64 GB) Select the disk or volume to accelerate: Disk on port 0 (1.4 TB) (system) ● Select the boot disk or volume for optimal system acceleration. Select the acceleration mode: ● Enhanced mode ○ Maximized mode More help OK Cancel

1. Click OK and reboot the system.

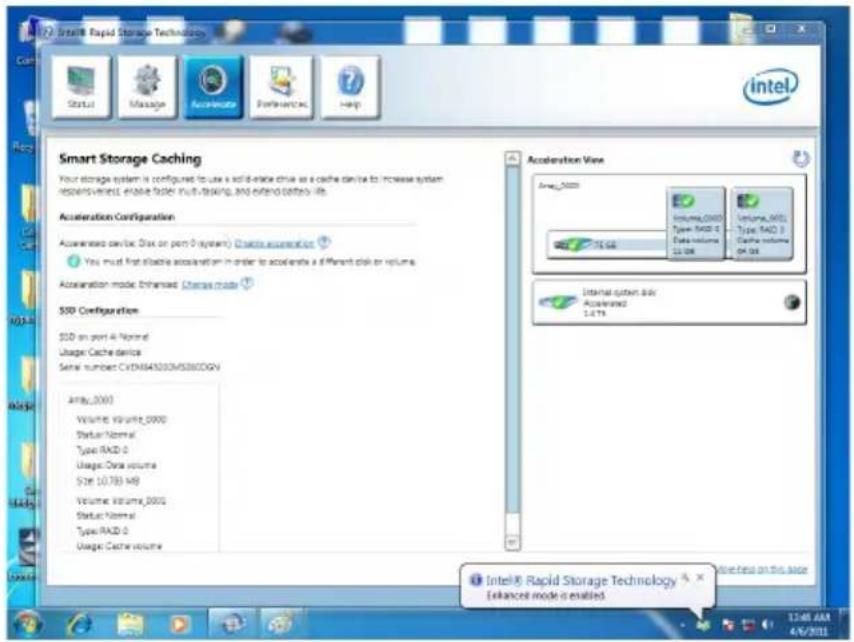

The page refreshes and reports the new acceleration configuration in the Acceleration View.

Important

You can click "More help on this page" or "More help" of the IntelRapid Storage Technology application to view more information.

Smart8 Rapid Storage Technology Status Manage Accelerator Performance Help Smart Storage Caching Your storage system is configured to use a solid-map drive as a cache device to increase system resilience, enable faster multi-tasking, and extend battery life. Acceleration Configuration Accelerated drive: Disk on port 0 (system) Change acceleration Yes must first enable acceleration in order to accelerate a different disk or volume. Acceleration mode: Enhanced Change mode SDD Configuration SDD on port A Normal Usage Cache device Serial number: CHEN54303MS880DGV Array_2000 Volume: Volume_2000 Status: Normal Type: RAD-0 Usage: Data volume Size: 10.789 MB Volume: Volume_2000 Status: Normal Type: RAD-0 Usage: Cache volume Acceleration View Array_2000 Volume_2000 Type: RAD-0 Data volume Size: 10.789 MB Internal system mode: Accelerated 1.4% Internal system mode: Accelerated 1.4% Intel® Rapid Storage Technology Enhanced mode is enabled

RST Synchronization

If you are using Maximized mode as the Acceleration mode, the data on the hard disk is not always synchronized with the data in the SSD cache. In some situations, you may want to manually sync the disks for avoiding data loss.

Follow these steps to sync manually.

1. Reboot system, during the Power-On Self Test (POST) press, press and keys simultaneously to enter the Intel Rapid Storage Technology Option ROM.

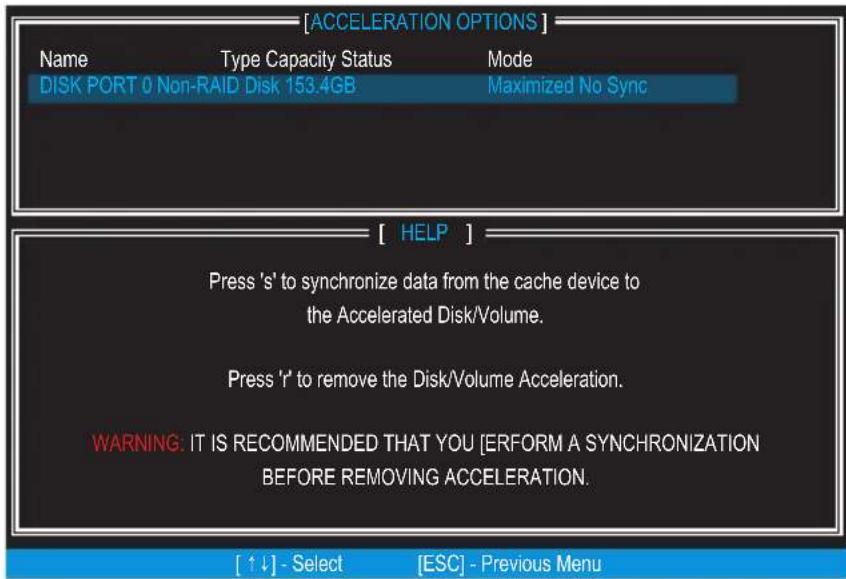

2. Select option 5 "Acceleration Options" and press key. The following screen appears.

[ACCELERATION OPTIONS] Name Type Capacity Status Mode DISK PORT 0 Non-RAID Disk 153.4GB Maximized No Sync [ HELP ] Press 's' to synchronize data from the cache device to the Accelerated Disk/Volume. Press 'r' to remove the Disk/Volume Acceleration. WARNING: IT IS RECOMMENDED THAT YOU [ERFORM A SYNCHRONIZATION BEFORE REMOVING ACCELERATION. [ ↑ ↓ ] - Select [ESC] - Previous Menu

Press to synchronize data.3.

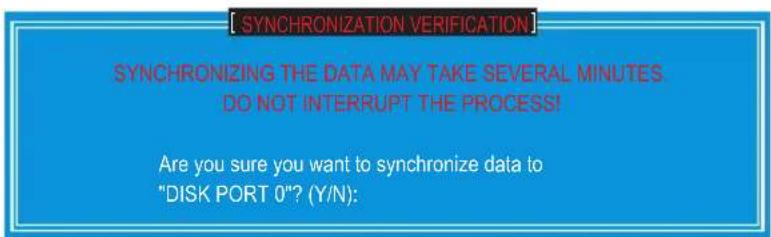

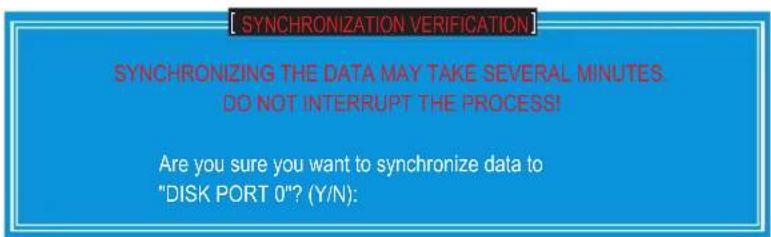

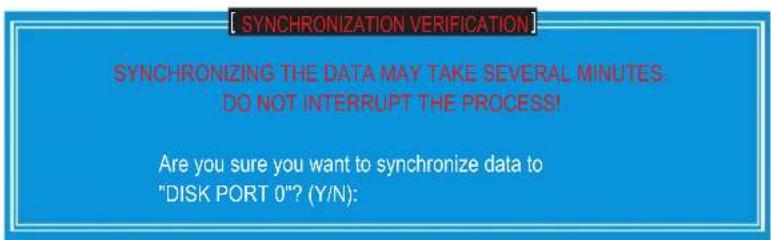

[SYNCHRONIZATION VERIFICATION] SYNCHRONIZING THE DATA MAY TAKE SEVERAL MINUTES. DO NOT INTERRUPT THE PROCESS! Are you sure you want to synchronize data to "DISK PORT 0"? (Y/N):

When prompted, press < Y> to confirm.4.

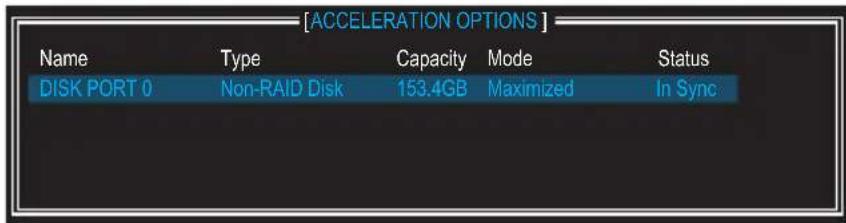

[ACCELERATION OPTIONS] Name Type Capacity Status Mode DISK PORT 0 Non-RAID Disk 153.4GB Maximized In Sync

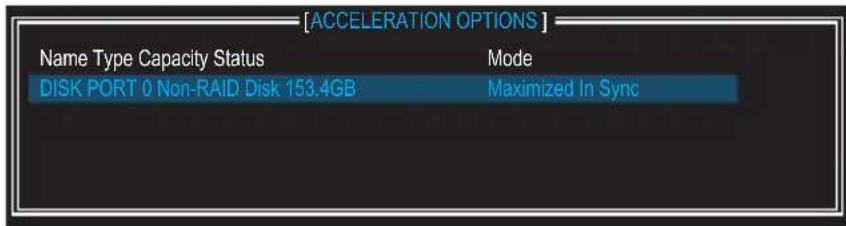

Once synchronization is complete, the status will change to In Sync.5.
