USER MANUAL E8500BD SAMSUNG

imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

02230D-BD-E8900-XN-ENG.indd 1 2012-02-20 오후 1:43:17Safety Information Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING • To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. CAUTION • BD-HDD COMBO USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE BD-HDD Combo CORRECTLY AS INSTRUCTED. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. IMPORTANT NOTE The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. |

• THIS product UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1 Precautions

Important Safety Instructions

Read these operating instructions carefully before

using the unit. Follow all the safety instructions

Keep these operating instructions handy for future

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including AV receivers) that

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade

or the third prong are provided for your safety.

If the provided plug does not fit into your

outlet, consult an electrician for replacement

of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where it exits the

11. Only use attachments/accessories specified

by the manufacturer.

12. Use only with the cart,

stand, tripod, bracket,

or table specified by the

manufacturer, or sold with

the apparatus. When a cart

is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as when the power-supply cord or plug

is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

Disc Storage & Management

- Fingerprints or scratches on

the disc may reduce sound and

picture quality or cause skipping

- Avoid touching the surface of a disc where

data has been recorded.

- Hold the disc by the edges so that fingerprints

will not get on the surface.

- Do not stick paper or tape on the disc. English 3 |

02230D-BD-E8900-XN-ENG.indd 3 2012-02-20 오후 1:43:18Safety Information

- If you get fingerprints or dirt on the

disc, clean it with a mild detergent

diluted in water and wipe with a

- When cleaning, wipe gently from

the inside to the outside of the disc.

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protection jacket and store

• Do not expose this apparatus to dripping or

splashing. Do not put objects filled with liquids,

such as vases on the apparatus.

• To turn this apparatus off completely, you must

pull the power plug out of the wall socket.

Consequently, the power plug must be easily

and readily accessible at all times.

• Do not touch the power plug with a wet hand.

Otherwise, it can cause an electric shock.

• Do not plug multiple electric devices into the

same wall socket. Ovedrloading a socket can

cause it to overheat, resulting in a fire.

• Maintenance of Cabinet.

- Before connecting other components to this

product, be sure to turn them off.

- If you move your product suddenly from a

cold place to a warm place, condensation

may occur on the operating parts and lens

and cause abnormal disc playback. If this

occurs, unplug the product, wait for two

hours, and then connect the plug to the

power outlet. Then, insert the disc, and try to

• If the product makes an abnormal noise or

produces a burning smell or smoke, turn off

the power switch immediately and disconnect

the power plug from the wall outlet. Then,

contact the nearest customer service centre for

technical assistance. Do not use the product.

Using the product as it is may cause a fire or an

Using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.

Read and understand the following safety

information before using the 3D function.

• Some viewers may experience discomfort while

viewing 3D TV such as dizziness, nausea, and

If you experience any such symptom, stop

viewing 3D TV, remove the 3D Active Glasses,

• Watching 3D images for an extended period of

time may cause eye strain. If you feel eye strain,

stop viewing 3D TV, remove your 3D Active

• A responsible adult should frequently check on

children who are using the 3D function.

If there are any reports of tired eyes, headaches,

dizziness, or nausea, have the child stop viewing

• Do not use the 3D Active Glasses for other

purposes. (Such as general eyeglasses,

sunglasses, protective goggles, etc.)

• Do not use the 3D function or 3D Active Glasses

while walking or moving around. Using the 3D

function or 3D Active Glasses while moving

around may cause you to bump into objects,

trip, and/or fall, and cause serious injury.

• When displaying 3D programme with this

model, the actual screen may appear as shown

• 3D programme reception, recording and

playback of this model may not fully support

3D, due to the 3D broadcast format is not yet

standardized worldwide. It is not the product’s

malfunction or disorder.

02230D-BD-E8900-XN-ENG.indd 4 2012-02-20 오후 1:43:1901 Safety Information

• If you want to enjoy 3D content, connect a 3D

device (3D compliant AV receiver or TV) to the

product ’s HDMI OUT port using a high-speed

HDMI cable. Put on 3D glasses before playing

• The product outputs 3D signals only through

HDMI cable connected to the HDMI OUT port.

• As the video resolution in 3D play mode is fixed

according to the resolution of the original 3D

video, you can not change the resolution to your

• Some functions such as BD Wise, screen size

adjustment, and resolution adjustment may not

operate properly in 3D play mode.

• You must use a high-speed HDMI cable for

proper output of the 3D signal.

• Stay at least three times the width of the screen

from the TV when watching 3D images. For

example, if you have a 46-inch screen, stay 138

inches (11.5 feet) from the screen.

• Place the 3D video screen at eye level for the

• When the product is connected to some 3D

devices, the 3D effect may not function properly.

• "Blu-ray 3D" and "Blu-ray 3D" logo are

trademarks of the Blu-ray Disc Association.

© 2012 Samsung Electronics Co.,Ltd.

All rights reserved; No part or whole of this user’s

manual may be reproduced or copied without the

prior written permission of Samsung Electronics

8 Disc and Format Compatibility

8 Disc types and contents your product can play

8 Disc types your product cannot play

8 Available Recording Time for internal HDD

9 Logos of Discs the product can play

10 Supported Formats

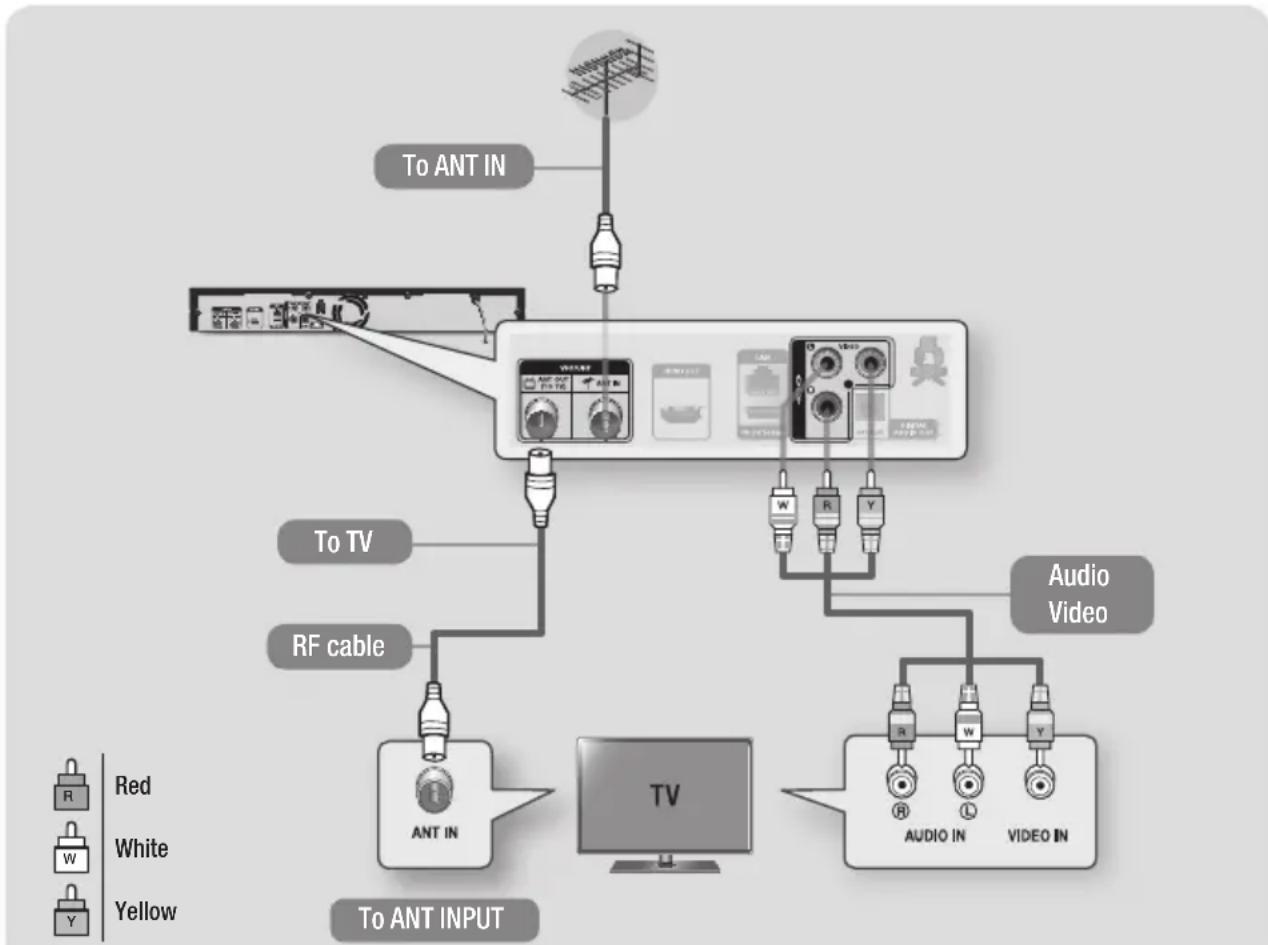

17 Connecting to a TV with an Audio/Video cables

18 Connecting to a TV

18 Method 1 Using an HDMI cable (not included) -

Best Quality (Recommended)

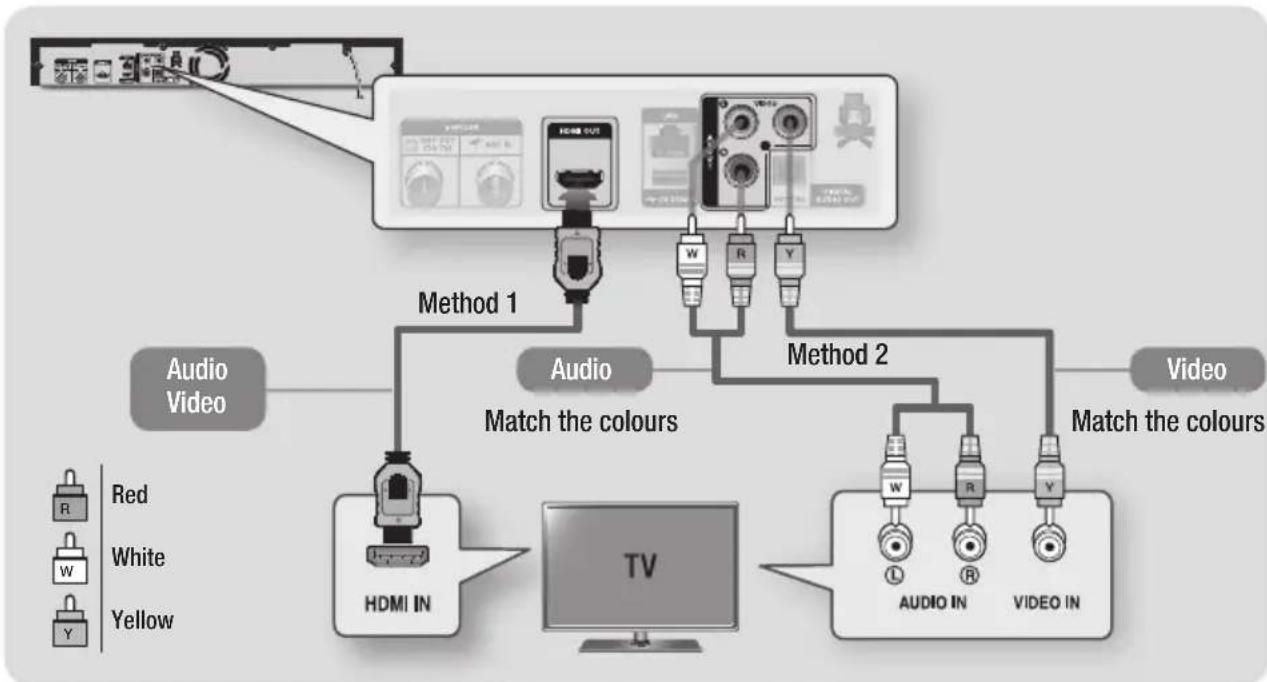

18 Method 2 Using a Video and an Audio cable -

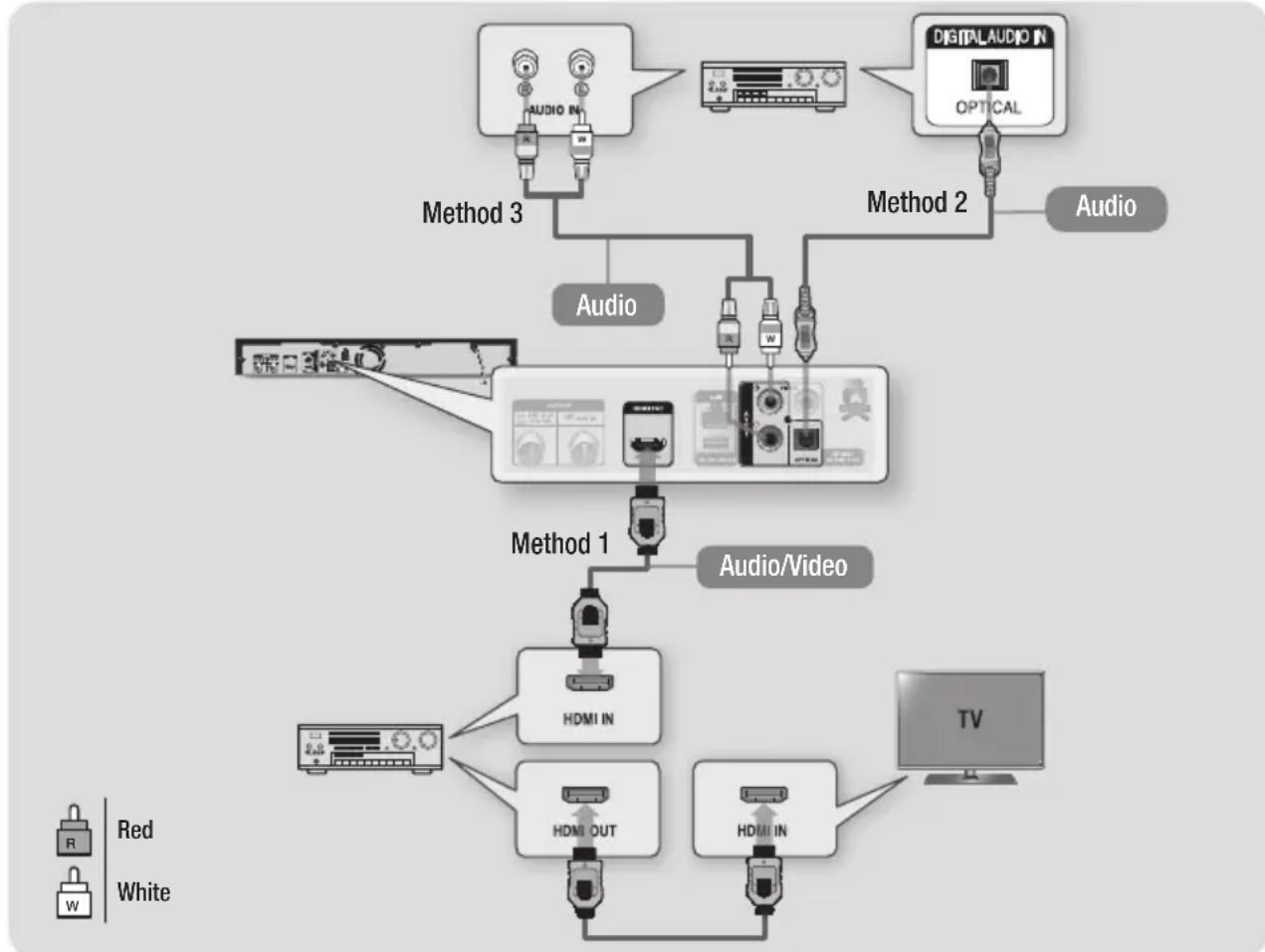

19 Connecting to an Audio System

19 Method 1 Connecting to an HDMI supported AV

19 Method 2 Connecting to an AV receiver with

19 Method 3 Connecting to a Stereo Amplifier with

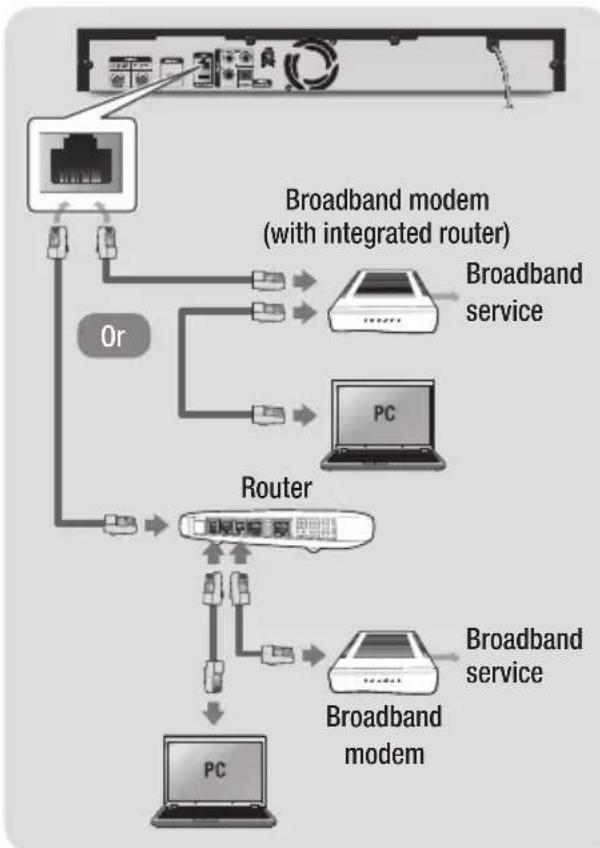

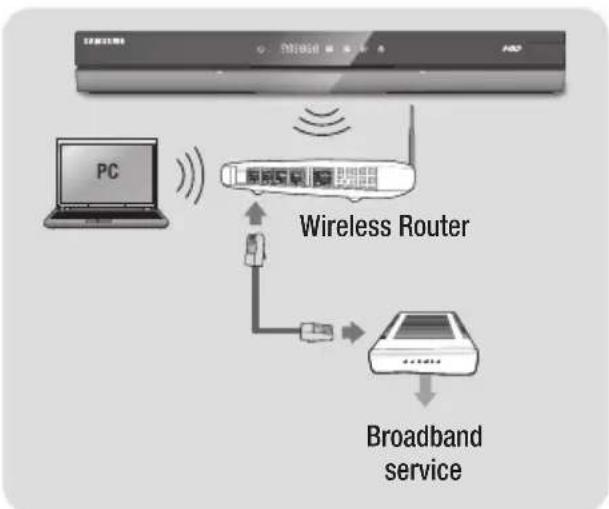

20 Connecting to a Network Router

22 Buttons on the Remote Control used for the

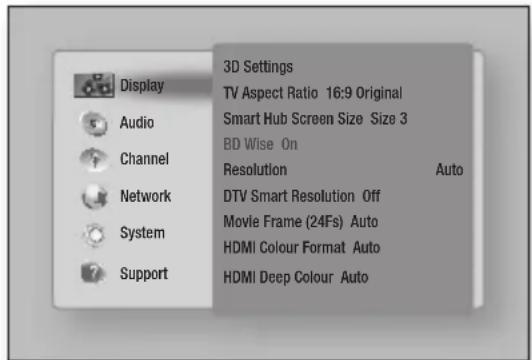

23 Settings Menu Functions

33 Networks and the Internet

37 Upgrading Software

40 Insert a Disc to the Disc tray

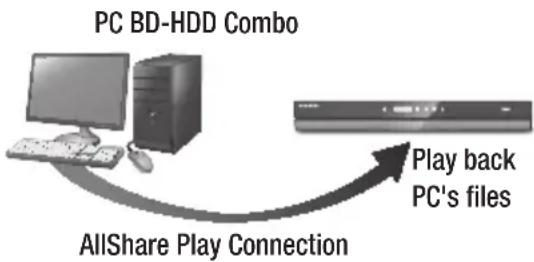

43 Playing content located in your PC on the BD-

43 Playing content located in your Mobile device on

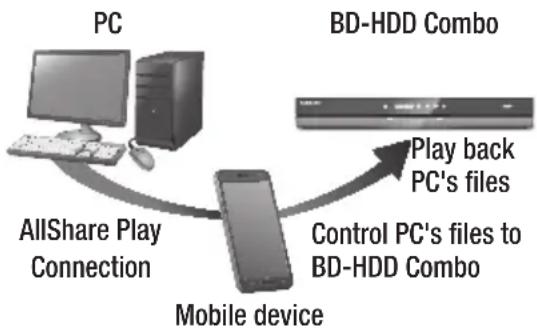

43 Controlling with your mobile device

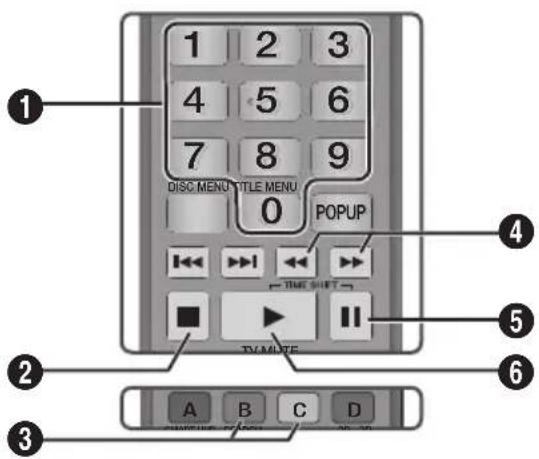

46 Buttons on the Remote Control used for Music

46 Using the Tools Menu

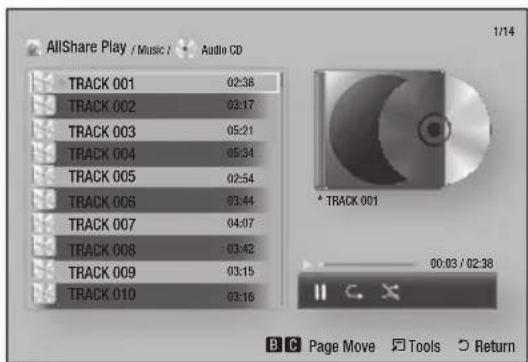

46 Repeating Tracks on an Audio CD

46 Shuffling Tracks on an Audio CD

47 Creating a Playlist from a CD

47 AMG (All Media Guide) function

48 Playing Photo Contents

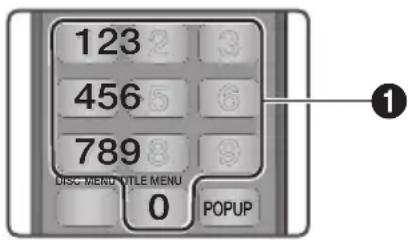

51 Watching TV Channels

54 Using the Teletext Service

56 Recording the current TV channel you are

57 Simultaneous Recording

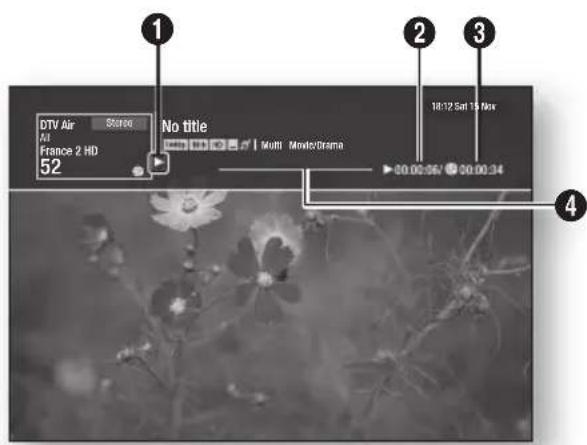

58 Timeshift function

59 Playing the Recorded Title

59 Editing the Recorded Title

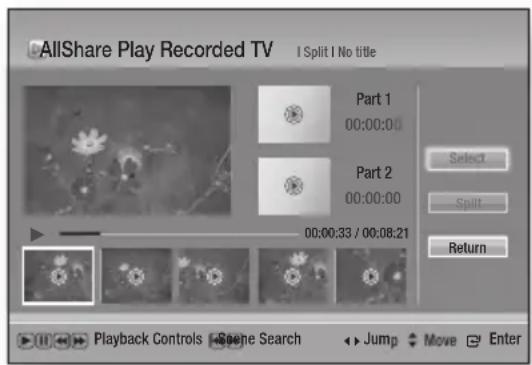

59 Splitting a Section of a Title (Divide into two)

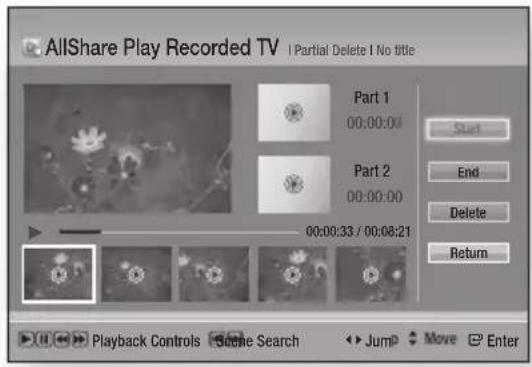

60 Splitting a Section of a Title (Partial Delete)

61 Viewing DTV with the 3D effect

62 Smart Hub at a Glance

65 Compliance and Compatibility Notice

70 Additional Information

02230D-BD-E8900-XN-ENG.indd 7 2012-02-20 오후 1:43:20Getting Started

Disc and format Compatibility

Disc types and contents your product can play

Contents Media DetailsVIDEOBlu-ray Disc 3D Blu-ray DiscBD-ROM or BD-RE/R disc recorded in the BD-RE format.DVD-VIDEO DVD±RW/±R CD-RW/RDVD-VIDEO, DVD±RW/±R discs that have been recorded and finalized. Media containing DivX, MKV or MP4 contents.MUSICCD-RW/R DVD±RW/±R BD-RE/RMusic recorded on CD-RW/R, DVD±RW/±R, BD-RE/R containing MP3 or WMA contents.PHOTOCD-RW/R DVD±RW/±R BD-RE/RPhotos recorded on CD-RW/R, DVD±RW/±R, BD-RE/R media containing JPEG contents.VIDEO MUSIC PHOTO HDD USB Video, music and photos stored in HDD or USB.* For more information on the file format, refer to pages 10~12. Disc types your product cannot play • HD DVD• DVD-ROM/PD/MV-Disc, etc• DVD-RAM• Super Audio CD (except CD layer)• DVD-RW(VR mode)• CVD/CD-ROM/CDV/CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)• 3.9 GB DVD-R for Authoring. | NOTE |

\ The product may not play certain CD-RW/R and DVD±RW/±R because of the recording conditions.

\ If a DVD±RW/±R has not been recorded properly in DVD video format, it will not be playable.

\ Your product will not play content that has been recorded on a DVD±RW/±R at a bit-rate that exceeds 10Mbps.

\ Your product will not play content that has been recorded on a BD-RE/R at a bit rate that exceeds 25Mbps.

Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

\ When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly. Available Recording Time for internal HDD You can record digital broadcast on the internal HDD as below. Depending on the actual broadcast, available recording time may be different with the table shown below In On Screen Display, you can check available recording time as shown in "high" case in the table shown below. |

02230D-BD-E8900-XN-ENG.indd 8 2012-02-20 오후 1:43:2002 Getting StartedBroadcast Type Estimated BitrateRecording TimeBD-E8900 BD-E8500 BD-E8300 HD 8Mbps (Normal)257 Hours124 Hours 77 Hours20Mbps (High)102 Hours49 Hours 30 Hours SD 5Mbps (Normal)411 Hours199 Hourss 123 Hours10Mbps (High)205 Hours99 Hours 61 Hours | NOTE |

\ Since the product's Timeshift and other implemented functions require a certain amount of HDD space allocated internally, the total size shown in the "Storage Device Manager" of Settings menu may differ from the HDD's capacity shown in the manual. Region Code Both products and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this product is displayed on the rear panel of the product.Disc TypeRegion Code

Area Blu-ray Disc A North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia. b Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand. C India, China, Russia, Central and South Asia.DVD-VIDEO 1 The U.S., U.S. territories and Canada 2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland 3 Taiwan, Korea, the Philippines, Indonesia, Hong KongDVD-VIDEO 4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean 5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia 6 China Logos of Discs the product can play Blu-ray Disc 3D Blu-ray DiscBD-LIVE DivXPAL broadcast System in U.K., France, Germany, etc.English 9 |

02230D-BD-E8900-XN-ENG.indd 9 2012-02-20 오후 1:43:21Getting Started

- Even when the file is encoded by a supported codec listed above, a file might not be played if its

content has a problem.

- Normal playback is not guaranteed if the file’s container information is wrong or the file itself is

- Files having higher Bit rate/frame rate than standard may stutter when played back.

- Seek (skip) function is not available if the file’s index table is damaged.

- When you playback a file remotely through a network connection, video playback may stutter

depending on the network speed.

- Some USB/Digital camera devices may not be compatible with the product.

- Supports up to H.264 Level 4.1.

- Does not support H.264 FMO/ASO/RS, VC1 SP/MP/AP L4.

- CODECs except for MVC, VP8, VP6

1) Below 1280 x 720 : 60 frames max.

2) Above 1280 x 720 : 30 frames max.

3) Does not support GMC 2 or higher.

- Supports SVAF Top/Bottom, Side by Side.

- Supports BD MVC Spec.

- Supports WMA 10 PRO (Up to 5.1).

- Does not support WMA lossless audio.

- Does not support RealAudio 10 lossless.

- Does not support QCELP/AMR NW/WB.

- Supports vorbis (Up to 2ch), Supports codec

only in webm container.

- Supported ADPCM IMA, MS. (MULAW, ALAW

Playback of some MKV or MP4 file may not be supported

depending on their video resolution and frame rate.

Supported Subtitle File Formats

Notes on the USB connection

• Your product supports USB storage media,

MP3 products, digital cameras, and USB card

• Some USB/digital camera devices may not be

compatible with the product.

• Your product supports the FAT16, FAT32, and

NTFS files systems (read only).

• Connect USB devices directly to the product’s

USB port. Connecting through a USB cable

may cause compatibility problems.

• Inserting more than one memory device into

a multi-card reader may cause the reader to

02230D-BD-E8900-XN-ENG.indd 11 2012-02-20 오후 1:43:22Getting Started

• The product supports the PTP protocol.

• Do not disconnect a USB device during a

• The bigger the image resolution, the longer the

image takes to display.

• This product cannot play MP3 files with DRM

(Digital Rights Management) downloaded from

• Your product only supports video that is under

• Your product only supports USB Mass Storage

Class (MSC) devices such as thumb drives,

flash card readers and USB HDD. (HUB is not

• Certain USB HDD Devices, multi-card readers

and thumb drives may not be compatible with

• If some USB devices require excessive power,

they may be limited by the circuit safety device.

• If playback from a USB HDD is unstable, provide

additional power by plugging the HDD into a

If the problem continues, contact the USB HDD

• You must remove the USB storage device

safely (by performing the "Safely Remove USB"

function to prevent possible damage to the USB

• SAMSUNG is not responsible for any data file

damage or data loss.

• Your product does not support compression file,

sparse file and encrption file of NTFS.

- Before disconnecting a USB device, please

use USB Safety Removal.

- If you don't use USB Safety Removal, your

data on USB device can be corrupted or lost

- You can repair or format a USB device on

your Desktop PC. (MS-Windows OS only)

Connect a USB device before using the

Timeshift and Recorded TV functions

Do not use a USB memory stick. We

do not support a USB memory stick.

We recommend using a USB HDD

with at least 5400 rpm, but a USB HDD of RAID type is not supported.

• To use the Timeshift mode or the Recorded

TV function, a connected USB device must be

execute the Device Format function to proper

- During the device formatting, do not

disconnect the device while formatting is in

progress. If you format the device, all files will

- Before formatting your device to this product,

please back up your files to prevent them

from damage or loss of data. SAMSUNG is

not responsible for any data file damage or

• Recorded videos are DRM (digital rights

managements) protected and cannot be played

on a PC or other product. Note that files saved

on the TV cannot be used after the main board

• At least 100MB of free space is required for

• Recording will stop if the storage's free space

becomes less than 50 MB.

• If the USB device has failed the Device

Performance Test, the USB device must

go through the Device Format and Device

Performance Test again before you record with

the Guide or Channel Manager.

If the device has failed the Performance Test, It

cannot be used for recording.

02230D-BD-E8900-XN-ENG.indd 12 2012-02-20 오후 1:43:2202 Getting Started

AVCHD (Advanced Video Codec High Definition)

• This product can play back AVCHD format discs. These discs are normally recorded and used in

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional

image compressing format.

• Some AVCHD discs use the "x.v.Color" format. This product can play back AVCHD discs that use

• "x.v.Color" is a trademark of Sony Corporation.

• "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony

Some AVCHD format discs may not play, depending on the recording condition.

AVCHD format discs need to be finalized.

"x.v.Color" offers a wider colour range than normal DVD camcorder discs.

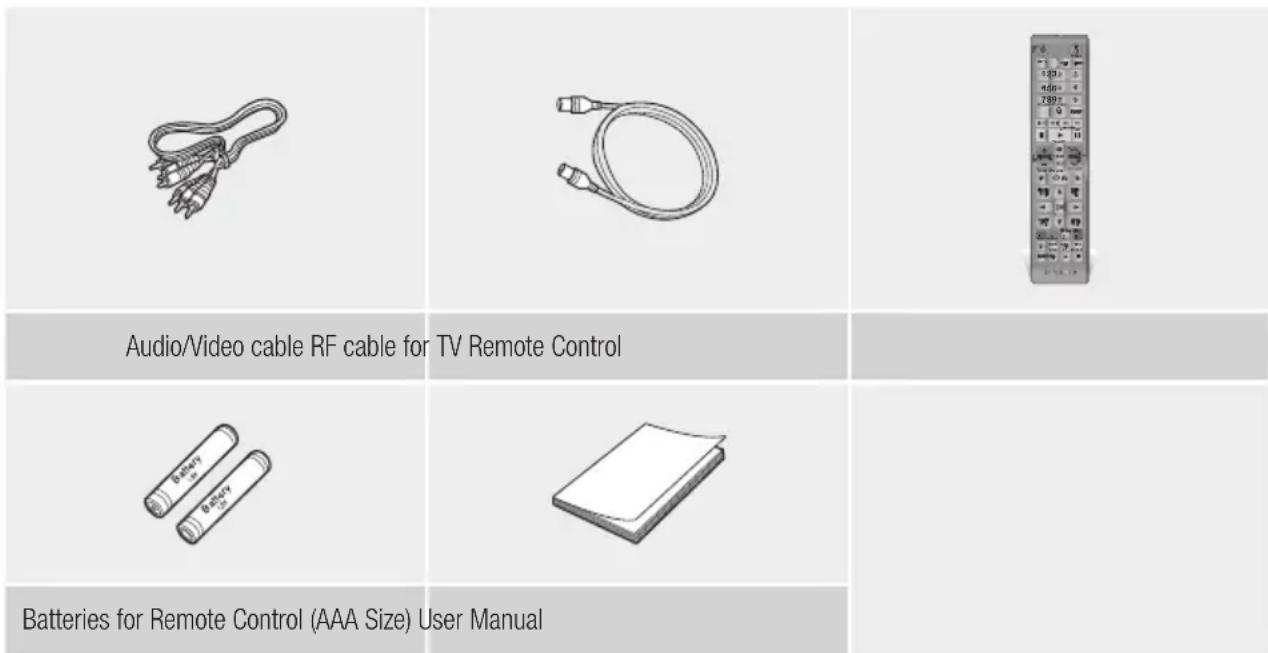

Check for the supplied accessories below. FUNCTIONTV SOURCEPOWERRECEIVERDIGITALSUBTITLEINPUT 1 2 3

Batteries for Remote Control (AAA Size) User Manual

To upgrade the product's software through the USB Host jack, you must use a USB memory stick.

When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button on the product or

the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the

You must obtain a "CI CAM with CI or CI+ CARD" from a local cable service provider.

When removing the "CI CAM with CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI CAM with CI

or CI+ CARD" may cause damage to it.

Insert the "CI CAM with CI or CI+ CARD" in the direction marked on the card.

The location of the CI card slot may be different depending on the model.

"CI CAM with CI or CI+ CARD" is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

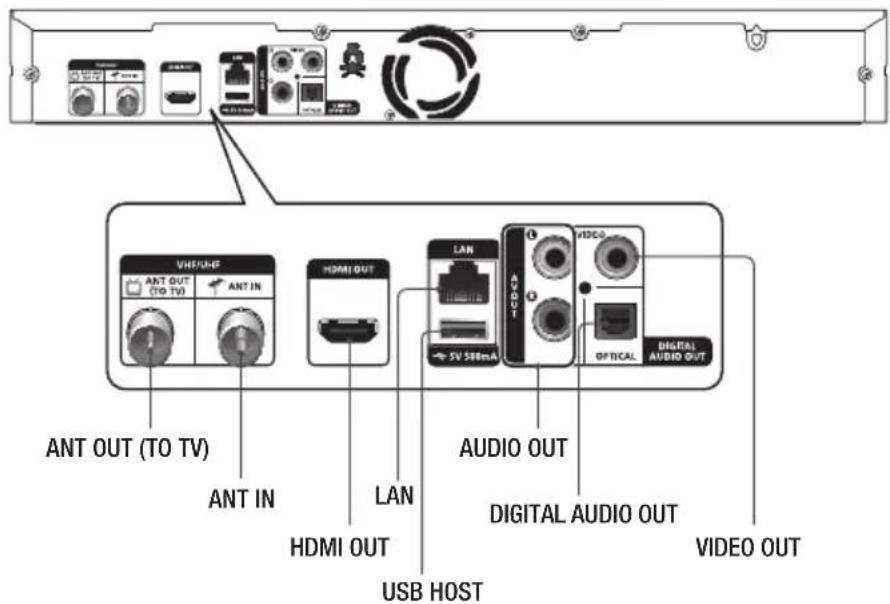

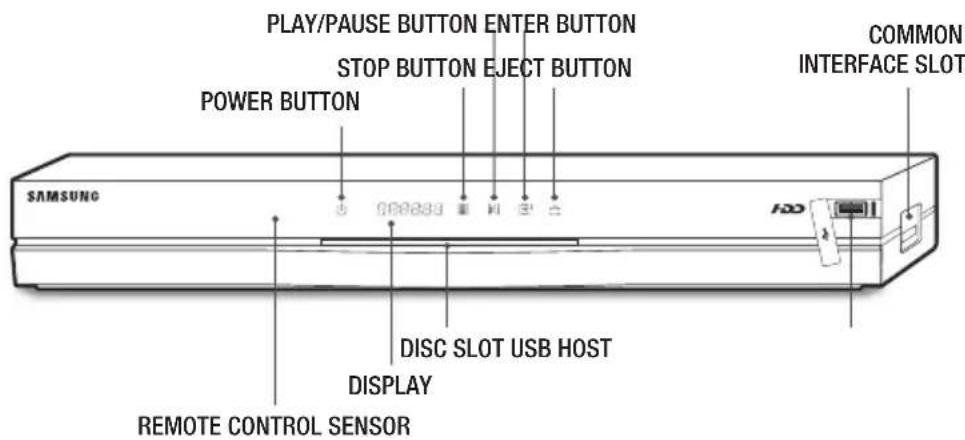

Rear Panel DISC SLOT USB HOSTDISPLAYREMOTE CONTROL SENSORSTOP BUTTON EJECT BUTTONCOMMON INTERFACE SLOTPLAY/PAUSE BUTTON ENTER BUTTONPOWER BUTTONANT INVIDEO OUTDIGITAL AUDIO OUTANT OUT (TO TV)HDMI OUT LAN USB HOSTAUDIO OUT |

If the remote does not operate properly:

- Check the polarity +/– of the batteries.

- Check if the batteries are drained.

- Check if the remote sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental

regulations. Do not put them in the household trash.

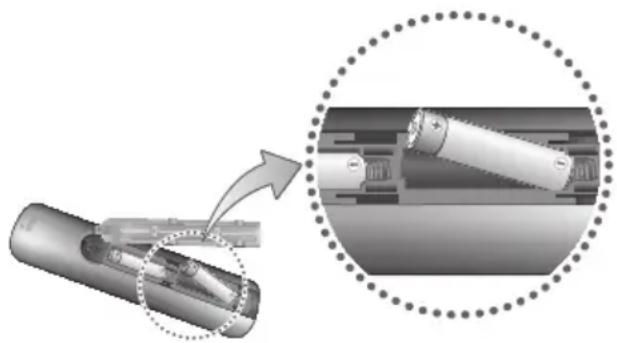

Installing batteries

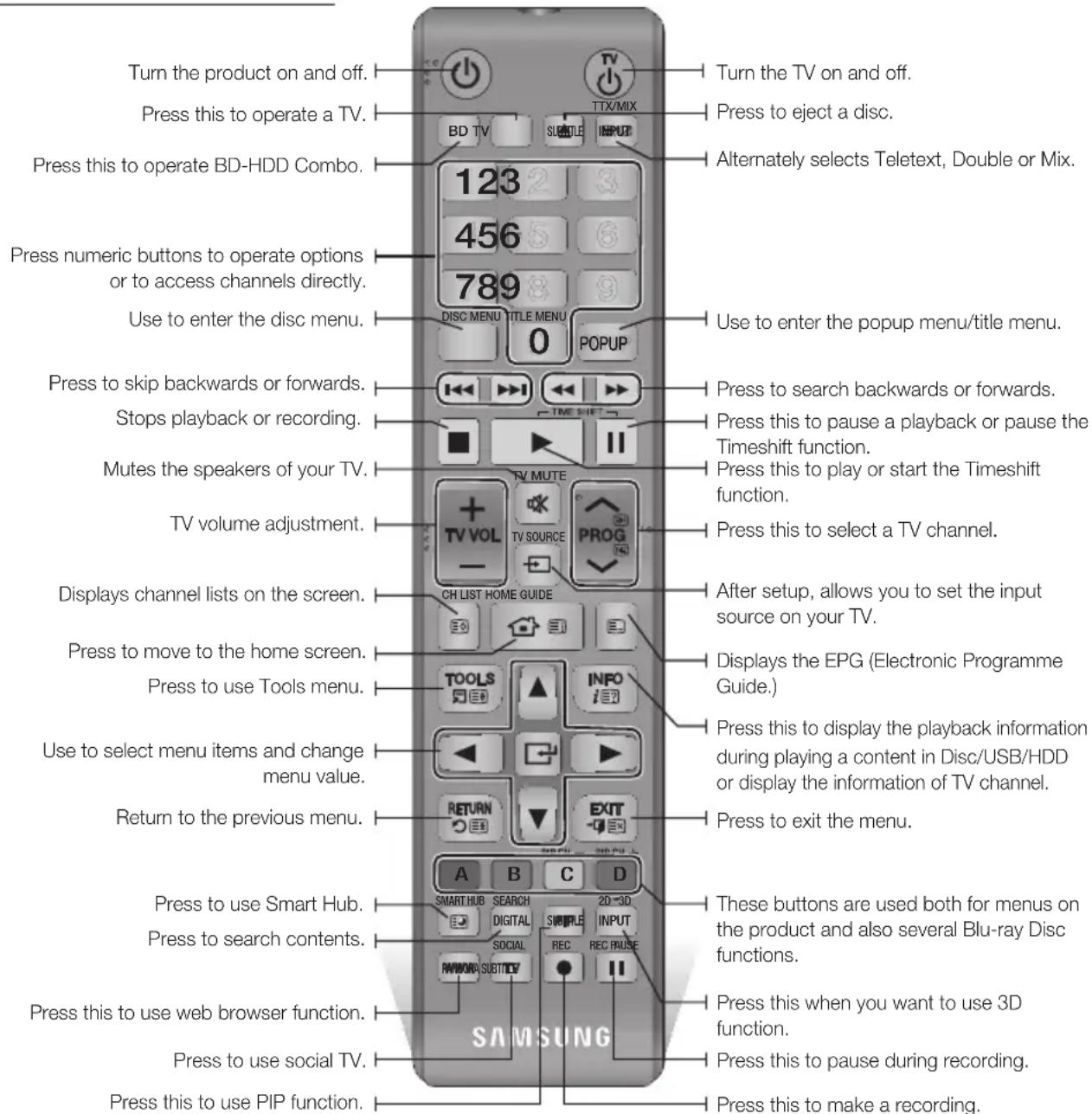

Tour of the Remote Control

Press this to operate a TV.

Turn the product on and off.

Press to use Tools menu.

Return to the previous menu.

or to access channels directly.

Use to enter the disc menu.

Press this to operate BD-HDD Combo.

Press to move to the home screen.

Use to select menu items and change

Turn the TV on and off.

Press to exit the menu.

Alternately selects Teletext, Double or Mix.

Use to enter the popup menu/title menu.

After setup, allows you to set the input

Press this to display the playback information

during playing a content in Disc/USB/HDD

or display the information of TV channel.

Press to search backwards or forwards.

Press to skip backwards or forwards.

Stops playback or recording.

TV volume adjustment.

Mutes the speakers of your TV.

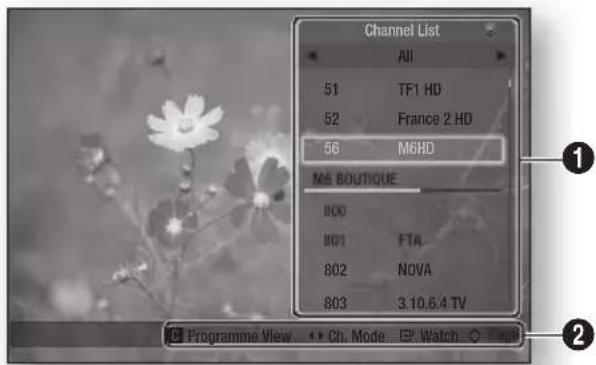

Displays channel lists on the screen.

Press this to pause a playback or pause the

Press this to play or start the Timeshift

Press this to select a TV channel.

Displays the EPG (Electronic Programme

These buttons are used both for menus on

the product and also several Blu-ray Disc

functions. FUNCTIONTV SOURCEPOWERRECEIVERDIGITALSUBTITLEINPUT 1 2 3

2D 3D CH LIST HOME GUIDE Press to eject a disc.

Press to use Smart Hub.

Press to search contents.

Press this to use web browser function.

Press to use social TV.

Press this to use PIP function.

Press this when you want to use 3D

Press this to pause during recording.

Press this to make a recording.

Setting the Remote Control to Operate

To determine whether your television is

compatible, follow the instructions below.

1. Turn your television on.

2. Point the remote control towards the

3. Press the TV button to set the TV mode.

4. Press and hold the TV POWER button, and

then enter the two-figure code in the table

to the right that corresponds to the brand of

your television by pressing the appropriate

If your television is compatible with the

remote control, it will Turn off.

The remote is now programmed to operate

If several codes are listed for your television brand, try

each one in turn until you find one that works.

If you replace the remote control’s batteries, you must set

the brand code again.

You can control certain functions of your TV with

this remote control.

TV POWER Used to Turn the television on and off.

Used to input number directly.

Used to adjust the volume of the

TV MUTE Used to toggle the sound on and off.

Used to select the desired channel.

TV SOURCE Used to select an external source

connected to the TV.

The functions listed above will not necessarily work on all

televisions. If you encounter problems, use the TV remote

Connecting to a TV with an Audio/Video cables and Rf cable

1. Connect the RF cable as shown.

2. Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (white and red)

terminals on the rear of the product to the VIDEO IN (yellow) / AUDIO IN (white and red) terminals

3. Plug in the product and TV.

4. Turn on the product and TV.

The RF cable connection of this product sends only signals of TV. You must connect the Audio/Video cables to watch output

Noise may be generated if the audio cable is placed too close to the power cable.

If you want to connect to an AV receiver, please refer to the AV receiver connection pages. (See page 19)

The number and position of terminals may vary depending on your TV set. Please refer to the user manual of your TV.

If there is only one audio input terminal on the TV, connect it to the AUDIO OUT (Red/white) terminal of the product.

Do not connect the product to your TV through a VCR. Video signals fed through VCRs may be affected by copyright

protection systems and the picture will be distorted on the television.

To ANT INPUT To TV RF cable

W White Y YellowEnglish 17 |

02230D-BD-E8900-XN-ENG.indd 17 2012-02-20 오후 1:43:25Connections

Connecting to a TV 1. Connect the product to your TV using one of the methods illustrated below.2. Turn on the product and TV. - Do not connect the power cord until you have made all the other connections. - When you change the connections, turn off all devices before you start. 3. Press the input selector on your TV remote control until the signal from the product appears on the TV screen. Method 1 Using an HDMI cable (not included) - Best Quality (Recommended)

Method 2 Using a Video and an Audio cable - Good Quality | NOTE |

\ If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio Out on the product to audio system to hear audio.

\ An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.

\ Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

When you connect the product to the TV using the HDMI cable for the first time or to a new TV, the HDMI output resolution will be automatically set to the highest supported by the TV.

\ A long HDMI cable may cause a screen noise. If this occurs, set Deep Colour to Off in the menu.

If the product is connected to your TV in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable.

\ HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

\ You must have an HDMI connection to enjoy videos with 3D technology.Audio VideoVideoMatch the coloursAudioMatch the coloursMethod 1Method 2

Connecting to an Audio System

You can connect the product to an audio system using one of the three methods illustrated below.

2. Turn on the product, audio system and TV.

- Do not connect the power cord until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

3. Press the input selector of the connected audio system and TV until the video signal from the

product appears on your TV and you hear the audio signal through your audio system.

Method 1 Connecting to an HDMI supported AV receiver

• Use an HDMI cable (not included)

• Best quality (Recommended)

Method 2 Connecting to an AV receiver with Optical input

• Use an Optical Cable (not included)

• You will hear sound only throuugh the front two speakers with Digital Output set to PCM.

Method 3 Connecting to a Stereo Amplifier with an Audio Cable

02230D-BD-E8900-XN-ENG.indd 19 2012-02-20 오후 1:43:27Connections

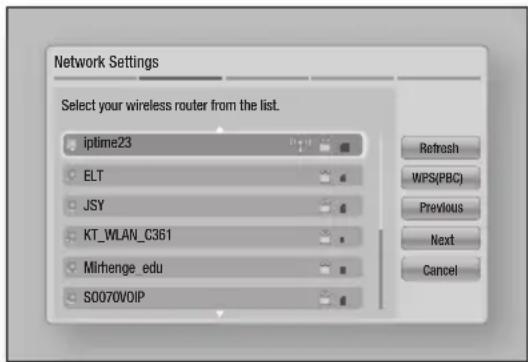

Connecting to a Network Router You can connect your product to your network router using one of the methods illustrated below. Wired Network | NOTE |

\ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or your ISP’s policy. For more information, contact your ISP (Internet Service Provider).

\ DSL users, please use a router to make a network connection.

\ To use the AllShare function with your PC, you must connect your PC. Wireless Network | NOTE |

\ If the wireless router supports DHCP, your product can use a DHCP or static IP address to connect to the wireless network.

\ Set your wireless router to Infrastructure mode. Ad-hoc mode is not supported.

\ The product supports only the following wireless security key protocols: - WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

\ Select a channel on the wireless router that is not currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

\ If you select the Pure High-throughput (Greenfield) 802.11n mode and set the Encryption type on your router or router to WEP, TKIP or TKIP-AES (WPS2Mixed), the product will not support a connection in compliance with new Wi-Fi certification specifications.

\ If your router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

\ Wireless LAN, by its nature, may cause interference, depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).

\ To use the AllShare function with your PC, you must connect your PC.Broadband serviceWireless RouterBroadband serviceBroadband serviceBroadband modem (with integrated router)Broadband modem Router Or

02230D-BD-E8900-XN-ENG.indd 20 2012-02-20 오후 1:43:2804 Settings Settings

The Setup Procedure • The Home screen will not appear if you do not configure the initial settings.• The OSD (On Screen Display) of this product may change after you upgrade the software version.• The access steps may differ depending on the menu you selected.The Setup Procedure lets you set the OSD and menu languages, configure the connection to your home network, choose the aspect ratio output (screen size and format) that is correct for your TV, and search desired channels. | NOTE |

\ When the product is connected to the TV for the first time, the product turns on automatically. This is normal operation.

\ Password : Enter the desired 4-digit password using the number buttons. - France, Italy : You can not set the password to "0000". Please choose other numbers. - Others : Default password is set to 0000.

\ Channel Ordering menu can be displayed when the country set to Italy. The Home Screen

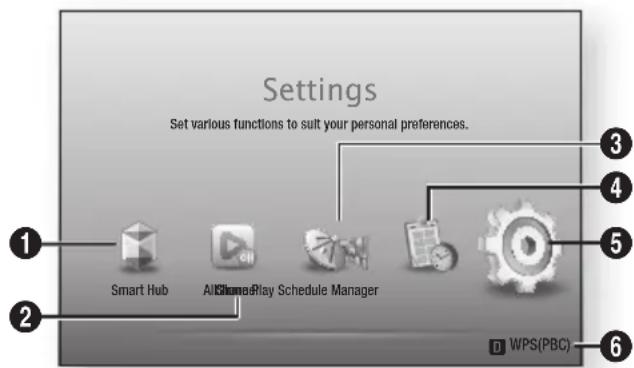

1 Smart Hub : Starts Smart Hub. From Smart Hub, you can access YouTube, games, and other apps. 2 AllShare Play : Lets you select contents located on connected devices by type to view or play. You can select videos, photos, or music. 3 Channel : Lets you configure your TV channels with features such as country and auto tune. 4 Schedule Manager : Lets you set or edit recording schedules. 5 Settings : Opens the Settings menu. 6 Displays the coloured buttons on your remote that you can press to access or perform functions.

` To select an option on the Home screen:1. Use the ◄► buttons to move the cursor so that it highlights your choice, and then press v

\ In the Home menu screen, it will switch to DTV Channel mode after 3 minutes. When accessing the Settings menu, the screen saver will be activated after 5 minutes. Accessing the Settings Screen 1. Select Settings on the Home screen, and then press v button. The Settings screen appears.2. To access the Settings menus, sub-menus, and options, please refer to the remote control illustration and the setting table (See pages 22~32).Display3D SettingsTV Aspect Ratio 16:9 OriginalSmart Hub Screen Size Size 3BD Wise OnResolution AutoDTV Smart Resolution OffMovie Frame (24Fs) AutoHDMI Colour Format AutoHDMI Deep Colour AutoAudioChannelNetworkSystemSupportAllShare Play Schedule ManagerChannelSet various functions to suit your personal preferences. d WPS(PBC)Smart Hub 1

for the Settings menu

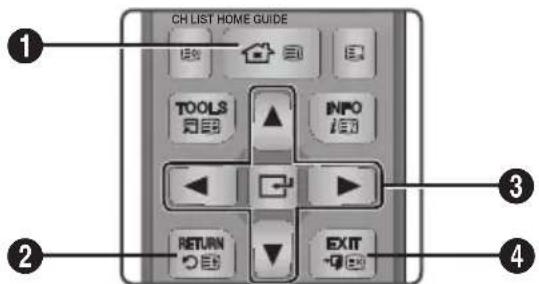

HOME Button : Press to move to the Home screen.

button to activate the currently

selected item or confirm a setting.

EXIT Button : Press to exit the current menu.

Detailed Function Information

Each Settings function, menu item, and individual

option is explained in detail on-screen. To view an

explanation, use the ▲▼◄► buttons to select the

function, menu item, or option. The explanation

will usually appear on the screen.

A short description of each Settings function

starts on the next page. Additional information on

some of the functions is also in the Appendix of

Select whether to play a Blu-ray Disc with 3D contents

while in 3D mode, the product will switch to 2D

Lets you adjust the output of the product to the screen

BD Wise is Samsung’s latest inter-connectivity feature.

When you connect a Samsung product and a Samsung

TV with BD Wise to each other via HDMI, and BD Wise

is on in both the product and TV, the product outputs

video at the video resolution and frame rate of the Blu-

The number indicates the number of lines of video per

The i and p indicate interlaced and progressive scan,

The more lines, the higher quality.

DTV Smart Resolution

Use this function to automatically optimise screen

resolution for digital broadcasts.

Setting the Movie Frame (24Fs) feature to Auto lets the

play adjust its HDMI output to 24 frames per second for

improved picture quality.

You can enjoy the Movie Frame (24Fs) feature only on

a TV supporting this frame rate.

Movie Frame is only available when the product is in

to match the capabilities of the connected device (TV,

Lets you output video from the HDMI OUT jack with

Deep colour. Deep colour provides more accurate

colour reproduction with greater colour depth.

Progressive Mode Lets you improve picture quality when viewing DVDs.

Set Digital output option suitable for your TV or AV Receiver. For more details, please refer to the digital

output selection table. (See pages 74~75)

PCM Downsampling Set whether to use downsampling processing or not.

Dynamic Range Control

Dolby Digital Plus and Dolby TrueHD.

Auto : The Dynamic Range will be controlled

automatically based on the information provided by

the Dolby TrueHD Soundtrack. This setting is same

with "On" for Dolby Digital and Dolby Digital Plus.

Off : You can enjoy original sound without

compressing Dynamic Range of the sound.

On : The Dynamic Range is compressed appropriately

by boosting low level sound and reducing extremely

Downmixing Mode Select Downmix method for stereo output.

You can enjoy multichannel sound via HDMI output even

for 2 channels audio source.

In some cases when the product is connected to a

digital TV, the audio signal may not synchronize with the

video signal. If this occurs, adjust the audio delay time

to match the video signal.

You can set the audio delay time between 0 msec

Adjust it to the optimal setting.

on the played content.

Choose an equipment that you have connected to this

product to hear the sound in addition to your TV.

Loudness of DTV Program will be adjusted according to

AV Receiver : Select this If you use a general AV Receiver / Home Theatre Equipment or a Television to

AV Receiver (Offset Mode) : Slect this if your case is

one of two shown below.

- If you use THX Certified AV Receiver / Home

- In case "Digital Output" is set to "Bitstream",

and If you feel the the Dolby Audio much louder

than MPEG1 Layer2 Audio while watching DTV Program, select this even if your AV Receiver is

not THX Certified one.

Stereo Device : Select this if you use a Stereo

Amplifier or Recording Device that support Optical

Digital Audio Input as PCM format.

For users whose TV is the only sound-producing device:

- If the TV does not support Dolby Digital bitstream input via

HDMI, no specific setting is required.

- If the TV supports Dolby Digital bitstream input via HDMI,

set "Digital Output" to "PCM".

By doing so, the "Connected Device" will not require

If the DTV Program you are watching is produced according

to EBU R128, The Average Loudness between MPEG1 Layer2

Audio and Dolby Digital / Dolby Digital Plus audio can be

reduced. If the DTV Program do not meet the EBU R128,

There may be still some amount of difference of average

Loudness between a TV Programs.

Substantial number of AV Receiver / Home Theatre Device

decode Dolby Digital / Dolby Digital Plus with +4dB OFFSET

when compared to same encoding level of PCM input.

This kind of product include both THX Certified one and also

none THX Certified one.

If user select "AV Receiver(Offset mode)", the average

loudness between Dolby Digtial / Dolby Digital Plus audio

decoded by such a product and MPEG1 Layer2 Audio

decoded by this product will be similar.

Selects an appropriate type of antenna for digital

Before your product can begin memorizing the available

channels, you must specify the type of signal source

that is connected to the this product.

Select this to change the country.

Enter the desired 4-digit password using the number

buttons. Default password is set to 0000.

- France, Italy : You can not set the password to "0000".

Please choose other numbers.

- Others : Default password is set to 0000.

Scans for all channels with active broadcast stations

Scans for a channel automatically and stores in the

Automatically allocated programme numbers may not

correspond to actual or desired programme numbers.

Scans for a channel manually and stores in the product.

When scanning has finished, channels are updated in

Sets additional search options such as the frequency

and symbol rate for a cable network search.

Transfer Channel List

This function can import or export the channel map.

You should connect a USB storage to use this function.

Export to USB : Export channel list to USB.

This function is available when USB is connected.

Import from USB : Import channel list from USB.

If you set the country to Netherlands and Antenna source set

to cable, this menu will not appear.

Use this to change channel number. When channel

number is changed, channel information is not updated

automatically. If this menu does not appear, Select

Channel on the Home screen, and then press TOOLS

Configure the network connection so you can enjoy

various features such as Internet services or AllShare

Wi-Fi functionality, and perform Software Updates.

Network Status Lets you check the current network and Internet status.

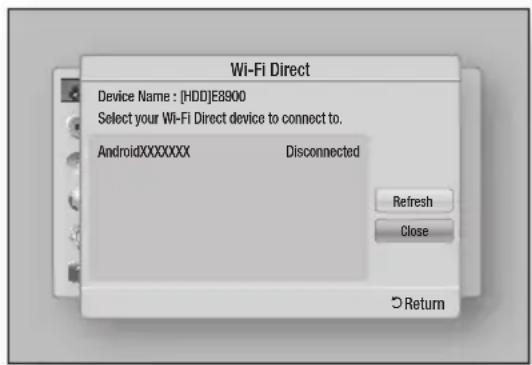

Lets you connect a Wi-Fi Direct device to the product

using a peer-to-pear network, without a wireless router.

By Wi-Fi Direct, you may use one device to control other

Soft AP Lets you connect other types of Wi-Fi devices to the

product wirelessly. Requires that you create a security

key which you must enter into the other Wi-Fi devices

when you are connecting them to the network.

Manage your network connected devices and set this

product's hard drive sharing options.

Device List : Set whether to allow a network

connected device, like a mobile device or tablet, to

share content with or control this product.

Share hard drive : Set whether to share contents

from this product with other network connected

devices, such as mobile devices.

Lets you input a name for the product that will identify it

Set various BD-Live function. BD-Live allows you to

access extra features available on some Blu-ray discs if

you are connected to the Internet.

BD-Live Internet Connection : Lets you fully allow,

partly allow, or prohibit a BD-Live Internet connection.

Delete BD Data : Manage BD data downloaded from

a BD-Live service to Blu-ray discs.

Sets the channels and the time when setting up this

product for the first time or when resetting it.

Sets the current date and time.

If Schedule Viewing and Schedule Recording is set using

GUIDE, Channel List, or Info menu, It will work based on the

time information of the TV programme.

If you set the Clock Mode to Manual and change time

manually, Schedule Viewing and Schedule Recording function

can be limited or work abnormally.

Enable or disable the data service autorun feature,

which activates data service automatically.

This menu can be displayed when the country set to Germany,

Austria, Switzerland, France, Spain, Belgium, and Netherlands.

Data Service allows you to use information (text, still images,

graphics, documents, software, etc.) transmitted via broadcast media

if the channel you are currently watching provides data service.

In some countries, the Data Service item will not be listed in

Some data services are available only when the product is

connected to the network.

During recording, data service is not available.

Anynet+ is a convenient function that offers linked

operations with other Samsung products that have the

Anynet+ feature. To operate this function, connect this

product to an Anynet+ Samsung TV using an HDMI cable.

Storage Device Manager

Manage storage devices such as internal HDD or an

external HDD connected via USB port for recording.

Format Device : Format selected device. All contents

will be deleted from that device.

Check Device : Check to see if there is an error with

the selected device.

Device Performance Test : Test the recording

performance of the device.

Select Device for Recording : Change the location

of where you store recorded files.

Since the product's Timeshift and other implemented

functions require a certain amount of HDD space allocated

internally, the total size shown in the "Storage Device

Manager" of Settings menu may differ from the HDD's

capacity shown in the manual. (See page 56)

You can connect a wireless USB keyboard or mouse to

the USB port on the front of the product.

Keyboard settings : Lets you configure a wireless

USB keyboard connected to the product.

You can use the Keyboard only when a QWERTY keyboard

screen or window appears in the Web Browser and smart

Mouse settings : Lets you configure a wireless USB

mouse connected to the product. You can use the

mouse in the product's menu in the same way you

use a mouse on your PC.

You can use the mouse only when a screen or window appears

To use a mouse with the product's menu:

Connect the USB mouse to the product.

Click the primary button you selected in Mouse

Settings. The Simple Menu appears.

Depending on the model of the USB HID keyboard and mouse

may not be compatible with your product.

Some HID keyboard keys may not work.

Wired USB keyboards are not supported.

Some applications may not be supported.

If a wireless HID Keyboard does not operate because of

interference, move the keyboard closer to the product.

You can select the language you prefer for the On-

screen menu, disc menu, etc.

The selected language will only appear if it is

This function works in conjunction with Blu-ray Disc/

DVDs that have been assigned an age rating or numeric

rating that indicates the maturity level of the content.

These numbers help you control the types of Blu-

ray Disc/DVDs that your family can watch. When you

access this function, the security screen appears.

Enter the your Security password.

(The default password is 0000.)

DTV Channel Lock : You can lock some channels

using the Channel Lock function so that children

DTV Program Rating Lock : This function works

in conjunction with DTV that have been assigned a

rating, which helps you control the types of DTV that

your family watches. Select the rating level you want

Discs with specific age ratings unless a password is

DVD Parental Rating : Prevent playback of DVDs

with specific numerical ratings unless a password is

A larger number indicates that the programme is

intended for adult use only.

Change PIN : Change the 4-digit password used to

access security functions.

If you forgot your password

1. Press the HOME Button to move to the Home

2. Remove any disc or USB storage device.

3. Press and hold the

button on the front panel

for 5 seconds or more.

All settings will revert to the factory settings.

- France, Italy : You can not set the password to "0000".

Please choose other numbers.

- Others : Default password is set to 0000.

You can change the options listed below to match your

Advanced Music Copy : When you copy music files,

information can be updated automatically.

The copying time may be increased.

This feature is available only when the product is connected

VOD Registration Codes to purchase and

CI Menu : This enables the user to select from the

CAM provided menu. Select the CI Menu based on

Application Info. : View information on the

CAM(Conditional Access Module) inserted into the CI

slot and on the "CI CAM with CI or CI+ CARD" which

is inserted into the CAM. You can install the CAM

anytime whether the product is on or off.

Purchase a CI CAM at your nearest dealer or by

Firmly insert the "CI CAM with CI or CI+ CARD"

Insert the CAM with the "CI CAM with CI or CI+

CARD" into the common interface slot, in the

direction of the arrow so that it aligns parallel with

Check if you can see a picture on a scrambled

This product works with CI and CI+ CAM.

But in case of some local DVB-T association, this product

may not have perfect compatibility with all kinds of CAM.

If the inserted CAM does not operate properly, pull the CAM CARD out of the product and insert it into the slot again.

If a popup message appears, please take a step referring

the follows.(This is not a product malfunction. Please contact

your service provider for more information.)

1. "Wrong smart card inserted." : Smart card is

inserted incorrectly.

2. " Inserted smart card not supported." : Wrong

smart card is inserted

3. "The credit of your smart card has expired. Your

smart card is not authorized for this service." :

The credit of your smart card has expired.

4. "No smart card is inserted." : Smart card is not

Software Update menu lets you upgrade your product’s

software to the latest version.

Provides contact information for assistance with your

Remote management lets our Call Centre access your

samsung product remotely to troubleshoot a problem.

To use this program, please accept the Terms of Service

To connect to remote management, please contact our call

Remote management service might not be available in some

Resets all settings to their default settings except for the

network and Smart Hub settings.

The default security PIN is 0000.

02230D-BD-E8900-XN-ENG.indd 32 2012-02-20 오후 1:43:3104 Settings

Networks and the Internet

When you connect this product to a network,

you can use network based applications and

functions such as Smart Hub and BD-LIVE, and

upgrade the product's software through the

network connection. For more information about

accessing and using Internet services, see the

Network Services chapter of this manual on pages

62~64. Instructions for configuring the network

connection start below.

Configuring Your Network Connection

Before you begin, contact your ISP to find out

if your IP address is static or dynamic. If it is

dynamic, and you have a wired or wireless

network, we recommend using the Automatic

configuration procedures described below.

If you are connecting to a wired network, connect

the product to your router using a LAN cable

before you start the configuration procedure.

If you are connecting to a wireless network,

disconnect any wired network connection before

To begin configuring your network connection,

1. In the Home screen, select Settings, and

2. Select Network, and then press the

3. Select Network Settings, and then press the

4. Go to the instructions for Wired networks

starting below or the instructions for Wireless

networks starting on page 34.

After following Steps 1 to 3 above:

1. Select Start in the Network Settings screen,

detects the wired connection, verifies the

network connection and then connects to the

If you have a static IP address or the Automatic

procedure does not work, you'll need to set the

Network Settings values manually.

After following Steps 1 to 3 above:

1. Select Start in the Network Settings screen,

The Network Status screen appears.

The product will verify the network connection.

2. Select IP Settings on the right of the screen,

The IP Settings screen appears.

3. Select the IP Mode field, and then set it to

4. Use the number keypad on your remote to

enter the Network values. Use the ▲▼◄►

buttons on the remote to move from entry

field to entry field.

You can get these values from your Internet provider. You

can also view these values on most Windows computers.

For instructions, see "Getting the Network Settings

Values." on page 34.

5. When done, highlight OK, and then press

button. The product verifies the network

connection and then connects to the

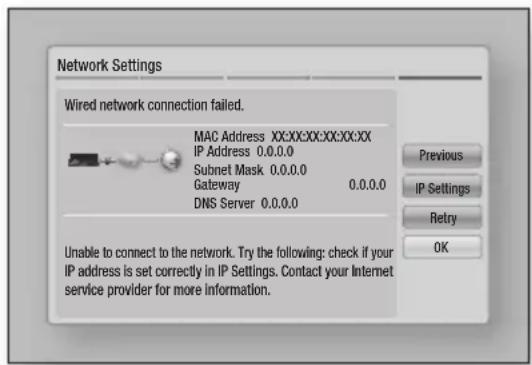

network. IP Settings OK RetryPreviousNetwork SettingsWired network connection failed.Unable to connect to the network. Try the following: check if your

IP address is set correctly in IP Settings. Contact your Internet

service provider for more information.MAC Address XX:XX:XX:XX:XX:XXIP Address 0.0.0.0Subnet Mask 0.0.0.0Gateway 0.0.0.0DNS Server 0.0.0.0English 33 |

02230D-BD-E8900-XN-ENG.indd 33 2012-02-20 오후 1:43:31Settings

< Getting the Network Settings Values >

You can view your Network Settings values on

most Windows computers. To view the Network

Settings values, follow these steps:

1. Right click the Network icon on the bottom

right of the Windows desktop.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support

4. On the Support tab, click the Details button.

The Network settings are displayed.

3. On the dialog that appears, click the Local

Area Connection or Wireless Network

Connection depending on your network

4. On the Support tab, click the Details button.

The Network settings are displayed.

Depending on your Windows version, the information may

You can setup a wireless network connection in

When you configure the wireless network

connection, any wireless network devices

currently connected through the product will be

Wireless network connection cannot be configured if

Wired internet connection is already established.

Wireless (General) - Automatic

After followng Steps 1 to 3 in "Configuring Your

Network Connection" on page 33.

1. Select Start in the Network Settings screen,

The product searches for and then displays a

list of the available networks.

2. Select the desired network, and then press

4. On the Security screen, enter your network's

Security Code or Pass Phrase.

Enter numbers directly using the number

buttons on your remote control. Enter letters

by selecting a letter with an arrow button, and

5. When done, select Next at the right of the

screen. The product verifies the network

connection and then connects to the

If the desired router is not visible or if too many routers

are listed, perform the following instructions. You can

connect to a desired router. 1) Perform up to step 2 above. 2) Select Add Network.3) Provide a name (SSID) for the wireless router.4) Select security type.

You should be able to find the Security Code or Pass

Phrase on one of the set up screens you used to set up

your router or modem. WPS(PBC) Next CancelPreviousRefreshNetwork SettingsSelect your wireless router from the list.iptime23

ELT JSY KT_WLAN_C361Mirhenge_eduSO070VOIP |

Wireless (General) - Manual

If you have a static IP address or the Automatic

procedure does not work, you'll need to set the

Network Settings values manually.

After following Steps 1 to 3 in "Configuring Your

Network Connection" on page 33.

1. Select Start in the Network Settings screen,

searches for and then displays a list of the

2. Select the desired network, and then press

4. On the Security screen, enter your network's

Security Code or Pass Phrase. Enter

numbers directly using the number buttons

on your remote control. Enter letters by

selecting a letter with the ▲▼◄► buttons,

and then pressing the

5. When done, select Next at the right of the

screen, and then press the

6. The Network Status screen appears.

The product attempts to verify the network

connection and fails.

7. Select IP Settings on the right of the screen,

8. Select the IP Mode field, and then set it to

9. Use the number keypad on your remote to

enter the Network values. Use the ▲▼◄►

buttons on the remote to move from entry

field to entry field.

You can get these values from your Internet provider. You

can also view these values on most Windows computers.

For instructions, see "Getting the Network Settings

Values." on page 34.

10. When done, highlight OK, and then press

button. The Network Status screen appears.

The product verifies the network connection

and then connects to the network. When it

is done, highlight OK, and then press

One of the easiest ways to set up the wireless

network connection is using the WPS(PBC)

function. If your wireless router has a WPS(PBC)

button, follow these steps:

1. Open the Home screen.

2. Press the BLUE (D) button on the remote

3. Press the WPS(PBC) button on your

router within two minutes. Your product

automatically acquires all the network

settings values it needs and connects to your

The Network Status screen appears. The

product connects to the network after the

network connection is verified.

The Wi-Fi Direct function allows you to connect

Wi-Fi Direct devices to the product and each other

using a peer-to-peer network, without a wireless

1. Turn on the Wi-Fi direct device and activate

its Wi-Fi Direct function.

2. In the Home screen, select Settings, and

3. Select Network, and then press the

4. Select Wi-Fi Direct, and then press the

The Wi-Fi Direct devices that you can

connect appear. DisplayAudioNetworkSystemSupportRefreshCloseWi-Fi DirectDevice Name : [HDD]E8900Select your Wi-Fi Direct device to connect to.AndroidXXXXXXX Disconnected' Return English 35

02230D-BD-E8900-XN-ENG.indd 35 2012-02-20 오후 1:43:32Settings

5. You have three ways to complete the Wi-Fi

• Through the Wi-Fi device.

• Through the product using PBC.

• Through the product using a PIN.

Each is covered below.

Through the Wi-Fi Device

1. On the Wi-Fi device, follow the procedure on

the device for connecting to another Wi-Fi

Direct device. See the device's user manual

2. When you have completed the procedure,

you should see a pop-up on your TV screen

saying that a device that supports Wi-Fi

Direct has requested to connect. Select OK,

3. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

Through the Product Using PBC

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the

button. The PBC/PIN pop up appears.

2. Select PBC, and then press the

The PBC pop-up appears.

3. Press the PBC button on the Wi-Fi Direct

device within 2 minutes.

4. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

Through the Product Using a PIN

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the

button. The PBC/PIN pop up appears.

2. Select PIN, and then press the

The PIN pop-up appears.

3. Note the PIN code in the pop-up, and then

enter it into the appropriate field in the Wi-Fi

Direct device you want to connect.

4. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

The wired or wireless network connection will be

disconnected when you use the Wi-Fi Direct function.

Some Wi-Fi Direct devices may not support the AllShare

function if connected via Wi-Fi Direct. If this is the case,

it is advisable to change the network connection method

Soft AP This product provides a function as a wireless

Soft AP lets you connect other Wi-Fi devices to

your network wirelessly through the product.

It requires that you create a security key which you

must enter into the other Wi-Fi devices when you

are connecting them to the network.

1. In the Home screen, select Settings, and

2. Select Network, and then press the

1. On the Soft AP screen, select Security Key,

2. On the Security key screen, enter a security

key. Enter numbers directly using the number

buttons on your remote control. Enter

letters by selecting a letter with the ▲▼◄►

buttons, and then pressing the

move to DONE at the bottom of the screen,

02230D-BD-E8900-XN-ENG.indd 36 2012-02-20 오후 1:43:3204 Settings

When you connect a Wi-Fi device through the

connection procedure on the device, you must

enter the security key you created here into the

The AllShare Settings screen lists your network

connected AllShare devices and their IP

addresses. Through this screen, you can allow

a device to access the product, deny access, or

delete the device from the AllShare list.

1. In the Home screen, select Settings, and

2. Select Network, and then press the

3. Select AllShare Settings, and then press the

4. Select Device List, and then press the

button. In the Device List, select a device,

The AllShare Settings pop-up appears.

5. Select Allow, Deny, or Delete from List, and

The AllShare Settings screen only displays devices

if you have estblished network connections to

AllShare devices. For more information about

AllShare networked devices, see page 43.

The "Share hard drive" option should be set to On to

share the contents through AllShare function.

Lets you input a name for the product that will

identify it on your networks.

The Software Update menu allows you to

upgrade the product's software for performance

improvements or additional services.

• Never turn the product off or back on manually during

1. In the Home screen, select the Settings, and

2. Select Support, and then press the

4. Select one of the following methods:

The upgrade is complete when the product turns off, and

then turns on again by itself.

Samsung Electronics shall takes no legal responsibility

for product malfunction caused by an unstable Internet

connection or consumer negligence during a Software

If you want to cancel the upgrade while the upgrade

software is downloading, press the

Your product must be connected to the Internet to

The Connecting to Server message appears.

2. If there is a download available, the Download

pop-up appears with a progress bar and the

download starts. English 37 |

02230D-BD-E8900-XN-ENG.indd 37 2012-02-20 오후 1:43:32Settings

3. When the download is complete, the

Upgrade Query window appears with three

choices: Upgrade Now, Upgrade Later, or

4. If you select Upgrade Now, the product

upgrades the software, turns off, and then

turns on automatically.

5. If you do not make a selection in one minute

or select Upgrade Later, the product stores

the new upgrade software. You can upgrade

the software later using the By Downloaded

6. If you select Don't Upgrade, the product

cancels the upgrade.

Upgrade software using the broadcasting signal.

1. Visit www.samsung.com.

2. Click SUPPORT on the top right of the page.

3. Enter the product's model number into the

search field, and then click Find Product.

4. Click Get downloads in the centre of the

page below the Downloads header.

5. Click Firmware in the centre of the page.

6. Click the ZIP icon in the File column on the

right side of the page.

7. Click OK in the pop-up that appears to

download and save the firmware file to your

8. Unzip the zip archive to your computer. You

should have a single folder with the same

name as the zip file.

9. Copy the folder to a USB flash drive.

10. Make sure no disc is inserted in the product,

and then insert the USB flash drive into the

USB port of the product.

11. In the product's menu, go to Settings >

Support > Software Update.

There should be no disc in the product when you upgrade

the software using the USB Host jack.

When the Software update is done, check the software

details in the software update menu.

Do not turn off the product during the software update.

It may cause the product to malfunction.

Software updates using the USB Host jack must be

performed with a USB flash memory stick only.

1. Follow Steps 1 through 7 in By USB.

2. Unzip the zip archive to your computer. You

should have a single folder with the same

name as the zip file.

3. Write the folder onto a disc. We recommend

4. Finalize the disc before you remove it from

5. Insert the disc into the product.

6. In the product's menu, go to Settings >

Support > Software update.

When the system upgrade is done, check the software

details in the software update menu.

Do not turn off the product during the Software update.

It may cause the product malfunction.

The By Downloaded option lets you upgrade

using a file the product downloaded earlier but

you decided not to install immediately or a file

downloaded by the product in Standby Mode.

1. If upgrade software has been downloaded,

you will see the software version number to

the right of By Downloaded.

2. Select By Downloaded, and then press the

want to upgrade. Select Yes. The product

4. When the update is complete, the product

turns off automatically, and then turns on.

When the system upgrade is done, check the software

details in the software update menu.

Do not turn off the product during the software update.

It may cause the product to malfunction.

Standby Mode Upgrade

You can set the Standby Mode Upgrade function

so that the product downloads new upgrade

software when it is in Standby mode.

In Standby mode, the product is off, but its Internet

connection is active. This allows the product to

download upgrade software automatically, when

you are not using it.

1. Press the ▲▼ buttons to select Standby

Mode Upgrade, and then press the

2. Select the desired time.

If you select the desired time, the upgrade is

automatically performed time.

To use Standby Mode Upgrade function, your product

must be connected to the Internet.

02230D-BD-E8900-XN-ENG.indd 39 2012-02-20 오후 1:43:32Media Play

Insert a Disc to the Disc tray 1. Place a disc gently into the disc slot with the disc’s label facing up. Playback starts automatically.2. If playback does not start automatically, please refer to "Accessing the AllShare Play Screen" on pages 40~41. | NOTE |

\ In TV view mode, the 6 button will function as Timeshift rather than its original function, playback even if there is a disc inserted.

\ In Home screen, the 6 button will function as playback of multimedia content in the disc. Insert a USB or Mobile Phone to

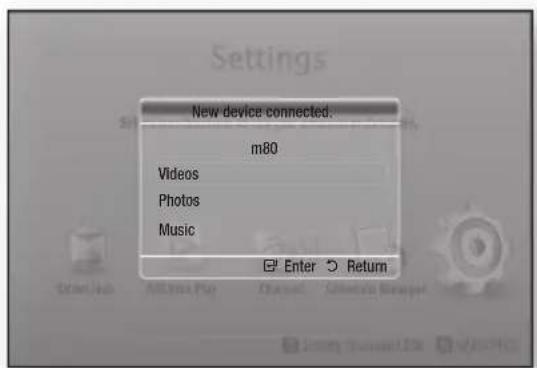

the USB port You can play multimedia files located on a USB or mobile phone. To play contents located on your mobile phone, the product and mobile phone should be connected with USB cable. If your mobile phone is DLNA compatible, you can play contents without connecting USB cable. (See pages 41~43)1. Connect the USB or mobile phone to the USB port on the front panel of the product.2. Select Videos, Photos, or Music, and then press the v button. Depending how the contents are arranged, you will see either folders, individual files, or both.3. Select the desired files.4. Press the RETURN button to exit a folder or to return to Home screen screen. | NOTE |

\ You must remove the USB storage device safely (by Performing the "Safely Remove USB" function) in order to prevent possible damage to the USB memory.

\ If you insert a disc when playing a USB storage device, the device mode changes to "DVD or CD" automatically. Accessing the AllShare Play

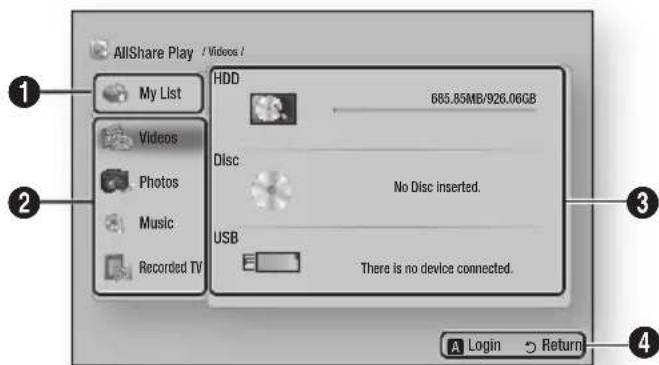

Screen You can play content located on a disc or USB device through the AllShare screen1. Select AllShare Play on the Home screen, and then press the v button.2. Select the desired contents, and then select the desired device.My ListVideosPhotosMusicRecorded TV685.85MB/926.06GBNo Disc inserted.There is no device connected.

4 Smart Hub ChannelAllShare PlaySet various functions to suit your personal preferences.c Safety Remove USB d WPS(PBC)Schedule Manager Settings

My List : Lets you check a recently played or

Shows the list of contents viewed recently.

- If selected file is deleted or the storage device

containing selected file was removed, a message

of the selected file is unavailable will appear.

- Shows contents in the order of time, based on

the device’s system time.

- Lists up to 48 items.

It shows a new contents.

You can build your own playlist grouping desired

- You can store up to 12 playlists.

- Up to 100 files can be listed into each playlist.

- If a playlist is created as music playlist, only

music files can be added to the list.

Contents Type : Lets you select a desired contents.

Device Type : Lets you select a desired connected

Displays the coloured buttons on your remote that

you can press to access or perform functions.

Select a desired contents (Videos,Photos or Music), and

then highlight the desired files. Press the TOOLS button,

and then select Add to Playlist.

The video files played via DLNA will be listed in My List

only when the network connection has been established.

Blu-ray/DVD/CD disk contents will not be listed in My List.

Using the AllShare Play function

AllShare Play lets you play Videos, Photos,

or Music located in your PC or your DLNA

compatible devices, Facebook, SugarSync and

Family Story on the BD-HDD Combo with network

To use AllShare with your PC, you must install

AllShare software on your PC.

Once the connection is established, you can not only play

the video content but also transfer data between devices

using the Allshare feature.

For more information, refer to pages 48~50.

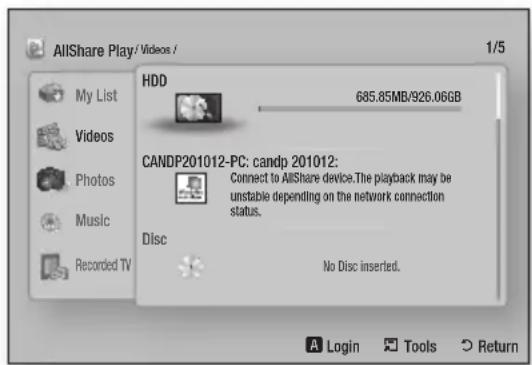

1. Connect the BD-HDD Combo and DLNA

compatible products to the same network .

2. Select AllShare Play in the Home screen,

3. Select the connected DLNA compatible

product name, and then press the

4. Select desired file on the screen, and then

HDD : You can play content that is stored in

Disc : You can play content that is stored in

USB : You can play content that is stored in

the USB memory. My ListVideosPhotosMusicRecorded TVConnect to AllShare device.The playback may be unstable depending on the network connection status.No Disc inserted.CANDP201012-PC: candp 201012: Disc AllShare Play / Videos /

a Login / Tools ' Return 1/5

Camera : You can play content that is stored

in the connected camera.

DLNA : You can play content that is stored in

the connected storage device.

Picasa : You can play content that is stored

SugarSync : You can play content in the

Cloud service that you are registered with.

Family Story : You can play content that is

stored in Family Story.

Facebook : You can play content that is

stored in the facebook.

To enable some of the services, you should have been

logged in with the respective user account for that

Once you have logged in to Smart Hub with a registered

Samsung account, you can add an account with that

particular service by selecting Account Manager.

Application may require to be installed through Samsung

Apps for services not appearing on the factory default.

Some services may require logging in, and you can

manage your login account on Smart Hub.

Some services may require creating account and

subscription to a website of corresponding service.

To download the AllShare software

To use AllShare with your PC, you must install

AllShare software on your PC.

You can download the PC software and get

detailed instructions for using AllShare from the

Samsung.com website.

1. Go to www.samsung.com.

2. Click Support at the top of the page.

3. On the Support page, enter the model

number of your product into the Model

4. On the page that appears, click Get

downloads on the left side under Downloads.

The Download Centre appears.

5. On the Download Centre page, click the

6. On the software tab, click the File icon on the

right side of the AllShare line.

7. In the pop-up that appears, click Save File.

8. Find the AllShare install file on your disk, and

then double click the file.

9. In the pop-up that appears, click Run, and

then follow the directions that appear on your

02230D-BD-E8900-XN-ENG.indd 42 2012-02-20 오후 1:43:3505 Media Play

Controlling with your mobile device

Use your mobile device to view files stored in

your computer, played by BD-HDD Combo. (Only

available with Samsung mobile devices supporting

AllShare functionality.)

You can get detailed instructions for using AllShare

Once the connection is established, you can not only play

the video content but also transfer data between devices

using the Allshare feature.

For more information, refer to pages 48~50.

Playing content located in your PC on

You can view shared files of your computer on

You can get detailed instructions for using AllShare

from the Samsung.com website.

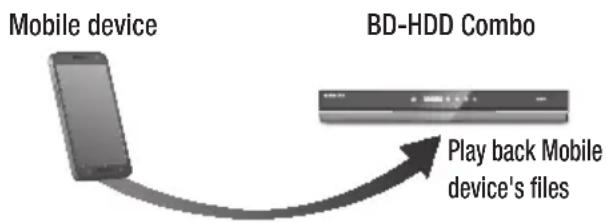

Playing content located in your Mobile

device on the BD-HDD Combo

You can view shared files of your Mobile device to

You can get detailed instructions for using AllShare

Control PC's files to

Controlling Video Playback You can control the playback of video content located on a Disc, USB, mobile device or PC. Depending on the disc or contents, some of the functions described in this manual may not be available. Buttons on the Remote Control used for Video Playback

Using the disc menu, title menu, popup

\ Some discs may not support this button.TITLE MENU buttonDuring playback, press this button to display the Title menu.• If your disc has a playlist, press the GREEN (B) button to go to the playlist.POPUP MENU buttonDuring playback, press this button to display the Popup menu. Using the Tools Menu During playback, press the TOOLS button.Play from the BeginningSelect to return to the beginning of the movie, and then press the v button.Title SearchIf there is more than one movie on the disc or device, select to start a different title.1. Select Title Search, and then press the

v button.2. Use the ▲▼ buttons to select a title, and then press the v

button.Chapter SearchSelect to play the chapter of your choice.1. Select Chapter Search, and then press the v button.2. Use the ▲▼ buttons to select a chapter, and then press the v

Playback related buttons The player does not play sound in Search, Slow or Step mode.• To return to normal speed playback, press the 6 button. 6 buttonStarts playback. 5 buttonStops playback. 7 buttonPauses playback.Fast Motion Play During playback, press the 3

2 button, the disc moves to the previous or next chapter or file. | NOTE |

\ If you press the 1 button after three seconds of playback, the current chapter or file will be replayed from the beginning. But, if you press the 1 button within three seconds after playback starts, the previous chapter or file will be played. |

02230D-BD-E8900-XN-ENG.indd 44 2012-02-20 오후 1:43:3705 Media Play

Select to play the movie from a

selected time point.

1. Select Time Search, and then

the time point you want to go to,

You can also use the ◄► buttons

to advance or rewind the movie.

The movie advances or rewinds one

minute each time you press the ◄

Select to repeat a title, chapter, or

- Off : Select to return to normal

- Title : Choose to repeat a selected

where you want repeat play to start

(A). Let the movie play.

where you want repeat play to stop

You must set point (B) at least 5

seconds of playing time after point

Select to change the full screen size.

Select to set the picture mode.

- Dynamic : Increases sharpness and

- Standard : Choose this setting for

most viewing applications.

- Movie : The best setting for

- User : Lets you adjust the sharpness

and noise reduction function

this menu will not appear.

Select to set the desired audio

Select to set the desired subtitle

- You can also operate this function

by pressing the SUBTITLE button on

Select to view a scene from another

angle. The Angle option displays the

number of angles available to view.

When a Blu-ray Disc/DVD contains

multiple angles of a particular scene,

you can change angle.

Select to set the desired bonusview

Select to go to the list of videos on the

Select to view video file information.

Depending on the disc or storage device, the Tools menu

may differ. See pages 48~50 for addtional options.

Video files with high bit rates of 20Mbps or more strain

the player's capabilities and may stop playing during

Controlling Music Playback You can control the playback of music content located on a Disc, USB, mobile device or PC. Buttons on the Remote Control used

1 NUMBER buttons : Press the number of a track. The selected track is played. 2

5 button : Stops a track. 3 Skip : During playback, press the GREEN (B) or YELLOW (C) button to move to the previous or next page of the playlist. 4 Fast Play (Audio CD (CD-DA) only)During playback, press the 3

4 button. Each time you press the 3

4 button, the playback speed will change. 5

7 button : Pauses a track. 6

6 button : Plays the currently selected track. Using the Tools Menu During playback, press the TOOLS button. View See pages 48~50.Folder viewSee pages 48~50.TitleSee pages 48~50.ArtistSee pages 48~50.AlbumSee pages 48~50.GenreSee pages 48~50.Play selectionSee pages 48~50.Go to PlaylistSee pages 48~50. Rip The Ripping function converts CD audio to the mp3 format and saves the converted files on a USB device connected to the player. See Ripping on page 47.InformationSelect to see the (Contents) information: File size, date created, etc. | NOTE |

\ Depending on the disc or storage device, the Tools menu may differ. See pages 48~50 for addtional options. Repeating Tracks on an Audio CD You can set the product to repeat tracks on an audio CD (CD-DA/MP3).1. During playback, use the ► button to select in the lower right corner of the screen, and then press the v button.2. Use the ▲▼ to select the repeat mode you want - Off, One Song, or All - and then press the

v button. Shuffling Tracks on an Audio CD You can set the product to play tracks on an audio CD (CD-DA/MP3) at random.1. During playback, use the ► button to select in the lower right corner of the screen, and then press the v button.2. Use the ▲▼ to set the Shuffle mode On or Off, and then press the v button.

bc Page Move / Tools ' Return AllShare Play / Music / Audio CDTRACK 001 02:38TRACK 002 03:17TRACK 003 05:21TRACK 004 05:34TRACK 005 02:54TRACK 006 03:44TRACK 007 04:07TRACK 008 03:42TRACK 009 03:15TRACK 010 03:16 1/14 00:03 / 02:38  TRACK 001

Creating a Playlist from a CD

1. With the Playback screen displayed, press

the TOOLS button. The Tools menu appears.

selection screen appears.

3. Use the ▲▼ buttons to select a track, and

button. A check appears

to the left of the track.

4. Repeat Step 3 to select and check additional

5. To remove a track from the list, move to the

track, and then press the

The check on the track is removed.

6. When done, press the ► button to select

Play, and then press the

Music Playback screen reappears listing only

the tracks you checked. The selected tracks

You can create a playlist with up to 99 tracks on Audio

If you have created a playlist, Play selection is replaced by

Edit Playlist on the Tools menu.

On the Play selection screen, you can also choose Select

All, Deselect All, and Cancel.

- Use Select All to select all tracks. This cancels your

individual track selections. When you press the

RETURN button on your remote or select

button, all tracks will appear

on the Music Playback screen, and the product will

begin to play all tracks from Track 001.

- Use Deselect All to deselect all selected tracks at once.

Then, select individual tracks or use Select All to select

all the tracks, and then press the RETURN button

on your remote or select

button. If you do not use Select All or select

individual tracks, the Playlist will not change.

- Cancel cancels any changes you made on the Play

Select screen. When you return to the Playback screen,

the Playlist will be unchanged.

1. Insert a USB device into the USB jack on the

rear of the product.

2. With the Playback screen displayed, press

the TOOLS button. The Tools menu appears.

3. Use the ▲▼ buttons to select Rip, and

4. Use the ▲▼ buttons to select a track, and

button. A check appears

to the left of the track.

5. Repeat Step 3 to select and check additional

6. To remove a track from the list, move to the

track, and then press the

The check on the track is removed.

7. When done, press the ► button to select

Rip, and then press the

button to begin the ripping process.

The Ripping Completion Bar popup appears.

9. When ripping is complete, the "Ripping is

completed" message appears. Press the

10. Press the RETURN button to go back to the

This function is not available with DTS Audio CD.

This function may not be supported by some discs.

This function will be encoded to the .mp3 format at 192kbps.

1. Insert an Audio CD (CD-DA).

If your disc has CD information, pop-up

screen will be displayed.

first track will be played automatically.

When the product is disconnected from the network, it

may not retrieve the CD information from the Audio CD

02230D-BD-E8900-XN-ENG.indd 47 2012-02-20 오후 1:43:38Media Play

Playing Photo Contents You can play photo contents located on a Disc, USB, mobile device or PC. Using the Tools Menu During playback, press the TOOLS button.Go to Photos List Select to go to the list of photos on the current media.Start Slide Show Select to start the slide show.Slide Show SpeedSelect to set a slide show's speed.Slide Show EffectSelect to set a slide show's special effects.Background Music OnSelect to listen to music while viewing a slide show.Background Music SettingSelect to set the background music setting.Picture ModeSelect to set the picture settings. - Dynamic : Choose to increase Sharpness. - Standard : Choose for most viewing applications. - Movie : This is the best setting for watching movies. - User : Lets you adjust the sharpness and noise reduction function respectively. | NOTE |

\ When you use the BD wise function, this menu will not appear. Zoom Select to enlarge the current picture. (Enlarge up to 4 times)RotateSelect to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.)Play selectionSee pages 48~50.Login/OutSee pages 48~50.InformationShows the picture information. | NOTE |

\ Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed.

\ To enable the background music function, the photo file must be in the same storage media as the music file. However, the sound quality can be affected by the bit rate of the MP3 file, the size of the photo, and the encoding method.

\ You can't enlarge the subtitle and PG graphic in the full screen mode. Using the Tools Menu when a file

is highlighted When a file is highlighted, press the TOOLS button. View Select to access the sort options: Artist, Genre, Monthly, Latest Date, etc. The sort options that appear depend on the storage and media type.Folder viewAppears in the View function screen. Select to display the folders on the storage device.TitleAppears on the View function screen. Select to sort all photo or video files on a storage device by title.ArtistAppears on the View function screen. Select Artist to sort and then display all music tracks on a storage device by artist.AlbumAppears on the View function screen. Select Album to sort and then display all music tracks on a storage device by album.GenreAppears on the View function screen. Select Genre to sort and then display all music tracks on a storage device by genre. |

02230D-BD-E8900-XN-ENG.indd 48 2012-02-20 오후 1:43:3805 Media Play

Appears on the View function screen.

Select to sort and then display all photo

or video files on a storage device from

the latest to earliest date.

Appears on the View function screen.

Select to sort and then display all photo

or video files on a storage device from

the earliest to latest date.

Appears on the View function screen.

Select to sort all photo or video files on

a storage device by the month created.

Play selection lets you select specific

music, video, and photo files to play.

It works essentially the same for all

media. The example below is for

1. On the selection screen, use the

▲▼◄► buttons to select a

photo you want to view, and and

A check mark appears to the left

2. Repeat Step 1 for each photo you

3. To de-select a photo, highlight it,

to select Play, and then press

containing the photos you selected

5. To pause the slide show, press the

button once. To restart the

After the slide show begins, you can

control the slide show by pressing

the TOOLS button and displaying

the Slide Show menu. See "Using

the Tools Menu" page 48.

Select Send to upload selected files to

Picasa, Facebook, SugarSync or Family

To use Send, you need to establish an

account with the on-line site, and then

log in using the Log In function.

1. Use the ▲▼◄► buttons to

2. Repeat for each track or file you

You can also move to Select All on

the right, and then press the

button to select all tracks or files.

3. Select Send on the right side, and

on line site you want to upload the

The Log In/Out function lets you log in

to your online Samsung account.

Select to create a playlist or add files

or tracks to a playlist.

1. Use the ▲▼◄► buttons to

highlight a track or file, and then

2. Repeat for each track or file you

3. Select Add to Playlist on the right,

4. On the screen that appears,

perform one of the following

• Select the Playlist to which you want

to add the tracks or files and then

• Select Create New, and then press

button. On the keyboard

pop-up that appears, create a name

for the new playlist. Enter numbers

using the numbers on the remote.

Enter letters by using the ▲▼◄►

buttons to move the cursor, and

When finished, move to DONE at

the bottom of the screen, and then

Depending on the screen you are

viewing, select Delete to erase a file

from erasable media (such as a USB

device) or to delete a playlist.

Select Edit Playlist to remove files or

tracks from an existing playlist. The

storage device containing the playlist

must be inserted into or attached to

2. Repeat for each track or file you

You can also move to Select All on

the right, and then press the

button to select all tracks or files.

3. Select Remove on the right side,

After you have sorted by Artist, Genre,

Album,Title, Latest Date, Earliest Date,

or Monthly, select a group that is the

result of the sort (for example, all

pictures taken in August), and then

select Play Current Group to play or

view the files in that group only.

Select to go to the Playlist section of

the Main AllShare screen.

Encoding - which changes by language

or by geographical area - modifies

how the player sorts, arranges, and

presents files or tracks, displays dates,

etc. Select Encoding to change the

encoding to match your language or

Displays media file and content

Depending on the disc or storage device, the Tools menu

may differ. All options may not be displayed.

02230D-BD-E8900-XN-ENG.indd 50 2012-02-20 오후 1:43:3906 DTV Functions

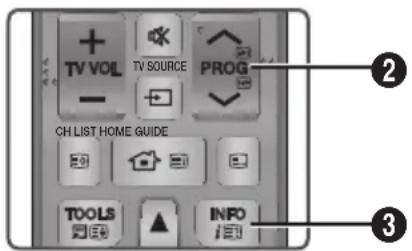

Watching TV Channels

After Tuning is completed, you can watch TV

press the channel numbers of desired TV channel.

information of selected channel.

If you want to watch TV while you are playing Blu-ray

Disc/DVD/CD contents with AllShare, or Internet contents

via Smart Hub, press the EXIT button on your remote

control. With the EXIT button, you can also watch TV

directly on the Menu screen.

Using the Tools Menu

Press the TOOLS button while you are viewing a

Select to adjust the 3D perspective

convert 2D contents into 3D.

Select to adjust the 3D depth of 2D to

convert 2D contents into 3D.

Select this to set the picture mode.

- Dynamic : Choose this setting to

- Standard : Choose this setting for

most viewing applications.

- Movie : This is the best setting for

- User : Lets you adjust the sharpness

and noise reduction function

Select to set the desired audio language.

Dual I II Select to set the desired audio.

You can lock a TV channel by setting

This menu can be displayed when

the country set to Netherlands and

brodcast signal is cable.

Select to change a signal.

Select to Edit Favourites.

Select to check the signal information.

PIP Select to display PIP screen.

- PIP : If you select On, you can use

- Air/Cable : Select to change

- Channel : Select to change channels

- Size : Select to set PIP screen size.

- Position : Select to set PIP screen

- Sound Select : Select one of Main

or Sub which you want to hear the

Select to add a verbal description to the

main audio to help the visually impaired.

Select to set the desired subtitle.

02230D-BD-E8900-XN-ENG.indd 51 2012-02-20 오후 1:43:40DTV Functions

Using the PIP (Picture-In-Picture)

function You can see another TV channel together with the TV Channel you were already watching.1. While you are watching a TV channel, press the PIP button on the remote control. The PIP screen will be displayed.2. If you do not want to use PIP, press the PIP button again while PIP is enabled.3. You can make various settings for PIP using the Tools menu. (See page 51) | NOTE |

\ PIP is not supported in case of both Main and Sub display are paid channel.

\ During Recording, PIP is not supported.

\ PIP and 3D effect can not be enabled in same time.

\ PIP and SMART VIEW can not be enabled in same time. Ğ Viewable channels in PIP mode Main display Sub display Free channel Live view Free channel Live view AvailableFree channel Live view Scrambled channel Live viewAvailable*Scrambled channel Live viewFree channel Live view Available**Scrambled channel Live viewScrambled channel Live viewNot available• With regard to *, if the scrambled channel is displayed in the sub screen, ** will be disabled. (Release the PIP mode and activate it again. Then, ** will be supported.) • With regard to **, if the scrambled channel is displayed in the main screen, * will be disabled. (Release the PIP mode and activate it again. Then, * will be supported.) Editing Channels

Channel List 1. Press the CH LIST button on the remote control to see all channels searched. The Channel List will be displayed. 1 Shows the stored channels. 2 Navigation Help : Displays remote control buttons available.• YELLOW (C) : Displays the Programme information.• ◄►: Shows the channel mode according to channel type. •

v : Displays the selected channel.• ▲▼ : Moves to next or previous page.2. Select desired channel, then press the v

button. The selected channel will be displayed. | NOTE |

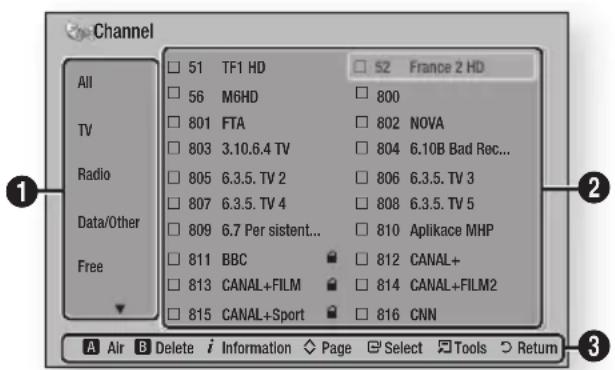

You can manage the stored channels.

1. In the Home screen, select Channel, and

Shows the channel list according to channel type.

Shows the stored channels.

• GREEN (B) : Deletes selected channel.

A channel set as Favourites.

Select this to add the desired favourite

Select this to lock or unlock channels.

Select to edit a channel number.

If this menu does not appear, Select

Channel on the Home screen, and

then select Edit Channel Number. Set

this menu to Enable.

Select this to sort channels.

Select this to check the channel

information of selected or checked

Select this to delete the channel.

Select this to select all channels.

Select this to deselect all channels.

Viewing the Guide Screen

The EPG (Electronic Programme Guide)

information is provided by broadcasters. Using

channel schedules provided by broadcasters,

you can specify channels you want to watch

in advance so that the channel automatically

changes to the selected channel at the specified

time. Channel entries may appear blank or out of

date depending on a channel status.

a Air b Delete i Information ƒ Page " Select / Tools ' Return Channel All

s button - When you select a programme currently being broadcast, you can watch the selected channel in the full screen. - When you select a programme scheduled to broadcast, you can set the Schedule Viewing or Schedule Recording. Press the ◄► button to select the Schedule Viewing or Schedule Recording, then press the s button again. The Timer icon appears on the guide screen. Schedule Manager You can reserve the desired TV programmes using this menu. Make sure that clock must be set before operating this function. (See page 27)1. Select Schedule Manager on the Home screen, and then press the v button.2. Press the RED (A) button.3. Select Schedule Viewing or Schedule Recording, and then press the v button.4. Fill the input items, and then press the v

\ In the guide view, Schedule Viewing and Schedule Recording schedules are not displayed. Using the Teletext Service If DTV programme supports teletext signal, you can use teletext service. For Teletext information is displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.1. Press TTX/MIX button while you are viewing a TV channel.2. By pressing the TTX/MIX button repeatedly, you can change or exit the teletext mode. FUNCTIONTV SOURCEPOWERRECEIVERDIGITALSUBTITLEINPUT 1 2 3

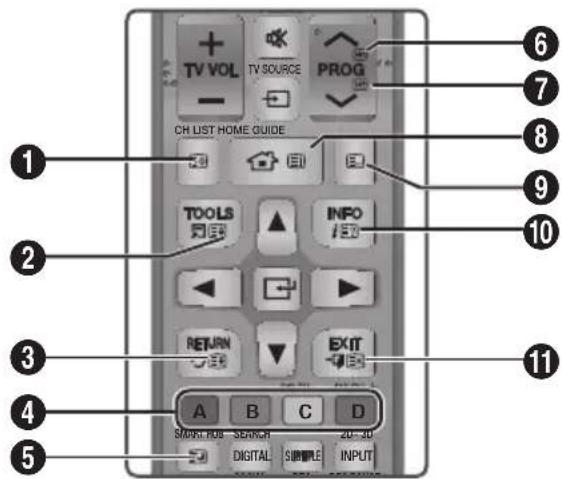

: Displays the teletext on the upper half of the

screen in double-size. To move the text to the lower

half of the screen, press it again. For normal display,

press it once again.

: Holds the display at the current page, in the

case that there are several secondary pages that

follow automaticially. To undo, press it again.

Colour buttons (red, green, yellow, blue) : If the

FASTEXT system is used by the broadcasting

company, the different topics on a Teletext page are

colour-coded and can be selected by pressing the

coloured buttons. Press the colour corresponding to

the topic of your choice. A new colourcoded page

is displayed. Items can be selected in the same

way. To display the previous or next page, press the

while you are viewing Teletext.

: Selects the Teletext mode (LIST/ FLOF). If

pressed during LIST mode, switches the mode to

List savemode. In List save mode, you can save a

Teletext page into a list using the 8(store) button.

: Displays the hidden text (answers to quiz

: Shrinks the Teletext display to overlap with the

Typical Teletext page

A Selected page number.

B Broadcasting channel identity.

C Current page number or search indications.

Teletext TTX/MIX control is available only when the DTV

programme support teletext signal.

E F DA B C English 55

02230D-BD-E8900-XN-ENG.indd 55 2012-02-20 오후 1:43:42Advanced Function

Recording Before recording• Please check the default recording device and available storage size in storage device for recording. (please refer to “Storage Device Manager" on page 28.)• At least 100MB of free space is required for recording. • Recording will stop if the storage's free space becomes less than 50MB. Checking Available Storage Size To check the available storage size in Recorded TV, Select AllShare Play>Recorded TV> HDD in the Home screen. Highlight the HDD, and then press the INFO button on the remote control. | NOTE |

\ Notes on HDD capacity - This product reserves HDD capacity internally as described below, for function implementations and this reserved portion is not used for recording. * Time Shift : 22GB * Functional Purpose : 5GB - The displayed capacity on OSD which shows approximated available capacity for recording is shown below, calculated based on shipped status. Model Name

Available Size BD-E8900 1TB 904GBBD-E8500 500GB 438GBBD-E8300 320GB 270GB

\ Display of HDD Capacity -The Capacity of the HDD manufacturer is calculated assuming that 1KB = 1,000 Bytes. However, the operating system of the product calculates the capacity of HDD capacity assuming that 1KB=1,024 Bytes,and therefore detected capacity by this product is about 93% of HDD Manufacturer representation. E.g. for a 1TB(1000GB) HDD, this product detect as 931.3 GB. | CAUTION |

\ It is recommended to use recorded or edited files with the product for private purposes only. Recording the current TV channel you

are watching 1. Press the PROG or number buttons to select a TV Channel you want to record.2. Press the REC button.3. If you want to adjust length of the recording, press the v button.4. Select the desired length of the recording, then press the v button. To pause recording 1. Press the REC PAUSE button to pause a recording in progress.2. Press the REC button to resume recording. To stop recording Press the 5 button to stop a recording in progress. Playback control during recording During recording a TV channel, you can search scene or move to the beginning point of recording without influence on the recording through Timeshift function.For more information about Timeshift function, please refer to the Timeshift function.(See pages 58~59) |

Each time this button is pressed, playback

button : Jump to the same scene with

4. ◄ button : Jump to - 10 sec from current

button : Pause the scene while keeping

button : If you are watching the past

scene, the playback point will jump to the

same scene with Live TV. If you are watching

same scene with Live TV, recording will be

Watching other channels during

Recording a TV channel

While a TV programme is being recorded, you can

also watch TV channels.

During the recording, press the PROG or number

buttons to change the channel you want to watch.

You can watch a free or scrambled channel while

recording a free TV channel. If you are recording a

scrambled channel, only a free channel can be watched.

During Recording, DUAL VIEW is not supported

Recorded files of less than 10 seconds are not saved.

Simultaneous Recording

Simultaneous Recording of Two TV Channels

1. While a TV channel is being recorded, move

to other TV channel that you want to record.

2. Press the REC Button.

The recording will be started.

Recording two different paid channel channels at the

same time is not supported.

Watching different TV channels that is not

You can watch yet another channel while

recording two TV channels at the same time.

1. Press the CH LIST button to check which TV

channel is possible to watch.

White coloured TV Channel in Channel List

is what you can move without stopping the

recordings already started.

button to watch the possible

To watch a channel that is not displayed

in white, you need to stop at least one of

currently recording.

If you are watching a TV channel which is

If you are watching a TV channel which is

Select a TV channel what you want to stop the

recording, and the press the

Simultaneous Operation

You can play a disc or enjoy other function during

1. Press the HOME button, and then select the

Smart Hub or AllShare function. But, you can

not select the settings menu unless stop the

You can pause a live TV or start watching the TV

programme from the beginning point you started

Start Timeshift with PLAY button

1. When you are watching a TV channel, press

2. The Timeshift function starts and the

Timeshift bar will appear. Live TV is displayed

on the left side of Timeshift bar.

Start Timeshift with PAUSE button

1. When you are watching a TV channel, press

2. The image of TV programme will be paused,

and then Timeshift bar will appear.

Pause is displayed on the left side of

Timeshift information

You can see current information about Timeshift

button on your remote while

Timeshift function is enabled.

2. Timeshift bar appears as below.

The Timeshift settings are sustained even when you

switch to another channel in Timeshift operation.

In this case, Timeshift of former channel is supported as

history function. (The Timeshift of former channel is still

If Timeshift is started with Play or Pause key, the Timeshift

is sustained until the Stop button is pressed. In case

when the Timeshift operation becomes not available (such

as switching to another application, an analogue channel

or changing the input source), Timeshift stops without a

notification and will resume automatically as soon as the

source is switched to Digital TV.

- The history function supports only for records of

switching within channels of Digital TV source.

- If switched to an analog channel, history and Timeshift

will stop functioning automatically.

- Timeshift automatically stops when selected another

menu in the Home menu. (Stops Timeshift and history

functions that were operating.)

For Timeshift function, 22GB of the internal HDD is

Shows current playback point.

Shows recorded time by Timeshift function.

Playback control button during Timeshift

Each time this button is pressed, playback

All 18:12 Sat 15 NovMulti Movie/Drama+00:00:06/ 00:00:34 4

4. ◄ button : Jump to - 10 sec from current

button : Pause the scene while keeping

Timeshift operation.

button : If you are watching the past

scene, playback point will jump to the same

scene with Live TV. If you are watching the

same scene with Live TV, the Timeshift

function will be stopped.

1. If Timeshift bar is not in pause or past mode,

The message "Do you want to stop the

Timeshift?" will appear.

2. Select OK button and press

3. If the Timeshift bar is in pause or past mode,

Timeshift mode will be changed into Live TV

with above image appears.

Playing the Recorded Title

1. Select AllShare Play on the Home screen,

2. Select the Recorded TV, then press the

The Recorded TV List will be displayed.

4. Select the title you want to play, then press

The selected title will be played back.

Editing the Recorded Title

1. In the Recorded TV screen, select the

desired title you want to edit.

2. Press the TOOLS button.

Splitting a Section of a Title (Divide into

Follow Steps 1 through 3 in the ‘Edit the Recorded

2. Using the playback-related buttons, move to

a point for splitting and then press the

button to select Split.

The split title is divided into two, and the

following titles will be shifted down by one. Part 100:00:00 AllShare Play Recorded TV | Split | No title Playback Controls Scene Search < Jump > Move " Enter00:00:33 / 00:08:21 + Part 200:00:00SplitReturnSelectEnglish 59 |

02230D-BD-E8900-XN-ENG.indd 59 2012-02-20 오후 1:43:45Advanced Function

Splitting a Section of a Title (Partial

Delete) Follow Steps 1 through 3 in the ‘Edit the Recorded Title’.1. Select the Partial Delete, then press the v

button.2. Press the v button at the starting point. The image and starting point time is displayed in the section deletion starting point window.• Select the start and end points of the section you want to delete using the playback related buttons.3. Press the v button at the end point. The image and end point time is displayed in the Section deletion ending point window.4. Press the v button to select Delete.5. Select OK, then press the v button. | NOTE |

\ The minimum length of delete section should be longer than 10 seconds. Copy

Copying Videos, Music or Photos ContentsHDD/DISC/AllShare ;

USB DISC/USB/AllShare ;

HDD HDD/DISC/USB ; AllShareMusic Supported Supported SupportedPhotos Supported Supported SupportedVideos Supported Supported Supported• Disc (CD-DA/CD-R/CD-RW, DVD±R(Finalise)/ DVD+RW/DVD-RW(Finalise)) ; HDD or USB• PTP USB is not available when you copy to USB. • The broadcast signal can be recorded on HDD but copy feature is not supported.1. Press the HOME button. The home screen will be displayed.2. In Stop mode, connect the USB storage device to the USB port on the front panel of the product.3. Select the desired contents type, then press the

v button.4. Select the desired contents.5. Press the TOOLS button.6. Select the Send, then press the v button.7. Press the v button to check desired files.8. Select the Send, then press the v button.To cancel the copying in progress, press the v button. 3D functions

3D Converter This function can convert the 2D output of 2D contents into 3D.1. Connect this product to a TV that supports 3D using an HDMI cable.2. When you play 2D contents, press the 2D

 3D button on the remote control to convert 2D into 3D contents.3. You can toggle between 2D and 3D by pressing the 2D  3D button repeatedly. If you are playing 3D contents in the 3D mode, you cannot use this function.Part 100:00:00 AllShare Play Recorded TV | Partial Delete | No title Playback Controls Scene Search < Jump > Move " Enter00:00:33 / 00:08:21 + Part 200:00:00 End DeleteReturnStart |

button In the following cases:

- When the product is not connected with an HDMI cable

- When the connected TV does not support 3D

- When you are playing 3D contents (disc, file).

2D content is converted into the following 3D formats:

- 1080p 24fps : Output to 1080p 24 fps 3D.

- Others : Output to 720p 3D.

- Photo files : Output to 720p 3D.

2D content that the product can convert to 3D:

- 2D content that supports 3D conversion

- Smart Hub content, DVD Video, BD-ROM, Video files,

photo files, DTV programme, and recorded DTV

(Depending on the disc, a black outline appears.)

Some viewers may experience discomfort while viewing

3D contents such as dizziness, nausea, and headaches.

Adjusting the 3D Depth

The 3D Depth function lets you adjust the 3D

depth of 2D to 3D conversions. Values range from

1 to 10. The higher the number, the deeper the 3D

1. When you are viewing converted 3D

3. Adjust the 3D Depth using the ◄► buttons.

Viewing DTV with the 3D effect

You can experience 3D effect with all live TV

programme and recorded TV programme.

1. During watching the TV programme or

playing recorded TV programme, press the

3D button on your remote control. The

3D menu will appear.

• Side by Side : Displays two images next to

• Top and Bottom : Displays one image

2. Press the ◄► buttons to select the desired

during 3D viewing, displayed image will be

changed into 2D mode.

If you change TV channel during watching DTV in 3D

mode of Side by Side mode, displayed image will be

changed into 2D mode automatically.

When 3D effect of Side by Side mode is enabled, you can

If TV programme is not support Side by Side, Top and

Bottom mode or Auto Detection function, 3D menu

selection OSD is not appear.

3D Effect and SMART VIEW can not be enabled in same

02230D-BD-E8900-XN-ENG.indd 61 2012-02-20 오후 1:43:46Network Services

You can enjoy various network services such as

Smart Hub or BD-LIVE by connecting the product

To use network services, you must first:

1. Connect the product to the network.

2. Configure the network settings.

Using Smart Hub, you can download movies,

videos, and music from the Internet, and access

various for pay or free-of-charge applications

and view them on your TV. Application content

includes news, sports, weather forecasts, stock

market quotes, maps, photos, and games.

For instructions that explain how to use Smart

Hub, follow these steps:

If the home page is updated or revised, the

content mentioned in the user manual may differ

from the actual menus.

1. Go to www.samsung.com.

2. Click Support at the top of the page.

3. On the Support page, enter the model

number of your product into the Model

Number field, and then press Enter button.

4. On the page that appears, click Get

downloads on the left side under Downloads.

The Download Centre appears.

5. On the Download Centre page, click the

The web location of the Smart Hub manual is subject to

change without notice.

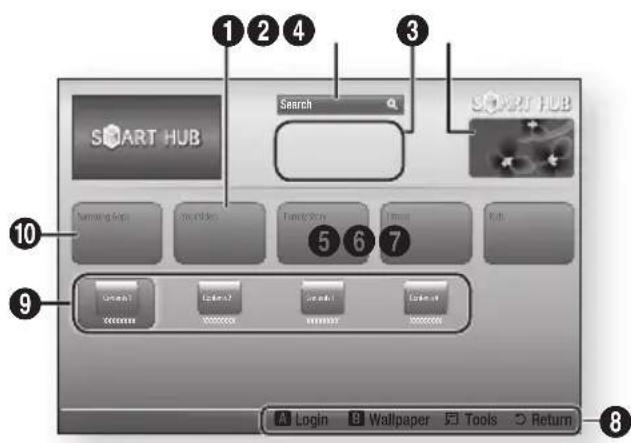

Smart Hub at a Glance

Your Video : Provides recommendations for videos

based on your tastes.

Search : Provides an integrated search of your

video providers and connected AllShare devices.

Recommended : Displays recommended contents

introduction to the product, and new application

Family Story : Effortless way to access family

• Provides access to family photos, messages, and

events, anytime and anywhere.

Fitness : Gateway to the Unified Self-Care Service.

• Presents fitness videos from various content

partners with feedback on calories burned after

Kids : Kids service gives kids an easy and safe way

to enjoy their favorite content.

• Provides a wide variety of fun and safe content

Navigation Help : Displays the remote control

buttons you can use to navigate in Smart Hub.

• RED (A) : To log in to Smart Hub.

• GREEN (B) : To display the background screen.

My Applications : Displays your personal gallery

of applications which you can add to, modify, and

various for pay or free-of-charge application

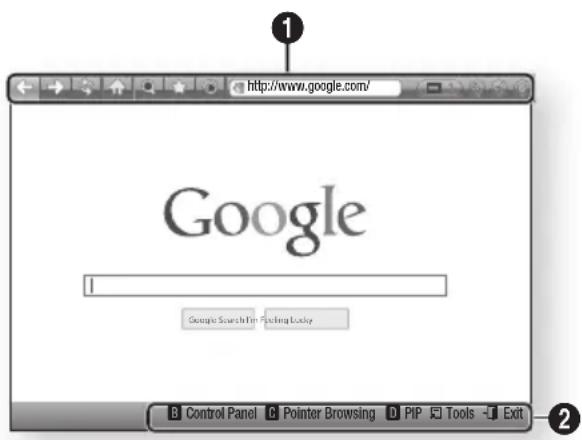

Using the Web Browser

You can access the internet using the Web

Browser application which is installed in the Smart

Hub screen by default.

1. Select Smart Hub on the Home screen, and

2. Select the Web Browser application in Smart

Hub, and then press the

To change PIP channels, press the PROG button on the

The PIP CH+ and PIP CH- buttons on the remote control

When you run the Web Browser with the product connected

by HDMI to a BD Wise compatible TV - and BD Wise is on

- the browser is maximized to fill the screen and the TV's

resolution is set to the optimal resolution automatically.

The Web Browser is not compatible with Java

If you attempt to download a file, and the file can not be

saved, an error message will appear.

The playback of Flash videos is not supported.

E-commerce, for purchasing proudcts online, is not

ActiveX is not supported.

: Moves to the last page before going back.

: Reloads the current page so that it is

refreshed on the screen.

: Moves to the Home screen of the Web

: Allows you to zoom in or out of the screen at

various percentages.

: Allows you to bookmark specific pages so

that you can move to them easily.

: Allows you to view the history of your visited

pages by date, name, or frequency.

• http://www.google.com/ : Allows you to enter a

page address manually or select a page from the

visited page list to move to that page.

: Allows you to switch easily between

multiple, currently open Web Browser windows.

: Allows you to search for information by

: Lets you share the current site with your

family group by sending a message.

: Allows you to configure all settings for using

2 Navigation Help : Displays the remote control buttons you can use to navigate in Web Browser.• GREEN (B) : To display the Control Panel.• YELLOW (C) : To switch the pointer.• BLUE (D) : To use the PIP function.• Tools : To display Tools window.• Exit : To exit the Web Browser. bD-LIVE™ Once the product is connected to your network, you can enjoy various movie-related service contents available on BD-LIVE compliant discs.1. Attach a USB memory stick to the USB jack on the front of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.2. Select Settings on the Home screen, and then press the v button.3. Select Network, and then press the v

button.4. Select BD Live Settings, and then press the v button.5. Select Delete BD Data, and then press the v button.6. Select Select Device, and then press the v button.7. Select USB, and then press the v button.8. Insert a Blu-ray Disc that supports BD-LIVE.9. Select an item from the list of BD-LIVE service contents provided by the disc manufacturer. | NOTE |

\ The way you use BD-LIVE and the provided contents may differ, depending on the disc manufacturer. Samsung Smart View This function is available via Samsung Smart View app for Samsung BD-HDD Combo. To Enjoy Smart View, your BD-HDD Combo and mobile device should be connected via Wi-Fi. The connection can be established as follows1. BD-HDD Combo and mobile device are Connected to the same wireless Router2. Mobile device is connected to BD-HDD Combo directly via Soft AP function in Network Menu. 3. If your mobile device supports Wi-Fi Direct, it can connect to BD-HDD Combo directly via Wi-Fi Direct function in Network Menu. Dual View Enjoy TV channel right from your mobile device that's connected to Samsung BD-HDD Combo. You can view the same channel of TV, or a different channel than selected on TV, on your mobile device at the same time. | NOTE |

\ Available only if the mobile device supports this function.

\ Samsung Smart View is a dedicated application to Samsung smart phone/tablet. If you have a Samsung smart phone/tablet supporting this feature (Smart View), you can download Smart View from Android Market or Samsung Apps and install it on your device. (The compatibility of mobile devices or mobile platform is subject to change in the future.)

\ Viewing two different channels on BD-HDD Combo and mobile device is not available if those are paid channels.

\ When switching to paid-channel in Dual View mode, only the first device among mobile device and BD-HDD Combo that selected a paid channel is allowed to view the paid channel. Once started Dual View mode, changing to another paid channel may not be available due to paid-channel accessing history. In such cases, restart the Dual View again. |

02230D-BD-E8900-XN-ENG.indd 64 2012-02-20 오후 1:43:4809 Appendix

Compliance and Compatibility Notice

NOT ALL discs are compatible

• Subject to the restrictions described below and those noted throughout this Manual, including the Disc

Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded

commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA); BD-RE/R, DVD-RW/-R; and CD-RW/R.

• Discs other than the above cannot and/or is not intended to be played by this product. And some of

the above discs may not play due to one or more reasons provided below.

• Samsung cannot assure that this product will play every disc bearing the BD-ROM, BD-RE/R, DVD-

VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/R logos, and this product may not respond to all

operating commands or operate all features of every disc. These and other disc compatibility and

product operation issues with new and existing format discs are possible because:

- Blu-ray is a new and evolving format and this product may not operate all features of Blu-ray Discs

because some features may be optional, additional features may have been added to the Blu-ray

Disc format after the production of this product, and certain available features may be subject to

delayed availability;

- not all new and existing disc format versions are supported by this product;

- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;

- some discs are produced in a manner that allows specific or limited operation and feature during

- some features may be optional, additional features may have been added after the production of this

product or certain available features may be subject to delayed availability;

- some discs bearing the BD-ROM, BD-RE/R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/R

logos may still be non-standardized discs;

- some discs may not be played depending on their physical state or recording conditions;

- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the

manufacture of discs;

- this product operates differently than a standard DVD product or other AV equipment; and/or

- for reasons noted throughout this user manual and for other reason(s) discovered and posted by

SAMSUNG customer care centre.

• If you encounter disc compatibility or product operation problems, please contact SAMSUNG customer

You may also contact SAMSUNG customer care centre for possible updates on this product.

• For additional information on playback restrictions and disc compatibility, refer to the Precautions,

Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this

user manual. English 65 |

02230D-BD-E8900-XN-ENG.indd 65 2012-02-20 오후 1:43:49Appendix

• Because AACS (Advanced Access Content System) is approved as content protection system for Blu-

ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions

are imposed on playback, analogue signal output, etc., of AACS protected contents.

The operation of this product and restrictions on this product may vary depending on your time of

purchase as those restrictions may be adopted and/or changed by AACS after the production of this

product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for

Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+,

or this product, please contact SAMSUNG customer care centre.

• Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should only connect

your Product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from

copy-protected Blu-ray Disc/DVDs.

• This item incorporates copy protection technology that is protected by U.S. patents and other

intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use,

display, distribution, or revision of television programmes, videotapes, Blu-ray Discs, DVDs, and other

materials may subject you to civil and/or criminal liability.

• Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized copies of

some commercially-produced film and videos and their soundtracks. When a prohibited use of

an unauthorized copy is detected, a message will be displayed and playback or copying will be

More information about Cinavia technology is provided at the Cinavia Online Consumer Information

Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a

postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San

Diego, CA, 92138, USA.

This product incorporates proprietary technology under licence from Verance Corporation and is

protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well

as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark

of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance.

Reverse engineering or disassembly is prohibited.

Network Service Disclaimer

All content and services accessible through this device belong to third parties and are protected by

copyright, patent, trademark and/or other intellectual property laws. Such content and services are

provided solely for your personal noncommercial use. You may not use any content or services in a

manner that has not been authorized by the content owner or service provider. Without limiting the

foregoing, unless expressly authorized by the applicable content owner or service provider, you may

not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or

distribute in any manner or medium any content or services displayed through this device.

SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be terminated or interrupted at any time, and Samsung makes no representation

or warranty that any content or service will remain available for any period of time. Content and services

are transmitted by third parties by means of networks and transmission facilities over which Samsung

has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any

responsibility or liability for any interruption or suspension of any content or service made available

through this device.

Samsung is neither responsible nor liable for customer service related to the content and services.

Any question or request for service relating to the content or services should be made directly to the

respective content and service providers.

Samsung is neither responsible nor liable for customer service related to the content and services.

Any question or request for service relating to the content or services should be made directly to the

respective content and service providers.

• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

• Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380;

6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S.

and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the

Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of

DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

- ABOUT DIVX VIDEO: DivX

is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified

device that plays DivX video. Visit

divx.com for more information and software tools to convert your files into DivX videos.

- ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified

device must be registered in order to play

purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the

DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to

complete your registration.

video up to HD 1080p, including premium content.

and associated logos are trademarks of Rovi Corporation or its subsidiaries

and are used under license.

Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names

may be trademarks of their respective owners

• Rovi Flow-Down Licence Terms (Terms of Use)

- This application incorporates software and technology of Rovi Corporation ("Rovi"). The Rovi software

and technology (collectively, the "Rovi Technology") allows End Users to access music-related data

("Rovi Data") over the Internet and otherwise from proprietary Rovi databases (the "Rovi Databases")

located on Rovi servers (the "Rovi Servers") and to perform other functions. You may access and use

Rovi Data only by means of the intended End User functions of this application software.

- You agree that you will use the Rovi Data, the Rovi Technology, and the Rovi Servers for your own

personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Rovi

Data to any third party. You agree not to use or exploit Rovi Data, the Rovi Technology, the Rovi

Databases, or the Rovi Servers, except as expressly permitted herein.

- You agree that your non-exclusive licence to access the Rovi Databases and to use the Rovi Data,

the Rovi Technology, and the Rovi Servers will terminate if you violate these restrictions. If your

licence terminates, you agree to cease any and all use of the Rovi Data, the Rovi Technology, and the

Rovi Servers. Rovi reserves all rights in Rovi Data, the Rovi Technology, and Rovi Servers, including

all ownership rights. You agree that Rovi may enforce its rights under this Agreement against you

directly in its own name.

- Rovi reserves the right to delete data from the Rovi Databases or to change data categories for any

cause that Rovi deems sufficient. No warranty is made that the Rovi Technology or Rovi Servers are

error-free or that functioning of Rovi Technology or Rovi Servers will be uninterrupted. Rovi is not

obligated to provide you with any new enhanced or additional data types or categories that Rovi may

choose to provide in the future and is free to discontinue its online services at any time.

- The data you submit to use will not be personal data or personally identifiable data, but rather

only data respecting music albums and associated data that does not appear in the Rovi Lookup

Database. You certify that to the best of its knowledge the album to which the submitted data

corresponds is commercially available and that you End User are lawfully permitted to submit the

02230D-BD-E8900-XN-ENG.indd 68 2012-02-20 오후 1:43:5009 Appendix

- To the extent that you, the End User, provide any information or original works of authorship to be

added to Rovi Databases, you represent and warrant that you are the sole author of such work(s)

and further hereby assign to Rovi all rights of copyright therein, including the right to register the

copyright in such work(s) as part of the Rovi Database.

- THE ROVITECHNOLOGY AND EACH ITEM OF ROVI DATA ARE LICENCED TO YOU "AS IS." ROVI MAKES NO REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE ACCURACY OF ANY ROVI DATA ON THE ROVI SERVERS. ROVI DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT.

ROVI DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE ROVI TECHNOLOGY OR ANY ROVI SERVER. IN NO CASE WILL ROVI BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES RESULTING FROM YOUR USE OF ROVI DATA, THE ROVI TECHNOLOGY OR OTHERWISE.

- In the case of using open source software, Open Source Licences are available on the product

• Blu-ray Disc™, Blu-ray™, and the logos are trademarks of Blu-ray Disc Association.

Recommendation - EU Only

• Hereby, Samsung Electronics, declares that this BD-HDD Combo is in compliance

with the essential requirements and other relevant provisions of Directive 1999/5/

The official Declaration of Conformity may be found at http://www.samsung.com, go to Support >

Search Product Support and enter the model name.

This equipment may be operated in all EU countries. In France, this equipment may only be used

Additional Information

• For some 3D discs, to stop a movie during 3D playback, press the

button once. The movie

stops and the 3D mode option is de-activated.

To change a 3D option selection when you are playing a 3D movie, press the

The Blu-ray menu appears. Press the

button again, then select 3D Settings in the Blu-ray

• Depending on the content and the position of the picture on your TV screen, you may see vertical

black bars on the left side, right side, or both sides.

• Depending on the disc type, some aspect ratios may not be available.

• If you select an aspect ratio and option which is different than the aspect ratio of your TV screen,

then the picture might appear to be distorted.

• If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).

BD Wise (Samsung Products only)

• When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise

appears in the Resolution menu.

• If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function.

For proper operation of BD Wise, set the BD Wise menu of both the product and the TV to On.

• Be sure to select the correct Digital Output or you will hear no sound or just loud noise.

• If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby Digital,

DTS), the audio signal outputs as PCM.

• Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.

• Even when PCM Downsampling is set to Off, some discs will only output downsampled audio

through the optical digital outputs.

- If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS), the

product may output PCM 2ch downmixed audio even though you selected Bitstream (either

Reencoded or Unprocessed) in the setup menu.

- If your TV is not compatible with PCM sampling rates over 48kHz, the product may output

BD-LIVE Internet Connection

• What is a valid certificate?

When the product uses BD-LIVE to send the disc data and a request to the server to certify the

disc, the server uses the transmitted data to check if the disc is valid and sends the certificate

back to the product.

• The Internet connection may be restricted while you are using BD-LIVE contents.

• In the external memory mode, disc playback may be stopped if you disconnect the USB device in

the middle of playback.

• Only those USB devices formatted in FAT file system (DOS 8.3 volume label) are supported.

We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster

• The Resume Play function may not work after you format the storage device.

• The total memory available to Delete BD Data may differ, depending on the conditions.

• Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user

• This function is not available if the HDMI cable does not support CEC.

• If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function.

Selecting the Audio Language

• The ◄► indicator will not appear on the screen if the BONUSVIEW section does not contain any

BONUSVIEW audio settings.

• The languages available through the Audio Language function depend on the languages that are

encoded on the disc. This function or certain languages may not be available.

• Some Blu-ray Discs may allow you to select either the PCM or Dolby Digital audio soundtrack in

Selecting the Subtitle Language

• Depending on the Blu-ray Disc / DVD, you may be able to change the desired subtitle in the Disc

Menu. Press the DISC MENU button.

• This function depends on the selection of subtitles that are encoded on the disc and may not be

available on all Blu-ray Discs/DVDs.

• Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a

• This function changes both the primary and secondary subtitles at the same time.

• The total numbers of primary and secondary subtitles are displayed respectively.

• If you press the SUBTITLE button on the remote control, the subtitle bar appears.

Press the RETURN button to remove the subtitle bar.

Resolution according to the output mode

Resolution of Blu-ray

Max. Resolution of TV

576p/480p 576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

DTV smart resolution is activated only when resolution option is set to Auto.

If the TV you connected to the product does not support Movie Frame or the resolution you selected, the message "If no

pictures are shown after selecting Yes, please wait for 15 seconds before returning to the previous resolution. Do you want

to change the resolution?" appears. If you select Yes, the TV’s screen will go blank for 15 seconds, and then the resolution

will revert to the previous resolution automatically.

If the screen stays blank after you have changed the resolution, remove all discs, and then press and hold the

on the front of the product for more than 5 seconds. All settings are restored to the factory default. Follow the steps on the

previous page to access each mode and select the Display Setup that your TV will support.

When the factory default settings are restored, all stored user BD data is deleted.

The Blu-ray Disc must have the 24 frame feature for the product to use the Movie Frame (24Fs) mode.

PCM 2ch PCM PCM 2ch Re-encoded DTS Re-encoded

Dolby Digital Re-encoded DTS Re-encoded

Dolby TrueHD Up to PCM

PCM 2ch Dolby TrueHD Dolby Digital Re-encoded DTS Re-encoded

PCM 2ch DTS DTS Re-encoded DTS Re-encoded

DTS Re-encoded DTS Re-encoded

DTS Re-encoded DTS Re-encoded

Dolby Digital Re-encoded DTS Re-encoded

Re-encoded DTS Re-encoded

Decodes the main feature

audio stream together

into PCM audio and adds

Navigation Sound Effects.

Outputs only the main

feature audio stream so that

your AV receiver can decode

the audio bitstream.

Navigation Sound Effects.

* If the Source Stream is 2ch or mono, "Re-encoded Dolby D" setting is not applied. Output will be PCM

** If the Audio Description is set to On, audio output will be changed Dolby Digital even if the original

broadcast stream is Dolby Digital Plus.

Before requesting service, please try the following solutions.

PROBLEM SOLUTION No operation can be performed with the

• Check the batteries in the remote control. They may need replacing.

• Operate the remote control at a distance of no more than 6.1m.

• Remove the batteries and hold down one or more buttons for several

minutes to drain the microprocessor inside the remote control to reset it.

Reinstall the batteries and try to operate the remote control again.

Disc does not play. • Ensure that the disc is installed with the label side facing up.

• Check the region number of the Blu-ray/DVD disc.

Disc Menu does not appear. • Ensure that the disc has disc menus.

The prohibition message appears on the

• This message appears when an invalid button is pressed.

• The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles).

• You’ve requested a title or chapter number or search time that is out of

Play mode differs from the Setup Menu

• Some of the functions selected in the Setup Menu may not work properly if

the disc is not encoded with the corresponding function.

The screen ratio cannot be changed. • The Screen Ratio is fixed on your Blu-ray/DVD disc.

• This is not a problem with the product.

No audio. • Make sure you have selected the correct Digital Output in the Audio Options

The screen is blocked • If the HDMI output is set to a resolution your TV cannot support (for

example, 1080p), you may not see a picture on your TV.

button (on front panel) for more than 5 seconds with no disc

inside. All settings will revert to the factory settings.

• When the factory default settings are restored, all stored user BD data is

Forgot password • Press the

button (on front panel) for more than 5 seconds with no disc

inside. All settings including the password will revert to the factory settings.

Don’t use this unless absolutely necessary.

• When the factory default settings are restored, all stored user BD data is

02230D-BD-E8900-XN-ENG.indd 76 2012-02-20 오후 1:43:5109 Appendix

PROBLEM SOLUTION If you experience other problems. • Go to the contents and find the section of the user manual that contains the

explanations regarding the current problem, and follow the procedure once

• If the problem still cannot be solved, please contact your nearest Samsung

authorized service centre.

The picture is noisy or distorted • Make sure that the disc is not dirty or scratched.

No HDMI output. • Check the connection between the TV and the HDMI jack of the product.

• Check if your TV supports 480p, 720p, 1080i, 1080p HDMI input

Abnormal HDMI output screen. • If random noise appears on the screen, it means that TV does not support

HDCP (High-bandwidth Digital Content Protection).

I can see folders shared through AllShare,

but I cannot see the files.

• AllShare shows only files corresponding to the Videos, Photos, and Music

categories. Files that do not correspond to these categories may not be

Video is played intermittently. • Check if the network is stable.

• Check if the network cable is properly connected and if the network is not

• The wireless connection between the DLNA compatible device and the

product is unstable.

Check the connection.

AllShare connection between product and PC

• The IP address under the same subnetwork should be unique.

If they are not, IP interference can cause this phenomenon.

• Check if you have a firewall enabled.

If so, disable the firewall function.

PROBLEM SOLUTION BD-LIVE I cannot connect to the BD-LIVE server. • Check whether the network connection is successful or not by using the

Network Status menu. (See page 27)

• Check whether the USB memory device is connected to the product.

• The memory device must have at least 1GB of free space to accommodate

the BD-LIVE service.

You can check the available size in Delete BD Data. (See page 27)

• Check whether the BD-LIVE Internet Connection menu is set to Allow(All).

• If all above fails, contact the contents provider or update the product to the

When using the BD-LIVE service, an error

• The memory device must have at least 1GB of free space to accommodate

the BD-LIVE service.

You can check the available size in Delete BD Data. (See page 27)

"Performance test failed." message appears,

and also Schedule Recording / recording and

Timeshift function does not work.

• Using lower quality USB storage device not supporting Recording function

can cause this kind of problem.

It is recommended to use USB HDD storage device.

• Recommended specification of USB HDD is at least 5400 rpm.

USB HDD of RAID type is not supported.

When the factory default settings are restored, all stored user BD data is deleted.

If you contact us to repair your product, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the product.

2. You bring the unit to a repair centre and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or begin any

work on your product.

We recommend you read this manually thoroughly, search for a solution on line at www.samsung.com,

or contact Samsung Customer Care before seeking to repair your product.

Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 %

Wireless LAN Built-in

BD-E8300 320GB BD-E8500 500GB BD-E8900 1TB

- Network speeds equal to or below 10Mbps are not supported.

- Design and specifications are subject to change without prior notice.

- For the power supply and power consumption, refer to the label attached to the product.

- Weight and dimensions are approximate.

02230D-BD-E8900-XN-ENG.indd 79 2012-02-20 오후 1:43:51Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.

charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these

items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of

with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate

that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and

recycle them through your local, free battery return system.

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer

(+30) 210 6897691 from mobile

0 msec and 200 msec.

Tous 18:12 Sat 15 NovMulti Movie/Drama+00:00:06/ 00:00:34 4

576p/480p 576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

@ CONDITIONS DE GARANTIE

All 18:12 Sat 15 NovMulti Film/Drama+00:00:06/ 00:00:34 4

576p/480p 576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

(Dolby D Re-encoded)

DTS DTS Re-encoded DTS Dolby D.

DTS Re-encoded DTS Dolby D.

DTS Re-encoded DTS Dolby D.

Re-encoded DTS Dolby D.

(Dolby D Re-encoded)

Receiver das Audiosignal

(+30) 210 6897691 from mobile

02230D-BD-E8900-XN-GER.indd 81 2012-02-20 오후 5:13:17imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/register

37 Software upgraden

AVCHD (Advanced Video Codec High Definition)

upgraden, Later upgraden of Niet upgraden.

product in de stand Stand-by is gedownload (zie

SugarSync of Family Story te uploaden.

besturing in Smart Hub.

engineering of demontage is verboden.

576p/480p 576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

576p/480p 576p/480p 576i/480i 576i/480i

de computer is instabiel.

@ CONDITIONS DE GARANTIE

(+30) 210 6897691 from mobile
