USER MANUAL Wave Pro EarFun

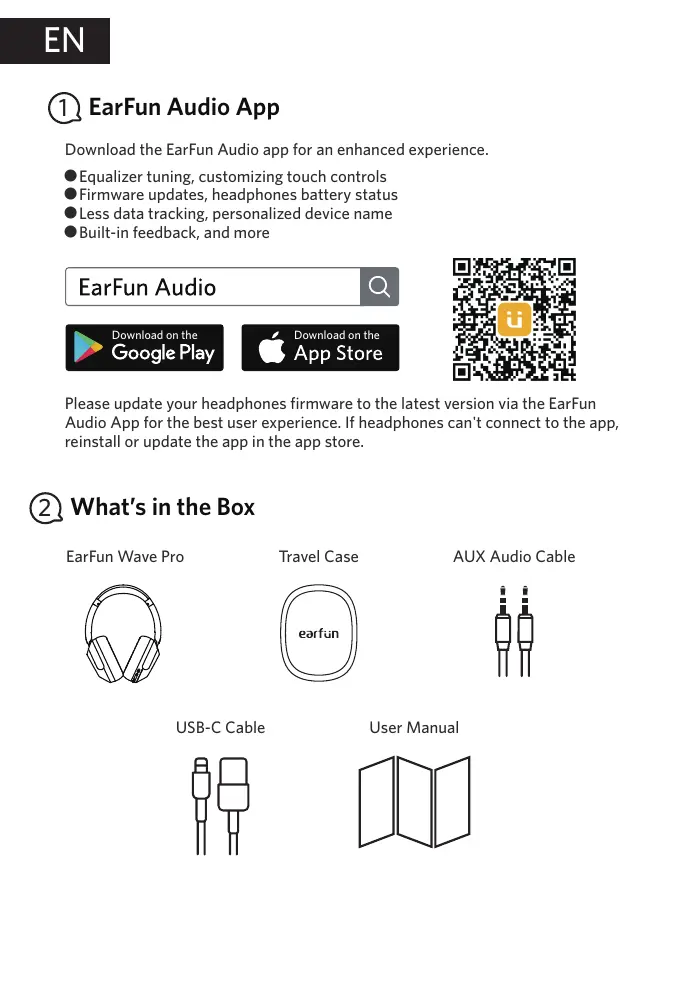

@ EarFun Audio App Download the EarFun Audio app for an enhanced experience. @Equalizer tuning, customizing touch controls rmware updates, headphones battery status @Less data tracking, personalized device name @Built-in feedback, and more EarFun Audio a Download Google Play Please update your headphones firmware to the latest version via the EarFun Audio App for the best user experience. If headphones can't connect to the app, reinstall or update the app in the app store. @ What's in the Box EarFun Wave Pro Travel Case AUX Audio Cable USB-C Cable User Manual

@ Product Diagram © MFB Button © Volume +/- Button © ANC Control Button @ Headphone Status LED indicator © Microphone © 3.5mm AUX Audio Input Jack © USB-C Charging contactor Charging LED indicator @ Pairing Your Headphones 1.First-time Pairing with Device Step 1. Press and hold the MFB button for 2 seconds to power on the headphones. It will automatically enter into pairing mode. Step 2. Activate Bluetooth on your Bluetooth-enabled device and search for other Bluetooth devices. Step 3. Select “EarFun Wave Pro" from the list of Bluetooth devices shown. if a password is needed, type ‘0000'). EarFun Wave Pro

Notes: The headphones will automatically connect with the previously paired device when power on again.

2. Connect to a New Device

Option A Step 1. Unpair the headphones from the Bluetooth-enabled device that's connected. The headphones will disconnect from the current device and go into pairing mode to be paired again. Step 2. Search on the new device and connect.

OléDevics Option B Step 1. Press triple MFB button quickly in connecting status. The headphones will disconnect from the current device and go into pairing mode. Step 2. Search on the new device and connect. EarFun Wave Pro

3. Pairing and Connecting two Bluetooth devices simultaneously

Step1. Pair with the first device and stay connected. Step2. Press triple MFB button quickly. The headphones will enter pairing mode and will disconnected from the first device. Step3. Search on the second device to connect the headphones. Step4. Manually reconnect the headphones on the first device. dress quickly

Device B Device À =) É Notes: The headphones will automatically connect to both devices after finishing setting up the multipoint connection. @Q Functions Power on: Power off: Press and hold MFB button Press and hold MFB button for 2 seconds for 5 seconds Note: Ifthe headphones are not connected to any device, they will automatically power off after 30 minutes for saving the battery life. JA Playing music © Play/Pause ” — a Press once Next track « Q Next trac - 2: Press and hold for 2s Volume u D Volume up da Press once Lez: Press and hold for 25 @ Volume down = a Press once

as Noise cancelling control Noise cancelling / © Normal/ Ambient sound = Wu Press once © Hands free conversation @/ Answer/End a call - Wu Press once @ Reject a call . VW: Press and hold for 2s Answer and transfer 9: two calls V2 Press twice ® Activate the voice assistant © Voice assistant 2 Press twice &@ Game Mode: Please enable in EarFun Audio app

@ Headphones Status LED Indicator Power on White indicator turn on for 1 seconds Power off Red indicator turn on for 1 seconds Pairing mode Indicator flashes white Successfully connected Indicator turns off Factory reset Indicator turn on in pink for 3 seconds A Reset and Reconnecting If you fail to establish a connection between the headphones and Bluetooth devices, please try the following steps:

1. Press and hold MFB button for 5 seconds to power off headphones.

2. Press and hold the MFB button for at least 105 until headphones status LED indicate

in pink, and then release the button. The Headphones have been reset successfully.

3. Power on headphones again and then delete the previous connection from the

Bluetooth device and reactivate Bluetooth to reconnect “EarFun Wave Pro”. Charging

1. Please clean the USB-C charging port before charging.

2. Fully charge the headphones before first use.

3. You can check the headphones battery level from the Bluetooth device or

EarFun Audio app. Red -Charging Turns off - Charging complete Connect USB-C cable for charging

1. The headphones will power off and disconnect Bluetooth connection when

plug-in the AUX audio cable.

2. In AUX input mode, the audio will connect to the transducer directly that

can't control the volume, play/pause by the headphones, and also can't be controlled by the EarFun Audio app. Please use the front-end device to adjust the volume and play/pause. 35mm |" Note: Please ensure that the volume of front-end device is turned down to minimum when connecting the AUX audio. Adjust the volume after putting on this headphones. @ Specifications Connectivity Bluetooth Bluetooth frequency 2.402GHz-2.480GHz Bluetooth profile A2DP, AVRCP, HFP, HSP Bluetooth transmitted power <7dBm (for EU) Maximum working range 15mwithout obstacle) Battery capacity 800mAh Charging time 2hours ANC OFF--Up to 80 hours varies by volume level and audio content) Brie ANC ON--Up to 55 hours {varies by volume level and audio content) Input SV=TA Dimentions 159.7mm x82.4mm x 210.8mm Weight 268

Q: The headphones are turning on, but it doesn't connect to my device? A: To connect the headphones to your device, please ensure headphone is power on, then check if the Bluetooth is enabled. If the Headphones still don't connect to your device, please perform a reset or contact our customer support. Q@: Why is the connection not stable and cuts out intermittentiy? À: Please make sure there are no objects between the headphones and your Bluetooth device and make sure there is no radio or WIFI interference nearby. Q: What is the range of Bluetooth headphones? A: Bluetooth headphones have maximum range of 49 feet (15m, no obstacle). However, the actual range will depend on usage and environment. Q: My headphones will not switch on. A: Please recharge them and make sure they have enough battery power. Ifthey are fully charged and still nothing happens or if you are not able to charge them, please contact our customer support. Q: Will the headphones shut off automatically? A: The headphones will stay on as long as they are connected to a device. If no audio is playing, they will enter power-saving mode and wake up once audio playback resumes. Ifthe headphones are not connected to any devices they will automatically power off after 30 minutes. Customer Service For FAQS and more information: Please send an email to: [e-mail] www.myearfun.com

FCC Statement Changes or modifications not expressiy approved by the party responsible for compliance could void the users authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful nterference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wi not occur in a particular installation. I this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off andon, the useris encouraged ta try to correct the interference by one or more ofthe fallowing measures: _- Reorient or relocate the receiving antennz. Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontralled environment, This ransmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CAUTION Risk of explosion if the battery is replaced by an incorrect type Dispesal of a battery into fre or a hot even, or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. LA Te rent pos eng damage, de ot ten at gh voume vel orne per. BLUETOOTH The Bluetooth word mark and logos are registered trademarks ouned by Bluetooth SIG, Inc. and any use of such marks by Earfun Technology (HK) Limited is under license. LDAC and LDAC logo are trademarks of Sony Corporation Hi-Res Audio Logo and Hi-Res Audio Wireless Logo is used under license from Japan Audio Society Other trademarks and trade names are those of their respective owners. EU Declaration of Conformity Earfun Technology (HK) Limited hereby declares that this equipment is in compliance with the essential requirements and other relevant provisins of Directive 2014/53/EU and RoHS 2011/65/EU Directive. The declaration of conformity may be consulted in the support section of our Web site, accessible from www-myearfun.com UK Declaration of Conformity Hereby, [Earfun Technology (HK) Limited] declares that the radio equipment type [HP200] is in compliance with UK Radio Equipment Regulations (SI 2017/1206). The fulltext of the declaration of conformity is available at the following internet address: www-myearfun.com

ISED Compliance Statements This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RS$(s). Operation is subject to thefollowing two conditions:

1) This device may not cause interference.
