USER MANUAL SHOP/4/840/MM/HD/CAN Commercial Electric

4FT UTILITY SHOP LIGHT WITH MOTION SENSOR AND REMOTE

Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-877-527-0313

HOMEDEPOT.CA

Table of Contents

Safety Information 2
FCC Statement 2
ISED Statement. 2
Warranty 2
Pre-Installation 3
Tools Required 3
Hardware Included. 3
Chain and V-Hook Installation 4

Safety Information

Flush Mount Installation. 5
Using the IR Remote. 6
Battery Replacement. 6
Group Programming 6
Motion Sensor. 7
Troubleshooting 7

For your safety, always remember to:

Double-check all connections to be sure they are tight and correct.
Wear rubber soled shoes and work on a sturdy wooden ladder.
- Account for small parts and destroy packing material, as these may be hazardous to children.

NOTE: This fixture is designed for use in a circuit protected by a fuse or circuit breaker. It is also designed to be installed in accordance with local electrical codes. If you are unsure about your wiring, consult a qualified electrician or local electrical inspector, and check your local electrical code.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Watts: 55W

Volts: 120Vac 60Hz

Current: 0.390A

Product Specifications

120VAC, 60Hz, 55 Watts
- Not Dimmable

WARNING: RISK OF SHOCK. House electric current can cause painful shock or serious injury unless handled properly.

CAUTION: Turn off the main power at the circuit breaker before installing the fixture, in order to prevent possible shock.

NOTICE: All connections must be in accordance with local electrical standards and the National Electrical Code (N.E.C.) or Canadian Electrical Code (C.E.C) as appropriate.

Remove the fixture and the mounting package from the box and make sure that no parts are missing by referencing the illustrations on the installation instructions.

IMPORTANT: THIS FIXTURE IS INTENDED TO ONLY BE INSTALLED DIRECTLY BENEATH A CEILING-MOUNTED RECEPTACLE.

NOTE: Link up to a maximum of 6 fixtures.

Supplier's Declaration of Conformity:

47 CFR § 2.1077 Compliance Information

Responsible Party:

Feit Electric Company

4901 Gregg Road,

Pico Rivera, CA 90660, USA

562-463-2852

Unique Identifier:

SHOP/4/840/MM/HD/CAN

FCC STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. CAN ICES-005 (B).

ISED STATEMENT: This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

LIMITED WARRANTY

This product is warranted to be free from defects in workmanship and materials for up to 5 years from date of purchase. If it fails to do so, please contact the Customer Service Team at 1-877-527-0313 or visit www.homedepot.ca.

NOTE: Hardware images are for illustration purposes only. Actual product size may vary.

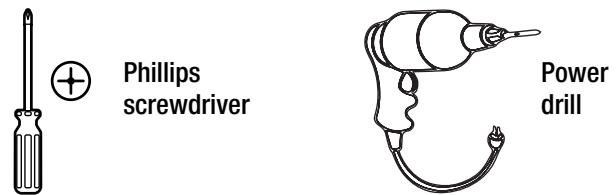

TOOLS REQUIRED

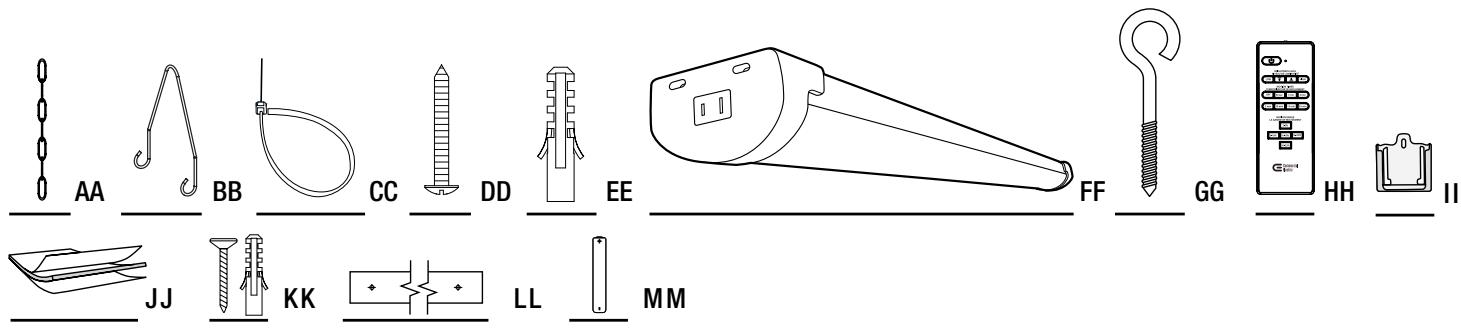

PACKAGE CONTENTS

Part	Description	Quantity
AA	6 in. Hanging Chain	2
BB	V-Hook	2
CC	Zip Tie	2
DD	Mounting Screw	2
EE	Wall Anchor	2
FF	Shoplight Fixture	1
GG	Screw Hook	2
HH	Remote	1
II	Remote Mount	1
JJ	Double Sided Tape (For Remote Mount)	1
KK	Screws with Wall Anchors (For Remote Mount)	2
LL	Mounting Template	1
MM	AAA Batteries 1.5V	2

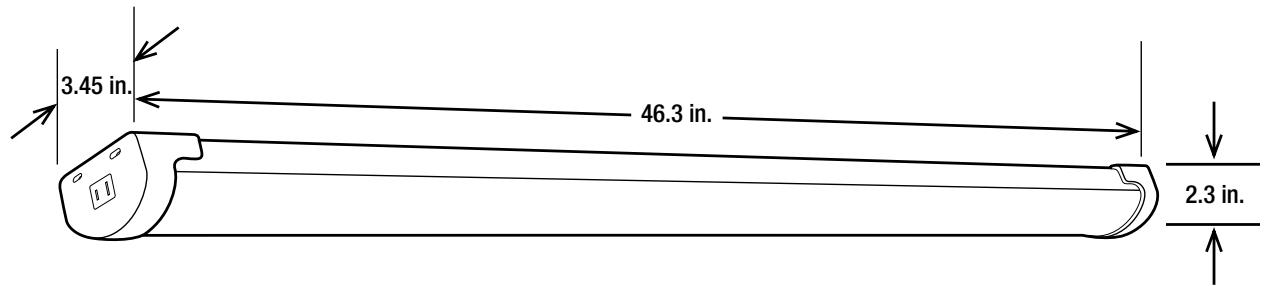

PRODUCT DIMENSIONS

1 Do not plug in

• Do not plug in until installation is complete.

2 Attaching screw hooks

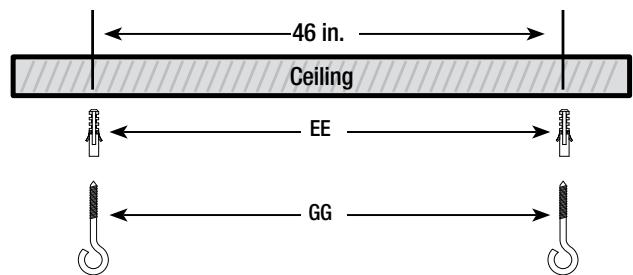

• Attach two screw hooks (GG) to the ceiling. The spacing between the screw hooks should be 46 in. If the ceiling is concrete or drywall, drill two holes using a 7/32 drill bit and insert two anchors (EE).

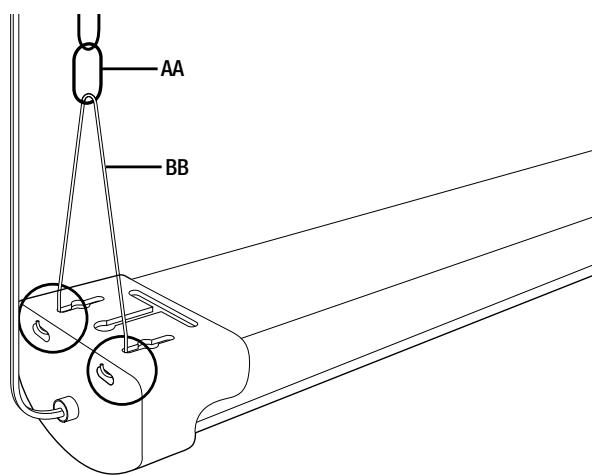

3 Installing the chain to V-hooks

• Attach the chain (AA) to the V-hooks (BB) then insert the hooks into the mounting holes located on the top of the fixture. Do this for both ends of the fixture.

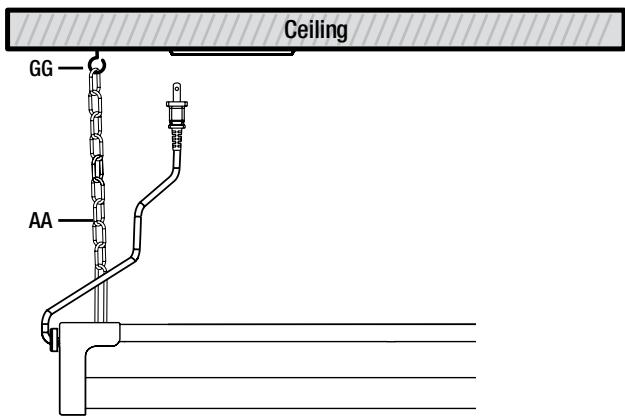

4 Attaching the hanging chain

• Hang the hanging chain (AA) onto the screw hooks (GG) and plug in the power cord to the outlet.

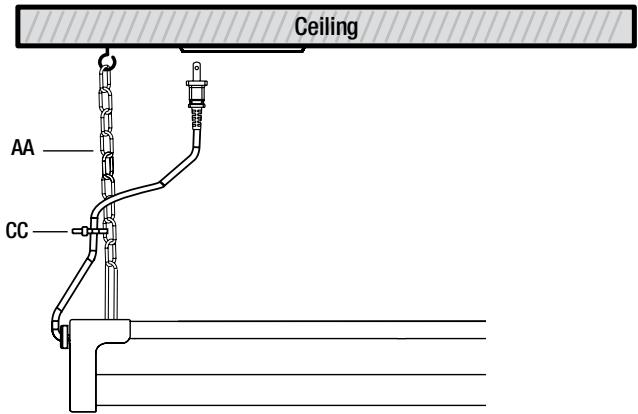

5 Attaching the zip tie

Use the zip tie (CC) to attach the cord to the hanging chain (AA).

6 Turning on the power

Turn the fixture ON/OFF using the provided remote.

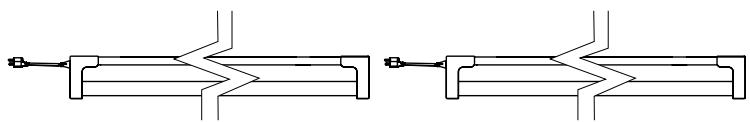

7 Linking multiple shoplights (optional)

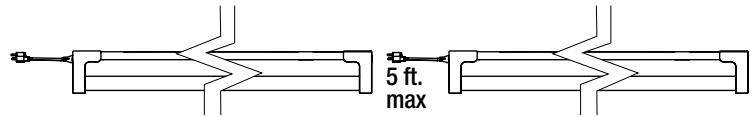

Link up to six. Maximum distance between shoplights is 5 feet.

1 Do not plug in

Do not plug in until installation is complete.

2 Attaching the anchors and screws

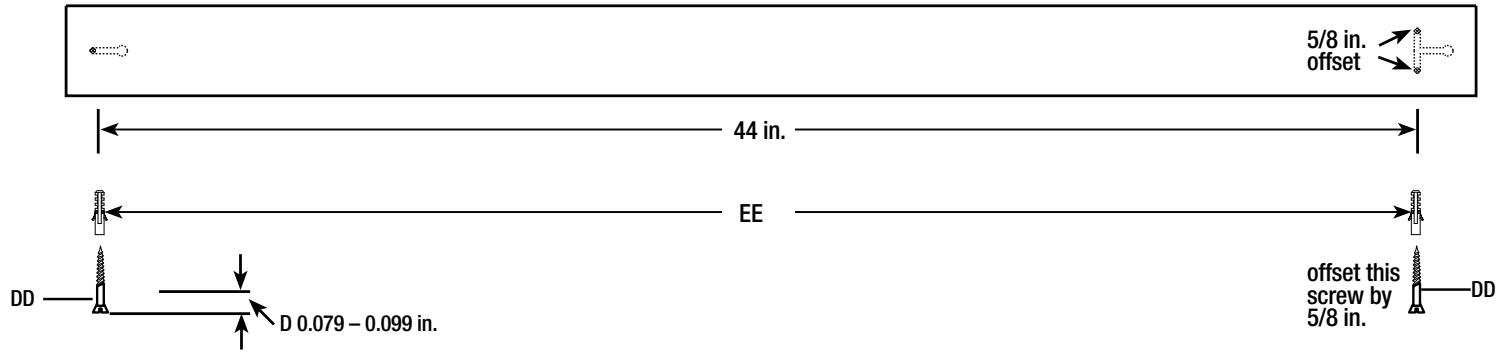

Using the provided mounting template (LL) and install two mounting screws (DD) 44 in. apart. Be sure to offset the right hole (or opposite side) by 5/8 in.
If the ceiling is concrete or drywall, use a 7/32 drill bit to drill two holes and insert two anchors (EE). Be sure to offset the right hole (or opposite side) by 5/8 in.

3 Securing the fixture

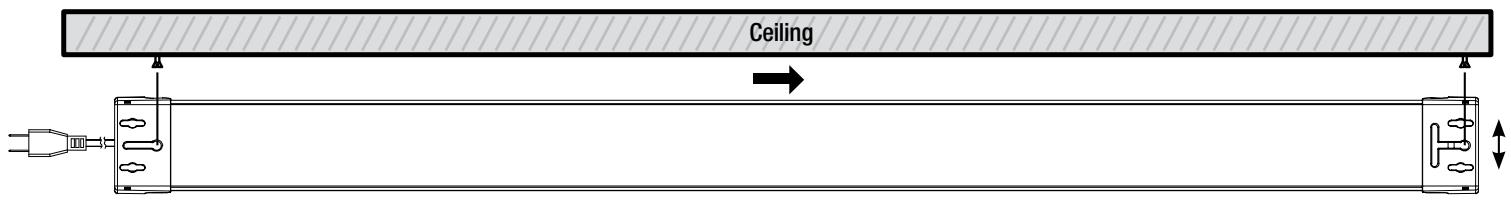

• Lift the fixture (FF) up to the mounting screws (DD) fitting into place thru large openings. The fixture should be firmly fixed against the mounting screws (DD). Push the fixture forward or backward to lock in place. Plug in the power cord to the outlet.

4 Turning on the power

Turn the fixture ON/OFF using the provided remote.

5 Linking multiple shoplights (optional)

Link up to six. Maximum distance between shoplights is 5 feet.

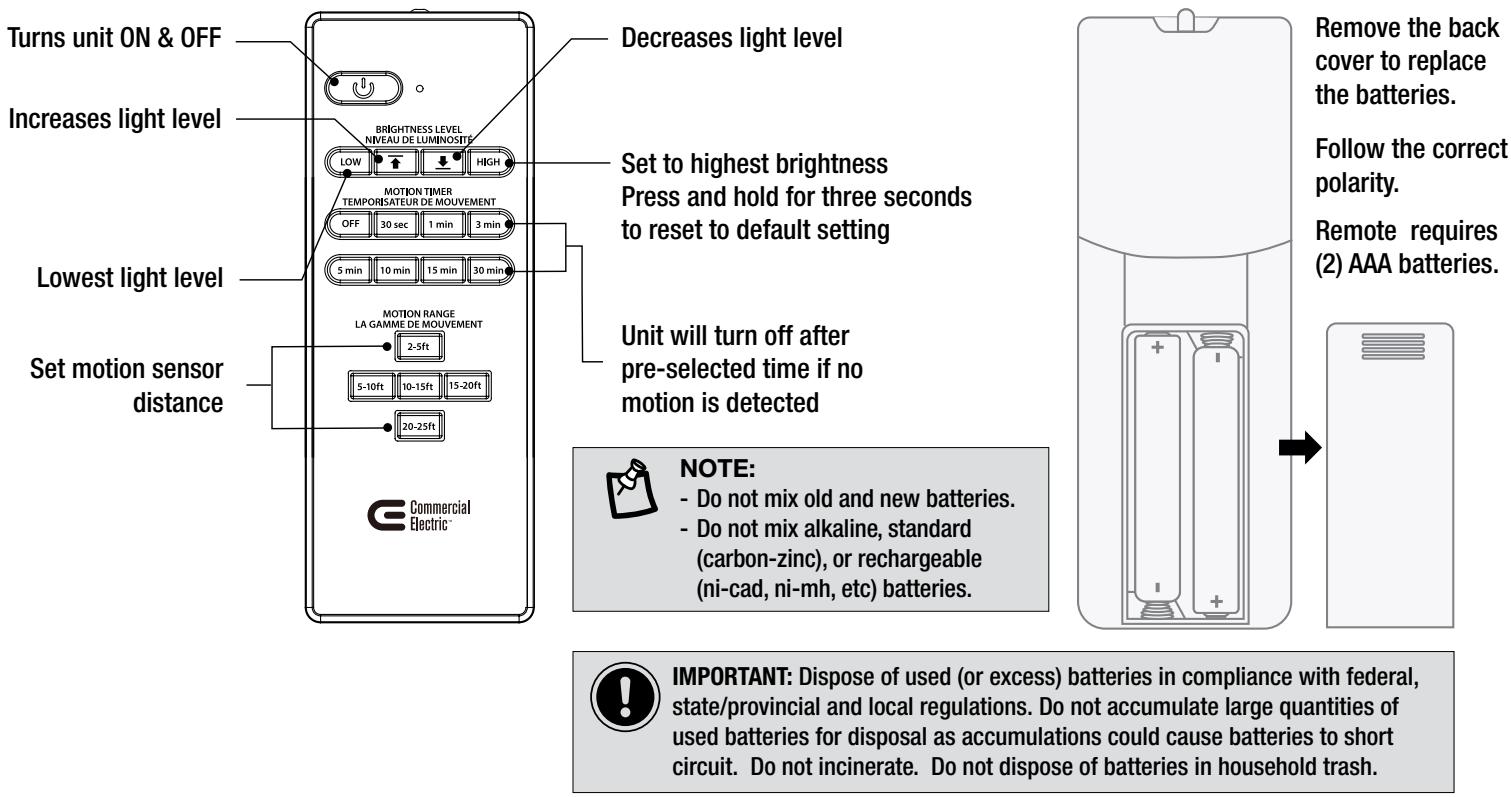

Group Programming

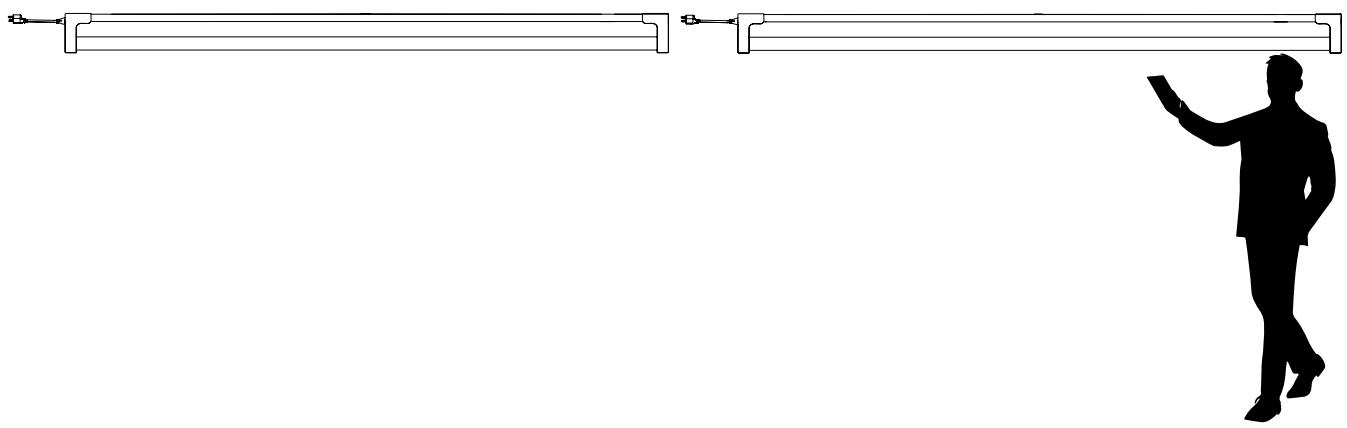

1 Programming multiple fixtures

• Press down and hold the desired brightness light setting (HIGH or LOW). While holding the desired light setting, walk closer towards the fixture until it flashes. The flashing is an indicator that the desired light setting was recorded.
  While holding down the desired light setting, continue walking towards each individual fixture that you intend to link. When the fixture flashes, you have linked successfully (can link up to six).

NOTE: If the fixture did not flash, it did not receive the new light setting.

NOTE: Fixture uses motion sensors which could interfere with WiFi within 5 ft of the unit.

NOTE: All distances are measured from motion sensor not from the fixture.

NOTE: Motion detection works best when walking across the sensor at an angle.

NOTE: Recommended installation height is 7ft.

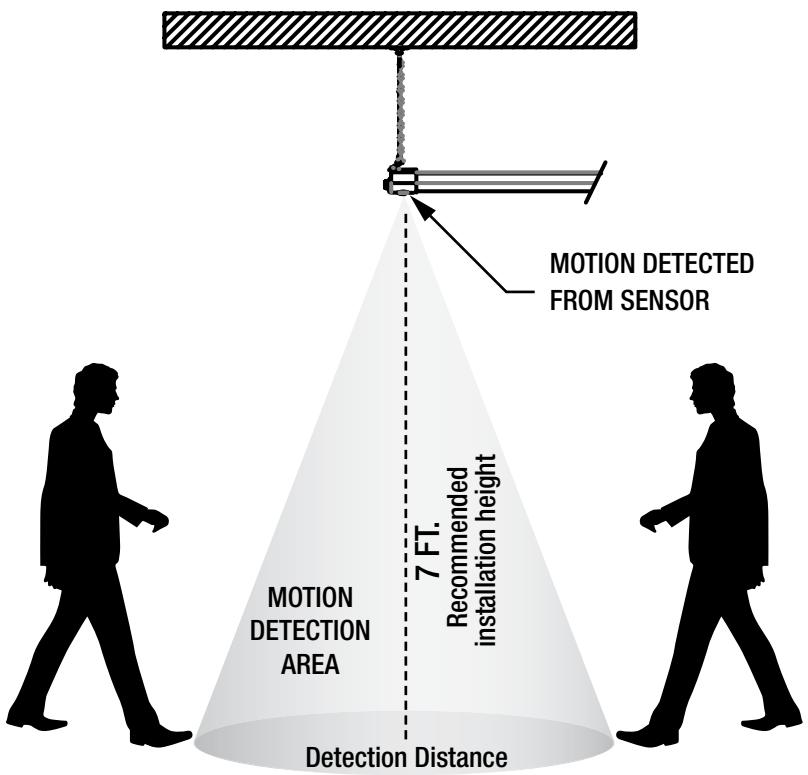

SENSOR DETECTION

Can be adjusted from 2 to 25 feet using the remote control

Approximate radius determined by remote control.

Troubleshooting

Problem	Cause	Solution
Light is not coming out of fixture	Light is not plugged in or is turned off	Plug in and turn on using remote
Fixture does not react to remote	Batteries are inserted incorrectly	Ensure batteries are in the correct orientation
	Remote is out of range	Move closer to fixture
Light turns on without discernable movement	Motion detector triggered	Use remote to select a smaller detection radius (microwave motion detectors can trigger through walls and doors)
Light stays off despite movement	Detection radius too small	Use remote to select a larger detection radius
Light does not go off	Motion detector is being constantly triggered	Use remote to select a smaller detection radius (microwave motion detectors can trigger through walls and doors)
	Motion detection setting is turned off	Use remote to select a motion detection time frame under the label “MOTION TIMER”
Light loses functionality when linked to another light	Faulty cable connection	Ensure cable connections are sound and try again
	Sensor interference	Ensure fixtures are more than 3ft apart from each other

Commercial Electric

Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-877-527-0313

HOMEDEPOT.CA

Retain this manual for future use.

GUIDE D'UTILISATION ET D'ENTRETIEN

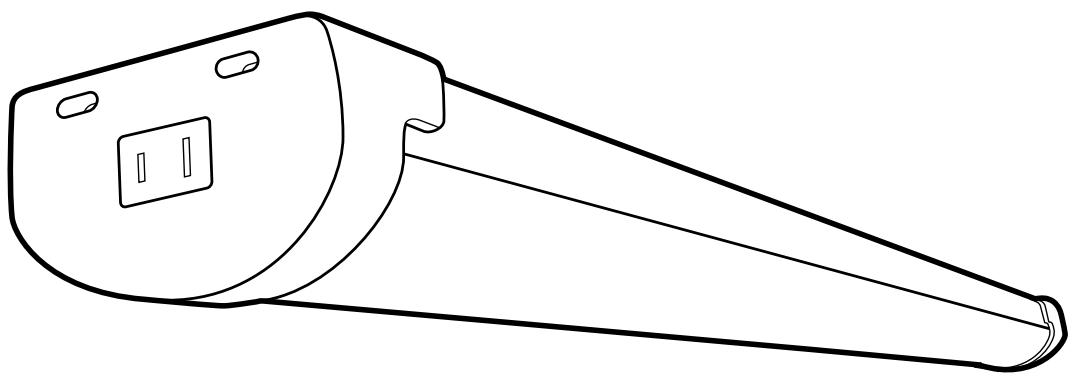

LAMPE D'ATELIER UTILITAIRE DE 4 PI AVEC DETECTEUR DE MOUVEMENT ET TÉLECOMMANDE

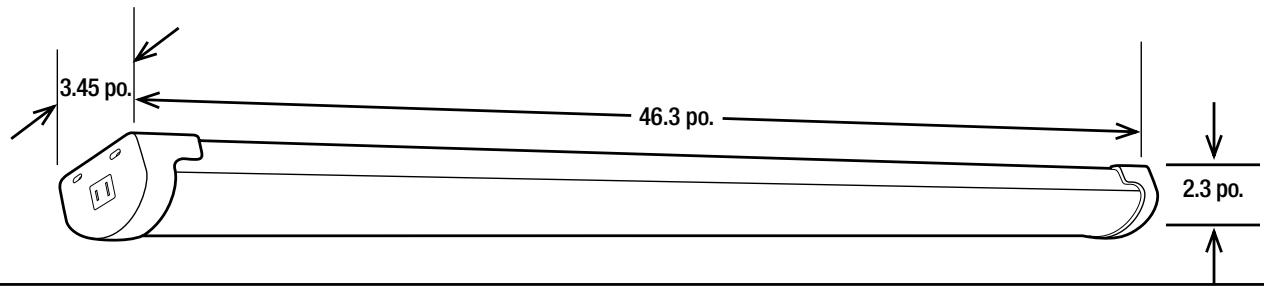

DIMENSIONS DU PRODUIT
