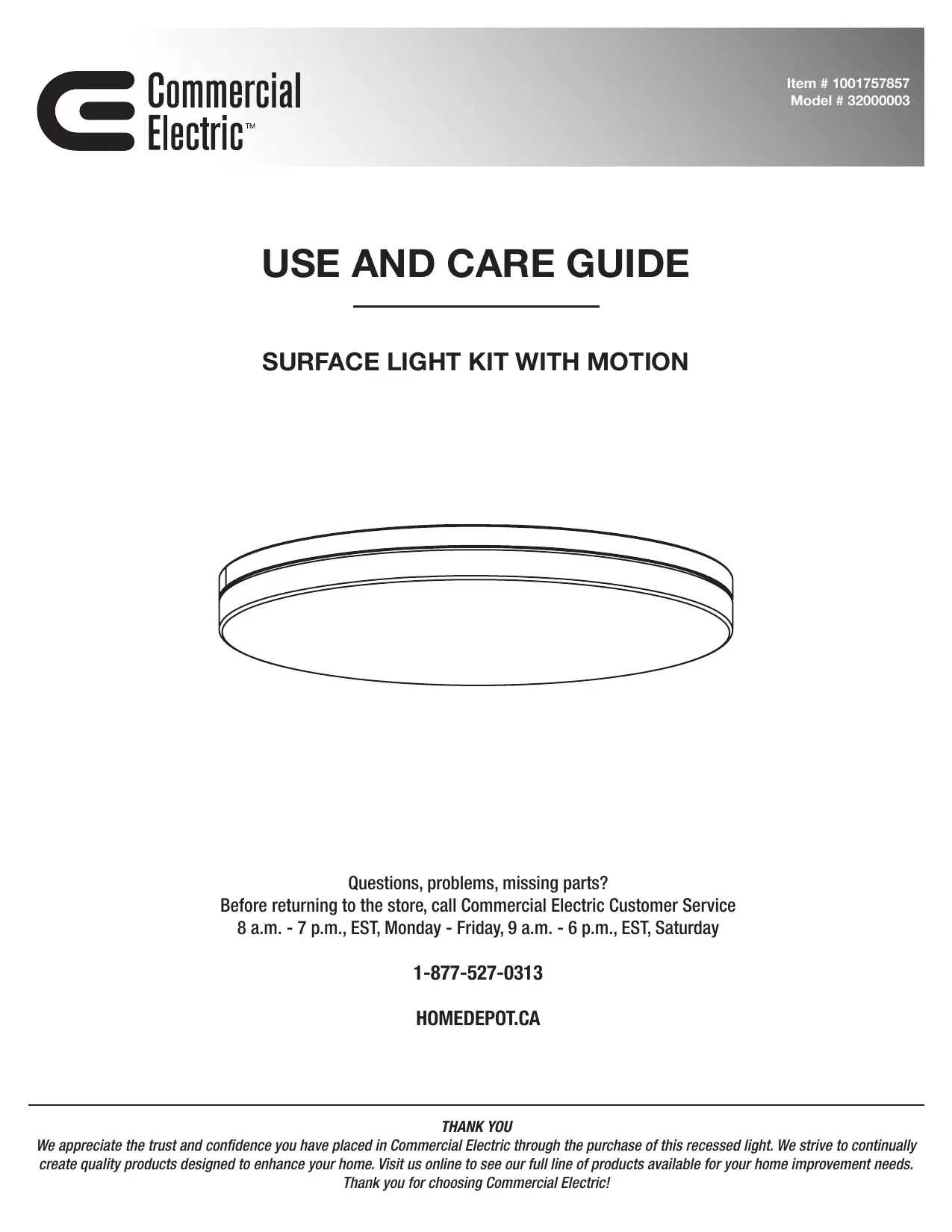

USER MANUAL 32000003 Commercial Electric

Commercial Mt Pan Electric”

Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.CA THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this recessed light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!

THESE INSTRUCTIONS. Most electrical accidents are caused by carelessness or ignorance. Review these basic electrical guidelines before you begin this installation. o Use tools with insulated handles and ladders made of wood or fiberglass. a Keep dry-chemical fire extinguishers in the kitchen, basement, and workshop. a Never disable grounding devices. Ensure all appliances that require grounding are properly grounded, and that the electrical system itself is properly grounded. a Meet or exceed all electrical code requirements that cover the work you are doing. a Always work with enough light to see what you are doing, It is easy to make a mistake when you work in dim light. a Certified Airtight per ASTM E283-04. a When in doubt about the safety of any electrical repair or test, call in a professional. o This fixture is IC rated for direct contact with insulation. o This fixture is intended for indoor or wet location use. a Do not modify this fixture. If any modifications are made, it may render the product unsafe and void the warranty. a RF Radiation Exposure Statement Caution: This transmitter must be installed to provide a separation distance of at least 8 in. (20 cm) from all persons.

WARNING: Before touching any wire, use a voltage tester

to ensure it is not live. check both outlets as each may be controlled by a separate ( WARNING: When you check for voltage in a receptacle, wiring circuit.

WARNING: Before working on a circuit, go to the main

service panel and remove the fuse or trip the breaker that controls that circuit. Tape a sign to the panel warning others to leave the circuit alone while you work.

WARNING: Changes or modifications to this unit not

expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a Reorient or relocate the receiving antenna. a Increase the separation between the equipment and receiver. ao Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. FCC Responsible Party Globe Electric 2264 East Gth Street San Bernardino, CA 92410 www.globe-electric.com

The manufacturer warrants this lighting fixture against defects in materials and workmanship for a period of five years from the date of purchase. If within this period the product is found to be defective in material or workmanship, the product must be returned, with a copy of the bill of sale as proof of purchase, to the original place of purchase. The manufacturer will, at its option, repair, replace, or refund the purchase price to the original purchaser or consumer. This warranty does not cover light bulbs or the fixture becoming damaged due to misuse, accidental damage, improper handling and/or installation, and specially excludes liability for direct, incidental, or consequential damages. As some states do not allow exclusions or limitations on an implied warranty, so the above exclusions and limitations may not apply. This warranty gives you specific rights and you may also have other rights that vary from state to state. Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.ca. Pre-Installation PLANNING INSTALLATION Compare all parts with the Hardware included and Package Contents sections. If any part appears missing or damaged, do not install this product and contact the Customer Service Team at 1-877-527-0313. TOOLS REQUIRED

Ladder Safety goggles (ll Wire strippers Pencil Gloves | Drywall saw 24 Cable clamp Screwdriver K CA IMPORTANT: Please remove dimmer switch before installation, if applicable. Not compatible with wall dimmers. 3 HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.

Installation OPTION 1: INSTALLATION - INTO EXISTING JUNCTION BOX 1 Turning off the power a Place the wall switch in the off position. a Turn the power OFF at the switch and fuse box or the circuit breaker. 2 Removing the junction box and spring-loaded clips a Remove the junction box (B) by removing the screw (BB). a Remove the spring-loaded clips (CC) by lifting the white lock and sliding the clips towards the center opening of the mounting plate. Separating the diffuser from the fixture a Turn the diffuser (AA) counter clockwise to remove from the fixture. 4 Installing the mounting screws a Install the mounting screws (E) into existing junction box, leaving them slightly loose. 5 HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.

Installation (continued) 5 Connecting the wires a Using the quick connect push terminals (D), connect the ground wire from the fixture (A) to the ground wire from the supply circuit, the black wire from the fixture (A) to the black wire from the supply circuit, and the white wire from the fixture (A) to the white wire from the supply circuit. 6 Selecting the brightness a Use the CCT switch inside the fixture (A) to select your preferred color temperature 2700K, 3000K, 3500K, 4000K, 5000K. a Use the motion sensor switch to choose the intensity, low for smaller rooms, high for larger rooms. 7 Attaching the fixture to the existing junction box in the ceiling a Align the keyholes in the fixture (A) with the mounting screws (E) in existing junction box in the ceiling. a Place the fixture (A) over the mounting screws (E) and rotate clockwise to securely fit to the junction box. Tighten screws to secure.

Installation (continued) 8 Securing the diffuser to the fixture a Lift the diffuser (AA) and aim the lock position of diffuser at the one of the fixture (A). Turn the diffuser clockwise to securely lock into the fixture. a Restore power to the electrical box.

OPTION 2: INSTALLATION — NO JUNCTION BOX REQUIRED

1 Turning off the power a Place the wall switch in the off position. a Turn the power OFF at the switch and fuse box or the circuit breaker. 2 Preparing the installation location a Use the template to mark the desired installation location (if you do not already have an existing hole) Recommendation is to install with the smallest hole size option. a Use a drywall saw to cut the opening marked by the template. ao Mark your anchor holes with the template. a Install the anchors (H). a Remove mounting plate (C) from the fixture (A).

Installation (continued)

Selecting the brightness Turn the diffuser (AA) counter clockwise to remove from the fixture (A). Use the CCT switch on the back of the fixture (A) to select your preferred color temperature 2700K, 3000K, 3500K, 4000K, 5000K. Use the motion sensor switch to choose the intensity, low for smaller rooms, high for larger rooms. Put the diffuser (AA) back onto the fixture. Installing the mounting plate Adjust the spring-loaded clips to preferred hole size. Install the mounting plate (C) to align screw slots with anchors. Turn the mounting plate clockwise and tighten screws.

Connecting the wires Open the junction box (B) cover and remove the knockout on the top of the panel. Insert the electrical supply cable through the knockout. Using the quick connect push terminals (D), connect the ground wire from the junction box (B) to the ground wire from the supply circuit, the black wire from the junction box (B) to the black wire from the supply circuit, and the white wire from the junction box (B) to the white wire from the supply circuit. Secure the wire in the knockout hole using a cable clamp {not provided). Place all wiring and connections into the junction box (B) and close the cover.

Installation (continued) Attaching the light fixture to the mounting plate ao Holding the assembled light fixture, line up the back plate clips on the light fixture with the 3 mounting plate slots and turn clockwise to secure into place. a For airtight installations, install the foam gasket (G) between the light fixture (A) and the ceiling. Care and Cleaning a To clean the fixture, first disconnect the power to the fixture by turning off the circuit breaker of by removing the fuse at the fuse box. a Use a dry or slightly dampened, clean cloth (use clean water, never use a solvent) to wipe the surface of the fixture. a Allow the fixture to dry completely before power is restored. 9 HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.

— Commercial Electric” Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.CA Retain this manual for future use.
