USER MANUAL IC-M510 ICOM

IC-M510 IC-MSIOE This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference: Icom inc.

Thank you for choosing this Icom product. This product was designed and buiït with Icom's state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation. HE Important READ ALL INSTRUCTIONS carefully and completely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL —

This instruction manual contains important operating instructions for the IC-M510/C-M510E This instruction manual includes some functions that are usable only when they are preset by your dealer. Ask your dealer for details. E Explicit definitions WORD DEFINITION Personal injury, fire hazard AWARNINGI! lor electric shock may loccur. CAUTION [Equipment damage may loccur. Recommended for NoTE [optimum use. No risk of personal injury, fire or electric shock Icom is not responsible for the destruction, damage to, or performance of any Icom or non-lcom equipment, if the malfunction is because of + Force majeure, including, but not limited to, fires, earthquakes, storms, foods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. + The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. H Features © Fixed mount Class D DSC marine VHF Transceiver © Integrated Wireless LAN for connection with RS-M500. NMEA 2000 connectivity and 2 way Hailer/RX Hailer function © AIS information display input from the built-in AIS receiver* or an external NMEA sentence *May not be built-in, depending on the transceiver version: © New Sleek Design © Wide (neariy 180 degree) viewing angle color TFT LCD with night mode. © Simplified navigation function. © Clear, Loud Audio © White light backlit keys for increased visibility in low-light and dark conditions. © Integrated GPS receiver. © The European version can select the EUR, UK, NLD, and FRG channels. Icom and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. AQUAQUAKE is a trademark of Icom Incorporated. COMMANDMIC is a trademark of com Incorporated. NMEA 2000 and NMEA 0183 are trademarks of the National Maritime Electronics Association, Inc. Android is a trademark of Google, LLC. 1OS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. All other products or brands are registered trademarks or trademarks of their respective holders.

HE In case of emergency If your vessel requires assistance, contact other vessels and the Coast Guard by sending a distress call on Channel 16 or transmit your Distress call using Digital Selective Calling (DSC) on Channel 70. © Using Channel 16

1. Push [16/C] to switch to Channel 16.

2. While holding down [PTT], give the appropriate information as follows:

© “MAYDAY MAYDAY MAYDAY

@‘THISIS[ j'(name of vessel). © Say your call sign or other indication of the vessel (AND your 9 digit DSC ID, if you have one). @ ‘LOCATED AT[ j' (your position). © State the nature of the distress and assistance required. © Give any other information which might facilitate the rescue. © Using Digital Selective Calling

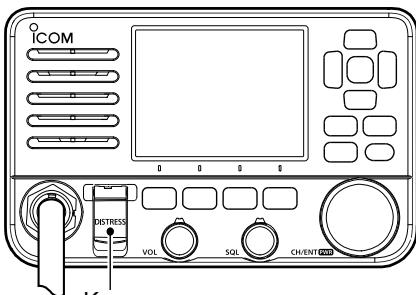

1. Lift up the key cover, hold down [DISTRESS] for 3 seconds until the 3 short beeps

and then one long beep sound.

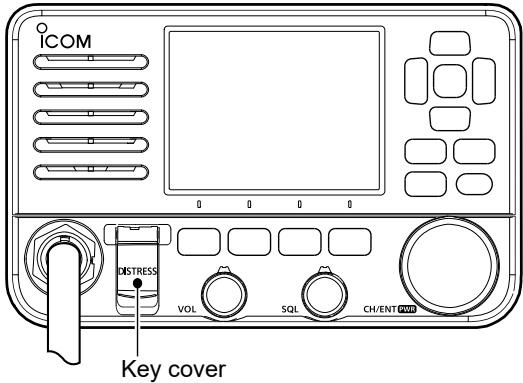

1.O .O Key cover Wait for an acknowledgment from another station After the acknowledgment is received, Channel 16 is automatically selected. Hold down [PTT], then transmit the appropriate information as listed above. BSN

EH Radio operation warning Icom requires the radio operator to meet the FCC Requirements for Radio Frequency Exposure. An omnidirectional antenna with gain not greater than 9 dBi must be mounted a minimum of 5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possible WARNING personnel. This is the minimum safe separation distance estimated to meet all RF exposure compliance requirements. This 5 meter distance is based on the FCC Safe Maximum Permissible Exposure (MPE) distance of 3 meters added to the height of an aduit (2 meters) and is appropriate for all vessels. For watercraft without suitable structures, the antenna must be mounted so as to maintain a minimum of 1 meter vertically between the antenna, (measured from the lowest point of the antenna), to the heads of all persons AND all persons must stay outside of the 3 meter MPE radius. Do not transmit with radio and antenna when persons are within the MPE radius of the antenna, unless such persons (such as driver or radio operator) are shielded from antenna field by a grounded metallic barrier. The MPE Radius is the minimum distance from the antenna axis that person should maintain in order to avoid RF exposure higher than the allowable MPE level set by FCC. FAILURE TO OBSERVE THESE LIMITS MAY ALLOW THOSE WITHIN THE MPE RADIUS TO EXPERIENCE RF RADIATION ABSORPTION WHICH EXCEEDS THE FCC MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT. IT IS THE RESPONSIBILITY OF THE RADIO OPERATOR TO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPOSURE LIMITS ARE OBSERVED AT ALL TIMES DURING RADIO TRANSMISSION. THE RADIO OPERATOR IS TO ENSURE THAT NO BYSTANDERS COME WITHIN THE RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE LIMITS. Determining MPE Radius THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RADIUS HAS BEEN ESTIMATED TO BE A RADIUS OF ABOUT 3 M PER OET BULLETIN 65 OF THE FCC. THIS ESTIMATE IS MADE ASSUMING THE MAXIMUM POWER OF THE RADIO AND ANTENNAS WITH À MAXIMUM GAIN OF 9 dBi ARE USED FOR A SHIP MOUNTED SYSTEM. IC-M510 RF Safety warning An intemal Wireless LAN module and an antenna are supplied with the IC-M510. To comply with FCC/ISED RF Exposure for the installed Wireless LAN unit, the device should be installed and operated with a minimum distance of 20 cm between the device and all persons. No other transmitting antenna is permitted to be located within 20 cm of the device.

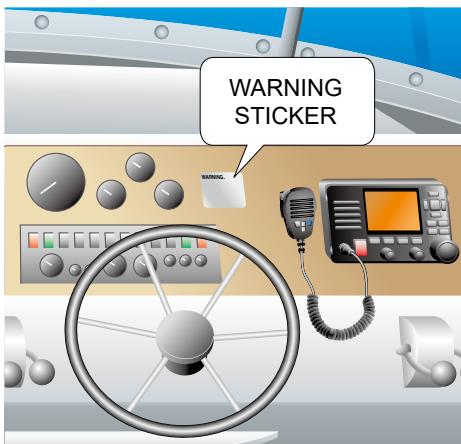

HE Note A WARNING STICKER is supplied with the USA version transceiver. To comply with FCC regulations, this sticker must be affixed in such a location as to be readily seen from the operating controls of the radio as in the diagram to the right. Make sure the chosen location is clean and dry before appiying the sticker. H Precautions À WARNING! NEVER connect the transceiver directly to an AC outlet. This may cause a fire or an electric shock. À WARNING! NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection could cause a fire or damage the transceiver. À WARNING! NEVER reverse the DC power cable polarity. This could cause a fire or damage the equipment. À WARNING! NEVER cut the DC power cable between the DC power connector on the transceiver's rear panel and the fuse holder. if an incorrect connection is made after cutting, the transceiver may be damaged. À WARNING! NEVER operate the transceiver during a lightning storm. lt may result in an electric shock, cause a fire or damage the transceiver. Always disconnect the power source and antenna before a storm. À WARNING! NEVER place the transceiver where normal operation of the vessel may be hindered, or where it could cause bodily injury. WARNING STICKER CAUTION: DO NOT place or leave the transceiver in areas with temperatures below -20°C or above +60°C (4°F or above +140°F), or in areas subject to direct sunlight, such as a dashboard. CAUTION: DO NOT use harsh solvents such as Benzine or alcohol when cleaning. This could damage the equipment surfaces. Ifthe surface becomes dusty or dirty, wipe it clean with a soft, dry cloth. NEVER place the transceiver in an insecure place to avoid inadvertent use by unauthorized persons. BE CAREFULI The transceiver's rear panel will become hot when transmitting continuously for long periods of time. BE CAREFULI The transceiver meets 1PX8 requirements for waterproof protection, However, once the transceiver or microphone has been dropped, or the waterproof seal is cracked or damaged, waterproof protection cannot be guaranteed. NOTE: Install the transceiver and/or microphone more than 1 meter from the vessel's magnetic navigation compass.

EH Wireless LAN information © Precautions on using the wireless LAN + We recommend that users with pacemakers take precautions to be sure that this device does not cause them a problem because of electromagnetic interferences. + Do not use this device near microwave ovens. À microwave oven may cause electromagnetic interference to the communications through this device. + Do not modify the device. The device warranty does not cover any problems caused by unauthorized modification. © Wireless LAN installation location Have the following installation conditions under consideration so that the communication range and speed are not affected. + Install the device in a stable place where there is no danger of falling or vibration. + Do not place anything on top of this device. + The communication range expands in an open space. However, in such location as warehouses with metallic walls, the walls may cause the radio waves to reflect. Radio waves may pass through a wall or window, but not through metal. Some concrete walls are metal reinforcing structures, and may intercept the communication. Heat absorbing glass or IR reflecting glass may intercept the communication. + Communication may not be able to be performed with a wireless LAN installed on a different floor. H Précautions À AVERTISSEMENT ! NE JAMAIS relier l'émetteur-récepteur à une prise CA. Cela pourrait provoquer un choc électrique ou un incendie.

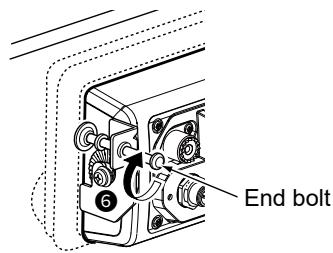

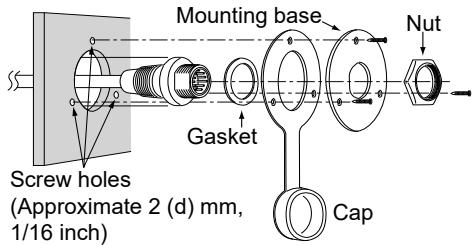

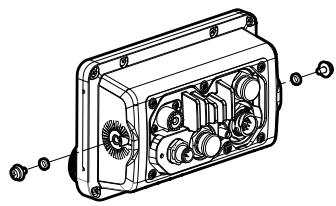

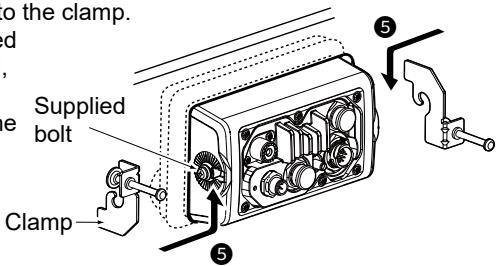

H installation note Installation: The installation of this equipment should be made in such a manner as to respect the EC recommended electromagnetic field exposure limits. (1999/519/EC) The maximum RF power available from this device is 25 watts. The antenna should be installed as high as possible for maximum efficiency and the installation height should be at least 1.76 meters above any accessible position. In the case where an antenna cannot be installed at a reasonable height, then the transmitter should neither be continuously operated for long periods if any person is within a distance of 1.76 meters of the antenna, nor operated at all if any person is touching the antenna. Itis recommended that antenna of a maximum gain of 3 dB is used. f higher gain antenna is required then please contact your Icom distributor for revised installation recommendations. Operation: The exposure to RF electromagnetic field is only applicable when this device is transmitting. This exposure is naturally reduced due to the nature of alternating periods of receiving and transmitting. Keep your transmissions to the minimum necessary. HE Disposal The crossed-out wheeled- bin symbol on your product, literature, or packaging reminds you that in the European Union, all electrical M 27 clectronic products, batteries, and accumulators (rechargeable batteries) must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. H About UKCA DOC Hereby, Icom Inc. declares that the versions of H About CE and DOC IC-M510E which have the C € “CE” symbol on the product, comply with the essential requirements of the Radio Equipment Directive, 2014/53/ EU, and the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive, 2011/65/ EU. The full text of the EU declaration of conformity is available at the following internet address: https:/www.icomjapan.com/support/ To obtain the UKCA Declaration of Conformity, please contact Icom UK Limited by email at info@icomuk.co.uk or alternatively call + 44(0) 1227 741741. For European versions: The following caution is printed on the labels of the transceiver. À CAUTION AVOID TOUCHING REAR PANEL DURING PROLONGED USE. This is because the transceiver's rear panel will become hot when continuously transmitting for long periods of time:

EH Recommendation CLEAN THE TRANSCEIVER AND MICROPHONE THOROUGHLY WITH FRESH WATER after exposure to saltwater, and dry it before operating. Otherwise, the transceiver's keys and switches may become unusable, due to salt crystallization. NOTE: if the transceiver's waterproof protection appears defective, carefully clean it with a soft, damp (fresh water) cloth, then, dry it before operating. The transceiver may lose its waterproof protection if the case or microphone is cracked or broken, the microphone connector is not screwed in completely, or the transceiver has been dropped. Contact your Icom distributor or your dealer for advice. E Key icon description The keys are described in this manual as follows: The keys that have words or letters on them are described with the characters “[]." Example: [MENU], [CLEAR] The Software Keys are described with the icon such as or [DTRS] The function of the keys are shown at the bottom of the display. Push the key below the desired function. You can use the following keys on the Menu screen. FUNCTION ACTION Select Push [Y] or [A], or rotate [CH/ENT]. Enter Push [ENT], or [CH/ENT] Go to the next tree level Push [ENT], [>], or [CH/ENT]. Go back to the previous tree level |Push [CLEARI], or [4]. Cancel Push [CLEAR] or Exit Push [MENU] or CEXE] Information: In this instruction manual, the transceiver model names are described as shown below.

Europe: EUR, General Germany: FRG Netherlands: NLD UK: UK

(DSC). M DSC address ID M Entering the position and time. M Sending DSC calls (Distress). M Sending DSC calls (other)... m Receiving DSC calls (Distress).. M Receiving DSC calls (otren M Mukiple-task mode M DSC Settings. M Making an Individual call to an AIS target 8 AIS FUNCTION . M About AIS... MAIS classes … M Using the Plotter screen M Using the AIS list screen M Setting a Friend... M About the Detail screen MAIS settings. 9 OTHER FUNCTIONS Æ Waypoint …. H MOB (Man Overboard) M Anchor Watch... M Navigation . M Lost target …. M Using the Intercom. M Using the RX Hailer. M Using the Haïler… M Using the Hom function. M Using the Voice Scramblei M Command microphone operation 10 MENU SCREEN . M Using the Menu screen. M Menu items description .

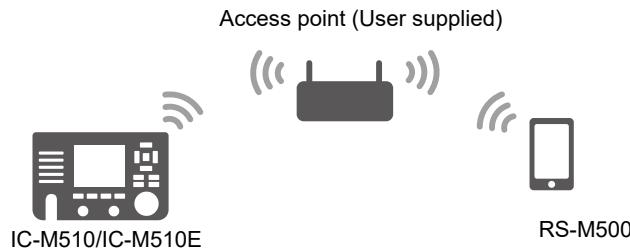

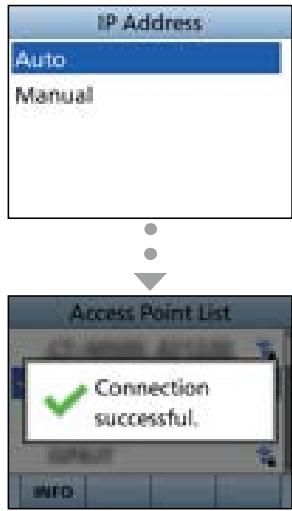

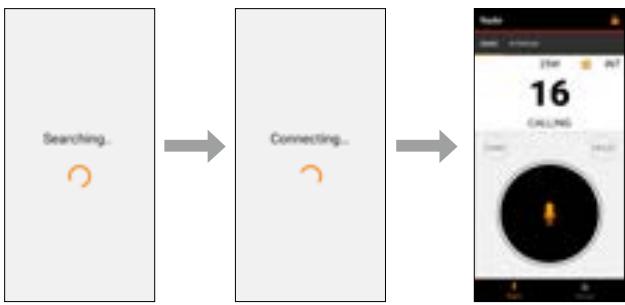

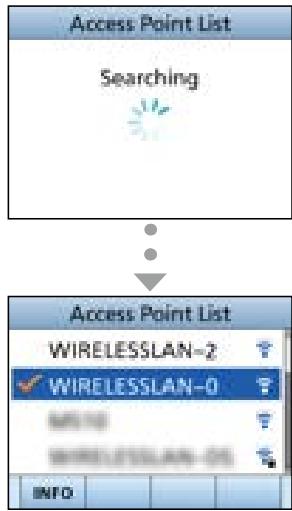

11 WLAN SETTING . M Turning the WLAN function ON M Setting up the IC-M510/1C-M510E WLAN mode M Using a mobile device as à microphone …… m NMEA over WLAN settings … m Reset the WLAN settings … M WLAN Information... 12 CONNECTIONS AND MAINTENANCE... M Supplied accessories M Fuse replacement M Cieaning HE Connections ….. M Connecting to the MA-510TR. M Mounting the transceiver…. M MBF-7/MBF-9 installation. M Microphone installation ……

| À OPERATING RULES © Priorities + Read all rules and regulations pertaining to priorities and keep an up-to-date copy handy. Safety and distress calls take priority over all others. + You must monitor Channel 16 when you are not operating on another channel. + False or fraudulent distress calls are prohibited under law. © Privacy + Information overheard but not intended for you cannot lawiully be used in any way. + Indecent or profane language is prohibited © Radio licenses

(1) SHIP STATION LICENSE

You must have a current radio station license before using the transceiver. It is unlawiul to operate a ship station which is not licensed. Inquire through your dealer or the appropriate government agency for a Ship- Radiotelephone license application. This govenment-issued license states the call sign which is your crafts identification for radio purposes. (2) OPERATOR'S LICENSE A Restricted Radiotelephone Operator Permit is the license most often held by small vessel radio operators when a radio is not required for safety purposes. The Restricted Radiotelephone Operator Permit must be posted or kept with the operator. Only a licensed radio operator may operate a transceiver. However, non-licensed individuals may talk over a transceiver if a licensed operator starts, supervises, ends the call and makes the necessary log entries. A current copy of the applicable govenment rules and regulations is only required to be on hand for vessels in which a radio telephone is compulsory. However, even if you are not required to have these on hand it is your responsibility to be thoroughly acquainted with all pertinent rules and regulations. For the UK version NOTE: Even though the IC-M510E is capable of operation on VHF marine channels 1021, 1023, 1081, 1082 and 1083, according to FCC regulations these simplex channels cannot be lawiully used by the general population in the USA waters.

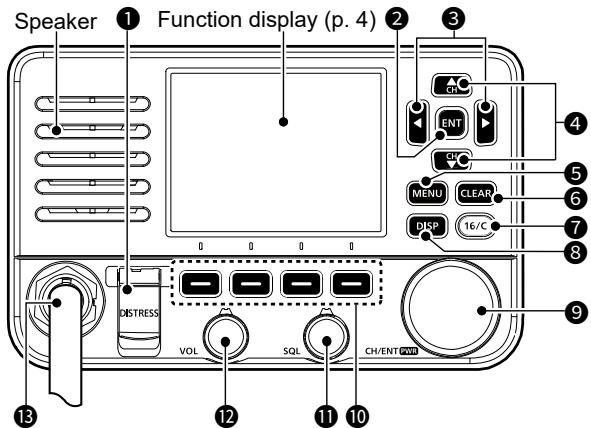

PANEL DESCRIPTION 2 EH Front panel Speaker Function display (p. 4) @

© DISTRESS KEY [DISTRESS]

Hold down for 3 seconds to transmit a Distress call. (p. 21)

Push to set the entered data, selected item, and so on.

© LEFT/RIGHT KEYS [4J/[>]

+ Push to scroll the Software Key functions. (pp. 6- 7) + Push to select a character or number in the entry mode. (pp. 8, 14, 19-20)

© UP/DOWN KEYS [AJ/L]

+ Push to select an operating channel, Menu items, Menu settings, and so on (p. 10) + Push to select a character or number in the entry mode. (pp. 14, 19-20)

Push to display or close the Menu screen.

Push to cancel the entered data or to return to the previous screen.

© CHANNEL 16/CALL CHANNEL KEY

H6/C] + Push to select Channel 16. (p. 10) + Hold down for 1 second to select the Call channel. (p. 10)

© DISPLAY KEY [DISP]

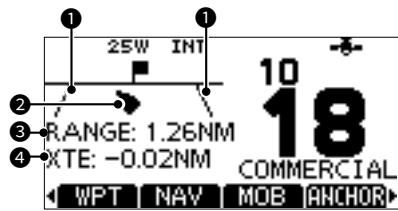

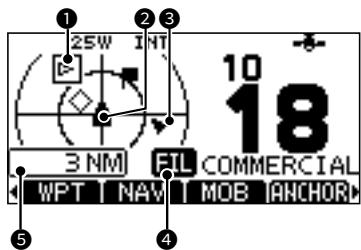

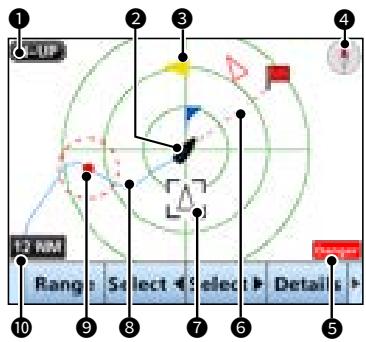

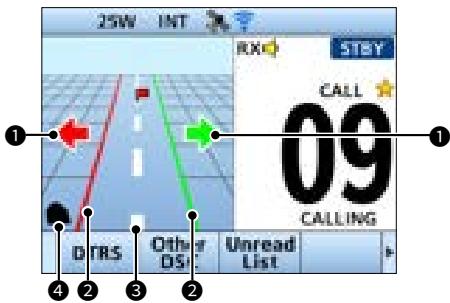

+ Push to switch the main screen between the INFO, the Plotter, and the Highway screens + In the main screen, hold down for 1 second to quickly toggle the display mode (Day mode or Night mode)

+ Hold down for 1 second to turn the transceiver ON or OFF. + Rotate to select the operating channels, Menu items, Menu settings, and so on. + Push to set the entered data, selected item, and so on. © SOFTWARE KEYS (pp. 6 - 7) Scroll the key functions pushing [4] or D>], then push either of the 4 Software Keys to select the function displayed at the bottom of the display. © SQUELCH DIAL [SQL] (p. 12) Rotate to adjust the squelch level. © VOLUME DIAL [VOL] (p. 12) Rotate to adjust the volume level. © MICROPHONE CONNECTOR CAUTION: + Be sure that the microphone connector is tightened completely (rotate clockwise) to maintain the transceiver's waterproof protection. + When a microphone is not connected to the front panel, attach the supplied microphone connector cap to the rear panel.

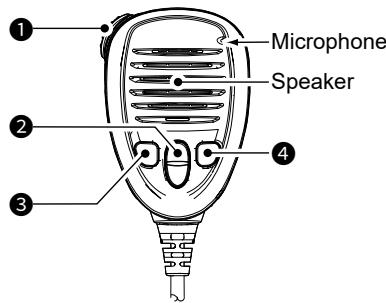

2 PANEL DESCRIPTION EH Speaker Microphone Speaker © PTT SWITCH [PTT] (p. 13) Hold down to transmit, release to receive. © UP/DOWN KEYS [A J/Y] (p. 17) Push to select the Favorite channels, change scanning direction or manually resume a scan. ® When the “FAV on MIC” item is set to “OFF,” you can select all channels. (p.86)

© TRANSMIT POWER KEY [H/L]

+ Push to set the power level to high or low. ® Some channels are set to only low power. + You can turn the Microphone Lock function ON or OFF by turning the transceiver ON while holding down this key. (p. 15)

© CHANNEL 16/CALL CHANNEL KEY

[16/C] (p. 10) + Push to select Channel 16. + Hold down for 1 second to select the Call channel. @ The “CALL" icon is displayed.

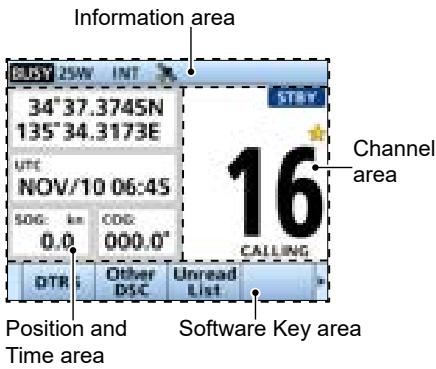

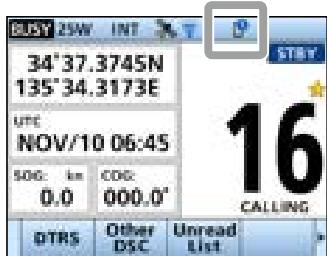

PANEL DESCRIPTION 2 EH Function Display (INFO screen) @ When you switch the main screen between the INFO, the Plotter, and the Highway screens, push [DISP]. Information area 34°37.3745N TIME AREA The current time is displayed when valid GPS data is received, or manually enter the time. 135°34,3173€ Indicator Description pr Displayed when a GPS NON 70 QE NO TIME antenna is not connected #60 | 000.0 or the time has not been == manually entered. or) | Ge [Rise Local |Displayed when the offset Position and Software Key area time is set. Time area Manual |Displayed when the time was ANU8 _|manually entered. © Position and Time area Displayed when the RMC, POSITION AREA GGA, GLL, or GNS sentences The current position is displayed when uTc |2re received from the built-in valid GPS data is received, or you manually PANTIN an external ï , or externa enter your position. NMEA 2000 sentence source. Indicator Description Blinks every 2 seconds instead of the time when: Displayed when a GPS ins V NO antenna is not connected or * The GPS current time is POSITION | your position has not been invalid. manual} entered. 7 + 4 hours have passed since jou manually entered the Blinks every 2 seconds instead ne Y of your position when: @ After 23.5 hours have + The GPS position is invalid. passed, “NO TIME” wil be + 4 hours have passed since displayed. 7? you manually entered your position. + Position and Time area also displays your ® After 23.5 hours have vessel's SOG (Speed Over Ground) and passed, “NO POSITION" COG (Course Over Ground). will be displayed. ® SOG or COG may not be displayed, depending on the NMEA 0183 or the NMEA 2000 data.

2 PANEL DESCRIPTION © Information area The MMSI code* and the following indicators are displayed in the Information area. *ATIS code is displayed if only the ATIS code is entered in NLD and FRG version. Indicator Description Displayed when receiving a signal or when the squelch is open. Displayed while transmitting. Displayed when high power is 25W | selected. 1w | Displayed when low power is selected. Displays the selected channel USA, INT, | group, INT (International), USA, CAN, | CAN (Canada), WX (Weather WX, | channel), ATIS or DSC. ATIS, | ® When the WX-Alert is set to DSC ON. “is displayed. {For only the USA version) Displayed when the transceiver receives valid position and time data. Blinks when invalid GPS data is being received. Displayed when the WLAN function is activated. © Channel area The selected operating channel number, channel name, and the following indicators are displayed in the Channel area. Indicator Description Displayed when a Favorite channel is selected. Displayed when the Call channel is selected by holding down [16/C] for 1 second. Displayed when a Duplex channel is selected. Displayed while in the Standby mode.

Displayed while in the Radio Telephone (RT) mode. @® Returns to the Standby mode if no operation occurs during the preset period of time. DSC Displayed after making or receiving a DSC call. ® Ifthe transceiver is in the Multiple Task mode, the number of DSC tasks is displayed by the indicator.

Displayed when in the RX Haïler mode. (p. 73) In the Client mode, displays SCAN |Displayed during a Priority scan. the WLAN signal strength while 16 |(p.16) connected to a wireless network. EE TE Displayed ven the Auto Foghom | | SCAN: | 16) uring a Normal scan. function is activated. (p. 75) p- - Displayed when the battery DUAL. |Displayed during Dualateh, voltage is less than 11 V. 16* |(P. 18) Displayed while accessingtothe | | Try 49: |Displayed during Triwatch. mobile device using the RS-M500. (p.18) ® The number indicates the Displayed when the Attenuator number of connected mobile LOC |function is tumed ON. devices. Displayed when there is a target in the CPA/TCPA alarm function. + Displayed when there are unread DSC messages. + Blinks when a DSC message is received. Displayed when the “CH Auto Switch” in DSC Settings is set to an option except “Accept after 10 sec.". {For only the USA version.)

• Not usable in NLD version

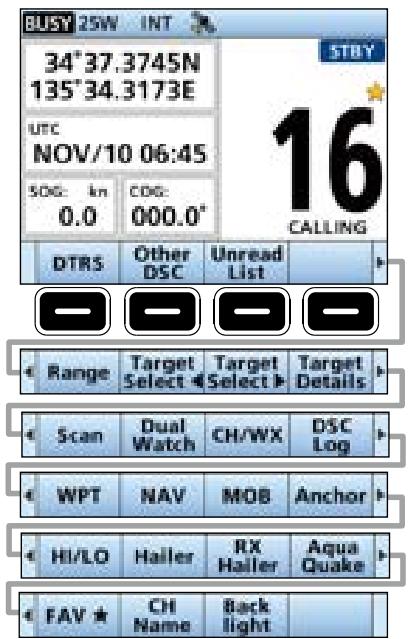

HE Software Keys Various often-used functions are assigned to the Software Keys for easy access. The functions’ icons are displayed above the Software Keys, as shown below. © Selecting a Software Key function Push [4] or [æ] to slide through the selectable functions that are assigned to the Software Keys. Push the Software Key under the functions icon to select the function. 34°37.3745N 135"34.3173E urc NOV/10 06:45 : 16 PANEL DESCRIPTION 2 © Software Key functions Compose Distress [DTRS] (p.22) Push to display the “Compose Distress” screen to select the nature of distress, then to make a call

IMMEDIATE HELP IS NEEDED. Other DSC (p.25) Push to compose an Individual call, Group call, All Ships call or a Test call, and so on. Unread List Push to enter the Unread List. ® Displayed only when “Single” is selected in the DSC procedure menu. (p. 47) (P. 44) Task List {For only the USA version) Push to enter the Task List. @ Displayed only when “Multiple” is selected in the DSC procedure menu. (p. 47) Range (p. 53) Push to the select the plotter display range on the Plotter screen. @ Displayed only on the plotter screen. Target Select « / Target Select > (p.52) eFAva | FC FA NOTE: The displayed icons or their order may differ, depending on the transceiver version or the presetting. When the MMSI code is not set, the Software Keys for the DSC function are not displayed. Push to select an AIS target, waypoint, or MOB @ Displayed only on the plotter screen. Target Details (p.57) Push to display the details on the selected target. @ Displayed only on the plotter screen. (p.17) Scan (Except for the NLD version) Push to start or stop a Normal or Priority scan

2 PANEL DESCRIPTION © Software Key functions DualWatch/Tri-Watch (p. 18) Voice Scrambler [Voice SBL] (p.76) (Except for the NLD version) Push to start or stop the Dualwatch or Tri- watch. Channel/Weather channel [CH/WX] (p.11) Push to select regular channels or Weather channels. @ The Weather channel is for only the USA versions. [CH] is displayed for other versions. @ While the Call channel or Channel 16 is displayed, push this key to return to the regular channel mode. DSC Log (p.43) Push to display the received call log or distress message log. Waypoint [WPT] (p.63) Push to save your position information to the transceiver. Navigation [NAV]/[Stop NAV] Push to start navigation. While navigating, push to stop navigation. (p.67) Man Overboard [MOB/J/[Stop MOB] (p. 65) Push to enter the Man Overboard (MOB) mode. While in the Man Overboard (MOB) mode, push to stop the Man Overboard (MOB) mode. Anchor [Anchor]/[Stop Anchor] (p.66) Push to start or stop the Anchor watch function. High/Low [HI/LO] (p. 3) Push to set the output power level to high or low. @ Some channels are set to only low power. Push to set the Voice Scrambler function. © This function is displayed only when the voice scrambler unit is installed. Hailer Push to display the Hailer screen. © To use this function, the external hailer speaker must be connected to the transceiver. (p.74) RX Hailer Push to display the RX Hailer popup screen. © To use this function, the external hailer speaker must be connected to the transceiver. (p.73) LO/DX (For only the USA version) Push to turn the Attenuator function ON or OFF. ® The “LOC” icon is displayed when the Attenuator function is ON. (p.86) AquaQuake {P. 14) Hold down to turn ON the AquaQuake function to clear water from the speaker grill. Favorite [FAVx] (p.17) Push to set or clear the displayed channel as a Favorite channel CH Name (p. 14) Push to edit the name of the displayed channel. Backlight Push to display the Backlight popup screen. In the Backlight popup screen, you can set the backlight level, and the display mode. (p.12)

PREPARATIONS 3 EE For only the European version: When you turn ON the transceiver, “Model” screen is displayed depending on the setting. Select the country where you operate the transceiver. © lfno country is selected, “General” is automatically selected. EH Entering the MMSI code ES The Maritime Mobile Service Identity (MMSI: DSC self ID) code consists of 9 digits. You can only enter the code when turning ON the transceiver for the first time. This initial code can be entered only once. 1f your MMSI code has already been entered, doing the steps below is not necessary.

1. Hold down [PWR] to turn ON the transceiver.

+ Three short beeps sound, and “Push [ENT] to Register your MMS/ is displayed. 2... Push [ENT] to start entering the MMSI code. + The “MMSI INPUT" screen is displayed. @ Push [CLEAR] twice to skip the entry. If you skip the entry, you cannot make a DSC call. To enter the code after skipping, turn OFF the power, and then turn it ON again.

3. Enter the MMSI code.

TIP: + Select a number using [4] and [>]. + Push [ENT] or [CH/ENT] to enter the selected number. + Select “—" or “—" on the screen, or rotate [CH/ENT] to move the cursor.

4. Repeat step 3 to enter all 9 digits.

5. Select HI and push [ENT] or [CH/ENT] to set the

entered code. + The “MMSI Confirmation” screen is displayed.

6. Enter your MMSI code again to confirm:

7... Push BE to set the entered code. + When your MMSI code is successfully entered, *MMSI registered successfully is briefly displayed, and then enters the operating screen. @ Your MMSI code is also displayed on the opening screen. MMS! registered successfully

3 PREPARATIONS EH Entering the ATIS ID (For NLD and FRG versions) The Automatic Transmitter Identification System (ATIS) ID consists of 10 digits. You can enter the ID in the “ATIS ID Input” item on the Menu screen. This ID entering can be done only once. If your ATIS ID has already been entered, doing the steps below is not necessary.

+ The Menu screen is displayed.

2. Push [A] or [], or rotate [DIAL] to select “ATIS ID

Input” then push [ENT] to start entering. + The “ATIS ID Input” screen is displayed.

3. Enter your ATIS ID.

TIP: + Select a number using [4] and [>]. + Push [ENT] or [CH/ENT] to enter the selected number. + Select “<—” or “—" on the screen, or rotate ICH/ENT] to move the cursor.

4. Repeat step 3 to enter all 10 digits.

5. Push HE to set the entered ID.

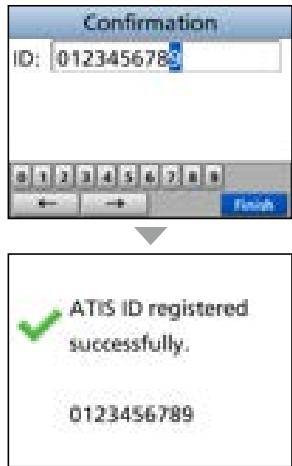

+ The “Confirmation” screen is displayed.

6. Enter your ATIS ID again to confirm.

7... Push BE to set the entered ID. + When your ATIS ID is successfully entered, the screen displays “ATIS ID registered successfully." and then enters the operating screen. © You can check the ATIS ID in “Radio Info” on the Menu screen. ATIS 1D registered successfully

EH Selecting a channel © Regular Channel You can select a channel by pushing [A] or [W]. © Channel 16 Channel 16 is the distress and safety channel. It is used to establish the initial contact ER with a station, and for emergency communications. Channel 16 is monitored during both EN Dualwatch and Tri-watch. While in the standby mode, you must monitor Channel 16. © Push [16/C] to select Channel 16. Le PE | @ To return to the previously selected channel, push [4] or | 34"37,3737N La) D>] to display CHMWX] or L CH] and then push the Software |135°34.3177E Key below [CHMX or [CH ] e NOV/10 06-54

[A Seam win [Ou pic Lee] © Call channel (= EUR — Each Channel Group has separate leisure-use Call ve nn + channels. The Call channel is scanned during Tri-watch. 135 343177 The Call channels can be selected and used to store your | most often used channels in each Channel Group, for NOV/10 06-54 quick recall. See page 13 for details on setting the Call me nie channel. 0.0 } 0007 CALUMG © Hold down [16/C] for 1 second to select the Call channel. [ts cowurxfusr sde + The Call channel number and “CALL” are displayed. @ To return to the previously selected channel, push [4] or [à] to display CHMXI or [CH], and then push the Software Key below [CHMX] or C CH _]. © Selecting a Channel Group Channel Groups are preset into your transceiver. You can select a Channel Group for USA, International, Canadian, DSC, and ATIS depending on the transceiver version.

1. Open the “Channel Group” screen.

IMENU] > Settings > Radio > Channel Group

2. Push [A]or [], or rotate [CH/ENT] to select a Channel Group, and then push

3. Push [MENU] to exit the Menu screen.

4. The selected Channel Group's icon is displayed on the operating screen.

À BASIC OPERATIONS HE Weather channels and Weather Alert (For only the USA versions) The USA version transceiver has 10 preset Weather channels. The transceivers are capable* of monitoring broadcasts from the National Oceanographic and Atmospheric Administration (NOAA). The transceiver automatically detects a Weather alert tone on the selected weather channel, or while scanning “When used within range of the broadcasts. © Selecting a Weather channel

+ “WX" is displayed on the operating screen instead of the Channel Group.

2. Push [A]or [], or rotate [CH/ENT] to select a

Weather channel. The Weather channel list WX | Frequency | WX | Frequency channel | (MHz) | channel] (MHz) 1 162.550 G 162.500

© Setting the Weather Alert To receive the weather alert, set the WX Alert to “ON with Scan,” or “ON.” 1... Open the “Weather Alert” screen. IMENU)] > Settings > Radio > WX Alert

2. Select “ON with Scan,” or “ON.”

• “@'is displayed next to the weather channel icon. © “WXG' blinks until you push a key after detecting an alert.

BASIC OPERATIONS 4 HE Adjusting the volume/squelch/backlight/display mode © Adjusting the volume level © Rotate [VOL] to adjust the audio volume level. © Adjusting the squelch level Squelch enables the audio to be heard only while receiving a signal that is stronger than the set level. À higher level blocks weak signals, so that you can receive only stronger signals. À lower level enables you to hear weak signals. © Rotate [SQL] to adjust the squelch level. © Adjusting the backlight and the display mode The Function display and keys can be backlit for better visibility under low light conditions. And, you can set the display mode to Day mode or Night mode. The Day mode is for the daytime operation, and the screen items are in full color. The Night mode is for the nighttime operation, and the screen items are in black and red. @ In the main screen, hold down [DISP] for 1 second to quickly toggle the display mode (Day mode or Night mode), without opening the “Backlight” screen.

1. Open the “Backlight” screen. [ Beckäght |

IMENU] > Settings > Configuration > Backlight © You can also push to open the *Backlight" popup screen. 4 mm 7] 2... Push [4] or [] or rotate [CH/ENT] to adjust the Mode: Day backlight level + The backlight level is set, and the transceiver returns to the previous screen. @ The backlight level is adjustable in 7 levels and *OFF." “OFF' is selectable only for the Day mode.

3. Push [v]. then push [4] or [>] or rotate [CHENT) 0 D

select “Day” or “Night.”

4. Push [ENT] or [CH/ENT] to exit the Menu screen.

À BASIC OPERATIONS E Setting the Call channel By defauit, a Call channel is set in each Channel Group. You can set your most often-used channel as your Call channel in each Channel Group for quick recall.

1. Open the “Call Channel” screen

3. Push [ENT] or [CH/ENT] to set the selected channel

as the Call channel.

4. Push [MENU] to exit the Menu screen.

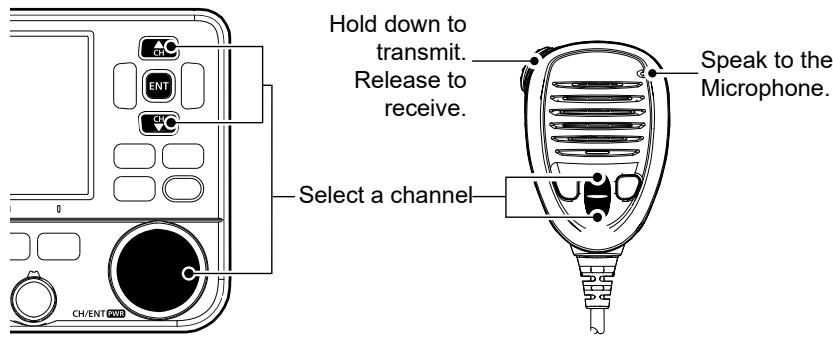

EH Receiving and transmitting CAUTION: DO NOT transmit without an antenna.

1. Push [A]or [Y], or rotate [CH/ENT] to select a channel to call on.

+ The channel number and name are briefly displayed. © Es displayed while receiving a signal.

2. Hold down [PTT] and speak into the microphone at your normal voice level.

+ REX is displayed while transmitting.

3. Release [PTT] to receive.

Hold down to transmit. Release to receive. TIP: To maximize the readability of your transmitted signal, pause for a second after holding down [PTT] and hold the microphone 5 to 10 cm (2 to 4 inches) from your mouth, and then speak at your normal voice level. NOTE: The Time-out Timer function cuts OFF transmission after 5 minutes of continuously transmitting, to prevent prolonged transmission.

BASIC OPERATIONS 4 EH AquaQuake Water Draining function Water in the speaker grill may muffle the sound coming from the speaker. The AquaQuake Water Draining function removes water from the speaker grill by vibrating the speaker cone. CAUTION: DO NOT use the AquaQuake Water Draining function when an external speaker is connected.

1. Push [<] or [æ] to display [AquaQuake]

2. Hold down [AqueQuake] to turn ON the function.

+ Alow frequency vibration beep sounds to drain the water, regardless of the volume level setting. AquaQuake @ This function is activated for a maximum of 10 seconds, even if you continue to hold down

3. Release the key to turn OFF the function.

EH Editing a channel name You can edit the name of each operating channel and weather channel, using numbers, uppercase letters, symbols, and a space. This enables easy recognition of the channels or stations. All VHF marine channels are set with default names.

1. Push [A] or [Y], or rotate [CH/ENT] to select the channel to edit.

® You cannot edit a channel name during Dualwatch, Tri-watch, or a scan.

+ The “Channel Name” screen is displayed. DsmeNme 0] Norme:

4. Edit the channel name. LEPHONE

5. Select EMA and then push [ENT] or [CH/ENT] to hi. <olal[slolel ln)

save the edited name and return to the operating elolalsi1lvlvhalal rt screen. slualalalsielzlale) 151 [12 L sp0ce [one TIP: + Select Lau to enter numbers and letters, and ll to enter symbols. (ame Ivome DuErmoNE LEPHONE cela safe [ojel si valalnl 2; sllalel

Hal ielhele) EL Line Jon] rer Liens | + Select a number, character, or space using [A], [V], [<], and [>]. + Push [ENT] or [CH/ENT] to enter the selected number or character. + Select “e—" or “+” on the screen or rotate [CH/ENT] to move the cursor, or to select the entered character.

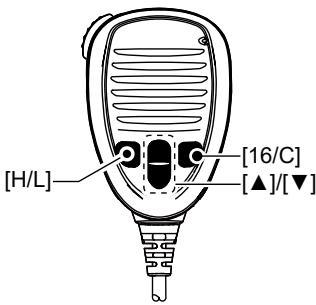

À BASIC OPERATIONS HE Microphone Lock function The Lock function electronically locks all keys on the microphone except [PTT] to prevent accidental channel changes or functions access. 1... Hold down [PWR] for 1 second to tum OFF the transceiver.

2. While holding down [H/L] on the microphone, hold down [PWRI] for 1 second to turn

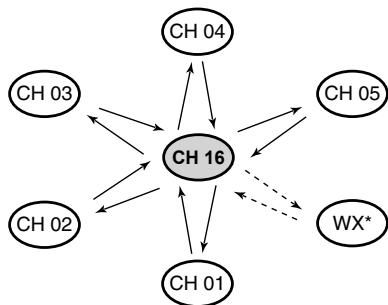

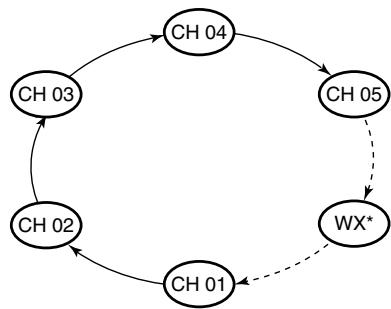

EH Scan types You can find ongoing communication by scanning the Favorite channels. Scan is for all the transceiver versions except the NLD version. Before starting a scan : + Set the channels that you want to scan as Favorite channels. (p. 17) ©® Only the Favorite channels are scanned. + Set the scan type to “Priority Scan” or “Normal Scan” on the “Radio Settings” screen. (p.85) [MENU] > Settings > Radio > Scan Type Normal Scan Sequentially searches through all Favorite channels. Channel 16 is not scanned unless it is set as a Favorite channel “For the USA version, when the Weather Alert function is ON, the previously selected Weather channel is also scanned. Priority Scan Sequentially searches through all Favorite channels, while also periodically checking Channel 16. *For the USA version, when the Weather Alert function is ON, the previously selected Weather channel is also scanned. When a signal is received: On Channel 16: The scan pauses until the signal disappears. On a channel other than Channel 16: The scan becomes Dualwatch until the signal disappears.

5 SCAN OPERATION E Setting Favorite channels You can quickly recall often-used channels by setting them as Favorite channels. You can set Favorite channels in each Channel Group.

1. Select a Channel Group on the Menu screen. (p. 10)

IMENU] > Settings > Radio > Channel Group Push [4] or (»] to display [FAVX]. Push (FAVX] BSnN Push [A] or [Y], or rotate [CH/ENT] to select the channel. + The selected channel is set as a Favorite channel, and “3” is displayed. @ To cancel the setting, push again. channels differ, depending on the transceiver version. TIP: You can set all channels as Favorite channels, clear all settings, or reset to the defaults. By default, some channels are preset as Favorite channels. The preset E Starting a scan (Except for the NLD version) Example: Starting a Normal Scan.

1. Select a Channel Group on the Menu screen. (p. 10)

[MENU] > Settings > Radio > Channel Group

2. Push [4] or[»] to display [S&n]

+ The scan starts. + “SCAN” is displayed during a Normal Scan, and “SCAN 16” is displayed during a Priority Scan. + “SCAN” and “IT are displayed when a signal is received. @ When a signal is received, the scan pauses until it disappears, or resumes after 5 seconds, depending on the Scan Timer setting in “Radio Settings.” © Abeep sounds and “16” blinks when a signal is received on Channel 16 during a Priority scan.

4. To stop the scan, push [Scan]

TIP: To proper receive signals, be sure to adjust the squelch to a suitable level 34°37.3846N «s 135" 34,3128E ca # NOV/10 07:07

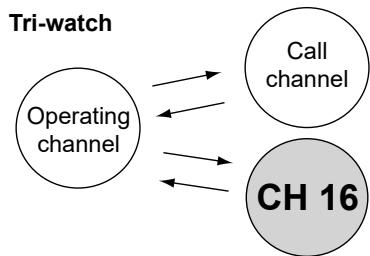

DUALWATCHITRI-WATCH 6 EE (Except for the NLD version) EH Description Dualwatch and Tri-watch are convenient to periodically check Channel 16 while you are operating on another channel. Dualwatch Tri-watch Si ER Periodically checks Channel Periodically checks Channel 16 and 16 while operating on another the Call channel while operating on channel. another channel. When a signal is received: On Channel 16: Dualwatch/Tri-watch pauses on Channel 16 until the signal disappears. On the Call channel: Tri-watch switches to Dualwatch until the signal on the Call channel disappears. 34° 37.3846N | " 1 Operation 135" 34,3128€ LU2 Select Dualwatch or Tri-watch on the Menu screen. = [MENU] > Settings > Radio > Dual/Tri-Watch DORE y

3. Push [4] or [à] to display DuarWatchl or [TrWatch]. scan | fo |ouwx) £56

+ Dualwatch or Tri-watch starts. + “DUAL 16" is displayed for Dualwatch, or ‘TRI 16" is displayed for Tri-watch. us Cor PR | ir 5e © “ET is displayed when a signal is received. 135-343128€ La @ A beep tone sounds and “16” starts to blink when a = signal is received on Channel 16. NOV/10 07-07 7

M / DiGirAL SELECTIVE CALLING (DSC) HE DSC address ID © Entering an Individual or Group ID You can enter a total of 75 Individual IDs and 25 Group IDs, and assign names to them of up to 10 characters.

1. Open the “individual ID” or “Group ID” screen.

[MENU] > Settings > DSC > Individual ID [MENU] > Settings > DSC > Group ID + “No ID” is displayed if no ID is entered.

+ The ID entry screen is displayed.

3. Enter an Individual or Group ID.

TIP: + Select a number using [4] and []. + Push [ENT] or [CH/ENT] to set the selected number. + Select “—" or “_>" on the screen, or rotate [CH/ENT] to move the cursor. NOTE: - For a Group ID, the first digit is fixed as “0.” + For any coast station ID, the first two digits are fixed as “0.”

4. Push EEE to start entering the ID's name.

TIP: Name + Select ul to enter numbers and letters, and sil to STATION 1 enter symbols. COBDNOOONPEN ssuslvpelalxlz Name Name me ee STATION 1] STATION 1] aJelcolu] lea] Jus DEMO Ü

BREST + Select a number, character, or space using [A], [Y], [<], and [>]. + Push [ENT] or [CH/ENT] to enter the selected number or character. + Select “<—" or “—" on the screen to move the cursor, or to select the entered character.

5. After entering, select BEI, and then push [ENT] or

ICH/ENT] to save, and return to the previous screen.

• The entered name is displayed.

© Deleting an entered ID Dvd ip LI (Example: Deleting an Individual ID: STATION 2)

2. Select “STATION 2," and then push [Delete].

+ “Delete the ID. Are You Sure?” is displayed.

3. Push[OK Jto delete.

® Push to cancel the deletion. - The selected ID is deleted, and then returns to the previous screen. Delete the ID: Are you sure? TIP: You can edit an ID and its name by pushing CEE] in step 2. EH Entering the position and time A Distress call should include the vessel's position, date, and time. If no GPS data is received, manually enter the position and Universal Time Coordinated (UTC) time. NOTE: + The manual entry is disabled while valid GPS data is received. + The manually entered position and time is valid only for 23.5 hours, or until turning OFF the transceiver.

TIP: + Select a number or a compass direction using [A], En alslelr LV], [4], and [>]. + Select “<—” or “—” on the screen, or rotate … ce ICH/ENT] to move the cursor. + Select HET and then push [ENT] or [CH/ENT] to save the selected number. LON: [135 16.033

3. Enter the longitude and the UTC time.

© See the TIP in step 2 to enter. DOPNON TON D! = |. = Jens)

4. After entering, select BAIL and then push [ENT] or

ICH/ENT] to save, and return to the previous screen. + The “DSC” screen is displayed. UTC 30 ONAPPOTADD em Li Înenets

7 DIGITAL SELECTIVE CALLING (DSC) HE Sending DSC calls (Distress) A Distress call should be sent if, in the opinion of the captain, the ship or a person is in distress and requires immediate assistance. NEVER MAKE A DISTRESS CALL IF YOUR SHIP OR A PERSON IS NOT IN AN EMERGENCY. A DISTRESS CALL SHOULD BE MADE ONLY WHEN IMMEDIATE HELP IS NEEDED. © Simple call

1. Confirm that no Distress call is being received.

2. While lifting up the key cover, hold down [DISTRESS]

for 3 seconds until you hear 3 short countdown beeps and a long beep sound. + The backlight blinks. eee EL. -O -0… Key cover

3. After sending, wait for an Acknowledgment call.

+ “Waiting for ACK" is displayed. + The Distress call is automatically sent every

3.5 to 4.5 minutes, until an Acknowledgment is

received, or a Distress Cancel call is sent.

4. When you receive an Acknowledgment, an alarm

sounds. Push Am OFF] to turn OFF the alarm. + Channel 16 is automatically selected. Push [Close Window] Hold down [PTT], and then explain your situation. After you have finished your conversation, pus + “Terminate the procedure. Are you sure?” is displayed.

8. Push [OK] to return to the operating screen.

sou F nosressu ] Hoki Down for 3 ec F mossressu | Transmitting Dstress Alert Waiting for ACK Elapsed: 00-00-13 Resend' 00:03:28 MMSE 123456789 Received Distress ACK From: 123456788 Channel: 16 Elapsed: 00:00:16 TIP: À default Distress alert contains: -+ Nature of distress: Undesignated distress or until you turn OFF the transceiver. + Position information: The latest GPS, or manually input position, that is held for 23.5 hours,

© Regular call Select the nature of the Distress call to include in the Regular Distress call.

+ The “Compose Distress” screen is displayed. 2... Push [ENT] or [CH/ENT] to enter the Nature selection mode.

3. Select the nature of the Distress, and then push [ENT]

or [CH/ENT]. (Example: Flooding) - The setting is saved and returns to the previous screen. © lfno valid GPS data is being received, select “Position,” and then enter the latitude, longitude, and UTC. See “Entering the position and time” on page 20 for details. Hold Down

4. While lifting up the key cover, hold down [DISTRESS] for 3 sec

(the red button) for 3 seconds until you hear 3 short countdown beeps and a long beep sound. - The backlight blinks. à 4 [= mossressu | Transmitting Distress Alert

5. After sending, wait for an Acknowledgment.

+ “Waiting for ACK'" is displayed. @ The Distress call is automatically sent every

3.5 to 4.5 minutes, until an Acknowledgment is Waiting for ACK

received, or a Distress Cancel call is sent. (p. 23) Elapsed: 00:00 13 Resend: 00:03:28 MMSE 123456789

6. When you receive an Acknowledgment, an alarm

sounds. Push to turn OFF the alarm. + Channel 16 is automatically selected. Received Distress ACK

7. Hold down [PTT] to communicate. From: 123456788

8. After you have finished your conversation, push [STI arab 1é

+ “Terminate the procedure. Are you sure?” is Elapsed: 00:00:16 displayed.

9. Push [OK ]to return to the operating screen.

TIP: You can also send a Regular call by selecting the “Distress” item on the Menu screen.

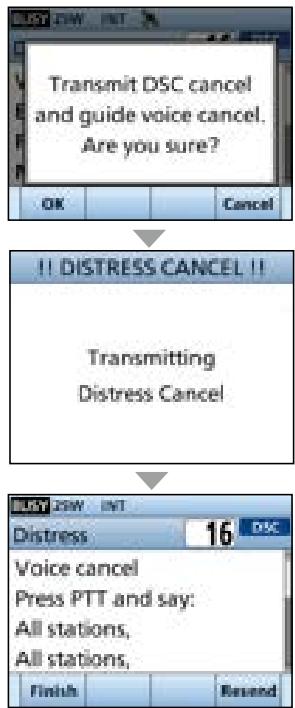

7 DIGITAL SELECTIVE CALLING (DSC) © Distress Cancel call If you have accidentally made a Distress call, or made an incorrect Distress call, send a Distress Cancel call to cancel the call as soon as possible while waiting for an Acknowledgment. Be sure to report the purpose of the cancellation.

While waiting for an Acknowledgment, push Cancell + The screen on the right is displayed. Push OK ]. + The Distress Cancel call is sent. + Channel 16 is automatically selected. Hold down [PTT] to report the purpose of the cancellation. @ You can display the wording of the cancellation by pushing []. After communicating, push [EIISH]. @ The screen on the right is displayed. Push [STEY] to finish the Distress Cancel call. + “Terminate the procedure. Are you sure?” is displayed. Push COK ]to return to the operating screen. © Distress call Software Key description While waiting for an Acknowledgment: Cancel: Cancels the Distress call and [Pause] : enables you to send a Cancel call. call by holding down [DISTRESS] again. Pauses the countdown to resend the next Distress call. Transmit DSC cancel and guide voice cancel Are you sure? Transmitting Distress Cancel Voice cancel Press PTT and say AN statons, AB stations, Voice Cancel Done Elapsed: 00-00-25 Nature: Undesignated LAT: 35°00.0000N After receiving an Acknowledgment: [STEY] : Closes the Distress operation, and returns to the operating screen. Enables you to resend the Distress Hisry]: Displays the “Distress History.”

© Sending a Distress Relay acknowledgment (For only the USA version) You can send the Distress Relay acknowledgment only when a Distress Relay call is received.

1. When a Distress Relay call is received:

+ An alarm sounds. + The screen on the right is displayed.

2. Push any BlammOFF]to turn OFF the alarm.

+ The received information is displayed.

+ The call contents screen is displayed. © Rotate [CH/ENT] to view the call contents.

5. Push [Cl to send the Distress Relay

acknowledgment. + After sending, “Distress Relay ACK” screen is displayed.

6. Hold down [PTT] to communicate.

7. After you have finished your conversation, push [STI

+ “Terminate the procedure. Are you sure?” is displayed.

8. Push[OK_]to return to the operating screen.

Received DTRS RLY From: STATION2 Channel: 16 Élapsed: 00:00:05 Received DTRS RLY From: STATION2 Channel: 16 Élapsed: 00:00:05 Recerved (Indnidual) Elapsed- 00-00-18 From: STATION2 Address. Distress 1D: STATION2 STATIONT Undesignated Nature:

7 DIGITAL SELECTIVE CALLING (DSC) HE Sending DSC calls (other) NOTE: To ensure proper DSC operation, be sure to correctly adjust the “CH 70 SQL Level” item on the Menu screen. (p. 47) © Sending an Individual call An Individual call enables you to send a DSC signal to only a specific station. You can communicate after receiving the Acknowledgment “Able to comply." NOTE: You can also compose an Individual call to an AIS target on the Plotter screen or the AIS list. (pp. 51, 54)

+ The “Compose Non-Distress” screen is displayed. © You can also display the “Compose Non-Distress” screen by selecting the “Other DSC” item on the Menu screen. Select “Msg Type,” and then push [ENT] or [CH/ENT]. Select “Individual,” and then push [ENT] or [CH/ENT]. + Returns to the “Compose Non-Distress” screen. Select “Address,” and then push [ENT] or [CH/ENT]. Select the station to send an Individual call to, and then push [ENT] or [CH/ENT]. + Returns to the “Compose Non-Distress” screen. ©® You can also select “Manual Input” to manually enter the target station ID. ne wN

6. Select “Channel,” and then push [ENT] or [CH/ENT].

7. Select a channel to assign, and then push [ENT] or

ICH/ENT]. @ The assigned channels are preset by default.

8. Push [Calllto send the Individual call.

+ “Transmitting Individual Call” is displayed, and then “Waiting for ACK" is displayed. @ If Channel 70 is busy, the transceiver stands by until the channel becomes clear. Msg Type: individual » Routine Telephony Address: STATION 1 | Routine Telephony Category Mode F Indmidual call] Transmitting Indmidual Call Waiting for ACK Elapsed- 00-00-26 To: STATION Category: Routine |

9. When you receive an Acknowledgment “Able to comply":

+ An alarm sounds. + The screen on the right is displayed.

10. Push to turn OFF the alarm.

+ The channel assigned in step 7 is automatically selected. Received INDV ACK © Ifthe called station cannot use the channel that you From: STATION 1 assigned, a different channel is selected by the other Channel: 08 station. Élapsed: 00:00:03

11. Push [Close Window],

12. Hold down [PTT] to communicate.

TIP: If you received an Acknowledgment “Unable to comply”: 1... Push am OFF] to turn OFF the alarm, and then push [Close Window]. + The Acknowledge information is displayed.

2. Push [STEY], and then OK] to return to the operating screen.

© Sending an Individual Acknowledgment When you have received an Individual call (p. 38), send an Acknowledgment to the calling station. When the Auto Ack is set to “Manual,” you can select an appropriate acknowledgment type.

1. While an Individual call is being received, push

am OFF] to turn OFF the alarm. + The received call's information is displayed.

+ The Acknowledgment category screen is displayed. @ If you want to send an Acknowledgment “Able to Rocelved INDV Cal comply” right away, push LAble | From: STATION 1 @ If you cannot communicate, and want to return to the Channel 08 operating screen, push [Ignore]. Élapsed: 00:00:57

3. Push ACKAbE], [ACKUnable], or [ACK New CH] to select the

Acknowledgment type. RCE, Sends an Acknowledgment without any (Ableto changes. Comply) [ACKUnabe} Sends an Acknowledgment but cannot (Unable to communicate. Comply): (RCKNeWCH} Sends an Acknowledgment. You can (Propose … specify the Voice Communication NewCH) channel. (Example: Channel 16) Received Request Elapsed: 00-00-37 From: STATION 1 Propose New O4 Reuône Tehephors

4. Push [TI to send the Acknowledgment.

DIGITAL SELECTIVE CALLING (DSC) © Sending an All Ships call All Ships that have DSC transceiver use Channel 70 as their listening channel. When you want to announce a message to these ships, if they are within range, use the All Ships call.

Push [Other DSC], + The “Compose Non-Distress” screen is displayed. @ You can also display the “Compose Non-Distress” screen by selecting the “Other DSC” item on the Menu screen. Select “Msg Type,” and then push [ENT] or [CH/ENT]. + The “Message Type” screen is displayed. Select “Al Ships,” and then push [ENT] or [CH/ENT]. + The All Ships call is selected, and returns to the “Compose Non-Distress” screen. Select “Category,” and then push [ENT] or [CH/ENT]. + The “Category” screen is displayed. Select a category of the call, and the push [ENT] or ICH/ENT]. + The category is set, and returns to the “Compose Non- Distress” screen. Select “Channel,” and then push [ENT] or [CH/ENT]. Select the channel to assign, and then push [ENT] or ICH/ENT]. © The assigned channels are preset by default. Push [Gal ]to send the All Ships call. + “Transmitting All Ships Cal” is displayed, and then the assigned channel is automatically selected. © If Channel 70 is busy, the transceiver stands by until the channel becomes clear. Hold down [PTT] to communicate. Push (STEY]to finish the All Ships call. + “Terminate the procedure. Are you sure?” is displayed. . Push [GK ]to return to the operating screen. + Returns to the operating screen. Individual Group Position Polling Il Urgency FTU CH | Compose Non-Distress | Msg Type Al Ships » Mode Telephony Channet 16» [ven | met | | cn |] à 4 F Alshipscn | Transmitting All Ships Cal

© Sending a Group call A Group call enables you to send a DSC call to only a specific group. @ You can send a Group call to a pre-entered group address, or manually enter the address before sending. (p. 19) 1... Push [Other DSC] + The “Compose Non-Distress” screen is displayed. @ You can also display the “Compose Non-Distress” screen by selecting the “Other DSC” item on the Menu screen.

2. Select “Msg Type,” and then push [ENT] or [CH/ENT].

+ The “Message Type” screen is displayed.

3. Select “Group,” and then push [ENT] or [CH/ENT].

+ The Group cal is selected, and returns to the *Compose Non-Distress” screen.

4. Select “Address,” and then push [ENT] or [CH/ENT].

+ The “Address” screen is displayed.

5. Select the group to send a Group call, and then push

[ENT] or [CH/ENT]. © You can also select “Manual Input” to manually enter the target group.

6. Select “Channel,” and then push [ENT].or [CH/ENT].

7. Select the channel to assign, and then push [ENT].

© The assigned channels are preset by default.

8. Push[Calllto send the Group call.

+ “Transmitting Group Call is displayed, and then the assigned channel is automatically selected. © If Channel 70 is busy, the transceiver stands by until the channel becomes clear.

9. Hold down [PTT] to communicate.

Individual AN Ships Position Polling Il [Channel] Intership CH: [08 & Address GROUP1 1 Category Routine » Mode Telephony

[Groupes] Transmitting Group Call

DIGITAL SELECTIVE CALLING (DSC) © Sending a Test call You should avoid testing calls on the exclusive DSC Distress channels and safety calling channels. When you cannot avoid testing on a Distress or safety channel, you should indicate that these are test calls. Normally the Test call would require no further communications between the two stations involved.

Push [Other DSC]. + The “Compose Non-Distress” screen is displayed. ©® You can also display the “Compose Non-Distress” screen by selecting the “Other DSC” item on the Menu screen. Select “Test” and then push [ENT] or [CH/ENT]. + The Test call is selected, and returns to the “Compose Non-Distress” screen. Select “Address,” and then push [ENT] or [CH/ENT]. + The “Address” screen is displayed. Select a station to send the Test call to. @ You can also select “Manual Input’ to manually enter the calling station. Push [TI ] to send the Test call. © If Channel 70 is busy, the transceiver stands by until the channel becomes clear. When you receive an Acknowledgment: + An alarm sounds. + The screen on the right is displayed. Push Blamm OFF] to turn OFF the alarm. + The Acknowledgment information is displayed. Push [Close Window]. + The received call information is displayed. + The call is saved in the DSC Log. Push [STBY] to return to the operating screen. + “Terminate the procedure. Are you sure?" is displayed. .. Push FOKT to return to the operating screen. + Returns to the operating screen. AB Ships | Group Position Polling (érre | Manual Input , STATION 2 Msg Type Test Received Test ACK From: STATION 1 Elapsed 00:00 06 Elapsed: 00:01:44 From: STATION 1

© Sending a Test Acknowledgment By default, when you receive a Test call, the Auto ACK function automatically sends an Acknowledgment to the calling station (p. 46). If the function is set to “Manual,” do the following steps to send an Acknowledgment.

1. After a Test call is being received, push [Alarm OFF] to

+ The received call's information is displayed. Received Test Call From: STATION 1 Elapsed: 00:00:13

+ The “Test ACK" confirmation screen is displayed.

4. Push [TT Jto send the Acknowledgment.

+ “Transmitting Test ACK" is displayed.

5. Push [STEYI and then push COK ]to return to the

operating screen. Address: STATION 1 Category Satety

DIGITAL SELECTIVE CALLING (DSC) © Sending a Position Request call/Polling Request call (For only the USA version) You can send a Position Request call or Polling request call to a station, depending on the presetting. + Send a Position Request call when you want to know a specific ship's current position. + Send a Polling Request call when you want to know whether a specific ship is in the communication area, or not. Example: Sending a Position Request call + The “Compose Non-Distress” screen is displayed. ©® You can also display the “Compose Non-Distress” screen by selecting the “Other DSC” item on the Menu Select “Msg Type,” and then push [ENT] or [CH/ENT]. Select “Position,” and then push [ENT] or [CH/ENT]. + The message type is selected, and returns to the Select “Address,” and then push [ENT] or [CH/ENT]. Select a target to send a Position Request call to, and ©® You can also select “Manual Input” to manually enter + Position Request call is sent, and then “Waiting for © lf Channel 70 is busy, the transceiver stands by until . Push [A] or [W], or rotate [CH/ENT] to scroll the 1... Push [OtherDSC], screen.

@ When you send a Polling Request call, select “Polling." *Compose Other” screen.

then push [ENT] or [CH/ENT]. the target ID.

6. Push[all]to send the Position Request call.

ACKC is displayed. the channel becomes clear.

7. When you receive a Position Reply:

+ An alarm sounds. + The screen on the right is displayed.

8. Push lamOFFI to turn OFF the alarm.

9. Push Close Window],

+ The received information is displayed. screen, and then check the target's position.

… Push [STE], and then [OK] to return to the operating

screen. Manual input » STATION 2 |. Compose Non-Distress | Mg Type Position » Address: STATION 1h Received POS Reply From: STATION 1 Elapsed: 00:00:11

© Sending a Position Reply call Send a Position Reply call when a Position Request call is received. If the Auto ACK function is set to “Auto,” the Acknowledgment is automatically sent to the calling station. (p. 46)

1. After a Position Request is being received, push

PM OFE to turn OFF the alarm. ; + The received call's information is displayed. Received POS Request From: STATION 1 Elapsed: 00:00:04

2. Push the Software Key below the intended operation.

Ignores the call and returns to the operating screen. Received POS Request - The call is saved in the DSC Log. From: STATION + “TT blinks continuously until you display Elapsed: 00:00:59 the call message. co Holds the RX call task, and returns to the Main screen. [AE Sends Acknowledgment “Able to comply” (Able to right away. comply) _* The call is saved in the DSC Log. + Displays the Acknowledgment information, and then returns to the operating screen by pushing [STEY] and then Um: Sends an Acknowledgment “Unable to (Unable to Comply." Comply) _* The call is saved in the DSC Log. + Displays the Acknowledgment information, and then returns to the operating screen by pushing [STEY] and then

7 DIGITAL SELECTIVE CALLING (DSC) © Sending a Position Reply call Accepts the call. + Displays the received calls information. + The call is saved in the DSC Log. Push or ACKUnable], then push to send the Position Reply call. Closes the call, and then returns to the operating screen. ECKAHE. Sends an (Able to acknowledgment with Comply) position and time data. TACKUMHE} Sends an (Unable to acknowledgment with no Comply) position and time data. + Push and then COR to return to the operating screen. Received Request Elapsed: 00:01:00 From STATION 1

© Sending a Polling Reply call Send a Polling Reply call when a Polling Request call is received. © When “Polling ACK" is set to “Auto,” the transceiver automatically sends the call.

1. While a Polling Request call is being received, push

IAlarm OFF] to turn OFF the alarm. Received Polling REQ From: STATION 1 Elapsed. 00:00:03

+ Enters the DSC Task mode. Received Polling REQ From: STATION 1 Elapsed: 00:00:23

+ The call contents screen is displayed. Recerved Request Elapsed: 00-00 51 From: STATION 1

4. Push [TI ]to send the Polling Reply.

+ “Transmitting Polling Reply” is displayed.

5. Push [STEY] and then push [OK ]to return to the

operating screen. Address: STATIONT Category Routine

7 DIGITAL SELECTIVE CALLING (DSC) HE Receiving DSC calls (Distress) The transceiver receives Distress calls, Distress Acknowledgments, and Distress Cancel calls. When you receive a call, an emergency alarm sounds. NOTE: The screens that are displayed when a Distress call or an Acknowledgment is received slightly differ from one another. The following steps are described using an example of receiving a Distress call. When a Distress call is received: + The emergency alarm sounds until you turn it OFF. + “Received Distress” is displayed. Received Distress From: STATION 1 Channel: 16 Elapsed: 00:00:17 1... Push am OFF] to turn OFF the alarm.

2. Push the Software Key below the intended operation.

[EE]. Returns to the operating screen. The call is saved in the DSC Log. Received Distress “ET blinks continuously until you display the From: STATION 1 call message. Channel: 16 Hoi. Holds the RX call task, and retums to the Loin ee Main screen. [Pause]: is not displayed if the “CH Auto Switch” item is set to “Manual.” (p. 46) Pauses the countdown until the assigned channel is automatically selected. Select Resume] to resume the countdown. The call is saved in the DSC Log. Accepts the call. Channel 16 is automatically selected. Monitor Channel 16 as a coast station may require assistance. After Channel 16 is selected, select your next operation by pushing the Software Key below the following options. [STEY] Closes the Distress operation, and returns to the operating screen. HS. Displays the “Distress History” screen. Elapsed- 00-00: 1 1 From STATION 1

When a Distress acknowledgment is received:

1. After a Distress Acknowledgments is being received,

push Blarm OFF] to turn OFF the alarm.

2. Push Received Distress ACX

+ The received information is displayed. From: STATION 1 Channel: 16 Élapsed: 00:00:03

+ The received information is displayed.

+ “Terminate the procedure. Are you sure?” is displayed.

5. Push [OK ]to return to the operating screen.

When a Distress Cancel call is received:

1. Push to turn OFF the alarm.

+ The received information is displayed. Recei Distress ACK From: STATION 1 Channel: 16 Elapsed: 00:00:03

2. Push [STEY] and then push [OK _]to return to the

7 DIGITAL SELECTIVE CALLING (DSC) © Receiving a Distress Relay call When a Distress Relay call is received: + An alarm sounds. + The following screen is displayed and the backlight blinks. + “ET blinks.

Received DTRS RLY From: STATION 1 Channel: 16 Elapsed: 00:00:05

2. Push the Software Key below the next operation.

[gnore]. Returns to the operating screen. The call is saved in the DSC Log. “ET blinks continuously until you display Received DTRS RLY the call message. From: STATION 1 CHoïd: Holds the RX call task, and returns to the Channel: 16 Main screen. Accept after & sex. [Pause] is not displayed if the “CH Auto Switch” item is set to “Manual.” (p. 46) Pauses the countdown until the assigned channel is automatically selected. Select Resume] to resume the countdown. The call is saved in the DSC Log. Rp. Accepts the call. Channel 16 is automatically selected. Monitor Channel 16 as a coast station may require assistance. After Channel 16 is selected, select your next operation by pushing the Software Key below the following options. [SIEYT Returns to the operating screen. nt Hsbn} Displays the “Distress History” Received (AN) screen. Elapsed: 00:01:10 From: STATION 1

3. Push [STEY] and then [OK _] to return to the operating

HE Receiving DSC calls (other) The transceiver receives the following types of DSC calls. + Individual call (p. 38) + Polling Request call(p. 34) + Individual Acknowiedgment (p. 26) + Test call (p. 41) + Group call / All Ships call (p. 39) + Test Acknowledgment / Position Reply call + Position Request call (p. 40) / Polling Reply call (p. 42) @ The receivable call types may differ, depending on the transceiver version or presetting. By defauit, the Auto ACK function automatically sends an Acknowledgment to the calling station. ( [MENU] > Settings > DSC > Auto ACK (p. 46) If Auto ACK is set to “Manual,” you can manually send an Acknowledgment for each call as described in this section. © Receiving an Individual call When an Individual call is received: + An alarm sounds. + “Received INDV Cal” is displayed. Received INDV Call

1. Push Alarm OFF to turn OFF the alarm. From: STATION 1

Channel 08 Elapsed: 00:00:25

2. Push the Software Key below the next operation.

More]. _ lgnores the call and retums to the operatin Fm la pereing Received INDV Call screen. + The call is saved in the DSC Log. From: STATION 1 + “£T blinks continuously until you display Channel 08 the call message. Élapsed: 00:01:01 CHE Holds the RX call task, and returns to the Main screen. ra Sends an Individual Acknowiedgment right (Able to Way. comply) * Automatically switches to the assigned channel. + After sending, push to resend. + The call is saved in the DSC Log. [individual Call | Ep Accepts the call. Recalveci Request + The call is saved in the DSC Log. Elapsed: 00-00-37 + The received call's information is From STATION 1 displayed. + Push the Software Key to select the Acknowiedgment option. CE Push to delete the task and returns to the Main screen. RACKADIe} Sends an Acknowledgment without any changes. (Able to Compiy) ACKUnable]. Sends an Acknowledgment but cannot communicate. (Unable to Comply) TACK New CH}: Able to communicate but proposes another channel. (Propose New CH) Specify the channel by pushing [A] or [W].

7 DIGITAL SELECTIVE CALLING (DSC) © Receiving a Group call or All Ships call When a Group call is received: + An alarm sounds. + “Received Group Call is displayed. (Example: when a Group call is received) When an All Ships call is received: + An alarm sounds. Received Group Call + “Received All Ship Call” is displayed. From: STATION 1 Channel 08 1... Push BAamm OFF] to turn OFF the alarm. Elapsed: 00:00:05 + The channel that is assigned by the caller is automatically selected after 10 seconds by default.

2. Push the Software Key below your next operation.

Ignores the call and returns to the operating screen, Received Group Call + The call is saved in the DSC Log. From: STATION 1 + “2T blinks continuousiy until you display Channet: 08 the call message. Accept after 3 sec. [Ho Holds the RX call task, and returns to the Main screen. [Pausa. Pauses the countdown until the assigned channel is automatically selected. + Select Resume] to resume the countdown. - The call is saved in the DSC Log. o] not displayed if the “CH Auto Switch” item is set to “Manual.” (p. 46) Accepts the call. + The assigned channel is selected. + The call is saved in the DSC Log. pere [STEYI Closes the call, and then returns to Elapsed: 00:00:32 the operating screen. PEUR STATION 1

© Receiving a Position Request call (May not be used, depending on the presetting) NOTE: Even if the Auto ACK function is set to “Manual” while waiting to receiving a distress acknowledgment or after receiving a distress acknowledgment, the Position Reply is automatically sent to the calling station. When a Position Request call is received: + An alarm sounds. + “Received POS Request’ is displayed. Received POS Request

1. Push to turn OFF the alarm. From: STATION 1

2. Push the Software Key below the intended operation.

[gnore]. Ignores the call and returns to the operating screen. Received POS Request

• The call is saved in the DSC Log. From: STATION + “7 blinks continuously until you display Elapsed: 00:00:59 the call message. CH: Holds the RX call task, and returns to the Main screen. [AE Sends Acknowiedgment ‘ble to comply" (Ableto right away. comply) [Unable] Sends an Acknowledgment “Unable to (Unable to Comply." Comply) _ * The call is saved in the DSC Log. + Displays the Acknowledgment information, and then returns to the operating screen by pushing [STEY] and then . Accepts the call. + Displays the received call's information. - The call is saved in the DSC Log. Push or ACKUnable |, then push [all ] to send the Position Reply call. (p. 32)

7 DIGITAL SELECTIVE CALLING (DSC) © Receiving a Test call When a Test call is received: + An alarm sounds. + “Received Test Call” is displayed.

1. Push [Alam OFF] to turn OFF the alarm.

2. Push the Software Key below your next operation.

gnore]. Ignores the call and returns to the operating screen. - The call is saved in the DSC Log. + “TT blinks continuously until you display the call message. [Hold] Holds the RX call task, and returns to the Main screen. [Abe] Sends a Test Acknowledgment “Able to (Able to Comply.” comply) * The call is saved in the DSC Log. : Accepts the call. + Displays the received call's information. - The call is saved in the DSC Log.

• The received call's information is displayed. Push CACK ] and then push [Cal ]to send a Test Acknowledgment. (p. 30) Push Resend to resend. Received Test Call From: STATION 1 Elapsed. 00:00:03 Received Test Call From: STATION 1 Elapsed 00:00 40 Received Request Elapsed- 00-00-09 From: STATION 1 |

DIGITAL SELECTIVE CALLING (DSC) © Receiving a Test acknowledgment/Position Reply call* IPolling Reply call (“For only the USA version) Example: Receiving a Test acknowledgment When a call is received: + An alarm sounds. . The folowing screen is displayed and the backlight MSaiES Tout AE FT Links, From: STATION 1 Push to turn OFF the alarm. Elapad: 00:00:20

+ The received information is displayed. + “Terminate the procedure. Are you sure?" is displayed.

4. Push [OK-Jto return to the operating screen.

Elapsed- 00.02 12 From: STATION 1

7 DIGITAL SELECTIVE CALLING (DSC) HE DSC Log © Received DSC Log The transceiver saves up to 30 received Distress call messages and 50 received “Others” call messages in your DSC Log. On the operating screen, “E?'is displayed when there is an unread call message. The icon blinks when there is a new received call message.

1. Open the “DSC Log' screen.

2. Select “Received Call Log” and then push [ENT].

+ The “Received Call Log” screen is displayed.

3. Select “Distress” or “Others,” and then push [ENT].

© “Distress” displays the received Distress call log, and “Others” displays the received DSC call log. TIP: You can also display the “Received” screen by pushing on the operating screen.

4. Select a log, and then push [ENT], [CH/ENT], or

[RFO] to display the detailed information. 1 11:55 AI Ships ONF Displays the detailed information. 1022 AllShips Deletes the selected call log. 8 10:22 [MMST+ Saves the MMS] as an Individual ID. individual AN Ships Call From: STATION 1 Category: Safety Lmetete | sant | © Transmitted DSC Log The transceiver saves up to 30 DSC transmitted calls in your DSC Log.

2. Select “Transmitted Call Log,” and then push [ENT].

-+ The “Transmitted Call Log” screen is displayed.

3. Select a log, and then push [ENT] to display the

detailed information. [NEO Displays the detailed information. Deletes the selected call log. [MMSC._ Saves the MMSI as an Individual ID or a Group ID.

DIGITAL SELECTIVE CALLING (DSC) 7

HE Multiple-task mode {For only the USA version, depending on the presetting) the Multiple-task function is enabled, the transceiver can hold up to 7 tasks. You can handle more than 2 DSC tasks simultaneously by switching between the tasks. To use the Mutiple-task mode, select “Multiple” in the “Procedure” on the Menu screen. (p. 47) [MENU] > Settings > DSC > Procedure When the Multiple-task mode is activated, is displayed on the operating screen. NOTE: The Task mode has an Inactivity Timer function. After a certain period of time has passed without any operation on a task, the transceiver automatically deletes a task and returns to the operating screen. When an Inactivity Timer activates, an alarm sounds and a count down message is displayed for 10 seconds. © Holding a DSC task In the Multiple-task mode, you can hold or activate the DSC task as follows. Example: When a Group call is received:

1. Push to turn OFF the alarm.

+ The received call's information is displayed. Received Group Call

2. PushCHoï] From: STATION 1

+ The received Group cal task is held into the task list Channek 08 and returns to the operating screen. Accept after 2 sec © Activating the held DSC task

1. Push to display the task list. 34°37,3745N pen

+ The task list is displayed. CEE n NOV/10 06:45 1 6

2. Select the task that you want to activate.

-+ The activated task information is displayed. R ed

4. Push [PTT] to communicate. ser TEA

5. After finishing the communication, push to gg

delete the task. STATION 1

7 DIGITAL SELECTIVE CALLING (DSC) © Task list You can display the task list screen by pushing CTasKLSE]. The number of tasks is displayed at the top of the screen. The number of tasks On the “Task List’ screen, the following Software Keys are displayed. Holds the task and returns to the operating screen. Finishes the selected task. Activates the selected task. Holds the selected task. Displays the task information.

DIGITAL SELECTIVE CALLING (DSC) HE DSC Settings On the “DSC” screen, you can make settings of the DSC call related items. [MENU] > Settings > DSC Position Input See “Entering the position and time” on page 20 for details. Individual ID See “Entering an Individual ID° on page 19 for details. Group ID See “Entering a Group ID” on page 19 for details. Auto ACK The Auto ACK function automatically sends an Acknowiedgment when an appropriate Request is received © Individual ACK Auto (Able): _ Automatically sends “Able to comply.” Auto (Unable): Automatically sends “Unable to comply.” Manually sends an Acknowledgment. Auto (Able): Automatically sends “Able to comply.” Manual: Manually sends an Acknowiedgment. © Polling ACK Auto: Automatically sends an Acknowledgment. Manual Manually sends an Acknowiedgment. © Test ACK Auto: Automatically sends an Acknowledgment. Manual Manually sends an Acknowiedgment. CH Auto Switch Select whether or not to automatically switch to channel 16 or the specified channel, or ignore the call. Accept after 10 sec.: After receiving a DSC call, the transceiver remains on the operating channel for 10 seconds. After that, the transceiver automatically switches to the channel that is specified on the DSC call Ignore after 10 sec.: After receiving a DSC call, if you do not push the Software Key below in 10 seconds, the transceiver ignores the call, and then remains on the current operating channel Manual: After receiving a DSC call, you can select whether or not to accept the received DSC call NOTE: In the Muitiple-task mode, “Ignore” is renamed to “Hold after 10 sec.” DSC Data Output When receiving a DSC call from the station that is selected in this setting, the transceiver outputs the DSC data to the NMEA output port. @ You can send Distress calls despite of this setting. All Stations: Stations List: From any station. From the stations that are entered Individual ID or Group ID on the Menu screen Does not output any DSC data to an external device. OFF

7 DIGITAL SELECTIVE CALLING (DSC) EH DSC Settings Alarm Status Self Check Test Sets the alarm ON or OFF when receiving each type of DSC call. © Safety © Routine © Warning Sets the alarm for when: + No MMSI code is entered. + The position data has not been received for 30 minutes after turning ON the transceiver. + The received position data has not been updated for 10 minutes. + The position data has not been updated for 4 hours. + The position data has not been updated for 23.5 hours. © Self-Terminate An alarm sounds when duplicate Distress calls are received. © Discrete An alarm sounds when a lower priority call is received while receiving a high priority call. CH 70 SQL Level Sets the Squelch level for Channel 70 to 1-10 or Open. The Self-Test sends DSC signals to the receiving AF circuit to compare the sending and receiving signals at the AF level. Push [ENT] to start the Self-Test. ® When the sending and receiving DSC signals match, “OK” is displayed. Push (D to Start [Set Check Test ] Push DL to Start

Procedure (For only the USA version) You can select the type of task for the transceiver, depending on the presetting. Single: Handles only 1 task at the same time. Multiple: Handles up to 7 tasks at the same time.

HE Making an Individual call to an AIS target You can transit an Individual call to a selected AIS target, without entering the targets MMSI code. In this case, the call type is automatically set to Routine. © Selecting an AIS target on the IC-M510/IC-M510E You can compose an Individual call to an AIS target selected on the Plotter screen or the AIS list. NOTE: The IC-M510/IC-M510E can be input AIS information from the built-in AIS receiver (if built in) or an external NMEA 0183 or NMEA 2000 sentence source.

1. Select the AIS target from the Plotter screen, the

Target List, the Friends List, or the Danger list (pp. 52, 55).

+ “Compose Non-Distress” screen is displayed.

3. Select “Channel,” then push [ENT] or [CH/ENT] to

display the Voice channel selection screen. © See page 25 for details.

4. Select a channel to assign, and then push [ENT] or

5. Push CtalLIto send the Individual call

6. When you receive an Acknowledgment “Able to

comply”, an alarm sounds. Push Alam OFF] to turn OFF the alarm. + The channel assigned in step 4 is automatically Received INDV ACK selected. From: STATION 1 @ Ifthe called station cannot use the channel that you Channel 08 assigned, a different channel is selected by the other Elapsed: 00:00:03 station.

8. Hold down [PTT] to communicate.

© Using an AIS transponder When the optional MA-510TR CLASS B AIS TRANSPONDER is connected to the transceiver, you can transmit an Individual call to a selected AIS target and the voice channel on the transponder. & See page 97 for connecting instructions. NOTE: To ensure correct operation of the DSC function, make sure you correctly set the CH70 SQL Level. (p.47) @ See the next page for the operation.

7 DIGITAL SELECTIVE CALLING (DSC) © Using an AIS transponder Transponder operation:

1. Select an AIS target on the plotter display, Target,

Danger, or Friends list screen. ©® See the MA-510TR INSTRUCTION MANUAL for details.

2. Push [ENT] to display the Menu window.

+ The Menu window is displayed.

3. Select “Send DSC,” and then push [ENT].

+ The “DSC TRANSMISSION" screen is displayed.

4. Push [A] or [v] to select a voice channel.

+ Voice channels are already preset into the transponder in the recommended order. NOTE: When a base station is selected in step 1, a voice channel will be specified by the base station. Therefore you cannot change the channel. The transponder will display “Voice Channel is specified by the Base station,” in this case.

5. Push [ENT] to make the Individual DSC call.

+ “Transmitting individual call” is displayed. © If Channel 70 is busy, the transceiver stands by until the channel becomes clear.

6. After making the Individual DSC call, “DSC

transmission completed." is displayed. + Ifthe transceiver cannot make the call, “DSC transmission failed." is displayed. Transceiver operation:

7. When the acknowledgment is received, alarm sounds.

elfthe acknowledgment ‘Able to comply' is received, push Alam OFF] to stop the alarm, and then select the voice channel specified in step 4. + A different voice channel will be selected if the station you called cannot use the channel. + To reply, push [PTT] and speak at a normal voice level. + You can check the MMSI code or the name, if entered, of the AIS target on the display. elfthe acknowledgment ‘Unable to comply' is received, push Alarm OFF] to stop the alarm, then the Acknowledge information is displayed.

8. After the communication is finished, pus

return to the normal operating mode. an pat LENTIbo sraramir Waiting for ACK Elapsed: 00-00-26 To: STATIONT Category: Routine

NOTE: The IC-M510/IC-M510E can be input AIS information from the built-in AIS receiver (if built in) or an external NMEA 0183 or NMEA 2000 sentence source. H About AIS The Automatic Identification System (AIS) is primarily used for collision-risk management and navigation safety. It can automatically transmit and receive vessel information, such as the vessel name, MMSI code, vessel type, position data, speed, course, destination, and more, depending on the class. Information is exchanged among vessels and/or base stations on the VHF maritime mobile band. The information helps to identify other nearby vessels or stations by displaying the received data on a plotter or a radar screen. Other vessel (Class AAIS) Other vessel (Class B AIS) 71 Vessel Information

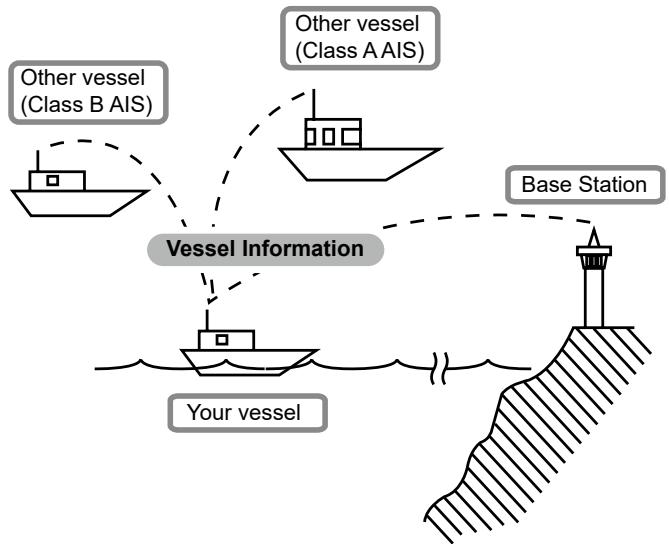

Dee Your vessel H AIS classes There are 7 types of AIS stations, vessels, base stations, Search and Rescue (SAR), Aïds to Navigation (AtoN), Search and Rescue Transmitter (AIS-SART), Man OverBoard (MOB), and Emergency Position Indicating Radio Beacon-AIS (EPIRB-AIS) There are 2 classes of AIS units, which are installed on vessels, Class À and Class B. Under the Safety Of Life At Sea (SOLAS) convention, all SOLAS vessels, as described below, are required to install a Class AAIS transponder: + Upwards of 300 gross tonnage engaged on international voyages. + Passenger vessels, irespective of size, engaged on international voyages. + Upwards of 500 gross tonnage not engaged on international voyages. A Class B AIS transponder is designed to be interoperability with Class A units, but not to impact the Class À network. Many commercial vessels, and some leisure craft, not classified as requiring a Class À unit, choose to install a Class B unit to avoid accidents at sea. 50

8 AIS FUNCTION EH Using the Plotter screen On the plotter screen, the display range and the icons of the AIS target, waypoint and MOB are displayed. You can change the display range and type, depending on your operating style. 1... Push [DISP] and then select “Plotter”. -+ The Plotter screen is displayed.

2. Push the Software Key for your next operation.

Selects the display range. (p. 52) [TargetSelect 4} Selects the closest target to your (SET) vessel [TametSeect®} Select the farthest target from your Era] vessel Displays the details on the selected (GES) target. (p. 57) EMPT Push to save your position information to the transceiver. Push to start navigation While navigating, push to stop navigation. Push to enter the Man Overboard (MOB) mode. (p. 65) While in the Man Overboard (MOB) mode, push to stop the Man Overboard (MOB) mode. [Anchor Push to start the Anchor watch function. (p.66) Stop Anchor} While in the Anchor watch mode, push to stop Anchor watch. NOTE: An alarm sounds when an AIS target is closer than the CPA (Closest Point of Approach) and TCPA (Time to CPA) settings, and so on, depending on the presetting. To stop the alarm buzzer, push any key. @ If a popup screen is displayed, push any key again to turn it OFF. TIP: You can display only the Plotter screen by selecting the “Plotter” item on the Menu screen. [MENU] > AIS > Plotter

© Plotter screen Displays the plotter display and selected targets information. © DISPLAY TYPE Displays the selected display type. You can select the display type in “North up/ Course up” on the Menu screen. (p. 59) [MENU] > Settings > AIS > North up/Course up @ When “N-UP” is displayed, the top of the plotter screen represents North. @ When “C-UP” is displayed, the top of the plotter screen represents the direction your vessel's course over ground.

Displayed in the center of the screen. @ When “N-UP” is displayed, the vessel icon automatically points in the direction your vessel is heading, in 5.625 degree steps. @ When “C-UP” is displayed, the vessel icon constantiy points to the top of the plotter screen. @ When your vessel moves less than 2 knots, @ is displayed. AIS FUNCTION 8 © TARGET ICONS Targets whose AIS signal are received are displayed with icons. The icon may differ, depending on the target type or its status. Icon Description AIS target: Vessel @ The tip of the target triangle automatically points in the direction its heading. JAIS target: Vessel (Friend) À (Yellow triangle) AIS target: AIS-SART, AIS- MOB, and EPIRB- AIS 1 AIS target: Search and Rescue & (SAR) vessel n_ [AIS target: Search and Rescue % (SAR) aircraft JAIS target: Aids to Navigation (AtoN) JAIS target: Aïds to Navigation (AtoN) virtual # |AIS target: Base station Fr [Waypoint © PB is displayed during navigation # [vos @ Icons for other than the SAR aircraft, Base station, Waypoint, and MOB are displayed in red (Day mode) or white {Night mode) (pp. 12, 82), when the AIS target is closer than your CPA and TCPA settings (Danger target). ® Avessel is regarded as a “Lost target,” and a red cross mark displays on the target icon after a specified period of time has passed since the vessel last transmitted data (p. 71). The Lost target icon disappears from the plotter display 6 minutes and 40 seconds after the vessel was regarded as a “Lost target." Ask your dealer for details. © COMPASS Displays the bearing information.

8 AIS FUNCTION © Plotter screen

© DISPLAY FILTER INDICATOR

Displayed when the type of targets on the plotter screen are filtered. (p. 59) IMENU] > Settings > AIS > Target Display Indicator Description Em [Or DancerAIs targets lare displayed Only Friend AIS targets lare displayed Oniy waypoints are displayed. No indicator AI targets are displayed. © NAVIGATION LINE Displays a line from the start position of navigation to the AIS target or waypoint. © TARGET BOX Displays the selected target. @ When a target box is displayed, push to display the detail screen of the selected target. © VESSEL TRACK Displays your vessel track. © ANCHOR WATCH + Displays ® (a red circle) as the start position of anchor watch + Displays a red dashed circle as the range of anchor watch. © DISPLAY RANGE + Displays the selected display range. + Push [Ra select the desired display range. © 0.125, 0.25, 0.5, 0.75, 1.5, 3,6, 12, 24, 36 NM (nautical miles) are selectable.

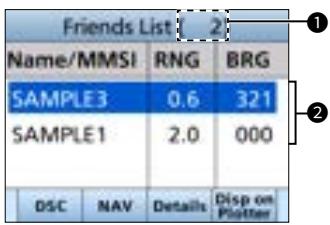

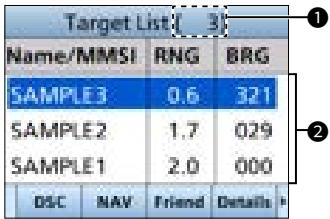

AIS FUNCTION 8 E Using the AIS list screen There are 3 types of AIS lists, Target, Danger, and Friends. The target information is automatically updated every 5 seconds, and then the AIS target data is sorted.

+ The Menu screen is displayed.

2. Push [A], [W], or rotate [CH/ENT] to select “AIS,” and Task List »

then push [ENT], [CH/ENT], or [»]. ais + -+ The “AIS” screen is displayed. Intercom » Navigation + GPS Info

3. Push [A]or[V] to select a list, and then push [ENT],

ICH/ENT], or [(»]. + The list screen is displayed.

4. Push [A], [], or rotate [CH/ENT] to select an AIS

5. Push the Software Key below for your next operation.

Displays the “Compose Non-Distress” screen to send an Individual call. (p.25) @ Displayed only when a target is selected. k Starts navigation to the selected Navigation) _ target. (p. 67) Sets the selected target as a Friend. (p. 56) © Displayed only in the Target List or Danger List. Displays the details on the selected target. (p. 57) @ Displayed only when the target is selected. DisponPloter]. Displays the selected target on the plotter screen. (p. 51) Sorts the Danger target data by CPA or TCPA. © Displayed only in the Danger List. Target List Danger List , Friends List

NOTE: An alarm sounds when an AIS target is closer than the CPA and TCPA settings, and so on, depending on the presetting. To stop the alarm buzzer, push any key. ©@ Ifthe popup screen is displayed, push any key again to turn it OFF.

8 AIS FUNCTION © Target/Friends List screen The Target List screen displays up to 200 AIS targets. The Friends List screen displays the AIS targets of up to 100 targets that you set as a Friend. (p. 56) The AIS target data is sorted by the distance from your vessel, and the closest target is located at the top of the list.

© THE NUMBER OF TARGETS

Displays the number of AIS targets. © TARGET INFORMATION Displays the following AIS target information. + MMSI code or name + Range (RNG) from your vessel to the target (units: NM) + Bearing (BRG) from your vessel to the target (units: degree)

© Danger list screen The Danger List screen displays any Danger target whose CPA (Closest Point of Approach) distance and TCPA (Time to CPA) time are less than the set values. You can set the values in “CPA” and ‘TCPA' on the Menu screen. (p. 59) [MENU] > Settings > AIS > CPA/TCPA > CPA or TCPA @ The transceiver can display up to 200 targets.

© THE NUMBER OF TARGETS

Displays the number of AIS targets.

© DANGER TARGET INFORMATION

Displays the following AIS target information. + MMSI code or name + CPA: Closest Point of Approach unit: NM) + TCPA: Time to CPA (units: minute)

EH Setting a Friend AIS FUNCTION 8 You can set up to 100 AIS targets as a Friend in the Friends List. An alarm sounds when a Friend is detected, depending on the setting. (p.60) © Entering an ID There are 3 ways of setting a Friend, using the Friends List, selecting in the AIS list, or selecting on the plotter display. Using the Friends List: 1... Open the “Friends List’ screen [MENU] > Settings > AIS > Friends > Friends List + “No ID'is displayed when there is no Friend.

TIP: + Select a number using [4] and [>]. + Push [ENT], or [CH/ENT] to enter the selected number. + Select “—" or “_" on the screen, or rotate [CH/ENT] to move the cursor.

4. Push HE to save the edited ID.

+ The target is added to the Friends List. Selecting in the Target List or Danger List: 1... Open a “Target List” or a “Danger List” [MENU] > AIS > Target List or Danger List

+ “Register as a Friend," is displayed. + Ris displayed. Selecting on the plotter display:

1. Open the plotter screen. (p. 51)

to select an AIS target.

3. Push Del to display the details

screen -+ The “Details” screen is displayed.

+ The target is added to the Friends List. + Afriend target is displayed with À. (yellow triangle) on the plotter screen. © Editing an ID

Open the “Friends List” screen. [MENU] > Settings > AIS > Friends > Friends List Push [A] or [Y], or rotate [CH/ENT] to select an ID. Push CEdiE]. © See step 3 in “Using the Friends List,” as described to the left. © Deleting an ID

Open the “Friends List” screen. [MENU] > Settings > AIS > Friends > Friends List Push [A] or [Y], or rotate [CH/ENT] to select an ID. Push (Dete]. + “Delete the ID. Are you sure?" is displayed. Push COK ]

8 AIS FUNCTION EH About the Detail screen The Detail screen displays the information about the selected AIS target or waypoint. The contents may differ, depending on the selected target. @ When a Danger target is selected, À is displayed.(p. 55) @ When a Friend target is selected, À is displayed. (p. 55) © Push the Software Key below for your next operation. Ebsc Displays the “Compose Non-Distress” screen to Stan send an Individual call. (p. 25) Type: Class À ERA Starts navigation to the selected target. (p.67) MMSI: 123456789 Sets the selected target as a Friend. (p. 56) Cali Sign: ABCDEFG © Abeep sounds and a popup screen is displayed |y4o Number when the memory is full. rmmsr. Displays the Individual ID entry screen. (p. 8) 08€ | MA | Friend | sms: @ Abeep sounds and a popup screen is displayed when the memory is full, or the ID has been already added © Contents list NOTE: The contents may differ, depending on the received data. Class À and SAR vessel [Type of ship. AIS class NAV Status MMSI code Destination Ship name Estimated time of arrival Country name Elapsed time Call sign Vendor ID Class B IMO number AIS class CPA (Closest Point of Approach) MMSI code TOPA (Time to CPA) Ship name Position (Latitude, Longitude) Country name S0G (Speed Over Ground) Cal sign COG (Course Over Ground) Vendor ID HDG (Heading) CPA (Closest Point of Approach) PA (Position Accuracy (H: High, L: Low) | [TCPA (Time to CPA) Range Position (Latitude, Longitude) Bearing S0G (Speed Over Ground) ROT (Rate Of Turn) COG (Course Over Ground) Bow to antenna distance HDG (Heading) Stern to antenna distance PA (Position Accuracy (H: High, L: Low) Port side to antenna distance Range Starboard side to antenna distance Bearing Length Bow to antenna distance Beam Sie to antenna distance Draught Port side to antenna distance

AIS FUNCTION 8 Starboard side to antenna distance Bearing Length Length Beam Wiath Type of ship. Elapsed time Elapsed time AtoN and AtoN virtual JAIS-SART, AIS-MOB, and EPIRB-AIS AIS class AIS class MMSI code MMSI code Target name CPA (Ciosest Point of Approach) CPA (Ciosest Point of Approach) TCPA (Time to CPA) TCPA (Time to CPA) Position (Latitude, Longitude) Position (Latitude, Longitude) SOG (Speed Over Ground) PA (Position Accuracy (H: High, L: Low) COG (Course Over Ground) HDG (Heading) PA (Position Accuracy (H: High, L: Low)) Position indicator (ON POSN: ON Position, OFF POSN: OFF Position) Range Range Bearing Bearing ROT {Rate Of Tum) Bow to antenna length Elapsed time Stern to antenna length Port side to antenna length Base station Starboard side to antenna length AIS class Length MMS code Beam Position (Latitude, Longitude) [Type of AtoN PA (Position Accuracy (H: High, L: Low) Elapsed time Vendor ID Range Waypoint Bearing Name Elapsed time Position (Latitude, Longitude) Range SAR aircraft Bearing AIS class MMS code MOB Target name Position (Latitude, Longitude) Country name Range Call sign Bearing Vendor ID Position (Latitude, Longitude) S0G (Speed Over Ground) COG (Course Over Ground) ALT (Altitude) PA (Position Accuracy (H: High, L: Low) Range

8 AIS FUNCTION H AIS settings AIS settings can be customized in “AIS” on the Menu screen. [MENU] > Settings > AIS North up/Course up CPA/TCPA You can select the display type for the plotter screen. North up: The top of the plotter screen represents North. Course up: The top of the plotter screen represents the direction your vessel's course over ground Target Display You can select whether or not to limit the AIS or waypoint targets that are displayed on the plotter display. You can easily see the plotter display. @ The indicator is displayed on the plotter display. (p. 56) © The waypoint for navigation is displayed, regardiess of this setting. Alltargets: All targets are displayed. Danger only: _ Only Danger AIS targets are displayed. Friends only: _ Only Friend AIS targets are displayed. Waypoint only: Only waypoints are displayed. © Alarm You can select whether or not to turn the following alarm functions ON or OFF. ON: _ The alarm function is ON. An alarm sounds, and a popup screen is displayed. ® The alarm may not sound, depending on the “Audible Alarm” setting. OFF: The alarm function is OFF. + Approach The alarm function for when a vessel's CPAis closer, and TCPA is less than the set value. + Lost The alarm function for when a danger target is regarded as a “Lost target.” (p.71) © Audible Alarm You can select whether or not to sound the following alarms ON: _ The alarm sounds. OFF: The alarm does not sound. + Approach The alarm function for when a vessel's CPAis closer, and TCPA is less than the set value. + Lost The alarm function for when a danger target is regarded as a “Lost target.” (p.71) e CPA Set a CPA (Closest Point of Approach) value between 0.01 and 6.00 NM (in

0.01 NM steps) for the alarm function.

e TCPA Set a TCPA (Time to CPA) value between 1 and 60 minutes (in 1 minute steps) for the alarm function

© Slow Warn The GPS receiver calculated COG data of a vessel that is at anchor or drifting is unreliable, and therefore the CPA and TCPA data may not be calculated correctiy. If a vessel is anchored in your alarm zone, the unreliable data can cause the collision alarm to sound many times, even if there is no real danger. To prevent this, when the anchored vessel's SOG is less than this set value, the Slow Warn function assumes that vessel's COG is fixed towards your vessel and an alarm will sound. - Function Turn the Slow warn function ON or OFF. ON: The Slow warn function is turned ON. OFF:The Slow warn function is turned OFF. + Speed Set a speed for the Slow war function between 0.1 and 4.9 kn (in 0.1 kn steps). NOTE: If other vessels at anchor or drifting come into your alarm zone, the Slow warn alarm will sound again. Only if the previous vessel disappears from the Danger list (p. 55), and then re-enters the list, can a new Slow warn or regular alarm sound, depending on the vessel's SOG, or CPA and TCPA. The Slow warn function operates in the same way if your vessel is at anchor and other vessels enter your alarm zone. AIS FUNCTION 8 Friends © Friends List Displays all Friend targets that you have entered. ©® “No ID’is displayed when there is no Friend target. © See page 56 for how to set a Friend. © Friends Alarm + Function You can select whether or not to turn the following alarm function ON or OFF when a vessel that is entered into the Friends List is detected. ON: The alarm function is ON. An alarm sounds, and a popup screen is displayed when a vessel that is entered into the Friends list is detected, regardiess of the set range.

{in range):The alarm function is ON when a vessel that has entered into the Friends list is detected in the set range. OFF: The alarm function is OFF. + Audible Alarm You can select whether or not to sound the Friends alarm ON: The alarm sounds. OFF:The alarm does not sound. + Range Set the range to between

0.01 and 6.00 NM (in 0.01 NM steps)

for the alarm function.

AIS FUNCTION M AIS settings ID Blocking The transceiver blocks AIS transponders that are entered into the ID Blocking list. Enter your vessel's transponder ID or other vessel's transponder IDs if necessary to prevent the transceiver from detecting them as dangerous targets. ® You can enter up to 10 MMSI codes. + Entering an ID

IMENU] > Settings > AIS > ID Blocking + The blocked AIS transponder's ID is displayed. + “No ID'is displayed if there is no blocked AIS transponder. Push [Add] to start the ID entry. Enter an ID. TIP: + Select a number using [4] and [>]. + Push [ENT] or [CH/ENT] to enter the selected number. + Select “" or “_+," or rotate [CH/ ENT] to move the cursor. Select “EE” and then push [ENT] to enter the ID. + Editing an ID

[MENU] > Settings > AIS > ID Blocking Push [A] or [Y] to select an ID. Push CEdE] + See step 3 in “Entering an ID," as described above. Push [OK]. . Deleting an D

Open the “ID Blocking” screen. [MENU] > Settings > AIS > ID Blocking Push [A] or [Y] to select an ID. Push + “Delete the ID. Are you sure?" is displayed. Push [OK ]

NOTE: For the other functions, the transceiver must be receiving valid GPS signals, or your position must be entered. (p. 20) EH Waypoint Waypoints are position data points of places you want to go to, the position of your vessel, or a vessel you received a DSC call from. You can enter up to 100 waypoints with names of up to 15 characters. You can enter your current position data, or add one as a destination or landmarks you often go to, for easy access. © Using the Waypoint list screen The transceiver saves up to 100 waypoints in the Waypoint list.

1. Open the “Waypoint’ screen.

[MENU] > Navigation > Waypoint © You can also add your current position as a waypoint by pushing CAGE]

2. Push [A] or [V], or rotate [CH/ENT] to select a

3. Push the Software Key below for your next operation.

Cat Sorts the waypoints by Name or Range [Details] Displays the details on the selected Name- waypoint. WPToi ® You can also edit or delete the waypoint, or start navigating to the waypoint on the “Detail” screen. LON: 135°34 2921€ Starts navigating to the selected (Navigation) Waypoint. (p. 68) CE Enters a waypoint. (p. 63) CHE: Edits the selected waypoint. (p. 64) LAT: 34°37,3878N Deletes the selected waypoint. (p.64)

© Entering a waypoint The position information that you want to memorize can be added as a waypoint. NOTE: You can also add your current position as a waypoint by pushing EWPT].

1. Open the “Waypoint’ screen.

IMENU] > Navigation > Waypoint

2. Push [Add to add a waypoint.

+ The “Name: screen is displayed. TIP: + Select ul to enter numbers and letters, and sil to enter symbols. + Select a number, character, or space using [A], LV], [<], and [>]. + Push [ENT] or [CH/ENT] to enter the selected Name: number or character. 001 + Select “—" or “—" on the screen, or rotate on où [CH/ENT] to move the cursor, or to select the obel DUON entered character. 1alalsl OO. Ce LT 2e] see |

4. Repeat step 3 to enter the name of up to 15

5. Select RER, and then push [ENT] or [CH/ENT] to

save the name. + The “LAT:”" screen is displayed. @ If you do not enter a name, a popup screen is displayed. Push any key to return to the previous screen.

6. Enter a latitude.

© When GPS data is received, your current position information is automatically displayed.

7. Select EEE and then push [ENT] or [CH/ENT] to

save the latitude. + The “LON:" screen is displayed. © If you enter a latitude that is out of the range, a popup screen is displayed. Push any key to return to the previous screen.

8. Enter a longitude.

© When GPS data is received, your current position information is automatically displayed. Lot E = W

9. Select BI, and then push [ENT] or [CH/ENT] to a]

save the longitude. El u + The waypoint is saved, and the transponder returns to the previous screen. © If you enter a longitude that is out of range, a popup screen is displayed. Push any key to return to the dialog screen.

OTHER FUNCTIONS 9 © Editing a waypoint Awaypoint's name, latitude, longitude data can be edited. ® You cannot edit the waypoint that is being used for navigation.

1. Open the “Waypoint’ screen.

[MENU] > Navigation > Waypoint

2. Push [A] or [Y], or rotate [CH/ENT] to select a waypoint.

© Push to sort the waypoints by Name or Range.

® See steps 3 - 9 in “Entering a waypoint” on page 63. © Deleting a waypoint A waypoint can be deleted from the Waypoint list. © You cannot delete the waypoint that is now being used for navigation.

1. Open the “Waypoint” screen.

IMENU] > Navigation > Waypoint

2. Push [A] or [Y] or rotate [CH/ENT] to select a waypoint.

© Push LSr]to sort the waypoints by Name or Range. + “Delete the Waypoint. Are you sure?" is displayed.

+ The selected waypoint is deleted, and the transceiver returns to the previous screen. © Navigating to a waypoint The transceiver assists you to navigate to a selected waypoint in the Waypoint list. @ See “Navigation” on page 67 for details.

HE MOB (Man Overboard) You can enter a Man OverBoard (MOB) waypoint into the transceiver with its GPS position data, as soon as a person has fallen into the water and needs to be rescued. This enables you to reach the MOB location even in the dark, or when you have lost visual contact. You can select an AIS target during the MOB mode. © Starting MOB © Push [MOE] to enter the MOB mode. + Three beeps sound. + The plotter screen is displayed, and MK is displayed at your current position on the plotter screen. @ The Arrival and XTE alarms are not detected while in the MOB mode. TIP: You can also start the MOB mode when you select the “Start MOB” item on the Menu screen. [MENU] > Navigation > Start MOB © Stopping MOB

1. Push Lo stop the MOB mode.

+ “Deactivate MOB. Are you sure?” is displayed.

x Deactivate MOB + À disappears, and the transceiver retus to the g Are you sure? previous screen. TIP: You can also stop the MOB mode by selecting the “Stop MOB” item on the Menu screen. IMENU] > Navigation > Stop MOB

OTHER FUNCTIONS 9 HE Anchor Watch Anchor Watch is the function to sound an alarm when your vessel is at anchor and has drifted. © Starting Anchor Watch Push LAnchoï to start the Anchor Watch mode.

• @(ared circle) is displayed as the start position of anchor watch. + Ared dashed is displayed as circle as the range of anchor watch. TIP: You can also start the Anchor Watch mode by selecting the “Start Anchor Watch” item on the Menu screen. [MENU] > Navigation > Start Anchor Watch ® When your vessel exceeds the range of the anchor watch, “Exceeded anchor radius!” is displayed. © Stopping Anchor Watch 1... Push [SiopAnchon] to stop the Anchor Watch mode. + “Deactivate anchor watch. Are you sure?” is displayed.

+ @ (a red circle) and a red dashed circle disappear. TIP: You can also stop the Anchor Watch mode by selecting the “Stop MOB” item on the Menu screen. [MENU] > Navigation > Stop Anchor Watch

HE Navigation The transceiver assists you to navigate to a selected destination. @ The function works only when the transceiver is receiving valid GPS signals. © The function cannot work while in the MOB mode. NOTE: The Navigation function is a supplemental aid to navigation only, and is not intended to be a substitute for primary navigation equipment. © Starting navigation There are 3 ways of setting a destination using ERA], selecting in the AIS list, and selecting in the Waypoint list. NOTE: À popup screen is displayed when the vessel arrives at or near the destination. To stop the function, push any key. © When the Audible Alarm function is set to “ON,” an alarm also sounds. (p. 60) Using [NAVI:

1. Push CNAVI on the operating screen.

+ The “Waypoint” screen is displayed.

2. Push [A] or [Y], or rotate [CH/ENT] to select a

3. Push [St] to start navigation

+ The plotter screen is displayed, and the transceiver starts to navigate. + Pis displayed on the plotter screen.

4. Push the Software Key for your next operation.

Selecting in the AIS list:

1. Open the list screen.

+ “Start navigation. Are you sure?” is displayed.

4. Push [-OK-]to start navigation

+ The plotter screen is displayed, and the transceiver starts to navigate. + PF is displayed on the plotter screen. TIP: You can also start navigation in the details on the AIS target. 1... Repeat steps 1 and 2

2. Push Dei] [ENT], or [>]

+ The “Details” screen is displayed.

3. Repeat steps 3 and 4

OTHER FUNCTIONS 9 Selecting in the Waypoint list:

1. Open the “Waypoint’ screen.

IMENU] > Navigation > Waypoint

2. Push [A] or [Y] or rotate [CH/ENT] to select a waypoint.

© Push [Sort ] to sort the waypoints by Name or Range.

+ “Start navigation. Are you sure?” is displayed.

+ The plotter screen is displayed, and the transceiver starts to navigate to the waypoint. + Pis displayed on the plotter screen. TIP: You can also start navigation in the “Detail” screen of the waypoint.

1. Repeat steps 1 and 2.

2... Push De, [ENT], or [CH/ENT]. + The “Detail” screen is displayed.

3. Repeat steps 3 and 4.

© Stopping navigation

1. Push [S&PNAV to stop navigation.

+ “Stop navigation. Are you sure?” is displayed.

+ The transceiver stops to navigate, and then returns to the previous screen. Stop navigation Are you sure? © Resetting navigation The transceiver resets the start position, and restarts navigation from your current position. @ The function works only when the transceiver is receiving valid GPS signals. @ The function cannot work while in the MOB mode, or when the transceiver does not navigate.

+ “Reset navigation. Are you sure?" is displayed.

+ The transceiver resets the start position, and restarts navigation from your current position. Reset navigation Are you sure?

© Highway screen Displays the highway information (only for watching). Push [DISP] several times to select Highway screen. ©® “Navigation OFF is displayed on the Highway screen when the Navigation mode is not used. © STEERING DIRECTION Displayed when the vessel crosses the Cross Track Error (XTE) limit line.

Displays the course limit line. © NAVIGATION LINE Displays a line from the start position of navigation to the AIS target or waypoint.

Displayed according to the destination's position. @ When your vessel moves less than 2 knots, @ is displayed.

© Navigation settings OTHER FUNCTIONS 9 Navigation settings can be customized in “Navigation” on the Menu screen [MENU] > Settings > Navigation Track Anchor watch © Display You can select whether or not to display the vessel track on the plotter display. © The vessel track is recorded, regardless of this setting. ON: _ The vessel track is displayed. OFF: The vessel track is not displayed. © Record You can select whether or not to save the vessel track. ON: _ The vessel track is saved. OFF: The vessel track is not saved. © Clear track You can delete the vessel track. © When ‘Clear track. Are you sure?” is displayed, push LOK to delete the vessel track. © Record Reference You can select the setting to record the vessel track. Distance: The vessel track is recorded for a fixed distance. The vessel track is recorded for a fixed period of time. © Interval (Distance) Set the distance to record the vessel track to between 0.01 and 6.00 NM (in 0.01 NM steps), when you select “Distance” in the Record reference. Time: © Interval (Time) Set the period of time to record the vessel track to between 1 and © Audible Alarm You can select whether or not to sound an alarm when the vessel arrives at or near the destination. ON: _ The alarm sounds. OFF: The alarm does not sound. © Range Set the range to between 0.01 and

6.00 NM (in 0.01 NM steps) for the

alarm function. Arrival Alarm © Audible Alarm Select whether or not to sound an arrival alarm. ON: The alarm sounds when the vessel arrives at or near the destination. OFF: The alarm does not sound. © Range Set the range to sound an alarm when your vessel arrives at or near the destination to between 0.01 and 6.00 NM in 0.01 NM steps). XTE alarm © Audible Alarm Select whether or not to sound an XTE Alarm. ON: _ The alarm sounds when the vessel goes off course. OFF: The alarm does not sound. 60 seconds (in 1 second steps) when you e Range select “Time” in the Record reference. Set the range to sound an alarm when your vessel goes off course to between

0.01 and 6.00 NM (in 0.01 NM steps).

9 OTHER FUNCTIONS E Lost target A vessel is regarded as a “Lost target” after a specified period of time has passed since the vessel last transmitted data, as described below. The “Lost target’ icon disappears from the plotter display 6 minutes and 40 seconds after the vessel was regarded as a “Lost target.” Ask your dealer for details. The criteria to become a Lost target + Class AIB Lost target Losttarget | aximum interval Vessel type maximum interval | "2 Le Class À es os Class À: Vesselis at anchor, moored and not moving faster than 3 knots 1 |ctass B: Vessel is not moving faster than 2 | 280 Seconds 1080 seconds knots 7 ÎVesseis at anchor, moored and moving 80 seconds NA faster than 3 knots Class À: Vesselis moving between 0 and 14 knots 180 3 |ciass B: Vessel is moving between 2 and 60 seconds NA | seconds 14 knots Vesselis moving between D and 14Kn0is | 59 seconds NA while changing course 5 [Vessel is moving between 14 and 23 knots | 36 seconds N/A 20 seconds Vesselis moving between 14 and 23 KnoëS | 36 seconds Na while changing course 7 [Vessel is moving faster than 23 knots 30 seconds N/A 30 seconds Vesselis moving faster than 23 Knoïs While | 39 seconds NA changing course 9 |Vessel is moving faster than 2 knots N/A 180 N/A seconds “AIS Class B does not provide information about the navigational status, anchored or moored. *2 CS: Carrier-sense, *3 SO: Self organized + Others Category | Lost target maximum interval SAR aircraft 60 seconds AION 1080 seconds Base station 60 seconds

OTHER FUNCTIONS 9 EH Using the Intercom The optional Intercom function enables you to communicate between the deck and the cabin. The optional HM-195 coMMANDMICIV" or an Android/iOS device is required for Intercom operation. @ Connect the HM-195 as described on page 99. ® Download the RS-M500 when you operate by the Android/iOS device. NOTE: While using the Intercom function, + Transmit is disabled. + The received call audio is muted. + Operation is disabled on devices other than the two that are using the Intercom function. 1... Open the “Intercom” screen. [MENU] > Intercom

3. Hold down [tal to sound the intercom beeps.

+ The transceiver and the command microphone, or the mobile device sound beeps while holding down LCall 1. + “Call is displayed.

4. After releasing [Call], hold down [PTT] and speak into

the microphone at your normal voice level. + “Talk” is displayed. ® To adjust the transceiver volume level, rotate [VOL]. ® To adjust the command microphone's intercom volume level, rotate [VOL/SQL] (Dial) on the ‘command microphone.

5. After releasing [PTT], you can hear the response

through the speaker.

6. Push [CLEAR] to return to the previous screen.

NOTE: While in the Intercom mode, the transmit and receive functions are disabled. When the transceiver is transmitting, the Intercom function is disabled. RADIO Phone 1 Phone 2 \ Push{äiito talk

E Using the RX Hailer The RX Hailer function enables you to hear the received audio on the deck or bridge through a Hailer speaker. To use this function, the external hailer speaker must be connected to the transceiver. ® Connect an external hailer speaker as described on page 95.

+ The “ax "icon is displayed when the RX hailer function is set to ON.

OTHER FUNCTIONS 9 E Using the Hailer You can talk without leaving the bridge by using the 2 way haïler function. To use this function, the external hailer speaker must be connected to the transceiver. ® Connect an external hailer speaker as described on page 95. © You cannot transmit while using the hailer.

1. Open the “Hailer’ screen.

2. Hold down [PTT] and speak at your normal voice

level. + While holding down [PTT], the screen shown on the right is displayed. © Push L] to open the volume adjustment screen. Hailer TX Volume Ê—— 8 NOTE: While in the hailer mode, the transmit and receive functions are disabled. When the transceiver is transmitting, the hailer function is disabled.

9 OTHER FUNCTIONS E Using the Horn function © Automatic Foghorn function The Automatic Foghom function sounds a hom repeatedly until the function is turned OFF. The foghomn outputs from the hailer speaker. To use this function, the hailer speaker must be connected to the transceiver. See page 95 for connection details.

One 5-second |“ Motor vessel Underway | blast every 120 underway and seconds. making way. 1120 | ; 5s Two 5-second Motor vessel underway but stopped (not making [2s 120s | way). blasts nee Stop | (separated by 2 Il seconds) every 120 seconds. Sailing vessel underway, fishing vessel (underway or anchored), vessel not under command, a vessel One 5-second blast followed | 5s by two 1-second | -1 +15 Sail blasts (each tel: restricted in her seperated by 2 ability to maneuver seconds) every | |2S 7 120s "| (underway or at anchor), or a vessel towing or pushing another ahead 120 seconds. One 5-second blast followed by three 1-second blasts (each Vessel under tow separated by {manned). 2-seconds) ae | Le 2 seconds. Tow 1... Open the “Auto Foghom” screen. [MENU] > Hom > Auto Foghorn

2. Select the foghom pattern, and then push [ENT] or

ICH/ENT] to return to the previous screen. + The “ag'icon is displayed. © To turn OFF the Auto Foghorn, select “OFF” in the “Auto Foghorn” menu.

+ While holding down [Hom |, the horn sounds, and the screen shown on the right is displayed @ To adjust the hom volume level, pus! the Horn Volume popup screen. to open NOTE: While in the Horn mode, the transmit and receive functions are disabled. When the transceiver is transmitting, the Horn function is disabled. © Frequency setting 1... Open the Frequency. IMENU] > Horn > Frequency 200 Hz

2. Select the foghorn's audio frequency. 250 Hz

© Available frequency range is 200 Hz to 700 Hz in 50 Hz 300 Hz steps. 350 Hz EH Using the Voice Scrambler The Voice Scrambler provides private communications. In order to receive or send scrambled transmissions, you must activate the scrambler function. You also need to set the scrambler code on the Menu screen. (p. 85) ©® The scrambler function automatically turns OFF when Channel 16 or 70 is selected. 1... Select an operating channel other than Channel 16, 70 or the weather channels.

2. Push to turn the Voice Scrambler ON or OFF.

+ The “SBL” icon is displayed when the voice scrambler x is ON 35:35.0030N = 135" 35.0000€ Nov/10 LLA LA 1 0

© Setting scrambler codes Set the code to between 1 and 32 on the Menu screen. In order to understand each other, all transceivers in your group must use the same scramble code.

9 OTHER FUNCTIONS E Command microphone operation You can connect an optional HM-195 COMMAND MICROPHONE to the transceiver. Push screen. © Plotter screen

@ The vessel icon automatically points in the direction your vessel is heading, in 45 degree steps. ® When your vessel moves less than 2 knots per hour, @ is displayed. © TARGET ICONS to display the Plotter screen or the Highway screen on the command microphone © Highway screen

@ When your vessel moves less than 2 knots per hour, # is displayed. © RANGE Displays the range (RNG) from your vessel to the target. @XxTE Displays the Cross Track Error. 4 7 JAS target: Vessel © The Software Key names à 7 lAIS target: Vessel (Friend) Some Software Key names in the transceiver and the command microphone @" (AS Ranger AIS-SART AIS-MOB,| are diferent and EPIRB-AIS es [AS tenue Search and Rescue | Exemple: (SAR) aircraft - GE 7 [AS target As to Navigation Venere microphone {AtoN) Target Select 4 SEL < 7 (NS target Ads to Navigation Target Select » SEL > {AtoN) virtual Dual Watch DW AIS target: Base station Tri Watch TW a per DSC Log LOG pa [Waypoint: During navigation. Re ee Æ [MOB Voice SBL SCBL *Blinks when the AIS target is closer than RX Hailer RX dE Jour GPA and TCPA settings (Danger AquaQuake AQUA

© DISPLAY FILTER INDICATOR FAV * *

Displayed when the type of targets on CH Name NAME the plotter screen is filtered. Back light BKLT © DISPLAY RANGE Disp on Plotter PLOT

OTHER FUNCTIONS 9 © Command microphone Menu screen items These items are displayed only on the Command microphone screen. Use the command microphone keys to make the settings. Display Contrast [MENU] > Settings > Configuration > Display Contrast Adjusts the contrast of the Command microphone’s display in 8 steps. (Only in the Day Mode) Soft Keys/Dial assignment [MENU] > Settings > Configuration > Key Assignment > Soft Keys [MENU] > Settings > Configuration > Key Assignment > Dial + Soft Keys assignment You can assign a desired function to a Software Key. The assigned function can be used when its key icon is displayed on the Command microphone screen + Dial assignment You can assign the audio volume (Volume), squelch (SQL), channel selection (Channel), and the Command microphone backlight level (Backlight) to any one of 4 sequential positions on the Dial. Pushing Dial 1 to 4 times sequentially selects the desired function, and rotating Dial adjusts the level, or selects a value or number. Example: Dial assignment

1. Open the “Dial” screen

2. Select the dial's position, then push [ENT].

Push X2 0) SQL» Push X3 0) Channel» Push xd. 0) Not Usedr Set Default

3. Select the item to assign, then push [ENT]. .

SQL Channel Backlight Not Used COMMANDMIC Speaker [MENU] > Settings > Configuration > COMMANDMIC SP Select the speaker to use when the Command microphone is connected to the transceiver. Internal Speaker: Outputs audio from a Command microphone's speaker. External Speaker: Outputs audio from an external speaker connected to a Command microphone NOTE: Regardless of this setting, audio is output from the transceiver and the supplied microphone.

E Using the Menu screen The Menu screen is used to set items, select options, and so on for the transceiver's functions. © Menu screen operation Example: Setting the key beep to “OFF.”

+ The Menu screen is displayed.

2. Push [A] or [Y], or rotate [CH/ENT] to select

“Settings,” and then push [ENT], [CH/ENT], or [D]. + The “Settings” screen is displayed. @ Holding doun [A] or [Y], or rotate [CH/ENT] sequentially scrolls up or down through the Menu screen.

3. Push [A]or [Y], or rotate [CH/ENT] to select

“Configuration,” and then push [ENT], [CH/ENT], or æ]. + The “Configuration” screen is displayed.

4. Push [A] or [], or rotate [CH/ENT] to select “Key

Beep,” and then push [ENT], [CH/ENT], or [b] + The “Key Beep” screen is displayed.

5. Push [A] or [Y], or rotate [CH/ENT] to select "OFF,"

and then push [ENT] or [CH/ENT]. + “OFF'is set and the transceiver returns to the previous screen. TIP: + To exit the Menu screen, push [MENU]. + To return to the previous screen, push [4] or [CLEAR]. GPS info AquaQuake DSC Log Radio Info Navigation Backlight Power ON Beep VSWA Beep: OF» Key Assignment “ ON

• For only the USA version “For only the European version. *Except for the NLD version. “ Displayed only when the voice scrambler unit is installed

• Only when the built-in GPS receiver is used. © Settings + Configuration [MENU] > Settings > Configuration Backlight You can adjust the backlight brightness or the Display mode. Key Beep You can select whether or not to sound a beep when a key is pushed. ON: A beep sounds when a key is pushed. OFF: No beep sounds, for silent operation. Power ON Beep You can select whether or not to sound a beep when the transceiver is turned ON. ON: The transceiver sounds a beep. OFF: The transceiver does not sound a beep. VSWR Beep Select whether or not to sound a beep when a high VSWR is detected. ON: _ A beep sounds when a popup screen is displayed. OFF: No beep sounds when a popup screen is displayed.

10 MENU SCREEN © Settings Key Assignment GPS © Soft Key 1-21 You can change which Software Key functions to display, and their order. You can assign up to 21 Software Keys at a time. @ The usable Software Key functions and their order may differ, depending on the transceiver version or presetting. @ Some Software Keys may not be usable, depending on other item settings. © Set Default Sets the Software Key function order as default @ The default setting may differ, depending on the transceiver version or presetting. UTC Offset Set the offset time between Universal Time Coordinated (UTC) and your local time to between 14:00 and +14:00 (in 1 minute steps). Inactivity Timer The transceiver automatically returns to the operating screen if you push no key for the set period of time for each mode. © Not DSC Related Setting for when a screen that is not related to DSC is displayed. © DSC Related Setting for when a screen that is related to DSC is displayed. e Distress Related Setting for when a screen that is related to a Distress call is displayed. e RT Related Setting for when the transceiver is in the Radio Telephone mode. Selects a satellite to be used for GPS (Global Positioning System) to pinpoint the geographic location of your transceiver anywhere in the world This setting may not be usable, depending on the transceiver version or presetting, e Ps The GPS (Global Positioning System) is permanently set to ON. e GLONASS Selects whether or not to use the data from the GLONASS (GLObal'naya NAvigatsionnaya Sputnikovaya Sistema) satellites. © SBAS Turns the SBAS (Satellite Based Augmentation System) function ON or OFF. When turning ON this function, the GPS position accuracy can be improved Speaker Select the speaker to use. Transceiver and Mic: The audio is heard from both the internal speaker and the speaker microphone. Transceiver only. The audio is heard from only the internal speaker. RX Hailer Set the RX Hailer function. ® See page 73 for details.

Noise Cancel MENU SCREEN 10 PWR SW from MIC The Noise Cancel function reduces random noise components in the received or transmitted signal. Set the function for both receiving and transmitting. e RX OFF: The Noise Cancel function is OFF. Low: _Reduces random noise components in the received signal to approximately one half. Mid: _ Reduces random noise components in the received signal to approximately one third. High: Reduces random noise components in the received signal to approximately one tenth. + Radio Set the reduction level of the Noise Cancel function + Haïler Set the reduction level of the Noise Cancel function when the Hailer function is turned ON. e TX ON: Reduces random noise components in the transmitted signal to approximately one third. OFF: The Noise Cancel function is OFF. + Microphone Select whether or not to use the Noise Cancel function for the transmit signal. + COMMANDMIC Select whether or not to use the Noise Cancel function for the transmit signal when using the optional HM-195 command microphone + Mobile Device Select whether or not to use the Noise Cancel function for the transmit signal when using the RS-M500 mobile device application. Select whether or not to tu OFF the transceiver at the same time that you turn OFF the command microphone. @ The optional command microphone is required to use this function. e All Units When you turn OFF the command microphone, the transceiver is turned OFF at the same time. © Own Unit The transceiver is not turned OFF even if you tum OFF the command microphone. Model {For only the European version) Select the country where you operate the transceiver. © After select the country, ‘The Settings are reset. Are you sure?" is displayed. Push EOK ] to return to the Configuration screen. ® If no country is selected, “General” is automatically selected.

10 MENU SCREEN © Settings + Radio [MENU] > Settings > Radio Scan Type (Except for the NLD version) Selects the scan type. The defauit setting differs, depending on the transceiver version. ® See page 16 for details. Normal Scan: Scans all Favorite channels in the selected channel group. Sequentially scans all Favorite channels, while periodically checking Channel 16. Priority Scan: Scan Timer (Except for the NLD version) You can use the Scan Timer to pause, or to resume after 5 seconds, when a signal is detected. ON: When a signal is detected on a channel, the scan pauses for 5 seconds, and then resumes. If the signal disappears in less than 5 seconds, the scan immediately resumes. When a signal is detected on a channel, the scan pauses until the signal disappears, and then resumes. OFF Dual/Tri-Watch (Except for the NLD version) Select Dualwatch or Tri-Watch ® See page 18 for details. Dualwatch: … Periodically checks Channel 16 while operating on another channel. Tri-Watch: _ Periodically checks Channel 16 and the Call channel while operating on another channel. Channel Group Select the suitable channel group for your operating area. Select USA, INT, or CAN, depending on the transceiver version ® See page 10 for details. Call Channel You can change your Call channel. The default setting may differ, depending on the transceiver version. @ See page 13 for details. WX Alert For the USA version, an NOAA broadcast station transmits a Weather Alert tone before any important weather information. ® See page 11 for details. ON with Scan: The preset Weather channels are sequentially checked while scanning. ON: _ The previously selected (last used) Weather channel is checked while scanning. OFF: The Weather Alert tone is not detected. Voice Scrambler ® Displayed only when a Voice scrambler unit is installed. © Function Turn the Voice Scrambler function ON or OFF. © Codes Set the Voice Scrambler code to between 1 and 32. In order to understand each other, all transceivers in your group must use the same scramble code, as well as the same scrambler unit. Favorite CH You can set all channels as Favorite channels, clear all settings, or reset to default. By default, some channels are preset. The Favorite channels differ, depending on the transceiver version. ® See page 17 for details. Set All Channels: Sets all channels as Favorite channels. Clear All Channels: Clears all Favorite channels. Resets Favorite channels to the default. Set Default:

FAV on MIC MENU SCREEN 10 NMEA 2000 Turn the FAV on MIC function ON or OFF. ON: Pushing [A] or [V] on the supplied microphone scrolls up and down through only the Favorite channels. OFF: Pushing [A] or [W] on the supplied microphone scrolls up and down through all channels. Channel Display You can select the number of digits to display the channel number. @ This setting may not be usable, depending on the transceiver version or presetting. 3 digits: The channel number is displayed in 3 digits, such as “O1A." 4 digits: The channel number is displayed in 4 digits, such as “1001. LO/DX Push to turn the Attenuator function ON or OFF. Local: The Attenuator function is ON. Distance:The Attenuator function is OFF. + NMEA [MENU] > Settings > NMEA NMEA 0183 Select the data transfer speed for each port to receive data from external devices. 4800 bps: Select to receive position data from an external GPS receiver. 38400 bps: Select to receive AIS data from an extemal AIS equipments NMEA 2000 is a communication standard used to connect various marine devices and display units in the vessel. The transceiver can easily connect to a NMEA 2000 network with its plug-and-play functionality, and display the information provided from the devices on the network. Select the sensors in NMEA 2000 network which sends data to the transceiver. @ See the next page for the compatible PGN list. 1... Open the “NMEA 2000" screen.

2. Select the type of data from the menu

screen and push [ENT] or [CH/ENT].

3. The transceiver starts searching the

devices connected to NMEA 2000 network. @ Push [Stop Search] to stop searching devices and display the device list.

4. The list of connected device is

5. Select the device to send the data to

the transceiver, and push [ENT] or ICH/ENT] + Device name: The selected device is used. + Auto: The first device that sends the data to the transceiver or the device that sends a higher priority data is used. + Not used: No NMEA 2000 device is used. @ Push [RFO] to display the detail of device. ©® If another device sends a higher priority data to the transceiver after selecting “Auto,” the device to be used will switch to that one. (Except for the AIS data) @ In the “Auto” item, the last connected device information is not saved. @ Ifthe transceiver is connected to both NMEA 0183 and NMEA 2000 devices, the NMEA 2000 device has priority. Select “Not Used” if you want to use NMEA 0183 devices.

IC-M510/1C-M510E can expand the function by connecting with optional accessories through the wireless LAN (WLAN). For example, you can use your mobile device as a wireless microphone or the remote controller by installing the RS-M500 REMOTE CONTROL SOFTWARE for Android/iOS and connect it to the IC-M510/IC-M510E. " 1 Turning the WLAN function ON Open the “Function” screen. [MENU] > Settings > WLAN > Function

2. Push [A] or [v], or rotate [CH/ENT] to select “ON,”

and then push [ENT] or [CH/ENT]. + “ON'is set, and the transceiver returns to the previous screen. HE Setting up the IC-M510/IC-M510E WLAN mode When connecting to the mobile device, select whether to use the Access Point mode or the Client mode according to your installation environment of the transceiver.

© Access Point mode ER The IC-M510/1C-M510E works as a wireless LAN access point. In this case, the mobile devices can work by connecting the IC-M510/1C-M510E network. Normally use the Access Point mode. ® A maximum of 3 mobile devices can be connected to the IC-M510/1C-M510E. ©@ “TKIP/AES” method is automatically applied for the Access Point mode. RS “Q IC-M510/ RS-M500 IC-M510E Required settings on the IC-M510/IC-M510E Access Point mode SSID Default: 1C-M510_(8 digit serial number) (Network name) |Example: 1C-M510_12345678 Securitytype Default: WPA2-PSKWPA-PSK Defauit: M510_(8 digit serial number) RESLER) Example: M510_12345678

11 WLAN SETTING © Client mode The IC-M510/IC-M510E works as a client device in an existing wireless network. In this case, the IC-M510 and your mobile devices must belong to the same wireless network. © Use the Client mode, if the connection is failed or poor when using the Access Point mode. Access point (User supplied)

IC-M510/IC-M510E RS-M500 Required information on joining your WLAN + SSID (Network name) + Password @ The Security type of the IC-M510/C-M510E WLAN function is set to WPA2/WPA as default. You may be required to change the Security type or the default gateway settings, depending on your network environment. Ask your network administrator for details on your WLAN settings. © Installation overview You can connect your mobile device to the IC-M510/C-M510E through a wireless LAN (WLAN) by the following steps. Step 1 On the transceiver:

1. Tum ON the WLAN function (p. 88)

2. Select a WLAN connecting mode, the Access Point mode or the Client mode

3. Enter the required information on configuring the 1C-M510/IC-M510E WLAN in the

Access Point mode or joining your WLAN in the Client mode. Step 2 On the mobile device (p. 92): @ The setting procedure depends on the mobile device model or its OS version.

1. Download the RS-M500 to your mobile device.

2. Open the wireless LAN setting screen of your mobile device, and then find the

access point name (SSID) that you set to your transceiver.

3. Enter the password, and then join the mobile device to the wireless network.

4. Open the RS-M500 application

© The RS-M500 automatically searches and connects to the transceiver.

WLAN SETTING 11 © Setting the WLAN in the Access Point mode

1. Open the “Configuration” screen.

[MENU] > Settings > WLAN > Advanced Settings > Configuration

2. Select “Access Point.”

+ ‘Access Point Settings” screen is displayed. @ When “Requires reconfigure the phone. Change setting?" is displayed, Push

3. Push [A] or [], or rotate [CH/ENT] to select the set

items and then push [ENT], [CH/ENT], or [>]. Set items SSID: Enter the SSID. @ Up to 32 characters can be entered. Security: Selectthe authentication type. Password: Enter an authentication password of 8 to 63 characters. @ The entered password is masked like as "2" Channel: Set to specify the channel by pushing [A] or [v]. IP Address: _ Enter the IP address of the transceiver. Subnet Mask: Enter the Subnet Mask (the range of the IP addresses used in the network). Enter the IP address and the Subnet Mask to be matched with the network that the mobile device connects to. TIP: + Select ll to enter numbers and letters, and ll to enter symbols. + Select number, character or space using [A], [V], [4], and [>]. + Push [ENT] or [CH/ENT] to enter the selected character. + Select “—" or “—" on the screen, or rotate ICH/ENT] to move the cursor.

4. After setting the items, push [Sat].

+ The “Advanced Settings” screen is displayed. ® The i | icon is displayed at the top of the screen. Security: Password ,» Channet

11 WLAN SETTING © Setting the WLAN in the Client mode

Open the “Configuration” screen. [MENU] > Settings > WLAN > Advanced Settings > Configuration Select “Client.” @ When “Requires reconfigure the phone. Change setting?” is displayed, Push + The transceiver starts searching the access point. A list of the network device is displayed. Push [A] or [], or rotate [CH/ENT] to select the access point (SSID) and then push [ENT], or [CH/ENT]. Select “Auto.” + The transceiver starts connecting to the access point. © !f you select the “Manual,” enter the IP Address and the Subnet Mask. © lf necessary, enter the password. “Connection successful.” is displayed when the transceiver and the access point are connected. © When the WLAN connection is successful, the ce icon is displayed at the top of the Standby screen. NOTE: The default gateway settings

When the DHCP server function of the access point is set to “Enable,” enter the default gateway IP address. When you set your mobile device's IP address as the static IP address, set a default gateway IP address of the mobile device.

WLAN SETTING 11 EH Using a mobile device as a microphone You can use your mobile device as a wireless microphone or the remote controller by installing RS-M500. ® Up to 3 mobile devices can be used as a wireless microphone or remote controller. © Refer to the RS-M500 manual for details on the RS-M500 operation. The manual can be downloaded from the Icom website: https://www.icomjapan.com/support/ © Connecting your mobile device to the transceiver 1... Access the Play Store (Android OS) or App Store (iOS), then find and download the RS-M500 to your mobile device:

2. Open the wireless LAN setting screen of your mobile device.

3. Select the SSID (for example: IC-M510_12345678) you set to your transceiver.

4. Enter the password (for example: M510_12345678), and then join the mobile device

+ The RS-M500 automatically searches and connects to the 1C-M510/C-M510E. When the screen shown below is displayed, the RS-M500 is ready to operate. NOTE: If an error message is displayed, check that the WLAN is properly set and connected, the transceiver is turned ON, and then touch “Retry.” Touching “Continue” starts the application without connecting to a transceiver. + When the connection between the RS-M500 and the IC-M510/1C-M510E is successful, the *[Ü” icon is displayed at the top of the IC-M510/C-M510E screen. 34°37.3745N 135°34.3173€ NOV/10 06:45 106 macoc

11 WLAN SETTING HE NMEA over WLAN settings You can output the NMEA 0183 (ver. 2.0 or later) sentence through the Wireless LAN (WLAN). [MENU] > Settings > WLAN > Advanced Settings > NMEA over WLAN Function Select whether or not to output the NMEA 0183 sentence to the devices in your WLAN. Destination IP Enter the destination IP address. Destination Port Enter the destination port number. (Range: 49152 to 65535) EH Reset the WLAN settings Open the “Advanced Settings” screen. IMENU] > Settings > WLAN > Advanced Settings

2. Select “Reset WLAN Settings” and then push [ENT],

or [CH/ENT]. + *Requires reconfigure the phone. Reset the WLAN settings?” is displayed.

3. Push[ OK to reset the transceiver's Advanced

Settings. HE WLAN Information You can confirm the network information for the transceiver. [MENU] > Settings > WLAN > Information Function: Destination IP. Requires reconfigure the phone Reset the WLAN settings? Mode: Access Point Password:

HE Supplied accessories Mounting bracket DC power cable! For mounting bracket \ à À Knob bolts Flat washers (M5)! Ô ! ! ) | dd 0000 is ! ! (5x 20mm) Spring washers (M5) AULROS Microphone Microphone hanger Warning sticker Flush mount gasket and screws (3 x 16 mm) _ (For only the USA version)

NOTE: Some accessories may not be supplied, or the shape may be different, depending on the transceiver version. E Fuse replacement One fuse is installed in the supplied DC power cable. If the fuse blows or the transceiver stops functioning, track down the source of the problem, repair it, and replace the damaged fuse with a new one of the proper rating. Fuse Coding explanation IN Fuse Coding: F 250 V 10 A & A Fuse Voltage Rating: 250 Volts

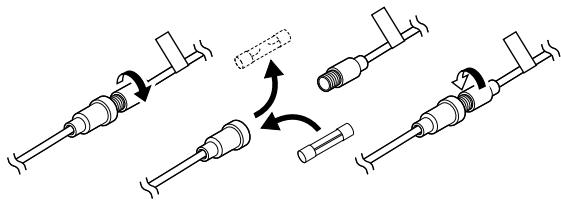

Fuse Current Rating: 10 Amperes EH Cleaning the transceiver becomes dusty or dirty, wipe it clean with a soft cloth. DO NOT use harsh solvents such as Benzine or alcohol, as they will damage the transceiver's surfaces.

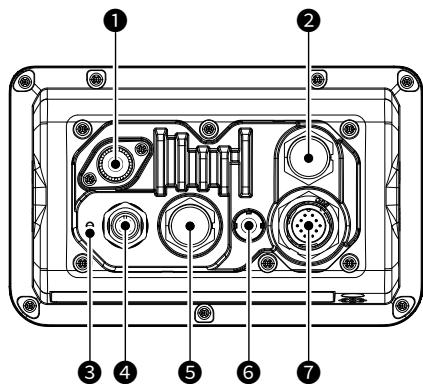

Connects to a marine VHF antenna with Connects the supplied or optional a PL-259 connector. microphone.* A key element in the performance of any * Not usable when the microphone is communication system is the antenna. connected to the connector on the Ask your dealer about antennas and the front panel. best place to mount them © GPS ANTENNA CONNECTOR CAUTION: Transmitting without an Connects to an optional GPS antenna. antenna may damage the transceiver. NOTE: -+ The GPS sentences input from this © COMMAND MICROPHONE CONNECTOR connector takes precedence to over Connects the optional command the sentences input from the built-in microphone. GPS receiver. © GROUND TERMINAL + Be sure the GPS antenna is positioned where it has a clear view to receive signals from satellites, and fixed using the double-sided adhesive pad supplied with the antenna. Connects to a vessel ground to prevent electrical shocks and interference from other equipment occurring Use a self tapping screw (3 x 6 mm: not supplied) © NMEA 2000 CONNECTOR Connects to an NMEA 2000 network.

© DC AFIDATA CONNECTOR

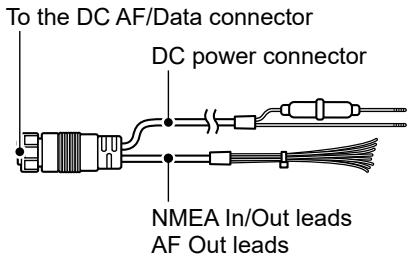

Connect the supplied DC power cable. To the DC AF/Data connector DC power connector are NMEA In/Out leads AF Out leads

Connects to a 13.8 V DC power source. (+: Red, — Black)

Yellow Listener À (Data-H), Data In (+) Green: Listener B (Data-L), Data In (-) Connects to the NMEA output lines of a GPS receiver for position data. + NMEA 0183 (ver. 2.0 or later) sentence format RMC, GGA, GNS, GLL and VTG compatible GPS receiver is required. Ask your dealer about suitable GPS receivers. The GPS sentences input from this connector are given priority to over the sentences input from the built-in GPS receiver. The AIS information through the AIS device inputs as VDM sentence. @ The data communication speed (baud rate) is fixed at 38400 bps. Set the NMEA 0183 item to “38400 bps.” (p. 86) For the versions with the AIS receiver, the external VDM sentence takes precedence over the inputs from the built-in AIS receiver. White: Talker À (Data-H), Data Out (+) Brown: Talker B (Data-L), Data Out (-) Connects to NMEA 0183 input lines of navigation equipment, to receive position data from other ships. + An NMEA 0183 (ver. 2.0 or later) sentence format DSC or DSE compatible navigation equipment is required. + The GPS outputs RMC and GBS format sentences. + The AIS information through the NMEA 2000 device outputs as VDM sentences. @ The data communication speed (baud rate) is fixed at 38400 bps. Set the NMEA 0183 item to “38400 bps.” (p.86) + For the versions with the AIS receiver, the external VDM sentence takes precedence over the inputs from the built-in AIS receiver.

Connects to an external speaker or a hailer speaker. Blue: … Extemal Speaker (+) Black: Extemal Speaker (-) Orange: Hailer Speaker (+) Gray: Hailer Speaker (-) CAUTION: After connecting the DC power connector, NMEA In/Out leads, or AF Out leads, cover the connector and leads with a vulcanizing tape to prevent water seeping into the connection.

EH Connecting to the MA-510TR Connect the transceiver to the MA-510TR using the accessory cable. After connecting, an Individual DSC call can be made to the AIS target using the transponder without entering the targets MMSI code. (p. 19) ® See the MA-510TR instruction manual for the connecting instruction. © Connect each lead to the appropriate lead as follows. - Listener À (Data-H) (Yellow): To NMEA OUT (+) - Listener B (Data-L) (Green): To NMEA OUT (-) + Talker À (Data-H) (White): To NMEAIN (+) + Talker B (Data-L) (Brown): To NMEAIN (-) HE Mounting the transceiver © Using the supplied mounting bracket You can mount the transceiver on a dashboard using the universal mounting bracket supplied with your transceiver. CAUTION: KEEP the transceiver and microphone at least 1 meter (3.3 ft) away from the vessel's magnetic navigation compass. NOTE: The built-in GPS antenna is located, as shown below. Be sure that the transceiver is positioned where the transceiver has a clear view to receive signal from satellites.

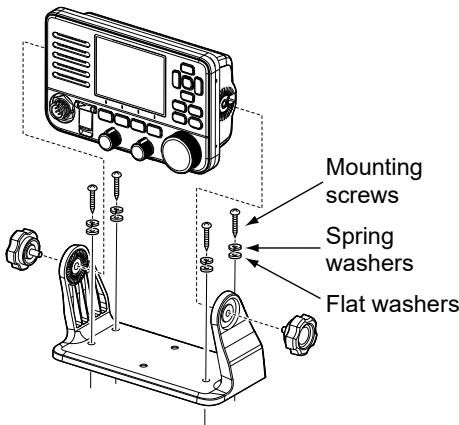

1. Mount the bracket securely to a

surface which is more than 10 mm thick and can support more than 5 kg using the 4 supplied screws (5 x 20 mm). NOTE: When mounting the transceiver on a board, fix the bracket to the board using the user supplied bolts and nuts, as shown on the right. 1! serons

2. Attach the transceiver to the bracket so

that the face of the transceiver is at 90° to your line of sight when operating it. © Adjust the function display angle to be easy-to-read.

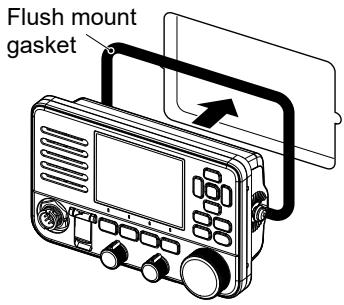

HE MBF-7/MBF-9 installation The optional flush mount kit is for mounting the transceiver to a flat surface (MBF-7: Less than 25 mm thick, MBF-9: Less than 35 mm thick), such as an instrument panel. ® The MBF-7 is used as an example. NOTE: Install the transceiver and/or microphone more than 1 meter from the vessel's magnetic navigation compass.

Attach the 2 bolts (5 x 8 mm) and spacer supplied with the MBF-7 to both sides of the transceiver. Using the template on page 114, carefully cut a Flush mount hole in the instrument panel, or wherever you plan gasket to mount the transceiver. Place the flush mount gasket between the transceiver and the instrument panel to prevent water ingress, and slide the transceiver through the hole, as shown on the right Fully loosen the locking nut attached to the clamp. Insert the clamps between the supplied bols and the instrument control panel, and then tighten the supplied bolts so that the clamps press firmly against the inside of the instrument control panel. (Torque: 2 N-m) © Make sure that the clamps align 1 LT parallel to the transceiver body. Clamp— Tighten the end bolts on the clamps (rotate clockwise). Supplied bolt —

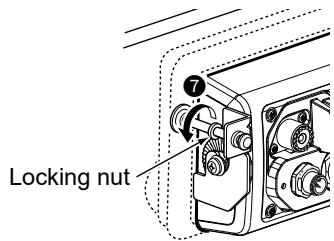

so that the transceiver is securely mounted in position, as shown on the right. (Torque: 2 N-m) Locking nut Del

8. Connect the antenna and power cable, and then

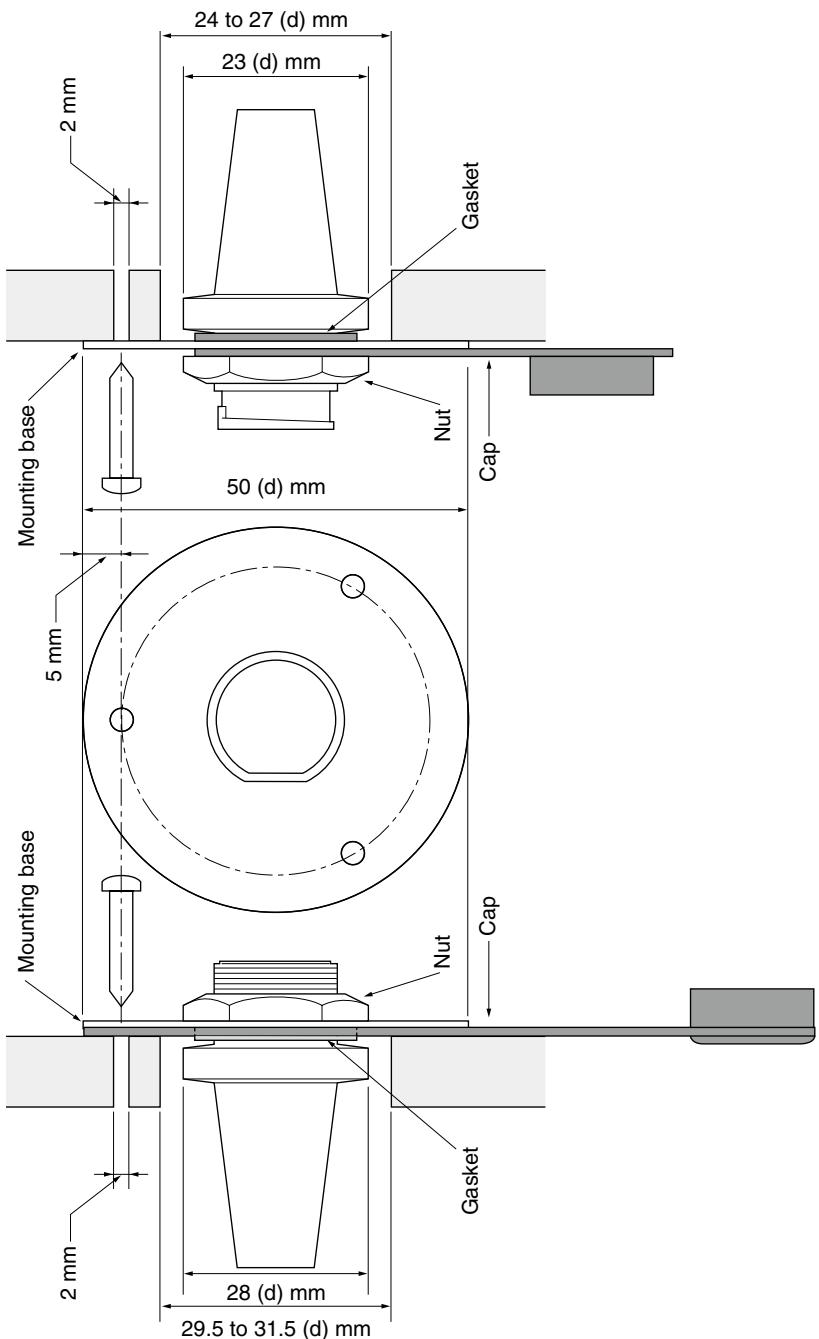

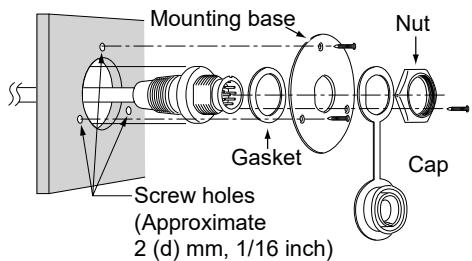

return the instrument control panel to its original place. HE Microphone installation When you use the supplied or optional HM-205RB SPEAKER MICROPHONE, the optional 6 meters long OPC-1000 EXTENSION CABLE can be connected between the transceiver and the HM-205RB to operate from even longer distances. You can also install the extension cable’s connector as a built-in plug on a cabinet or wall. For the optional HM-195 COMMAND MICROPHONE, you can install the connection cable's connector on the wall in the same way. ® When using the OPC-1541 EXTENSION CABLE to the OPC-1540, connect the OPC-1541 between the OPC-1540 and the transceiver. NOTE: The firmware of the command microphone may be updated when you connect them to the transceiver. © Installation

1. Insert the connection cable connector into the command microphone jack, and

2. To use the cable connector as a wall socket, install it as shown below.

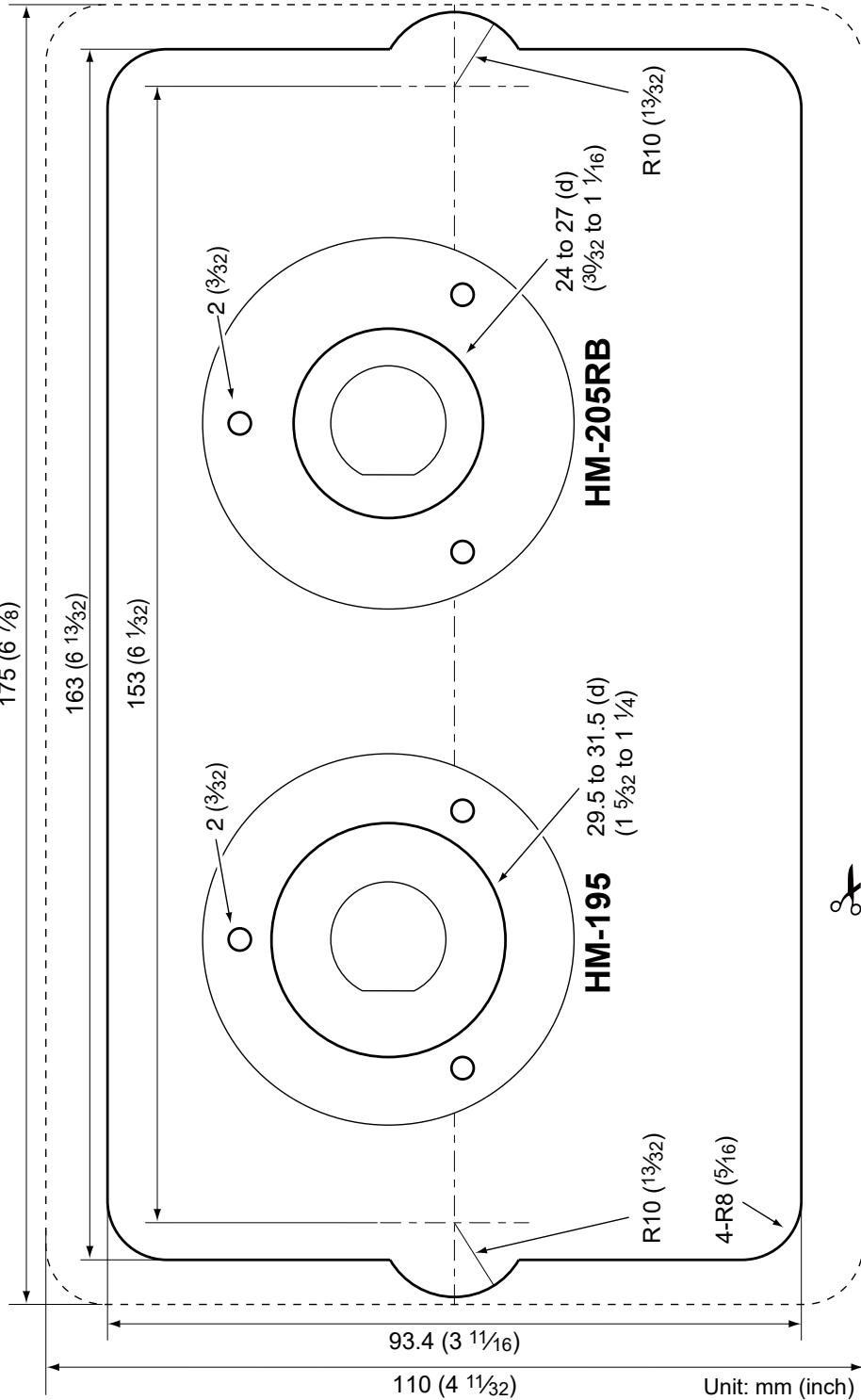

3. Using the mounting base as a template, carefully mark the holes where the cable

and 3 screws will be fastened.

4. Dril holes at these marks.

5. _ Install the mounting base using the supplied screws, as shown below.

HM-205RB HM-195 Mounting base. Nut

HE Specifications ® All stated specifications are subject to change without notice or obligation. @ Measurements made without an antenna. IC-M510 © General + Frequency coverage: + Mode: + Operating temperature range: + Current drain (at 13.8 V): + Power supply requirement: + Frequency tolerance: + Antenna impedance: + Dimensions (approximate, projections not included): + Weight (approximate) © Transmitter + Output power: + Modulation system: + Maximum frequency deviation: + Spurious emissions: + Adjacent channel power: + Audio harmonic distortion + Residual modulation + Audio frequency response: TX 156.025 - 157.425 MHz RX 156.050 - 162.000 MHz WX CH 161.650 - 163.275 MHz DSC (CH 70) 156.525 MHz AIS (CH A)* 161.975 MHz AIS (CH B)* 162.025 MHz 16KO0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)" —20°C - +60°C, —4F - +140°F TX high (25 W) 5.0 Amaximum RX Maximum audio (at 4 Q Load)

1.6 À maximum (no external speakers)

2.0 À maximum (with HM-195)

4.0 À maximum (with external speaker)

{with external speaker, RX haïler speaker, and HM-195 external speaker) Negative ground 13.8 V DC (11.7 - 15.9 V DC)

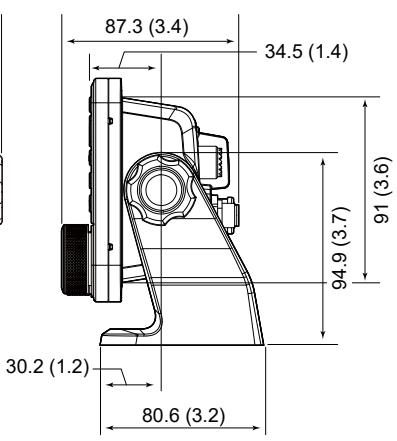

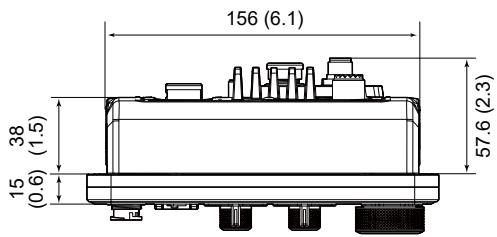

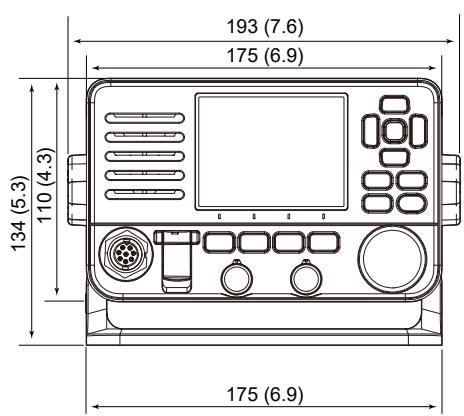

50 Q nominal 175 (W) x 110 (H) x 53 (D) mm

730 g, 1.6 Ib (Not including microphone) 25 W or 1 W Variable reactance frequency modulation 45 kHz Less than -70 dBc (High Power) Less than -56 dBc (Low Power) More than 70 dB Less than 10 % (at 60% Deviation) More than 40 dB #1 dB —-3 dB of 6 dB octave from 300 Hz - 3000 Hz

© Receiver + Receive system: + Sensitivity: + Squelch sensitivity: + Intermodulation rejection ratio: + Spurious response: + Adjacent channel selectivity: + Audio output power: + Hum and noise: + Audio frequency response: © Built-in GPS + Channel: + Deferential satellites: + Corresponding GNSS: + Receiving frequency: © Wireless LAN + Wireless LAN standard: + Authentication and Encryption: + Channels: + Output power: © Hailer + Audio output power (at 13.8 V): © RX Hailer + Audio output power (at 13.8 V):

SPECIFICATIONS AND OPTIONS 13

Double conversion superheterodyne FM —10 dBy (typical) at 12 dB SINAD DSC (CH 70) -1 dBu emf (typical) (1% BER) AIS" —114 dBm (typical) at 20% PER Less than -7 dBp FM More than 75 dB DSC (CH 70) More than 68 dBy emf (1% BER) FM More than 75 dB psc (CH 70) More than 73 dBy emf (1% BER) More than 75 dB DSC (CH 70) More than 73 dBy emf (1% BER) More than 15 W {at 10% distortion into a 4 Q external speaker) More than 40 dB +1 dB —-3 dB of -6 dB octave from 300 Hz - 3000 Hz Acquisition, tracking Maximum 24 ch Calculation Maximum 12 ch

WAAS, EGNOS, MSAS, GAGAN

GPS, SBAS 1575.42 MHz GLONASS 1602.00 MHz IEEE802.11 big/n WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) 1 to 13 (2.4 GHz band) ® May differ, depending on the country of use. Less than 10 mW/MHz 25 W typical (at 30% distortion into a 4 Q) 20 W typical (at 10% distortion into a 4 Q)

• Only for the versions with the AIS receiver.

HE Specifications IC-M510E © General + Frequency coverage: + Mode: + Operating temperature range: + Current drain (at 13.8 V): + Power supply requirement: + Antenna impedance: + Dimensions (approximate, projections not included): + Weight (approximate): © Transmitter + Output power: + Modulation system: + Maximum frequency deviation: + Spurious emissions: + Frequency error: + Adjacent channel power: + Audio harmonic distortion: + Residual modulation: + Audio frequency response: TX 156.025 - 161.425 MHz (Depending on the version) RX 156.050 - 162.000 MHz (Depending on the version) DSC(CH70) 156.525 MHz AIS (CH A) 161.975 MHz AIS (CH B)* 162.025 MHz 16KO0G3E (FM), 16K0G2B (DSC, AIS") 20°C - +60°C TX high (25 W) 5.0 Amaximum RX Maximum audio (at 4 Q Load)

1.6 À maximum (no external speakers)

2.0 À maximum (with HM-195)

4.0 À maximum (with external speaker)

{with external speaker, RX haïler speaker, and HM-195 external speaker) Negative ground 12.0 V DC (10.8 - 15.6 V DC) 50 Q nominal 175 (W) x 110 (H) x 53 (D) mm

6.9 (W) x 4.3 (H) x 2.1 (D) in

750 g, 1.7 lb (Not including microphone) 25 W or 1 W Variable reactance frequency modulation 45 kHz Less than 0.25 y W Less than 40.5 kHz More than 70 dB Less than 10 % (at 60% Deviation) More than 40 dB #1 dB —-3 dB of 6 dB octave from 300 Hz - 3000 Hz

© Receiver + Receive system: + Sensitivity: + Squelch sensitivity: + Intermodulation rejection ratio: + Spurious response: + Adjacent channel selectivity: + Audio output power: + Hum and noise: + Audio frequency response: © Built-in GPS + Channel: + Deferential satellites: + Corresponding GNSS: + Receiving frequency: © Wireless LAN + Wireless LAN standard: + Authentication and Encryption: + Channels: + Output power: © Hailer + Audio output power (at 13.8 V): © RX Hailer + Audio output power (at 13.8 V):

SPECIFICATIONS AND OPTIONS 13

Double conversion superheterodyne FM —5 dBu emf (typical) at 20 dB SINAD DSC (CH 70) -1 dBu emf (typical) (1% BER) AIS" —114 dBm (typical) at 20% PER Less than -2 dBy emf FM More than 75 dB DSC (CH 70) More than 68 dBy emf (1% BER) FM More than 75 dB psc (CH 70) More than 73 dBy emf (1% BER) More than 75 dB DSC (CH 70) More than 73 dBy emf (1% BER) 15 W typical {at 10% distortion into a 4 Q extemal speaker) More than 40 dB +1 dB —-3 dB of -6 dB octave from 300 Hz - 3000 Hz Acquisition, tracking Maximum 24 ch Calculation Maximum 12 ch

WAAS, EGNOS, MSAS, GAGAN

GPS, SBAS 1575.42 MHz GLONASS 1602.00 MHz IEEE802.11 big/n WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) 1 to 13 (2.4 GHz band) ® May differ, depending on the country of use. Less than 10 mW/MHz 25 W typical (at 30% distortion into a 4 Q) 20 W typical (at 10% distortion into a 4 Q)

• Only for the versions with the AIS receiver.

HE Options NOTE: When an optional product with a lower IP rating than the transceiver is attached, the transceiver meets the lower IP rating of the optional product.

+ RS-M500 REMOTE CONTROL SOFTWARE

Android/iOS application that is used to remotely control the transceiver through WLAN. Up to 3 mobile devices can be used as a wireless microphone or remote controller. Intercom function between your mobile device and the transceiver is also available.

+ HM-195GB/HM-195GW COMMANDMICIV TM

External microphone-type controller. Provides optional intercom operation 6 meters microphone cable and mounting base included. HM-195GB: Black HM-195GW: White

+ HM-205RB SPEAKER MICROPHONE

Equipped with [A J/[Y] (channel up/down), [H/L], [16/C] and [PTT] keys, a speaker and a microphone.

+ OPC-1541 MICROPHONE EXTENSION CABLE

6 meters (20 feet) microphone extension cable for optional HM-195. Up to 2 OPC-1541 can be connected. Usable length is 18 meters (60 feet) maximum

+ OPC-1000 MICROPHONE EXTENSION CABLE

6 meters (20 feet) microphone extension cable for HM-205RB. EE

+ OPC-2522L/OPC-2523L CONVERSION CABLE

L-type conversion cable for a speaker microphone or a command microphone. OPC-2522L: For HM-205RB OPC-2523L: For HM-195GB or HM-195GW

+ SP-37 HORN SPEAKER

The external horn speaker. Connect with the AF Out leads for the external speaker. @ To use the Hailer function or the Horn function, connect to the transceiver. © SP-37 has not been tested and Icom does not guarantee its waterproofness.

+ UT-112A VOICE SCRAMBLER UNIT

Ensures private communications. 32 codes are selectable. Not available in some countries. Ask your service center or technical dealer for installation details

+ UX-241 GNSS ANTENNA

To receive GPS signals. Cable length: Approximately 5.0 m, 16.4 feet

+ MBF-7/MBF-9 FLUSH MOUNT KIT

To mount the transceiver to a panel.

+ MBZ-1 FRONT PANEL COVER

Attach to protect from Sun light.

EH Troubleshooting The transceiver does not turn ON. © There is a bad connection to the power supply. — Check the connection to the transceiver and power supply. (p. 96) © The fuse is blown. — Repair the problem, and then replace the fuse. (p. 94) Little or no sound comes from the speaker. © The squelch level is set too high. — Set the squelch to the threshold point. (p. 12) © The volume level is set too low. — Set the volume level to a suitable level. (p. 12) You cannot transmit with high power. © Some channels are set for low power or receive only by regulations. — Change channels. (p. 10) © The output power is set to low. — Push [HILO] to select high power. (p.7) Scan does not start. © More than 2 favorite channels are not set. — Set at least 2 favorite channels. (p.17) No beep sounds. © The Key Beep function is OFF. — Turn ON the function. (p. 82) Individual or Group ID cannot be set. © The entered ID code is incorrect. The first digit must be set to between ‘1’ and ‘9’ for an Individual ID. — Enter a correct ID code. (p. 19) “??” blinks instead of the position and time. © Four hours have passed since you manually entered the position. © The GPS position is invalid. — Enter the position and time. (p. 20) “No Position” and “No Time” are displayed instead of the position and time. e The GPS signal is not correctly received. — Check the GPS antenna connection and position. (p. 95) — Check the cable connection to NMEA In/Out leads. (p. 96) — Check the transceiver is located where the built-in GPS has a clear view to receive signal from satellites. (p. 97) © The position and time have not been manually entered — Enter the position and time. (p. 20) Sensitivity is too low, and only strong signals can be heard. © The antenna is defective or the coaxial cable connector is shorted or cut. — Repair the problem and then reconnect to the antenna connector. (p.95) Communication cannot be established. © The antenna is defective or the coaxial cable connector is shorted or cut. — Repair the problem and then reconnect to the antenna connector. (p.95)

TROUBLESHOOTING 14 The transceiver is locked up, and does not respond. © Asoftware error has occurred — Turn OFF the transceiver, and then turn it ON again. The transceiver does not work. © The transceiver's Phase Lock Loop is unlocked. — Contact your dealer. The collision alarm does not sound. © The collision alarm function is OFF. — Turn ON the collision alarm function. (p. 59) You cannot connect to the mobile devices. © The WLAN function is OFF. — Turn ON the WLAN function. (p. 88) © SSID is set incorrectly. — Check the SSID on both the transceiver and the access point.

14 TROUBLESHOOTING HE Resetting the MMSI code and the ATIS ID If you need to reset the MMSI code and the ATIS ID*, you must contact Icom and obtain an Activation code.

• For only the German (FRG) and Netherlands (NLD) versions. © Requesting the Activation code Contact Icom by e-mail with the following information. (E-mail address: MMSI-reset-request@icom.co.jp) Required information: + Model name + Request code (16-digit number) ® See below how to check the Request code on your transceiver. Checking your Request code: You can check the Request code on your transceiver's menu screen. 1... Open the “MMSI Clear’ screen [Menu] > Settings > Configuration > MMSI Clear © The “MMSI Clear” menu is displayed only when the Activate , MMSI code or the ATIS ID has been set.

2. Select “Request Code,” and then push [ENT] or Deus

ICH/ENT]. + A 16-digit of Request code is displayed. Request Code- @ The code on the right is only an example. 0123-4567-8901-2345

TROUBLESHOOTING 14 © Resetting the MMSI code and the ATIS ID After Icom accepts your request, you will be sent an Activation code for the reset operation. Enter the Activation code to your transceiver and reset the MMSI code and the ATIS ID. CAUTION: -+ The Activation code can be used only once. - The reset operation clears both the MMSI code and the ATIS ID.

1. Open the “MMSI Clear” screen.

[Menu] > Settings > Configuration > MMSI Clear

2. Select “Activate,” and then push [ENT] or [CH/ENT].

3. Enter the 16-digit of Activation code.

@ The code on the right is only an example. TIP: + Select a number using [4] and [>]. + Push [ENT] or [CH/ENT] to enter the selected number. + Select “—" or “_+" on the screen or rotate [CH/ ENT] to move the cursor.

4. Select BEI to set the entered code.

+ When the Activation code is successfully entered, the screen on the right is displayed. © lfthe entered code is not correct, an error message is displayed, and then returns to the input screen. Enter the correct Activation code. Activate Error

5. Push[OK Jto clear the MMSI code and ATIS ID.

+ The transceiver restarts. NOTE: See page 8 for how to enter your new MMSI code and ATIS ID. Request Code ctivare Code [ualalalsle]:Tae] Let

lactivate Code: 2345 0123 4567 890Ù] MMS! Clear Are you sure?

• Low power only. “2 RX only.
• Momentary High Power.

Channel Number Frequency (MHz) USA INT CAN | Transmit | Receive 1028 157.400 | 157.400 2028 RX only | 162.000 60 60 156.025 | 160.625 61 156.075 | 160.675 1061 156.075 | 156.075 62 156.125 | 160.725 1062 | 156.125 | 156.125 63 156.175 | 160.775 1063 1063 1063 156.175 | 156.175 64 64 156.225 | 160.825 1064 156.225 | 156.225 65 156.275 | 160.875 1065 1065 | 1065"! | 156.275 | 156.275 66 156.325 | 160.925 1066 1066 | 1066*' | 156.325 | 156.325 67*3 67 67 156.375 | 156.375 68 68 68 156.425 | 156.425 69 69 69 156.475 | 156.475 71 71 71 156.575 | 156.575 72 72 72 156.625 | 156.625 73 73 73 156.675 | 156.675 74 74 74 156.725 | 156.725 75 75* 156.775 | 156.775 76°! T76* 156.825 | 156.825 77" 17 77" 156.875 | 156.875 78 156.925 | 161.525 1078 1078 1078 | 156.925 | 156.925 2078 RX on/ 161.525 79 156.975 | 161.575 1079 1079 1079 | 156.975 | 156.975 2079 RX on 161.575 80 157.025 | 161.625 1080 1080 1080 | 157.025 | 157.025 81 157.075 | 161.675 1081 1081 1081 157.075 | 157.075 82 157.125 | 161.725 1082 1082 1082 157.125 | 157.125 83 157.175 | 161.775 1083 1083 1083 157.175 | 157.175 2083 RX only | 161.775 84 84 157.225 | 161.825 85 85 157.275 | 161.875 86 86 157.325 | 161.925 87 87 87 157.375 | 157.375 88 88 88 157.425 | 157.425 CHANNEL LIST 15

• Low power only. “2 RX only.
• Momentary High Power. NOTE: Simplex channels, 1021, 1023, 1081, 1082, and 1083 CANNOT be lawfully used by the general public in the USA waters. ©® See page 11 for details on the WX channel.

15 CHANNEL LIST H For IC-M510E NOTE: When the “Channel Display” is set to “3 digits” in the Radio setting, the channel number is displayed in 3 digits. See page 86 for details. (For example: “1001” is displayed as “O1A.") © International channels *1 Low power only. *? Except for the NLD version

Accessories Speaker Microphone..3 Supplied accessories

Access Point mode. AIS About AIS . Alarm Status (DSC Settings) All Ships call Receiving Sending.. Anchor Watch Backlight. Configuration

Call channel Radio settings Selecting … Setting CH 70 SQL Level, DSC Settings … Channel Channel area . Group. Name, editing. Selecting . Channel 16 Channel Display Radio Settings. Channel Group Radio settings... CH Auto Switch, DSC Settings Client mode . Command microphone COMMANDMIC Speaker Display Contrast. Highway screen Menu screen items. Plotter screen. Soft Keys/Dial assignment … CPA/TCPA Alarm. Audible Alarm. CPA... Slow Warn TCPA.... INDEX

Detail screen Distress call Cancel call … Receiving Regular call Sending.. Simple call. Address ID Log, received Settings …. DSC data output Dual/Tri-watch Description Operation Radio setting:

• GPS Configuration Group call Receiving Sending.…
• Group ID Deleting. Highway ID Blocking Deleting. Editing Inactivity Timer Configuration. Individual Acknowledgment Sending p. 26
• Individual cal Receiving p. 38
• Sending p. 25
• Individual ID Deleting DSC Settings .46 Entering … .19 Intercom. p. 20

Key Assignment Configuration. Key Beep Configuration.

License Operator. Ship Station Lock function Lost target.

MA-510TR Connecting.…. . Man Overboard (MOB) Starting Stopping. MBF-7 installatio: MBF-9 installation... 98 Menu screen Description. ltems Using Microphone Connecting…. MMSI code, entering .….8 Mounting the transceiver

Panel Description … Plotter Description … Reply call, receiving..42 Reply call, sending..34 Request call, sending

Reply call, receiving..42 Reply call, sending..32 Request call, receiving

Request call, sending Power. ON Beep Configuration. Power SW from MIC Configuration. Procedure (DSC Settings) …

Radio Info Receiving RX Hailer Configuration INDEX
