Product Type	2-in-1 Swing and Rocker
Brand	Graco
Model	NWL0001526829C
Recommended Use	From birth up to 18 kg (40 lb) in toddler rocker mode
Maximum weight (swing mode)	11 kg (25 lb)
Maximum weight (infant rocker mode)	9 kg (20 lb)
Maximum weight (toddler rocker mode)	18 kg (40 lb)
Approximate dimensions (assembled)	70 x 55 x 80 cm
Power	AC adapter (wall outlet) included
Swing speeds	6 adjustable speeds
Vibration	4 levels (low, medium, high, very high) + off
Music	10 built-in melodies with volume control
Rock Lock™	Locks swing for easier entry/exit
Height adjustment	Handle at front of base, multiple positions
Recline positions	Fully reclined position (up to 4 months) and upright positions
Restraint system	5-point harness, height adjustable
Body support	Included, usable with harness
Removable covers	Harness covers and crotch strap cover, washable
Materials	Metal frame, fabric cushion, plastic parts
Care	Wipe clean with damp sponge, do not immerse
Compliance	FCC Part 15, CAN ICES-003(B) / NMB-003(B)
Spare parts	Contact Graco customer service

Frequently Asked Questions - NWL0001526829C GRACO

How to assemble the Graco NWL0001526829C swing?

Assembly is tool-free. Insert the base tubes (B and C) into the motor housing (D) until the buttons are visible. Attach the seat by clipping it onto the rocker base support. Check the attachment by lifting the seat. Refer to the manual for details.

What is the maximum weight for swing mode?

Swing mode is suitable up to 11 kg (25 lb). For infant rocker mode, it's 9 kg (20 lb) and for toddler mode, 18 kg (40 lb).

How to adjust the swing speed?

Press the swing speed button (←) to cycle through 6 speeds. The indicator blinks during change and stays on in normal operation. Press a 6th time or hold to turn off.

Does the swing work on batteries?

No, the swing works only with the included AC adapter. Plug it into a wall outlet. Do not use an extension cord.

How to clean the swing covers?

The harness covers and crotch strap cover are removable and washable with a damp sponge. Do not immerse or machine wash unless indicated. Clean the frame with a damp cloth.

What to do if the swing stops swinging?

Check that the adapter is plugged in and the power indicator (◎) is on. Make sure the Rock Lock™ is unlocked. If the problem persists, contact Graco customer service.

How to use the Rock Lock™?

The Rock Lock™ allows you to lock the swing to help the child enter and exit. Pull the handle at the back of the base to lock/unlock. Unlock before activating the swing.

How to adjust the seat height?

Pull the handle at the front of the base and slide the seat up or down. Never adjust the height when the child is in the product.

From what age can I use the upright position?

Use the fully reclined position until the baby is at least 4 months and can hold their head up unassisted. Then you can use more upright positions for older children.

How to adjust the safety harness?

To open, press the buckle button. To close, insert shoulder straps into waist straps and lock into crotch buckle. Use adjustment loops at shoulders and waist for a snug fit. Shoulder straps must go through slots at or above the child's shoulders.

USER MANUAL NWL0001526829C GRACO

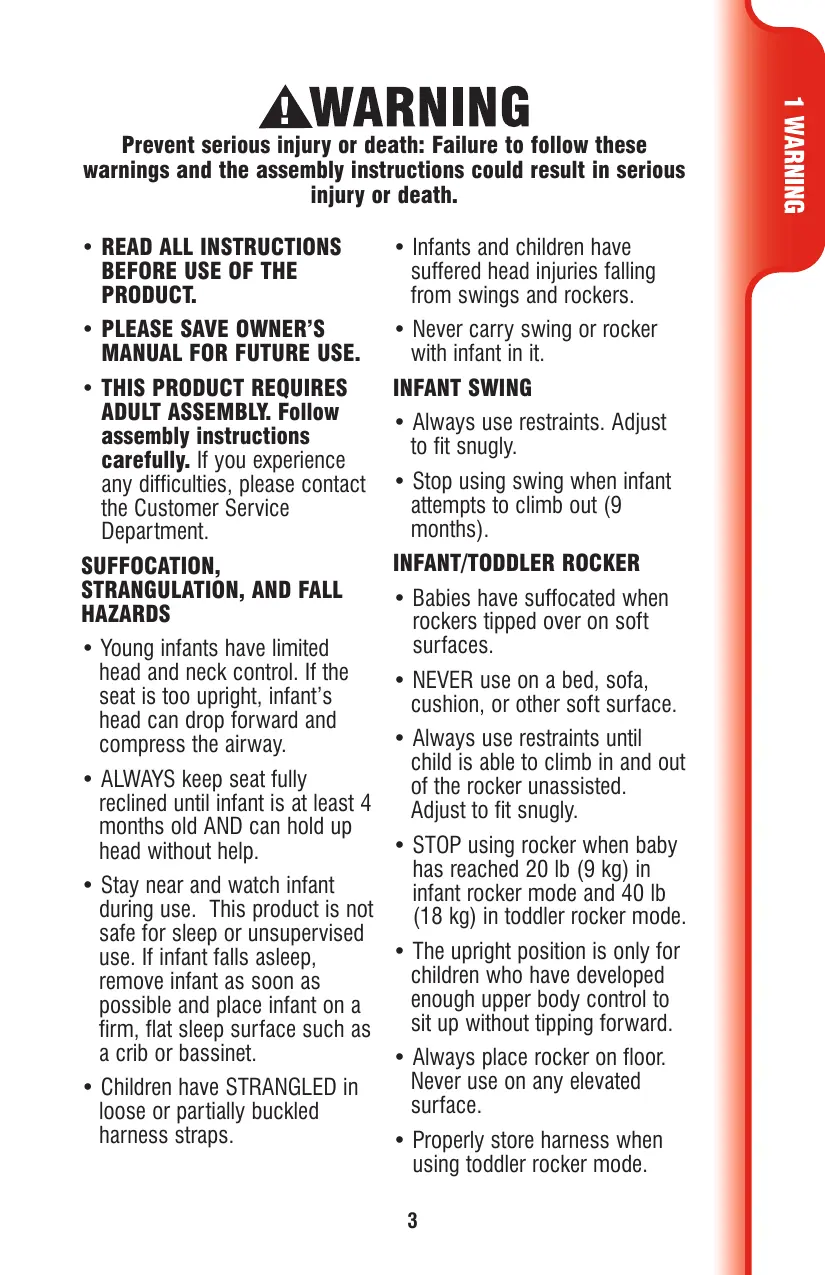

Prevent serious injury or death: Failure to follow these warnings and the assembly instructions could result in serious injury or death.

• READ ALL INSTRUCTIONS BEFORE USE OF THE PRODUCT.
• PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
• THIS PRODUCT REQUIRES ADULT ASSEMBLY. Follow assembly instructions carefully. If you experience any difficulties, please contact the Customer Service Department.

SUFFOCATION, STRANGULATION, AND FALL HAZARDS

• Young infants have limited head and neck control. If the seat is too upright, infant's head can drop forward and compress the airway.
• ALWAYS keep seat fully reclined until infant is at least 4 months old AND can hold up head without help.

• Stay near and watch infant during use. This product is not safe for sleep or unsupervised use. If infant falls asleep, remove infant as soon as possible and place infant on a firm, flat sleep surface such as a crib or bassinet.
  Children have STRANGLED in loose or partially buckled harness straps.

• Infants and children have suffered head injuries falling from swings and rockers.

• Never carry swing or rocker with infant in it.

INFANT SWING

Always use restraints. Adjust to fit snugly.
- Stop using swing when infant attempts to climb out (9 months).

INFANT/TODDLER ROCKER

• Babies have suffocated when rockers tipped over on soft surfaces.
• NEVER use on a bed, sofa, cushion, or other soft surface.
  Always use restraints until child is able to climb in and out of the rocker unassisted. Adjust to fit snugly.
• STOP using rocker when baby has reached 20 lb (9 kg) in infant rocker mode and 40 lb (18 kg) in toddler rocker mode.
• The upright position is only for children who have developed enough upper body control to sit up without tipping forward.
• Always place rocker on floor. Never use on any elevated surface.
• Properly store harness when using toddler rocker mode.

WARNING

STRANGULATION HAZARD:

• DO NOT suspend strings over the product or attach strings to toys.
• DO NOT place product in any location where there are cords, such as window blind cords, drapes, phone cords, etc.

• Strings can cause strangulation. DO NOT place items with a string around your child's neck, such as hood strings or pacifier cords.

• DO NOT USE THIS PRODUCT if it is damaged or broken.

• DO NOT place product near water and moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
• DO NOT use the AC adapter if it has been exposed to liquids, has been dropped, or is damaged.
• Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
• DO NOT use with an extension cord.
• Use only power cord provided.
• Body support for use only with this product.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. CAN ICES-003(B) / NMB-003(B).

ISED compliance statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

▲MISE EN GARDE

Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service.

No Tools Required

A. Seat Pad and Seat Frame

G. Crotch Strap Cover

This model may not include some features. DO NOT use any other accessories with this product.

Only use this body support on this swing. Never use this body support on any other product.

Only use harness covers and crotch strap cover on this swing. Never use harness covers and crotch strap cover on any other product.

Infant Swing: For use up to 25 lb (11 kg)

Infant Rocker: For use up to 20 lb (9 kg)

Toddler Rocker: For use up to 40 lb (18 kg)

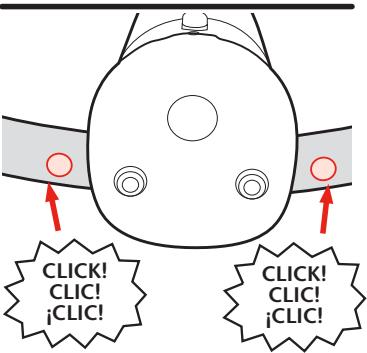

3-A Assembling Swing Base

Montage de la base de la balançonire
- Ensamblaje de la base del columpio

B

D

1. Insert the ends of base tubes (B) (C) into openings in motor housing (D) as shown.

CHECK that buttons are visible, and pull out on each base tube to ensure it is fully attached.

3-B To Attach Seat to Base

3-C To Remove Seat from Base

Seat can be removed from base for storing.

WARNING Falling Hazard: Swing Mode: Always use

restraints. Rocker Modes: Always use restraints until child is able to climb in and out of the product unassisted. STRANGULATION HAZARD: Children have STRANGLED in loose or partially buckled harness straps.

4-B To Use Rock LockTM

LOCK Rock Lock™ to help child to get in and out of product.

UNLOCK Rock Lock ^TM before turning on swing motions.

4-C To Adjust Height

DO NOT adjust height with child in product.

4-D To Adjust Recline (3 positions)

• Réglage de l'inclinaison (3 positions)
• Paraaabrear la reclinacion (e posiciones)

ALWAYS use most reclined position until infant is at least 4 months old and can hold up head without help. Use the more upright position for older, more active infants.

DO NOT place product near water or moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.

DO NOT use the AC adapter if it has been exposed to liquids, has been dropped, or is damaged.

Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.

WARNING

Strangulation Hazard: Keep this cord out of the reach of children. DO NOT use with an extension cord. Use only power cord provided.

MISE EN GARDE

avoid serious injury from falling or

sliding out. Always use restraint system. After fastening buckles, adjust belts to get a snug fit around your infant.

TO TURN SWING ON:

Plug product into wall, power () will light up. Press power () , all icons will light up white and swing motion () and speed () will light up blue. Product will begin to swing. Change speed if needed by pressing Swing motion () again until desired speed.

TO TURN SWING OFF: Press and hold power () again to turn off. It will take a few seconds for the swing to stop moving.

MISE EN GARDE

(Power) Press power (⊙) to turn swing controls on. To turn swing controls off press and hold power (⊙). It will take a few seconds for the swing to stop moving. Swing will auto shut off after 4 hours.

Press swing speed () to cycle through 6 motion speed options. Swing speed will flash during mode change and () illuminate solid in full motion. Press swing speed () a 6th time or press and hold swing speed () to turn swing speed off.

(Vitesse de balancement)

Press Vibration (≈) to choose vibration setting.
Vibration settings are:

(1) Low
(2) Medium
(3) High
(-1) Highest
(3) Off

Press and hold Vibration (≈) will also turn vibration off.

(Vibration)

（1）Baja
(2) Media
(3)Alta
(4) MÁs alta
(□) Apagada Press and hold Vibration (≈) will also turn vibration off.

Sound Controls

Press Music ( ) to turn music on.
Song 1 will play at volume ( ) Low.
Press Music ( ) to skip to next song(s).

Press Sound Volume ( ) until number is (0) or press and hold Music ( ) to turn off.

(Musique)
