USER MANUAL AC70P BLUETTI

BLUETTI Certificate Inspector: Ower Station Veruern

1. Charge the unit before first use

2. Do not use solar panels with open circuit voltage higher than S8V. Solar input

voltage range for the unit is 12V-58VDC.

3. Charge the unit immediately when the SoC drops below 5%. Ifthe SoC drops to 0,

power off the unit and charge it for at least 30 minutes before restarting

4. The unit is for off-grid use only. Do not connect its AC output to the gril

5. If not used for more than 3 months, charge the unit to 40%-60% SoC and store it

with the power off. For optimum battery life, discharge and charge the unit every 3 months

Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world That's why BLUETTI makes its presence in 100+ countries and is trusted by millions of customers across the globe.

pr Paust Canada ES uk Iirzertane many LS DA 9e © Meieo. Philippines Nigeria Singapèté (Malaysia Australia South Africa New Zealand Copyright © Shenzhen PowerOak Newener Co, Ltd. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without the prior written consent of Shenzhen PowerOak Newener Co, Ltd. Notice BLUETTI'S products, services, and features are subject to the agreed-upon terms and conditions during purchase. Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, BLUETTI makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual The contents of this manual are subject to change without notice. Please get the latest version from: https/\mmw.bluettipower.com/pages/user-guides If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance.

Read this manual for instructions on the proper use and safety information for the product. The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers

To ensure a safe operation, it's crucial to observe and adhere to the following conditions: + Always operate or store the product in the conditions specified in this manual + Avoid unauthorized disassembly, component replacement, or modification of software codes, À BLUETTI shall not be liable for damages resulting from the following circumstances: + Force majeure events such as earthquakes, fires, storms, floodis, or mudslides. + Damage caused by the customer's own transportation + Damage resulting from inadequate storage conditions as specified in the manual + Damage caused by customer negligence, improper operation, or intentional actions. + System or hardware damage caused by third parties or customers, including but not limited to improper handling and installation not in accordance with the instructions in this manual + Usage ofthe product with devices that require a high-performance Uninterruptible Power Supply (UPS), including but not limited to data servers, workstations, medical equipment, and other similar devices.

1.2 General Requirements

WARNING - When using this product, basic precautions should always be followed, including the following, a. Read all the instructions before using the product b. To reduce the risk of injury, close supervision is necessary when the product is used near children c. Do not put fingers or hands into the product. And do not insert foreign objects into any ports of the product. d. Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons. e. To reduce the risk of damage to the electric plug and cord, pull the plug rather than DrpowER ON 05 EN

the cord when disconnecting the product. f. Do not use a battery pack or appliance that is damaged or modified, as they may exhibit unpredictable behavior resulting in fire, explosion, or personal injury.

9. Do not operate the product with a damaged cord or plug, or a damaged output cable.

h. DO NOT attempt to replace the internal battery or any other component of the product by anyone other than authorized personnel. There are no end-user serviceable components. Do not disassemble the product, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock

i. To reduce the risk of electric shock, unplug the product from the outlet before

attempting any instructed servicing, j. WARNING - RISK OF EXPLOSIVE GASES. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and engines, k. PERSONAL PRECAUTIONS

1) Wear complete eye protection and clothing protection. Avoid touching eyes while

working near the battery.

2) NEVER smoke or allow a spark or flame in the vicinity ofthe battery or engine.

3) Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might

spark or short-circuit the battery or other electrical parts which may cause an explosion

1. When charging the internal battery, work in a well ventilated area and do not restrict

ventilation in any way. m. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oceurs, flush with water. f liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns n. Do not expose the product to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause an explosion o. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that safety is maintained p. DO NOT operate in wet conditions. Ifthe product becomes wet, please thoroughly dry it before using a. Please ensure proper ventilation while in use and do not obstruct fan openings. Inadequate ventilation may cause permanent damage to the product. r. DO NOT stack anything on top ofthe product while in storage or use. DO NOT move the product while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside.

s. In case of fire, use only a dry powder fire extinguisher appropriate for the product. &. WARNING - RISK OF ELECTRIC SHOCK. Never use the product to supply power tools to cut or access live parts or live wirings, or materials that may contain live parts or live wirings inside, such as building walls, etc. u. To avoid contact with any liquids, do not use this product in the rain or high humidity.

1.3 Grounding Instructions

This product must be grounded. fit should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. À WARNING Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - ifit does not fit the outlet, have a proper outlet installed by a qualified electrician:

1.4 Storage Instructions

a. When the SoC drops to 5%, please charge the product immediately. b. Before storing the product, charge it to 40% to 60% SoC to keep it in optimal condition. In addition, power off the unit and disconnect all electrical connections from it. c. Store the product in a cool and dry place, keeping it away from flammable or combustible materials and gases. d. The product can be safely stored within a temperature range of -20°C to 40°C (-4°F to 104*F). However, if the storage duration exceeds one month, its recommended to maintain an ideal storage temperature of around 30 C (86°F) e. Fully cycle the product every 3 months to maintain the battery's health. it's NOT recommended to store the unit for extended periods of time, as it may affect its performance and overall lfespan où 07 EN

Ifthe SoC drops to O (during storage or upon startup), take the following actions to safely restart the product: + Shut down immediately, + Charge within 48 hours, + Keep it at an ambient temperature of 5°C to 35°C [41°F to 95°F) for 24 hours before charging. It's recommended to charge the product via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 10OW. VAN BLUETTI shall not be liable for any equipment damage caused by the violation ofthe above instructions.

SAVE THESE INSTRUCTIONS

À TA The symbol displayed is intended to remind you to read the instructions in the literature accompanying the product before operation and maintenance. + Connect the product to a socket-outlet that has an earthing connection using the power cord providedl + The socket-outlet should be installed near the product and easily accessible for safety purposes, + NEVER dispose of a battery by throwing it into fire or a hot oven, or by mechanically crushing or cutting it, as these may cause it to explode. + Avoid leaving batteries in extremely high-temperature environments, as this can result in an explosion or the leakage of flammable liquid or gas. + The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas + Attention should be drawn to the environmental aspects of battery disposal. - Please refer to the information on the exterior bottom enclosure for electrical and safety information before installing or operating the apparatus En 08

Standard Packaging Item Picture Qty. Portable Power Station AC Charging Cable Car Charging Cable Solar Charging Cable Grounding Screw (M5*x10) User Manual 1

Optional Accessories (Available on official BLUETTI website) Item Picture USB-C to USB-C Cable (Output) Cigarette Lighter to DC5521 Cable {For 12V devices with DCSS21 port, such as routers, cameras, etc) Lead-acid Battery Charger {Charge a 12V/I0A lead-acid battery via AC7OP. For gasoline vehicle batteries only] Lead-acid Battery Charging Cable Kit (Charge the AC7OP via a lead-acid battery] Battery Connection Cable Kit {Charge the AC7OP via an expansion battery in Power Bank mode)

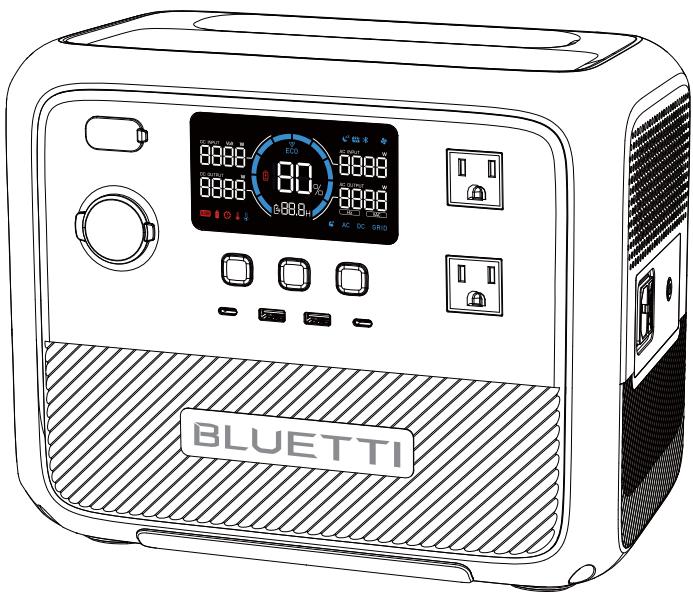

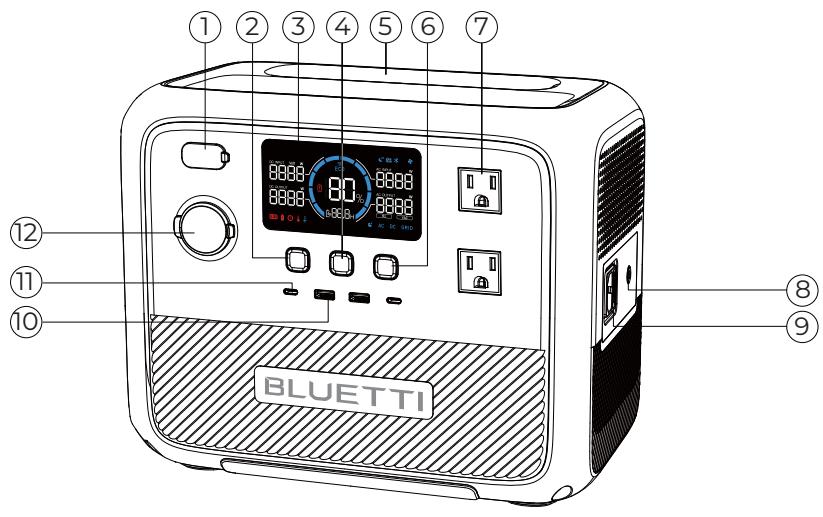

Meet the AC7OP portable power station - the ultimate companion for your travel and adventure needs. With a 1000W pure sine wave inverter and 864Wh LiFePO, battery, it offers ample power for all your outing gadgets like phones, laptops, car refrigerators, and air conditioners. When you require even more power, it boasts the innovative Power Lifting mode to tackle higher resistive demandis of up to 2000W, perfect for hairdryers, kettles, and other heating appliances. Thanks to Turbo Charging technology, you can enjoy the convenience of an 80% charge in just 45 minutes, and a full charge in 1.5 hours. Whether you're embarking on outdoor adventures, road trips, or camping trips with friends, the AC7OP is built to accompany you every step of the way. So, go ahead and embrace your travel plans with confidence, knowing that the AC7OP will provide reliable power whenever you need it @ DC Input @ AC Output @ DC Power Button ® Grounding Pole ® LCD Screen ® AC Input @ Power Button @ USB-A Port © Wireless Charging Pad ® USB-C Port @) AC Power Button @ Cigarette Lighter Port 1 Es

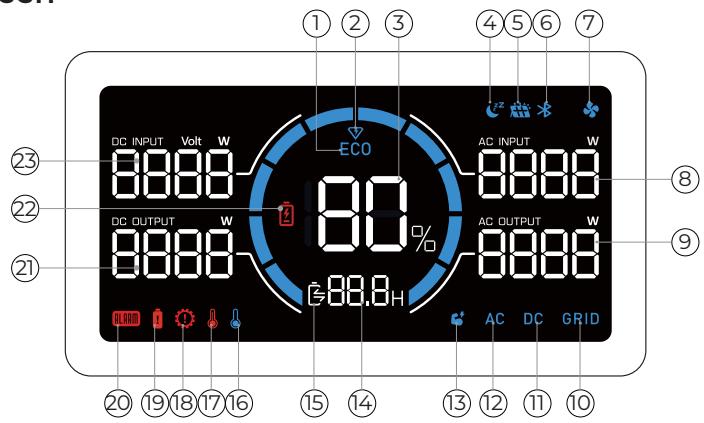

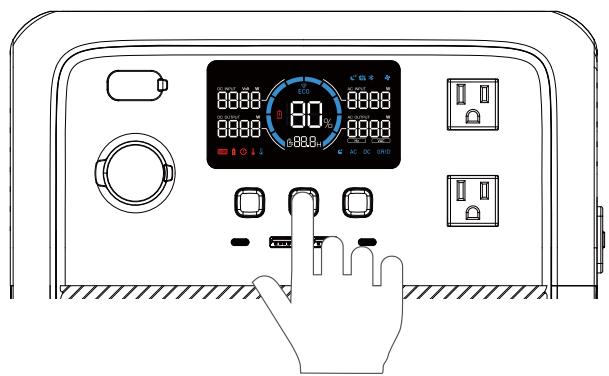

+ Power ON: Press and hold the © for about 2 seconds to turn AC70P on When the AC70OP is on, press the () again to turn on /off the LCD screen: + Power OFF: Press and hold the © for 2 seconds to turn off the unit + AC ON / OFF: When the AC7OP is on, press the AC power button to turn it on / off. + DC ON / OFF: When the AC7OP is on, press the DC power button to turn it on /off.

ACTOP supports four charging methods: AC, solar, car, and generator

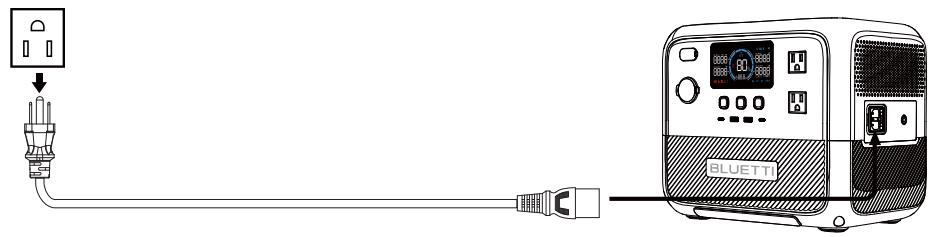

Plug the AC70P into a standard wall outlet and start charging. Once it's fully charged, the AC7OP automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI App, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25°C (77 °F).

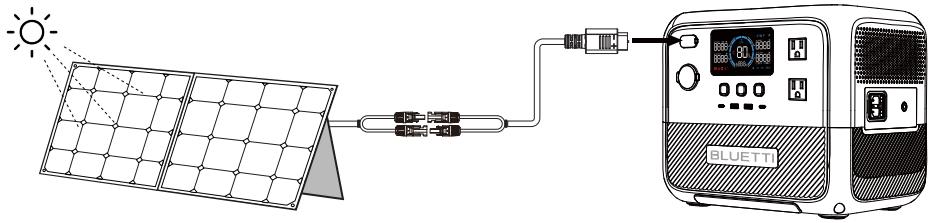

Connect the solar panels (in series or parallel) to AC7OP via the solar charging cable. When receiving a continuous input of 500W/, the AC70P will automatically stop charging within 2 hours. However, please be aware that the charging time may vary based on weather conditions, sunlight intensity, panel orientation, and other variables. Note: Make sure your solar panels meet the following requirements: Voc: 12V-58V Current: 10A Max. | Power: 500W Max En 4

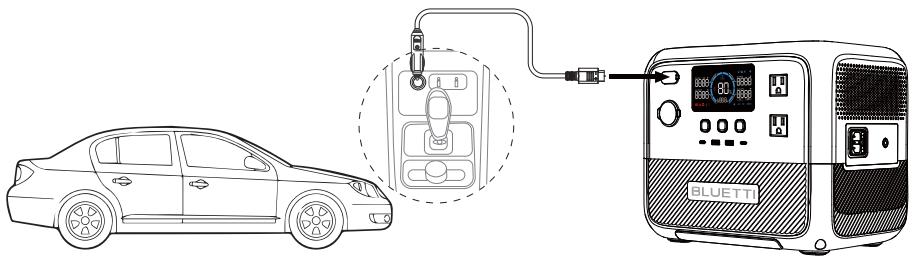

Connect the AC70P to the vehicle's 12V /24V cigarette lighter port via the car charging cable. The AC7OP also automatically stops charging when it's fully charged. On average, it takes about 7-9 hours to refill the AC7OP using a 12V port and 4-5 hours with a 24V port at an ambient temperature of 25°C (77 °F). Note: Make sure your vehicle meets the following conditions for charging; + The vehicle is capable of supplying power. + The vehicles engine is running during the charging process

6.4 Generator Charging

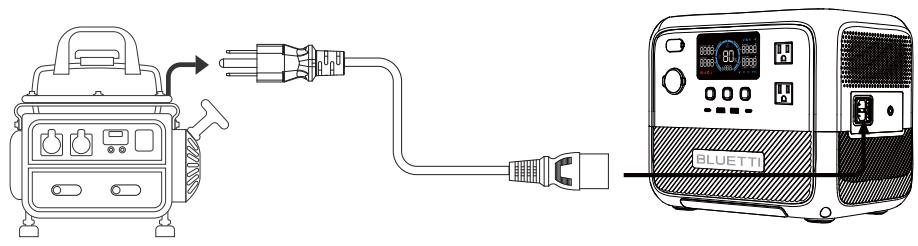

Connect the AC7OP to a generator via the AC charging cable. Under optimal conditions, it takes approximately 2 hours to reach a full charge at an ambient temperature of 25°C (77 °F) Note: Make sure your generator meets the following conditions for charging. + The generator boasts a stable power output that exceeds the charging requirement of the AC7OP. + The generator delivers a pure sine wave AC output with voltage and frequency that meet AC7OP' specifications. À For stable and efficient charging, avoid using unreliable power sources like wind turbines. Also, its not recommended to run your devices with AC7OP while it's charging with a generator. AUSTPOWERON 15 EN

71 AC Discharging Item Specifications Compatible Loads T20V Appliances up to 1000W power 2x AC Outlet ; ur SOHz / 60Hz eg. air conditioners, refrigerators Note: Do not apply AC7OP to loads higher than 1000W, as this may cause damage to AC7OP and your devices.

Item Specifications Compatible Loads Cigarette T2V DC appliances up to 120W power. Lighter Port 12V/10A eg, car refrigerator, air conditioner 2x USB-A Port SV/244 Mobile phones and other small load: 2*USB-C Port 5/9/12/15/20V, 3A 20V,5A Mobile phones, laptops, etc. Note: To ensure optimal performance, avoid short-circuiting the ports and keep them dry during use or storage. Additionally, do not block or cover the ports while ensuring proper ventilation.

The AC7OP offers the convenience of adjusting its settings either via physical buttons or BLUETTI App. With the buttons located on the device itself, you have direct control over various settings such as ECO Mode, output frequency, charging modes, and other functionalities. Additionally, by using the BLUETTI App, you can access a user-friendly interface on your phone to convenientiy monitor and control the AC7OP

When the AC70 is powered on, press and hold the AC and DC power buttons for about 2 seconds till the frequency indicator flashes to enter Setting Mode Press and hold the AC and DC power buttons at the same time to exit Setting Mode. Note: If you do not perform any operation in 1 minute, the AC7OP will automatically exit Setting Mode and no changes will be saved

ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off ifthe AC7OP is bearing low (less than 40W or the set power] or no load for a while Note: When connecting a small power device, disable the ECO Mode for a successful and uninterrupted charge experience. In the Setting Mode, use the DC power button to navigate until the ECO icon starts flashing on the screen. Then, press the AC power button to enable or disable the mode

8.3 Frequency Switching

The current output frequency (50Hz / 60Hz) is displayed in the lower right corner of the screen, To change the frequency, access the Setting Mode, press the DC power button and the frequency starts flashing. Then, press the AC power button to switch between the available frequency options.

8.4 Power Lifting Mode

Power Lifting Mode allows AC7OP to handle high-power resistive loads up to 2000W, which is disabled by default. In the Setting Mode, use the DC power button to navigate untilthe & icon starts flashing on the screen. Then, press the AC power button to enable or disable the mode. This mode is particularly useful when using the AC7OP with demanding heating devices such as kettles, electric blankets, and hairdryers. Ifthe screen reads "OVERLOAD" while operating such devices, activating Power Lifting mode allows the AC7OP to tackle these tasks effectively. Note: The resistive loads should have a power rating between 1000W and 2000W. Although the AC70P can handle higher power demandé, its actual operating power remains at 1000W.

8.5 Bluetooth On/Off

In the Setting Mode, use the DC power button to navigate until the # icon starts flashing on the screen. Then, press the AC power button to turn the Bluetooth on or off.

8.6 AC Charging Mode

The AC70 supports three AC charging modes - Standard, Turbo, and Silent to fit your specific needs. In the Setting Mode, use the DC power button to navigate untilthe # or € icon starts flashing on the screen. Then, press the AC power button to enable or disable these two modes. OWERON 17

AC Charging Instructions Icon Mode Recharging Time Note Reduces battery wear and tear None Standard 2hours for long battery life 15 hours Convenient when recharging 7 Turbo 0-80% in 45 mins time is a priority. Offers a quiet, low-power E Silent 4hours operation.

Scan the OR code below or search "BLUETTI" in the App Store or Google Play to download Cx-3[e] the BLUETTI App. For more details, please refer to BLUETTI APP INSTRUCTIONS.

T1. Troubleshooting In the Setting Mode, press and hold the DC power button until an error code appears on the screen. Please refer to the table below for helpful guidance Error Code Error Description Troubleshooting £o0! Inverter overload Check ifthe power consumption of your devices is too high. Reduce the load if necessary. Check if any of your devices are overheating] F002 Temperature protection Allow them to cool down before use. E003 Inverter short circuit Check if any of your electrical devices are causing a short circuit. Disconnect and resolve the issue. E004 Output failure The output voltage is abnormal. Inspect the machine for any malfunctions or irregularities E016 Fan failure Check ifthe fan is blocked, unplugged, or not functioning properly. Ensure proper ventilation. 2083 PVovervoltage Make sure the PV input voltage is within the range of 12V-S8VDC. 2065 Cigarette lighter output Check ifthe power consumption of your devices short circuit is too high. Reduce the load if necessary. E068 Cigarette lighter output Wait for the device connected to the cigarette overtemperature lighter port to cool down, E085 Charging temperature too high | Wait for the unit to cool down before charging, Make the unit is placed bient E086 Charging temperature too low Pere ef OC 2 DC DER temperature of O°C-40°C (32°F-104F) Wait for the unit to cool down before E087 |Discharging temperature too high | diccharging Make sure the unit is placed in an ambient F088 | Discharging temperature too low | Li Scrature of 0'C-40"C (82°F-104°F) Check ifthe grid voltage is too high. Contact Es Grid overvoltage your local power provider if necessary. Ené Grid undervoltage Check if the grid voltage is too low. Contact your local power provider if necessary. ens Grid overfrequency Check ifthe grid frequency is too high. Contact your local power provider if necessary. En6 Grid underfrequency Check ifthe grid frequency is too low. Contact your local power provider if necessary. en7 Grid cscillation Disconnect the grid input and contact BLUETTI support for further assistance. Others / Please contact BLUETTI support for assistance. En 20

Appx. 1 Estimating Operation Time To estimate the operation time of the AC7OP, consider the load you're appiying; + For high-power loads (above 300W) Operation time = Battery Capacity (Wh} x DoD x n + Load Power + For small-power loads (below 300W) Operation time = Battery Capacity (Wh) x DoD x n + (Load Power + Self-consumption of ACTOP) Note: DoD refers to depth of discharge. AC70P works at 90% DoD for longer battery life nisthe conversion efficiency of the inverter, typically over 85% for AC7OP. The self-consumption of AC7OP is approximately 15W, E.g. If you have a 40W refrigerator, you can run it for about 12 hours Operation time = 864Wh x 90% x 85% + (AOW + 1SW) + 12 hours Please keep in mind that the estimated operation time provided is for only purposes and may vary based on actual usage conditions, Factors such as low temperature and excessive loads can significantly affect the battery capacity, leading to a reduction in the average operation time. AUSTPOWERON 21 EN

Q2: Q3: Q4: Q5: How do | know whether my devices will work well with this product? Please evaluate the total constant load of your devices, If it doesn't exceed the Max output power of AC7OP (1000W), you can use this power station to run your devices. Note: Some devices with built-in motor or compressor may start at 2-4 times the rated power, which can easily overload the AC7OP Can | use third-party solar panels to charge this product? Yes, you can. However, make sure your solar panels have an open circuit voltage of T2V-58V and are equipped with MC4 connectors Its also important not to mix different types of solar panels. Can it charge and discharge at the same time? Yes. It supports pass-through charging. The AC7OP comes with the premium LiFePO, battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time. What is ECO Mode and can | turn it off? ECO Mode helps save power, and you can turn it on or off on the screen. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC7OP is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W /SW-IOW, respectively, for 1, 2, 3, or 4 hours, Why is the charging power often too low? AC7OP has a built-in intelligent BMS that automatically adjusts the charging power in response to the battery temperature and SoC, thus protecting the battery and extending its service life

Appx. 3 FCC Statement This device complies with part 15 ofthe FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connectedl - Consult the dealer or an experienced radio / TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.

BLUETTI Certificate Inspector: QC: Just Power On
