USER MANUAL ZX80 Getac

November 2023 Trademarks Comes with the Google" app and Google ChromeT" Google, Android and Gboard are trademarks of Google LLC. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. All other brand and product names are trademarks or registered trademarks of their respective companies. Disclaimer Specifications and manuals are subject to change without notice. Getac assumes no liability for damage incurred directly or indirectly from errors, omissions, or discrepancies between the device and the manuals. Notes Depending on the specific model you purchased, the color and look of your model may not exactly match the graphics shown in this document. The screenshots and other presentations shown in this document are for reference only. They may differ from the actual screens and presentations generated by the actual product. Your device is based on Android" 13 operating system, with additions by Getac. For the latest version of the manual, please visit the Getac website at www.getac.com.

Chapter 1 Getting Started

Using the Bluetooth Function. External Connections Connections via USB Type-C. Using a MicroSD Card (Select Models Only) Connecting an Audio Device

Chapter 4 Getac Applications

Getac Camera GetacilME... GetaclME Setting Getac deployXpress Client (Select Models On) Getac Driving Safety Utility Chapter5 Managing Your Device Managing Power … Battery Protection Mechanism Low Battery Signals and Actions. Power-Saving Tips Battery Guidelines Customizing Your Device Settings. Getac Settings .

Chapter 6 Care and Maintenance

Statements of Compliance Restriction of Hazardous Substances ( (RoHS) Directive RF Exposure Information (SAR) ENERGY STAR

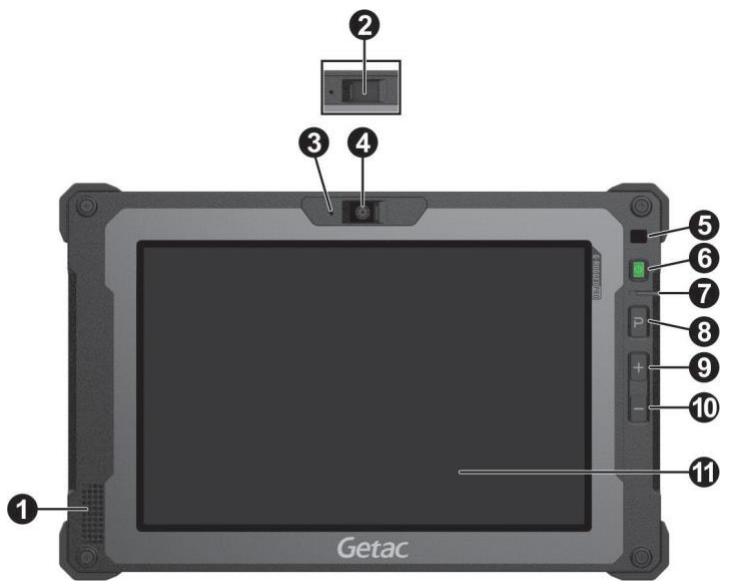

Getting Started This chapter introduces you to the external components of your device and guides you through the process of setting up your device for use. CAUTION: Safety instructions are provided in related sections throughout the User Manual. Please read the manual and any accompanying document(s) before starting to use the product. Identifying Hardware Components Front Components

Ref Compone: Desci © | Speaker Plays music, sounds and voices. © | Camera cover | Covers the camera lens. (optional) Slide the cover to open or close it. The cover provides privacy protection. © Microphone | Receives sound and voice. @| Camera lens | Allows you to use the camera function. (optional) | Light sensor | Senses the ambient light for automatic adjustments of the display backlight. @ | Power button | Short press | Goes into or wakes up from sleep mode. Long press |Staris up the device from the power off state. Opens a menu with Power off option when the device power is on. A press longer than 8 seconds brings different results. (See “Restart or Hard Reboot” in Chapter 6 for information.) @ | Battery Charge | Lights amber when the battery is being charged. indicator Lights green when battery charging is completed. Blinks green when the battery is being discharged intentionally due to the battery protection mechanism. Blinks red (once per second) when the battery’s capacity is below 10%. Blinks amber when the battery charging is in an abnormal state. @ |P button The default function is Camera Shutter or Barcode Trigger depending on your model. Camera |Serves as the shutter release button for Shutter |Getac Camera. Ref Desc:

© | Plus button increases the sound volume (default setting). The type of sound adjusted depends on the current operation. | Minus button | Decreases the sound volume (default setting). The type of sound adjusted depends on the current operation. @ |Touchscreen | Displays and receives information for the device. NOTE: e The hardware buttons (except the power button) can be re-defined using Getac Settings. e The response time of LCDs can be affected by low temperatures. The display has a slower response time in low temperature environments. This does not mean the LCD is defective. The LCD will resume normal response time after returning to room temperature. Back Components Ref Component Description © | RFID antenna Reads data from NFC/RFID tags. (Not supported)

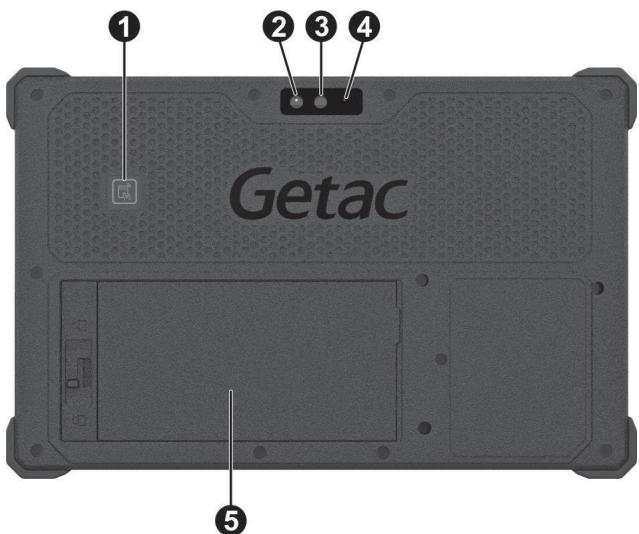

Ref Componei © | Camera lens Allows you to use the camera function. (optional) © | Flash (optional) Provides extra light in certain applications. © | Microphone Receives sound and voice. @ | Additional battery | Provides additional battery power to your device pack (Not (as Battery 2). This battery pack is hot-swappable. supported) NOTE: if you have the high-capacity battery model, the battery pack looks different from the one shown here. Left-Side Components Slide the cover to unlock and then open it. Ref Component O | USB 32 Gen 1 Type-C connector escri Connects a USB device that supports USB Type-C connection.

@ | Combo audio connector Connects a set of headphones or external speakers with amplifier. Supports a headset microphone with 4-pole TRRS 3.5mm jack.

Top Components Ref Component Description © | Barcode scanner | Scans barcodes. lens (Not supported) Bottom Components Ref Component Desci on O | Docking Connects to the office or vehicle dock (purchased connector separately). @|Triantenna |Connects to the docking station for using external passthrough | WWAN/GPS/WLAN antenna. (Not supported)

Getting Your Device Ready for Use

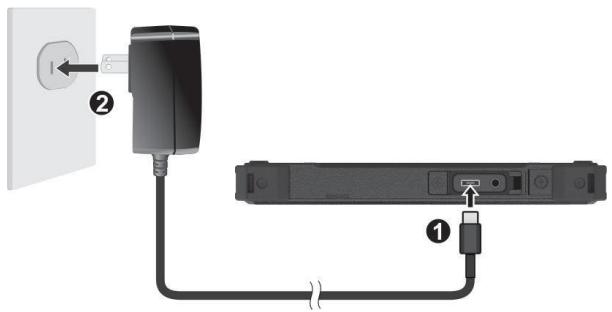

Connecting to AC Power and Charging the Battery NOTE: e The battery pack is shipped to you in power saving mode that protects it from charging/discharging. lt will get out of the mode to be ready for use when you install the battery pack and connect AC power to the device for the very first time. e Charging will not start if the battery's temperature is outside the allowed range, which is between 2 °C (35.6 °F) and 50 °C (122 °F). Once the battery's temperature meets the requirements, charging automatically resumes. You need a USB-C power adapter for charging the device. The adapter is not supplied with the device. You can purchase one from Getac.

1. Have the USB-C power adapter ready.

You should use the appropriate wattage/voltage USB-C power adapter for your model. USB-C power adapter specifications: 18 W (or above)

2. Plug the USB-C connector end of the power adapter to the USB-C connector

on the device (@) and plug the power plug end to an electrical outlet

NOTE: The power plug type varies with countries. The power adapter shown here is an example.

8. The charge indicator glows in amber when charging is in progress. Do

not disconnect your device from AC power until the battery is fully charged, as indicated by the amber indicator turning into green. This will take a couple of hours.

Performing the Initial Startup NOTE: You must use AC power when starting up the device for the very first time. When turning on your device for the very first time, you will be guided through a setup process.

1. Make sure that your device is connected to AC power.

2. Toturnonthe device, press and hold the power button for at least 3

seconds. The device powers up and displays the initial screen.

3. Follow the on-screen instructions to complete the initial setup process.

After the setup is completed, the Home screen appears. You can now use your device.

Operating Basics This chapter familiarizes you with the basic operations of your device. CAUTION: e Do not expose your skin to the device when operating it in a very hot or cold environment. e The device can get uncomfortably warm when you use it in high temperatures. As a safety precaution in such a circumstance, do not place the device on your lap or touch it with your bare hands for extended periods of time. Prolonged body contact can cause discomfort and potentially a burn. e When the device is placed flat on a table top for work, the back surface can get hot after long working hours. Take precautions if you need to carry the device around while it is hot to the touch. Depending on your model, a carrying handle or strap may be available as an option. You can use the handle or strap to carry the device. NOTE: The instructions in this chapter are based on the default settings of the device. Waking Up and Shutting Down Waking Up Your device sleeps after a period of inactivity. To wake up, press the power button and, at the lock screen, swipe up to unlock. Shutting Down Press and hold the power button until a menu pops up. Tap Power off. NOTE: f the device somehow cannot display the power off menu, you can force the device to power off by pressing and holding the power button for more than 8 seconds.

Navigating on the Screen Use the stylus (or your finger) to navigate and select objects on the screen. Here are some common terms that you should know when using the touchscreen: Tap Touch the screen once with the stylus (or finger) to open an item or select an object. Tap and hold Touch and hold the stylus (or finger) on an item to see a list of actions available for that item. Drag Hold the stylus (or finger) on an item and, without lifting the stylus (or finger), move across the screen until you reach the target position. Swipe or slide Move the stylus (or finger) across the screen, without pausing when you first touch it (so you don't “drag” instead). For example, you slide the screen up or down to scroll a list. Pinch In some applications (such as Maps and Photos), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in). NOTE: An optical film has been attached to the screen before shipment. The film is a consumable, which will be worn out by possible scratches. You can purchase a new one when replacement is required. When the touchscreen does not seem to respond, put the device to sleep and then wake it. The screen should function again.

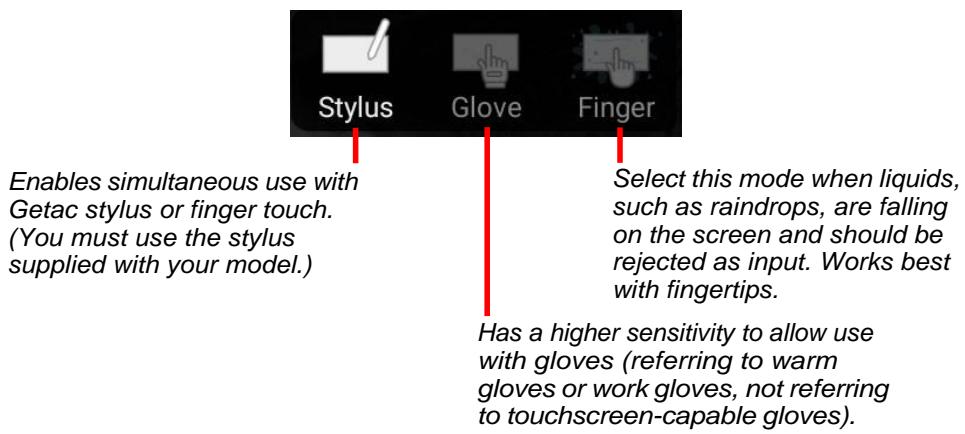

Touch Mode You can change the touch mode to suit your scenario. To quickly switch the mode, tap one of the widgets on the Home screen. Enables simultaneous use with Select this mode when liquids, Getac stylus or finger touch. such as raindrops, are falling (You must use the stylus on the screen and should be supplied with your model.) rejected as input. Works best with fingertips. Has a higher sensitivity to allow use with gloves (referring to warm gloves or work gloves, not referring to touchscreen-capable gloves). Using the Dual Mode Display (Optional) Dual mode display (if your model has the feature) incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode provides all the functionalities that an ordinary touchscreen has. When the device receives signals from the digitizer pen, the display automatically switches to Digitizer mode. You can move the cursor by bringing the digitizer pen close to the screen, without actually touching the screen'’s surface. The digitizer pen has a shortcut button that functions as the right-click of a mouse. Right-click

Home Screen The Home screen is your starting point to access all the features on your device. You can have it display application icons, widgets, shoricuts, and other features that you want. The default Home screen already contains some app icons and widgets. To return to the Home screen at any time, tap the Home icon Q atthe bottom of the screen. You can add app icons, shoricuts, widgets, and other items to any part of the Home screen where there's free space. Using Applications Swipe up from the bottom of the Home screen to open the All Apps screen. The screen holds icons for all of the apps on your device. Tap an icon to open the app. Navigation Buttons The navigation buttons at the bottom of the screen provides buttons for navigation purposes and frequenily-used tasks. Button Name es cri q Back To go back to the previous screen. O Home To open the Home screen. Ü Recent | To open the Recent Apps screen. From here, you can switch to or close a recently used app. Status Bar The Status Bar appears at the top of almost every screen. lt displays icons indicating the current status (on the right) and icons indicating that you've received notifications (on the left), along with the current time.

Quick Settings and Notifications Panel You can open Quick Settings and Notifications Panel by swiping down from the top of the screen. Quick Settings allow you to quickly change common settings such as screen brighiness, Wi-Fi, Bluetooth, Airplane mode, and others. Notifications Panel provides timely reminders for events, tasks, and alerts. Swipe up to close Quick Settings and Notifications Panel. Entering Information You enter text, numbers, and symbols using the virtual keyboard (or called on-screen keyboard). Some applications open the keyboard automatically. In others, the keyboard opens when you tap an input field. NOTE: lfthe virtual keyboard does not open, go to Settings > System > Languages & input > Physical keyboard and enable Use on-screen keyboard. Your device has two virtual keyboards (Gboard and GetaciME). e Gboard: This is the default Google" keyboard. e GetaciME: This is a virtual keyboard developed by Getac. (See “GetacIMEGetacIME” in Chapter 4 for detailed information on using the keyboard.)

Getting Connected This chapter tells you how you can get your device connected through a variety of ways. Wireless Connections

Using Wi-Fi Networks Turning On/Off the Wi-Fi Radio Open Quick Settings and tap the Wi-Fi icon. When the Wi-Fi radio is turned on, the icon F2 appears in the status bar. If your device finds a network that you connected to previously, it connects to it. Connecting to a Wi-Fi Network

1. Open Quick Settings. Tap and hold the Wi-Fi icon.

-or- Go to Settings> Network & internet > Internet.

2. Your device scans for available Wi-Fi networks and displays the names in

3. Onithe list of discovered networks, tap the one you want to connect to.

4. lfthe network is secured, you're prompted to enter a password or other

credentials. If the network is open, you are prompted to confirm that you want to connect to that network by tapping Connect. Using the Bluetooth Function NOTE: Getac does not guarantee the product's compatibilities with the Bluetooth headsets/devices from all manufacturers. Turning On/Off the Bluetooth Radio Open Quick Settings and tap the Bluetooth icon. Pairing with a Bluetooth Device The first time you use a new Bluetooth device with your device, you must “pair” them, so that they know how to connect securely to each other. After that, you can simply connect to a paired device.

1. Open Quick Settings. Tap and hold the Bluetooth icon.

-or- Go to Settings + Connected devices.

2. Tap Pair new device.

Your device scans for and displays the IDs of all available Bluetooth devices in range.

3. On the list of discovered devices, tap the ID of the device you want to

4. The devices pair with each other. If you’re prompted to enter a passcode,

try entering 0000 or 1234 (the most common passcodes), or consult the documentation that came with the device to learn its passcode. Ifthe pairing is successful, your device connects to the device. The icon appears in the status bar.

External Connections Connections via USB Type-C Your device has a USB Type-C connector. “USB Type-C” (or simply “USB-C”) is a physical USB connector format that features small size and free orientation. This connector supports: e USB 3.2 Gen 1 (data transfer rate up to 5 Gbps) You can connect your device to a computer with the USB cable, to transfer files between your device and the computer. Use the USB cable (available to you as an option) to connect the device to a USB connector on your computer. NOTE: With a proper adapter, you can still connect a USB peripheral that has a Type-A connector to this Type-C connector. However, Getac does not guarantee the compatibility with all USB peripherals via the adapter. + USB Power Delivery You should use the appropriate wattage/voltage USB-C power adapter for your model. USB-C power adapter specifications: 18 W (or above)

Using a MicroSD Card (Select Models Only) Inserting a microSD card Depending on the model you have, there is a card slot or card tray for the microSD card.

1. Remove the dummy cover

Noting the orientation, insert the microSD card into the slot.

2. Replace the dummy cover or the additional battery pack.

Remove a microSD card You can safely remove the microSD card from your device any time the device is shut down. If you need to remove the card while the device is on, unmount the card first to prevent corrupting or damaging the card.

1. To unmount, go to Settings > Storage and then tap the Eject icon next

to your microSD card.

2. Remove the dummy cover

Connecting an Audio Device The audio combo connector is the “4-pole TRRS 3.5mm” type so you can connect a compatible headset microphone. SAFETY WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

Getac Applications In addition to Android preinstalled apps from Google, several apps are added to your device by Getac. This chapter describes these Getac apps. NOTE: e For instructions on using the preinstalled apps from Google, check Google official website for online help. e You can use Update Center to update Getac apps to the latest version. Getac Camera Use the Getac Camera app to take photos and record videos. To open the app, use any of the below methods: e Tapthe Getac Camera app icon folder and the AIl Apps screen. ; which can be found the Getac e Quickly press the power button twice (if the “Quickly open camera” function is enabled). NOTE: The “Quickly open camera” function is enabled by default. If you want to disable the function, go to Settings > System > Gestures. GetaciME GetaciME (Input Method Editor) is an English keyboard that incorporates a “barcode scan” key (available for select models only). To switch to the GetaciME keyboard, tap ‘: at the bottom corner of the screen and select GetaciME.

Getac deployXpress Client (Select Models Only) Getac deployXpress is a cloud-based deployment solution for Getac Android devices. lt helps IT administrators better manage Getac devices in the enterprise or organization.

Getac Driving Safety Utility The Getac Driving Safety Utility app helps prevent distracted driving by putting your device into Lock mode once device movement is detected. In Lock mode, the device operation is restricted.

Managing Your Device This chapter tells you how to manage power and customize your device. Managing Power Your device comes with an internal battery pack (Battery 1) and supports an additional battery pack (Baïtery 2) which is hot-swappable. The operating time of a fully charged battery depends on how you are using the device. Some functions, such as using multimedia or operating a microSD card, may consume the battery power considerably. NOTE: The battery level may automatically lessen due to the self-discharge process, even when the battery is fully charged. Battery Protection Mechanism The battery has a self-protection mechanism which limits the maximum charge of the battery to an appropriate level in particular situations. The battery protection mode will be automatically activated once the battery is found to be in a situation that requires protection. You will receive a notification in the Notifications Panel and see the corresponding icon in the Status Bar. The protection mode will be suspended when the battery is not in the situation any more.

When charging for an extended period of time, battery protection mode has been activated, and the battery level will be maintained at 75% or higher. According to device temperature, battery protection mode has been activated, and the battery level will be maintained at an appropriate capacity. NOTE: This automatic battery protection is not equivalent to “Battery Charging Mode” in Getac Settings. When the battery is in an automatic protection mode as described above, the mode has priority over the Battery Charging Mode. When the battery is out of the automatic protection mode, the Battery Charging Mode takes effect. (See “Getac Settings” later in this chapter for information on Battery Charging Mode.) Low Battery Signals and Actions The battery status (charging or discharging) and level (as a percentage of fully charged) are displayed at the top of the screen. To check the battery information, go to Settings > Battery. You should save your data and recharge the battery immediately upon a warning of low power; otherwise your device will turn off automatically. You need to connect the device to external AC power for charging before you can use it again. CAUTION: When you recharge the battery upon a warning of low power, you should charge for at least 30 minutes. If you unplug the power adapter soon, you may not have sufficient battery power for your operation.

Replacing the Additional Battery Pack (Select Models Only) CAUTION: e There is danger of explosion if the battery is incorrectly replaced. Replace the battery only with the device manufacturer's battery packs. Discard used batteries according to the dealer's instructions. e Do not attempt to disassemble the battery pack. e _Abattery pack can get hot due to long working hours. Do not touch a hot battery pack with bare hands. After removing a battery pack, put it in a well-ventilated area. NOTE: e The appropriate temperature range for hot swapping the battery pack is between -21°C (-5.8 °F) and 45 °C (113 °F). e _lf you have the high-capacity battery model, the battery pack looks different from the one shown here. The removal/installation method is the same.

1. Make sure the battery pack to be installed is charged.

2. Slide the battery latch toward the right (@) and then upwards

@ release the battery pack.

3. Remove the battery pack from its compartment.

NOTE: During the period of the battery pack absence, the display brightness level will be fixed at a low level and cannot be adjusted.

4. Fit another battery pack into place. With the battery pack correctly

oriented, attach its connector side to the battery compartiment at an angle (@) and then press down the other side (@).

5. Slide the battery latch toward the locked position (É ).

CAUTION: Make sure the battery latch is correctly locked, not revealing the underneath red part.

Power-Saving Tips You can extend your battery's life between charges by turning off features that you don't need. You can also monitor how apps and system resources consume battery power. Enable Battery Saver. Set a shorter screen timeouit. Decrease the LCD brighiness to the lowest comfortable level. Lower the volume. Turn off the wireless radio if you are not using the wireless module. If you don't need it, turn off automatic syncing for all apps. Avoid power-consuming apps. To check which apps consume the most battery power, go to Settings > Battery. Battery Guidelines For optimal performance of the battery, take note of the following: During charging, do not disconnect the power adapter before the battery has been fully charged:; otherwise you will get a prematurely charged battery. There is no need to fully discharge the battery before charging. You can charge the battery before it is discharged. As a battery protection, store the device where the temperature is appropriate. Avoid high temperatures. If you will not use the product for a long period of time, be sure to fully charge the battery at least once every two weeks. Over discharge of the battery can affect the charging performance.

Customizing Your Device NOTE: e Make sure that you fully understand the function of a certain item before any adjustment. e Some setting items are available only for specific models or apps you have in your device. Settings The Settings app contains most of the tools for customizing and configuring the Android device. To open Settings, use any of the below methods: e Open Quick Settings and tap the Settings icon 3. e Open the All Apps screen and tap Settings. For information on standard Android settings, check Google official website for online help. Getac Settings Use Getac Settings to configure functions specific to your device. Tapthe re] Getac Settings appicon % , which can be found in the default Home screen, the Getac folder, and the All Apps screen.

Care and Maintenance This chapter provides various care and maintenance information. Restart or Hard Reboot Restart To restart the device, press and hold the power button until a menu pops up. Then tap Restart. If the device somehow cannot display the power off menu, you can force the device to power off by pressing and holding the power button for more than 8 seconds. Then start up the device by pressing and holding the power button for at least 3 seconds. Hard Reboot In case the device is completely unresponsive, you can perform a hard reboot to solve the problem. Use one of the following methods. e Press and hold the power button for at least 12 seconds until the Battery Charge indicator blinks red three times. Then release the power button. The device will power off. Start up the device by pressing and holding the power button for at least 3 seconds. e __lfthe above method does not work, press and hold the power button for at least 16 seconds. During this period, the Battery Charge indicator Will blink red three times and then the Power indicator will light up, meaning the device is starting up. NOTE: Hard reboot can be performed when the power is either on or off.

Update Center Use Update Center to check and update the OS (Operating System) and Getac apps. You can have the updates downloaded automatically or download them manually. Caring for Your Device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage to your device. e Keep your device away from excessive moisture and extreme temperatures. + Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time. e Do not place anything on top of your device or drop objects on your device. e Do not drop your device or subject it to severe shock. e Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your device. In the event of moisture condensation, allow your device to dry out completely before use. e To avoid damaging the screen, do not tap it with any sharp object. e Never clean your device with its power on. Use a soft, lint-free cloth to wipe the screen and the exterior of your device. e Do not use paper towels to clean the screen. e Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any attempt at repair could cause damage to your device and even bodily injury or property damage and will void the warranty. e Do notstore or carry flammable liquids, gases or explosive materials in the same compartment as your device, its parts or accessories.

Appendix A Specifications NOTE: Specifications are subject to change without any prior notice. Parts Spe: ns CPU Qualcomm® QCS 6490, Octa-core, 1.95 GHz, maximum 2.7GHz, 2MB cache Video |Controller | UMA, Qualcomm® AdrenoT“ GPU 643 Display 8-inch (16:10) TFT LCD, WUXGA 1920 x 1200, dimmer mode, Panel blackout mode, sunlight readable, 1000 nits standard brightness, protection film Touchscreen Capacitive multi-touch screen — 10 points Audio |Controller | Qualcomm® SoundWire Speaker 15W Microphone | Integrated x 2 Memory uMCP-LPDDR5 & UFS3.1, integrated with UFS, 8 GB, 3200MHz Storage 128 or 256 GB 1/0 ports USB 3.2 Gen 1 Type-C, combo audio jack (4-pole TRRS 3.5mm type), Docking, tri antenna passthrough (optional), microSD (optional) Wireless LAN + Wi-Fi 802.11 a/b/g/n/ac/ax + Bluetooth 5.2 Bluetooth WWAN (Not 4G LTE or 5G, nano-SIM and eSIM supported) GNSS Discrete Barcode scanner 1D and 2D (Not supported) RFID reader (Not HF RFID/NFC combo reader supported) Camera (optional) Front: CMOS, 8 MP Rear: CMOS, 16 MP, autofocus, flash light, video capture

Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your device. NOTE: Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please check the marking labels on your device and refer to the corresponding statements in this chapter. Some notices apply to specific models only. Safety Precautions + Prolonged listening of music in maximum volume can damage the ears. About Charging e Use only an appropriate charger for your device. Use of an incorrect type Will result in malfunction and/or danger. You can purchase the charger (or called power adapter) from Getac. e Use a specified cradle approved by the manufaciurer. About the Power Adapter e Do not use the adapter in a high moisture environment. Never touch the adapter when your hands or feet are wet. + _Allow adequate ventilation around the adapter when using it to operate the device or charge the battery. Do not cover the adapter with paper or other objects that will reduce cooling. Do not use the adapter while it is inside a carrying case.

e Connect the adapter to a proper power source. The voltage and grounding requirements are found on the product case and/or packaging. e Do not use the adapter if the cord becomes damaged. e Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. About the Battery Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Ifthe battery is mishandled, it may cause fire, smoke or an explosion and the battery's functionality will be seriously damaged. The safety instructions listed below must be followed. Danger e Do not charge/discharge or place the battery in high-temperature (more than 80 °C / 176 °F) locations, such as near a fire, heater, in a car in direct sunlighi, etc. e Do not use unauthorized chargers. e Do not force a reverse-charge or a reverse-connection. e Keepithe system and baïttery away from an extremely low air pressure environment as it may result in an explosion or the leakage of flammable liquid or gas. Warning e Keepithe battery away frominfants. e Stop using the battery if there are noticeable abnormalities such as abnormal smell, heat, deformities, or discoloration. e Stop charging if the charging process cannot be finished. e In case of a leaking battery, keep the battery away from flames and do not touch it.

Caution Do not use the battery where static electricity (more than 100V) exists that might damage the protection circuit of the battery. When children are using the system, parents or adults must ensure that they are using the system and battery correcily. Keep the battery away from flammable materials during charging and discharging. Heat Related Concerns Your device may become very warm during normal use. It complies with the user-accessible surface temperature limits defined by the International Standards for Safety. Still, sustained contact with warm surfaces for long periods of time may cause discomfort or injury. To reduce potential heat- related concerns, follow these guidelines: Keep your device and its power adapter in a well-ventilated area when in use or charging. Allow for adequate air circulation under and around the device. Use common sense to avoid situations where your skin is in contact with your device or its power adapter when it's operating or connected to a power source. For example, don't sleep with your device or its power adapter, or place it under a blanket or pillow, and avoid contact between your body and your device when the power adapter is connected to a power source. Take special care if you have a physical condition that affects your ability to detect heat against the body. If your device is used for long periodés, its surface can become very warm. While the temperature may not feel hot to the touch, if you maintain physical contact with the device for a long time, for example if you rest the device on your lap, your skin might suffer a low-heat injury. If your device is on your lap and gets uncomfortably warm, remove it from your lap and place it on a stable work surface. Never place your device or power adapter on furniture or any other surface that might be marred by exposure to heat since the base of your device and the surface of the power adapter may increase in temperature during normal use.

North America USA Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmiul interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: e Reorient or relocate the receiving antenna. e Increase the separation between the equipment and receiver. e Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Please note: The use of a non-shielded interface cable with this equipment is prohibited. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmiul interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Company name _|Getac Inc. { 15495 Sand Canyon Rd. Suite 350 Address line, CA 92618 USA +1-949-681-2900 Phone California Proposition 65 For California USA: Proposition 65, a California law, requires warnings to be provided to California consumers when they might be exposed to chemical(s) identified by Proposition 65 as causing cancer and birth defects or other reproductive harm. Almost all electronic products contain 1 or more of the chemicals listed under Proposition 65. This does not mean the products pose a significant risk of exposure. As the consumers have the right to know about the products they purchase, we are giving this warning on our packaging and user manual to keep our consumers well informed. ANwarninG This product can expose you to chemicals including lead, TBBPA or formaldehyde, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems

User Notification of Take-back Service To customers in United States and Canada: Getac believes in providing our customers with easy-to-use solutions to recycle your Getac-brand products for free. Getac understands the customers will likely be recycling multiple items at once and as such. Getac wants to make the recycling process for these larger shipments as streamlined as possible. Getac works with recycling vendors with the highest standards for protecting our environment, ensuring worker safety, and complying with global environmental laws. Our commitment to recycling our old equipment grows out of our work to protect the environment in many ways. For more information, see the Getac Web site at https://www.getac.com/us/environmental-certifications/. Please see the product type below for information on Getac product, battery and packaging recycling in USA and Canada. e For Product Recycling: If you have a Getac product that needs to go to a recycling house, Getac can help you. Just contact us at (866) 394 — 3822 or by email at GUSA.RecycleProgram@getac.com to obtain a prepaid shipping label at no charge to you, pack up your equipment in a box of your choice and send it off. e ForBattery Recycling: The batteries used to power your portable Getac products contain hazardous materials. While they pose no risk to you during normal use, they should never be disposed with other wastes. Getac provides a free take-back service for recycling your batteries from Getac products. To recycle the battery, please contact us at (866) 394 — 3822 or by email at GUSA.RecycleProgram@getac.com. e For Packaging Recycling: Getac has chosen the packaging materials used to transport our products carefully, to balance the requirements of shipping the product to you safely while minimizing the amount of material used. Our packaging for notebooks and tablets is recyclable and manufactured using elemental chlorine-free processes. They contain 90 percent (by weight) recycled content. Your packaging materials can be recycled at your local recycling center. Or, if you would like Getac to recycle your packaging, please contact us at (866) 394 — 3822 and we will make arrangements for you. If you have the above for recycling, please visit our website https://www.getac.com/us/environmental-certifications/

NEC: -19.13 dBuA/m@10m WWAN: 24 dBm The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

Lé © Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Proper recycling of your product will protect human health and the environment. Battery Directive — Information for Users In the European Union, this label indicates that the batteries in this product should be collected separately and not be disposed of with household waste. Substances in batteries can have a potential impact on health and environment and you have a role in recycling waste batteries thus contributing to the protection, preservation, and improvement of the quality of the environment.

Restriction of Hazardous Substances (RoHS) Directive EU RoHS Getac products meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information about RoHS, go to: hitps://www.getac.com/us/environment/ Company name | Getac Technology GmbH. Addi Kanzlerstrasse 4 40472 Dusseldorf, Germany Phone +49 (0) 211-984819-0 U K Company name | Getac UK Ltd. ra Getac House, Statford Park 12, ess Telford, Shropshire, TF3 3BJ, UK Phone +44 (0) 1952-207-222 RF Exposure Information (SAR) This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits are 1.6 Watts per kilogram (over a volume containing a mass of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/kg (averaged over 10 grams of tissue) in countries that follow the Council of the European Union limit. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

ENERGY STAR ENERGY STARS is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations. Please reference ENERGY STARS related information from hitp;//www.energystar.gov. As an ENERGY STARS Partner, Getac Technology Corporation has determined that this product meets the ENERGY STARS guidelines for energy efficiency. All Getac products with ENERGY STARS logo comply with the ENERGY STAR® standard, and the power management feature is enabled by default. Getac's ENERGY STARS qualified products are listed on the EPA website. https://www.energystar.gov/products
