USER MANUAL XXX ROBOROCK

Read this user manual with diagrams carefully before using this product and store it properly for future reference.

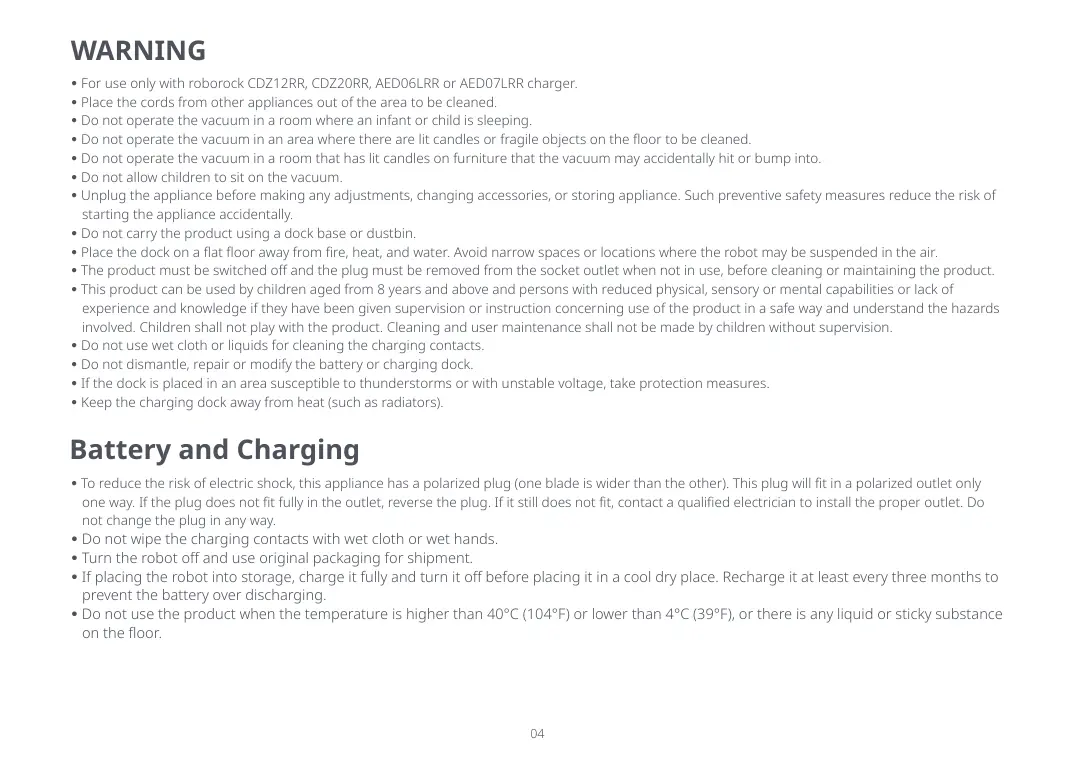

Battery and Charging

+ For use only with roborock CDZ12RR, CDZ20RR, AEDOGLRR or AEDO7LRR charger.

+ Place the cords from other appliances out of the area to be cleaned

+ Do not operate the vacuum in à room where an infant or child is sleepingl

+ Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned

+ Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.

+ Do not allow children to sit on the vacuum

+ Unplug the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

+ Do not carry the product using a dock base or dustbin.

+ Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air.

+ The product must be switched off and the plug must be removed from the socket outlet when not in use, before cleaning or maintaining the product

+ This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision

+ Do not use wet clath or liquid for cleaning the charging contacts.

+ Do not dismantle, repair or modify the battery or charging dock.

+ Ifthe dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures.

+ Keep the charging dock away from heat (such as radiators)

Battery and Charging

+ To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will ft in a palarized outlet only one way. fthe plug does nat ft fully in the outlet, reverse the plug. fit still does not fit, contact a qualiied electrician to install the proper outlet. Do not change the plug in any way.

+ Do not wipe the charging contacts with wet cloth or wet hands.

+ Turn the robot off and use original packaging for shipment.

+ If placing the robot into storage, charge it fully and turn it off before placing it in a cool dry place. Recharge it at least every three months to prevent the battery over discharging

+ Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor.

Compliance Information

Robatic Vacuum Cleaner with Charging Dock

Robotic Vacuum Cleaner Model: Q8OULL Dock Charger Model: CDZ12RR or CDZ20RR Auto-Empty Dock Model: AEDOGLRR, AEDO7LRR Compliance Statement

This device complies with Part 15 ofthe FCC Rules Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s)

Operation is subject to the following two conditions:

{1) This device may not cause interference

(2) This device must accept any interference, including interference that may cause undesired operation of the device

Correspondence of the responsible party in USA Company Robarack Technology Co. Address ROOM 1227, 12TH FLOOR, 1000 N. WEST STREET, WILMINGTON, DE 19801 Email support@robarack.com

International Symbols Explanation

— - ALTERNATING CURRENT symbol

[symbol IEC 60417-5032 (2009-02)]

= - DIRECT CURRENT symbol [symbol IEC 60417-5031 (2009-02)]

@ Product Overview @ Robot (Top View)

() —Power/Clean + Press and hold to turn the robot on or off + Press to start cleaning Power Indicator + White: Battery level > 20% + Red: Battery level < 20% + Pulsing: Charging or starting up + Flashing red: Error

WiFi Indicator Light

+ Flashing blue slowiy: Waiting for connection

+ Flashing blue quickly: Connecting

+ Steady blue for five seconds: WiFi connected

B5 —spot clean/child Lock + Press to Spor clean + Press and hold for 3 seconds to turn onoff the child lock

+ Press to return to dock Note:Pres any buton to top the robot during cleaning or docking

A1-1—Vertical Bumper

@ Robot (Bottom View) A2-1—Cliff Sensors A2-2—Omnidirectional Wheel A2-3—Charging Contacts A2-4—Side Brush

Dustbin and Water Tank Combo Unit

A7-2—Hook and Loop Pads

Dustbin (Disposable Dust Bag Pre-Installed)

@ Disposable Dust Bag

A11-1—Air Duct Cover Screws (10) A11-2—Air Duct Cover A11-3—Screwdriver

+ Light off: Charging Robot/Not

A12-5—Dock Location Beacon A12-6—Charging Contacts A12-7—Suction Inlet A12-8—Electrode Brushes

5 Auto-Empty Dock (Cover Removed)

© Important Information

B1-1—Tidy cables and loose items from the ground and move any unstable, fragile, precious, or dangerous items to prevent personal injury or property damage due to items becoming tangled in, struck by, or knocked over by the robot.

B1-2— When using the robot in a raised area, always use a secure physical barrier to prevent accidental falls that may result in personal injury or property damage.

Nate: en using he robo for the frs me follow

throughout rs wole claning route and watch for potential

problems, The robot ail be able to clean by itself in future

@ Position the charging dock

82-1— Take the screwdriver from its storage bin atthe bottom ofthe base

82-2—Place dock upside down on a soft, flat surface (carpet/towel/ cloth) and attach the base by using the six screws provided

Note: Hod the dustbin cour secure hen upside don to

prevent damage rom ain

82-3— Connect the power cable to the dock, and keep the excess cable inside the storage slot.

B2-4— Place the dock on a hard and flat floor (wood/tile/concrete etc.) flat against a wall. Keep at least 0.3 m (1)

of clearance an either side and 1 m (3 ft) both in front and above, Make sure the location has good WiFi for a better experience with the mobile app, and then plug it in.

B2-4-1—more than 0.3 m (1ft) B2-4-2—more than 1 m (3ft)

The status indicatoright turn of automaticaly when the robe is charging,

The status indicatorturns red fan error accurs.

* Do not use without a dutbin cover or dust bag,

«Place the dock on a Mat floor away from fre, heat, and water. Avoid narraw spaces ar locations ere the robot. may be suspended in the ar.

« Placing the dock on a soft surface (carpet/mat) may cause the dock ta tit over and cause problems docking and deparing

+ Keep excess pouer cable inside the starage slt so that the robot val not get tangled in the cables, and the dock wi not be dragged away or disconnect from the pawer supp.

+ Keep the dock anaÿ from direct surlight or anything that may block the dock location beacon; atherwse, he robot may fai ro return to the dock

The Auto-Empty Dock recharges and empies. Store the standard robot dack before use. Falure Lo do 50 may cause issues returning to dock.

« Maintain the dock according to the mainrenance instructions, Do not clean the dack mi a et dth.

@ Power on and charge the robot Press and hold the © button to power on the robot. When the power light goes an, place the robot on the dock to charge. Make sure the charging dock power indicator turns off and a “charging" voice alert sounds. To maintain the performance of the high- performance lithium-ion rechargeable battery pack, keep the robot charged.

Note: The robot may not tum on men the battery lave In this case, place the robot directy anta the dock 10 charge.

Note: To prevent excesave dir buldup during frsttime

use, lors should be vocuumed ar as three ümes before

B4-1—Remove the dustbin and water tank combo unit

Open the upper cover and take out the unit.

B4-2—Fill the water tank

Remove the water tank stopper, fill the tank

with water, and close it tightly.

+ To prevent corrosion or damage, only use the Roborack randed floor cleaner in the iater tank.

+ Donatuse hat er as this may au {he tank to defoem.

When fling the water tank Et tank 20° to avoid netting the it.

B4-3—Reinstall the dustbin and water tank combo unit

Reinstall the unit. It will click in place.

84-4—install the mop cloth mount

Wet the mop cloth and wring it until it stops

dripping, then slide it along the mop cloth

Slot before sticking it firmly in place

Note: Only use the of Roorock mop ch

B4-5—install the mop cloth mount

Slide the mount forwards along the bottom

of robot until it clicks in place.

Note: Clean the map coin after 60 minutes of mapping ta

maintain water fau and cleaning qua.

B4-6—Remove the mop cloth mount

When the robot returns to the dock after

cleaning, press the latches on both sides,

and slide the mop cloth mount backwards

+ Wiash the mop dloth afer exc vater tank of unused water. Remo the map cioth mount when nat mopping

Connect to the App This robot supports both Roborock and Mi Home apps. Choose the ane that best meets your needs.

Option 1: Search for “Roborock" in the App Store or Google Play or scan the QR code to download and install the app

se, and regular empty the

Option 2: Search for “Mi Home’ in the App Store ar Google Play or scan the QR code to download and install the app.

Press and hold the Q and O buttons until you hear the "Resetting WiFi voice alert. The reset is complete when the WiFi

indicator light flashes blue slowly. The robot will then wait for a connection.

Note: You cannot connect ta the robot due to you conguration, a forgotten password, or any aüher reason, reset he WiFi and add your robot as à new device.

Open the Raborock App, tap the “Search for device” button, or open Mi Home app, tap “+ in the top right corner and add the device as instructed in the app.

cess may vary due to angaing app updates Follow the instructions provided in the app.

+ Oniy 2.4 GHz WF supported

+ Ifühe robot vaits more Ehan 30 minutes for a connection,

i il be automatcaly disabled. 1 you want t reconnect, reset the WF before proceeding

Press and hold the O button to turn on the robot. The power indicator wil turn on and the robot will enter standby mode. Press and hold the O button ta turn off the robot and complete the cleaning cycle.

Note: The robt cannot be turned ohne charge

Press the © button to start cleaning. The robot will plan its cleaning route according to its scan of the room. It splits a room into zones, first draws out zone edges, and then fils the zone in a zigzag pattern. In so doing, the robot cleans all zones one by one, efficientiy cleaning the house.

Zone 1-Cleaned Zone 2- Cleaned

Zone 4- NextZone | Zone 3 In Progress Notes:

To allow the robot to automatically vacuum and return to

+ Cleaning cannot star the battery level 100 lou Allow the robo to charge before starting the cleanup.

cleaned mice. attery runs low during the cleaning cycle, the robot

1y return to the dock After charging, the me where ef ot

vil automat robot ail

Press the C button to start spot cleaning Cleaning range: The robot cleans a

15m (5 fx 1.5 m (5 ft) square area centered on itself.

Nate: ter spat cleaning, the r Lo the starting point and enter

ot vil autamatical return ndby mode.

When the robot is running, press any button to pause it, press the O button to resume cleaning, and press the Ô button to send it back to the dock.

Note: Placing a paused robot on ne dock manual} wil end the current cleanup.

Ifthe robot is paused for over 10 minutes, it will go to sleep, and the power indicator will flash every few seconds. Press any button to wake the robot up.

2 The robot wi not go to sleep wen ts charging

2 The robo will automaricall Shut dou ler in sleep mode for more than 12 hours,

The default Do Not Disturb (DND) period is from 22:00 to 08:00. You can use the app to disable the DND mode or modify the DND period. When DND mode is activated, the robot will not automatically resume cleanup, the power indicator light will dim, and the volume of the voice prompts will lower.

Press and hold the C2 button to enable/ disable the child lock. You can also set it in the app. Once enabled, the robot will not react to button presses when it is stationary. When the robot is cleaning or docking, press any button to stop it. Charging

After cleaning, the robot will automatically return to the dock to charge.

In Pause mode, press the Ô button to send the robot back to the dock. The power indicator will pulse as the robot charges. Nate: the robot als to ind te doc val automatic}

return to ts starting location. Place the robot on the dock manual ta recharge.

Ifan error oceurs, the power indicator light on the robot will flash red or status indicator light on the dock will be steady red. À pop-up notification will receive in the app and a voice alert may sound

Ifthe robot does not respand when a button is pressed or cannot be turned off, reset the system. Press the Reset button, and the robot will reset automatically

Note: After reseing the system, scheduled cleaning, WF, etc. vil be restored to facrory settings.

Restore Factory Settings

Ifthe robot does not function properiy after a system reset, switch it on. Press and hold the button and at the same time, press the Reset button until you hear the “Restoring factory settings” voice prompt. The robot will then be restored to factory settings

@ Routine Maintenance Main Brushes

+ Clean every 2 weeks and replace every 6-12 months.

C1-1—Main Brush C1-2—Main Brush Cover C1-3—Latches

C1-5—Main Brush Caps

C1-6— Turn over the robot and press the latches to remove the main brush cover.

C1-7—Remove the main brush and pull out the main brush bearing,

C1-8—Pull out the main brush caps

C1-9— After removing the tangled hair or dirt at both ends ofthe main brush, reinstall it, press on the main brush cover to lack it in place

+ Main brush should be viped down with awvet dloth and left to dry away from direct sunligh.

+ Do notuse corrosive cleaning fluides or disinfectants to lean the main brush.

+ Clean monthiy and replace every 3-6 months.

1. Unscrew the side brush screw.

2. Remove and clean the side brush. Reinstall the brush and tighten the screw.

Omnidirectional Wheel

+ Clean as required.

C3-1— Use a tool, such as a small screwdriver, to pry out the axle and take out the wheel.

Note: The omneireciona wheel bracket cannot be removed

C3-2—Rinse the wheel and the axle with water to remove any hair and dirt. Dry and reattach the wheel, pressing it firmly in place.

+ Clean month. Clean the main wheels with a soft, dry cloth.

© Dustbin and Water Tank Combo Unit

iean eeky and replace the filer every 6:12 months

C5-1—Remove the fiter then emptythe dustbin.

C5-2—Empty the water tank of unused water.

CS-3—Fill the dustbin with clean water and gentiy shake it. Then pour out the dirty water.

Note: To prevent blockage, on use clean water without any cleaning liquid

C5-4—Rinse the filter repeatedly and tap it to remove as much dirt as possible pe

Note: Do not or hard object

e ofthe fer th your hand, xential damage.

CS-5—Allow 24 hours for the filter to dry. thoroughiy and reinstall it. Note: Purchase an addionallter and aternate f necescan

iean after each use and replace every 3.6 months

Remove the mop cloth from mop cloth

mount. Clean the mop cloth and air-dry it.

Note: À diy map wi affecte mopping performance. Clean

Use a soft, dry cloth to wipe and clean all

Dust Bag Replacement

+ Replace as required

C8-1—Remove the dustbin cover vertically as shown.

C8-2—Lift the dust bag out of the dustbin and discard it.

Note: Te dust bag handle ses ne bag on removal to

prevent dust lealage.

C8-3—Clean the filter with a dry cloth. C8-4—Install a new dust bag in place along the slot and put the dustbin cover back. Air Duct + Glean as required. C9-1—Unscrew the screws (10) and remove the cover. C9-2—Wipe the air duct and cover with a dry cloth. C9-3—Reinstall the cover and screw it back in place.

® Charging Contact Areas + Clean as required.

Use a soft dry clath to wipe the charging contacts on the robot. Clean the dock location beacon, charging contacts, and electrode brushes on the dock.

The robot is equipped with a butin high- performance lithium-ion rechargeable battery pack. To maintain battery performance, keep the robot charged during normal use.

Note: te robot vil be left unused far along period turn it

of and charge at least every three months Lo avoid battery damage caused by ouer-discharge!

AEDOGLRR, AEDO7LRR Model

Rated Input (Charge)

+ The battery level is low. Put the robot on the charging dock and charge it before use.

+ The battery temperature is too low or too high. Only use the robot within the range of 4-40°C (39-104°F)

+ Check the power indicator light turns on and that both ends ofthe power cable are properiy connected

+ If contact is poor, clean the contact areas on the charging dock and the robot

+ When used at high or low temperatures, the robot will automatically reduce its charging speed to extend battery life:

+ The charging contacts may be dirty Wipe them with à dry cloth

+ There are too many obstacles near the charging dock. Move it to an open area.

+ The robot is toa far from the charging dock. Place it closer and retry.

+ Restart the rabot.

Noise during cleaning

+ The main brush, side brush, main wheels, ar omnidirectional wheel may be jammed Turn off the robat and clean them

Unable to connect to WIFI

+ WiFiis disabled. Reset the WiFi and try again.

+ The WiFi signal is poar. Move the robot to an area with gaod WiFi reception.

+ Abnormal WiFi connection. Reset the WiFi, download the latest mobile app, and retry.

+ The current Roborock robot is not supported. You can find supported models in the app

+ Unable to connect to WiFi abruptiy. There may be an error with your router settings. Contact Roborack customer service for additional support

Poor cleaning ability or dust falling out

+ The dustbin is full and needs emptying. + The filter is blocked and needs cleaning. + The main brush is jammed and needs cleaning.

Scheduled cleaning is not working

+ Keep the robot charged. Scheduled cleaning can only begin when the battery level is above 20%,

Is power always being drawn when the robo is on the charging dock?

+ The robot will draw power while it is dockedl to maintain battery performance, but power consumption is minimal.

Does the rabot need to be charged far at least 16 haurs the fist three times it is Used?

+ No, the robot can be used any time after it has been füly charged

No or little water during mopping

+ Check whether there is water in the water tank and use the mobile app to set the scrub intensity or check the manual for full instructions on how to correctly instal the mop cloth and mop cloth mount.

No or little water during washing,

+ Check whether there is water in the water tank and check the manual for instructions an how to correct install the dustbin and water tank combo unit, op cioth mount and mop cloth.

he robot cannot return to the charging dock after spot cleaning or when it has been moved manually

+ After spot cleaning or a significant position change, the robot will re-generate the map. Ifthe charging dock is too far away, it may not be able to return 10 recharge and must be placed an the charging dock manually.

The robat has begun to miss certain spots

+ The wall sensor or clff sensars may be dirty. Wipe them with a soft dry cloth

ILtakes 2 long time to fil the water tank

+ The filter may be blocked and need cleaning.

Red LED indicator on the Auto-Empty Dock

+ The dustbin cover is not in place. Check and correct installation.

+ The fan is not operating properly. Potentially due 0 overheating protection resulting from frequent Starting and stopping. Unplug the power cable andtry again after 30 minutes.

+ Voltage error. Check that local voltage meets the requirements listed on the dock.

Reduced emptying performance or unusual noise when emprying

+ The main brush or main brush cover is not properiy installed. Check and correct installation

+ The fier, air dut, suction inlet, air inlet, or dustbin is blocked. Clean to remove blockages.

Auto-emptying does not start when the robot returns ta the dock

+ Auto-emptying is disabled. Check in-app settings.

+ Dustbin cover is not in place. Check and install

+ Auto-emptying will not be triggered ifthe robot is moved to the dock manually. Start emptying manually

+ Auto-emptying will not be triggered ifthe robot returns to the dock without cleaning,

+ The robot will not auto-empty after returning to the dock in Do Not Disturb (DND) mode. Adjust cleaning or DND duration, or start emptying manually

+ The battery level is lower than 10%. Charge the robot until the battery reaches 10%.

Société Roborock Technology Co. Adresse ROOM 1227, 12TH FLOOR, 1000 N. WEST STREET, WILMINGTON, DE 19801 Email suppart@roborock com

Roborock Technology Co.

ROOM 1227, 12TH FLOOR, 1000 N. WEST STREET, WILMINGTON, DE 19801

Robotic Vacuum Cleaner

Product Mode: QBOULL Manufacturer: Being Roborock Technology Co, Ltd Address of ManufacturerRoom 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Bejing, PR. China

For more product information, vis our website: www robarock com For aftr-sales suppor, contact our support team at. Supporc@robarack com (United States/Canada/Nan-Europe) 1-855-960.4321 (United States only)

1:832.421-1915 (Canada on)
