USER MANUAL HSA 30.0, 40.0 STIHL

£202 OH ‘09 8 OV HLLS SVAHANY ©

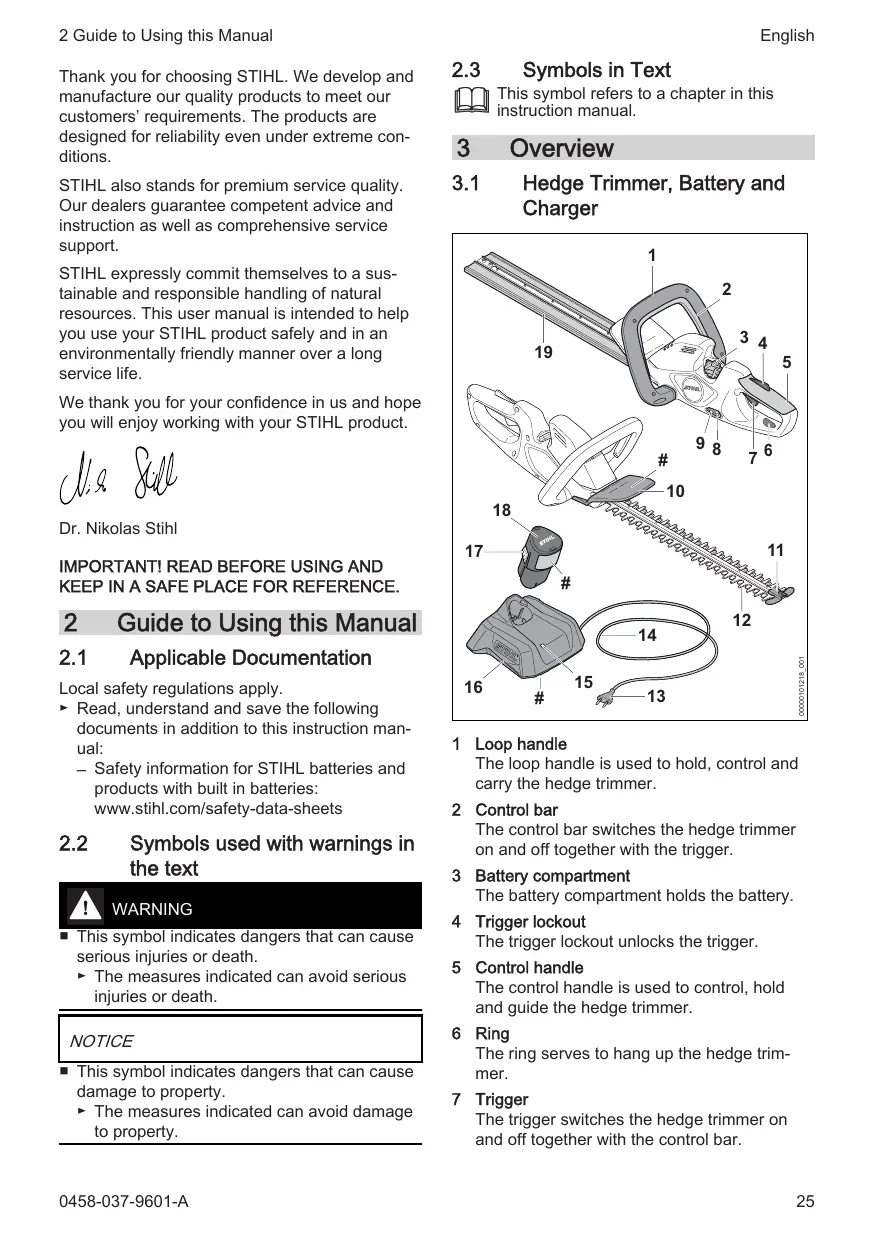

Introduction. Guide to Using this Manual. Overview. Safety Precaution: Preparing Hedge Trimmer for Operation. Charging the Battery, LEDs... . Removing and Fitting the Battery. Switching the Hedge Trimmer On/ Testing the Hedge Trimmer and Battery. Operating the Hedge Trimmer.. After Finishing Work.

Spare Parts and Accessories. Disposal.. EC Declaration of Conformity. UKCA Declaration of Conformity. General Power Tool Safety Warnings.……. 42

2 Guide to Using this Manual

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers’ requirements. The products are designed for reliability even under extreme con- ditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressiy commit themselves to a sus- tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmental friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documentation

Local safety regulations apply.

Read, understand and save the following

documents in addition to this instruction man-

— Safety information for STIHL batteries and products with built in batteries: www.stihl.com/safety-data-sheets

2.2 Symbols used with warnings in the text

WARNING This symbol indicates dangers that can cause

serious injuries or death.

+ The measures indicated can avoid serious injuries or death.

= This symbol indicates dangers {hat can cause damage to property. > The measures indicated can avoid damage to property.

0458-037-9601-A English

[A ris symbol refers 10 a chapter in this instruction manual.

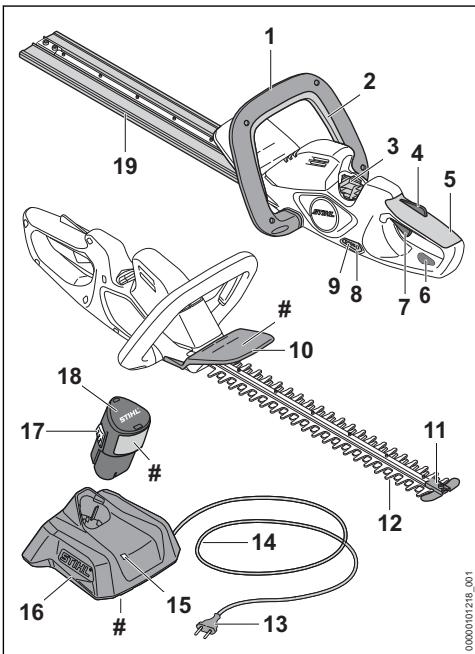

3.1 Hedge Trimmer, Battery and Charger

4 Loop handle The loop handle is used to hold, control and carry the hedge trimmer.

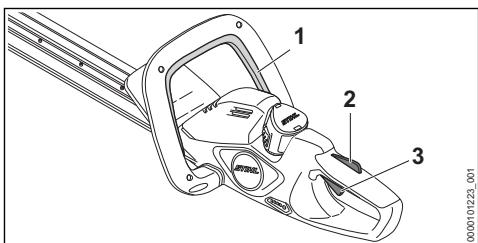

2 Control bar The control bar switches the hedge trimmer on and off together with the trigger.

3 Battery compartment The battery compartment holds the battery.

4 Trigger lockout The trigger lockout unlocks the trigger.

5 Control handle The control handle is used to control, hold and guide the hedge trimmer.

6 Ring The ring serves to hang up the hedge trim- mer.

7 Trigger The trigger switches the hedge trimmer on and off together with the control bar.

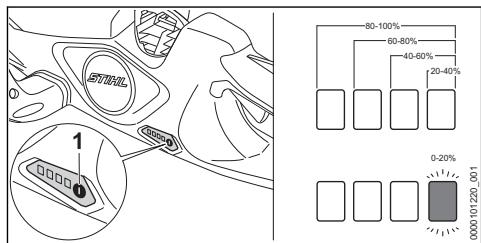

8 Pushbutton The pushbutton activates the LEDs on the hedge trimmer. 9 LEDs The LEDs indicate the state of charge of the battery and any faults. 10 Hand guard The hand guard protects the hand on the loop handle from contact with the cutting blades. 41 Tip guard The tip guard protects the tip of the cutting blades from contact with foreign objects. 12 Cutting blades The cutting blades cut the material to be trim- med. 43 Mains plug The mains plug connects the connecting cable to a wall socket. 44 Connecting cable The connecting cable connects the charger to the mains plug. 15 LED The LED indicates the status of the charger. 16 Charger The charger charges the battery. 17 Locking hook Holds the battery in the battery compartment. 18 Battery The battery supplies power to the hedge trim- mer. 19 Blade scabbard The blade scabbard protects against contact with the cutting blades.

#_ Rating plate with the machine number 3.2 Symbols

Meanings of symbols that may be on the hedge trimmer, battery and charger:

The LED lights up steady or flashes (=) green. The battery is charging

The LED flashes red. There is no elec- trical contact between the battery and the charger or there is a fault in the battery or in the charger.

Guaranteed sound power level in

Lwa accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.

4 Safety Precautions

The information next to the symbol indi- cates the energy content of the battery according to the cell manufacturer's specifi- cation. The energy content available in operation is lower.

Operate the electric product in a dry place, indoors only.

Do not dispose of the product with domes- tic waste.

Read and understand the user manual and keep it in a safe place for reference.

4 Safety Precautions 4.1 Warning symbols

Meanings of warning signs and labels on the hedge trimmer, battery or charger:

Observe safety warnings and take the necessary precautions.

Read and understand the User Manual and keep it in a safe place.

Wear protective glasses.

Do not touch moving cutting blades.

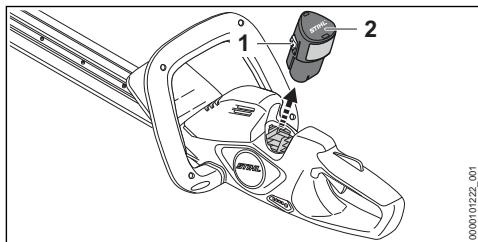

Remove the battery during work inter- ruptions, transport, storage, mainte- nance or repair.

CHA EI LA Protect hedge trimmer and charger from rain and dampness

Protect battery against heat and fire.

Protect the battery from rain and mois- ture and do not immerse it in liquids.

The STIHL HSA 30.0 or HSA 40.0 hedge trim- mer is designed for cutting hedges, shrubs, bushes and undergrowth.

The hedge trimmer must not be used in the rain. The STIHL AS battery supplies power to the hedge trimmer.

4 Safety Precautions

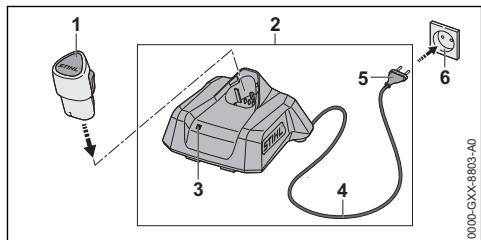

The STIHL AL 1 charger recharges the STIHL AS battery.

À WARNING Batteries and chargers not explicitly approved

for the hedge trimmer by STIHL may cause a

fire or explosion. Persons may be seriously or

fatally injured, and property may be damaged.

> Use the hedge trimmer with a STIHL AS battery.

> Recharge the STIHL AS bat- tery with a STIHL AL 1

charger. Using the hedge trimmer, battery or the charger for purposes for which they were not intended may result in serious or fatal injuries, and damage to property may occur. > Use the hedge trimmer, battery and the charger as described in this user manual.

4.3 The Operator À WARNING

= Users without adequate training or instruction cannot recognize or assess the risks involved in using the hedge trimmer, battery and charger. The user or other persons may sus- tain serious or fatal injuries.

+ Read, understand and save the instruction manual

+ If you pass the hedge trimmer, battery and charger on to another person: Always give them the instruction manual.

+ Make sure the user meets the following requirements:

— The user must be rested.

— The user must be in good physical condition and mental health to operate and work with the hedge trimmer, battery and charger. If the user's phys- ical, sensory or mental ability is restricted, he or she may work only under the supervision of or as

0458-037-9601-A English

instructed by a responsible

— The user is able to recognize and assess the risks involved in using the hedge trimmer, battery and charger.

—The user must be of legal age or is being trained in a trade under supervision in accordance with national rules and regulations.

— The user has received instruction from a STIHL servicing dealer or other experienced user before working with the hedge

trimmer for the first time. — The user must not be under the influ- ence of alcohol, medication or drugs. > If you have any queries: Contact a STIHL servicing dealer for assistance.

44 Clothing and equipment À WARNING

= Long hair may be pulled into the hedge trim-

mer while working. This may result in serious

+ Tie up and confine long hair above your shoulders.

Objects can be thrown at high speed during

operation. This may result in injury to the user.

> Wear close-fiting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commer- cially with the corresponding mark- ing.

> Wear a long-sleeved, close-fitting top and long trousers.

Dust can be whipped up during operation

Whipped up dust can damage the respiratory

passages and cause allergic reactions.

+ If dust is generated: Wear a dust respirator mask.

Unsuitable clothing can snag on wood or

scrub and may become caught in the hedge

timmer. Users not wearing suitable clothing

are at risk of serious injury.

> Wear close-fitting clothing.

+ Remove scarves and jewelry.

= The user may come into contact with the mov-

ing cutting blades while working. This may

result in serious injury to the user.

> Wear robust footwear.

+ Wear long trousers made from resistant material.

The user may come into contact with the cut-

ting blades during cleaning or servicing. This

may result in injury to the user.

+ Wear work gloves made from resistant material.

Wearing unsuitable footwear may cause the

user to slip. This may result in injury to the

> Wear sturdy, closed-toed footwear with high-grip soles.

4.5 4.5.1 Hedge Trimmer

= Bystanders, children and animals cannot rec-

ognize or assess the dangers of the hedge

timmer or flying debris. Innocent bystanders,

children and animals may be seriously injured

and damage to property may occur.

+ Keep bystanders, children and animals away from the work area.

+ Do not leave the hedge trimmer unatten- ded.

+ Make sure that children cannot play with the hedge trimmer.

The hedge trimmer is not waterproof. Working

in the rain or a damp location may result in an

electric shock. This can result in injuries to the

user and may damage the hedge trimmer.

© + Do not work in the rain or a damp

location. Electrical components of the hedge timmer can produce sparks. Sparks may cause a fire or an explosion in an easily combustible or explosive environment. This can result in seri- ous or fatal injuries and damage to property. > Do not work in an easily combustible or explosive environment.

= Bystanders, children and animals cannot rec- ognize or assess the dangers of the battery.

Work Area and Surroundings

Bystanders, children and animals may be seri-

4 Safety Precautions

> Keep bystanders, children and animals away from the work area. > Do not leave the battery unattended. + Make sure that children cannot play with the battery. The battery is not protected against all ambi- ent conditions. If the battery is exposed to cer- tain ambient conditions, the battery may catch fire, explode or be irreparably damaged. This may result in serious injury to people and damage to property. + Protect battery from heat and fire. > Do not throw the battery into a fire.

+ Do not charge, use and store the battery outside of the specified temperature limits, 1186.

+ Protect the battery from rain and

moisture and do not immerse it in lig- uids.

Keep battery away from small metal parts. Do not expose the battery to high pressure. Do not expose the battery to microwaves. Protect the battery from chemicals and salts.

A WARNING Bystanders and children are not aware of and

cannot assess the dangers of a charger or

electric current. Bystanders, children and ani-

mals may be seriousiy or fatally injured.

> Keep bystanders, children and animals away from the work area.

> Make sure that children can- not play with the charger.

The charger is not waterproof. If you work in the rain or in a damp environment, an electric shock may occur. The user may be injured and the charger may be damaged.

© > Do not operate it in the rain or in a

damp environment. The charger is not protected against all ambi- ent conditions. If the charger is exposed to certain ambient conditions, it may catch fire or explode. This may result in serious injury to people and damage to property. > Operate the charger in an enclosed, dry room.

4 Safety Precautions

> Do not operate the charger in a flammable environment or in an explosive environ- ment.

> Do not operate the charger on a readily combustible surface.

> Do not use and store the charger outside of the specified temperature limits, LA 18.6.

= The connecting cable is a trip hazard. People

may be injured and the charger may be dam-

> Lay the connecting cable flat on the floor.

The hedge trimmer is in a safe condition if the

following conditions are fulfilled:

— The hedge trimmer is undamaged.

— Hedge trimmer is clean and dry.

— The controls function properly and have not been modified.

— The cutting blades are correctly fitted.

— Only an original STIHL accessory for this hedge trimmer has been fitted.

— The accessories are correctly attached.

= lnot in safe condition, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people. + Never use a damaged hedge trimmer. + Ifthe hedge trimmer is dirty or wet: Clean the hedge trimmer and allow it to dry. Do not modify the hedge trimmer. + Ifthe controls do not work: Do not operate the hedge trimmer. Oniy fit original STIHL accessories for this hedge trimmer. + Attach accessories as described in this User Manual or in the User Manual for the accessories. Do not insert objects into the openings in the hedge trimmer. Replace worn or damaged labels. If you have any doubts, be sure to consult a STIHL dealer.

4.6.2 Cutting Blades

The cutting blades are in a safe condition if the following points are observed:

— Cutting blades are undamaged.

— Cutting blades are not deformed.

— Cutting blades move freely.

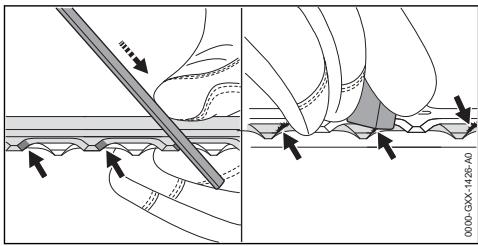

— Cutting blades are properly sharpened.

— Cutting blades have no burrs.

= Ifthey are in an unsafe condition, parts of the

cutting blades may come off and be thrown at

high speed. This can result in serious injuries.

> Work only with undamaged cutting blades.

+ Make sure the cutting blades are properly sharpened and deburred.

+ If you have any queries: Contact your STIHL servicing dealer.

The battery is in a safe condition if the following

points are observed:

— Battery is undamaged.

— The battery is clean and dry.

— Battery functions properly and has not been modified.

= A battery that is not in a safe condition cannot operate safely. Persons may be seriously injured.

+ Never work with a damaged battery.

+ Never attempt to charge a damaged or

+ Ifthe battery is dirty: Clean the battery. Ifthe battery is wet or damp: Allow the bat- tery to dry, LA 18.7.

+ Never attempt to modify the battery.

Never insert objects in the battery's open-

Never bridge the battery's contacts with

metallic objects (short circuit).

> Do not open the battery.

+ Replace worn or damaged labels.

Fluid may leak from a damaged battery. If that

liquid comes into contact with the skin or eyes,

the skin or eyes may be irritated.

> Avoid contact with the liquid.

+ If skin contact occurs: Wash affected areas of skin with plenty of water and soap.

+ In the event of contact with eyes: Rinse eyes with plenty of water for at least

15 minutes and consult a doctor. = A damaged or defective battery may smell

unusual, emit smoke or burn. Persons may be

seriously or fatally injured, and property may be damaged.

> Ifthe battery smells unusual or emits

smoke: do not use the battery and keep it away from combustible substances.

+ lfthe battery catches fire: Attempt to extin-

guish the battery with a fire extinguisher or water.

The charger is in a safe condition if the following points are observed:

— Charger is undamaged.

— Charger is clean and dry.

= lf components do not comply with safety requirements, they will no longer function properlÿ and safety devices may be rendered inoperative. This can result in serious or fatal injuries.

Do not use a damaged charger.

Ifthe charger is dirty or wet: Clean the

charger and allow it to dry.

Never attempt to modify the charger.

Never insert objects in the charger's open-

Never bridge the charger's contacts with

metallic objects (short circuit).

Do not open the charger.

47 Operation À WARNING

= The user cannot concentrate on the work in certain situations. The user may stumble, fall and be seriously injured.

Work calmly and carefully.

If light and visibility are poor: Do not use

Operate the hedge trimmer alone.

Watch out for obstacles.

Stand on the ground while working and

keep a good balance. If it is necessary to

work at heights: Use a lift bucket or a safe

If you begin to feel tired: Take a break.

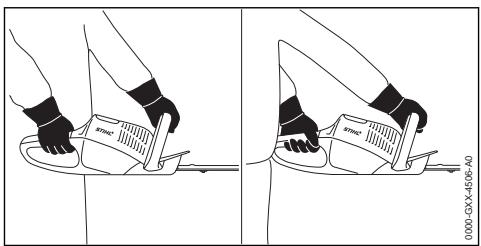

Working above shoulder height can cause you

to tire quickly. This can result in serious inju-

+ Work above shoulder height for short peri- ods only.

+ Take regular breaks.

If the moving cutting blades make contact with

à hard object they can be brought to a sudden

stop. The reactive forces that occur can cause

the user to lose control of the hedge trimmer

and be seriously injured.

+ Hold the hedge trimmer firmlÿ with both hands.

+ Before starting work, check hedge for hard objects and remove any such objects.

= The moving cutting blades can cut the user. This can result in serious injuries.

4) > Ifthe cutting blades are blocked by an object: Switch off the hedge trim- mer and remove the battery. Then remove the object causing the block- age.

If the behavior of the hedge trimmer changes

during operation or feels unusual, it may no

longer be in a safe condition. This can result in serious injuries and damage to property.

> Stop work, remove the battery and contact your STIHL servicing dealer for assistance.

Hedge trimmer vibrations may occur during

> Take regular breaks.

+ Ifsigns of circulation problems occur: Seek medical advice.

Note that the cutting blades continue to run for

about 1 second after you release the trigger.

The moving cutting blades can cut the user.

This can result in serious injuries.

+ Hold the hedge trimmer firmly by the control handle and loop handle and wait until the cutting blades come to a complete stand- still.

= Working near live electric cables can result in accidental contact with the cutting blades and damage the cables. This can result in serious or fatal injuries. > Do not work near live electric cables.

4.8 Charging À WARNING

= A damaged or defective charger may produce an unusual smell or emit smoke during the charging process. This may result in personal injuries and damage to property.

+ Disconnect the plug from the wall outlet. The charger can overheat and cause a fire if heat dissipation is inadequate. This can result in serious or fatal injuries and damage to prop- erty.

> Do not cover the charger.

4.9 Connecting to the power supply

Contact with live components may occur for the

— The connecting cable or the extension cord is damaged.

— The mains plug of the connecting cable or extension cord is damaged.

— The socket is not properly installed.

4 Safety Precautions

= Contact with live parts may result in electric

shock. This may result in serious or fatal injury to the user.

+ Make sure that the connecting cable, exten-

sion cord and their mains plugs are undam-

cord is damaged: > Do not touch the damaged area. + Disconnect the mains plug from the power supply. + Make sure your hands are dry before touch- ing the connecting cable, extension cord or mains plugs. Plug the mains plug of the connecting cable or extension cord into a properly installed, shockproof socket with the correct fuse rat- ing. Install the charger with a ground fault circuit interrupter (30 mA, 30 ms). = A damaged or unsuitable extension cable can result in electric shock. There is a risk of seri- ous or fatal injury. + Use an extension cable with the correct cable cross-section, [A 18.5.

= Overvoltage can occur in the charger if the line

voltage or frequency are incorrect during

charging. The charger may be damaged.

+ Make sure that the mains voltage and the mains frequency of the power supply match the data on the rating plate of the charger.

Ifthe charger is connected to a power strip,

electrical components may be overloaded dur-

ing the charging process. The components may overheat and cause a fire. Persons may be seriously or fatally injured, and property may be damaged.

Ensure that the technical specifications for

the power strip are not exceeded by the

information on the rating plate of the charger and of all electrical devices connec- ted to the power strip.

An incorrectly routed connecting cable or

extension cord may be damaged, and people

may trip over it. People may be injured, and the connecting cable or extension cord may be damaged.

+ Route and mark the connecting cable and extension cord so that people will not trip over them.

Route the connecting cable and extension cord so that they are not under tension or tangled. Route the connecting cable and extension cord so that they will not be damaged, kinked or crushed and will not be chafed. Protect the connecting cable and extension cord from heat, oil and chemicals. + Lay the connecting cable and extension cord on a dry surface. = The extension cable warms up in operation. If that heat cannot escape, it may cause a fire. + Ifusing a cable reel: completely unrol the cable reel. If wiring and pipes are laid in the wall, they may be damaged if the charger is mounted on the wall. Contact with wiring can result in elec- tic shock. This may result in serious injury to people and damage to property. > Make sure there is no wiring or pipes in the wall at the proposed mounting site. If the charger is not mounted on the wall as described in this User Manual, the charger or the battery may fall or the charger may over- heat. This may result in injury to people and damage to property. > Mount the charger on a wall as described in this User Manual. Ifthe charger is mounted on a wall with the battery inserted, the battery may fall out of the charger. This may result in injury to people and damage to property. > Mount the charger on the wall first before inserting the battery.

= The hedge timmer may turn over or shift dur- ing transport. This may result in injury to peo- ple and damage to property. > Remove the battery.

+ Fitthe blade scabbard so that it completely covers the cutting blades.

> Secure the hedge trimmer with lashing straps or a net to prevent it turning over and moving.

English 410.2 Battery

= The battery is not protected against all ambi- ent conditions. The battery may be damaged if itis exposed to certain ambient conditions, and damage to property may occur. + Never transport a damaged battery. + Ifa bag is supplied: Transport the battery in the bag supplied. = The battery may turn over or shift during trans- port. This may result in injury to people and damage to property. + Pack the battery in packaging in such a way that it cannot move. + Secure the packaging so that it cannot move.

=_The charger can turn over or move while being transported. This may result in personal inju- ries and damage to property. Disconnect the plug from the wall outlet. Remove the battery. Transport the charger in the bag supplied. If no bag is supplied with the charger: Secure the charger with lashing straps, belts or a net to prevent it turning over and moving. = The connecting cable must not be used for carrying the charger. The connecting cable and the charger may be damaged. > Wind up the connecting cable and attach it to the charger.

4.11 Storing 411.1 Hedge Trimmer

= Children are not aware of and cannot assess the dangers of a hedge trimmer. Children may be seriously injured. + Remove the battery.

+ Fitthe blade scabbard so that it completely covers the cutting blades. + Store the hedge trimmer out of the reach of children. = Dampness can corrode the electrical contacts on the hedge trimmer and metal components. This can damage the hedge trimmer.

4 Safety Precautions

> Remove the battery.

> Store the hedge trimmer in a clean and dry condition.

= Children are not aware of and cannot assess

the dangers of the battery Children may be

> Store the battery out of the reach of chil- dren.

The battery is not protected against all ambi-

ent conditions. If the battery is exposed to cer-

tain ambient conditions, the battery may be

irreparably damaged.

> Store the battery in a clean and dry condi-

Store the battery in an enclosed space.

Store the battery separately from the hedge

Ifthe battery is stored in the charger, dis-

connect the mains plug and store the bat-

tery at a state of charge between 40% and

60% (2 LEDs light up steady green).

Do not store the battery outside of the

specified temperature limits, CA 18.6.

= Children are not aware of and cannot assess

the dangers of a charger. Children can be seri-

ously injured or killed.

+ Disconnect the plug from the wall outlet.

+ Store the charger out of reach of children.

The charger is not protected against all ambi-

ent conditions. If the charger is exposed to

certain ambient conditions, the charger may

+ Disconnect the plug from the wall outlet.

> Ifthe charger is hot: Allow the charger to

Store the charger in a clean, dry place.

> Store the charger in an enclosed room.

Do not store the charger outside of the

specified temperature limits, A 18.6.

The connecting cable should not be used for

carrying the charger or hanging up the

charger. The connecting cable and the

charger may be damaged.

> Hold the charger by the housing in a secure grip.

5 Preparing Hedge Trimmer for Operation

+ Hang the charger on the wall mounting.

4.12 Cleaning, maintenance and repair

= The hedge trimmer may start unintentionally if the battery is left in place during cleaning, maintenance or repair operations. This may. result in serious injury to people and damage to property. + Remove the battery.

= Sharp cleaning agents, cleaning with a water jet or pointed objects can damage the hedge timmer, the cutting blades, the battery or the charger. If the hedge trimmer, cutting blades, battery or charger are not cleaned correctly, components may no longer function properly or safety devices may be rendered inopera- tive. Persons may be seriously injured + Clean the hedge timmer, cutting blades, battery and charger as described in this instruction manual. If the hedge trimmer, cutting blades, battery or charger are not serviced correctly, compo- nents may no longer function property or safety devices may be rendered inoperative. There is a risk of serious or fatal injury. Do not attempt to service or repair the hedge timmer, battery or charger. If the hedge trimmer, battery or the charger require servicing or repairs: Contact your STIHL servicing dealer for assistance. Maintain the cutting blades as described in this User Manual. = The user can be cut by the sharp cutting edges while cleaning or servicing the cutting blades. This may result in injury to the user. + Wear work gloves made of robust material.

5 Preparing Hedge Trimmer for Operation

5.1 Preparing Hedge Trimmer for Operation

The following steps must be performed before commencing work: > Ensure that the following components are in safe condition: — Hedge trimmer, [A 4.6.1 — Cutting blades, £1 4.6.2. — Battery. (D 4.6.3.

Check the battery, [A 9.2.

Fully charge the battery, [A 6.2

Clean the hedge trimmer, LA 14.1.

Check the controls, LA 9.1

If you cannot carry out this work: Do not use your hedge timmer and contact your STIHL servicing dealer.

6 Chargingthe Battery, LEDs

6.1 Mounting the Charger on a Wall

The charger can be mounted on a wall.

” Check the following points when mounting the charger on

— Suitable fixing materials. — The charger is level. The following dimensions are observed:

6.2 Charging the battery

The charging time depends on various factors, e.g. the battery temperature or the ambient tem- perature. For optimum performance, observe the recommended temperature ranges, [A 18.7. The actual charging time may vary from the charging time indicated. The charging time is indicated at www.stihl.com/charging-times.

The charging process starts automatically when the mains plug is plugged into a socket and the battery is inserted into the charger. The charger

switches off automatically when the battery is fully charged.

The battery and the charger warm up during charging.

Insert the mains plug (5) in a convenient wall outlet (6).

The charger (2) runs a self test. The LED (3) glows green for about 1 second and then red for about 1 second.

Fit the connecting cable (4).

Insert the battery (1) in the guides in the charger (2) and press it home as far as stop. The LED (3) glows or flashes green. The bat- tery (2) is being charged.

When the LED (3) stops glowing: The battery (1) is fully charged and can be taken out of the charger (2).

Ifthe charger (2) is no longer required. Dis- connect the mains plug (5) from the wall outlet (6).

6.3 Displaying the State of Charge

> Insert the battery.

> Depress the pushbutton (1). The LEDs light up steady green for about 5 seconds and indicate the state of charge.

+ Ifthe LED on the right flashes green: Charge the battery.

6.4 LEDs on the Hedge Trimmer

The LEDS can indicate the state of charge of the battery or any faults. The LEDS can may light up steadÿ or flash in green or red.

7 Removing and Fitting the Battery

Ifthe LEDs light up steady or flash green, this indicates the state of charge of the battery. + Ifthe LEDS light up steady or flash red! Trou- bleshooting, LA 17.1. Malfunction in the hedge trimmer or battery.

The LED indicates the operating status of the charger or faults. The LED can glow or flash green or red.

Ifthe LED glows or flashes green, the battery is being charged. + Ifthe LED glows or flashes red: Troubleshoot- ing, LA 17.2. There is a malfunction in charger or battery.

7 Removing and Fitting the Battery 7.1 Inserting the Battery

+ Push the battery (1) into the battery compart- ment (2) as far as stop. The battery (1) engages in position with a click.

7.2 Removing the Battery

+ Depress both locking hooks (1). The battery (2) is now unlocked and can be removed.

8 Switching the Hedge Trimmer On/Off 8 Switching the Hedge Trim- mer On/Off

8.1 Switching on the Hedge Trim- mer

WARNING The motor accelerates and the cutting blades run regardiess of the sequence in which the control bar and trigger are depressed. If you depress the trigger first and then the control bar, you may lose control of the hedge trim- mer. This may result in serious injury to the user.

+ Depress the control bar first and then the

Depress the control bar (1) and hold it in that position.

Depress the trigger lockout (2) with your hand and keep it pressed.

Depress the trigger (3) with your index finger and keep it depressed.

The hedge trimmer accelerates and the cutting blades run.

8.2 Switching off the Hedge Trim-

+ Release the switch lever, trigger and lockout lever.

> Wait for the cutting blades to come to a com- plete standstil after about 1 second.

+ Ifthe cutting blades continue to run after about 1 second: Remove the battery and contact your STIHL authorized dealer for assistance. The hedge trimmer is defective.

9 Testing the Hedge Trimmer and Battery 9.1 Checking the Controls

Trigger lockout and trigger > Remove the battery.

Try depressing the trigger without pressing the trigger lockout.

Ifthe trigger can be pressed: Do not use your hedge trimmer and contact your STIHL author- ized dealer.

The trigger lockout is defective.

Depress and hold the trigger lockout.

Depress the trigger.

Release the trigger and trigger lockout.

If the trigger or trigger lockout lever is stiff or does not spring back to the idle position: Do not use your hedge trimmer and contact your STIHL authorized dealer.

The trigger or the trigger lockout is defective.

+ Remove the battery.

+ Depress the control bar and release it again.

+ Ifthe control bar is stiff or does not spring back to its idie position: Do not use your hedge timmer and contact your STIHL author- ized dealer.

The control bar is defective.

Switching on the Hedge Trimmer > Insert the battery.

+ Depress the control bar and release it again. Ifthe cutting blades have run or are running: Do not use your hedge trimmer and contact your STIHL authorized dealer.

The trigger is defective.

Depress and hold the trigger lockout.

Depress and hold the trigger.

Ifthe cutting blades run: Do not use your hedge trimmer; contact your STIHL authorized dealer.

The control bar is defective.

Depress the control bar and hold it in that position.

The cutting blades run

If 3 LEDs are flashing red: Remove the battery and consult a STIHL authorized dealer.

There is a malfunction in the hedge trimmer. Release the control bar.

The cutting blades stop running after about 1 second.

Ifthe cutting blades continue to run after 1 second: Remove the battery and contact your STIHL authorized dealer.

The hedge trimmer is defective

9.2 Checking the Battery

> Insert the battery.

+ Depress the pushbutton on the hedge trimmer The LEDs light up steady or flash.

Ifthe LEDS do not light up steady or flash: Do not use your hedge trimmer and battery and contact your STIHL servicing dealer.

There is a malfunction in hedge trimmer or battery.

10 Operating the Hedge Trim- mer 10.1

Holding and Controlling the Hedge Trimmer

| Hold the hedge timmer with one hand on the control handle — wrap your thumb around the control handle:

Hold the hedge trimmer with the other hand on the loop handle — wrap your thumb around the loop handle.

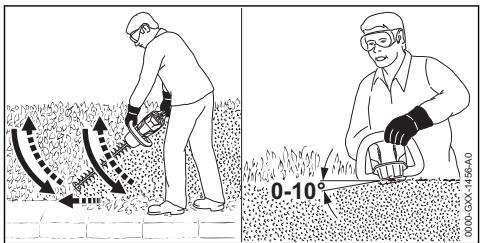

10.2 Cutting > Use pruning shears or a chainsaw to cut out thick branches first.

Swing the hedge timmer from the bottom upwards in an arc while making the cut. Lower the nose of the hedge trimmer without cutting.

Walk forward slowly in a controlled manner. Swing the hedge timmer from the bottom upwards in an arc while making the cut.

Cut the other side of the hedge in the same way.

Hold the cutting blades at an angle of 0° to 10° to the top of the hedge.

Swing the hedge timmer horizontally and in an arc while making the cut.

If cutting performance deteriorates: Sharpen the cutting blades.

For optimum performance, observe the recom- mended temperature ranges, LA 18.7.

11 After Finishing Work 11.1 After Finishing Work

Switch off the hedge trimmer and remove the battery.

If the hedge trimmer is wet: Allow the hedge trimmer to dry.

Ifthe battery is moist or wet: Allow the battery to dry, EN 18.7.

Clean the hedge trimmer.

Clean the cutting blades.

Fitthe blade scabbard so that it completely covers the cutting blades.

+ Clean the battery,

12.1 Transporting the Hedge Trim- mer + Switch off the hedge trimmer and remove the battery. + Fitthe blade scabbard so that it completely covers the cutting blades.

Carrying the hedge trimmer > Carry the hedge trimmer by the loop handle with the cutting blades behind you.

Transporting the Hedge Trimmer in a vehicle + Secure the hedge trimmer to prevent it tipping over and moving.

12.2 Transporting the battery

+ Switch off the hedge trimmer and remove the battery.

+ Check that the battery is in a safe condition.

+ Pack the battery in packaging in such a way that it cannot move inside the packaging.

+ Secure the packaging so that it cannot move.

The battery is subject to the Carriage of Danger- ous Goods regulations. The battery is classified

as UN 3480 (lithium ion batteries) and has been tested pursuant to UN Manual Tests and Criteria Part Ill, Subsection 38.3.

The transport regulations can be found at www.stihl.com/safety-data-sheets.

12.3 Transporting the Charger

+ Disconnect the plug from the wall outlet:

+ Remove the battery.

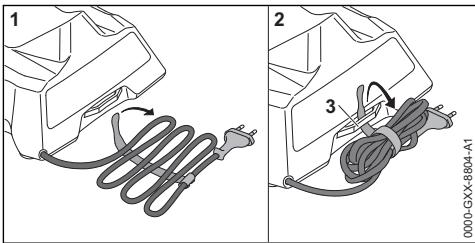

+ Wind up the connecting cable and attach it to the charger.

> Transporting the charger in a vehicle: Secure the charger with lashing straps, belts or a net to prevent it turning over and moving.

13 Storing 13.1 Storing the Hedge Trimmer

> Switch off the hedge trimmer and remove the battery.

+ Fitthe blade scabbard so that it completely covers the cutting blades.

> Make sure the following conditions are met when storing the hedge trimmer:

— The hedge trimmer cannot turn over or shift.

— The hedge trimmer is out of the reach of children. — The hedge trimmer is clean and dry.

13.2 Storing the Battery

STIHL recommends keeping the battery in a charging state between 40% and 60 % (2 green LEDS li).

The battery should be stored in such a way

that the following conditions are fulfilled:

— The battery is out of the reach of children.

— The battery is clean and dry.

— The battery is in an enclosed space.

— The battery is separated fron the hedge trimmer.

— Ifthe battery is stored in the charger, dis- connect the mains plug and store the bat- tery at a state of charge between 40% and 60% (2 lit green LEDs).

— Do not store the battery outside of the specified temperature limits, A 18.6.

= The battery 1s not stored as described In (is

User Manual, the battery may become deeply

discharged and irreparably damaged.

+ Charge a discharged battery before storing it. STIHL recommends keeping the battery state of charge between 40% and 60% (2 lit green LEDs).

+ Store the battery separately from the hedge trimmer.

13.3 Storing the Charger > Disconnect the mains plug from the power supply.

0458-037-9601-A English

> Wind up the connecting cable and attach it to the charger.

+ Observe the following points when storing the charger:

— Charger is out of the reach of children.

— The charger is clean and dry.

— Charger is in an enclosed space.

— The charger is not suspended from the con- necting cable or the holder (3) for the con- necting cable.

— Do not store the charger outside of the specified temperature limits, A 18.6.

14.1 Cleaning the hedge trimmer Switch off the hedge trimmer and remove the battery.

Clean the hedge trimmer with a damp cloth or STIHL resin solvent.

Clean vents with a paintbrush.

Remove foreign objects from the battery com- pariment and clean the battery compartment with a damp cloth.

Clean the electrical contacts in the battery compartment with a paintbrush or soft brush.

14.2 Cleaning the cutting blades

+ Switch off the hedge trimmer and remove the battery.

Spray both sides of the cutting blades with STIHL resin solvent.

Run the hedge trimmer for 5 seconds.

The cutting blades run. The STIHL resin sol- vent is distributed eventy.

14.3 Cleaning the Battery + Clean the battery with a damp cloth.

14.4 Cleaning the Charger

+ Disconnect the mains plug from the power supply.

+ Clean the charger with a damp cloth.

+ Clean the charger's electrical contacts with a paintbrush or a soft brush.

English 15 Maintenance 15.1 Maintenance Intervals

The maintenance intervals are dependent on the environmental and operating conditions. STIHL recommends the following maintenance inter- vals:

After every 25 hours of operation > Clean the cutting blades. > Sharpen the cutting blades.

Every 12 months > Have hedge trimmer checked by a STIHL servicing dealer.

15.2 Sharpening the cutting blades

STIHL recommends you have the cutting blades resharpened by a STIHL dealer.

WARNING The teeth of the cutting blades are very Sharp. There is a risk of cutting oneself. + Wear work gloves made of robust material.

> Switch off the hedge trimmer and remove the battery.

Use a STIHL flat file to sharpen each cutting edge on the upper blade. The fille only sharp- ens on the forward stroke. Maintain the pre- scribed sharpening angle, LA 18.2.

Turn the hedge trimmer over.

Sharpen the remaining cutting edges.

Deburr each cutting edge from below.

Turn the hedge trimmer over.

Deburr the remaining cutting edges.

Use a damp cloth to remove the fling dust. Spray both sides of cutting blades with STIHL resin solvent.

Run the hedge trimmer for 5 seconds.

The cutting blades run. The STIHL resin sol- vent is distributed eventy.

If you are unsure: Consult a STIHL authorized dealer.

16.1 Repairing Hedge Trimmer, Bat- tery and Charger

The hedge trimmer, cutting blades, battery and charger are not user serviceable.

+ Ifthe hedge trimmer or cutting blades are damaged: Do not use your hedge trimmer and contact your STIHL servicing dealer

Ifthe battery has a malfunction or is damaged: Replace the battery.

Ifthe charger has a malfunction or is dam- aged: Replace the charger.

Ifthe connecting cable has a malfunction or is damaged: Do not use the charger and have connecting cable replaced by a STIHL servic- ing dealer.

Hedge trimmer |1 LED flashes

State of charge ofthe |» Charge the battery.

does not start |green. battery is too low. when switched on TLED lights [Thebateryistoo |» Remove the battery. up steady red. |warm or too cold. + Allow the battery to cool down or warm up. 3LEDs flash [There is a malfunction |» Remove the battery and reinserti. red in the hedge timmer. |» Switch on the hedge timmer.

+ 113 LEDS continue to flash red: Do not use your hedge trimmer and contact your STIHL authorized dealer for assistance.

The cutting blades do |» Spray both sides of cutting blades with not run freely.

* 173 LEDS continue to flash red: Do not use your hedge trimmer and contact your STIHL authorized dealer for assistance.

mer cuts out during operation.

3LEDs light [The hedge trmmeris |» Remove the battery up steady red. |too hot. > Allow the hedge trimmer to cool down. 4LEDsflash [Thereis a faultinthe |» Remove the battery. red battery. > Clean electrical contacts in the battery compartment.

> Insert the battery.

> Switch on the hédge trimmer.

+ 1F4 LEDS continue to flash red: Do not use the battery; contact a STIHL authori- zed dealer.

No electrical contact |» Remove the battery between the hedge |» Clean electrical contacts in the battery trimmer and battery. compartment.

> Insert the battery.

The hedge timmer or |» Allow the hedge timmer or battery {o dy, battery is damp. 187.

The cutting blades do |» Spray both sides of cutiing blades with not run freely. STIHL resin solvent.

+ IFthe hedge trimmer still does not start when switched on: Do not use the hedge trimmer and contact your STIHL dealer for assistance.

The hedge trim [3 LEDs light [The hedge timmeris | Remove the battery.

+ Allow the hedge trimmer to cool down.

There is an electrical fault.

+ Remove the battery and reinsert it. Switch on the hedge trimmer.

Hedge timmers running time is too short.

The battery is not fully charged.

> Fully charge the battery.

The batlery service life has been excee- ded.

+ Replace the battery.

17.2 Troubleshooting the Charger

Battery not being charged.

The battery is 100 warm or 100 cold.

+ Leave battery inserted in charger. Charging starts automatically as Soon as the permitted temperature range is rea- ched.

does not run a self test.

glows green for about second

charger was briefly interrupted.

TheLEDfla [Noelecticalcontact |» Remove the battery. shes red. between charger and |» Clean contacts on charger. battery. > Insert battery. There is a malfunction |» Do not use the charger and contact your in the charger STIHL dealer for assistance. There is a faultinthe |» Do notuse the battery. Consult a STIHL battery. dealer. The charger The LED Electrical contactto |» Disconnect the mains plug from the

power supply. Wait for 1 minute.

T T Insert the mains plug in a wall outlet

Fault LED on Char- ger

18.1 STIHL HSA 30.0, HSA 40.0 Hedge Trimmer

HSA 30.0 — Approved battery: STIHL AS — Weight without battery: 2.0 kg

HSA 40.0 — Approved battery: STIHL AS — Weight without battery: 2.1 kg

For runtime, see www.stihl.com/battery-life.

— Capacity in Ah: see rating label

— Energy content in Wh: see rating label — Weight in kg: see rating label

18.4 STIHL AL 1 Charger

— Rated voltage: see rating pate

— Frequency: see rating plate

— Rated power: see rating plate

— Charging current: see rating plate

— Maximum energy content of approved STIHL AS battery: 12.5 Ah

For charging times see www.stihl.com/charging- times.

18.5 Extension Cords

If an extension cord is used, the cross sectional area of its conductors must meet the following minimum requirements — depending on the line voltage and length of the extension cord:

If rated voltage on the rating label is 220V to 240V: — Cord length up to 20 m: AWG 15 / 1.5 mm°

— Cord length 20 m up to 50 m: AWG 13 / 2.5 mm°

If rated voltage on the rating label is 100V to

— Cord length up to 10 m: AWG 14 / 2.0 mm?

— Cord length 10 m up to 30 m: AWG 12/ 3.5 mm?

18.6 Temperature limi

WARNING The battery is not protected against all ambi-

ent conditions. If the battery is exposed to cer-

tain environmental conditions, it may catch fire

or explode. This may result in serious injury to

people and damage to property.

> Do not charge the battery below -20°C or above +50°C.

+ Do not use the hedge trimmer, battery or charger below -20°C or above +50°C

> Do not store the hedge trimmer, battery or charger below -20°C or above +70°C

18.7 Recommended temperature

ranges For optimum performance of the hedge trimmer, battery and charger, observe the following tem- perature ranges:

— Charging: 5°C to 40°C

— Use: - 10 °C to + 40 °C

— Storage: - 20 °C to + 50 °C If the battery is charged, used or stored outside

the recommended temperature ranges, perform- ance may be reduced.

If the battery is wet or moist, allow the battery to dry for at least 48 h between 15°C and 50°C and with less than 70% humidity. Higher humidity may extend the drying time.

18.8 Sound Values and Vibration Values

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is 2 dB(A). The K value for the vibration level is

STIHL recommends wearing hearing protection.

19 Spare Parts and Accessories

— Sound pressure level LL measured according to EN 62841-4-2: 82 dB(A).

— Sound power level Li,a measured as specified in EN 62841-4-2: 90 dB(A).

— Vibration level a, measured as specified in EN 62841-4-2 — Control handle: 1.4 m/s?. — Loop handle: 1.9 m/s.

— Sound pressure level L,A measured according to EN 62841-4-2: 82 dB(A).

— Sound power level Li,a measured as specified in EN 62841-4-2: 90 dB(A).

— Vibration level an, measured as specified in EN 62841-4-2 — Control handle: 1.4 m/s?. — Loop handle: 1.9 m/s.

The vibration levels indicated were measured according to a standardized test method and can be used as a basis for comparing electric power tools. The vibration levels actually occurring may vary from the values indicated, depending on the type of application. The vibration levels indicated can be used for an initial estimate of the vibration stress. The actual vibration stress has to be esti- mated. The times can be taken into account in the estimate when the electric power tool is switched off and also when it is switched on but running without any load.

For information on compliance with the Physical Agents (Vibration) Directive 2002/44/EC, see www.stihl.com/vib.

18.9 REACH REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

19 Spare Parts and Accesso- ries

19.1 Spare parts and accessories

STIHL These symbols indicate original STIHL

& spare parts and original STIHL acces- sories.

STIHL recommends the use of original STIHL spare parts and accessories.

0458-037-9601-A English

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitabil- ity of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

20.1 Disposal of Hedge Trimmer, Battery and Charger

Contact the local authorities or your STIHL

dealer for information on disposal.

Improper disposal can be harmful to health and pollute the environment.

Take STIHL products including packaging to a suitable collection point for recycling in accord- ance with local regulations.

+ Do not dispose with domestic waste.

21 EC Declaration of Con- formity STIHL HSA 30.0, HSA 40.0 Hedge Trimmer

ANDREAS STIHL AG & Co. KG BadstraRe 115 D-71336 Waiblingen

declares under our sole responsibility that — Category: Cordless hedge timmer

— Model: STIHL HSA 30.0, HSA 40.0

— Serial identification number: HAO8

conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manu- factured in compliance with the following stand- ards in the versions valid on the date of produc- tion: EN 55014-1, EN 55014-2, EN 62841-1 and EN 62841-4-2.

Applied conformity assessment procedure in accordance with Directive 2000/14/EC, Annex V. HSA 30.0

— Measured sound power level: 90 dB(A)

— Guaranteed sound power level: 92 dB(A) HSA 40.0

— Measured sound power level: 90 dB(A)

The year of manufacture, country of manufacture and machine number are shown on the hedge trimmer.

Waiblingen, 09-03-2023

ANDREAS STIHL AG & Co. KG LUE Robert Olma, Vice President, Regulatory Affairs & Global Governmental Relations

22 UKCA Declaration of Con- formity

declares under our sole responsibility that — Category: Cordless hedge trimmer

— Manufacturer's brand: STIHL

— Model: HSA 30.0, HSA 40.0

— Serial identification number: HAO

conforms to the relevant provisions of UK regula- tions The Restriction of the Use of Certain Haz- ardous Substances in Electrical and Electronic Equipment Regulations 2012, Supply of Machi- nery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Noise Emis- sion in the Environment by Equipment for use Outdoors Regulations 2001 and has been manu- factured in compliance with the following stand- ards in the versions valid on the date of produc- tion: EN 55014-1, EN 55014-2, EN 62841-1 and EN 62841-2.

Applied conformity assessment procedure in accordance with UK regulations Noise Emission in the Environment by Equipment for use Out- doors Regulations 2001 Schedule 8.

— Measured sound power level: 90 dB(A)

22 UKCA Declaration of Conformity

— Guaranteed sound power level: 92 dB(A) HSA 40.0

— Measured sound power level: 90 dB(A) — Guaranteed sound power level: 92 dB(A)

The technical documentation is stored at ANDREAS STIHL AG & Co. KG.

The year of manufacture, country of manufacture and machine number are shown on the hedge trimmer.

Waiblingen, 09-03-2023

This chapter reproduces the pre-formulated, gen- eral safety precautions specified in the

IEC 62841 standard for hand-held motor-oper- ated electric tools.

STIHL is obliged to publish these texts.

The safety precautions and warnings on avoiding an electric shock given under “Electrical Safety" do not apply to STIHL cordiess produc!

WARNINI Read all safety warings, instructions, ilustra- tions and specifications provided with this power tool. Failure to follow all instructions lis- ted below may result in electric shock, fire and/or serious injury. Save all waings and instructions for future reference.

The term "electric power tool” in the safety warn- ings refers to mains-operated (corded) power tools or battery-operated (cordless) power tools.

23.2 Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

23.3 Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (groun- ded) power tools.Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

23.4 Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool, Carrying power tools with your finger on the switch or energising

0458-037-9601-A English

power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. À wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and

balance at all times. This enables better con- trol of the power tool in unexpected situa- tions.

f) Dress proper. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. À careless action can cause severe injury within a frac- tion of a second.

23.5 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dan- gerous and must be repaired

Disconnect the plug from the power source and/or remove the battery pack, if detacha- ble, from the power tool before making any adjustments, changing accessories, or stor- ing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users.

Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condi- tion that may affect the power tool's opera- tion. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situa- tion.

Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

23.6 Battery tool use and care

2) Recharge only with the charger specified by the manufacturer. À charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connec- tion from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified bat- teries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explo- sion.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions. Charging improperly or at tempera-

tures outside the specified range may dam- age the battery and increase the risk of fire.

Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Serv- ice of battery packs Should oniy be per- formed by the manufacturer or authorized service providers.

23.8 Hedge trimmer safety warnings

Safety instructions for hedge trimmers

Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lighining. This decreases the risk of being struck by lightning.

Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be acci- dentally cut by the blade.

Wear ear protection, Adequate protective equipment will reduce the risk of hearing loss.?

Hold the hedge trimmer by insulated gripping surfaces only, because the blade may con- tact hidden wiring or its own cord. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

When clearing jammed material or servicing the hedge trimmer, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of

inadvertent starting and resultant personal injury from the blades.

When transporting or storing the hedge trim- mer, always use the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

£202 OH ‘09 8 OV HLLS SVAHANY ©

STIHL HSA 30.0, HSA 40.0 HSA 30.0

Robert Olma, Vice President, Regulatory Affairs & Global Governmental Relations

£202 OH ‘09 8 OV HLLS SVAHANY ©

£202 OH ‘09 8 OV HLLS SVAHANY ©

De heggenschaar is defect.

De led Knippert rood.

— type: HSA 30.0, HSA 40.0

Robert Olma, Vice President, Regulatory Affairs
