USER MANUAL Q MéTAL STADLER FORM

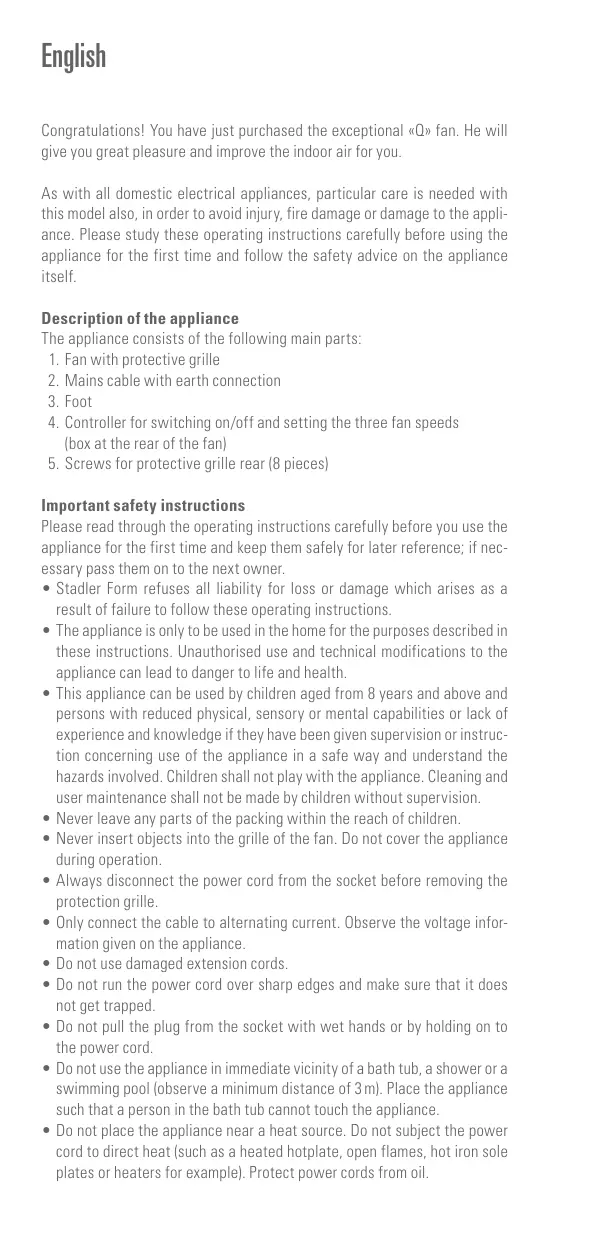

English Congratulations! You have just purchased the exceptional «Q» fan. He will give you great pleasure and improve the indoor air for you As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appli- ance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself. Description of the appliance The appliance consists of the following main parts:

1. Fan with protective grille

2. Mains cable with earth connection

4, Controller for switching on/off and setting the three fan speeds {box at the rear of the fan]

5. Screws for protective grille rear (8 pieces)

Important safety instructions Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference: if nec- essary pass them on to the next owner. + Stadier Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions. The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Never leave any parts of the packing within the reach of children. Never insert objects into the grille of the fan. Do not cover the appliance during operation Always disconnect the power cord from the socket before removing the protection grille. Only connect the cable to alternating current. Observe the voltage infor- mation given on the appliance Do not use damaged extension cords. Do not run the power cord over sharp edges and make sure that it does not get trapped Do not pull the plug from the socket with wet hands or by holding on to the power cord. Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3m). Place the appliance such that a person in the bath tub cannot touch the appliance Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example]. Protect power cords from oil.

+ See toit that the appliance is properly positioned to ensure a high stability during its operation and make sure that no ane can trip over the power cord. + The appliance is not splash-proof. + Forindoor use only, + Do not store the appliance outdoors. + Store the appliance in a dry place inaccessible to children (pack the ap- pliance). + Ifthe supply cord is damaged, it must be replaced by the manufacture, or its service agent, or a qualified person in order to avoid a hazard Prior to any maintenance, cleaning and after each use, switch off the ap- pliance and unplug the mains cable from the socket. + Repairs to electrical appliances must only be carried out by à qualified electrical technician Setting up / operation

1. After the «Qr fan has been placed in the desired position, connect the

mains cable (2) to the domestic supply socket

2. Switch on the «Q» fan at the controller (4) and set the desired speed

{Positions 1-3, from gentle breeze to powerful circulation. Cleaning Prior to any maintenance, cleaning and after each use, switch off the appli- ance and unplug the mains cable (2 from the socket. Attention: Never submerge the appliance in water (danger of short-circuit. + For external cleaning, rub with à damp cloth and then dry thoroughiy. + To clean the fan blades, remove the 8 screws (5) on the back of the ap- pliance and carefully lift off the protection grille rear. Now you can wipe the fan blades with a damp cloth and dry well afterwards. After cleaning, replace protection grille rear on appliance and fasten 8 screws tight. Repairs + Repairs Lo electrical appliances must only be carried out by à qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused. + Never operate the appliance if the adaptor or plug is damaged, after ithas malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing) + Do not push any object into the appliance. + IFthe appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose. Disposal The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appli- ances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appli-

ance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the cor- rect disposal of their old appliance L | Specifications Rated voltage 230 Voit / 50 Hz Rated power 40 watt Dimensions {width x height x depth) 430 x 360 x 150 mm Weight 40kg Speed 3 settings Noise level 41-58 dB(AI Complies with EU regulation CE / WEEE / ROHS All rights for any technical modifications are reserved

Design by Carlo Borer Thanks t0 an people involved in this project: Roland Schmid for his endurance, patience and engagement. Jianneng Xu for the engineering and CAD work, Mario Rothenbühler for the Goo! photos, Carlo Borer for the unique design and Matti Walker for the graphic work Martin Stadier, CEO Stadler Form Aktiengesellschaft
