USER MANUAL HO FH110T HIGH ONE

Thank you for choosing this HIGHONE product. HIGHONE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

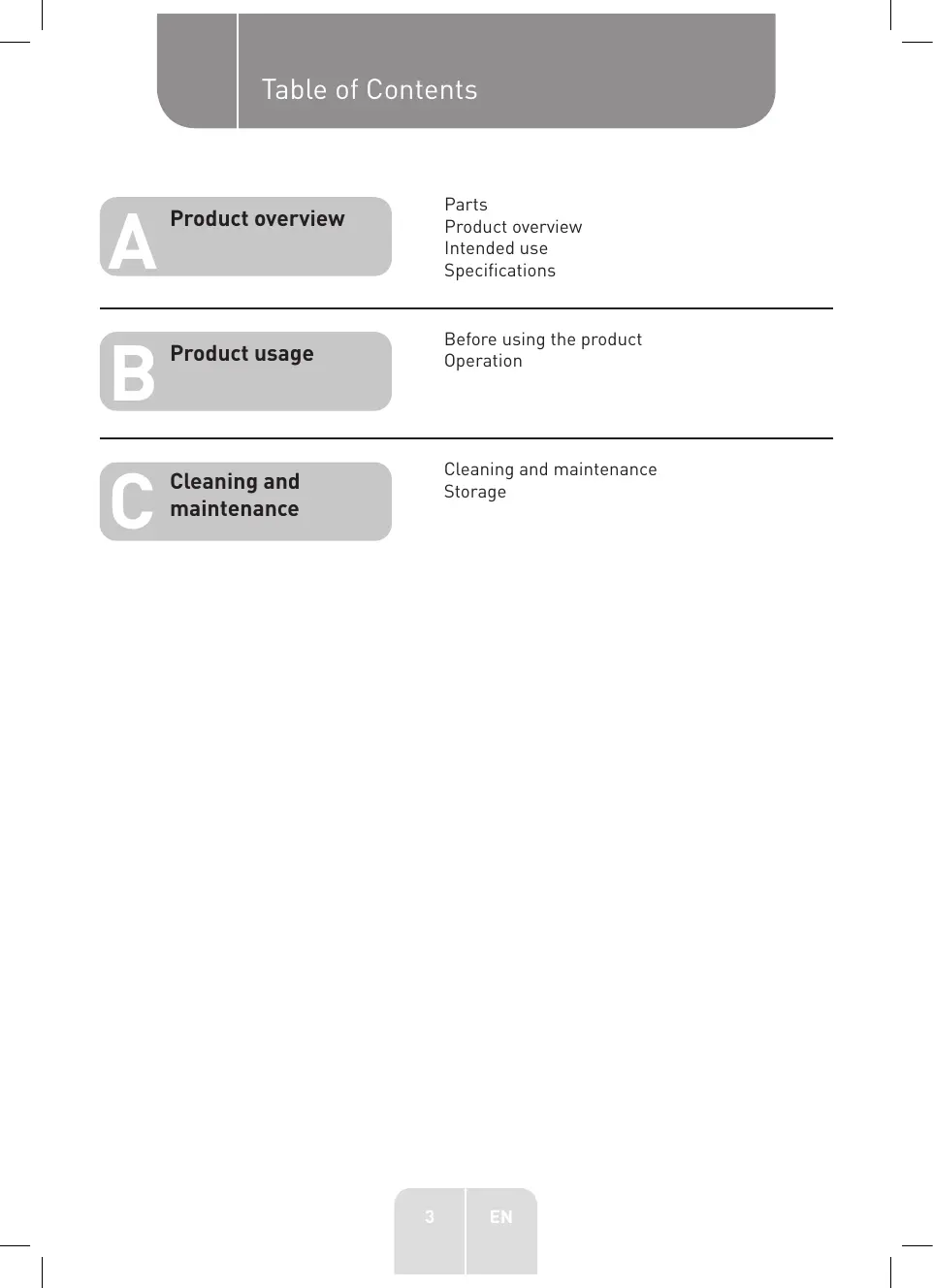

Table of Contents

Parts

Product overview

Intended use

Specifications

Before using the product

Operation

Cleaning and maintenance

Storage

Parts

A Red indicator light
B Temperature knob
C Control knob {Off / Fan / Low heat I / High heat II}
D Carrying handle (on the back)
E Air inlet (on the back)
Tip-over sensor
Air outlet

Product overview

• Unpack and remove all labels from the unit except the nameplate. Please check that all parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This product is for domestic use only. It has not been designed for industrial or professional use.
Any other use may damage the product or cause injury.

Specifications

Model:	992003
Operating voltage:	220-240 V~, 50-60 Hz
Rated power:	Fan - 18 W Level I - 1000 W (low) Level II - 1800-2000 W (high)
Dimensions (W x D x H):	22 x 13.2 x 26.4 cm
Weight:	0.9 kg
Protection class:	Class II

This product complies with the requirements imposed by directives 2014/35 / EC (repealing the Directive 73/23 / EEC as amended by Directive 93/68 / EEC) and 2014/30 / EC (repealing the Directive 89/336 / EEC).

Information requirements for electric local space heaters			P
Model identifier(s): 992003
Item	Symbol	Value	Unit
Thermal power
Nominal thermal power	Pnom	1.8-2.0	kW
Minimum thermal power (indicative)	Pmin	0.9	kW
Maximum continuous thermal power	Pmax, c	2.0	kW
Auxiliary power consumption
At nominal thermal power	elmax	0.0	kW
At minimum thermal power	elmin	0.0	kW
In standby mode	elsb	0.0	W
Type of heat input for decentralised electric storage heaters only
Manual thermal load control with a built-in thermostat			No
Manual thermal load control that receives information on the room and/or outside temperature			No
Electronic thermal load control that receives information on the room and/or outside temperature			No
Fan-adjustable thermal power			No

Type of thermal power/room temperature control

Single-level thermal power control - no room temperature control No

Manual thermal control at two or more levels - no room temperature control No

Room temperature control with a mechanical thermostat Yes

Electronic room temperature control No

Electronic room temperature control and daily programmer No

Electronic room temperature control and weekly programmer No

Other control options (select one or more options)

Room temperature control with a presence detector No

Room temperature control with an open-window sensor No

Remote control option No

Adaptive activation control No

On time limitation No

Black globe sensor No

Contact details:

ELECTRO DEPOT

1 route de Vendeville

59155 FACHES-THUMESNIL-FRANCE

Before using the product

• Place the unit on a solid, level, stable and heat-resistant surface.
  The unit is suitable for use in a 20m^2 space, such as a living room or office.
• Keep a clearance distance of at least 30~cm at the back and 50~cm at the front between the unit and any objects, such as walls, furniture, curtains, etc.

WARNING - Risk of fire or electric shock!

• Do not use the unit in a bathroom.
• Never use the unit near a bathtub, swimming pool or body of water to avoid the danger of electric shock.
• Do not cover the unit when in use.
• Do not use the unit in wet or humid conditions.
• Do not place the unit on top of water. Do not expose the unit to rain, splashing or dripping water. If this occurs, stop using the appliance immediately.

Operation

1. Make sure both knobs are turned anti-clockwise to 0 (off) and the lowest setting.
2. Plug the power cable firmly into a suitable power outlet.
3. To use the fan function: Turn the Control knob to 念 and turn the Temperature knob clockwise until the red indicator light illuminates with a click and the fan starts running.

4. To use the heating function:

5. Turn the Control knob to low heat or high heat, and turn the Temperature knob clockwise until the red indicator light illuminates with a click and the heater starts warming the room with hot air.

6. Adjust the Temperature knob to a higher setting if required.

7. To turn the unit off, turn the Control knob to 0 (off) and turn the Temperature knob back to the lowest setting. Unplug the power cable from the power outlet.

8. Always unplug the power cable from the power outlet when the appliance is not in use.

NOTE:

• Tip-over protection - The heater is designed with a tip-over sensor on the bottom that will automatically cut off the power if the unit is accidentally tipped over or tilted. Power will automatically resume once the unit is placed upright.
• Overheat protection - The heater is equipped with an overheat protection system to reduce the risk of fire. In case of overheating, a temperature limiting system located inside the appliance will automatically cut off the power supply. The appliance can be turned on again when all normal conditions and temperatures necessary for its operation have been restored. Identify the causes of said overheating to avoid future incidents.

Cleaning and maintenance

WARNING!

• Before cleaning, always unplug the unit from the power outlet and allow it to cool down completely.
• Never immerse the unit, power cable or plug in water. Do not rinse the unit under the tap.

• Do not use flammable or abrasive detergents, such as benzene or white spirit, to clean the heater.

• Clean the exterior of the unit with a soft, moist cloth. Wipe with a dry cloth. Do not let water enter the openings on the unit

• Allow the unit to air dry completely before using or storing it.

Storage

• Always unplug the unit from the mains before storing it. Wait until the heater has cooled down before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Merci!

Modelidentificatie(s): 992003

Item	Symbool	Waarde	Eenheid
Thermisch vermogen
Nominaal thermisch vermogen	Pnom	1,8-2,0	kW
Minimaal thermisch vermogen (indicatif)	Pmin	0,9	kW
Maximaal continu thermisch vermogen	Pmax, c	2,0	kW

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.
