BJ750D10 - Kettle TEFAL - Free user manual and instructions

USER MANUAL BJ750D10 TEFAL

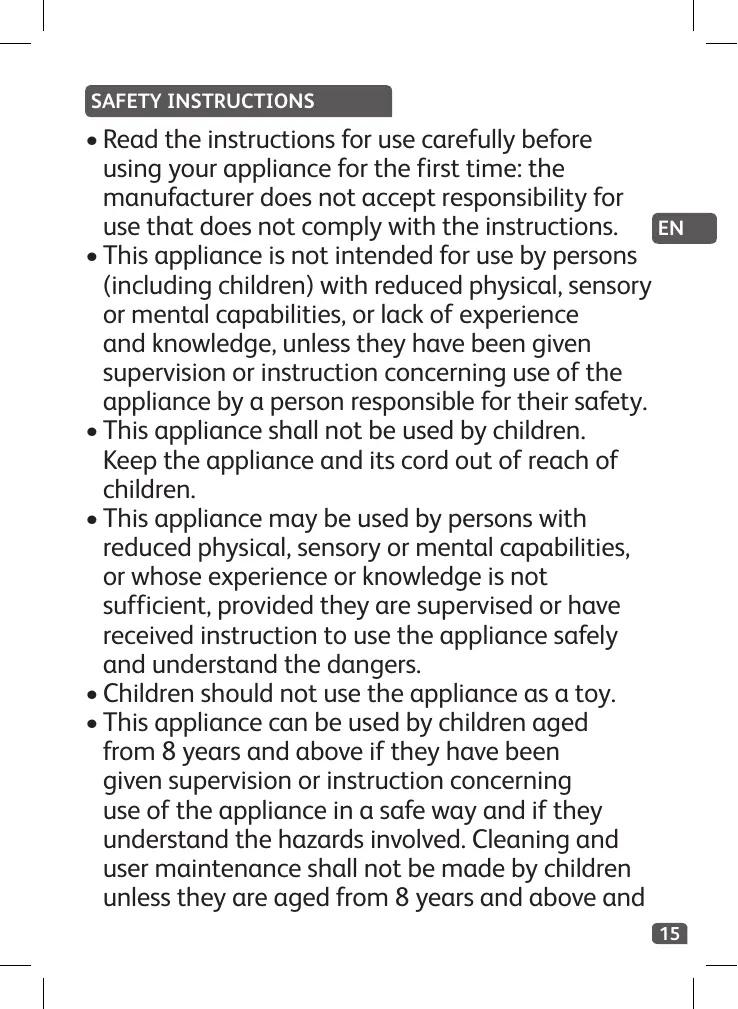

- Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions. (NE This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance shall not be used by children.

Keep the appliance and its cord out of reach of children.

This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

Children should not use the appliance as a toy. This appliance can be used by children aged

from 8 years and above if they have been

given supervision or instruction concerning

use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and

supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

e Your appliance was designed for domestic use only. It is not intended to be used in the following cases, which are not covered by the guarantee.

— staff kitchen areas in shops, offices and other working environments;

—by clients in hotels, motels and other residential type environments;

—bed and breakfast type environments.

Never fill the appliance past the maximum water level mark, nor below the 0.51 minimum water level mark.

- Ifthe appliance is too full, some water may spray out.

- Never open the lid when the water is boiling.

e Your appliance should only be used with its lid locked, with the base and the anti-scale filter supplied.

- Never immerse the appliance, its base or the power cord and plug in water or any other liquid.

Never use the appliance if the power cord or the plug are damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

e Children should be supervised to ensure that they do not play with the appliance.

- WARNING: Be careful to avoid any spillage on the connector during cleaning, filling or pouring.

< Always follow the cleaning instruction to clean your appliance; —Unplug the appliance. —Do not clean the appliance while hot. (EN — Clean with a damp cloth or sponge. — Never immerse the appliance in water or put it

under running water.

< WARNING: Risks of injuries if you don't use this appliance correctly.

e Only use your kettle for boiling drinking water.

- WARNING: The heating element surface is subjected to residual heat after use.

e Your appliance is intended for domestic use inside the home only at an altitude below 2000 m.

< For your safety, this appliance conforms to applicable standards and regulations :(Low Voltage Directive, Electromagnetic compatibility, Environment, Materials in contact with food).

< This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

e Only use your kettle for boiling drinking water.

- Only plug the appliance into an earthed mains socket, or into an electrical extension lead with

an integrated earth connection. Check that

the voltage indicated on the rating plate of the appliance corresponds to that of the mains voltage. You are advised not to use a multiple adapter plug.

- Do not use the kettle when you have wet hands or bare feet.

- Take care not to place the kettle and its base on a hot surface, such as a hot plate, or to use it near a naked flame.

- Immediately remove the mains plug if you notice that the kettle is not operating correctly.

- Do not pull on the power cord to remove the mains plug.

e Do not let the power cord hang over the edge of a table or work surface in order to prevent the appliance from falling.

< Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout, which is very hot.

< Also be careful as the body of stainless steel kettles becomes very hot during operation. Only touch the handle of the kettle.

< Never touch the filter or the lid when the water is boiling.

< Never move the kettle when it is in operation.

< Our guarantee does not cover kettles that do not work properly or do not work at all because they have not been descaled.

e Protect the appliance from damp and frost.

- Unplug the appliance as soon as you have finished using it for a long period of time and when you clean it.

DESCRIP A Kettle lid B Filter € Control panel C1 Temperature Indicator light C2 ON/OFF button C3 Select button D Handle E Glass carafe F. Color signal light (70°C in green, 80°C in blue, 85°C in purple, 90"C in light green) G Power base

BEFORE USING FOR THE FIRST TIME

1. Remove all of the various packaging, stickers or accessories from both the inside and outside of the kettle.

2. Adjust the length of the cord by winding it under the base. Wedge the cord into the notch. (fig 1)

Throw away the water from the first two/three uses as it may contain

dust. Rinse the kettle and the tea basket and lid separately.

+ Grasp the handle of kettle and remove the lid together with filter (fig 2). Hold the filter gently and twist anticlockwise to remove from the lid (fig 3). Do not use your kettle without its lid. In case the lid is lost or broken, please contact your after-sales service centre.

2. PLACE THE BASE ON A FLAT, STABLE, HEAT-RESISTANT SURFACE AWAY FROM WATER SPLASHES AND ANY SOURCES OF HEAT. Kettle is only to be used with the stand provided.

FILL THE KETTLE WITH THE DESIRED AMOUNT OF WATER. (fig 4)

Never fill the kettle when it is on its base.

Do not fil it above the maximum level, or below the minimum level. If

the kettle is too full, boiling water may spill out.

Do not use without water.

Check that the lid without tea filter is closed properly before use.

. POSITION THE KETTLE ON ITS BASE. PLUG IT INTO THE MAINS SOCKET.

+ Tea maker is now in standby mode. Signal indicator lights will flash

with 2 beep sounds. (fig. 5)

5. TO START THE KETTLE A.Boiling water

— Press the on/off button to directly start boiling water. (fig 6) Tea maker color signal light will light up in RED with a beep sound.

— As soon as the required temperature is reached, tea maker will automatically switch off, then the color signal light will be off with 2 beep sounds.

B.70°C - 90"C water heating and tea brewing

— Press the select button repeatedly to set the desired temperature from options: 70°C, 80°C, 85°C or 90/C. The corresponding temperature indicator light will light up. (fg 7.1)

— Press the on/off button to start heating water with selected temperature (fig 7.2), then color signal light will be on with a beep sound.

— When the selected temperature is reached, tea maker will automatically switch off, then color signal light will be off with 2 beep sounds.

— To start tea brewing, you can fill the desired amount of tea leaves or tea bag into tea filter. (fig 8) Hold the handle and remove the lid: twist clockwise to lock the tea filter with the lid. (fig 9)

— Close the lid with tea filter to start brewing. (fig 10)

C.70°C - 90"C keep warm heating

— To start keep warm heating cycle, press select button repeatedly to

set the desired temperature (fig 7.1)

— Keep press the on/off button to start heating water (fig 7.2), then temperature indicator light will start flashing and color signal light will light up with a beep sound.

— When the selected temperature is reached, tea maker will stop heating, while the temperature indicator light remains flashing.

For 30 minutes, you can start brewing tea and tea maker will keep warming at the selected temperature on the power base: after that TEN | it will automatically switch off, then temperature indicator light and color signal light will be off with 2 beep sounds. <_The function can be disconnected at any time by pressing the on/off button, or removing jug from power base.

+ Do not leave water in the kettle after use as this quickens the formation of scale.

RECOMMENDATIONS FOR USE Although all teas actually come from the same bush (camellia sinensis), their taste and type vary according to their region of production, method of processing (different fermenting, and drying processes and rolling techniques exist) and grade (whole or broken leaves, fannings and dust).

— Green tea: Rolled dried leaves, which are chopped and lightly roasted to prevent them from fermenting. Leave to brew for 3 minutes only. Green teas are subtle- flavoured, often bitter, and very pale in colour.

— Black tea: Made from older leaves that are rolled, dried and fermented for a considerable period. Brew for 5 minutes (or longer for Turkish or Russian tea). Gives a powerful taste and a superb coppery colour.

— Oolong tea: Midway between green and black tea. Slightiy fermented. Brew for 7 minutes. Lighter in taste and paler than black colour.

Although purists drink tea plain, you may prefer to add cold milk to your cup before pouring in the tea (with Indian or Ceylon tea), or add sugar and then lemon (with green or flavoured teas).

MAKING RUSSIAN OR TURKISH TEA: While your tea concentrate is brewing, boil some more water: it is then ready to serve.

CLEANING AND MAINTENANCE CLEANING YOUR KETTLE Unplug it.

Let it cool down and clean it with a damp sponge.

< Never immerse the kettle, its base, the cord or the electric plug in water or any other liquid: the electrical connections or the switch must not come into contact with water or any other liquid.

+ Do not use scouring pads.

DE-SCALING De-scale regularly, preferably at least once a month or more frequently if your water is very hard. To de-scale your kettle: + Using white vinegar: — Fillthe kettle with % lof vinegar, — Leave to stand for 1 hour without heating. * Using citric acid: — Boil 2 lof water, — Add 25 g of citric acid and leave to stand for 15 min.

+ Empty your kettle and rinse 5 or 6 times. Repeat if necessary.

To de-scale your tea basket and lid: Soak the tea basket and lid in white vinegar or diluted citric acid. + Never use a de-scaling method other than that recommended.

IN THE EVENT OF PROBLEMS THERE 1$ NO EVIDENT DAMAGE TO YOUR KETTLE + The kettle does not work or stops before coming to the boil

— Check that your kettle is properly connected.

— The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and fill it with water. Descale first if scale has accumulated.

Switch it on: the kettle should start working again after about 15 minutes.

IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE Return your kettle to your After-Sales Service Centre, only they are

authorised to carry out repairs. See the guarantee conditions and list

of centres in the booklet supplied with your kettle. The type and serial

number are shown on the bottom of your kettle. This guarantee covers

manufacturing defects and domestic use only. Any breakage or damage

resulting from failure to comply with the instructions for use is not

covered by the guarantee.

<_ The manufacturer reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.

+ Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices.

-_Ifthe supply cord is damaged, it must be replaced by the manufacturer, its after-sales service centre or a similarly qualified person, in order to avoid any danger.

PREVENTION OF DOMESTIC ACCIDENTS For a child, a burn or scald, even if slight, can sometimes be serious.

As they grow up, teach your children to beware of hot liquids to be

found in the kitchen. Position the kettle and its supply cord well to the

rear of the work surface, out of the reach of children.

If an accident does occur, run cold water over the scald immediately

and call a doctor if necessary.

+_In order to avoid any accident: do not carry your child or baby at the same time as drinking or carrying a hot drink.

ENVIRONMENTAL PROTECTION

® Your appliance contains many recoverable or recyclable materials.

© Take it to a local, civic waste collection point. nl
