USER MANUAL 400 Plug&Play 400w SIRIUS

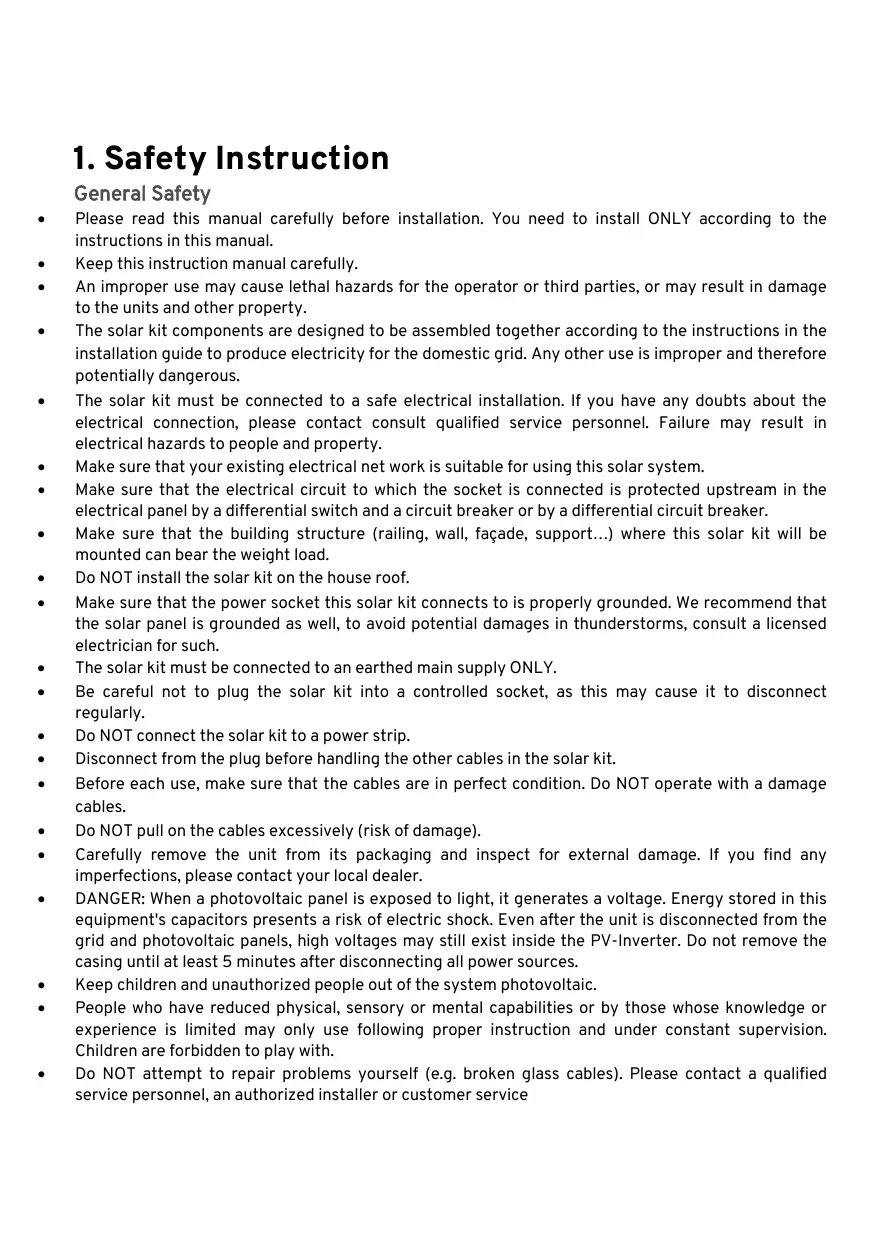

General Safety Please read this manual carefully before installation. You need to install ONLY according to the instructions in this manual. Keep this instruction manual carefully. An improper use may cause lethal hazards for the operator or third parties, or may result in damage to the units and other property. The solar kit components are designed to be assembled together according to the instructions in the installation guide to produce electricity for the domestic grid. Any other use is improper and therefore potentially dangerous. The solar kit must be connected to a safe electrical installation. If you have any doubts about the electrical connection, please contact consult qualified service personnel. Failure may result in electrical hazards to people and property. Make sure that your existing electrical net work is suitable for using this solar system. Make sure that the electrical circuit to which the socket is connected is protected upstream in the electrical panel by a differential switch and a circuit breaker or by a differential circuit breaker. Make sure that the building structure (railing, wall, façade, support...) where this solar kit will be mounted can bear the weight load. Do NOT install the solar kit on the house roof. Make sure that the power socket this solar kit connects to is properly grounded. We recommend that the solar panel is grounded as well, to avoid potential damages in thunderstorms, consult a licensed electrician for such. The solar kit must be connected to an earthed main supply ONLY. Be careful not to plug the solar kit into a controlled socket, as this may cause it to disconnect regulariy. Do NOT connect the solar kit to a power strip. Disconnect from the plug before handling the other cables in the solar kit. Before each use, make sure that the cables are in perfect condition. Do NOT operate with à damage cables. Do NOT pull on the cables excessively (risk of damage). Carefully remove the unit from its packaging and inspect for external damage. If you find any imperfections, please contact your local dealer.

DANGER: When a photovoltaic panel is exposed to light, it generates a voltage. Energy stored in this

equipment's capacitors presents a risk of electric shock. Even after the unit is disconnected from the grid and photovoltaic panels, high voltages may still exist inside the PV-Inverter. Do not remove the casing until at least 5 minutes after disconnecting all power sources. Keep children and unauthorized people out of the system photovoltaic. People who have reduced physical, sensory or mental capabilities or by those whose knowledge or experience is limited may only use following proper instruction and under constant supervision. Children are forbidden to play with. Do NOT attempt to repair problems yourself (e.g. broken glass cables). Please contact à qualified service personnel, an authorized installer or customer service

WARNING: Risk of burns due to hot parts. Some parts and surfaces are still hot during operation. To

reduce the risk of injury, do not touch the active parts during operation Periodically check this solar kit to make sure that all electrical connection is tight and secure. Also check the mountings (bolts, connections.) are tight and secured. Inspections must first be carried out after exceptional events (e.g. storm, hail, high snow load, etc.) but also regularly. During these inspections, it should be verified whether the components are safe, intact and clean. ONLY clean modules that have been cooled. Do NOT clean the modules with water if there is a risk of freezing. Remove dirt with warm water or a soft cloth. Do NOT scratch dirt. Remove snow and ice without force Leave the substructure free of dirt and debris. Do NOT use abrasive detergents; surfactants, scrapers or cleaning equipment with pressurized water. Do NOT use micro-polar wool or cotton cloths. Assembly Warnings Before installation, please check all the components of the solar kit to ensure that there is no transportation or handling damage, which may affect the insulation integrity or safety clearances: otherwise, it may causesafety hazards. Install ONLY undamaged modules and components. Do NOT attempt to modify or diassemble the solar kit components in any manner. Assemble the solar kit ONLY per the instructions in this manual. Mount the inverter in such a way that it cannot be touched inadvertently. The installation location must be freely and safely to get at all times In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before screwing the solar kit installation. Use care when choosing solar kit installation location and adhere to specified cooling requirements. Never install solar kit in environment of little or no air flow, nor dust environment. That may derate the efficiency of the cooling. Do NOT install solar kit on easily flammable materials and where flammable materials are stored. Do NOT install solar kit on structures constructed of flammable or thermolabile materials. Do NOT install solar kit in close proximity to condiotioned air systems Do NOT mount wall brackets on residential roofs. The brackets are not designed and certified for this type of use. Mount wall brackets on a sturdy wall to prevent them from being torn off. Do NOT modify the fixings supplied. Do NOT place supports designed for high ground on a flat roof if they are not screwed to the ground. Do NOT use any other fixing method than those recommended in the installation guide. Falling equipment can cause serious or even fatal injury, never mount the unit on the bracket unless you are sure that the mounting frame is really firmly mounted, after carefully checking. When installing photovoltaic modules during the day, use opaque materials to cover the photovoltaic modules, otherwise the voltage at the module terminals will be high in the sun, which may cause danger. Do NOT install solar kit in windy or wet weather. Use ONLY dry, insulated tools. Do NOT operate with wet hands.

In order to minimize the potential of à shock hazard due to hazardous voltages, cover the entire solar array with dark material prior to connecting the array to any equipment.

WARNING: Risk of electric shock. Unauthorized removal of necessary protections, improper use,

incorrect installation and operation may lead to serious safety and shock hazards and/or equipment damage.

WARNING: Danger to life due to fire or explosion: electrical devices can cause fires.

Do NOT install damaged modules. Do NOT install modules inside. Do NOT install modules on moving objects. Never step on the modules. Do NOT subject the modules to mechanical stresses. Do NOT drop objects on modules. Do NOT drop modules. Never lift or move the module through the connection cables or inverter. Do NOT put any things on the inverter or the modules. Do NOT cover the inverter or the modules. Do NOT move the installation during operation. Under special circumstances, the inverter may be subject to electromagnetic interference from surrounding equipment. At this time, the user is obliged to take correct measures to reduce the interference from surrounding equipment to the inverter. © Never install the inverter near the sensitive equipment (e.g. Radios, telephone, television, etc). © Do not stay closer than 20 cm to the inverter for any length of time. Electrical Warnings Allelectrical installations must comply with local electrical safety standards. Do NOT open the casing. Do NOT attempt to repair, consult qualified service personnel. All wiring and electrical installation must be performed by qualified service personnel. Improper operation during the wiring process can cause fatal injury to operator or unrecoverable damage. ONLY qualified personnel can perform the wiring work. Touching live components can result in serious injury or death. Electrical installation, repairs and conversions may only be carried out by electrically qualified persons.

WARNING: Danger to life due to high voltages. Forbid installation in live line.

Do NOT touch damaged components. Excessive voltage can damage the solar kit. Do NOT disconnect the solar kit under load. Do NOT disconnect the loaded cables. Isolate all exposed cable ends. Only connect cables with connectors Make sure all electrical components are in a clean state, dry and secure Make sure the cabling is not under tension Ensure wiring is not exposed and/or hanging and is protected from dirt and mould Ensure all connectors are sealed and secure during operation.

2. Technical Specifications

3. What's in your kit

Electrical parts x4 Panels

Mounting structure x8 Triangle mounts (folded) x4 Enhance bar x32 M8*20 bolt Fe Pie a He me Fe ais Fe le x2 M8*20 bolt (for micränverter) x16 M6*15 bolts He Din mie mie mie me

Before Installation LI Before connecting your solar kit to the mains, make the declaration for Auto-Consumption on the ENEDIS web portal. During the registration process, ENEDIS will request the DIN VDE 0126-1-1 certificate of the micro-inverter. You can download this certificate by following this link : www.mms-support.net/OTA/DG23BL0041_DIN_VDEO0126.pdf La Make sure your home is equipped with a LINKY meter. If you do not yet have a LINKY meter, apply to ENEDIS web portal. LI Your electrical installation must comply with the following standards LI 230V 16A 2P+T socket, connected to a good quality earth (earthing must be to standard) & Electrical circuit wired in 1.5mm2 and protected upstream by a 16A thermal-magnetic circuit breaker OR wired in 2.5mm2 and protected upstream by a 20A thermal-magnetic circuit breaker LI Electrical circuit protected upstream by a 30mA earth leakage switch For better production La Find a location that remains sunny throughout the day & Tilt the panels for better solar production Give preference to a southern orientation Please handle solar panels with caution and verify you have a socket within 10 m from the kit. Necessary tools SCREWDRIVER PENCIL DRILL/DRIVER 6mm ALLEN KEY 13mm WRENCH COLA

Optimal mountings + Inclined in a row on a façade + Inclined in a square on a façade + Witha distance of 65 cm between the top and bottom modules. Flat on a sloping surface + Inclined in a row on the ground + Onalow-rise building. Do not install it on the house roof.

STEP 1: Structure assembly: Installation on the ground The solar kit can be mounted horizontally on the ground. O Take out the solar kit and its accessories from the package. Verify that all the elements are present in the box. Oconnect the eight triangle mounts together by 2 with enhance bar to strengthen the whole mounting structure. Hole for enhance bar are the one located on the outermost Open the triangle mount, and adjust it to the desire angle. Secure the angle with wing nut (1) and screw (2). (5) Secure micro inverter to the solar panel*. Mounting holes already predrilled on the solar panel frame. Out the angle to the more efficient angle for solar production in your region, by choosing the corresponding

O secure the four triangle mounts to your desired place through its ground mount holes.

AN WARNING Choose installation location carefully and adhere to specified cooling requirements. Micro-inverter should be installed in a suitable position with good ventilation and no directly sunshine. STEP 1 BIS: Structure assembly: Installation on the wall The solar kit can be mounted vertically on the wall. The 3 first steps are the same as for Installation on the ground: adjust the angle of the folded triangles. To help you prepare the place where it can be placed, you can use the 1:1 drawings provided. The micro inverter must be located at a maximum distance of 20m from your Wifi router, and with a maximum of one wall. Position all the Mark the Check that patterns using locations of the the hole the 4 papers, future screws with a pattern is correct by provided in the box. pencil andremovethe placing the triangle They should be all papers. mount on top of aligned on your wall. your wall. You should see the pencil mark through the holes for wall ass

Connect the cure micro Screw the eight triangle inverter to the triangle mount to mounts together by 2 solar panel. Mounting the wall (the screws are with enhance bar to holes already included). strengthen the whole predrilled on the solar Drill and place dowels mounting structure. panel frame. beforehand if Hole for enhance bar necessary. are the one located Use two pairs of Check that it is on the outermost screws and nuts (not correctly tightened {shown by arrows). included) to fix the microinverter on the frame. Make sure that the label of microinverter should be upside.

/\ WARNING “Choose installation location carefully and adhere to specified cooling requirements. Micro-inverter should be installed in a suitable position with good ventilation and no directly sunshine.

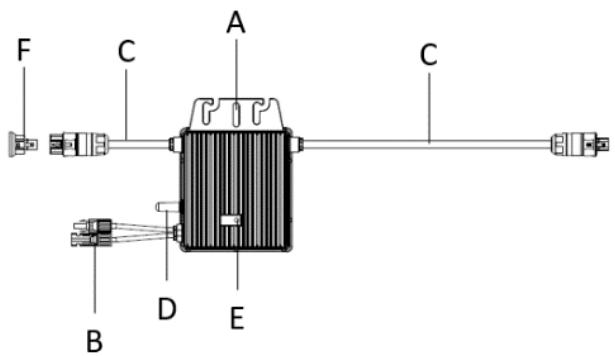

STEP 2: Electrical connection of the system Wiring diagram of each component MICRO-INVERTER A: Mounting Hole C:AC Cables E:Status LED Light B:DC Cables D : Antenna F: AC end cap SOLAR PANEL A: Female MC4 Connector B : Male MC4 Connector

Before Electrical connection: Check the Installation Environment and Position. When choosing the position of installation, comply with the following conditions: < To avoid unwanted power derating due to an increase in the internal temperature of the inverter, do not expose it to direct sunlight. < To avoid overheating, always make sure the flow of air around the inverter is not blocked. < Do not install in places where gasses or flammable substances may be present. < Avoid electromagnetic interference that can compromise the correct operation of electronic equipment. < It's recommended to install microinverter on structures underneath the photovoltaic modules so that they work in the shade. < Use a mobile phone to check the Wi-Fi signal strength at the installation position. If the Wi-Fi signal is bad, try to install the microinverter at another position or move the Wi-Fi router. A DANGER “Before installation, check the micro-inverter to ensure absence of any transport or handling damage, which could affect insulation integrity or safety clearances. ‘Unauthorized removal of necessary protections, improper use, incorrect installation and operation may lead to serious safety and shock hazards or equipment damage. -Be aware that installation of this equipment includes risk of electric shock.

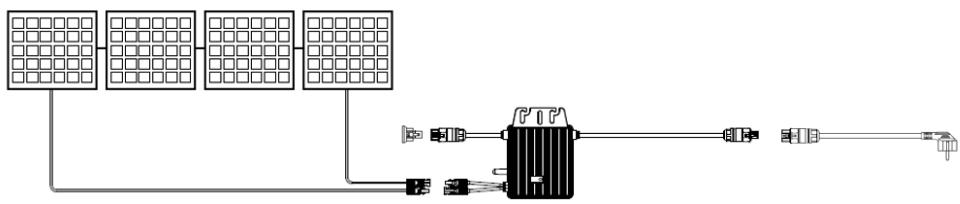

Optimal wire connections Connection in 1 line (uisiui] Ennnnn] [ERRO0S] [RERREN ESS bonne] |ponooo| bobo) ja0con

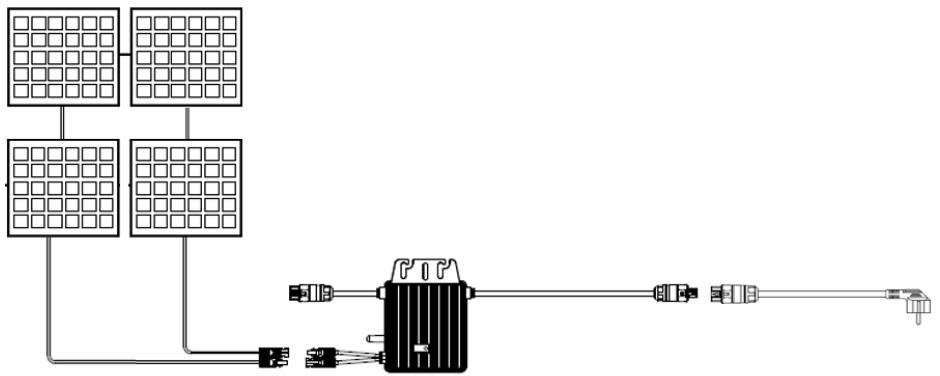

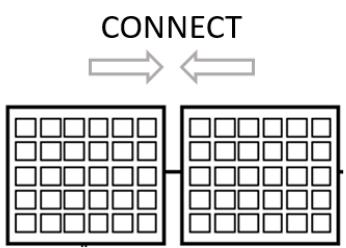

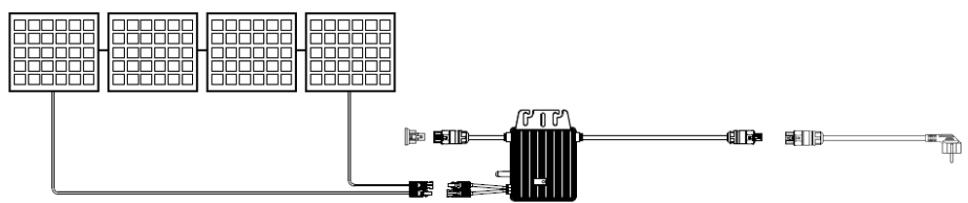

bonone||concs||boboco||È0co0 Eooooo| (poSoo| [pos] [s0con BB —©< 7) Connection in 2 lines Ge SUIS a: O Connect the DC cables of Connect the DC cable of the panels between them the panel at the end of the system to the microinverter. CONNECT [a] [a] [a] [a] [a] [al

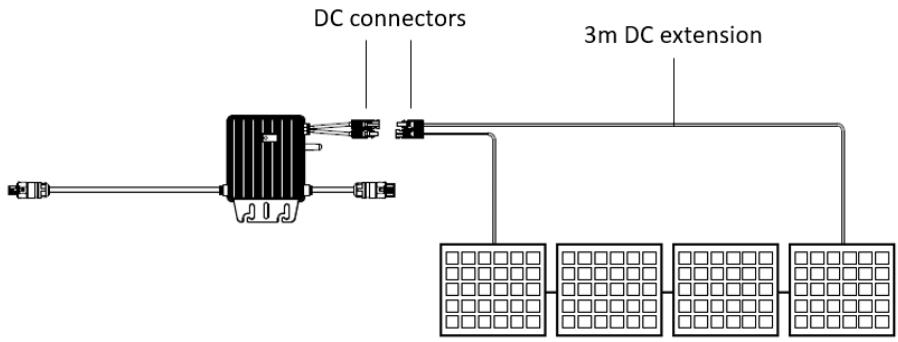

DC connectors 3m DC extension NAN GER -When the photovoltaic array is exposed to light, it provides a DC voltage to the inverter. ÂÀ WARNING “Ensure that all DC cables are correctly wired and that none of the wires are pinched or damaged. -The maximum open circuit voltage of the PV modules included in this kit are designed to not exceed the specified maximum input DC voltage of the micro inverter. Do NOT use other component than ones provided in this kit. À cAUTION -Ifthe DC cable is too short for installation, use a DC Extension Cable to connect PV modules to the microinverter. ‘Use MC4 compatible DC connectors in the inverter side of DC extension cable, included in this kit. Contact aftersales service for the requirements of DC connectors in the module side of DC extension cable in case of needed.

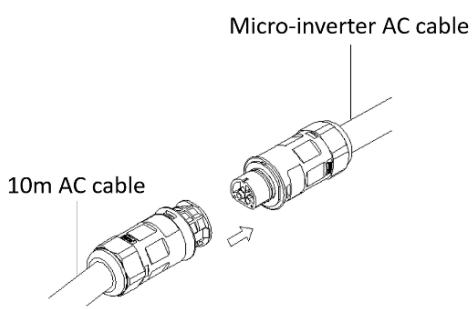

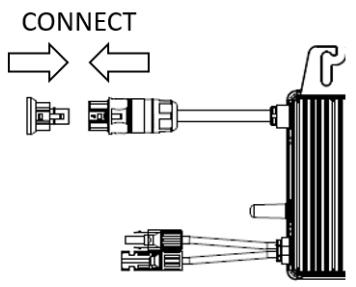

9 Plug the AC cable Use a Waterproof Connector connector to the micro Protective Cap to make sure inverter. the unuse d AC connector to be Push in cable until it locks in. closed. Micro-inverter AC cable CONNECT

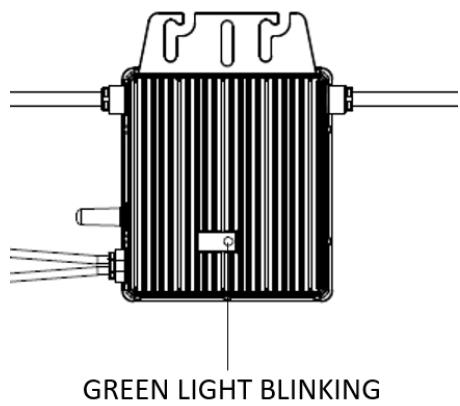

Step 3. Start the System Oconnect the AC cable plug to the 230V house socket. Your system will start The LED will flash green and producing power after red at start up. about a two-minute wait time. If your micro-inverter is clicking in green color - the connection is well done and the production of electricity already started!

The definition of LED light signals is shown as below : Status Indicates Solutions Your installation Flashing Green (0.2-0.8)| Working normally .. generates electricity Flashing G 0.2- ashing Green ( WiFi abnormally |Verify the wifi connection 3.8) . . Verify the electrical Flashing Red Working abnormally : connections . Refer to troubleshooting Solid Red Fault section below

5. Configuration of the micro-inverter and the

app The microinverter will directly connect the router (Wi-Fi Version). Users can use the Talent APP to monitor the microinverter. Visit “Google Play” or “Apple Store” and “Talent Home”. Download and install it in the mobile phone.

Talent Home Register a new account in Talent Home. Scan the QR code below to find the latest User Guidance of Talent Home.

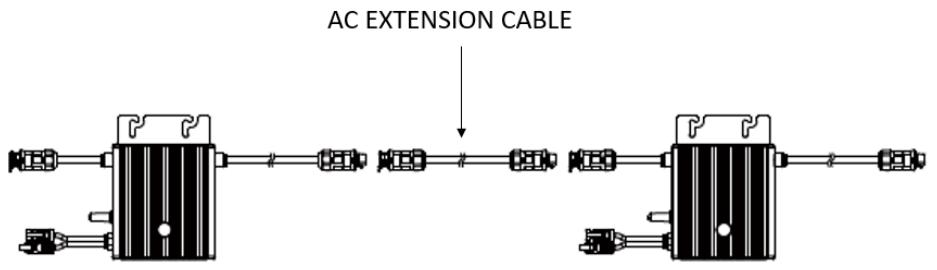

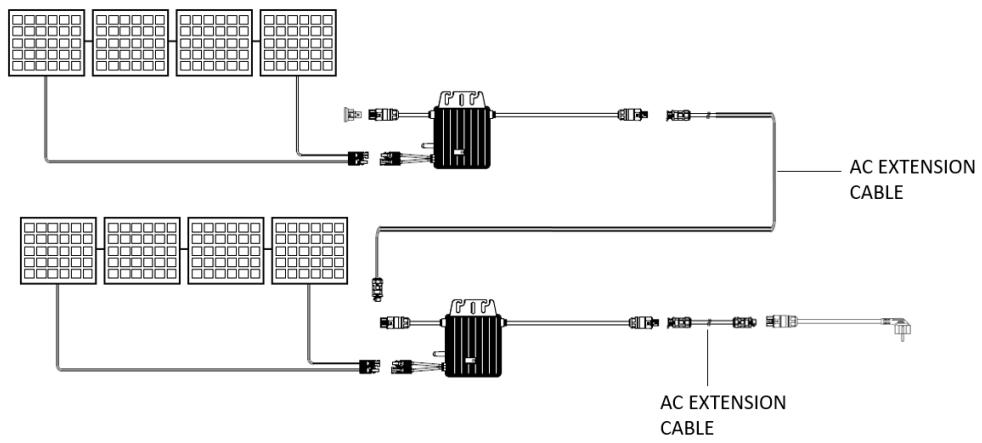

It is possible to connect 2 kits maximum in serie. The connection of 2 kits in serie requires an AC extension cable (not included).

The ADEME guide for the installation of plug & play self- AN consumption kits recommends not exceeding 900W per standard socket circuit in accordance with current electrical standards (socket circuit wired in 2.5mm2 copper and protected by a 20A thermal circuit breaker) to avoid thermal overload. The distance between every two micro-inverters should meet the length of AC cables. The length of each AC cable should not exceed 1.4 m. FRE [ARR [ER RREN (ER nRES]

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table: Solution Reason Check that there is Problem Power failure no power failure Incorrect electrical Check that cables are correctly microinverter connection connected No electricity Micro-inverter or solar panel Contact aftersales production is damaged department u : Move the installation Insufficient sunshine : : to a sunnier location Installation is not connected Plug the installation to the household electrical to the house socket system Solid Red LED Contact aftersales light on Fault department If you have any questions, please contact our customer service department at sav@market-maker.fr.
