USER MANUAL IC 60 3MP X 343C VALBERG

WARRANTY CONDITION This product is guaranteed for a period of 2 years from the date of purchase* against any failure resulting from a manufacturing or material defect. This warranty does not cover defects or damage resulting from incorrect installation, improper use or abnormal wear of the product

*as shown on the sales receipt

Thanks! ng this VALBERG product. ommended by ELECTRO DEPOT, the VALBERG brand are easy to use, reliable and of an impe Thanks to thi use will bring Welcome to ELEC Visit our website: www.electrodepot.fr TRO DEPOT

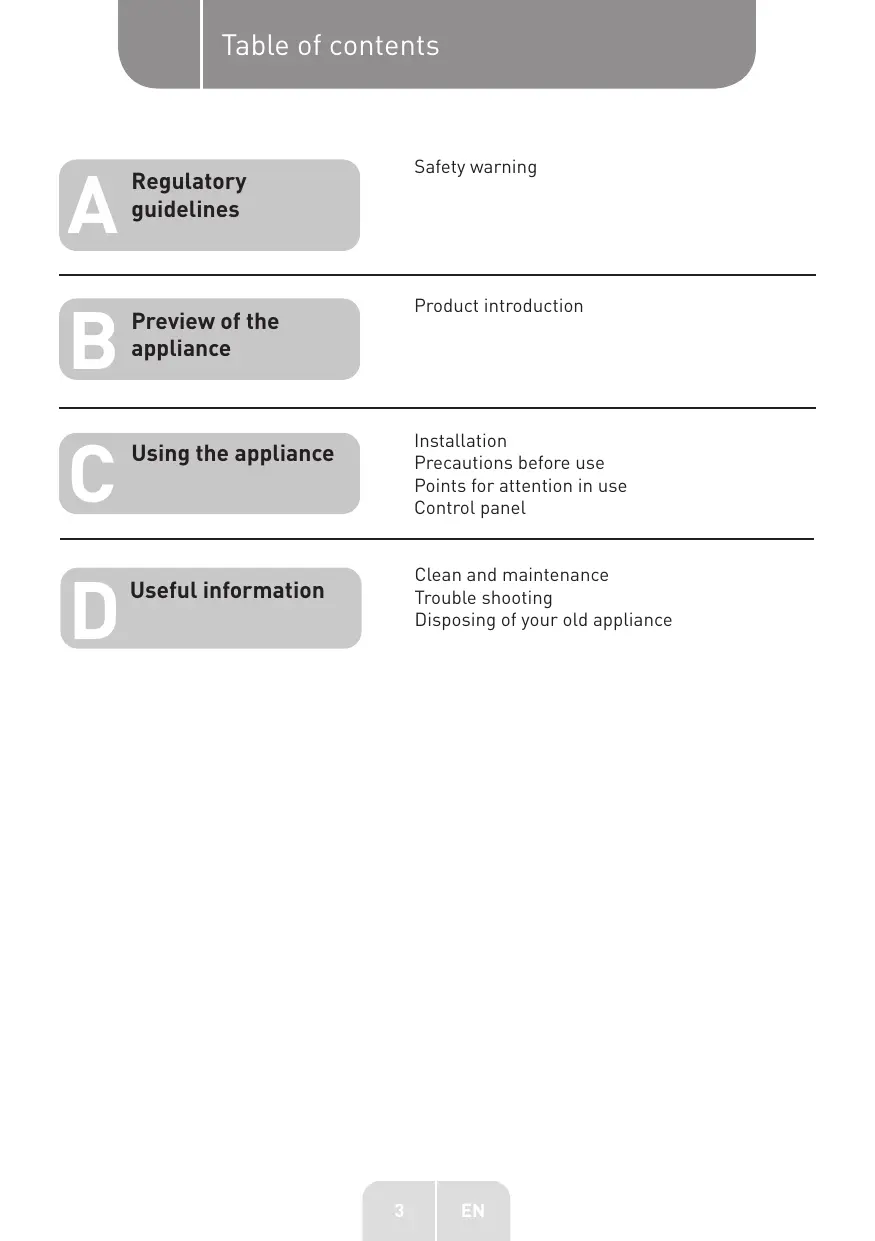

Table of contents Safety warning Product introduction Installation Precautions before use Points for attention in use Control panel Clean and maintenance Trouble shooting Disposing of your old appliance

Regulatory guidelines Safety warning + Thank you for choosing us! Please read all instructions before using this appliance. This book contains valuable information about operation, care and service. Keep it in a safe place for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with appliance in order that new owner can be acquainted with the functioning of the appliance and relevant warnings. + These warnings are provided in the interest of safety. Please read them carefully before installing or using the appliance. + To maintain the EFFICIENCY and SAFETY of this appliance, we recommendi: - Call only the Service Centers authorized by store where you buy the cooker - Always use original Spare Parts ° This appliance is intended for non-professional use within the home. + Before using the appliance, read the instructions in this owner's manual carefully since you should find all the instruction you require to ensure safe installation, use and maintenance. Always keep this owner's manual close to hand since you may need to refer toit in the future.

Regulatory guidelines + After remove the packing, check that the appliance is not damaged. lf you have any doubts, do not use the appliance, contact your nearest Service Centre of the store where you buy the appliance Never leave the packing components {plastic bags, foamed polystyrene, nails, etc.) within the reach of children since they are a source of potential danger. + The appliance must be installed only by a qualified person in compliance with the instructions provided. The manufacturer declines all responsibility for improper installation which may harm persons and animals and damage property. + Check that the electrical capacity of the system and sockets will support the maximum power of the hob, as indicated on the rating label. If you have any doubts, call in a qualified technician. ° This appliance may be used by children of 8 years and over, and by people with reduced physical, sensory or mental capacities or without prior experience or knowledge, if they are properly supervised or if they have been given instructions on how to use the appliance safely and are aware of the risks involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children who are unsupervised. ° The electrical safety of this appliance can only be guaranteed if the cooker is correctly and efficiently earthed, in compliance with current regulations on electrical safety.

Regulatory guidelines Always ensure that the earthing is efficient; if you have any doubts call in a qualified electrician to check the system. The manufacturer declines all responsibility for damage resulting from a system which has not been earthed. + When the cooker is first used an odour may be emitted, this will cease after a period of use. When first using the cooker, ensures that the room is well ventilated (e.g. open a window or use an extractor fan] and that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any moisture absorbed by the insulation. + Ensure that the appliance is switched off before maintenance, by switching off the main switches and turning all knobs to “ D” position. + The openings and slota used for ventilation and dispersion of heat on the rear and below the control panel must never be covered. ° The user must not replace the supply cable of this appliance. lfthe power cable is damaged, it must be replaced by the manufacturer, its after-sales department or similarly qualified persons to avoid any danger.

Regulatory guidelines + Always switch off the electrical supply to the cooker and allow it to cool down before carrying out any cleaning operations etc.

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. + This appliance must be used for the purpose for which it was expressly designed. Any other use is considered to be improper and consequently dangerous. The manufacturer declines all responsibility for damage resulting from improper and irresponsible use. + À number of fundamental rules must be followed when using instructions. The followings are of particular importance: - Do not touch the appliance when your hands or feet are wet. - Do not use the appliance barefooted. - Never allow the Mains Cable to be stretched, pulled or damaged if the cooker is moved for cleaning etc. - Do not use the cooker if the Mains Cable is damaged, consults a qualified electrician. - Do not allow the cooker to be used unsupervised by children or persons unfamiliar with it. - Do not grill to open the door.

Regulatory guidelines + To avoid accidental spillage do not use cookware with unevenor deformed bottoms on the burners or on the electrical plates. + Use the pan to be extra careful, especially when heating oil, to someone to watch, to avoid fire accidents. + Parts of this appliance, cooking surfaces, retain heat for considerable periods after switching off. Care should, therefore, be taken when touching these areas before they have completely cooled down. + Never use flammable liquids such as alcohol or gasoline, etc. near the appliance whenit is in use. + When using small electric appliances near the hob, keep the supply cord away from the hot parts. + Make sure the knobs are in its “ @) ” position when the appliance is not in use. Also make all potentially dangerous parts of the appliance, safe, above all for children who could play with the appliance. + When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away. e If you use the power code for single phase, the minimum cross-sectional area is émm?.

Regulatory guidelines + The appliance that you have bought may be slightly different from the one illustrated in this manual. Please refer to the information related to the model you have. - Do not use harsh abrasive cleaner or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. + Any spillage should be removed from the lid before opening and the hob surface should be allowed to cool before closing the lid. e CAUTION: If the surface is cracked, disconnect the appliance from the power supply to avoid the risk of an electric shock. {If the hob surface is of glass-ceramic or similar material and protects live parts.] + A steam cleaner is not to be used. + When in use, the appliance becomes hot. Care should be taken not to touch the heating elements inside the oven. ° The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Regulatory guidelines

Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. With a lid or a fire blanket. CAUTION: The cooking process has to be supervised. À short term cooking process has to be supervised continuously.

Danger of fire: do not store items on the cooking surfaces.

Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as use of inappropriate guards can cause accidents.suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. Prevention against possible fire risk!

The appliance and its accessible parts become hot during use.

Regulatory guidelines + Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. + Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. ° After use, switch off the hob element byits control and do not rely on the pan detector. ° The appliance must not be installed behind a decorative door in order to avoid overheating. + Means for disconnection must be incorporated in the fixed Wiring in accordance with the wiring rules. + Before activating the pyrolytic cleaning function, remove any residue and ensure that the oven is completely empty. Do not leave anything inside (dishes, baking tray, drip pan, slide rack etc.) as this could damage them. + Please refer to the next paragraph in the manual for instructions regarding the correct installation of the shelves and replacement of the lamp. + This product contains a light © source of energy efficiency Sn s 1 class G. The included light } T —> |: é source is not intended for use (y < (y in other applications.

Preview of the appliance Product introduction Product components © induction Cooker @ oven Door @ control Panel @ Adiustabte Feet © oven Door Handle Accessories + As the products and accessories are constantly upgraded, if there is any difference between the real object and the picture below, please refer to the real object. + Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly. Accessories included Your appliance is equipped with the following accessories: Wire Rack Baking Tray For ovenware, cake tins and ovenproof For tray bakes and small baked products. dishes. For roasts and grilled food. + You can use the tray to place liquid or cooking food with juice. + Only use original accessories. They are specially adapted for your appliance. + You can buy accessories from the after-sales service, from specialist retailers or online.

Le Preview of the appliance NOTE:

1. The accessories may deform when they become hot. This

does not aect their function.

2. Once they have cooled down again, they regain their

original shape. Put the shelves into the oven in the direction of the arrow. And horizontally insert until it is fixed.

C Using the appliance Installation + The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulations. IMPORTANT: Remember to disconnect the appliance from electricity by turn offthe mains before regulating the appliance or carrying out any maintenance work. Unpacking + Be careful when unpacking and installing the appliance. Sharp edges might cause accidents. + The oven is heavy and care must be taken when moving it. Ensure that all packing, both inside and outside the cooker, has been removed before the oven is used. + Unpack the oven from the carton, check and make sure it has not been damaged in any way. If you have any doubts, do not use it, contact the service center or where you buy the oven. Installation position IMPORTANT: The hob should never be installed in proximity of a door access. People opening and closing the door could come into contact with pots or pans cooking on the hob. This unit may be installed and used only in permanently ventilated rooms.

C Using the appliance Installation steps + The cooker is designed to fit between kitchen cabinets. The space either side need only be sufficient to allow withdrawal of the cooker for servicing. lt can be used with cabinet one side or both as well as in a corner setting. lt can also be used free-standing. + The appliances can be installed next to furniture units which are no taller than the top of the cooker hobs. If the cooker is placed touching walls or sides of neighboring cabinets, these must be capable of withstanding a temperature rise of 50 °C above room temperature. For a correct installation of the cooker the following precautions must be followed: - The cooker may be located in a kitchen, a diner or bed sitting room, but not in a bathroom or shower room. - Kitchen cabinets installed next to the cooker that are taller than the top of the cooker hobs must be situated at least 20cm from the edge of the hobs. - Hoods must be installed according to the requirements in the installation manual for the hoods themselves and in any case at a minimum distance of 65cm. - Place the wall cabinets adjacent to the hood at a minimum height of 42cm from the hobs as indicated in figure @. - The hoods must be installed according to the requirements in the hood handbook. - Should the cooker be installed beneath a wall cabinet, the latter should be situated at least 70cm away from the hobs as indicated in figure @. - The cut-out for the cooker cabinet should have the dimensions indicated in the figure @. - The wall in contact with the back of the cooker must be of flameproof material .

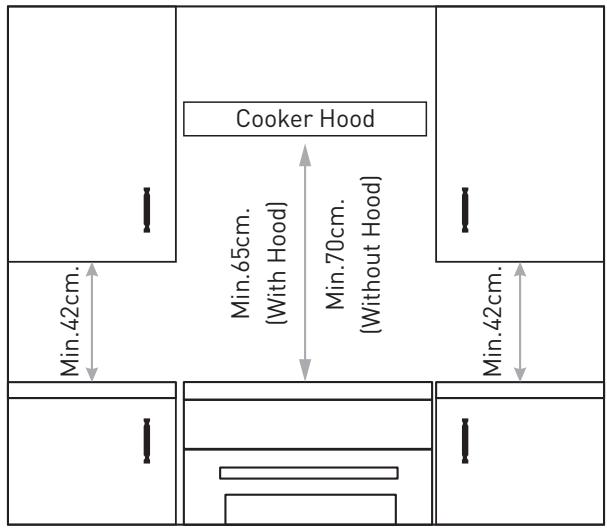

C Using the appliance Cooker Hood Min.70cm. ithout Hood) Min.65cm. {With Hood) Min.42cm. Min.42cm. Figure Q Leveling Your Appliance Take out of the 4 cooker feet from oven cavity, which be packed together with backing rack, and then screw them into the 4 plinth in lower part of cooker. These feet Level off the oven when necessary. The height of the cooker can be adjusted by means of adjustable feet in the plinth. Adjust the feet by tilting the cooker from the side. Then install the product into position. It is essential that the cooker be standing level before installation. Fitting the safety chain and hook To prevent the cooker from tipping forward, two Lengths of chain MUST BE fixed to the back of the cooker, which should be secured to the hooks provided at all times. The hooks should be secured to the wall at the rear of the cooker The chains should always be attached to the hooks when the cooker is in position against the wall. Fix the hooks into the wall immediately behind the cooker on both sides Secure the chain to the hook before using or cleaning the oven.

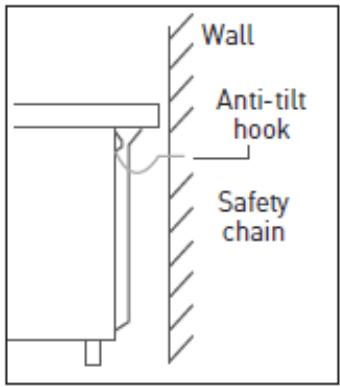

C Using the appliance Wall Hook Electrical connection

THIS APPLIANCE MUST BE EARTHED. Power supply voltage and frequency: 220-240V A.C.50Hz. The electric cooker without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating label. The cooker can be connected to the mains only after removing the back panel of the cooker itself with a screwdriver.

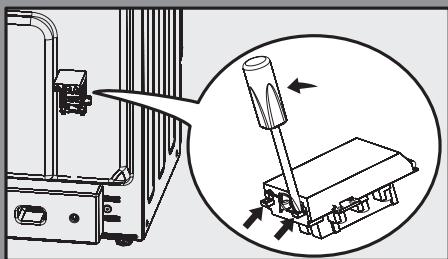

le] Using the appliance NOTE: The following installation procedure must be carried out by a qualified electrician. For the installation of the feeding cable carry out the following operations: - Open the terminal board by inserting a screwdriver into the side tabs of the power code cover.Use the screwdriver as a lever by pushing it down to open the cover as below. - Connect the electricity follows the diagram as printed in the surface of power code cover. - Fasten the supply cable in place with the clamp and close the cover of the terminal board.

C Using the appliance Precautions before use When use property your appliance is completely safe but as with any electrical product there are certain precautions that must be observed. Please read the precautions below befare using your appliance. + Turn controls (X) when you have finished cooking and when not in use. + Stand back when opening an cven door te allow any build up of steam or heat to disperse. + Use dry good quality oven gloves when removing items from the oven/grill. + Place pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot become heated by other hot plate/pans. + Take care to avoid heat/steam burns when operating the controls. + Turn off the electricity supply before cleaning and allow the appliance to cool. + Take care when removing items from the grill when the lower oven is on as the contents will be hot. + Keep the appliance clean, as a build up of grease or fat from cooking can cause a fire. + Follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth. + Keep ventilation slots clear o f obstructions. + Refer servicing to a qualified appliance service engineer. + Take care to avoid touching heating elements inside the oven, as during use the oven becomes hot. + Never line the interior of the oven with foil as this may cause the appliance to overheat.

C Using the appliance + Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during and after its use. + Do not allow children or persons who are not familiar with the appliance to use it, without supervision. + Do not allow anyone to sit or stand on any part of the appliance. + Do not place items on electrical appliances that children are trying to reach. + Do not leave anything on the surface of the hob when unattended or not in use. + Do not remove shelves while the oven is still hot. + Do not heat unopened food containers as pressure can build up and cause them to break + Do not store chemicals/foods or pressurized containers in or on appliances, or in cabinets above or next to appliances. + Do not place flammable or plastic items on or near the hob. + Don't put more than a third of the oil in the frying pan, and don't use LIDS. + Never use the appliance as a room heater. + Never use the grill to warm plates. + Never dry any items on either the hob or oven doors. + Never install the appliance next to curtains or other soft furnishings. Never use steam cleaners. + Safety advice in case of a chip-pan fire In the event of a chip pan fire or any other pan fire: - Turn OFF the cooker appliance at the wall switch. - Cover the pan with a fire blanket or damp cloth, this will smother the flames and extinguish the fire. - Leave the pan to cool for at least 60 minutes before moving it. Injuries are often caused by picking up a hot pan and rushing outside with it.

Using the appliance + Safety reminding: Caution, possibility of tilting Anti-tip restraints

In order to prevent tipping of the appliance, this stabilising means mustbeinstalled.Refertoinstructions forinstallation.

C Using the appliance Points for attention in use Instructions for the oven + When you're done, wear heat-proof gloves and remove food and accessories. + If food is cooking too fast, place it at the bottom of the baking pan. + Do not place cookware with rough bases on the oven door. + Ensure that there is at least 25mm space at top of oven when grilling larger foods or using tall cookware. + Do not place aluminum foi on the grilL. + When baking the thicker bottom, turn the food over during cooking to make sure both sides are cooked. + Please preheat the oven before cooking. + Put big or medium-sized portions in correct rack position under the grill heater for grilling. + For foods that only need to be baked on top, place the food on a wire grill on a tray or on a grill. + When the main oven is in use, food and dishes placed on the grill will be heated. Please do not touch attachments or food. + Do not place the food too far in the back of the grill. This is the hottest area and fatty food may catch fire.

C Using the appliance Tips for baking + Use non-sticky coated appropriate meta plates or aluminum vessels or heat-resistant silicone moulds. + Make best use of the space on the rack. + Place the baking mould in the middle of the shelf. + Select the correct rack position before turning the oven or grill on. Do not change the rack position when the oven is hot. + Keep the oven door closed{Main oven]. + Neve touch the hot burner, inner sections of the oven, heaters and etc. Keep children away. Always use heat resistant oven gloves when putting in or removing dishes into/from the hot oven. + Be careful when opening the oven door, as escaping steam could burn your hands, face, and eyes.

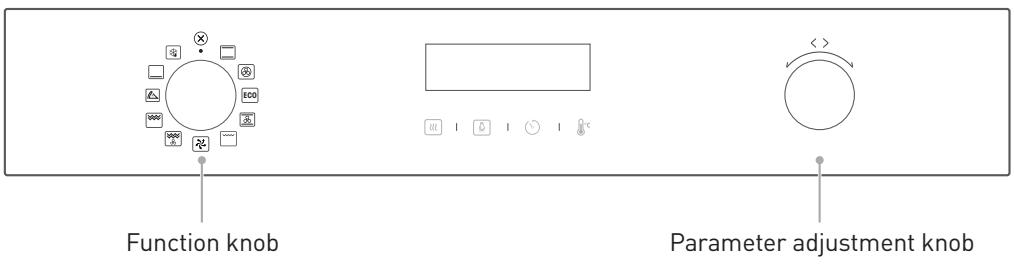

C Using the appliance Control panel

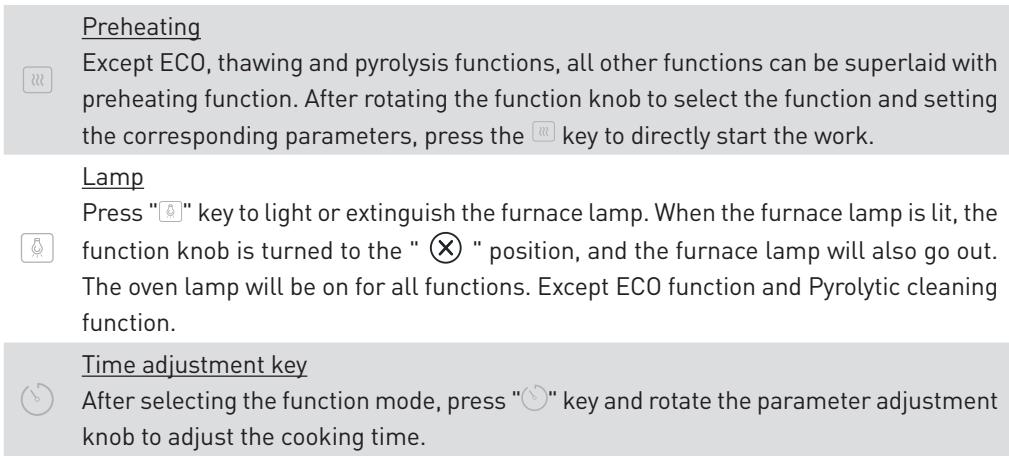

Function knob Parameter adjustment knob Operation steps: Automatically start cooking after © choose function 4 seconds @ Adiust the time or temperature Operation sample: + Rotate the function knob to select « [] » function. + Press « () » key to rotate the parameter adjustment knob to adjust time, press « ! » key to adjust temperature, and rotate the parameter adjustment knob to adjust temperature. + Automatically start cooking after 4 seconds. Icon parsing: Preheating Except ECO, thawing and pyrolysis functions, all other functions can be superlaid with preheating function. After rotating the function knob to select the function and setting the corresponding parameters, press the |‘ key to directly start the work. Lamp Press " function knob is turned to the “ () “ position, and the furnace Lamp will also go out. The oven Lamp will be on for all functions. Except ECO function and Pyrolytic cleaning function. Time adjustment key O After selecting the function mode, press “{ }" key and rotate the parameter adjustment knob to adjust the cooking time. "key to light or extinguish the furnace lamp. When the furnace Llamp is Lit, the

Function description Conventional: The top and bottom work together to provide convectional cooking. The temperature setting range is 50-250°C. Convection: An element around the convection fan provides an additional source of heat for convection style cooking. In convenction mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking. The temperature setting range is 50-240°C. ECO: Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom. Conventional+fan: Combination of the fan and both heating element provides more even heat penetration,saving up to30-40% of energy. Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temperature setting range is 50-250°C. Radiant heat: The inner grill element switches on and off to maintain temperature. The temperature setting range is 180-240°C. Pyrolytic function: This function is used to clean the furnace chamber. When starting the pyrolysis function, the LED displays «PYr». The default temperature is 450°C and the default time is 2 hours. Double grill + fan: The inner heating element and the outer heating element in the top of the oven are working with fan. It is suitable for grilling large amount of meat. The temperature setting range is 180-240°C. Double grill: The inner heating element and the outer heating element in the top of the oven are working. Suitable for grilling largerQuantities. The temperature setting range is 180-240°C.

C Using the appliance Icon Function description Pizza: This feature is used to bake pizza. The temperature setting range is 60-250°C. Bottom heat: À concealed element in the bottom of the oven provides a more concentrative heat to the base of food without browing. This is ideal O for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature setting range is 30-220°C. Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, [without the use of any heat]. It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc. ® Cancel (return to standby}: In the setting process, set the function knob selection to the « » position, and the standby state will be returned. Set up the clock Before cooking, follow these steps to set the clock! + In the standby state, press « (°) » key to enter the clock setting state, and set the hour ofthe clock through the parameter adjustment knob, press » key to confirm. + Set the minute bit of the clock by the parameter adjusting knob, press « (°) » key to complete the clock setting. NOTE: Press « :» key to modify the clock. The setting method is the same as steps 1 and 2. Pyrolytic Function + Inthe standby or clock running state, select the icon « the LED screen will display «PYr». » through the function knob, and + Press « (°) » to start the pyrolysis function.

Using the appliance NOT + When the oven door was not closed, pressing start button Will be invalid. The LED will display « door » and « Pyr ». + Before activating the pyrolytic cleaning function, remove any excessive spillage and make sure that oven is empty. Do not leave anything inside it (e.g. pans, baking tray, dripping pan, slider bracket etc.] as this could heavily damage them. + When finished pyrolytic cleaning, don't interrupt the power in an hour. + After starting the pyrolytic function, the surface of the ove may be hotter than usual and children should be kept away. e Pyrolysis function and induction cooker cannot be started at the same time. Fan delay protection function + The exhaust generator will work for 1 minute when the function is cancelled, paused or finished during the function operation. + In standby state, if the temperature is higher than or equal to 150 degrees, the high-row motor starts to work, and the temperature is lower than 150 degrees, the high-row motor shuts down. + In addition to the defrosting function and ECO function, the exhaust motor is always on during the operation of other functions.

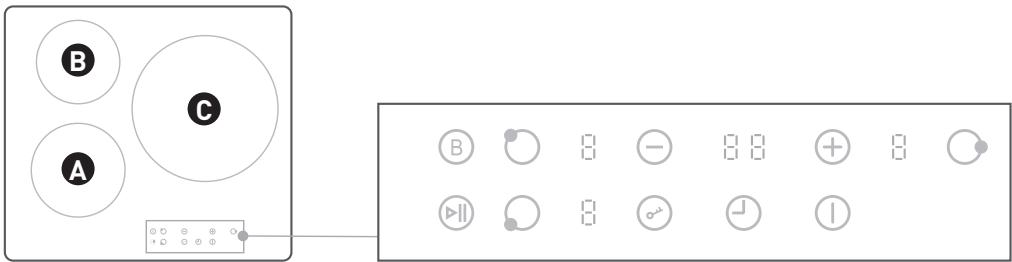

C Using the appliance Induction cooker

Operation steps: [1] Select the heating area [3] Adjust the heating time @ Sckectthe heating gear @ Start cooking Icon parsing: O O Cooking Zone B Cooking Zone À Cooking Zone C Size: 160mm Size: 180mm Size: 280mm Power: 1500W / 1800W (Boost) Power: 1800W /2200W (Boost) Power: 2500W / 3000W (Boost) (D) oN/oFF + Inthe standby state, press the « key, the buzzer beeps, induction cooker into the boot state. + In the boot state, 1 minutes without operation, buzzing, and then into the standby state. + During the working process, press the « (D) » key to close the heating area of the induction cooker. Press the « (1) » button again, the induction cooker into the boot state again. (E) BOOST + During the cooking process, press « (©) » key, after 5 minutes, the heating gear will change to 9. O ©) Parameter adjustment (@) Time adjustment key + After pressing «Heating Area», press « © » or « © » key to adjust the heating gear. + Press « () » to adjust the heating time by pressing « © » or « © » key.

C Using the appliance (©) Child lock + In standby or working state, press « (2) » key, digital tube display «Lo», enter the child lock mode. + Long press the « (2) » key for 3 seconds to exit the child lock mode in the child Lock state. (1) Start/Pause « Start or suspend the program. Induction cooker state + After entering the startup state, press the «Heating Zone Selection» button, the gear position of the selected heating zone «0» flashes for 5 seconds, and the induction cooker returns to the startup state without any operation within 5 seconds. Press « ©) » or « © » button within 5 seconds, and the fan will start running at the same time, and the digital tube will display «5». «5» represents the heating gear. + After the setting is completed, there will be no shifting operation within 5 seconds, and the heating area will start to work according to the set gear. Heating gear adjustment + Under normal working condition, the gear position of each heating area can be adjusted. Press <«Heating Area Selection» button, and then press « © » or « © » key to change the current gear position. After the adjustment, the gear position flashes for 5 seconds, and the heating area starts to work. + The gear adjustment is 0-9, the higher the number, the greater the power. Timing function + Under normal working condition, press « (!) » button after selecting the heating area that needs to be timed. + Press « © » or « © » to adjust the timing.Units digit can be adjusted between D and 9. + Long press « © » or « © » key, ten digit value can be adjusted between 0 and 9. + After the time is set for 5 seconds, the gear of the corresponding heating area flashes, indicating that the timing setting of the heating area is successful.

C Using the appliance Ifthe timing time is not set for the heating area, the default timing time is set (see the table below). Heating gear 1 2 3 4 5 6 7 8 9 Default timing (hours) 8 8 8 4 4 4 2 2 2 NOTE: When the heating zone is O, the setting timing is invalid. Automatic adjustment of heating gear 10 minutes after all heating areas are started simultaneously, the heating gear is changed to 8, after 15 minutes to 7, after 20 minutes to 6. On the hob anywhere + Glass ceramic surface is heatproof and is not affected by big temperature differences. + Do not use the glass ceramic surface as a place of storage or as a cutting board. + Use only the saucepans and pans with machined bottoms. Sharp edges create scratches on the surface. + Do not use aluminum vessels and saucepans.Aluminum damages the glass ceramic surface Use only the saucepans and pans with flat bottoms. They ensure easier heat transfer. Spills may damage the glass ceramic surface and cause fire

• Do not use vessels with concave or convex bottoms.

C Using the appliance Ifthe pot's diameter is too small or the lid doesn't fit, energy is wasted Safety requirements for deep fat frying + Use a deep pan, large enough to completely cover the appropriate heating area. + Never fill the pan more than one-third full of oil. + Never leave oil or fat unattended during the heating or cooking period . + Never try to fry too much food at a time, especially frozen food. This only lowers the temperature of the oil or fat too much, resulting in greasy food. + Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods, in particular, will cause frothing and spitting, if added to quickly. + Never heat fat, or fry, with a lid on the pan. + Keep the outside of the pan clean and free from streaks of oil or fat.

Lo Useful information Clean and maintenance Whole machine clean + Disconnect the power supply before cleaning and maintenance. In order to ensure the life of the machine, it should be thoroughly cleaned frequently. Cleaning steps are as follows: - Once the oven has cooled, clean up the crumbs. - Remove oven accessories, rinse with warm water and dry. - Wipe the oven and induction cooker with a soft cloth stained With detergent, then dry with a dry soft cloth. NOTE: - Do not use sharp cleaning tools, hard brush and corrosive cleaning products, so as not to damage the machine and its accessories. - Do not use rough scrubbing agent or sharp metal spatula to clean the door glass.

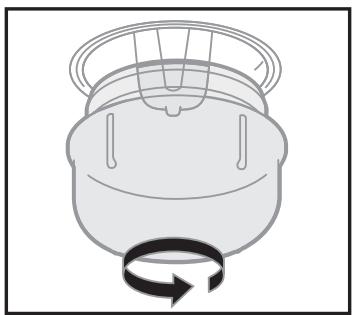

Lo Useful information Oven Lamp replacement + Switch off and disconnect the power from the oven. Ensure that the internal parts are cool before touching internal parts. + Remove the lamp cover by turning it counter-clockwise (note, it may be stiff), replace the bulb with a new one of the same type. ° Insert the new bulb, which should be resistant to 300°C. For replacement bulbs contact your local service centre. e Re-fit the cover. e lfin any doubt, consult a qualified electrician for help.

To avoid electric shocks-please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. before removing the Llamp lens.

Useful information Trouble shooting Trouble shooting When you encounter the following conditions, your machine may not have a problem If there is any other exception or code, please contact the after-sale service center. Problem Slight odour or small amount of smoke when using the cooker for the first time Nothing Works Oven does not cook eventy Hotplates are slow to boil or will not simmer Grill keeps turning on and off Condensation on the wall at the rear of the cooker Steam / Condensation in the oven after use + This is normal and should cease after a short period. + Is the main cooker wall switch turned on? There may be no electricity supply. + Check that the containers being used in the oven allow sufficient air flow around them. + Check that the cooker is Level. + The hob surround can be cleaned with warm soapy water and a cream cleaner, such as Cif. The sealed hotplates should be cleaned regularly. + When the grill control is operated at a setting Less than maximum, this is normal regulator operation, not a fault. + Steam and/or condensation may appear from the vent at the rear of the appliance when using an oven particularly for foods with a high water content e.g. frozen chips, roast chicken etc. This is normal and any excess should be wiped off. + Steam is a by-product of cooking any food with high water content. This is normal and could be clean when regular cleaning of cooker.

Useful information Disposing of your old appliance

RECYCLING ELECTRICAL AND ELECTRONIC WASTE

This appliance bears the WEEE (Waste from Electrical or Electronic Equipment] symbol, which means that, at the end ofits Life, it should be taken to your local recycling centre and not disposed of with household waste. Waste recovery helps preserve our environment.

ENVIRONMENTAL PROTECTION - DIRECTIVE 2012/19/EU

To preserve the environment and health, electrical and electronic appliances must be disposed of at end-of-life according to specific rules and requires the involvement of suppliers and users. This is why your appliance, as indicated by the … symbol on the rating plate and on the packaging, should under no circumstances be disposed of in a public or private household waste bin. The user may take the appliance to public collection points which selectively sort waste to be recycled or reused for other applications in accordance with the directive.
