USER MANUAL TK361 TELEFUNKEN

SAFETY ADVICES AND WARNINGS

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.

• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

• STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
  ○ FARM HOUSES;
  O BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE OF ENVIRONMENTS;
  BED AND BREAKFAST TYPE ENVIRONMENTS.

• THIS APPLIANCE SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.

• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF THERE IS VISIBLE SIGNS OF DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN OR THE NEAREST AUTHORIZED SERVICE CENTER FOR EXAMINATION, REPAIR OR ELECTRICAL OR MECHANICAL ADJUSTMENT.
• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC

BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.

• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED OR SOLD BY THE MANUFACTURER MAY CAUSE INJURIES. THE APPLIANCE IS ONLY TO BE USED WITH THE BASE PROVIDED.
• THE APPLIANCE MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED TO THE MAIN SUPPLY.
• THE APPLIANCE MUST BE USED AND RESTED ON A STABLE SURFACE.
• WARNING: RISK OF INJURIES MAY OCCUR FROM MISUSE!
• THIS APPLIANCE SHALL NOT BE USED BY CHILDREN.
• THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• ALWAYS DISCONNECT THE APPLIANCE FROM THE SUPPLY IF IT IS LEFT UNATTENDED AND BEFORE ASSEMBLING, DISASSEMBLING OR CLEANING.
• WARNING: POTENTIAL INJURY FROM MISUSE.
• WARNING: AVOID SPILLAGE ON THE CONNECTOR.
• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP CUTTING BLADES, EMPTYING THE BOWL AND DURING CLEANING.

• BE CAREFUL IF HOT LIQUID IS POURED INTO THE FOOD PROCESSOR OR BLENDER AS IT CAN BE EJECTED OUT OF THE APPLIANCE DUE TO A SUDDEN STEAMING.

• SWITCH OFF THE APPLIANCE AND DISCONNECT FROM SUPPLY BEFORE CHANGING ACCESSORIES OR APPROACHING PARTS THAT MOVE IN USE.

• NEVER USE AND PUT YOUR HANDS INSIDE THE BOWL WHILE THE APPLIANCE IS PLUGGED IN. AVOID AT ALL COST TOUCHING THE SHARP BLADES WHEN THE APPLIANCE IS PLUGGED IN AND OPERATING.
• ALWAYS UNPLUG THE APPLIANCE FROM THE OUTLET WHEN NOT IN USE.
• ALWAYS UNPLUG THE APPLIANCE BEFORE REACHING INTO THE BOWL WITH YOUR FINGERS OR AN OBJECT SUCH AS THE SPATULA.
• ALWAYS UNPLUG THE APPLIANCE BEFORE PUTTING ON OR TAKING OFF ACCESSORIES.
• ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING.
• IF THE BLADES GET STUCKED, ALWAYS UNPLUG THE APPLIANCE BEFORE REMOVIDING THE INGREDIENTS THAT BLOCKING THE BLADES.
• EXTRA CARE SHALL BE TAKEN WHEN HANDLING THE SHARP CUTTING BLADES, EMPTYING THE BOWL, AND DURING THE CLEANING PROCESS.
• KEEP HANDS, LONG HAIR, CLOTHING, SCARF, TIES AS WELL AS SPATULA AND OTHER USTENSILS AWAY FROM THE TOP OF THE APPLIANCE DURING THE OPERATION TO REDUCE THE RISK OF INJURY AND/OR DAMAGE TO THE APPLIANCE.
• THIS APPLIANCE CAN ONLY BE USED WITH ITS PROVIDED STAND.
• ENSURE THE BOWL AND THE LID COVER ARE SECURELY LOCKED BEFORE OPERATING THE APPLIANCE.

• LET ALL THE LIQUIDS COOL DOWN BEFORE PUTTING THEM INTO THE MIXING BOWL OR BLENDER.

• DO NOT USE THE COVER TO START OR STOP THE APPLIANCE, ALWAYS USE THE SPEED VARIATOR.

• DO NOT FORCE THE SAFETY LOCKING SYSTEM TO AVOID ANY DAMAGE.
• DO NOT EXCEED THE MAXIMAL MARKING.
• DO NOT OPERATE YOUR APPLIANCE WHEN EMPTY.
• THE APPLIANCE MUST NOT BE IMMERSED.
• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
• REGARDING THE INFORMATION FOR OPERATING TIMES AND ACCESSORIES SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.
• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.
• NEVER IMMERSE IN WATER OR ANY OTHER LIQUID THIS APPLIANCE, ITS ELECTRIC PLUG AND CORD.
  FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION “CLEANING AND MAINTENANCE”.

SAFETY CAUTIONS

• THIS APPLIANCE MUST BE EARTHED.
• ENSURE TO CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.

• DO NOT LET THE SUPPLY CORD HANG OVER EDGE OF TABLE OR COUNTER.

• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER USE THE APPLIANCE OUTDOOR AND NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.

• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED TECHNICIANS IN ORDER TO AVOID A HAZARD. THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
• THE APPLIANCE IS NOT INTENDED TO BE OPERATED BY MEANS OF AN EXTERNAL TIMER OR SEPARATE REMOTE-CONTROL SYSTEM.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE OR THE APPLIANCE ITSELF.
• THE PLUG MUST BE REMOVED FROM THE SOCKET-OUTLET BEFORE THE BOWL IS FILLED WITH WATER OR LIQUID PREPARATIONS. TO ADD WATER, TURN THE APPLIANCE OFF USING THE SWITCH. NEVER FILL THE APPLIANCE UNDER RUNNING WATER.
• ALWAYS UNPLUG THE APPLIANCE BEFORE ANY CLEANING OPERATION.
• NEVER MOVE THE APPLIANCE WHEN IN USE.

STANDARDS

THIS APPLIANCE IS CONFORMED TO CURRENT DIRECTIVES AND STANDARDS.

SAFETY INSTRUCTIONS ON RECYCLING

The European Directive on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Imported by Vestel France, 17 rue de la Couture – 94563 Rungis CEDEX

This manual instruction is also available on the following website:

http://pieces-detachees.sogedis.fr/

C E

TABLE OF CONTENTS

DESCRIPTION 1

SET UP AND USE 2
Before first use. 2
Using the chopping bowl with its blades 2
Using the blender. 4
Using the juicer 5
Using the slicing discs 5
Troubleshooting 7

CLEANING AND MAINTENANCE 7

TECHNICAL INFORMATION 8

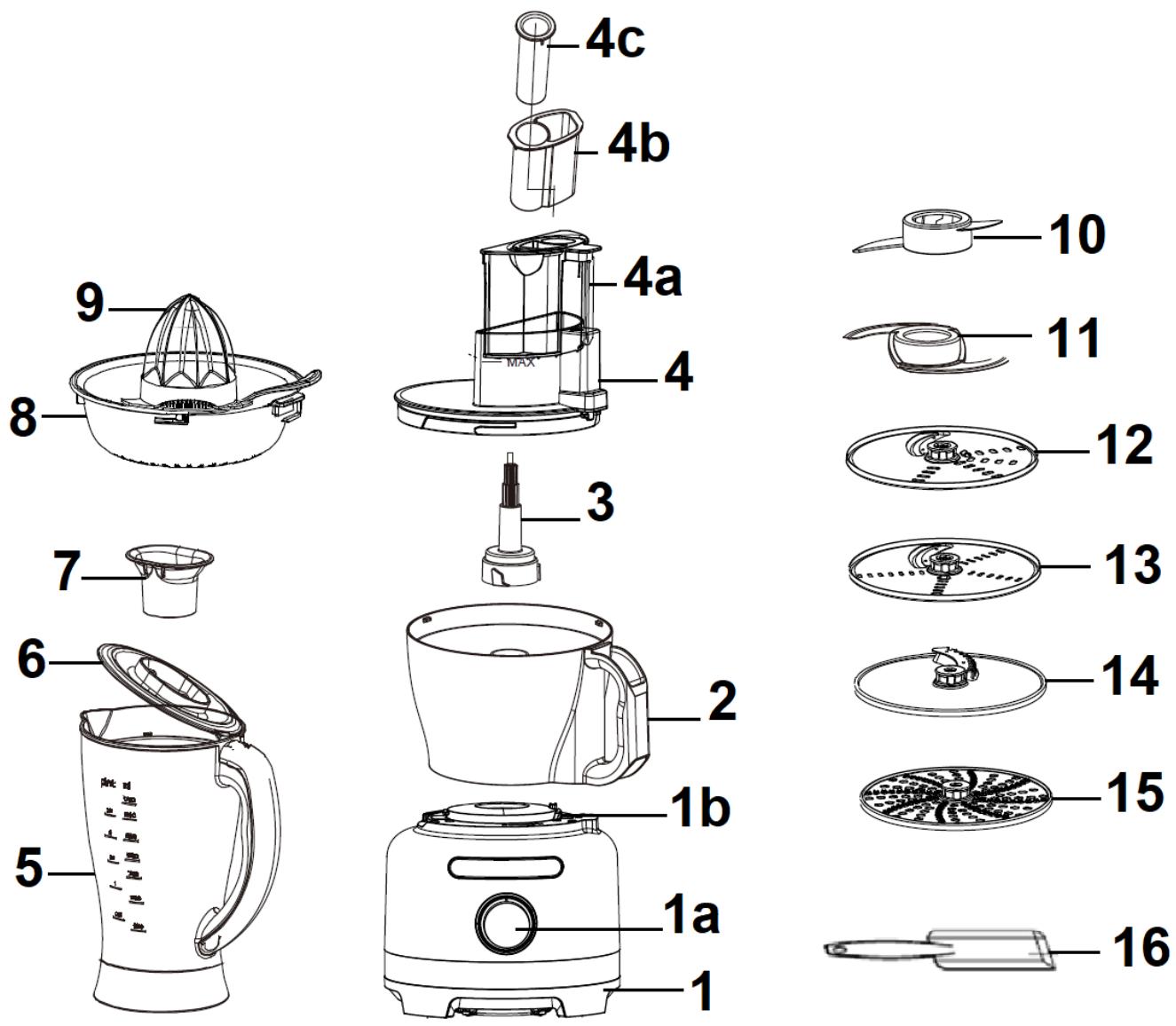

DESCRIPTION

1. Motor body unit

1a. Speed variator with Pulse function

1b. Safety lock system

1. Chopping bowl: 3L
2. Drive shaft
3. Chopping bowl cover with chimney

4a. Food pusher for big ingredients
4b. Food pusher for medium sized ingredients
4c. Food pusher for small ingredients

5.Blender:1.75L
6. Blender cover lid
7. Measuring cup for the blender cover lid
8. Citrus juicer filter
9. Citrus juicer runner

1. Mixing plastic blade
2. S/S chopping blade
3. Medium slicer & Julienne disc
4. Fine slicer & Julienne disc
5. French fries disc
6. Shredding disc
7. Spatula

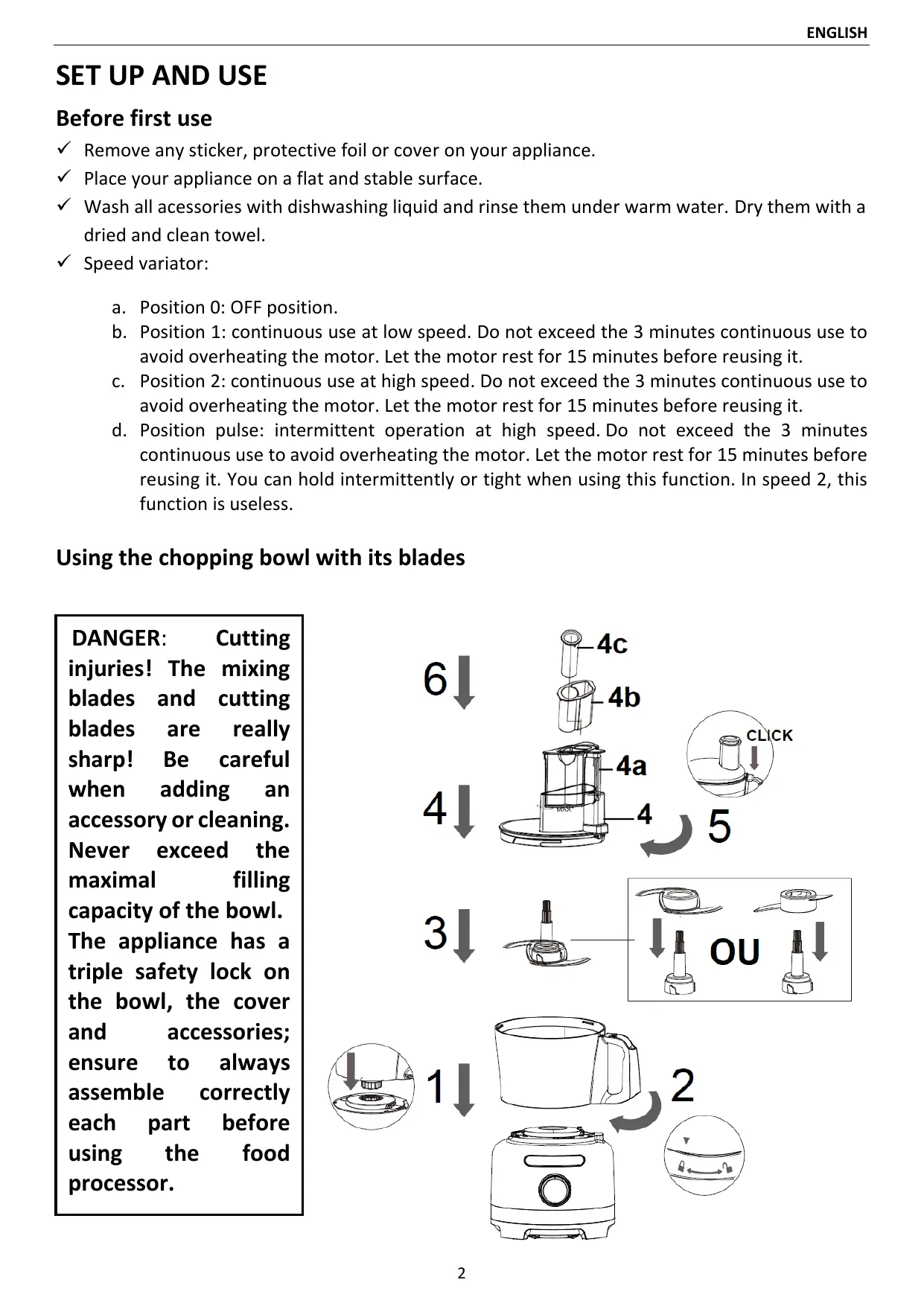

SET UP AND USE

Before first use

Remove any sticker, protective foil or cover on your appliance.
Place your appliance on a flat and stable surface.
Wash all accessories with dishwashing liquid and rinse them under warm water. Dry them with a dried and clean towel.
Speed variator:

a. Position 0: OFF position.
b. Position 1: continuous use at low speed. Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15 minutes before reusing it.
c. Position 2: continuous use at high speed. Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15 minutes before reusing it.
d. Position pulse: intermittent operation at high speed. Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15 minutes before reusing it. You can hold intermittently or tight when using this function. In speed 2, this function is useless.

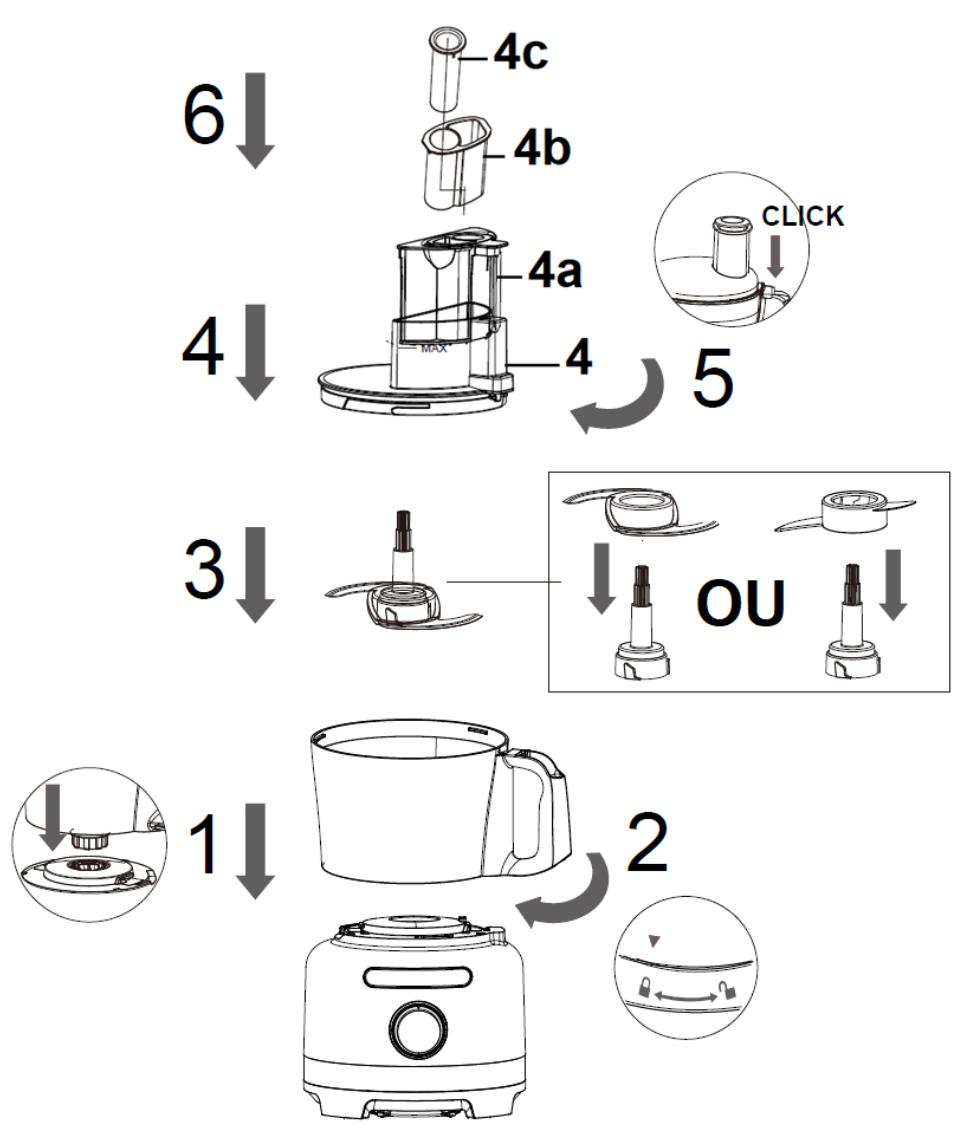

Using the chopping bowl with its blades

DANGER: Cutting injuries! The mixing blades and cutting blades are really sharp! Be careful when adding an accessory or cleaning. Never exceed the maximal filling capacity of the bowl. The appliance has a triple safety lock on the bowl, the cover and accessories; ensure to always assemble correctly each part before using the food processor.

1. Insert the chopping bowl on the motor body unit.
2. Turn the chopping bowl clockwise to safely lock it.
3. Set the drive shaft into the shaft of the chopping bowl.
4. Two options following your desired preparation:

a. Mixing and chopping

Insert the S/S cutting blade on the drive shaft inside the chopping bowl. Add ingredients as follows:

Blade	Max weight	Preparation	Speed	Time
N°11	500gr	Raw or cooked meats (cut in 2cm, boneless and unnerved)	2 or P	50 sec.
	1L	Soup, apple sauce	2 or P	40 sec.
	500gr	Vegetables (onions, celeris) cut	2 or P	1 min.

b. Mixing and kneading

Insert the mixing plastic blade on the drive shaft inside the chopping bowl. Add your preparation into the bowl as follows:

Blade	Max weight	Preparation	Speed	Time
N°10	700gr (flour & water total weight)	Heavy dough (bread)	1	1 min.
	1L	Light dough (cakes) or sauscs	1	40 sec.

1. Put the cover on the bowl then turn clockwise to lock it.
2. Insert the food tube pusher set (4a + 4b + 4c) into the chimney of bowl cover. You can always add ingredients during your prepping time by removing the food pusher.
3. Plug your appliance into a power socket.
4. Select your speed based on your recipe.
5. At the end of your preparation, follow these: stop and unplug your appliance, retrieve the chopping bowl from the body unit and retrieve the bowl cover.

IMPORTANT: Do not exceed the max weight. Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15 minutes before reusing it.

IMPORTANT: The pin of pusher 4c must be always inserted into the bowl to start its system, if not, the machine will not work.

Using the blender

DANGER: Cutting injuries! The mixing blades and cutting blades are really sharp! Be careful when adding an accessory or cleaning.

Never exceed the maximal filling capacity of the bowl.

The appliance has a triple safety lock on the bowl, the cover and accessories; ensure to always assemble correctly each part before using the food processor.

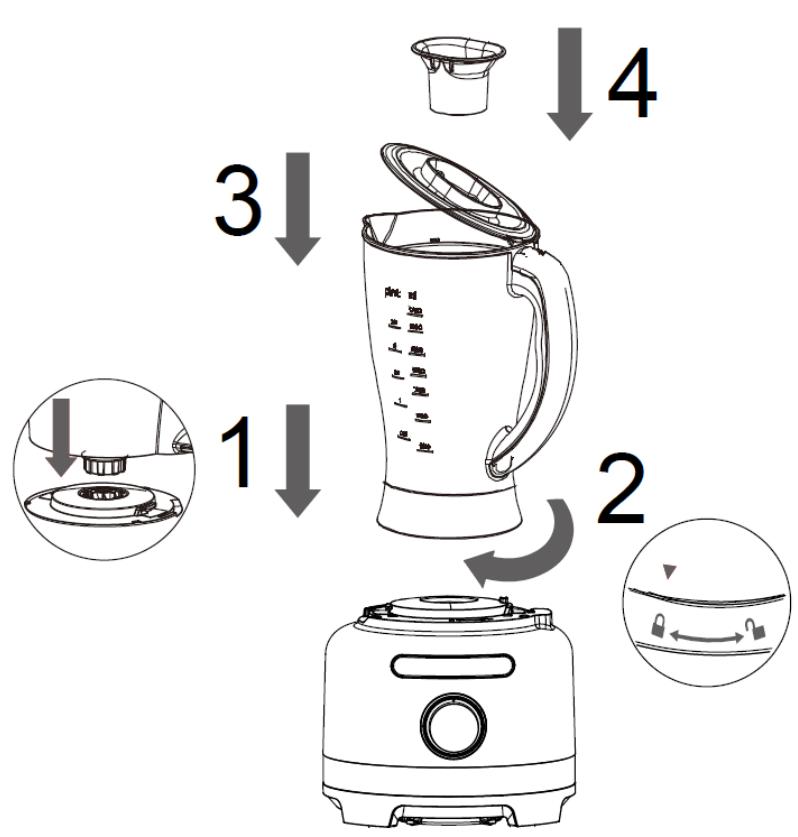

1. Insert the blender into its location and turn clockwise to safely lock it. Pour your preparation inside the blender.
2. Put the cover on the bowl and turn clockwise to safely lock it.
3. Insert the measuring cup into the cover.
4. Plug the appliance into a power socket.
5. Select your speed based on your recipe:

Max capacity	Preparation	Speed	Time
1L	Mix the cooked soup	2	1min. 30sec.
0.8L	Mix fruits and vegetables	1 and P	1min. 40sec.

1. At the end of your preparation, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note: You can always add ingredients during your prepping timer by removing the measuring cup. Do not forget to stop the appliance while doing so.

IMPORTANT: Do not exceed the 2 minutes continuous use to avoid overheating the motor. Let the motor rest for 10 minutes before reusing it.

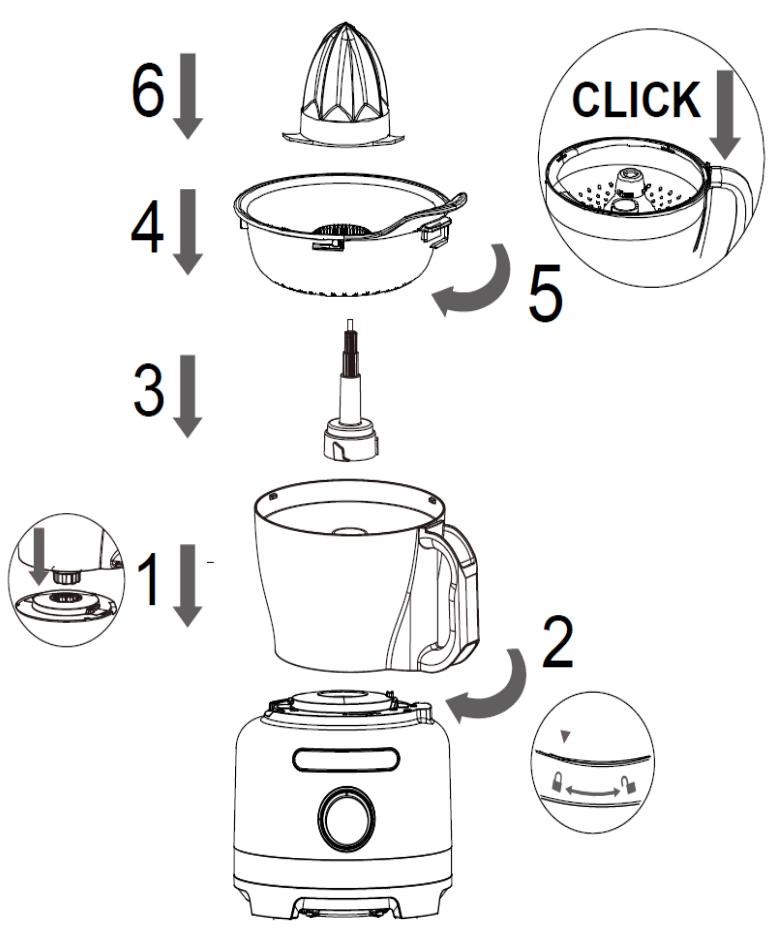

Using the juicer

1. Insert the chopping bowl on the motor body unit.
2. Turn the chopping bowl clockwise to safely lock it.
3. Set the drive shaft into the shaft of the chopping bowl.
4. Insert the juicer body into the bowl.
5. Turn the juicer filter clockwise until its locking position.
6. Plug the appliance into a power socket.
7. Put half of an orange on the runner, select speed 1 and press for 20 seconds.
8. At the end of your preparation, follow these: stop and unplug your appliance, retrieve the juicer from the bowl and retrieve the bowl from the unit.

Note: you can get 1L of juice without emptying the bowl. Think of rinsing the juicer filter every 0.3L.

IMPORTANT: Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15min. before reusing it.

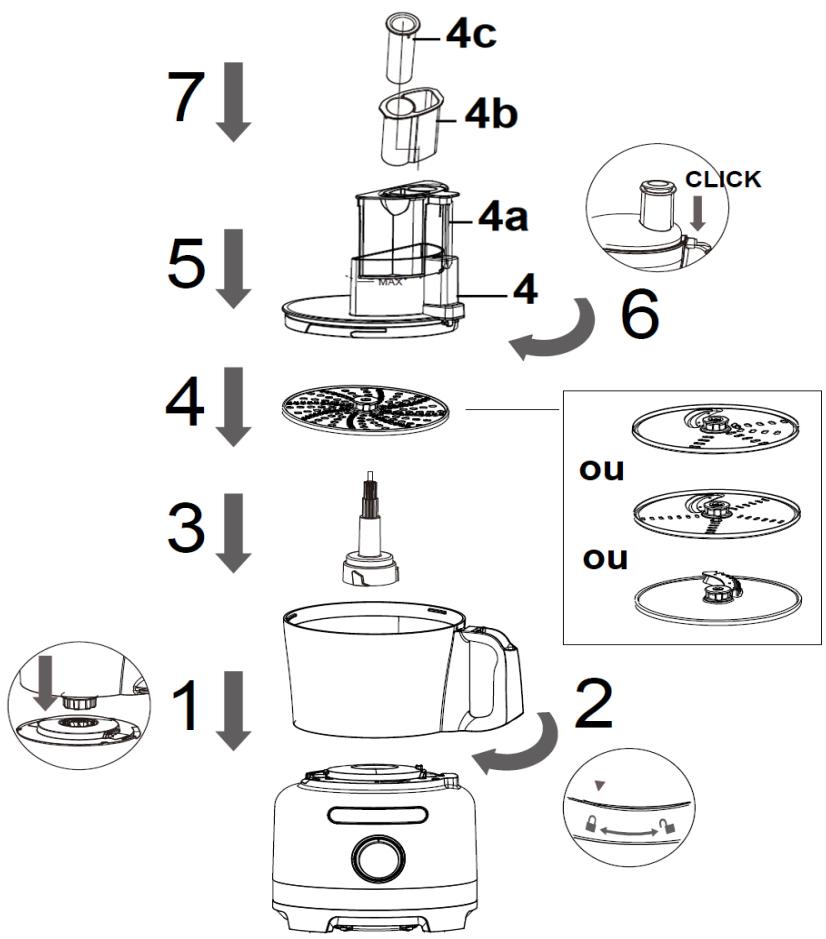

Using the slicing discs

DANGER: Cutting injuries! The mixing blades and cutting blades are really sharp! Be careful when adding an accessory or cleaning.

Never exceed the maximal filling capacity of the bowl. The appliance has a triple safety lock on the bowl, the cover and accessories; ensure to always assemble correctly each part before using the food processor.

1. Insert the chopping bowl on the motor body unit.
2. Turn the chopping bowl clockwise to safely lock it.
3. Set the drive shaft into the shaft of the chopping bowl.
4. Insert the selected disc on top of the drive shaft.
5. Put the cover on the mixing bowl.
6. Turn the cover lid clockwise to safely lock it.
7. Insert the food tube pusher into its location on the bowl cover.
8. Plug your appliance into a power socket.
9. Take out the food pusher, insert your ingredients into the tube feeder and push it with the food pusher. Do not exceed the max marking line on the chimney.
10. Select your speed based on your recipe: for slicing use speed 1 and for scraping use speed 2.
11. At the end of your preparation, follow these: stop and unplug your appliance, retrieve the mixing bowl from the body unit and retrieve the bowl cover.

Note: You can always add ingredients during your prepping timer by removing food pusher. For the reversible 2 in 1 discs (N°12 and N°13), set the discs with the notches on the top depending on your use (slicing or cutting).

IMPORTANT: Do not exceed the 3 minutes continuous use to avoid overheating the motor. Let the motor rest for 15min . before reusing it.

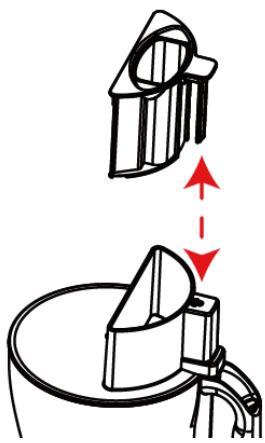

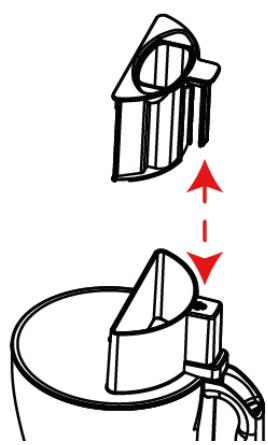

How to use the food pusher:

Food pushers type		Use	To be used with
4a. Big size ingredients pusher	The pusher 4a must be combined with the pushers 4b and 4c. Insert the ingredient into the chimney and push the ingredient with the 4a and 4c combined pusher 4a.	12 13 14
4b. Medium size ingredients pusher	Insert pusher 4a first into the chimney. Then insert the 4c into the pusher 4b to combine them. Insert the ingredient into the pusher hole 4a and push it with the 4b pusher combined with the 4c.	12 13 15
4c. Small size ingredients pusher	Combine pushers 4a and 4b, insert the assembly into the chimney. Insert the ingredient into the hole of the pusher 4b and push it with the pusher 4c.

IMPORTANT: The pin of pusher 4c must be always inserted into the bowl to start its system, if not, the machine will not work.

Troubleshooting

Issues	Causes	Solutions
The device does not work after plug in.	1. Accessories are not correctly assembled. 2. The cover lid is not correctly assembled.	1. Disassemble and reassemble the accessories. 2. Unplug the appliance and reassemble the lid.
Noise or abnormal vibrations during operation.	1. Squeaking / crackling noises. 2. Vibration of the motor, accessories. 3. The accessories are poorly assembled. 4. The appliance is not placed on a flat and stable surface.	1 & 2. This is normal: these sounds indicate that the ingredients are being mixed. 3. Unplug the unit and reassemble the accessories correctly. 4. Unplug the unit and place it on a flat, stable surface.
Discs do not grate or slice.	1. The holes of the discs are clogged.	1. Unplug the appliance, and remove the ingredients that obstruct the holes.
The device slows down or stops abruptly.	1. The motor overheating protection is activated. 2. Overflow of maximum capacity.	1. Turn off the unit, unplug it and let the appliance rest for 30 minutes. 2. Unplug the appliance and remove excess ingredients.

DANGER: Never repair yourself your appliance. Contact your after sales services or a qualified technician.

CLEANING AND MAINTENANCE

1. After using your appliance turn it off by setting the speed variator at 0.
2. Unplug your appliance from the power socket.

3. Ensure to always unplug your appliance before any cleaning operation. Never put the motor unit into the dishwashing or under the water.

Cleaning the body motor unit:

Clean the outer surface with a soft cloth (or sponge) on the surfaces of the appliance.
✓ Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance.

Cleaning the accessories:

The accessories (bowl, covers, blades etc.) could be put inside a dishwashing machine. Use the low temperature to avoid damaging the accessories.
- For the accessories not compatible with dishwashing machine, you can wash them with a sponge and dishwashing liquid and rinse them.
To take out the heavy, pour hot water with dishwashing liquid into the bowl and let it rest for 30 min. then use a brush to clean it.
✓ Do not use a hard brush or any others cleaners to avoid scratching or damaging the appliance.

TECHNICAL INFORMATION

Product	Food processor
Reference	TK361
Rated voltage	220V-240V ~ 50/60Hz
Rated power input	1000W
