USER MANUAL RAD-LD55100K UHD RADIOLA

• English Table of Content Getting Started Important Safety Instructions p. 40

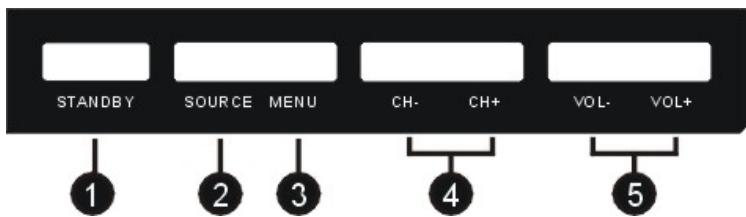

• Control Panel p. 45
• Connecting Cables p. 46
• Remote Control p. 49
• Base Installation p. 51
• Wall Mounting Instructions p. 52
• Operations First Time Installation p. 53

Schedule List 08:10 06 Jun

6 OPTIONS Engish English Engieh

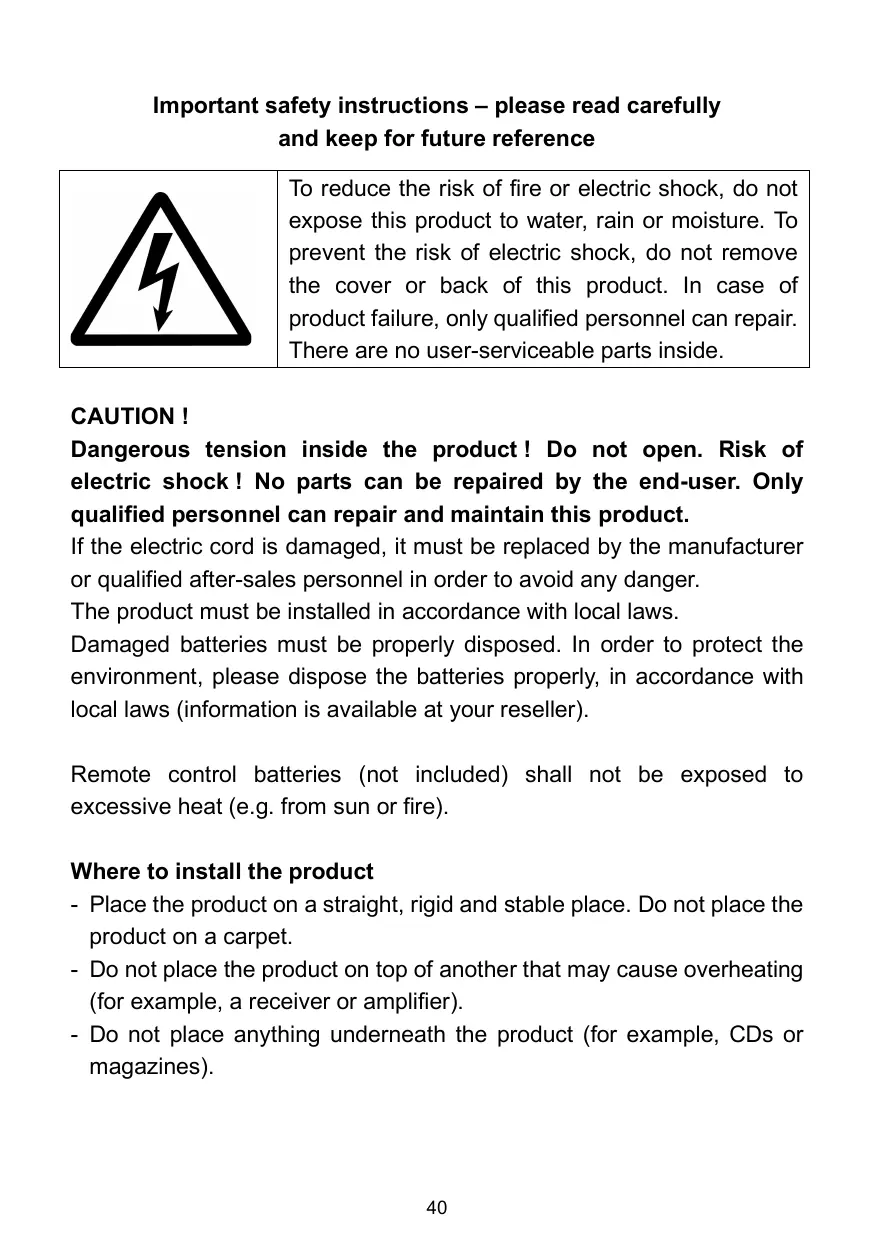

Important safety instructions — please read carefully and keep for future reference To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside. CAUTION ! Dangerous tension inside the product! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product. If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger. The product must be installed in accordance with local laws. Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire). Where to install the product - Place the product on a straight, rigid and stable place. Do not place the product on a carpet. - Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier). - Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation - Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating. - Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings. Do not expose the product to high temperatures, moisture, water and dust. - The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus. - Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles). - No naked flame sources, such as lighted candles, should be placed on the apparatus. Electric supply - Please unplug the product in case of prolonged non-use. - If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. - This product must be connected to an electrical supply 100-230V - 50/60Hz. - The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable - The use of apparatus in moderate climates. - The appliance must be connected to a power socket with ground connection.

WARNING Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - Using cabinets or stands recommended by the manufacturer of the television set. - Only using furniture that can safely support the television set. - Ensuring the television set is not overhanging the edge of the supporting furniture. - Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. - Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. - Educating children about the dangers of climbing on furniture to reach the television set or its controls. - In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions. EU Declaration of conformity This appliance is Television complies with the essential requirements and other provisions of Directive 2014/35/EU & 2014/30EU and the Radio Equipment Directive (RED) 2014/53/EU that goes into effect on 12 June 2016. The declaration of conformity is available on website: http://www.schneiderconsumer.com

Technical Specification: Name: Television Product Net Weight: 12.6Kg Operation Temperature: 0°C-35°C TV Reception System: DVB-T/T2 x - This logo set on the product means that the recycling of this apparatus comes within the framework of the directive == 2012/19/EU of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE). - The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product. - Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. - As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product. - You have the obligation to use the selective waste collection systems put in place by your local authorities.

Auto Standby In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode. Product Introduction Congratulations! You have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products! Accessories User manual x1 Remote control x1

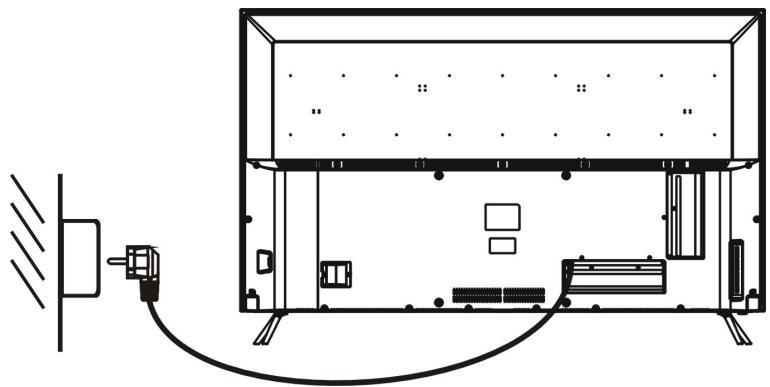

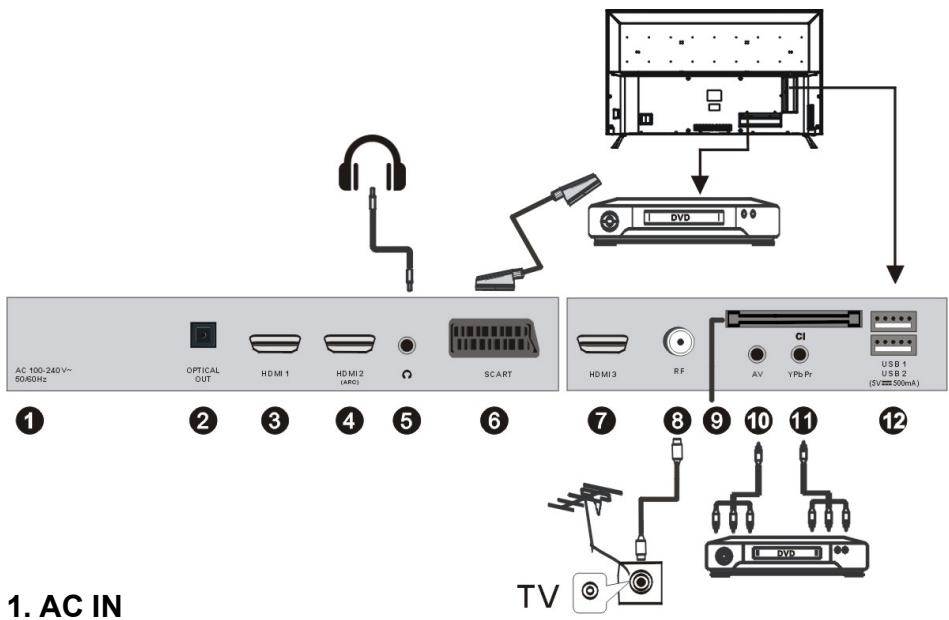

Connecting Cables Connecting to power source

1.The television is in standby state when no images arise and the red indicating lamp shines.

2. Press the standby button again on the remote control for the television

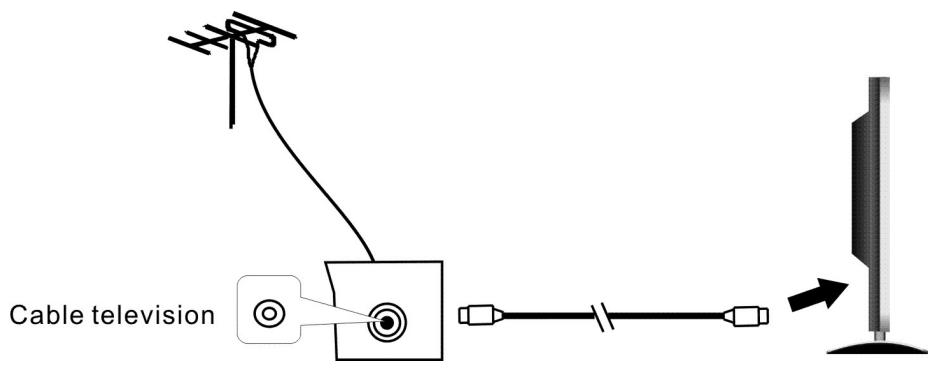

the indicating lamp becomes green. Connecting external antenna to the unit Cable television | © L® | +

We recommend you use a 75Q antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundied together with the power cord. Directly insert the 75Q antenna cable plug into the antenna socket when applying cable television. Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna. Connecting Cables This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio.

3. HDMI UHD: The HDMI port is compatible with the UHD resolution.

4. HDMI UHD / ARC: The HDMI port is compatible with resolution UHD

(Ultra High Definition, known as '4K'), 3840 x 2160. Also use the HDMI port to benefit from the ARC (Audio Return Channel) feature. With the

ARC, you can simplify the cable connections in your installation! If you have an ARC-enabled home theater, simply connect it to the HDMI port of this TV. From the home cinema, the picture and the sound of the video player will be transmitted to the TV; and vice versa, from the TV (DTV mode for example), the sound will be transmitted to the home theater, all in one cable.

7. HDMI UHD: The HDMI port is compatible with the UHD resolution.

8.RF IN: Connect to external aerial.

9. CI SLOT: Insert a CI (common interface) card.

10. AV INPUT: Connect to the left/right RCA video out connection of any

12. USB IN: Access multi-media files stored in the USB device.

(Note: compatible format includes: *.dat, *.vob, “ts, *.mpg , *.a vi, *.mkv, and *.mp4 for video, *.jpg for photo, *.mp3 for music. )

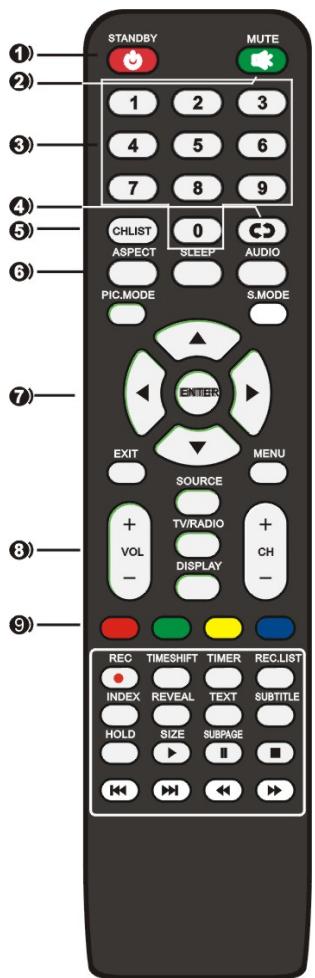

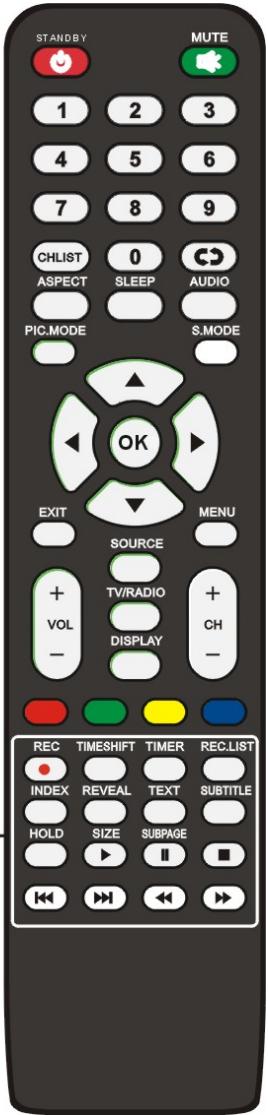

1-STANDBY: To turn the TV ON/OFF 2.MUTE: Mute the sound. 3.0-9: Input the number information, such as channel number and so on. 4.RECALL: Recall the last program you watched. 5.CH.LIST : Display a list for available channels. 6.ASPECT : Select available screen mode. SLEEP : Set desired sleep time. AUDIO : Select available sound-track. PIC.MODE : Switch the picture mode. S.MODE : Switch the sound mode. .A/W/4/» : Navigation buttons OK : Confirm selection. EXIT : Exit the menu page. MENU : Call out the main menu or return to previous menu. 8.VOL #/- : Increase/decrease the volume level. CH +/- : Play the next/previous program. SOURCE : Select desired input source. TV/RADIO : Switch the unit between TV and Radio. (Digital radio is not available in countries such as France.) DISPLAY :Display the available program information. RED \GREEN | YELLOW \BLUE: available in teletext, DVB-T and TV

Notes: The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be Shortened in direct sunlight or lamplight. Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

10. REC (for DTV mode only) :Start

RECORDING when watching available digital programs. TIMESHIFT (for DTV mode only): Start Time-shift when watching available digital programs. TIMER (for DTV mode only): Enter the menu of timer recording. REC.LIST : display the list of recorded programs. INDEX : Display the Teletext index. REVEAL : Hide or display some characters in Teletext. TEXT : Display available teletext.. SUBTITLE : Enable/disable subtitles in digital mode. HOLD : Hold the Teletext; SIZE : Switch Teletext size; SUBPAGE : Enter Teletext sub-page; > : Start playback in USB\Media mode. Il: Pause playback in USB\Media mode. # : Stop playing in USB\Media mode. « / » : Fast backward\forward in USB\Media mode. « / m : Play previous\next file in USB\Media mode. Prepare the remote control Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

1. Place the machine flat on a desktop (Caution: put a foam cushion

under the machine to avoid it from scratching.)

2. Align the screw holes on stand and TV bottom (Figure 2)

3. Fix the stand and the screen with 6pcs provided screws. (Figure 3)

4. The rendering after installed. (Figure 4)

°< Disassembly of the stand

1. Loose the screws between the machine and stand (Figure 1).

2. Remove the 2 stands from the machine (Figure 2).

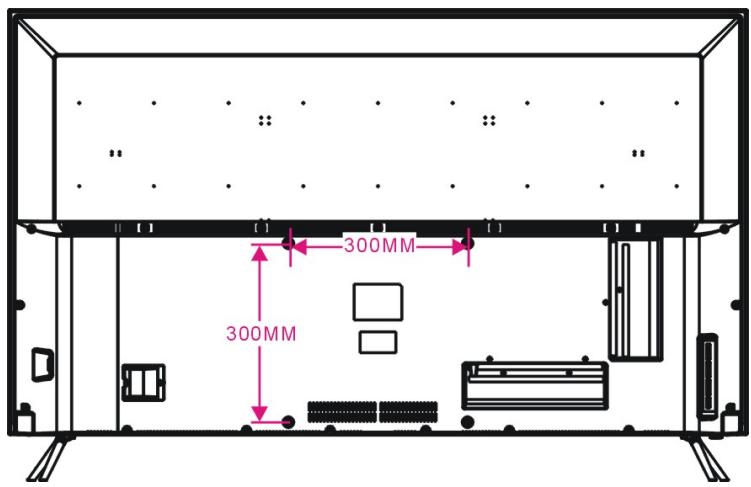

Wall Mounting Instructions e Use standard M6*14mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee. e Contact a professional technician for assistance when wall mounting your TV. + Do not wall mount the TV while TV is turned on. + _Refer to the instruction of your wall mounting bracket.

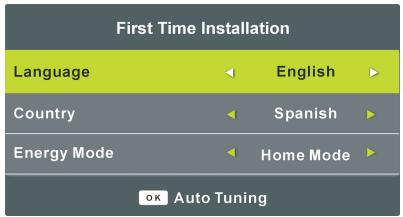

First Time Installation - Connect to power source and turn on this TV, welcome page will display on the screen. - Press LEFT/RIGHT/UP/DOWN navigation buttons on remote control to select an option. - Press OK button on remote control to confirm selection. Language: Select the on-screen menu language. Country: Select your country. If you do not find your country listed, select ‘Other’ Energy Mode: Select Home or Store mode. Tuning Setup - After completing the above selections, press the OK button to display Tuning Setup menu. First Time Installation Country Spanish Energy Mode Home Mode ES Auto Tuning Tuning Setup Digital Type Scan Type Network 1D Frequency Auto Symbol Rate Auto - Select the preferred Tuning Option using the navigation buttons and press the OK button to start auto tuning. Note: Scan Type and following tuning options are adjustable only when “Digital Type” is DVB-C.

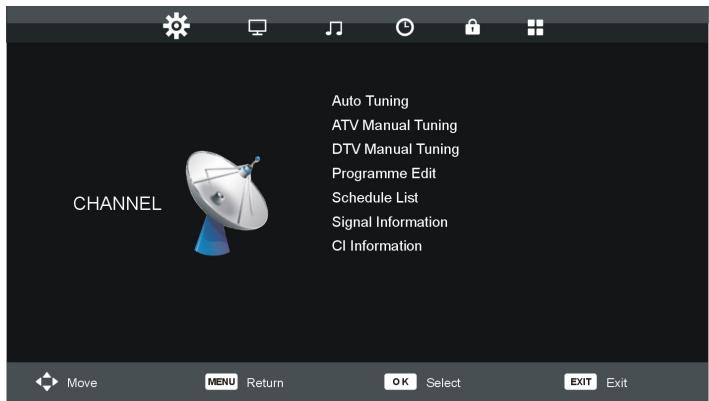

DTV MODE - Press SOURCE button on remote control to select DTV input source.

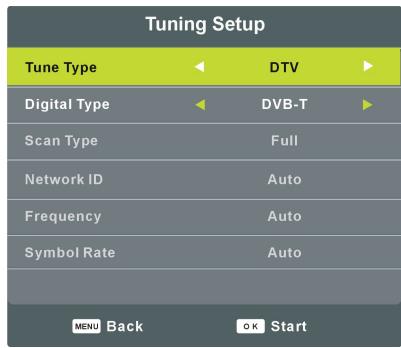

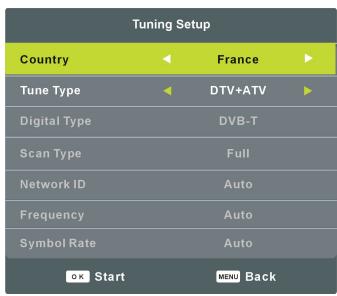

1.1 Auto Tuning Tuning Setup

- Press UP or DOWN navigation button to select this item, and then press OK button to aa EE —— - Select preferred Tune Type using navigation buttons and press OK button to start auto tuning. CRE œ Note: Scan Type and some other tuning options are adjustable only when “Digital Type” is DVB-C. Count F

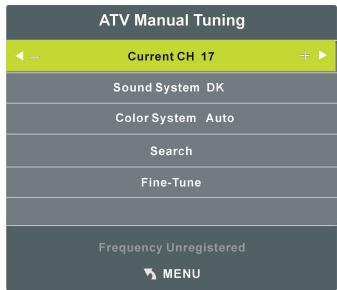

1.2 ATV Manual Tuning

- Press UP or DOWN navigation button to select Current CH +7 this item, and press OK button to enter it. - Press UP or DOWN navigation button to select D sm | the second option. sat ss - Press LEFT or RIGHT navigation button to adjust it.

- Press UP or DOWN navigation button to DTV Manual Tuning select this item, and press OK button to enter it. - Press LEFT or RIGHT navigation button to — select channel, then press OK button to start Gad Freg: 198.50 Mhz searching. Note: Menu and operations mentioned here will vary for DVB-T and DVB-C.

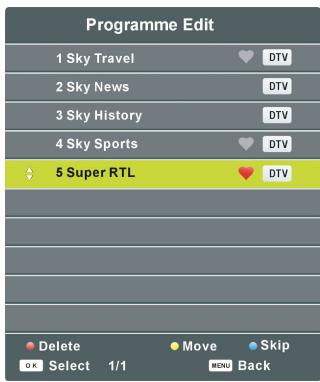

- Press UP or DOWN navigation button to select this item, and press OK button to enter it. 45 Sports C1] - Press RED button to delete current channel. : = - Press YELLOW button to move current channel. - Press BLUE button to skip current channel.

- Press UP or DOWN navigation button to select this item, and press OK button to enter it. If any programs are scheduled through Add menu (press YELLOW on remote control), below menu will appear. Schedule List Programme Tile Date

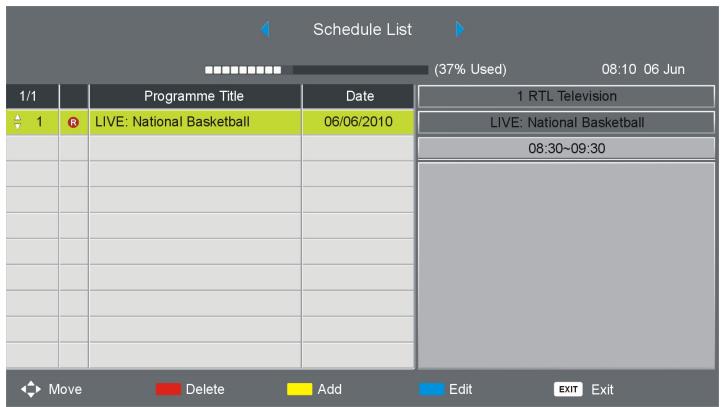

- Press LEFT/RIGHT navigation button to switch between Schedule List and Recorded List. - Press RED button to delete highlighted option. - Press YELLOW button to enter Add menu page. - Press BLUE button to enter Edit menu page.

1.6 Signal Information

- Press UP or DOWN navigation button to select this item, and press OK button to display signal details, including Channel Number, Frequency, Quality and Strength.

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

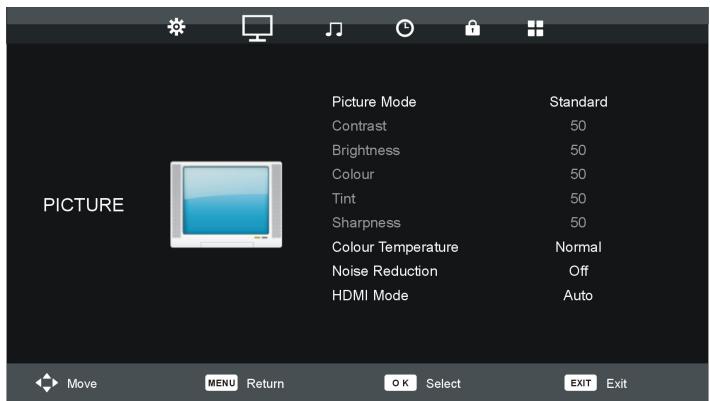

Available options: User, Dynamic, Standard, Mild. NOTE: The value of Contrast, Brightness, Colour, Tint and Sharpness is adjustable only when Picture Mode is “User”.

The value of contrast can be adjusted from 0-100.

The value of brightness can be adjusted from 0-100.

The value of colour saturation can be adjusted from 0-100.

The value of tint can be adjusted from 0-100. NOTE: This item is available only in NTSC system.

The value of sharpness can be adjusted from 0-100.

2.7 Colour Temperature

This item is used to adjust the optimum colour temperature for suitable viewing. Available options: Normal, Cool, Warm.

Available options: Off, Low, Middle, High, Default.

Select HDMI mode to fit external Device that connected. Available options: Auto, Video, PC.

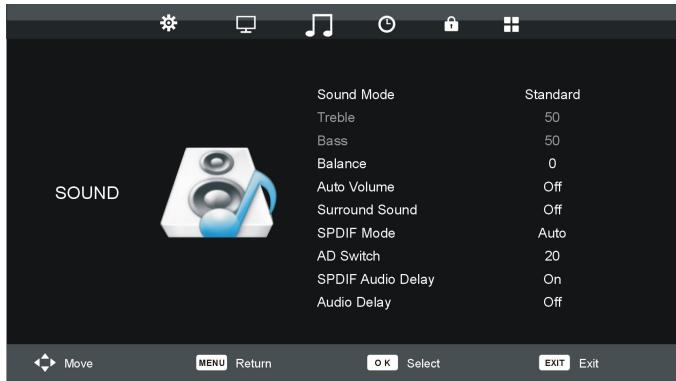

Available options: Standard, Music, Movie, Sports, User. NOTE: The value of Treble and Brass is adjustable only when Sound Mode is “User”.

This item is used to adjust the level of higher-pitched sounds from 0-100.

This item is used to adjust the level of lower-pitched sounds from 0-100.

This item is used to adjust the audio output between left and right speakers from -50 to 50.

This item is used to set Auto Volume ON or OFF.

This item is used to select SPDIF mode. Available options: Auto, PCM, Off.

This item is used to set AD Switch ON or OFF. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it. NOTE: AD Switch function works only when you are viewing programs that contain related narration information.

3.8 SPDIF Audio Delay

Adjust this item if you found the SPDIF sound is not totally simultaneous with TV picture.

Adjust this item if you found the sound is not totally simultaneous with TV picture.

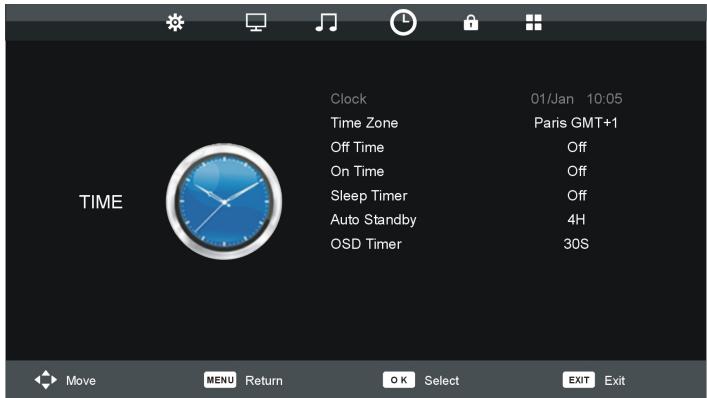

When an available digital program saved successfully, TV will get the time information automatically and it's not user adjustable then,

This item is used to select desired time zone.

- Press LEFT/RIGHT navigation button to select an available option. - Press navigation buttons to adjust the Hour / Minute / Source / Channel / Volume when “On Time” is not “Off”.

This item is used to set the automatic sleep time in standby mode. Available options: Off, 15/30/45/60/90/120/240 minutes.

This item is used to set the auto standby duration. Available options: Off, 3H, 4H, 5H.

This item is used to set the OSD (on screen display) time. Available options: 5S, 15S, 305.

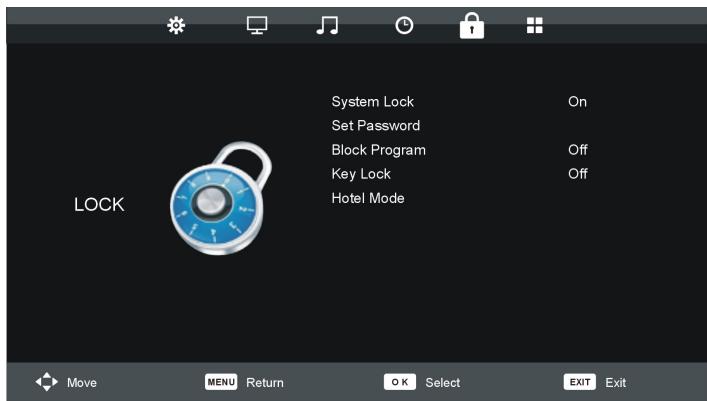

CD four eur Ro NOTES: - To set System Lock, you need to enter the password first and the factory default password is “0000”. NOTE: [f you forget the password, please use the universal password “8899”. - To enable below lock functions, turn on Lock System.

This item is used to turn on/off System Lock.

This item is used to change the password.

This item is used to lock the key board. Available options: On, Off

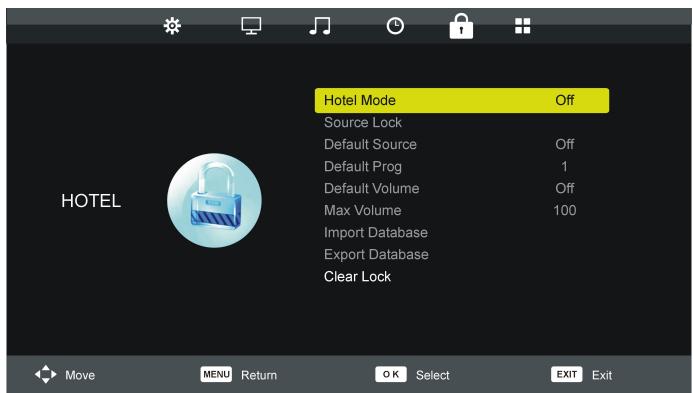

- When highlighted, press OK to enter: - Press UP/DOWN navigation button to move the cursor. - Press LEFT/RIGHT navigation button to adjust the value. - Press OK or RIGHT navigation button to enter submenu. - Press MENU button to return to previous page. Warm Tip: We strongly advise that you use “Hotel Mode” in hotels and you should just ignore it if take this TV for home use only. Hotel Mode: Turn on/off Hotel lock. Source Lock: Turn on/off the lock of all available sources. Default Source: Select the default source. Default Prog: Select the default channel. Default Volume: Set the default volume. Max Volume: Set the maximum volume. Import Database: Import database from other devices. Export Database: Export database to other devices. Clear Lock: Clear above settings.

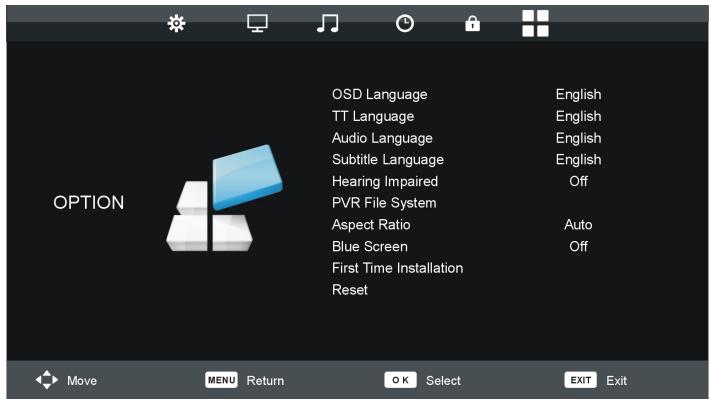

This item is used to select desired On Screen Display language.

This item is used to select desired TT language.

This item is used to select an available audio language.

6.4 Subtitle Language

This item is used to select an available subtitle language.

6.5 Hearing Impaired

This item is used to set Hearing Impaired function ON or OFF. For Hearing Impaired users, this function can assist them know a certain scene or action through the caption, instead of hearing it. NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

- Highlight this item and press OK button success to enter it. = - Press UP/DOWN navigation button to = select desired option. In this part, you can ET check PVR File System, format your USB memory device and set desired Free Record Limit time. I Select

This item is used to set the blue background ON or OFF. The screen background will turn blue at very weak or no signal condition, if BLUE SCREEN is ON.

6.9 First Time Installation

This item is used to display First Time Installation.

This item is used to reset the unit to factory default settings.

6.11 Software Update (USB)

This item is used to update software through inserting USB device.

- Press UP/DOWN navigation button to highlight it and press OK button to enter. - Make sure the HDMI device (Amplifier, etc.) is connected correctly. - Press SOURCE button on remote control to select HDMI input source. CEC Control: turn on/off CEC Control. Audio Receiver (ARC): if this function is enabled, the users can use external amplifier or audio decoding device which featured with ARC. Note: “ARC” function in “HDMI 2” port only. Device Auto Power Off: if this function is enabled, external connected CEC device will power off automatically when turn off this TV. TV Auto Power On: if this function is enabled, this TV will power on automatically when turn on external connected CEC device. Device List: list devices that connected. Device Menu: call out the menu of connected device.

This item is used to select Home or Store (Shop) mode.

- Press SOURCE button on the unit or remote control to select desired input source. - For other menus, please refer to the operations of DTV mode.

7. Recording Function

With this product, you can easily record your favorite DVB-T programs on your USB stick. This unit has 2 recording modes: immediate recording and scheduled recording (for use in case of absence). Recording a program by using a USB This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices. Notes: Do not remove your USB stick while playback is in progress, otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and them remove your USB stick. Preparation for the first recording When using a USB stick with this unit for the first time, you should first format it using this unit. Formatting your USB stick directly on the receiver improves compatibility of the device with the unit. More particularly, FAT file system will be converted into FAT 32. This helps improve recording quality and fluidity. Caution: formatting will deletes all the files on the USB device! You should create a backup of all the files you want to keep beforehand. How to access “Format Disk"? Press the "MENU" button on the remote control to enter the OSD menu, then press navigation button to select the “OPTION>>PVR File System”.

Immediate recording Insert a compatible USB device which has been previously formatted. Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording. Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded. Timer (Scheduled recording) Simply press TIMER button on the remote control to enter. View recorded programs You can simply press REC.LIST button on the remote control to view the recorded programs. Notes on recording and USB functions - If you want to record a film or a long program, use a memory stick of larger capacity (eg. 16GB). If you want to save several films, opt for external hard drives of large capacity. - The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and, above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple sub-directories in your USB disk. Avoid such multiple-subdirectories like “Directory/Subdirectory/ Sub-subdirectory/.….” and store files in a single simple directory.

4) After connecting your USB device to the unit, you may need to turn

the device on before it can be detected by the receiver.

5) This unit does not support direct USB connection with computer. It

is necessary for you to transfer your data/files on a USB stick or MP3 player. If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit.

6) If you are using a portable video player with hard drive, you must

make sure that the internal battery is fully charged. Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit. The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem. -_ Recording Quality If your recording is shaky or choppy — The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved.

Time Shift Function This TV presents a function called “Time Shift’ which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the “Time Shift” function, which records the TV program during your phone call or your coffee break. With “Time Shift”, you will not miss anything anymore! Notes: This function is only available in DVB-T mode. How to use the service Timeshift

1. Insert a USB key into USB port before you activate Timeshift function.

2. Press the button Timeshift once to start recording. The broadcasting

TV program is stop and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.

3. Press the æ button to exit recording.

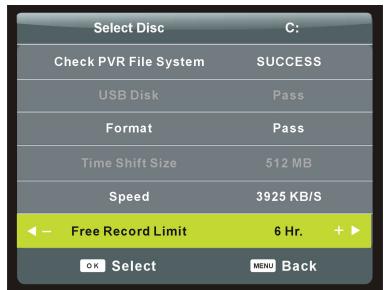

Note on use of the Timeshift function: 1.Please make sure the Timeshift mode is set ON in record setting menu. 2.The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as choppy or blocked image, you may also try to format your USB device.

Before operating MEDIA menu, plug in USB device. Press the SOURCE button on remote control to open SOURCE list. Then press UP navigation button to Media and press OK button to enter it. Press /» A/v button to highlight your preferred submenu: Photo, Music, Movie and Text, press OK button to confirm. - Press the »II button to start playback.

Remark: Depending on the capacity of the device, the reading can take more than 1 minute before launching the video. The unit cannot read my USB device. - Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate. - This unit does not support a direct USB connection with a computer. You need to use a USB device, a MP3 player or a PMP (Portable Multimedia Player with hard disk). - If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self-powered PMP, make sure that the battery is sufficiently loaded. - Check that the files system of your USB device is formatted into the FAT or FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data. Please refer to your USB device’s instruction manual first. - Warning: Connect your USB device directly to the USB port of the device. Using an extension cable is not recommended and may cause interference and failure of data transfer.

Troubleshooting No image and voice Possible causes: °_ Power cord, antenna or input devices are not connected; 7 + The TVsetis not powered on. ds Solutions: e_ Check Power cord, antenna and input devices; e Press Power key on the remote control; ° Press Power key on the set to power it off for 5 seconds and then re-power it on. No voice Possible causes: . The volume is too low; Muted or cancelled:; AS e incorrect sound system. Solutions: e Press Volume key to turn up the volume; mx e Press Mute key to cancel Mute mode. + Well connect connection to the background sound; Change the sound system in the menu. Snows and noises Possible causes: ° The cable is damaged or gets loose; e_ incorrect channel preset; °_Improper antenna positioning. Solutions: d£ e Check whether the connection of the antenna cable, DVD and the cables is correct; . Reset channels or fine tune the channel; ° _Adjust the direction of the antenna.

Achromatic colour Possible causes: , e incorrect Colour system settings; Low chroma level E 7 €) setting; _ °_Improper antenna positioning. d(- Solutions: e Change the colour system into the local system in the menu; e Increase chroma level; ° _Adjust the direction of the antenna. Remote control has no response Possible causes: < Battery runs up; X e_Incorrect battery loading; Solutions: e Check the battery electricity or replace the battery; e Check if the poles of the battery are correct. Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m. Important Notice The display of this television is made up of a large number of colour Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Technical data sheet Sheet of household television according to EU directive 1062/2010 Trade mark SCHNEIDER Model no. SC-LED55SC250PU Energy efficiency class A Visible screen diagonal 139.7cm / 55 inches On mode power consumption 109W Annual energy consumption 159KWh Power consumption in off mode owW Standby power consumption <0.5W Screen resolution (pixel) 3840(H) x 2160 (V) Note:

1. Energy efficiency class: A++ (most efficient) to E (lease efficient).

2. Annual energy consumption in KWh per year, based on the power

consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode…..etc. ®The terms HDMI, HDMI High-Definition er ) mi Multimedia Interface, and the HDMI Logo are HIGH DEFINITION MULTIMEDIA InTERracE trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
