USER MANUAL RAD-LD40100K RADIOLA

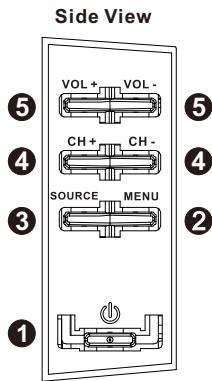

English Table of Content Getting Started Important Safety Instructions. 27 Control Panel... 30 Connecting Cables... Remote Control. .33 Base Installation. .35 Wall Mounting Instructions. 36 Operations First Time Installation. 37 DTV Mode. 38

This item is used to turn on/off dynamic luminance control

With this product you can easily record your favorite programs on your USB stick This unit has two recording modes:immediate recording and scheduled recording (for use in case of absence)

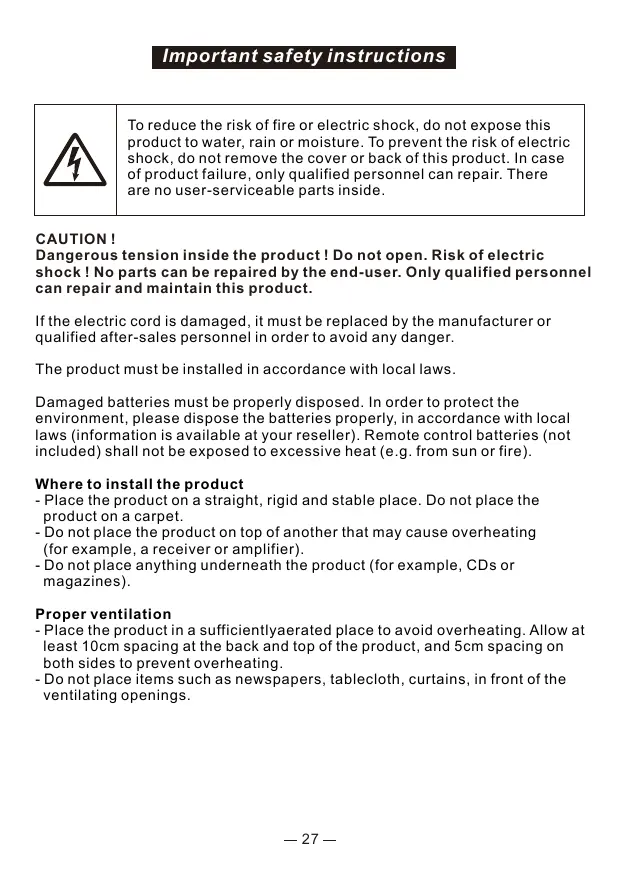

Important safety instructions To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric Shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair, There are no user-serviceable parts inside. CAUTION ! Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product. Ifthe electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger The product must be installed in accordance with local laws. Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire) Where to install the product - Place the product on a straight, rigid and stable place. Do not place the product on a carpet. - Do not place the product on top of another that may cause overheating {for example, a receiver or amplifier). - Do not place anything underneath the product (for example, CDs or magazines). Proper ventilation - Place the product in a sufficientiyaerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating. - Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings. _27—

Do not expose the product to high temperatures, moisture, water and dust. - The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus. - Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles). - No naked flame sources, such as lighted candles, should be placed on the apparatus. Electric supply - Please unplug the product in case of prolonged non-use. - Ifthe supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. - This product must be connected to an electrical supply 230V - 50Hz. - The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable WARNING Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - Using cabinets or stands recommended by the manufacturer of the television set. - Only using furniture that can safely support the television set - Ensuring the television set is not overhanging the edge of the supporting furniture - Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support - Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. - Educating children about the dangers of climbing on furniture to reach the television set or its controls. - In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions —_28—

Technical Specification: Name: Television Product Net Weight : 6.80Kg Operation Temperature: 0°C-40°C TV Reception System:DVB-T/C

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4 2012, concerning the waste on electrical and electronic equipment (WEEE) - The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product - Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. - As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product. - You have the obligation to use the selective waste collection systems put in place by your local authorities. Auto Standby In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode. —29—

Product Introduction Congratulations! Your have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power- saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products! Accessories User manual x1 Remote control x1 Control Panel Side View VOL + mn VOL:

Connecting Cables Cable television

(©, |o——0 We recommend you use a 759 antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundied together with the power cord Directiy insert the 75 0 antenna cable plug into the antenna socket when applying cable television. Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna. Power-on/Power-off 1.The television is in standby state when no images arise and the red indicating lamp shines. 2.Press the standby buttongaain on the remote control for the television the indicating lamp becomes green, and then television image is available. 3.Press the standby buttononthe remote controller or the television to enter into standby state

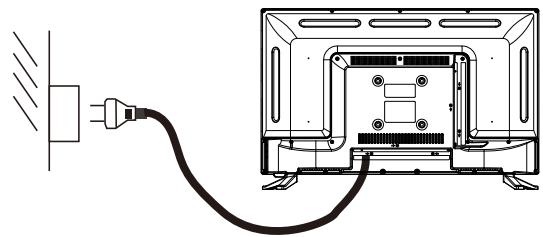

Power -saving & protection mode 1.In video or PC state, the television will enter into lower power sleep state (standby state) to conduct power saving and protection after several minutes with no signal inputs. _31—

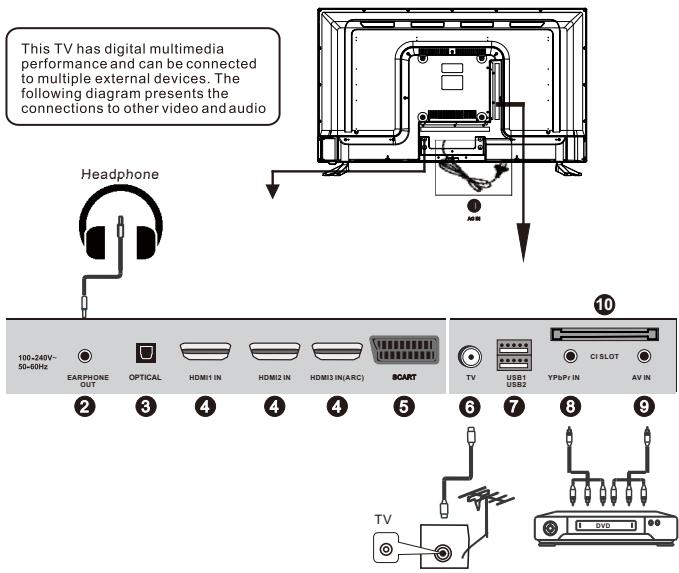

Connecting to multiple external devices This TV nas digital multimedia performance and can be connected fo multiple external devices. The fallowing diagram presents ine connections Lo other Video and audio Headphone

6. TV : Connect to external aerial.

7. USB IN : Access multi-media files stored in the USB device.

(Note: compatible format includes: *.dat, *.vob, “ts, “mpg , “avi, *.mkv, and “mp4 for video, * jpg and “bmp for photo, * mp3 for music. } Note : USB port cannot be used to charge external devices.

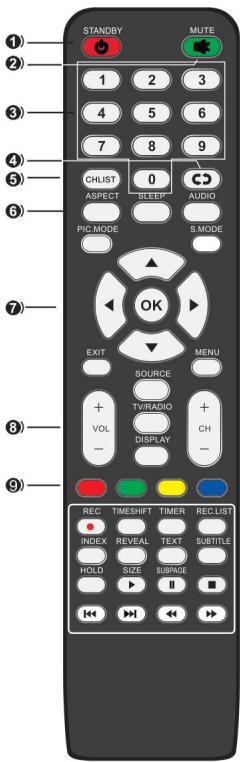

Le] 1-STANDBY: To turn the TV ON/OFF 2.MUTE: Mute the sound 3.0-9: Input the number information, such as channel number and so on 4.RECALL: Recall the last program you watched. 5.CH.LIST : Display a list for available channels. Select available screen mode. et desired sleep time. AUDIO : Select available sound-track. PIC.MODE : Switch the picture mode. S.MODE : Switch the sound mode 7.A/Y/4/» : Navigation buttons OK : Confirmselection. EXIT : Exit the menu page. MENU : Call out the main menu or return to previous menu. 8.VOL +/- : Increase/decrease the volume level. CH #-: Play the next/previous program SOURCE :Select desired input source TV/RADIO : Switch the unit between TV and Radio. (Digital radio is not available in countries such as France.) DISPLAY :Display the available program information. 9.RED \GREEN | YELLOW BLUE :available in teletext, DVB-T and TV Notes: The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight. Be careful to use the remote control avoid falling off or being trampled or splashed with liquids: —33—

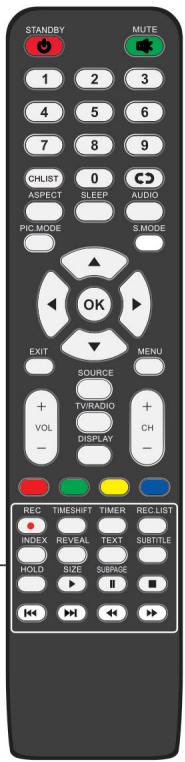

Remote contro REC (for DTV mode only) :Start e e RECORDING when watching available ps digital programs. eo TIMESHIET (for DTV mode only): Start eoo Time-shift when watching available digital programs. LAS TIMER (for DTV mode only): Enter the menu of timer recording REC.LIST : display the list of recorded programs.

10. INDEX : Display the Teletext index

REVEAL : Hide or display some characters in Teletext. TEXT : Display available teletext SUBTITLE : Enable/disable subtitles in digital mode HOLD : Hold the Teletext; SIZE : Switch Teletext size; SUBPAGE : Enter Teletext sub-page: > : Start playback in USB\Media mode. 1 : Pause playback in USB\Media mode. M : Stop playing in USB\Media mode. «I» : Fast backward\forward in USB\Media mode. mm: Play previousinext file in USB\Media mode. Prepare the remote control Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided) —34—

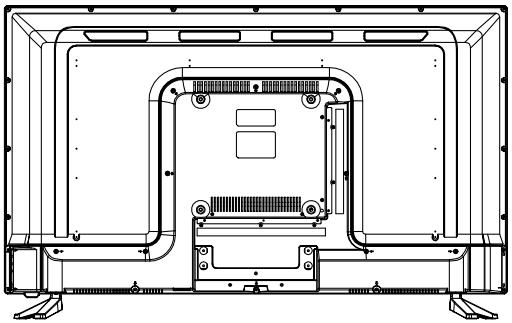

1.Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.) 2.Align the screw holes on stand and TV bottom (Figure 2) 3.Fix the stand and the screen with 4 screws (Figure 3) 4.The rendering after installed. (Figure 4) + Disassembly ofthe stand 1 Loose the screws between the machine and stand (Figure 1). 2.Remove the 2 stands from the machine (Figure 2) _35—

Wall Mounting Instructions Vesa size:100*100mm + Use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee + Contact a professional technician for assistance when wall mounting your TV. + Do not wall mount the TV while TV is turned on + Refer to the instruction of your wall mounting bracket —_36—

First Time Installation Connect to power source and turn on this TV,then below setup page will display on the screen - Press UP/DOWN navigation button to move the cursor. - Press LEFT/RIGHT navigation button to select an option Step1 OSD Language: select the on-screen First Time Installation menu language Conutry: select your country. Environment: select Home or Store mode. Mode DTV and ATV : select'DTV+ATV' to perform an automatic search of all ep DTV channels then all the analogue channels of the selected country During the DTV channel search, press "EXIT" to skip searching for analog channels.During the search of the analogue channels, press "EXIT" to exit this function Digital mode : select"DTV" to search for all digital channels DTV of the selected country. You can stop the search by pressing the "EXIT" button Analog mode : select "ATV" to search for all the analogue channels of the selected country. You can stop the search by pressing the "EXIT" button _37—

DTV MODE - Press SOURCE button on the unit or remote control to select DTV input source.

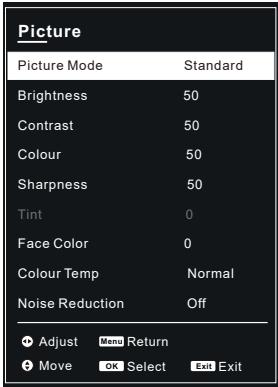

- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option Picture Mode: available options: Standard Movie, Dynamic,User. Brightness / Contrast / Colour / Sharpness:adjustable value:0-100 Note: When changed Brightness,Contrast, Colour or Sharpness, Picture Mode will turn to “User” automatically. Tint is adjustable only for NTSC system

This item is used to adjust the optimum color temperature for suitable viewing, Available options:Normal, Warmal, Warm, Cool

Available options:Off,Weak, Middle, Strong —_38—

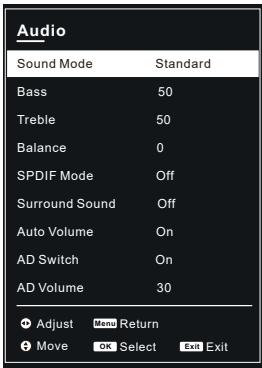

This item is used to adjust the audio output between left and right speaker from -50 to 50

Turn on/off Surround Sound for better sound experience

This item is used to set Auto Volume ON or OFF.

This item is used to turn on/off Audio Description function.For Visually Impaired users, this function can help to know a certain scene or action through the narration,instead of see it Notes: -AD Switch function works only when you are viewing programs that contain related narration information - The users can adjust AD Volume when AD Switch is on. 39 —

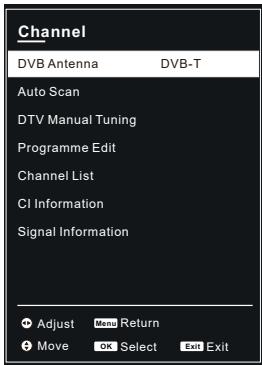

- Press OK or RIGHT navigation button to Channel Tuning enter it. - Use navigation buttons to set the Country, Tuning Modeand LCN Country rmany Note: Users can see and set Scan Mode and following items only when “Antenna” is DVB-C. - When finished above settings,highlight ‘Auto Scan” and press OK to start program tuning

3.3 DTV Manual Tuning

- Press OK or RIGHT navigation button to enter it. - Use LEFT / RIGHT navigation button to select the channel Then press OK button to start searching © Adjut maux —_40—

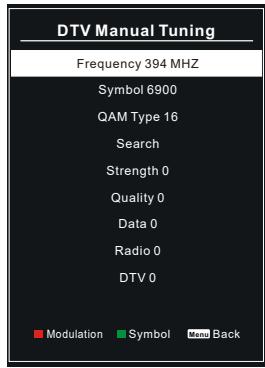

© Press OK or RIGHT navigation button to DTV Manual Tuning enter it Frequency 394 MHZ - Use navigation buttons to adjust the Frequency, Symbol and QAM Type Notes: AM Type 16 - Press RED button repeatedly on remote control to change QAM Type - Press GREEN button repeatedly on remote control or change Symbol - Then highlight “Search” and press OK button to start searching

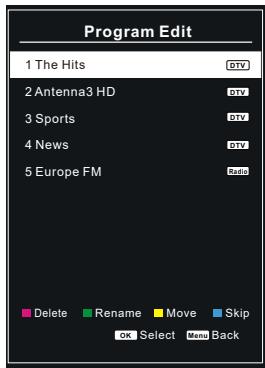

- Press OK or RIGHT navigation button to Program Edit Prose - Press UP / DOWN navigation button to highlight desired channel - Press RED button on remote control to delete highlighted channel - Press GREEN button on remote control to rename highlighted channel - Press YELLOW button on remote control to enter MOVE mode. Then use UP / DOWN navigation button to select preferred position and press YELLOW button again to move it - Press BLUE button on remote control to skip highlighted channel

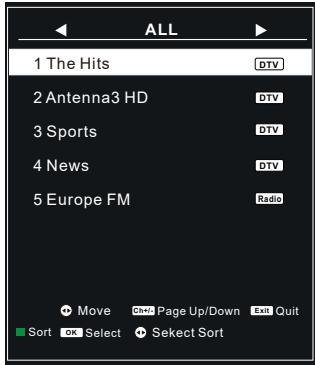

- Press OK or RIGHT navigation button to enter it. 1The Hits - Press UP or DOWN navigation button to select preferred channel - Press LEFT / RIGHT navigation button to select a channel group. - Press OK button to confirm selection. 4News

3.7 Clinformation TUE

When an available CAM (Conditional Access Module) card is connected to the CI slot,the users can view related information or manage your CAM card.

3.8 Signal information

This item is used to display signal details, for example:signal quality and strength —_42—

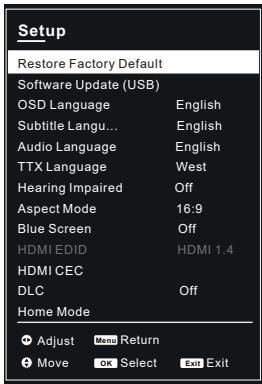

This item is used to recall factory default settings.

4.2 Software Update (USB)

This item is used to update Software through the USB memory device

This item is used to select desired on-screen display language

4.4 Subtitle Language

This item is used to select desired subtitle language:

This item is used to select desired audio language

This item is used to select desired teletext language

4.7 Hearing Impaired

This item is used to turn on off Hearing Impaired function.For Hearing Impaired users, this function can assist help to know a certain scene or action through the caption,instead of hearing it NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information —_43—

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON

- Press OK or RIGHT navigation button to HDMI CEC enter it HDMI CEC To use HDMI CEC function: - Make sure the HDMI device (Amplifier,etc.) is connected correctly, - Press SOURCE button on the unit or remote control to select HDMI input source HDMI CEC: turn on/off HDMI CEC. Device Power Off: turn on/off Device Auto Power Off. TV Power On: turn on/off TV Auto Power On HDMI ARC: turn on/off ARC function (in HD-INPUT 2 port only) Device List: display the device list Root Menu: display the root menu of external device connected

4.12 DLC (Dynamic Luminance Control)

This item is used to turn on/off dynamic luminance control

This item is used to select Home Mode or Store Mode (the brightness is higher than Home Mode)

It displays current system time when an available channel was saved

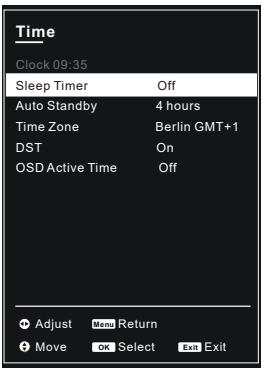

This item is used to select desired Auto Sleep (standby) duration when no operations were done through the remote control Available options: Off,3/4/5 hours

This item is used to select desired time zone.

5.5 DST (Daylight Saving Time)

This item is used to turn on/off Daylight Saving Time

This item is used to select desired OSD menu active time Available options: Off,5/15/30/60/180 seconds —_45—

- Input a new password twice using number buttons on remote control to set a new password.

This item is used to turn on/off Lock System

- Press OK or RIGHT navigation button to enter it - Press UP / DOWN navigation button to select the channel which you want to lock. - Press GREEN button repeatedly to lock/unlock the highlighted channel.

This item is used to lock/unlock TV buttons

Hotel setting allows you to restrict access to some functions by means of password,so that end user cannot change the TV settings. In this menu, you will be able to restrict access to functions such as channel settings and volume control

This item is used to clear clock —_46—

Media Player - Press SOURCE button on the unit or remote control to switch the unit to USB mode - Insert a USB memory device into USB slot before following operations. - Press UP / DOWN / LEFT / RIGHT navigation button to move the cursor. ress EXIT button to return to previous page.

- Press UP /DOWN navigation button to select “Photos” in the main menu and press OK button to enter it - Use navigation buttons to select a file and press OK button to add to play list - Press »i button to start playback. - Press DISPLAY button to show / dismiss the tool bar.Use navigation buttons to select desired option and press OK to confirm it.

- Press UP /DOWN navigation button to select “Music” in the main menu and press OK button to enter it - Use navigation buttons to select a file and press OK button to add to Play list - Press mil button to start playback - Use navigation buttons to select desired option and press OK to confirm it - Press EXIT button to return

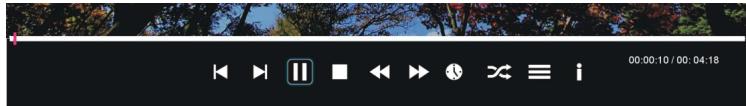

- Press UP / DOWN navigation button to select “Movie” in the main menu and press OK button to enter it - Use navigation button to select a file and press OK button to add to play list - Press» button to start playback - Press DISPLAY button to show / dismiss the tool bar.Use navigation buttoms to select desired option and press OK to confirm it - Press EXIT button to return

- Press UP/ DOWN navigation button to select “Text” in the main menu and press OK button to enter it - Use navigation buttons to select a file and press OK button to add to play list - Press MIbutton to start playback - Press DIAPLAY button to Show / dismiss the tool bar.Use navigation buttons to select desired option and press OK to confirm it - Press EXIT button to return Remote operations when playing multimedia files: - Press ml button on remote control to play or pause playing - Press 1 button on remote control to stop playing - Press 4 button on remote control to move fast backward. - Press » button on remote control to move fast forward - Press ke button on remote control to play previous file - Press mi button on remote control to play next file NOTE: To play your multimedia files make sure you have selected correct icon in the mainmenu of MEDIA PLAYBACK.That is to say, you can only play Photo files in PHOTO item, Music files in MUSIC item and so on —_48—

Troubleshooting No image and voice

Possible causes: “Power cord,antenna or input devices are not connected; “The TV set is not powered on Solutions: “Check Power cord ,antenna and input devices; “Press Power key on the remote control; “Press Power key on the set to power it off for 5 seconds and then re-power it on No voice

Snows and noises: Possible causes: “The volume is too low:Muted or cancelled: “incorrect sound system Solutions “Press Volume key to turn up the volume; “Press Mute key to cancel Mute mode Well connect vonnection to the background sound; *Change the sound system in the menu Achromatic colou: Possible causes: “The cable is damaged or gets loose: “incorrect channel preset; *Improper antenna positioning, Solutions “Check whether the connection of the antenna cable , DVD and the cables is correct “Reset channels or fine tune the channel; “Adjust the direction of the antenna

Possible causes “incorrect Colour system settings:Low chroma level setting ; “Improper antenna positioning Solutions: “Change the colour system into the local system in the menu ; “increase chroma level: *Adjust the direction of the antenna.

Troubleshooting Remote control has no response: Possible causes: “Battery runs up; “Incorrect battery loading; Solutions: “Check the battery electricity or replace the battery; “Check ifthe poles of the battery are correct Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m Important Notice The display of this television is made up of a large number of colour pixels. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal. Note on Defective Pixels Your product has been manufactured with great care. Nevertheless, itis possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product. No. of Brightor | No. of Bright or! Dark Sub-Pixels ï rk Pixels Resolution (Color Pixels) |{Wihite or Black} Continuous Line 40 3840"2160 a1 20 0 —50—

Technical Data Sheet Sheet of houeshold television according to EU directive 1062/2010 Trade mark RADIOLA Model no RAD-LD40100K Energy efficency Class A Visible Screen Diagonal 101.5cm / 40inches On mode Power consumption | 62W Annual energy consumption | 0kWh Power consumption in off mode | O W Standby power consumption | <0.5W Screen Resolution (pixel) 3840(H) X 2160(V) Note:

1. Energy efficiency class: A++ (most efficient) to E (least efficient)

2. Annual energy consumption in kWh per year, based on the power consumption of the

television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode…etc HOMI The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
