USER MANUAL HW-R470/ZF SAMSUNG

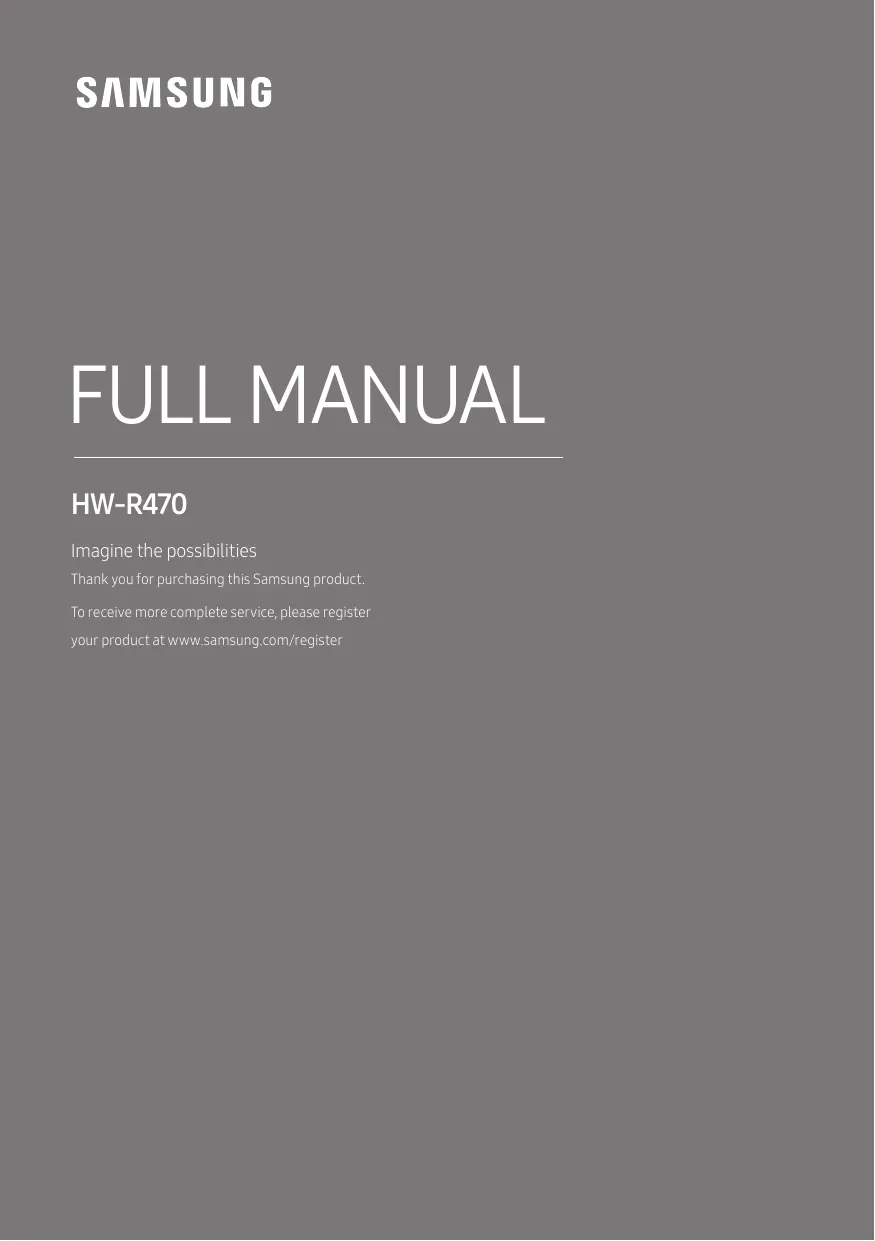

SAMSUNG FULL MANUAL HW-R470

Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register

your product at www samsung.com/registei

SAFETY INFORMATION SAFETY WARNINGS WARNING

+ Toreducethe risk of fire or electric shock, do

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK)

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product

This symbol indicates that this product has included important Literature concerning operation and maintenance.

Class Il product : This symbol indicates that it does not require a safety connection to electrical earth (ground). Ifthis symbol is not present on à product with a power cord, the product MUST have a reliable connection to protective earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use This symbol instructs the user to

consult the user manual for further

safety related information.

not expose this appliance to rain or moisture.

CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This apparatus shall always be connected to a AC outlet with a protective grounding connection

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable

Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

1. Ensure thatthe AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7-10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot This unit is designed for continuous use. To fully turn offthe unit, disconnectthe AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit

3. Do not expose the unit to direct sunlight or other heat sources, This could lead to overheating and cause the unit to malfunction

4. Protect the product from moisture (Le. vases) and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. Itis for personal use only. Condensation may occur if your product has been stored in cold temperatures. Iftransporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectiy. Replace only with the same or equivalent type

ABOUT THIS MANUAL The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download

USER MANUAL See this manual for safety instructions, product installation, components,

connections, and product specifications

SS FULL MANUAL You can access the FULL MANUAL on Samsungs on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from Samsung's website. (http://www.samsung.com/support)

Design and specifications are subject to change without prior notice.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Front Panel / Right Side Panel of the Soundbar

Bottom Panel of the Soundbar

Connecting the Soundbar

Connecting Electrical Power

Connecting the Soundbar to the Subwoofer

Automatic connection betu the Subwoofer and the Soundbar

Manually connecting the Sub tomatic connection fails

Connecting an SWA-8500 to your Soundbar

Connecting to your TV Method 1. Connecting with à Cable Connecting using an Optical Cable

Method 2. Connecting Wirelessly Connecting a TV via Bluetooth

Connecting an External Device Connecting using an Optical or Analogue Audio (AUX) Cable

Connecting a USB Storage Device

Connecting a Mobile Device

Connecting via Bluetooth

Using the Samsung Audio Remote App Installing the Samsung Audio Remote App Launching the Samsung Audio Remot

Using the Remote Control

How to Use the Remote Control Adjusting the Soundbar volume with a TV remote control Using the Hidden Buttons (Buttons with more than one function)

Output specifications for the different sound effect modes Installing the Wall Mount

Installation Precautions Wallmount Components

Detaching the Soundbar from the Wall Software Update

Upditing Procedure H UPDATE is not displayed

Specifications and Guide

Soundbar Main Unit Subwoofer Remote Control / Optical Cable Batteries o G] Css CC CT EEE Power Cord (Subwoofer) AC/DC Adapter Wall Mount Guide (Main Unit) [2] — Connect the AC plug ta the adapter until you hear (en) a"snapping” sound to ensure they are securely fastened (Denend AC pus and Do not detach the AC plug from the adapter (it will PENAING ON NE COUNTY an not be removed once ithas been attachec) model) ©: % & &

Holder-Screw Screw Bracket-Wall Mount L Bracket-Wall Mount R Wireless Surround Speaker SET (SWA-8500)

Surround Speaker Power Cord

Wireless Receiver Module Speaker Cable

+ For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

+_ The appearance of the accessories may differ slightly from the illustrations above.

<_ The power components are labelled (@, @, @). For more information about power connections, see page 6

«To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.

+ Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with the AC/DC adapter.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until itis completely removed. Insert 2 AA batteries (1,5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar

Position the product so that the SAMSUNG logo is located on the top.

Right Side of the Soundbar

Displays the products status and current mode

+/- (Volume) Button Adjusts the volume.

+_ When adjusted, the volume level appears on the Soundbar‘s front display.

Turns the power on and off.

Æ] (Source) Button Selects the source input mode. Input mode Display Optical Digital input DIN [a AUX input AUX BLUETOOTH mode BT USB mode USB

+_Toturn on "BT PAIRING" mode, change the source to "BT” mode, and then press and hold the Æ1 (Source) button for more than 5 seconds.

+ When you plug inthe AC cord, the power button will begin working in 4 to 6 seconds.

+_ When you turn on this unit, there will be a 4 to 5 second delay before it produces sound

<_ If you want to enjoy sound only from the Soundbar, you must turn off the TV'5 speakers in the Audio Setup menu of your TV. Refer to the owners manual supplied with your TV.

Bottom Panel of the Soundbar

ü DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device

USB (5V0.5A) Connect a USB device here to play music files on the USB device through the Soundbar.

AUXIN Connect to the Analogue output of an external device.

A DC19V (Power Supply In) Connect the AC/DC power adapter.

+ When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable. + Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR Connecting Electrical Power

Use the power components (@, @, @) to connect the Subwoofer and Soundbar to an electrical outlet in the following order: © Connect the power cord to the Subwoofer. @ Connect the AC plug to the adapter. © Connect the power adapter to the Soundbar and then to a wall socket See the illustrations below. + For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

@ AcPlug © AC/DC Adapter

Connecting Bottom ofthe

Electrical Power Soundbar Main Unit

+ Make sure to restthe AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so thatit is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar. + When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution Successfully connected ON | rormal operation) : Check if the power cable attached to the Blue main Soundbar unit is connected properly Blinking _ | Recoveringthe connection | or wait about 5 minutes. f blinking persists, try manually connecting the subwoofer. See page 8 Standby (with the Soundbar | Check ifthe power cable attached to the main unit turned off) main Soundbar unit is connected properly. Red 97 Connection failed Connect again. See the instructions for manual connection on page 8 Red and See the contact information for the Blinking | Malfunction blue Samsung Service Centre in this manual.

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

+ Check whether the power cables for the Soundbar and subwoofer are connected properly. + Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds. + The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

LINK STANDBY IDSET Rear of Subwoofer 2. Press and hold the Up button on the remote control for at least 5 seconds. + The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. +_The Soundbar will automatically power on when ID SET is complete.

3. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the

Wireless Subwoofer. Blue is On

NOTES Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.

Before moving or installing this product, be sure to turn off the power and disconnect the power cord. Ifthe main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear will turn red after blinking in blue several times.

If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

The maximum transmission distance of the main unit's wireless signal is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.

PRECAUTIONS Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water

and moisture. For optimal listening performance, make sure that the area around the wireless subwoofer and the Wireless Receiver Module is clear of any obstruction.

Connecting an SWA-8500 to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Surround Speaker SET {SWA-8500) to your Soundbar.

1. Connect the Wireless Receiver Module to 2 Surround Speakers

Use the speaker cables to connect the two surround sound speakers to the Wireless Receiver Module. + The speaker cables are colour coded.

SURROUND-LEFT When connecting the speaker cables to the Wireless Receiver Module, follow these steps: 1. Insert the grey plug into the grey jack on the Wireless Receiver. 2. Insert the blue plug into the blue jack on the Wireless Receiver.

When connecting the speaker cables to the surround speakers, follow these steps: 1. Match the speaker cable connected to the grey jack to the speaker with the grey label. 2. Match the speaker cable connected to the blue jack to the speaker with the blue label. 3. Insert the red and black coloured ends of each speaker cable into the red and black jacks of the appropriate speakers. + The labels are on the backs of the speakers.

2. Check the standby status after plugging into an electrical outlet

The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. lf the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5-6 seconds until the LINK LED indicator blinks (in Blue)

3. Configure “ID SET” using the Soundbar’s remote control

Press and hold the Up button on the remote control for at least 5 seconds, «The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. <_ The Soundbar will automatically power on when ID SET is complete.

À CAUTION <_Ifyour Soundbar was playing music when it connects to the SWA-8500, you may hear some stuttering from the woofer as the connection finalises.

4. Check if the LINK LED is solid blue (connection complete)

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Receiver Module.

5. Ifthe SWA-8500 does not connect, take the necessary steps according to the LED Indicator's status

On Connected withthe Soundbar | -

LINK (Blue) Check ifthe Soundbar is turned on

Blinking | Connection standby status Repeat steps 3 through 4

Check ifthe Soundbar is turned on

1. Press the ID SET button on the back ofthe Wireless Receiver Module with a pen tip for 5-6 seconds until the LINK LED indicator blinks (in Blue).

(Red) On Connection failure (1)

2. Repeat steps 3 through 4

Others - Errors Contact a Samsung Service Centre.

04 CONNECTING TO YOURTV Hear TV sound from your Soundbar through wired or wireless connections. + When the Soundbar is connected to selected Samsung TV5, the Soundbar can be controlled using the TV’s remote control. — This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable. — "This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TVis changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Connecting using an Optical Cable

Bottom ofthe Soundbar

Right Side of the Soundbar

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack ofthe TV with a digital optical cable:

2. Press the Æ] (Source) button on the right side panel or remote control, and then select the "D.IN” mode.

Auto Power Link Auto Power Link automatically turns on the Soundbar when the TV is turned on. 1. Connect the Soundbar and a TV with a digital optical cable. 2. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off. + Auto Power Link is set to ON by default. {To turn off this function, hold the Left button on the remote for 5 seconds.) + Depending on the connected device, Auto Power Link may not function

+_ This function is only available in the “D.IN” mode. Method 2. Connecting Wirelessly Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling + Only one TV can be connected at atime

Theinitial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR) a. Press the #5] (Source) button on the right side panel and then select "BT” “BT” changes to "BT READY” in a few seconds automatically if there is no Bluetooth device connected to the Soundbar.

b. When ‘BT READY” appears, press and hold the 5] (Source) button on the right side panel of the Soundbar for more than 5 seconds to display “BT PAIRING"

2. Select Bluetooth mode on the TV. (For more information, see the TV's manual.) 3. Select "[AV] Samsung Soundbar R4-Series” from the list on TV's screen An available Soundbar is indicated with "Need Pairing” or “Paired” on the TV's Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection + When the TV is connected, [TV Name] > "BT” appears on the Soundbars front display. 4. You can now hear TV sound from the Soundbar.

Ifthe device fails to connect +_lfa previously connected Soundbar listing (e.g. "TAV] Samsung Soundbar R4-Series”) appears in the list, delete it. +_ Then repeat steps 1 through 3.

NOTE + _After you have connected the Soundbar to your TV the first time, use the “BT READY” mode to reconnect.

Disconnecting the Soundbar from the TV Press the #7] (Source) button on the right side panel or on the remote control and switch to any mode but"BT” + _Disconnecting takes time because the TV must receive à response from the Soundbar. (The time required may differ, depending on the TV model.) +_To cancel the automatic Bluetooth connection between the Soundbar and TV, press the »il (Play/Pause) button on the remote control for 5 seconds with the Soundbar in“BT READY" status (Toggle On + Off)

What is the difference between BT READY and BT PAIRING? + BTREADY: In this mode, you can search for previously connected TVSs or connect a previously connected mobile device to the Soundbar. + BTPAIRING: In this mode, you can connect a new device to the Soundbar. (Press the R PAIR button on the remote control or press and hold the #7] (Source) button on the right side of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES +_lfasked for a PIN code when connecting a Bluetooth device, enter «0000». In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. The Soundbar automatically turns off after 20 minutes in the Ready state. The Soundbar may not perform Bluetooth search or connection correctly under the following

— lfthereis a strong electrical field around the Soundbar.

— _ Ifseveral Bluetooth devices are simultaneously paired with the Soundbar.

— _lfthe Bluetooth device is turned off, not in place, or malfunctions. Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

BD / DVD player / Set-top box / Game console Right Side of the Soundbar

© Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using à digital optical cable.

@ Select "D.IN’ mode by pressing the #1] (Source) button on the right side panel or on the remote control. 2 Audio (AUX) Cable

‘© Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.

@ Select "AUX” mode by pressing the #1 (Source) button on the right side panel or on the remote control.

06 CONNECTING À USB STORAGE DEVICE You can play music files located on USB storage devices through the Soundbar.

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

+_ The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

2. Connect your USB device to the female end of the adapter cable

3. Press the 5] (Source) button on the right side panel or on the remote control, and then select “USB”

4. “USB” appears in the display screen:

5. Play music files from the USB storage device through the Soundbar.

+_ The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 20 minutes,

File Format Type Compatibility List

«_Ifthere are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files

07 CONNECTING À MOBILE DEVICE Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of

cabling + You cannot connect more than one Bluetooth device at a time.

Theinitial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR) a. Press the Æ] (Source) button on the right side panel and then select "BT” “BT” changes to "BT READY” in a few seconds automatically if there is no Bluetooth device connected to the Soundbar.

b. When "BT READY" appears, press and hold the Æ] (Source) button on the right side panel

ofthe Soundbar for more than 5 seconds to display "BT PAIRING”.

2. On your device, select [AV] Samsung Soundbar R4-Series” from the List that appears.

+ When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] > "BT”

appears in the front display. 3. Play music files from the device connected via Bluetooth through the Soundbar.

Ifthe device fails to connect +_lfa previously connected Soundbar listing (e.g. [AV] Samsung Soundbar R4-Series”) appears in the list, delete it. +_ Then repeat steps 1 and 2

NOTE + After you have connected the Soundbar to your mobile device the first time, use the “BT READY”

What is the difference between BT READY and BT PAIRING? + BTREADY: In this mode, you can search for previously connected TVSs or connect a previously connected mobile device to the Soundbar. + BTPAIRING: In this mode, you can connect a new device to the Soundbar. (Press the R PAIR button on the remote control or press and hold the Æ] (Source) button on the right side of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES +_lfasked for a PIN code when connecting a Bluetooth device, enter «0000». In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. The Soundbar automatically turns off after 20 minutes in the Ready state. The Soundbar may not perform Bluetooth search or connection correctly under the following

— lfthere is a strong electrical field around the Soundbar.

— _ lfseveral Bluetooth devices are simultaneously paired with the Soundbar.

—_lfthe Bluetooth device is turned off, not in place, or malfunctions. Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc. The Soundbar supports SBC data (441kHz, 48kHz). Connect only to a Bluetooth device that supports the A2DP (AV) function. You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function: Once you have paired the Soundbar to à Bluetooth device, selecting “[AV] Samsung Soundbar R4-Series” from the device's scanned devices list will automatically change the Soundbar to “BT”

mode. — Available only if the Soundbar is listed among the Bluetooth device's paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.) The Soundbar will appear in the Bluetooth devices searched devices list only when the Soundbar is displaying “BT READY” The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically. 1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on. 2. “ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect à Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual. + The Soundbar will be disconnected + When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the Æ] (Source) button on the right side panel or on the remote control, and then change to any mode except “BT”. + Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device) + When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED" on the front display.

NOTES +_In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. +_The Soundbar automatically turns off after 20 minutes in the Ready state.

More About Bluetooth Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection. +_A Bluetooth device may cause noise or malfunction, depending on usage, if. — Apart of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. —_Itis subject to electrical variation from obstructions caused by a wall, corner, or office partition. —_Itis exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANSs. + Pair the Soundbar with the Bluetooth device while they are close together. The further the distance between the Soundbar and Bluetooth device, the worse the quality is. Ifthe distance exceeds the Bluetooth operational range, the connection is lost. In poor reception areas, the Bluetooth connection may not work properly. The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors. This wireless device may cause electric interference during its operation:

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the

Samsung Audio Remote app from the Google Play store

Market search : Samsung Audio Remote TON oogle Play

Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device,

and then follow the directions on the screen.

<_ The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

08 USING THE REMOTE CONTROL How to Use the Remote Control

Turns the Soundbar on and off.

Press to select a source connected to the Soundbar. + _BTPAIRING mode To turn on “BT PAIRING" mode, change the source to “BT” mode, and then press and hold the Æ] (Source) button for more than 5 seconds.

Press the à (Mute) button to mute the sound Press it again to unmute the sound.

SOUND MODE You can select the desired sound effect by

choosing STANDARD, or SURROUND SOUND.

Select the” STANDARD" mode if you want to

enjoy the original sound

+ DRC (Dynamic Range Control)

Lets you apply dynamic range control to

Dolby Digitaltracks. Press and hold the

SOUND MODE button while the Soundbar is

powered off to turn DRC (Dynamic Range

Control) on or off. With the DRC turned on,

loud sound is reduced. (The sound may be

This feature automatically turns the

Soundbar on when it receives a connection

request from a previously connected TV or

Bluetooth device. The setting is On by

— Press and hold the SOUND MODE

button for more than 5 seconds to turn offthe Bluetooth Power function

PAIR Press the PAIR button. "BT PAIRING" appears in the Soundbar's display. You can connect the Soundbar to a new Bluetooth device in this mode by selectingthe Soundbar from the Bluetooth devices search list.

Press the mil button to pause a music file temporarily. When you press the button again, the music ile plays. +_ Auto Power Down Function The unitturns off automatically in the following situations: = InDAN/BT/USB Mode : If there is no audio signal for 20 minutes. — In AUX Mode — | Ifthe Audio (AUX) Cable is disconnected for 20 minutes. —_Ifthere is no KEY input for 8 hours when the Audio (AUX) Cable is connected. {The Auto Power Down function can be turned off only when the unit is in AUX" mode.) — "To turn off Auto Power Down function while the unit is in"AUX" mode, press and hold the »4il button for 5 seconds."ON-AUTO POWER DOWN" / “OFF- AUTO POWER DOWN" appears on the display:

Press the indicated areas to select Up/Down/Left/Right.

Press Up/Down/Left/Right on the button to select or set functions. + Repeat To use the Repeat function in "USB mode, press the Up button Music Skip Press the Right button to selectthe next music file. Press the Left button to select the previous music file. + Auto Power Link You can turn Auto Power Link on or off. Auto Power Linkis turned on and turned off by the Left button respectively.

— Auto Powrer Link: the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF.

— Auto Power Link is setto ON by default.

+ IDSET Press and hold the Up button for 5 seconds to complete ID SET (when connecting to an accessary item)

+_ Volume Restriction function

Te protect your hearing, the Volume Restriction function restricts the volume to 20 if

you turn on the Soundbar when the volume is set higher than 20.

— The default value for the Volume Restriction function is Off. You must turn it on to activate it.

= Whenturned on, the Volume Restriction function stays on even when the power is turned off.

=" Toturn Volume Restriction on or off, press and hold the Down button on the remote control for 5 seconds. With Volume Restriction off, V FREE" appears on the front display. With the function on, “V LOCK" appears

You can select TREBLE, BASS, or AUDIO SYNC.

+ To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6-+6 by usingthe Up/Down buttons. Press and hold the 3 (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6to +6 using the Up/Down buttons.

Ifthe video onthe TV and audio from the Soundbar are not synchronised, select AUDIO SYNC in Sound Settings, and then setthe audio delay between 0-300 milliseconds by using the Up/Down buttons. (Not available in “USB* mode)

+ AUDIO SYNC is only supported for some functions.

WOOFER Push the WOOFER button up or down to adjust the volume ofthe subwoofer to -12 or between -6 to +6, To set the subwoofer volume level to O, press the button

voL Push the VOL button up or down to adjust the volume + Mute Press the VOL button to mute the sound. Press it again to unmute the sound

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar’s volume using the IR remote control that came with your Samsung TV. First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual. The default mode for this function is control by a Samsung TV remote. If your TV is not a Samsung TV, follow the directions below to change the settings of this function.

1. Turn Offthe Soundbar.

2. If you do not want to use this function, push up and hold the WOOFER button for 5 seconds repeatedly until"OFF-TV REMOTE” appears in the display.

3. If you want to control the Soundbar with your TV's remote, push up and hold the WOOFER button for 5seconds repeatedly until'"ALL-TV REMOTE” appears in the display. Then, use your TV's menu to select external speakers.

4. If you want to return the Soundbar to the default mode (control by a Samsung TV remote), push up and hold the WOOFER button for 5 seconds repeatedly until “SAMSUNG-TV REMOTE" appears in the display.

SAMSUNG-TV REMOTE VE

— Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: “SAMSUNG-TV REMOTE" (Default mode) > "OFF-TVREMOTE” > "ALL-TVREMOTE".

— Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG,

Using the Hidden Buttons (Buttons with more than one function)

il (Play / P: ) arrase Initialise (Standby) page 31 BT Ready page 15 Left Auto Power Link ON/OFF page 24 Up IDSET page 24 Down Volume restriction On/Off page 25 #8 (Sound Control) 7 Band EQ page 25 DRC ON/OFF (Standby) page 23

Output specifications for the different sound effect modes

09 INSTALLING THE Wallmount Components

WALL MOUNT Installation Precautions

Install on a vertical wall onty, Do not install in à place with high temperature or humidity. Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point. Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc). f possible, fix the support screws into wall studs Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

=" Length: 35 mm or longer recommended Connect cables from the unit to external devices before you install the Soundbar on the wall Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock

Bracket-Wall Mount R Place the Wall Mount Guide against the wall

+_The Wall Mount Guide must be level.

+_lfyour TVis mounted on the wall, install the Soundbar at least 5 cm below the TV.

Align the Wall Mount Guide’s Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape

+_Ifyou are not mounting below a TV, place the Centre Line in the centre ofthe installation area.

! Centre Line . Push a pen tip or sharpened pencil tip through the centre of the B-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

. Using an appropriately sized drill bit, drilL a

hole in the wall at each marking

+_ifthe markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you dll are large enough for the anchors or mollies you use.

5. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole

6. Use the two Screws (M4 x L12) to attach both Bracket-Wall Mount Land R to the Soundbar's bottom.

For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.

+ When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Right end of Soundbar

+ The left and right mounts are different Detaching the Soundbar from shapes. Make sure to position them the Wall

To separate the Soundbar from the wall em = Ÿ7: | mount, push itin the direction of arrow, tlit up slightly, and then pull it away from the

Wall Mount R Wall Mount L wall as shown.

7. Installthe Soundbar with the attached Bracket-Wall Mounts by hanging the e Bracket-Wall Mounts on the Holder-Screws

on the wall. — D L — — La

Do not hang onto the installed unit and avoid striking or dropping the unit. Secure the unit firmly to the wall so that it

does not fall off. If the unit falls off, it may Slightly tilt the Soundbar to insert both cause an injury or damage the product. Holder-Screw heads into Bracket-Wall When the unit is installed on a wall, please Mount holes. Push the Soundbar in the make sure that children do not pull any of the direction of the arrow to make sure both sides connecting cables, as this may cause it to fall.

For the optimal performance of a wall mount

installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall

For your safety, if you do not mount the unit

on the wall, install it on a secure, flat surface where it is unlikely to fall.

10 SOFTWARE UPDATE Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at

www.samsung.com Support

Then, enter or select the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

Important: The updating function erases all user

settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating the firmware resets the subwoofer connection too.

. Connect a Micro USB to USB adapter cable

with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

+ The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care

Follow the steps below to download the

product software: Go to the Samsung website at {samsung.com) - search for the model name - select the customer support option (the option name is subject to change)

. Save the downloaded software to a USB

stick and select "Extract Here” to unzip the folder.

Turn off the Soundbar and connect the USB stick containing the software update to the female port on a Micro USB adapter cable Connect the cable to the USB port on the Soundbar.

. Turn on the Soundbar. Within 3 minutes,

“UPDATE” is displayed and updating begins

6. When the update finishes, the Soundbar turns off. Press the »i button on the remote control for 5 seconds. “INIT” appears on the display and then the Soundbar turns off. The update is complete.

+ This product has a DUAL BOOT function If the firmware fails to update, you can update the firmware again.

7. Reset your settings.

IfUPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.

2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

+ The firmware update may not work properly if audio files supported by the Soundbar are stored in the USB storage device. Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update. After the update is completed, the user setup in the Soundbar is initialised so you can reset your settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. Ifthe connection to the subwoofer is not re-established automatically after the update, refer to page 7. Ifthe software update fails, check if the USB stick is defective.

+ Mac OS users should use MS-DOS (FAT) as the USB format.

+ Updating via USB may not be available, depending on the USB storage device manufacturer.

11 TROUBLESHOOTING Before seeking assistance, check the following

The unit will not turn on.

Is the power cord plugged into the outlet? — Connect the power plug to the outlet

Afunction does not work when the button is pressed.

Is there static electricity in the air? — Disconnect the power plug and connect it again

Sound dropouts occur in BT mode.

— See the Bluetooth connection sections on pages 14 and 19.

Soundis not produced.

Isthe Mute function on?

— Press the à (Mute) button to cancel the mute function Is the volume set to minimum?

The remote control does not work.

Are the batteries drained?

— Replace with new batteries

Isthe distance between the remote control and Soundbar main unit too far? — Move the remote control closer to the Soundbar main unit

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur ifthe subwoofer is not connected to the Soundbar main unit. — Try to connect your subwoofer again. (See page 7.)

The subwoofer drones and vibrates noticeably.

Tryto adjust the vibration of your subwoofer. — Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. (to -12, or between -6 - +6)

12 LICENCE DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http:/patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AL Rights Reserved

13 OPEN SOURCE LICENCE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email (oss.request@samsung.com)

14 IMPORTANT NOTES ABOUT SERVICE Figures and'illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (ie where the user manual has not been read)

(b) you bring the unit to a repair centre and there is no defect with the product (ie. where the user manual has not been read)

You will be informed of the administration fee amount before a technician visits.

15 SPECIFICATIONS AND GUIDE Specifications Model Name HW-R470 USB 5V/0.5A Weight 15kg Dimensions (W x H x D) 907.5 x 53.5 x 70.5 mm

Operating Temperature Range 45°C to +35°C Operating Humidity Range

AMPLIFIER Rated Output power

Supported play formats (DTS 2.0 sound is played in DTS format.)

AMPLIFIER Rated Output power

100W WIRELESS DEVICE OUTPUT POWER SRD max transmitter power

25mW at 5.725GHz - 5.825GHz

Wireless Surround Speaker SET Name SWA-8500 Weight

Wireless Receiver Module 07kg Surround Speaker 0.5kg

Dimensions (W x H x D) Wireless Receiver Module

50.0 x 201.3 x 132.0 mm

Surround Speaker 76.2x1269x 76.2 mm Operating Temperature Range +5°C to +35°C Operating Humidity Range 10%-75% Frequency range 20Hz-20kHz

WIRELESS DEVICE OUTPUT POWER SRD max transmitter power

25mW at 5.725GHz - 5.825GHz

Overall Standby Power Consumption (W)

Soundbar Main Unit 27W Wireless Surround Speaker SET 1.0W Press and hold the SOUND MODE button Bluetooth Lo for more than 5 seconds to turn off Port deactivation method Bluetooth Power function: NOTES

+ Samsung Electronics Co, Ltd reserves the right to change the specifications without notice. + Weight and dimensions are approximate.

Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive

2014/53/EU The fulltext of the EU declaration of conformity is available at the following internet address: http:/www.samsung.com go to Support » Search Product Support and enter the model name. This equipment may be operated in all EU countries.

x [Correct disposal of batteries in this product]

(applicable in countries with separate collection systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate thatthe battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66,

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

X Correct Disposal of This Product (Waste Electrical & Electronic Equipment) ==

(applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.. charger, headset, USB cable) should not be disposed of with other household waste at the end of their workinglife. To prevent possible harm to the environment or human health from uncontrelled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling

Business users should contact their supplier and check the terms and conditions ofthe purchase contract. This product andits electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung environmental commitments and product specific regulatory obligations e.g. REACH,

WEEE, Batteries, visit http:/www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

12 LIZENZ DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http:/patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AL Rights Reserved

© AC-stekker © Lichtnetadapter

instelling is standard Aan

Wandmontage R Wandmontage L

12 LICENTIE DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AL Rights Reserved

13 KENNISGEVING OPEN SOURCE-

LICENTIE Neem voor vragen en verzoeken met betrekking tot open source contact op met Samsung via e-mail (oss.request@samsung.com).

Supportdefixation Supportdefixation

Ligne centrale supports.

12 LICENCE DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http:/patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. Al Rights Reserved

© 2019 Samsung Electronics Co, Ltd. All rights reserved

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre

Contact Centre & Web Site Contact Centre & Web Site prr German)

EE RE 5 usage He San MONTENEGRO | support

support(Dutch) hsamsungeom/
