USER MANUAL BLP 3360 BLAUPUNKT

MAINTENEZ VOTRE APPAREIL AU SEC

Read these safety instructions before using your device and store them for possible future reference.

• The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.
• Children should be monitored to ensure that they do not play with the device.
• The device should always be readily accessible.
• The device should not be exposed to dripping or splashing water.
• No objects filled with liquids such as vases shall be placed on the device.
• Always leave a minimum distance of 10cm around the unit to ensure sufficient ventilation.
• Open flame sources, such as candles, should not be placed on top of the device.
• The device is intended for use only in a temperate climate.
• At full volume, prolonged listening to the portable audio device may damage the user's hearing and cause hearing troubles (temporary or permanent deafness, hearing drone, tinnitus, hyperacusis).
• So we recommend not to listen to the portable audio device at high audio volume and no more than one hour per day at medium audio volume.
• CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.
• The battery should not be exposed to excessive heat such as sunshine, fire or similar.
• Different types of batteries, new and used batteries should not be mixed.
• The battery must be installed according to the polarity.
• If the battery is worn, it must be removed from the product.

• The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment.

• The battery can't be replaced by the user, but only by the maker of this product, the after sales department or a qualified person.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off where the use of the device is not allowed or where there is a risk of causing interference or danger, for example on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.

ROAD SAFETY COMES FIRST

Check the current laws and regulations regarding the use of this device in the areas where you drive.

• Do not handle the device when driving.
• Concentrate fully on the driving
• Radio signals could affect some of the car's electronic systems such as the audio stereo and alarm systems.

INTERFERENCE

All wireless devices are susceptible to interference which may affect their performance.

All our device conform to international standards and regulations, and if need be national ones, with a view to limiting user exposure to electromagnetic fields. These standards and regulations were adopted after the completion of extensive scientific research. This research established no link between the use of the mobile headset and any adverse effects on health if the device is used in accordance with standard practices.

AUTHORISED PERSONNEL

Only qualified people are authorized to install or repair this product.

ACCESSIONS

Only use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products.

KEEP THE EQUIPMENT DRY

This equipment is not water proof. Keep it dry.

CHILDREN

Keep your device in a safe place, out of the reach of young children. The device contains small parts that may present a choking hazard.

Specifications

Rated voltage : DC 5V = = = 2A

Max consumption : 10W

Li-ion battery 1800mAh

Radio frequency : 2,4GHz

Sound power : 2x5W+9W

Frequency range : 60Hz- 18KHz

Bluetooth compatible version : 4.2

Distance Bluetooth stays connected : 10m

Music playing time : 6 hours

Charging time : 2,5 hours

Dimensions : 300 x 156 x 89 mm

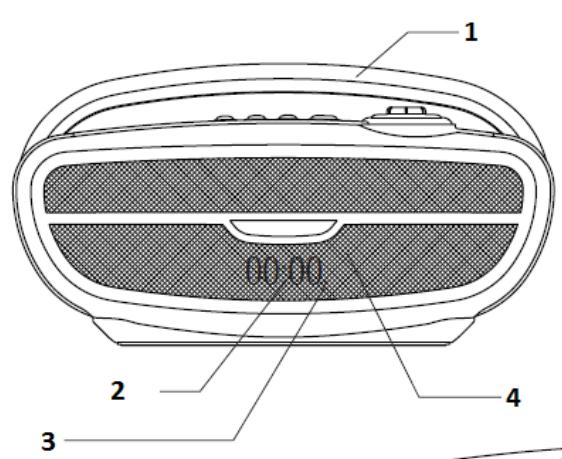

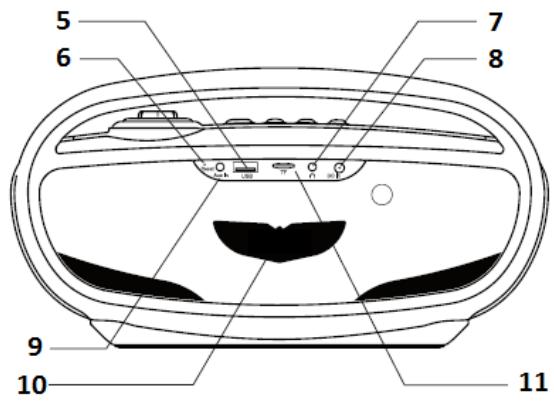

Presentation of the product

1. Handle
2. Display
3. Alarm indicator
4. Speaker mesh
5. USB port

6. Reset

7. Earphone jack

8. DC in
9. AUX-in
10. Bass radiator
11. TF card slot

12. EQ button

13. Alarm button / Bluetooth / Disconnect button

14. Mode change button
15. Power ON/OFF/Clock

16. MIC

17. Next

18. Volume knob / Play/Pause button
19. Clock button
20. Previous

Operation

Mode Selection

Press and hold POWER 1 sec. to power on the speaker. Press M to switch modes. Modes include: Pairing Mode, USB Drive, TF Card, FM Radio and Auxiliary connection.

Note: Related modes will be skipped if USB drive, TF card or auxiliary cable connection is not detected.

Bluetooth pairing

Power on the speaker. Pairing Mode is automatically entered. On your Bluetooth device, find "BLP3360" under your Bluetooth settings (Input"0000"if password is required). A successful connection via Bluetooth will be followed by an audible notification. Music from the device will be played from the speaker.

Wireless speaker phone call

The Speaker phone call function is enabled when your device is connected via Bluetooth. Press the Play/Pause knob to answer a call. Press the button again to end the call. To decline a call without answering, press and hold the button Play/Pause for 3 seconds.

USB Drive

Insert an USB drive into the speaker's USB port to enter USB Drive mode or press the button M repeatedly until voice prompt "USB Drive" is played. The speaker will play music from the USB drive automatically.

Press the button < or > to skip tracks.

Note:

The speaker will switch to other mode automatically if no music is found in the USB drive.

The speaker does not read USB drive with memory over 32GB.

TF Card

Insert a TF card into the speaker's TF card slot to enter TF Card mode or press the button M repeatedly until voice prompt "TF Card" is played. The speaker will play music from the card automatically. Press the button < or > to skip tracks.

Note: The speaker does not read TF card with memory over 32GB.

FM Radio

Enter the FM Radio Mode by pressing the button M repeatedly until the voice prompt "FM Radio" is played.

Press and hold the Play/Pause button to initial automatic channel search. Searched channels will be saved automatically. Press the < or > to select channels.

Auxiliary Mode

Plug the AUX cable to the Aux In jack of the speaker to enter AUX mode or press the button M repeatedly to switch to AUX mode. Voice prompt "Auxiliary connection" will be played. Connect the other end of the 3.5mm Aux cable to peripheral devices to play music.

EQ

Press the button EQ to change different EQ tones when playing music.

System Reset

The system of the speaker can be reset if the speaker malfunctions or do not response. Prepare a thin toothpick-sized stick and insert it through the reset hole until it pushes the inner reset button to reset.

Charging the speaker

Using the provided DC to USB power cable, connect the cylindrical DC connector to the DC In Jack on the rear panel of the speaker and connect the standard USB Connector to a USB Power Source, such as a laptop computer or smartphone USB charger (Not included). A red light ring on the speaker indicates charging and turns off when charging completes. Please note that the speaker will play warning sounds when the battery level is low.

Clock & Alarm

Short press the POWER button when the speaker is on to switch to clock mode. Press to set alarm and press I to set clock. When the alarm rings, press the play/pause to snooze. The alarm will ring again after 5 minutes. Press the button to stop the alarm without disabling the alarm for the next day. Press & hold the to enable/disable the alarm function. An alarm indicator appears when alarm is enabled.

Note: The clock will reset to 00:00, if the speaker is powered off completely or if the speaker is out of battery. Charge the speaker constantly and do not long press the power button to allow the clock remains functional.

Status indications

Blue light ring : Pairing mode : Blue light flashes when waiting for a connection and stays on when paired.

Red light ring : Charging : Red light turns on when charging and turns off when charging completes.

Dag Technologie®, herby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_DAG_BLP3360-002.pdf

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

Imported by Dag Technologie®

79/81 Ancienne route Nationale 7

69570 Dardilly

FRANCE
