USER MANUAL LC-50UI7222E SHARP

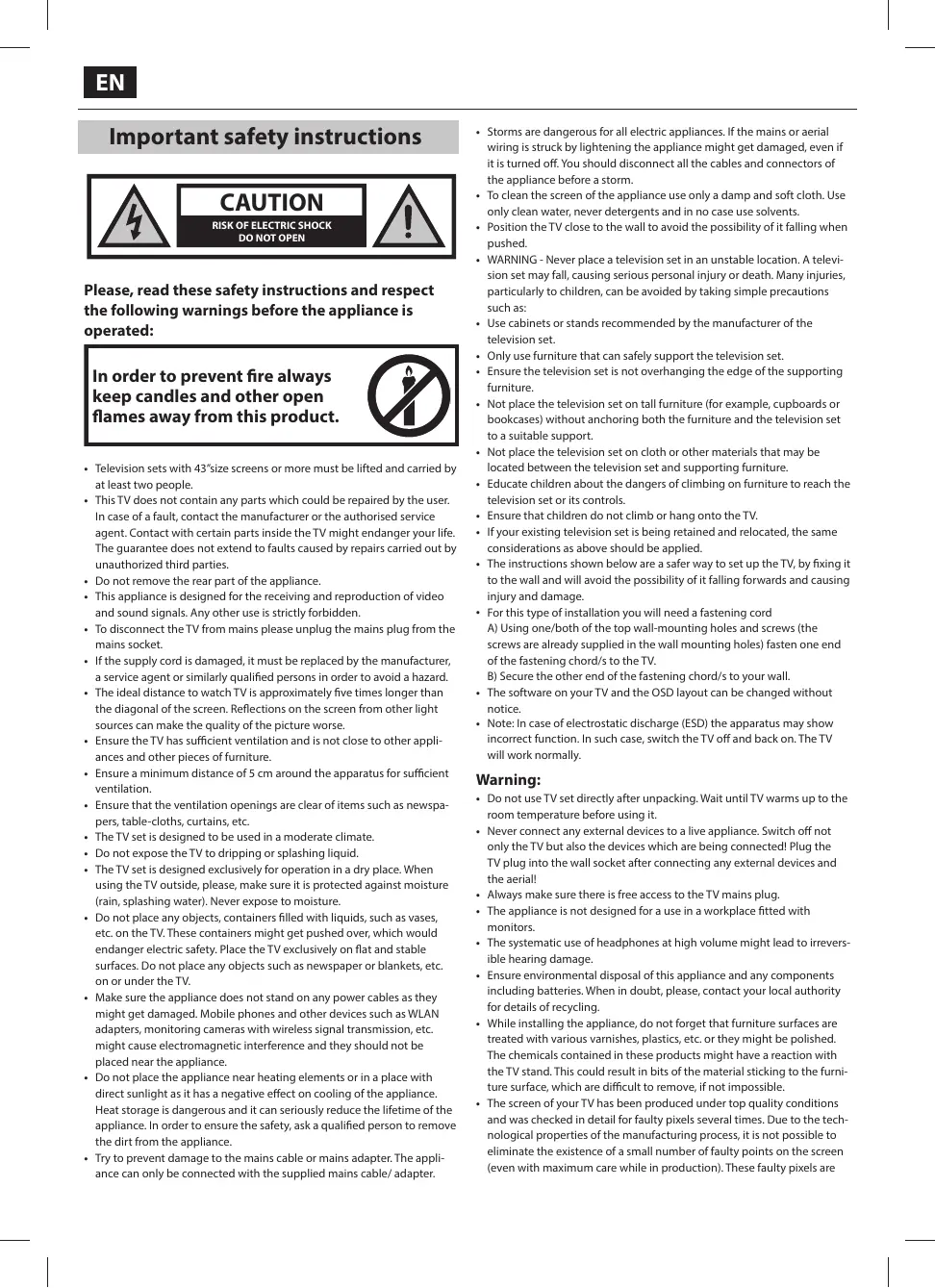

Important safety instructions CAUTION

Please, read these safety instructions and respect the following warnings before the appliance is operated: In order to prevent fire always keep candles and other open flames away from this product. 2 Television sets with 43'size screens or more must be lifted and carried by At least two people. 2 This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your if. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties. + Do not remove the rear part of the appliance. + This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden. + To disconnect the TV from mains please unplug the mains plug from the mains socket :_Ifthe supply cord is damaged, it must be replaced by the manufacturer, a service agent or similary qualified persons in order to avoid a hazard. + The ideal distance to watch TV is approximately five times longer than the diagonal ofthe screen. Reflections on the screen from other light sources can make the quality ofthe picture worse. + Ensure the TV has suficient ventilation and is not close to other appli- ances and other pieces of furiture. + Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. + Ensure that the ventilation openings are clear ofitems such as newspa- pers table-cloths, curtains, et. + The TV setis designed to be used in a moderate climate. + Do not expose the TV to dripping or splashing liquid. + The TV setis designed exclusively for operation in a dry place. When using the TV outside, please, make sure ts protected against moisture (rain, splashing water. Never expose to moisture. + Do not place any objects, containers flled with liquids, such as vases, etc. on the TV. These containers might get pushed over, which would ‘endanger electric safety. Place the TV exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or underthe TV. + Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance. + Do not place the appliance near heating elements or in à place with direct sunlight as it has a negative effect on cooling ofthe appliance. Heat storage is dangerous and it can serious}y reduce the lifetime ofthe appliance. In order to ensure the safety, ask 2 qualified person to remove the dirt from the appliance. 2 Try to prevent damage to the mains cable or mains adapter. The appli- ance can only be connected with the supplied mains cable/ adapter. + Storms are dangerous for all electric appliances. Ifthe mains or aerial wéiring is struck by lightening the appliance might get damaged, even if itis turned off. You should disconnect all the cables and connectors of the appliance before a storm. + To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents and in no case use solvents. Position the TV close to the wall to avoid the possibiity ofit falling when pushed. WARNING - Never place a television set in an unstable location. À televi- sion set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Use cabinets or stands recommended by the manufacture of the television set. Only use furniture that can safely support the television set. Ensure the television set is not overhanging the edge ofthe supporting furniture, Not place the television set on tal furniture (for example, cupboards or bookcases) without anchoring both the fumiture and the television set 0 a suitable support. Not place the television set on clath or other materials that may be located between the television set and supporting furniture. + Educate children about the dangers of cimbing on fumiture to reach the television set or is controls. Ensure that children do not climb or hang onto the TV. + IFyour existing television set is being retained and relocated, the same considerations as above should be applied. The instructions shown below are a safer way to set up the TV, by fxingit tothewall and will avoid the possibiliy ofitfalling forwards and causing injury and damage. For this type ofinstallation you will need a fastening cord A) Using one/both of the top wall-mounting hales and screws (the screws are already supplied in the wall mounting holes) fasten one end ofthe fastening chord/s to the TV.

8) Secure the other end of the fastening chord/s to your wall.

The software on your TV and the O$D layout can be changed without notice. Note: In case of electrostatic discharge (ESD) the apparatus may show incorrect function. In such case, switch the TV off and back on. The TV wél work normal.

2 De not use TV set direct after unpacking Wait until TV arms up to the room temperature before using 2 Never connect any external devices t a ve applance, Siitch ff not only the TV but als the devices which are being connected! Plug the Tu into the wal socket alter connecting any external devices and the aenall Aays make sure there free access to the TV mains plug 2 The applance is not designed for a use in a rorkpace fred th monitors The systematicuse of headphones at high volume might lead to ever ibl hearing damage. + Ensure environmental disposal ofthis appliance and any components including batteres.\hen in doubt please, contact your local authority for detals ofrecyclng Wie instaling the applance, do not forget that furniture surfaces are tested with various vanishes, pastis et. or they might be paished The chemical contained in these products might ave a rection with the TV stand.This could rest in bits of the material sticking to the furni- ture surface which are dificult to remove, I notimpossble. = The screen of your TV has been produced under top quality conditions and was checked in detail for fauy pixels several times. Due to the tech- nological properties ofthe manufacturing process ti not possible to eliminate the exstence of a small number of falty paint on the screen (even with maximun care while in production). These auly pixels are

not considered faults in terms of guarantee conditions iFtheir extent is not greater than the boundaries defined by DIN norm ‘The manufacturer cannot be held responsible, or be liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider. 2 There are a variety of reasons you may be unable to access content or services from the device unrelated to the device itself including, but not limited to, power failure, the Internet connection, or failure to configure your device correctiy. Universal Media Corporation, its directors, officer, ‘employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided. Allthird party content or services accessible via this device is provided to you on an”as-is and'as available” basis and Universal Media Corporation and its affliates make no warranty or representation of any kind to you, either express or implied, including, without limitation, any warranties ‘of merchantability non-infringement, fitness for a particular purpose or any warranties of suitability, avallability accuracy, completeness, se- urity title, usefuiness lack of negligence or error-free or uninterrupted ‘operation or use of the content or services provided to you or that the content or services will meet your requirements or expectations, + ‘Universal Media Corporation’ not an agent of and assumes no responsibility for the acts or omissions of third party content or service providers, nor any aspect of the content or service related to such third party providers. + In no event will‘ Universal Media Corporation’ and/or is affliates be liable to you or any third party for any direct, indirect, special, incidental, punitive, consequential or other damages, whether the theory ofliability is based on contract, tort negligence, breach of warranty, strict liability or otherwise and whether or not Universal Media Corporation and/or ts affliates have been advised of the possibilty of such damages. Important information regarding use of video games, computers, captions and other fixed image displays. = The extended use offixed image program material can cause a perma- nent'shadowimage” on the LCD screen (this is sometimes incorrect referred to as“bumout to the screen’) This shadow'image is then perma- nentiy visible on the screen in the background, isireverible damage. You can avoid such a damage by following instructions below: + Reduce the brightness/contrast setting to a minimum viewing level Do not display the fned image for long period oftime. Avoid display ingo » Teletexttime and charts » TV/OVD menu, eg. DVD contents, > InthePause’ mode (hold): Do notuse this mode for long time, eg. wilewatching à DVD or video » Tu off the appliance if you are not using it. Batteries + Observe the correct polarity when inserting the batteries. + Do not expose batteries to high temperatures and do not place them on locations where the tempera- ture might increase quickly, e.g. near the fire or on the direct sunshine. + Do not expose batteries to excessive radiant heat, do notthrowthem into the fire, do not disassemble them and do not try to recharge un-rechargeable batteries. They could Ieak or explode. » Never use different batteries together or mix new and old ones, » Dispose of batteries in an environmentall friendly way. » Most ofthe EU countries regulate the disposal of batteries by la Disposal 2 Do not dispose ofthis TV as unsorted municipal waste. Return to a designated collection point for the recycling of WE. 8y doing so you will help to conserve resources and protect the environment. Contact your retail or local authors for more information

CE Statement: + Hereby, UMC Poland Sp. 0.0. declares that this LED TVis in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU. The full text of the EU declaration of conform- ityis available by following the link: ttps//www sharpconsumereu/ documents-of-conformity/ Trademarks The terms HDMI and HDMI High-Defiition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries, The "DIGITALEUROPE UHD Display” logo is a trademark of DIGITAL. EUROPE. The DVB logo is the registered trademark of the Digital Video Broad- casting -DVB - project. + Manufactured under license from Dolby Laboratories, Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http}//patents dts com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and'the Symbol together are registered trademarks. DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. AI Rights Reserved. aout gps caen lo TM CRD Logo coton moe An NE CERIFIED Macastand Macao adore of Aanee | DENA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Harman Kardon is trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

What is included in the box Supply of this TV includes following part IV + x IVstandinstaltion packet = DéRemote control + IxUserguide 2 2x AMAbatteries :__ 1x Wall mount set (4x M6»85 screw and 4x plastic spacer) Attaching the Stand Please follow the instructions on last page of this user manual. Wall mounting the TV

1. Remove the four screws that are supplied in the wall mounting holes.

2. The wall mount can now be easily attached to the mounting holes on

3. Installthe well mounting bracket to the television as advised by the

bracket manufacturer. When attaching wall mount brackets on 50° model, instead of screwes provided in TV wall mounting holes, we recommend the use of longer screws and spacers included in the accessory pack. Please put spacers into TV wall mounting holes, located on the back ofthe TV, then put wall brackets onto them. Attach brackets and spacers to TV using longer screws 25 shown below:

NOTE: TV and'the wall bracket type shown in the diagram is far illustration purposes only. Getting started - initial set up 1: Using the RF cable, connectthe TV to the TV Aerial al socket.

2. For connecting to the Internet with a wired connection connect a

at 5/Ethemet cable (not includedh from the TV to your broadband modem/router.

3. Connect the power cable to the rear ofthe TV, and then connect it to

the electrical outlet.

4. insert the batteries supplied into the Remote control.

Then press Standby button to power on TV. You will be now welcomed ith the First Time Installation screen Hit does not appear, on the remote control please press [MENU] then 8-8-8-8 and the menu will appear. Hyou wish to make changes to any ofthe default settings, use the scroll A/V/ 41» buttons. To exit this menu at anytime, press [EXIT] button. Please set desired settings in First Time Installation screen. STEP 1 - Set the TV Menu language. STEP 2- set your country STEP 3 - Set type of network connection. f you wish to skip this step and connect TV to network later, please choose Skip Network Setting STEP 4- Select the location ofTV. For home use, please select Home. For shop demonstration mode, set Store. STEP 5 - choose if your TV has stand, or fit is mounted on the wall. TV. wil set optimal audio settings for selected option. STEP 6- choose input source which you want to use. I you have connected RF cable directly to TV, choose DIV. f you have satelite directly connected to your TV, choose DVB-$*. In case you are using set-top-box, please pick correct input to which is connected. 8." Ifyou selectediin lst step DTV or DVB-52, you will be asked if you want to tune channels. If you choose*No you can tune channels later from SETTINGS/CHANNEL menu. you choose Yes’ tuning menu will appear. Digital TV (DTV) tuning: In DVB Antenna, please choose which type of signal you have. Terrestrial (DVB-T) or Cable (DVB-C). Then enter Auto tuning and set your desired settings. Again choose Auto tuning to start tuning of channels, Satellite (DVB-S2) tuning: Enter Auto Tuning and enter Satelite. Here you can choose between the various satellites, Select satellite which you wish to tune by pressing OK button on remote control. Then return to previous menu by pressing BACK button on your remote control and choose Auto tuning to start tuning of channels. NOTE: To shorten tuning time of satellite channels, some countries have preinstalled channel ist for most popular satelite in that region. this is the case for your selected country you wil be askedifyou wish to load preinstalled channel ist. you choose es satellite channellist will be imported to your TV within few seconds. IP: you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV. Remote control

3. 0-9 - to select a TV channel directy.

4. TV GUIDE - Opens the 7 Day TV Guide (Digital mode)

5. CD To retum to the previous channel viewed

6. PICTURE - Scrolls through picture mode options.

7. VOL A/Y - To increase / decrease the sound level

8. CH AJY - To increase or decrease the channel being watchedl

13. (AVI / OK) - Allows you to navigate the on-screen menus and

adjust the system settings to your preference.

16. INFO - Press once for now/next channel information. Press twice for

18. SUBTITLE - To switch the dialogue at the bottom ofthe screen (on/

19. TV- Switch to digital TV source.

25. Dh To advance forward to the next chapter

26. M To stop the playback

27. Rec Listi- Opens the list of recordings.

28. 4-To play in fast rewind mode.

31. COLOUR BUTTONS- Additional teletext and OSD functions

TV control stickis located on the lower left corner of back side ofthe TV. You can use it instead of remote control to control most of the functions of your TV. While TV is in standby mode: 2 short press of control stick- Power On w gT + RIGHT/LEFT - volume up/volume down + UP/DOWN - changes channel up/down short press - Displays Menu + long press - Standby Power Off While in ment + RIGHT/LEFT/UP/DOWN - navigation of cursor in on-screen menus + short press - OK/Confirm selected item + long press - Back to previous menu *_-for TV with control stick watchi Choosing Mode Input/Source To switch between the different input/connections a) Using the buttons on the remote control:

1. Press [SOURCE/<]- The source menu wil appear.

2. Press [4] or [be] to select the input you require.

3. Press [SOURCE] to change input/source to the one selected.

b2) Using the TV control stick Shortly press control stick to enter menu, Press control stick down and navigate cursor to SOURCES menu. Shortly press control stick to enter SOURCES menu. with control stick choose the input/source yourequire. By short press of control stick, you will change input/source to the oneselected. *-optional SCART-Input CiCardIN Cinput RFin RF/TV Aerial Input Satin Satelite Input Digital Optical Audio Out @ — Dj optical output

© — semer HEADPHONES 3.5mm Headphone output D-link © æ— service input onty TV Menu navigation To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]. you wish to make changes to any ofthe default settings, use the scroll (A/W/4/ } buttons, To confirm any settings press {OK} button. To exit this menu at anytime, press [EXIT] button: Netflix World leading Internet television network I is offering thousands ofmovies and TV shows, including original series, documentaries and feature films, Members can play, pause and resume watching, all without commercials or commitments. You can log in to this application with your existing Netflix account. you do not have Netflix account yet, you can register via this app or via official Netfix website YouTube Videosharing app allows you to discover and watch originally-created videos. NOTE: For Youtube app to work, ii required to have set up correct date

andtime in TV. For more information about setting up date/time in TV, please refer to the TIME menu chapter of this user guide. Please ensure that your network is not blocking access to YouTube andthe speed of your intemet connection is fast enough far viewing Vouube content. More Apps Contains the most commoniy used apps for quick and easy access. AQUOS NET+ - Opens the Sharp SMART portal. Weather - Weather forecasting app AccuWeather. Browser - Application for accessing websites via the internet. Navigation in the browser: - CH+- scroll page up - CH-- scroll page down — Red Button - show/hide browser menu bar - Yellow Button - Zoom in - Blue Button - Zoom out Sources From this menu, you can switch your TV input signal t different source/ connected device. Media USB - Multimedia mode offers the playback of various content saved on a USB Memory Stick. The content vil be divided into various ie types: Photo, Music and Movie. The file Option'val show and allow you to play all types of supported content.

1. You can navigate through the menu using the scroll A/V/ AD

buttons. To confirm the item you wish to play/view press [OK] button.

2. While viewing content you can control the playback modes using the

remote control buttons or by bringing up the playback navigation menu and selecting on-sereen buttons A/V/ 4/2 and (OK) NOTE: USB extension cables are not recommended as they can cause a reduction in icture/audio quality and stoppages during play back of USB content. Miracast® Allows you to view content from your smart phone or tablet on the TV screen. Miracast is formed using Wi-Fi Direct, 0 access 0 aWi-Finetwark is not needed. Vou can share content from your smartphone or tablet based on Android 4.4 and newer system. Media Server - Automatically searches for digital media servers {DMS) connected to your home network and enables the playback and rendering of content from media servers *- This function is only available on selected smartphones and note. books. PICTURE icture Mode - Choose from the following presets, - Standard - Default settings - Movie - Set to be lighter in colour and less bright. - Personal -Lets you manualy alter all the settings. — Eco - Consume 15% less energy. - Dynamie- Recommended settings for fast moving pictures. Contrast - Switch the balance between black and white. Brightness - Increase or decrease the brightness of the picture. Colour - increases the colour from black and white. Sharpness - Increase or decrease the sharpness of the picture. Colour Temperature - Choose from the fallowing presets - Normal-Default settings Marm -Increases red within the picture. — Cold - Increases blue within the picture. Aspect Ratio Picture format varies depending on the channel/broadcast There are a number of different options to best mect your needs - Auto - Automaticallydisplays the best picture format. So the picture sin the correct position. May have blacklines at the top/bottom and/or sides, 433 -Displays the 43 picture in it original size Side bars are shown to fil the 169 screen, — 169 Fil the screen with a regular 169 signal, Zoom 1/2-The picture is the correct proportion but zo0med in to fil the screen. Dot by Dot (HDMI) -Wil display the picture inits riginal resolution without any change. _ Full Sereen - Stretch signal to fl the screen. Expert Settings — Noise Reduction -Fiters and reduces the noise (interference) ofthe picture. — Active Contrast - Automaticlly optimises the’backight' and “contrast of the picture according to the brightness of the screen — Backlight- Adjust the screen's brightness by increasing/ decreasingthe panels backighting, — Gamma Adjust the tones between the bright and dark parts ofthe picture. — Red- Adjust red tone ofthe picture Green - Adjust green tone ofthe picture — Blue - Adjust blue tone ofthe picture SOUND Sound Mode - Choose from the fallowing presets - Standard - Default settings - Music- Emphasises music over voices — Movie - Provides live and full sound for movies - Personal - Selects your personal sound settings — Sports - Emphasises sound for sports Equ: Adjusts the volume of different sound frequencies. The equalizer sound levels can only be adjusted when the sound mode Personal'is selected. Headphones — HP4TV - option to play sound from TV speakers and headphones simultaneously. - Volume - adjust volume for headphones. Balance - To switch the sound between the left and right speakers Auto Volume Level (AVL)- When‘on'is selected, the volume wél stay at a constant level regardless of input/source. DTS TruSurround - Allows you to turn surround sound effect ON or OFF. Digital Output - This is the digital Audio output. Choose from the following options: - OH-0f - Auto - Selects the best settings automatically - PCM - Select this option if you are connecting to a Stereo Hi-fi via digital cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal). Audio Description - Additional sound track for visual} impairec. Available only on selected DTV shows. AD Volume -to adjust volume of Audio Description sound track AudioTrack - allows you to choose different audio! language for Digital TV or media Audio Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for TV speakers. SPDIF Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for external speakers connected via digital audio output.

SETTINGS CHANNEL DVS Antenna- Set the type of DIV signal - Terrestrial-Terrestral (OV8:-T) — Cable - Cable (DVE-C) AAuto Tuning -Allows you to retune the television for ll digital channels digital radio stations and analogue channels. Analogue Manual Tuning - Allows you to manually tune your analogue signal. Digital Manual Tuning - Allows you to manuall tune your digital signal. Channel Edit - Allows you to delete, skip and add favourite channel. - Red Button - delete selected channel. - Yellow Button - Move selected channel Go with cursor to channel which you wish to move to different position, then press YELLOW button. Now move selected channel with UP/ DOWN arrow to desied position and press VELLOW button again to confirm its new position in channel ist. - Blue Button - Skip selected channel Channel selected to Skip will not be displayed while pressing CH+ or CH- buttons al Information - Information about DV8 signal. Clinformation - Pay per view services require a*smartcard” to be inserted into the TV. 1Fyou subscribe to a pay per view service the provider wil issue you with a CAM'and a“smartcard The CAM can then beinserted into the COMMON INTERFACE PORT {CI Card In) Sorting by LCN - Set LCN to ON if you want to arrange channels by provider preferences (only applies to DVB-T and DVB-C channels Channel Auto Update - you set this option ON, channel positions, names and frequencies will be periodically updated by the provider. This may cause issues f you ordered channels in the list of channels by yourself. In such case we recommend to keep this option of. Recorded ist* List of recorded TV shows. Schedule List - Lists your programme reminders. Satellite Setup-This menu is only available in DV8-52 mode. Vou can select the type of satellite, your transponder and your LNB type, et: OAD (Software Update) - Switch on/off OAD {over air download) software updates. +-Onby for devices with built in PVR function NETWORK Network Configuration - First you will need to select your connection type. You can choose between either a Wi-Fi or Wire (cable) connection. NOTE: For connecting ta the Internet with a wired connection, connect a Cat 5/Ethernet cable (not included) from the TV to your broadband modem/router. IP config - LAN network connection settings - Auto - Will automatically connect the TV to your home network {this is the default setting and is highly recommended) - Manual Allows you to manually change the IP, Netmask, Gateway and DNS information. Wi-Fi Configuration - Wireless network connection settings - Wi-Fi Auto Search - Automatically searches for available wireless networks, Select the desired Wi-Fi network and then enter the network password (if network is password protected). Once the password is accepted, you will not be asked fort again. NOTE. The connection process may take a few minutes, please be patient. Every time the TV is then powered on it will automatically connect to the network, this may also take some time. Network Info - Information about the network settings Network Test - À network connection test TIME ‘Auto Sync - Automaticall sets the time and date on the TV set. Requires the TVto be tuned in with a digital signal and/or an interet connection. Turn ”Auto Sync” off to manually adjust the time and date settings. IF “Auto Syne”is set to off with the time and date manually adjusted, this information wil be reset when the power to the TV is disconnected. Clock - Shows the date and time. Can be adjusted when’Auto Syne'is set to off. Off Time - Allows you to set a specific time for your TV to turn of. On Time - Allows you to set a specific time for your TV to turn on, the channel itwil then display, the source it wall be on and also the volume. This function can then be toggled to repeat every day or a certain day. Sleep Timer - Lets you set the sleep timer so the television automatically switches of after a set amount of time. Off-> 10min > 20min -> 30min-> 60min -> 90min -> 120min -> 180min -> 240min, O$D Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing, Auto standby - Adjustment for the auto standby in hour increments: Of-> 3h-> 4h-> 5h, Time Zone - Change your current time zone. LOCK System Lock - Allowes you to lock or unlock the menu. You will be asked to enter a 4 digit password. Use the 4 button to quit the password input. Use the D button to clear. Default password is 0000. Set Password - Change the default password. Channel loek - Lock specific TV channels. Parental Guidance - Lock TV channels based on age restriction. Key lock - Allows you to lock the TV control Stick on the back side ofthe TV set. Source Lock - Allows you to hide selected inputs from the source menu, Hotel Mode - Advanced settings for hotels. SETUP Language - Allows you to change the language ofthe menu. Audio Languages - Allows you to change audio language on selected DVB channels. Subtitle Language - Allows you to change subtiles language on selected DVB channels. Hearing Impaired - signal provides support for the hearing impaired, the subtitles can be played by pressing the “Subtitle” If you set Hearing Impaired ON and switch to a channel with supports for hearing impaired subtiles will be activated automatically. Blue Screen - Changes the background when there is no input between transparent and a blue background (Only available on some sources). PVR File System - PVR Recording options” Select disk - Select USB port and disk partition TimeShift Size - Set size time of shift buffer. Format-Vou can format connected USB storage device to FAT 32 file system. - WARNING: ALL DATA ON THE USB DEVICE WILL BE DELETED — Speed Tests write speed of connected USB storage devices. only for devices with built in PVR function First Time Installation - Starts the first time installation. Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/frmware onto the television. Further details of how to do this will be issued with the firmware, Contact the helpline or refer to the wwwsharpreu/av'website. Software Upgrade (NET) - Allows for the TV software to be updated over the Internet. This function will search for newr software and update it when necessary. NOTE: The TV will automatically search for new releases of software every time itistured on. [new software is found, it will ask you ifyou would like to deunload and install. Fyou select "Yes" the TV will upgrade to the latest software.

WARNING: Do not turn off the TV power until the upgrade is completel

Reset TV - This resets the menus to factory settings. HDMI EC - Allows you to operate devices connected via HDMI with TV remote control.

- Device list* - Allows you to access devices menu and operate the menu using TV remote control - HDMI CEC - enable/disable HDMI CEC function — Auto standby* - Automatically turn on/ ‘of connected devices via HDMI CEC — HDMI ARC" - Sends audio signal from terrestrial/satelite broadcast via HDMI to the AV receiver without using any additional audio cables, this functions is available only on HDMI 2 output. *_-HDMI CEC must be supported by connected device. HDMI EDID - transmits the TV set capabilities (resolution, audio support etc) directly to the devices connected via HDMI. This item allows you to switch modes of selected HDMI input between HDMI and HDMI2.0 mode. — Standard - recommended ifthe TV is connected to à device with a HDMI 14 output or lower, for example Full HD Blu-Ray player, DVD player or gaming console. - Enhancement - recommended if the TV is connected to à device with a HDMI 2.0 output, for example 4K Blu-ray player or modern PC. LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated. (When this option is set to OFF the LED Power indicator light wil flash when the remote control is used. HbbTV - Allows the user to switch HbbTV on/off Tor use HbbTV, TV must be connected to the internet and watched channel must support HbbTV service. Version Info - shows version ofTV software Source Edit - this allows user to manually rename items. in your list oFinput sources. For example, you can rename inputs to the names of connected devices. AQUOS NET+ ‘To access the AQUOS NET+ Menu at any time press the NET+ button on the remote control or select it from More Apps menu. NOTE: Please wait while the TV connects to the Wi-Fi network IE may take a few minutes after youswitch on the TV. Navigate the menu using the scroll A/ V4» buttons. To confirm the item you wish to play/view press [OK] button. For'one-step back press Menu] button, and to access additional functions use the coloured buttons. To leave AQUOS NET+ press [EXIT] button. Home - Home screen with recommended movies and recently opened applications ‘All Apps - Opens a lis of available applications Movies - Opens a list of available movies ‘TV Shows - Opens a list of available TV shows Musie- Opens a list of available Music and Music videos Games - List of games and gaming related apps. Sport-Listof sport related apps. News -List ofnews apps. Search - search for app by entering its name or part ofthe name. My apps - By adding apps to the“My Apps’ list, you will be able to quickly access your favourite apps. To add an app to the list, simply highlight any app and press the green button, this will now appear in your "My apps' ist. To remove an unwanted app from the “My Apps”list you must highlight the app you want to delete and press GREEN button. Settings - In the settings menu you can change the language ofthe Aquos NET+ portal set up a fier for applications specific to the language selected and reset all user settings back to the default settings, RESET OF USER SETTINGS: you wish to completely reset all user settings on AQUOS NET+, you must first enter the Settings menu ofthe portal and select “Reset your device” Please select VES with cursor and then press OK on the remote control to conf the reset ofthe settings. NOTE: To meet our customers’ demands, we are improving our products As a result of our ongoing efforts new applications will be added continuoushy to the AQUOS NET+. Applications and content in AQUOS NET+ can be changed without notice. Some of the functions and content may not be available in your country. 7 Day TV Guide TV Guide is available in Digital TV mode. provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1. Press [TV GUIDE] The following 7 Day TV Guide will appear.

2. Navigate through the menu using A/V {42

You can now: Record selected TV channel and TV show by pressing the RED button. Set a reminder by pressing GREEN. View a previous day by pressing YELLOW. Vie the next day by pressing BLUE. [INFO] shows detailed information about the selected post Press [EXIT] to exit the 7 day TV Guide. only for models with recording function USB Record - Digital mode* Buil into this television is a USB record facility. This function is available in Digital mode when used in conjunction with a compatible US8 memory stick or USB Hard drive. The benefits of this are 2s follows: + Pause live TV and then playback, fast forward and rewind (up to live TV) + One button record, if you decide you want to record the current programme. + Easy programmable recording from the 7 day TV Guide Due to the nature of the product, iis necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable). Minimum Specification - USB Memory Stick — Read Speed - 20 Mb/s (Megabit Per Second) — Write Speed - 6 Mb/s (Megabit Per Second) Pause Live TV (Time Shift)* Pausing Live TV is very simple. + Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again. + Press fast forward to go forward in a recording (Le. to skip adverts + Press fast rewind to go back in a recording (Le. if you fast forwarded too far) TIP:When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button. One Button Record Atany point in time you may decide to record the current channel that you are weatching. To do this you need to press the [REC] button. TIP: This television contains one TV tuner, therefore it can onhy record the channel you are watching or record one channel while the television is in standby mode. NOTE: USB record function is only available in Digital TV mode. Due to copyright laws and legal copying/recording it is not possible to recordto/from any other input/output source. *-only for devices with built in PVR function HDR (High Dynamic Range) HDR video removes some ofthe limitations of a standard video signal and shows the image built from a wider gamut of colour and brightness. NOTES: — HDR function will activate automatically ifan HDR signal is detected, provided that HDMI EDID has been set to“Enhancement"in the"SETUP menu.

This television can display HDR content via the HDMI or USB inputs. — Ifyou are connecting via one ofthe HDMI ports, the external device must also support HDR, HDMI2.0 and be playing HDR mastered content. _ This device does not support HDR content from inbuil apps such as Netflix or YouTube. Product fiche Trademark LCSoUrmE Model LCSOUTEDE LCSOUTANE Energy effieny dass “ Visible seen ire (dagonal) So 27m On-mode pouer consumption ow Annual energy consumption® 1o2kn Standby power consumption®* <asow Of made power consumption wa Seen resolution 30 (Hx21EOUM “Energy consumption XYZ kWh per year, based on the power consumption ofthe television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. **-when the TV is turned offwith the remote control and no function is active
