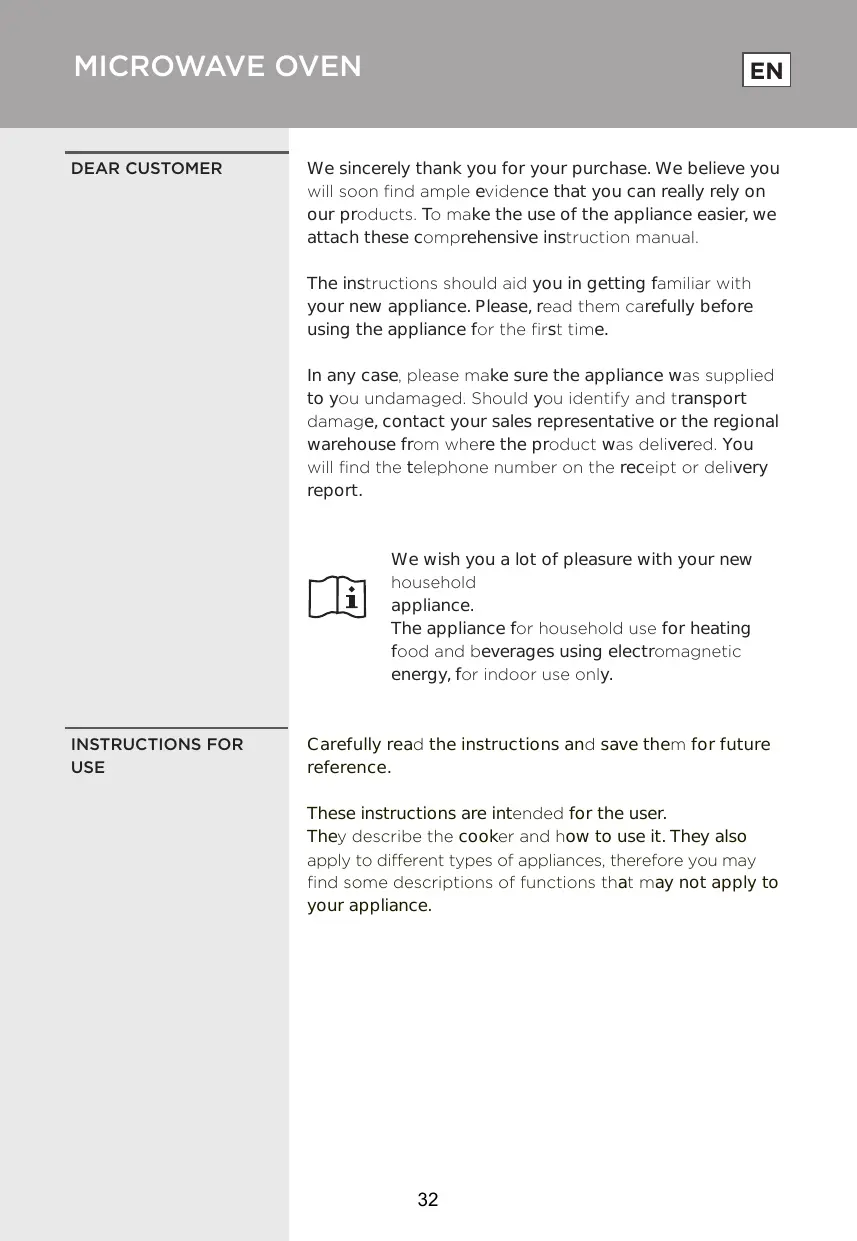

MICROWAVE OVEN DEAR CUSTOMER INSTRUCTIONS FOR USE We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time. In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report. We wish you a lot of pleasure with your new household CH appliance. The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only. Carefully read the instructions and save them for future reference. These instructions are intended for the user. They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

1. Do not attempt to operate this oven with the door

open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

2. Do not place any object between the oven front

face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

3. WARNING: If the door or door seals are damaged,

the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: + Read and follow the specific: PRÉCAUTIONS TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY". + This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. + Keep the appliance and its cord out of reach of children less than 8 years. + Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid à hazard. + WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. + WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be

heated in sealed containers since they are liable to explode. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. Only use utensils that are suitable for use in microwave ovens. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Only use the temperature probe recommended for

this oven. (for ovens provided with à facility to use a temperature-sensing probe.) The microwave oven must be operated with the decorative door open. (for ovens with à decorative door.) This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. Metallic containers for food and beverages are not allowed during microwave cooking. The appliance shall not be cleaned with a steam cleaner. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.) The microwave oven is intended to be used built-in. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor

and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.) Steam cleaner is not to be used. Surface of a storage drawer can get hot. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot

during use. Young children should be kept away.

WARNING: When the appliance is operated in

the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE

TO REDUCE THE RISK OF INJURY TO PERSO GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. À short power-supply cord is provided to reduce

the risks resulting from becoming entangled in or tripping over à longer cord.

2. If a long cord set or extension cord is used:

1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2).The extension cord must be à grounding-type 3-wire cord. 3).The long cord should be arranged so that it Will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING Be sure to unplug the appliance from the power supply. + Clean the cavity of the oven after using with a slightly damp cloth. + Clean the accessories in the usual way in soapy water. + The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. + Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. + Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300m1I (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than à competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: + Fill a microwave-safe container with 1 cup of cold water (250m1) along with the utensil in question. + Cook on maximum power for 1 minute. + Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. + Do not exceed 1 minute cooking time.

Materials you can use microwave oven Utensils Remarks Follow manufacturer's instructions. The bottom of browning Browning dish | dish must be at least 3/16 inch (5mm) above the turntable incorrect usage may cause the turntable to break Microwave-safe only. Follow manufacturer's instructions. Do Dinnerware not use cracked or chipped dishes. Glass jars Always remove lid, Use only to heat food until just warm. l Most glass jars are not heat resistant and may break Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes Oven cooking [Follow manufacturer’s instructions. Do not close with metal bags tie. Make slits to allow steam to escape. Use for short-term cooking/warming only. Do not leave oven Paper plates and cups | tended while cooking Use to cover food for reheating and absorbing fat. Use with Paper towels supervision for à short-term cooking only. Parchment paper [Use as a cover to prevent splattering or a wrap for steaming; Microwave-safe only. Follow the manufacturers instructions Should be labeled "Microwave Safe”. Some plastic containers Plastic soften, as the food inside gets hot. "Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to Plastic wrap retain moisture. Do not allow plastic wrap to touch food Thermometers | Microwave-safe only ( meat and candy thermometers) Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Remarks Aluminum tray [May cause arcing. Transfer food into microwave-safe dish: Food carton with May cause arcing. Transfer food into microwave-safe dish metal handle Metal or metal- | Metal shields the food from microwave energy. Metal trim may trimmed utensils_|cause arcing Metal twist ties [May cause arcing and could cause à fire in the oven Paper bags [May cause a fire in the oven Plastic foam may melt or contaminate the liquid inside when Plastic foam | 5osed to high temperature Wood will dry out when used in the microwave oven and may Wood split or crack.

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

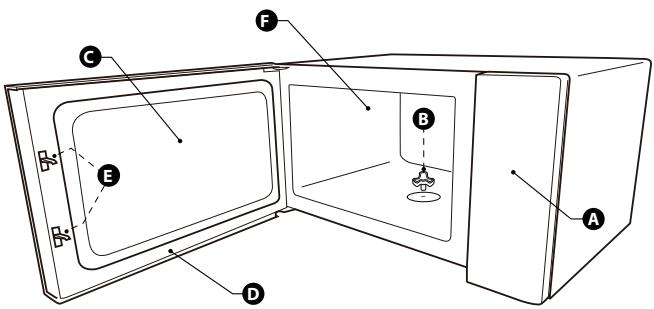

Glass Tray Turntable Ring Assembly Instruction Manual Turntable Shaft Grill Rack( Can not be used in microwave function and must be placed on the glass tray A)Control panel D)Door assembly B)Turntable shaft E)Safety interlock system CDObservation window FOven cavity TURNTABLE Cleaning the cooking compartment and putting the INSTALLATION tUnteble in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories

How to put the turntable in place:

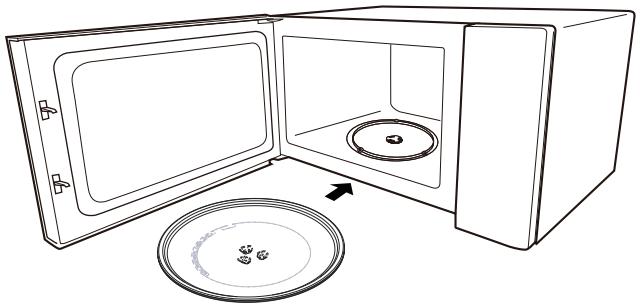

1. Place the turntable ring assembly (8) into the recess in

the cooking compartment.

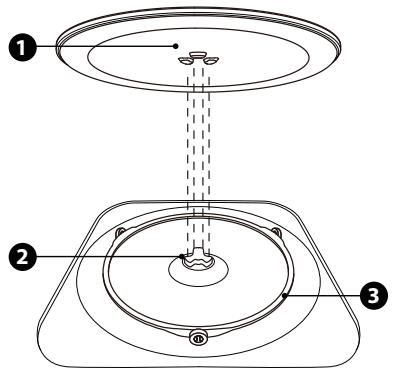

2. Place the glass tray (D) on the turntable ring assembly

@) Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray (D) engages in the turntable shaft @)in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge Note

1. Never use the appliance without the turntable. Make

sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise

2. Never place the glass tray upside down. The glass tray

should never be restricted!

3. Both glass tray and turntable ring assembly must always

be used during cooking

4. All food and containers of food are always placed on the

glass tray for cooking.

5. Never restrict the movement of the turntable.

6.If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

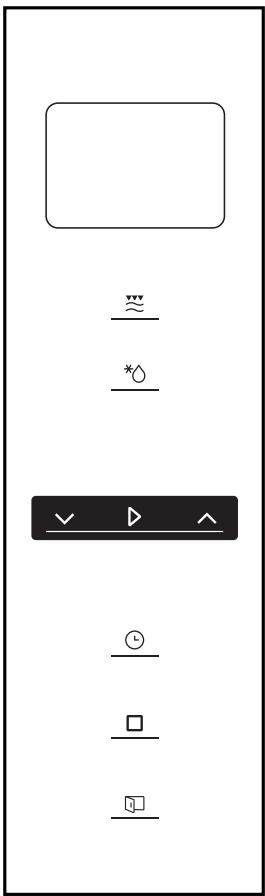

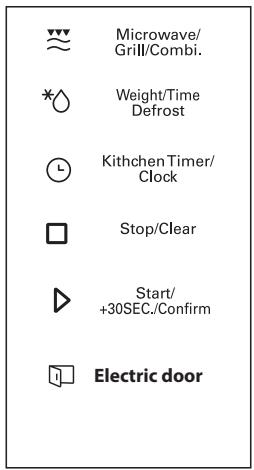

Operation Instructions 1Clock Setting ZMicrowave Cooking When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once. 1). Press ” Kitchen Timer/Clock " twice to select clock function, the hour figures will flash. 2).Press ” V "or "A" to adjust the hour figures, the input time should be within O--23 3).Press "Kitchen Timer/Clock", the minute figures will flash: 4). Turn "vor ” A" to adjust the minute figures, the input time should be within O--59. 5).Press ” Kitchen Timer/Clock " to finish clock setting. ":" will flash, and the time will light. Note: 1). If the clock is not set, it would not function when powered! 2). During the process of clock setting, if you do not press ” Kitchen Timer/Clock" in 1 minute, the oven will go back to the previous status automatically. Press ” Microwave/Grill/Combi. ” once, the screen will display "900W". Press ” Microwave/Grill/Combi. " repeatedly or press " "or" A" to choose the power you want, "90OW/", "720W "," 450W/", "270W","9OW", ","G" ."C-l" or "C-2" will display for each added press. Then press "Start/+30Sec./Confirm to confirm and press "V" or "A "to set cooking time from 0:05 to 95:00. Press " "’Start/+30Sec./Confirm" again to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps. 1). Press ” Microwave/Grill/Combi "once, the screen displays "9OOW" 2). Press ” Microwave/Grill/Combi ” again or press "v" or "A" to choose 80% microwave power. 3).Press ” Start/+30Sec./Confirm ” to confirm, and the screen displays "720W". 4).Press ” V" or" A" to adjust the cooking time until the oven displays "20:00"! 5).Press ” Start/+30Sec./Confirm " to start cooking Note: the step quantities for the adjustment time of the coding switch are as follow: : 5 seconds :10 seconds : 30 seconds :1minute 30---95 min : 5 minutes

3.Grill or Combi. Cooking 4.Defrost By Time Led || RE Microwave Grill Grill/Combi." | instructions TE Etes Order Display. 1 900W 100% 2 720W 80% 3 450W 50% 4 270W 30% 5 90W 10% 6 G 0% 100% 7 C1 55% 45% 8 C-2 36% 64% Press ” Microwave/Grill/Combi. ” once, the screen will display "900W". Press ” Microwave/Grill/Combi. " repeatedly or press " V" or "A ‘to choose the power you want, "90OW/", "720W "," 450W", "270W","9OW", ","G" “C-l" or "C-2" will display for each added press. Then press "Start/+30Sec./Confirm” to confirm, and press " Y" or "A" to set cooking time from 0:05 to 95:00.Press "Start/+30Sec./Confirm " again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps 1). Press ” Microwave/Grill/Combi ” once, the screen will displays "900W" 2).Press ” Microwave/Grill/Combi " for times or press "v "or "A to choose "C-1” 3).Press ” Start/+30Sec./Confirm " to confirm 4).Press ” Y "or " "to adjust the cooking time until the oven display s "10:00" 5).Press ” Start/+30Sec./Confirm " to start cooking, Note If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food you should turn the food over, close the door, and then press” Start/+30Sec./Confirm ” to continue cooking. If no operation, the oven will continue working 1). Press ” Weight/Time Defrost "twice , and the oven will display "dEF2" 2).Press ” Start/+30Sec./Confirm "to confirm 3). Press "Y "or A" to set the cook time, the range of the time is "00:05-95:00" 3).Press ” Start/+30Sec./Confirm " to start cooking If half the time passes, the buzzer will sound twice to remind you of turning the food over, If no operation, the oven will continue working:

5.Defrost By Weight 1). Press ” Weight/Time Defrost " once , and the oven will display "dEFI" 2).Press ” Start/+30Sec./Confirm " to confirm. 3). Press ” Weight/Time Defrost " repeatedly or press "v"or "A to select defrost menu, "dO1";"d02","d03","d04" will display in order. 4).Press " Start/+30Sec./Confirm "to confirmi 5).Press " v "or "A" to select the weight of food 6).Press " Start/+30Sec./Confirm " to start defrosting. un doi do2 doz do4 Frozen bread | Frozen meat [Frozen vegetable] Frozen pizza Weight] 100g-1000g | 100g-20009 | 1009-1000 _ [ 1009-6009 6.Kitchen Timer 7.Quick Start 8.Lock-out Function for Children 9.Multi-section cooking 1). Press ” Kitchen Timer/Clock " once, the screen will display 00:00 2).Press " V "or "A" to enter the correct time. (The maximum cooking time is 95 minutes.) 3).Press " Start/+30Sec./Confirm " to confirm setting 4).When the kitchen time is reached, the buzzer will ring 5 times. Note: During the Kitchen Timer, any programs can not be set. 1). In waiting state, Press " Start/+30Sec./Confirm " to start 30 seconds cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2).In waiting state, press " V " to set cooking time for 95 minutes with 100% microwave power, press " Ÿ "or " A'to set the cooking time. Then press ” Start/+30Sec./Confirm" to start cooking Note: In microwave, grill, combination cooking, time defrost state or multi-stage, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time. Lock: In waiting state, press " Stop/Clear ” for 3 seconds. there will be à long beep denoting entering the children- lock state. The locked icon and the current time (if the clock is set) or "0:00" will display. Lock quitting: In locked state, press " Stop/Clear ” for 3 seconds, there will be à long "beep” denoting that the lock is released: At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Kitchen Timer and Auto Menu can not be in multi-section cooking. Each one more press

10.ECO Fuction 12.Aquaclean Function on “ Start/+30Sec./Confirm " can increase the time by 30 seconds (except weight defrost) Example: If you want to defrost food of dOl for 500g and then cook with 80% microwave power for 7 minutes, operate it as the following} 1). Press ” Weight/Time Defrost " once, and the oven will display "EF" 2).Press " Start/+30Sec./Confirm " to confirm. 3).Press "V" and "A" or press " Weight/Time Defrost " to select the weight defrost menu till "dO1" displays. 4).Press " Start/+30Sec./Confirm " to confirm. 5).Press "V "or "A" to set the defrost weight for 500g 6).Press " Microwave/Grill/Combi. " twice, and the oven will display "720W" 7).Press " Start/+30Sec./Confirm " to confirm. 8).Press "V "or "A" to set the defrost time for 7 minutes. 9).Press ” Start/+30Sec./Confirm " to start cooking and buzzer will sound once for the first section, defrosting time counts down. Buzzer will sound once again entering the second cooking.When cooking finishes, buzzer sounds five times To enter ECO mode: In waiting state, press " Stop/Clear ” to enter the ECO mode. The screen will go out To cancel ECO mode: In ECO mode, press any keys, press " V "or" À "or open the oven door to cancel it To activate the silent mode: In waiting state, press and hold “ Kitchen Timer/Clock ” for 3 seconds. À long beep will sound. When you press the keys, it does not make à sound To deactivate the silent mode: In silent mode, press and hold “Kitchen Timer/Clock ” for 3 seconds. À long beep will sound and the oven will exit silent mode. To enter the Aquaclean mode: In waiting state, press and hold “ Microwave/Gril/Combi " for 3 seconds. A long beep will sound and the oven will enter aquaclean mode. Put 200ml of water inside, and then press“ Start/+30Sec./ Confirm "to start the Aquaclean function with 900W power level and 5 minutes which can not be changed.

13.Inquiring Function 14.Electric door 15.Sucker 16.Auto Menu 1). In states of microwave, grill and combination cooking, press ” Microwave/Grill/Combi. " the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state 2).In cooking state, press ” Kitchen Timer/Clock ” to inquire the time and the time will display for 3 seconds. Press " {]" button, the oven door will open. Note: if there is à fault when pressing ” QI" button directly. screen will display "E-3", re-close the furnace door and access to electricty again , until the normal state is restored If the electric door is broken, opening the oven door by the sucker as is shown above. 1). Press "A "to choose the menu, and "AT" to "AIS" will display. 2).Press " Start/+30Sec./Confirm ” to confirm. 3).Press "V "or "A" to choose the default weight as the menu chart.

Installation Instructions Installation and connection + This appliance is only intended for domestic use. +_ This oven is intended for built-in use only. It is not intended for counter-top use or for use inside à cupboard Please observe the special installation instructions The appliance can be installed in a 60cm wide wall- mounted cupboard The appliance is fitted with à plug and must only be connected to à properly installed earthed socket The mains voltage must correspond to the voltage specified on the rating plate. The socket must be installed and connecting cable must only be replaced by à qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with à contact gap of at least 3mm: Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. The accessible surface may be hot during operation.

Please Read the Manual Carefully Before Installation Please Note Electrical connection The oven is fitted with a plug and must be only connected to à properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualifie electrician: If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with à contact gap of at least 3mm: FY ScrewA Ï ScrewB Les Mounting Plate © Trim-kit plastic cover sucker

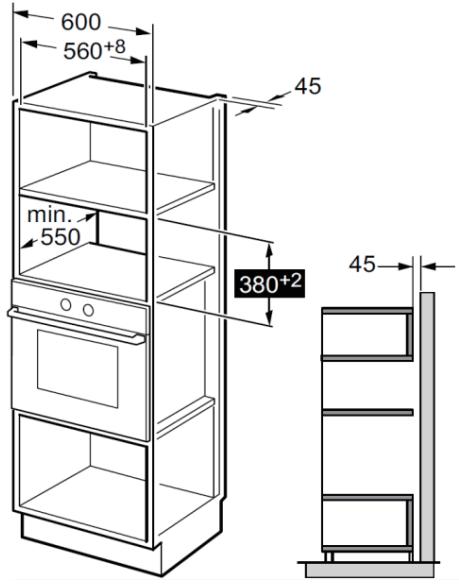

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm: Do not cover ventilation slots and air intake points. [— 600 _,.

Note The bracket and bottom cabinet template are needed when installating in both installations

Prepare the cabinet 1. Read the instruction on the BOTTOM CABINET TEMPLATE , put the template on the bottom plane of cabinet.

2. Make the marks on the bottom plane of cabinet according

to marks "a" of the template F—— Centre line

3. Remove the bottom cabinet template and fix the

mounting plate with screw À — Mouning Plate

Install the Oven Specifications

1. Fix ADJSUT SCREW A on the UPPER AIR TUNNEL of the

oven, and then install the oven into the cabinet. + Adjust the height of ADJUST SCREW A to keep Imm gap between the ADJUST SCREW À and the top plane of cabinet. + Do not trap or kink the power cord + Make sure that the oven is installed in the center of the cabinet.

2. Open the door; fix the oven to the cabinet with SCREW

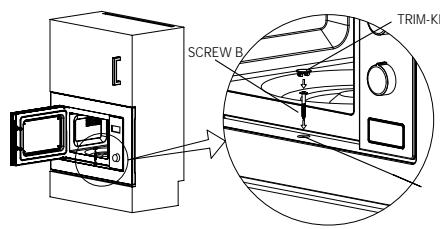

at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE. Model BIM325G62BG2 Rated Voltage: 230V- 5OHz Rated Input Power (Microwave): 1450W Rated Output Power (Microwave): 900W Rated Input Power (Grilly 1000W

Trouble shoot Normal Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal Dim oven light In low power microwave cooking, oven light may become dim. It is normal Steam accumulating on door, hot air out of vents In cooking, steam may come out of. food. Most will get out from vents But some may accumulate on cool place like oven door. It is normal Oven started accidentally with no food in It is forbidden to run the unit without any food inside. It is very dangerous. Trouble Possible use Remedy (O)] Power cord is | Unplug. Then plug not plugged in | again after 10 tightiy. seconds Oven cannot © be started Replace fuse or reset circuit breaker (repaired by professional personnel of our company) Fuse blowing or circuit breaker works Test outlet with @ Trouble With | other electrical outlet. appliances Oven does not |(4). Door is not | ose door wel heat closed well According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE M <oecting points where available

ARANTEE & SERVIC If you need information or if you have a problem, please contact the Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). if there is no Customer Care Centre in your country, go to your local dealer or contact the Service department. Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination. For personal use only! WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE Hisense We reserve the right to any changes and errors inthe instructions for use.
