Cordless Stick Vacuum Cleaner
User Manual
VRT 84225 VB - VRT 84225 VI
EN -FR -RO -PL -IT -SR
Please read this guide first!
Dear Customer,
Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.
Symbols and their meanings
These symbols are used throughout this guide:
| i | Important information and useful hints about usage. |
| ! | WARNING:Warnings against dangerous situations concerning the security of life and property. |
| Electric shock protection rating |
CONTENTS
ENGLISH 03-19
FRANÇAIS 20-36
ROMANIAN 37-57
POLSKI 58-76
ITALIANO 77-94

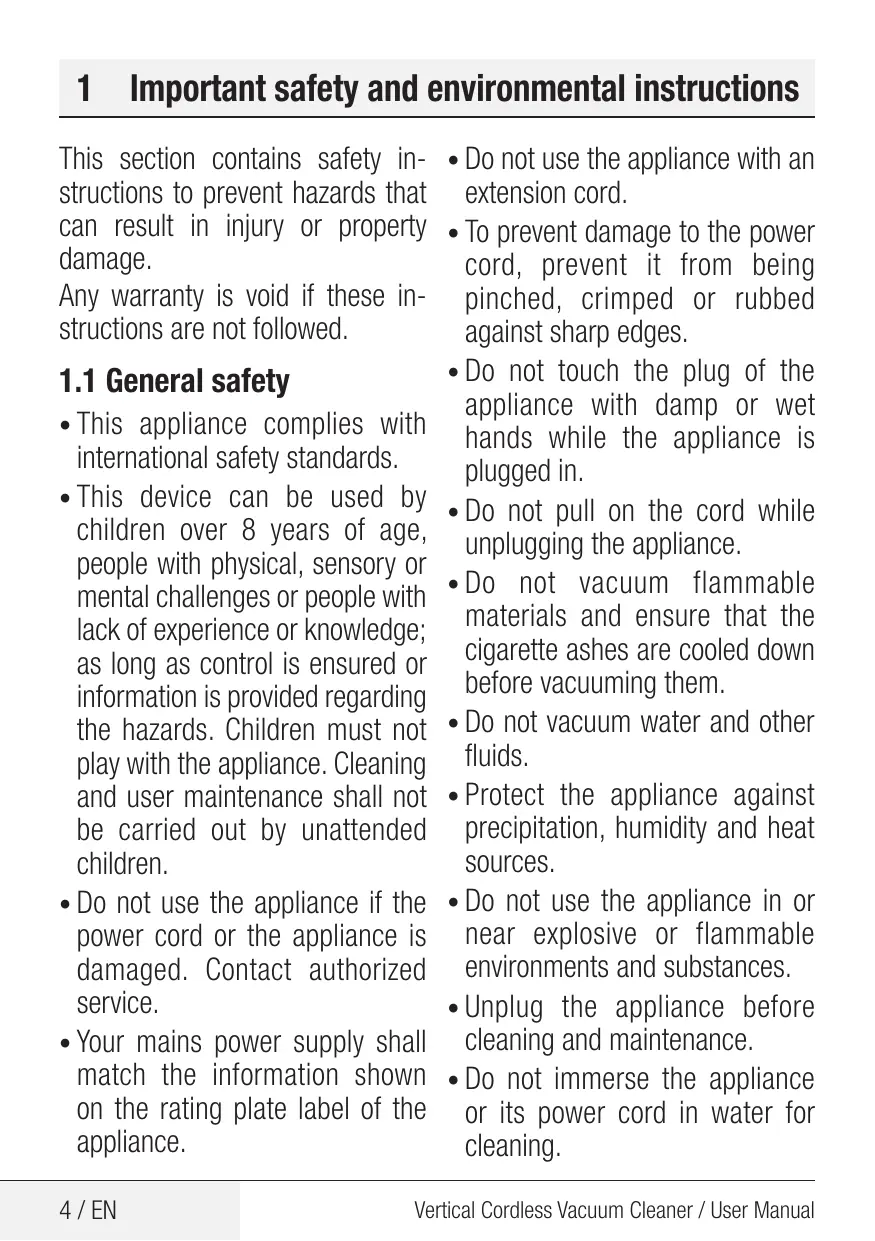

1 Important safety and environmental instructions
This section contains safety instructions to prevent hazards that can result in injury or property damage.
Any warranty is void if these instructions are not followed.
1.1 General safety
- This appliance complies with international safety standards.
- This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.
- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.
- Your mains power supply shall match the information shown on the rating plate label of the appliance.
- Do not use the appliance with an extension cord.
- To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.
- Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
- Do not pull on the cord while unplugging the appliance.
- Do not vacuum flammable materials and ensure that cigarette ashes are cooled down before vacuuming them.
- Do not vacuum water or other fluids.
- Protect the appliance against precipitation, humidity, and heat sources.
- Do not use the appliance in or near explosive or flammable environments and substances.
- Unplug the appliance before cleaning and maintenance.
- Do not immerse the appliance or its power cord in water for cleaning.
1 Important safety and environmental instructions
- Do not disassemble the appliance.
- Use only original parts or parts recommended by the manufacturer.
- To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster, or fragments of compressed paper.
- Use the appliance only with the adapter delivered with the appliance.
- Do not use the appliance without filters; it may get damaged.
- If you keep the packaging materials, keep them out of the reach of children.
- This appliance is not intended for use by persons (including children) with physical, sensory, or mental disabilities, or those without adequate experience and knowledge, unless they are supervised by a person responsible for their safety or have been instructed in the use of the appliance.
- Children should be supervised to ensure that they do not play with the appliance.
- Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.
- To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.
- Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.
- Batteries shall be removed from the appliance before discarding the appliance.
- Disconnect the appliance from power supply before removing the battery.
- Please discard used batteries in accordance with local laws and regulations.
- The batteries included in this appliance may only be replaced with qualified persons.
- Appliance is not intended to be operated for commercial purposes. This appliance is not designed for commercial use, it
is intended for home use and in applications as follows:
- In the staff kitchens of the stores, offices and other working environments
- In farm houses;
- By customers in hotels, motels or other accommodation facilities
- In hostels or similar environments.
- WARNING: Use the HCX1501-3200450E (VRT 84225 VB - VRT 84225 VI) removable supply unit delivered with the appliance to charge the battery.
- This appliance shall not be operated by children or people with limited physical, sensory, or cognitive skills, or people with lack of experience and knowledge, unless they are under supervision or provided with the relevant instructions.
- Children shall be supervised to prevent them from playing with the appliance.
1.2 Compliance with the WEEE Directive and disposal of the waste product
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that
this product shall not be disposed of with other household wastes at the end of its service life. Used device must be returned to an official collection point for recycling of electrical and electronic devices. To find these collection systems, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.
Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
This symbol on the packaging related to rechargeable batteries indicates that the rechargeable battery shall not be disposed of with domestic waste. A chemical symbol may accompany
this symbol on some rechargeable batteries.
And mercury (Hg) and lead (Pb) symbols may also be added if the rechargeable batteries contain more than 0.0005 mercury and more than 0.004 lead content.
Rechargeable batteries shall not be disposed of with household waste even if they do not contain heavy metals. Always discard the used batteries as per local environmental legislation. Investigate the waste disposal regulations in effect in your area of residence.
1 Important safety and environmental instructions
1.5 What to do for energy saving
- When using your appliance, adjust the speed settings according to the surface, in order to save energy.
- Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used in for cleaning carpets.
1.6 Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

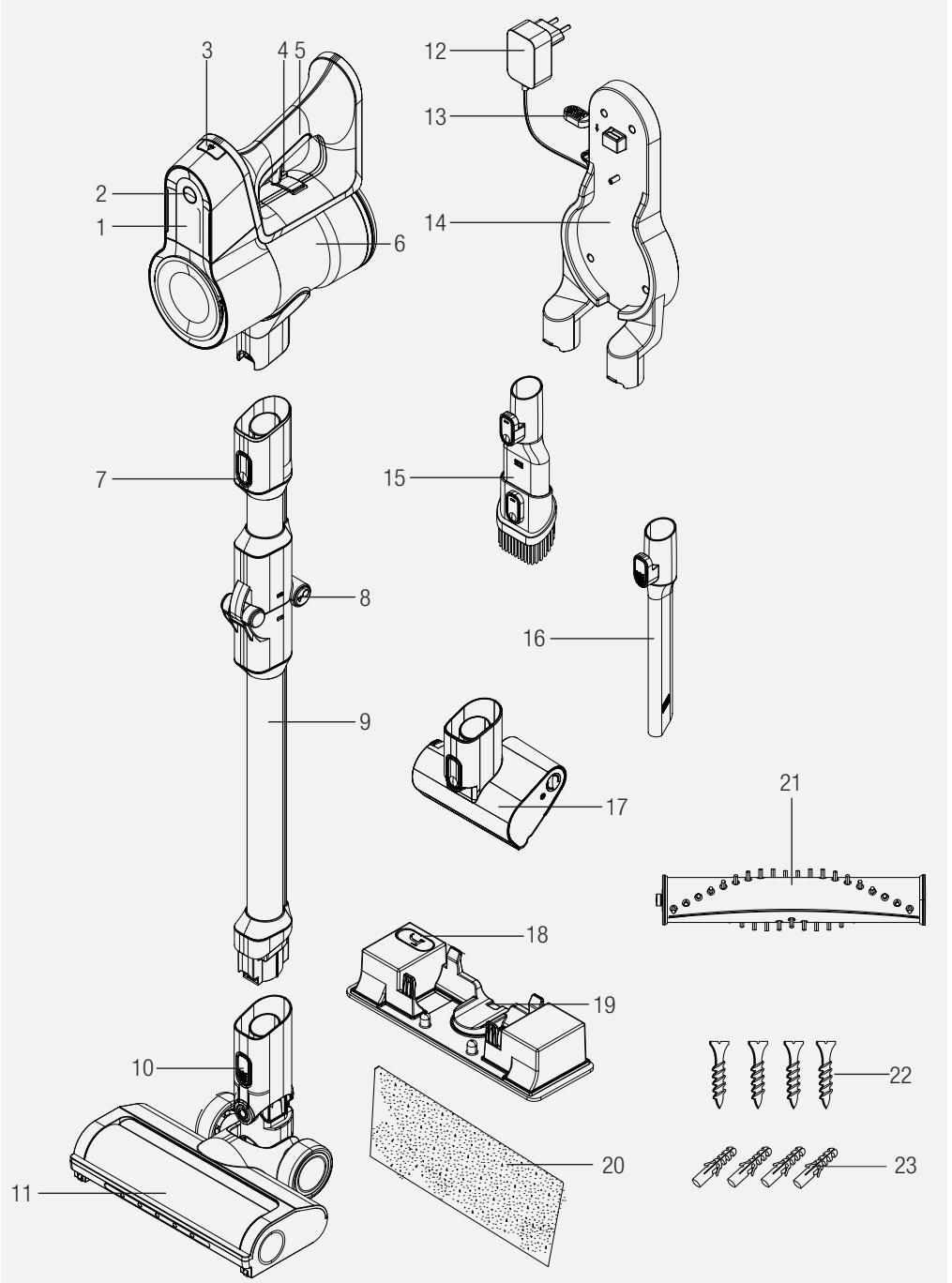

2.1 Controls and components
- LED screen
- Speed level adjustment button
- Battery pack release button
- On/off button
- Handle
- Dust container
- Tube release button
- Foldable tube button
- Foldable tube
- Electrical turbo brush release button
- Electrical turbo brush
- Charging adaptor
- Appliance release button
- Charging dock
- Combination tool
- Crevice
- Mini turbo pet brush
- Lid for filling the water tank
- Mop attachment; Water Tank
- Mopping cloth (x2 pcs)
- Carpet roller
- Screw (4 pcs)
- Dowel (4 pcs)
2.2 Technical data
| VRT 84225 VB - VRT 84225 VI |
| Nominal input power | 350 W |
| Input | 100 - 240 V~ 50-60 Hz 0,5 A |
| Output | 32 V --- 0.45 A |
| Charging time | 4-6 hours |
| Runtime at max. power | 10 mins |
| Runtime at mid power | 20 mins |
| Runtime at min. power | 45 mins |
The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.
2 Overview
The rights to make technical and design changes are reserved.
External Power Supply Parameter
| VRT 84225 VB - VRT 84225 VI |
| Manufacturer: | Guangdong Huachuangxing Power Supply Co.,Ltd |
| Model ID: | HCX1501-3200450B |
| Input Voltage: | 100-240V~ |
| Input Frequency: | 50-60Hz |
| Input Current: | 0.5A |
| Output Voltage | 32.0V |
| Output Current | 0.45A |
| Output Power: | 14.4W |
| Average active efficiency: | 85.5% |
| Efficiency at low load (10%): | 83.33% |
| Power consumption under no load: | 0.041W |
3 Installation
3.1 Intended use
This appliance is intended for household use and it is not suitable for industrial use.

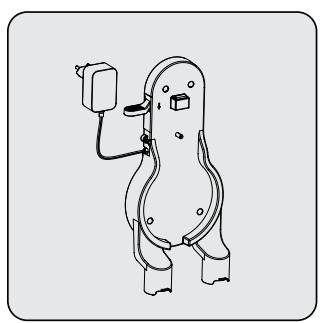

3.2 Installation of the charging dock

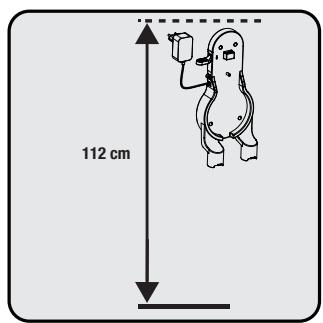

Position the charging dock at a height of minimum 112 cm from the ground.
1- Fix four dowels on the wall 2- Place four screws into their locations on the charging dock and mount on the dowels on the wall.

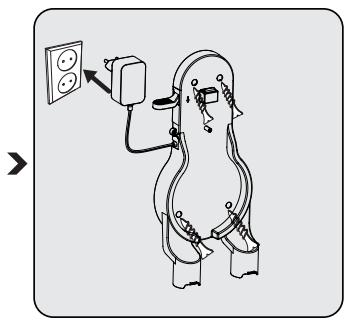

Plug the charging adaptor to the socket.
3.3 Installation of the body and the brush

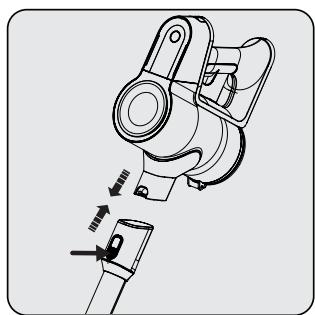

Push the tube in the direction of arrow towards the body by pushing on the tube release button.

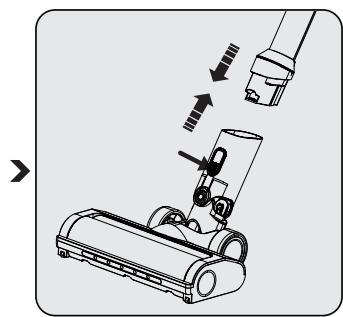

Press the release button on the electric turbo brush and push it in the direction of the arrow towards the tube.

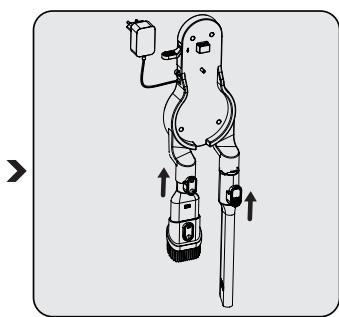

Attach the crevice tool and combination tool to the charging dock.

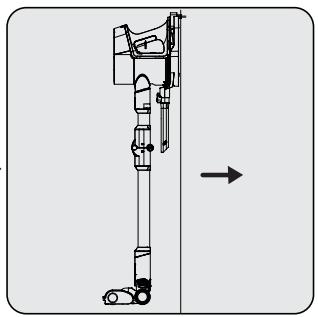

4.1 Charging the appliance

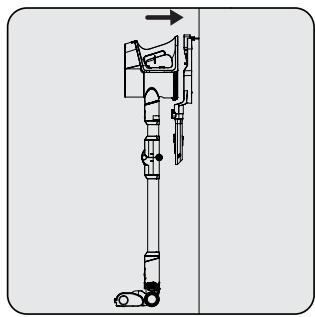

Place the appliance on the charging dock.
After placing the dust container on the charging dock, push the appliance towards the charging dock.
Plug the charging adapter into the socket.

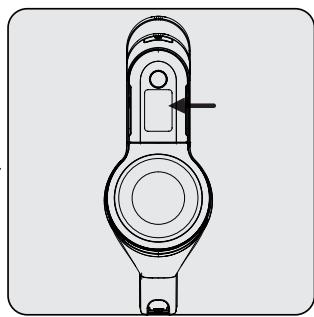

When you place the appliance on the charging dock, it starts to charge and the battery charge percentage is displayed on the screen. The percentage (%) increases as the appliance is charged.
It takes up to 4 to 6 hours to fully charge the appliance. The appliance should not be operated while charging.
If the appliance is placed on the charging dock while it is being operated, it will stop automatically.
4.2 Usage

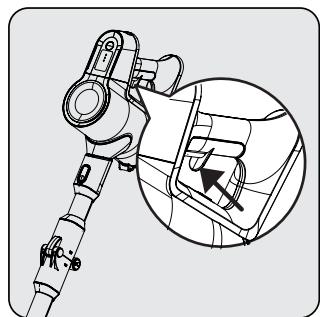

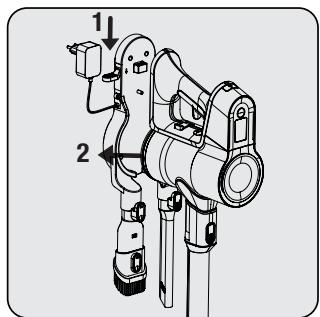

1- Press the appliance release button on the charging dock downward and pull the appliance towards yourself at the same time. 2- Remove the appliance from the charging dock.

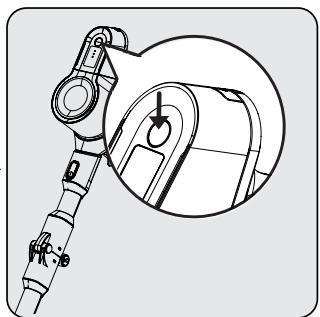

Press the on/off button to operate the appliance. The appliance starts operating at minimum power when the on/off button is pressed.
To adjust the speed level, press the button. The screen shows which suction mode is being used: min, mid, or high. By pressing the button, the speed level can be adjusted.
4 Operation
The appliance may be placed for charging before the battery is completely discharged. The appliance may be kept continuously charging on the charging dock until the next operation.
Pay attention to the battery level percentage during operation. Battery level percentage should be tracked during usage; when it is empty, the appliance stops operating automatically.

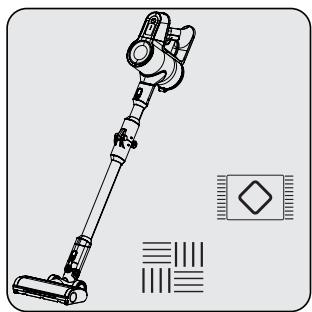

The type of electro-brush roller should be adjusted to the floor type.

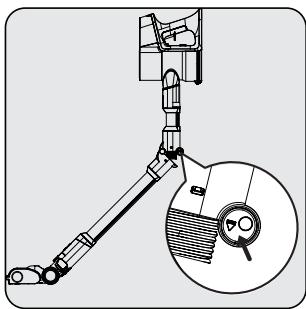

You can fold the tube for easy access to areas such as armchairs and under tables. You can fold the tube by pressing the round button mechanism on the left side that allows the tube to be folded.

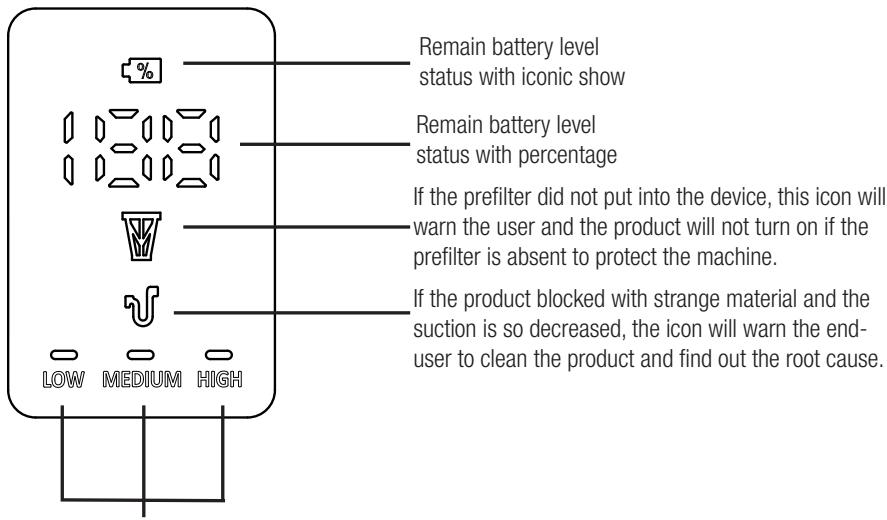

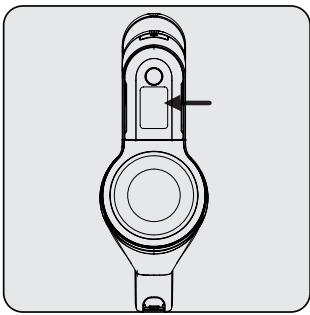

4.3 LED screen indicators
Those icons will show the suction mode which is being used.

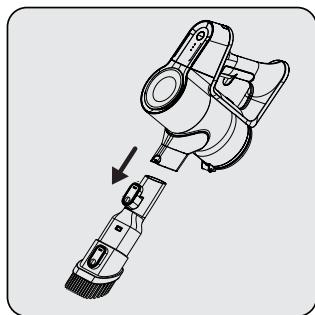

4.3 Accessories

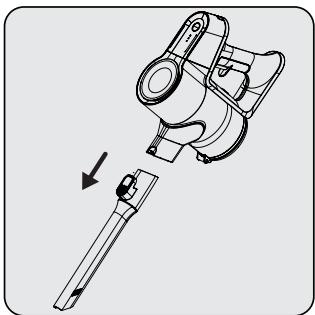

Crevice: Suitable for vacuuming the rear of the furniture, hard to reach areas, and narrow areas.
Combination tool: Suitable for vacuuming curtains, sofas, waxed furniture, and delicate and fragile objects.

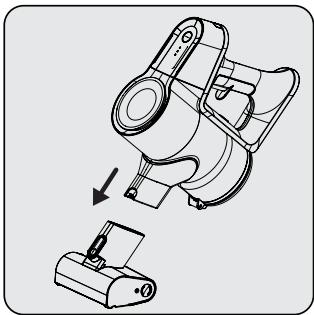

Mini turbo pet brush: Suitable for vacuuming floorings, stair steps, car interiors, sofas, and seats, etc. It is also used for vacuuming pet hair on such surfaces.
4 Operation

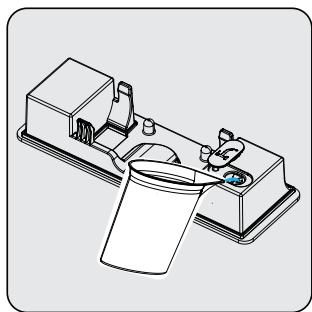

Mop Attachment: Suitable for hard floor mopping process. Fill the water tank with potable water.

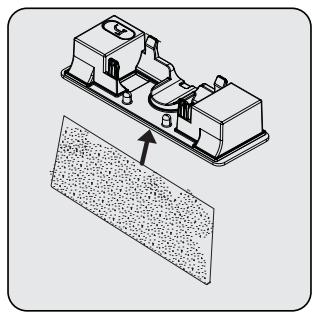

Attach mopping cloth to the bottom of water tank.

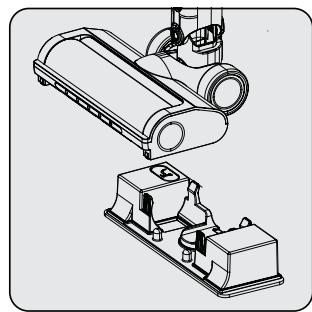

Attach mop attachment to the bottom of electrical turbo brush.
| WARNING: Do not use the mop attachment on a carpet. |
| WARNING: Do not put bleach or detergent in the water tank. |
| WARNING: Remove the mop attachment after usage is completed. |
| WARNING: Remove the mop attachment immediately after the mopping operation is completed to prevent damage to your wooden floors. |
| WARNING: Clean the water tank after each use. |
| Mopping cloths can be washed in washing machine. |
| WARNING: Do not lift or tilt the nozzle, as water may spray out of the water tank. |
5 Cleaning and maintenance
Turn off and unplug the appliance before cleaning.
| WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance. |
| WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one. |

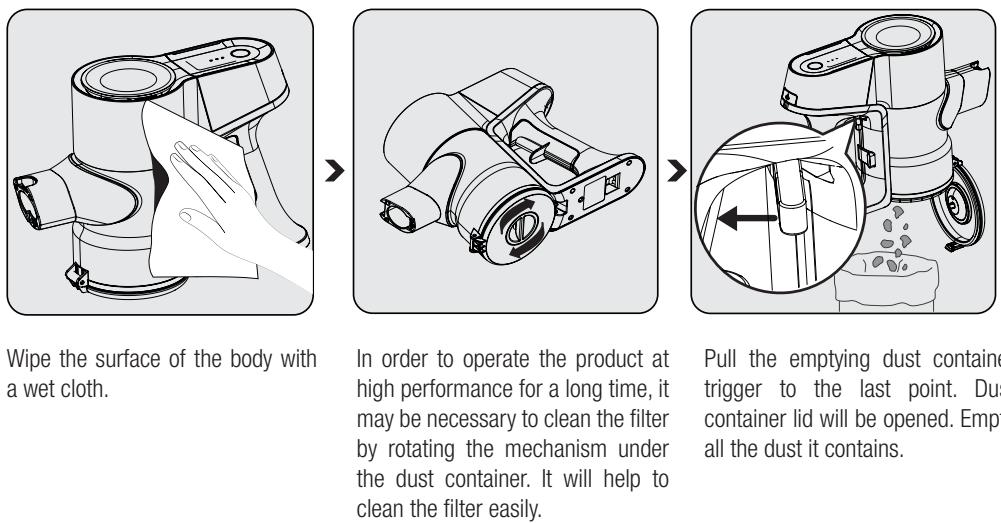

5.1 Cleaning the Dust Container and Filters
| WARNING: Do not wash the filters. |
| i | We recommend you to clean the dust container after each operation. |
5 Cleaning and Maintenance

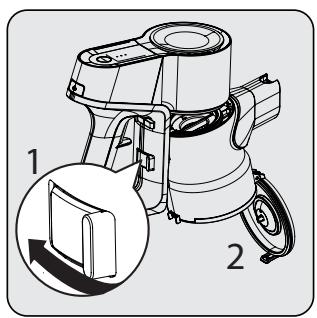

For a detailed cleaning of filters, remove the dust container by pushing the button on the left side.

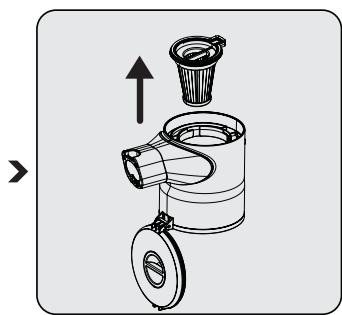

Separate the pre-filter and plastic filter from each other.

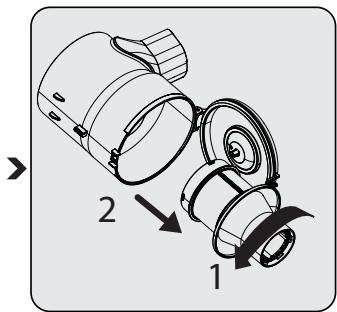

To take out the plastic filter, first rotate it counterclockwise (1), then pull it out (2).

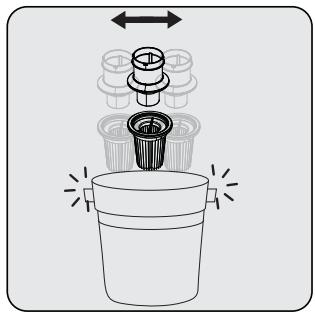

Remove the dust on the pre-filter and the plastic filter by tapping them on a hard surface such as a waste bin or by using a brush.

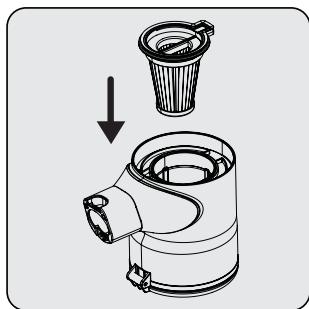

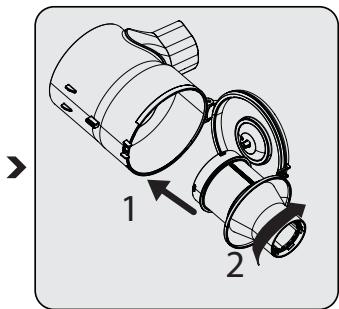

To insert the plastic filter, first place it (1), then rotate it clockwise to lock it (2).
Attach the pre-filter back to the plastic filter.
5 Cleaning and Maintenance

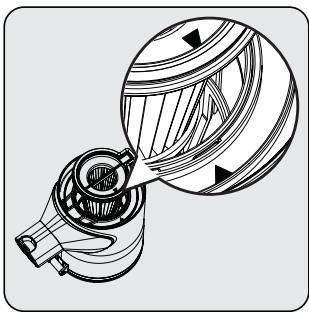

While placing the pre-filter, make sure that the arrows on the pre-filter and the body are aligned.

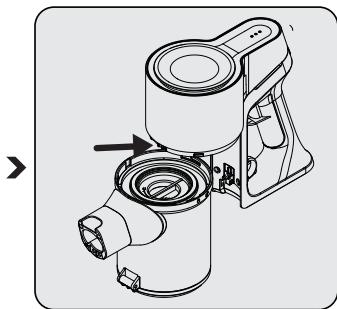

Fix the connector of the dustbin to the holes on the body, then push the dustbin until you hear a click sound.
5.2 Cleaning of the Brush
WARNING: Do not wash the turbo brush and the main roller.

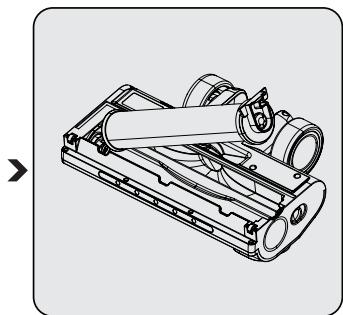

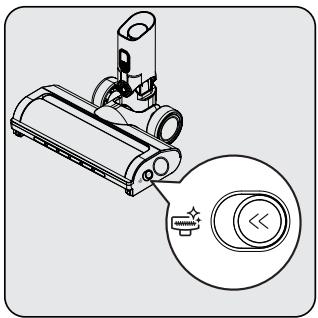

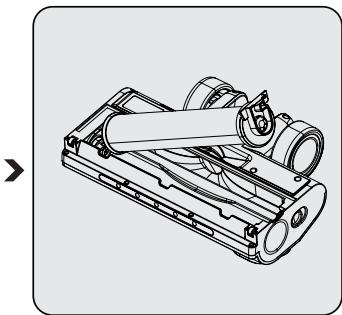

Push the roller release button to the left side.
Remove the dust by tapping it lightly on a hard surface or by using a brush. If any hair, etc. is tangled, remove it by cutting it off.
Fix the roller back to its place by pushing.
The carpet roller can be fixed as shown above to the main electrical brush for high cleaning performance on carpet.
5 Cleaning and maintenance
5.3 Storage
- If you do not intend to use the appliance for a long time, store it carefully.
- Unplug the appliance.
- Ensure that the appliance is kept out of reach of children.
- If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
- Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.
5.4 Transport and shipping
- During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
- Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
- If the appliance is dropped, the appliance may not operate or permanent damage may occur.
5.4 Transport and shipping
- During transport and shipment, carry the device in its original packaging. The device's packaging protects it from physical damage.
- Do not place heavy objects on the device or its packaging. Otherwise, the device may be damaged.
- If the device falls, it may not work or may suffer permanent damage.
Arcelik A.S. Karaagaç Cad. No: 2-6 34445 Sütluce, Istanbul, Türkiye
