Product type	Refrigerator with freezer compartment
Brand	Indesit
Model	A10
Power supply	220-240 V ~ 50 Hz, 150 W max
Refrigerator temperature setting	Position 1 (least cold) to 5 (coldest), intermediate recommended
Cooling type	Pure Wind (forced air) for rapid temperature recovery
Refrigerator defrost	Automatic, water drained through drain hole
Freezer defrost	Manual, when frost layer exceeds 5 mm
Door reversibility	Yes, possible
Leveling feet	2 adjustable front feet
Interior lighting	Replaceable bulb 15 W or 25 W
Maximum freezing capacity in 24 h	4 kg (example, check the rating plate)
Autonomy in case of power failure	9 to 14 hours in the freezer compartment
Coldest zone indicator	OK / Not OK
Materials	Hygienic, odorless
Maintenance	Cleaning with warm water and baking soda, no solvents
Safety	Complies with directives 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU
Spare parts	Original available, replacement only by authorized technician
Installation	Minimum distance: 10 cm above, 5 cm on sides; avoid heat sources
Accessories supplied	Spacer wedges, frost scraper (on some models)

Frequently Asked Questions - A10 INDESIT

How to adjust the refrigerator temperature?

Turn the temperature adjustment knob to a position from 1 (least cold) to 5 (coldest). An intermediate position is recommended. Wait a few hours after adjustment for the temperature to stabilize.

How to reverse the doors?

The manual indicates that door reversibility is possible. Refer to the Door Reversibility section of the manual for detailed steps. Keep the user manual for future reference.

How to clean the interior of the refrigerator?

Use a sponge soaked in warm water with baking soda or mild soap. Do not use solvents, abrasive products, bleach or ammonia. For removable accessories, soak them in warm soapy water, rinse and dry.

How to defrost the freezer?

If the frost layer exceeds 5 mm, set the adjustment knob to the stop position (0). Wrap frozen foods in paper and place them in a cool place. Leave the door open until the frost melts. To speed up, place containers of warm water. Clean and dry before restarting. Wait about 2 hours before reintroducing food.

What should I do if the interior light does not come on?

Check that the plug is properly inserted into a working power outlet. If the problem persists, there may be a power outage or the bulb may be burned out. To replace the bulb, unplug the appliance, remove the protective cover and replace with a bulb of the same wattage (15 W or 25 W).

Why is there water at the bottom of the refrigerator?

The defrost water drain hole is clogged. Clean it periodically to allow water to flow normally. Consult the manual for the exact location.

What should I do if the appliance is not cooling enough?

Check that the doors close properly and that the gaskets are not damaged. Avoid opening the doors too frequently. Make sure the temperature adjustment knob is not set too low. Do not overload the appliance. If the room temperature is below 14°C, the freezer compartment may not reach the ideal temperature.

How to replace the light bulb?

Unplug the power cord. Remove the protective cover of the bulb. Replace the bulb with one of the same type, with wattage indicated on the cover (15 W or 25 W). Refit the cover and plug the appliance back in.

The appliance is making noise, is this normal?

Yes, some noises are normal: the refrigerant gas produces a slight noise even when the compressor is stopped. A motor running noise is normal. If the appliance vibrates, check that it is level and that it is not installed between furniture that amplifies vibrations.

How to install the appliance correctly?

Place the appliance in a well-ventilated and dry room, away from heat sources. Leave at least 10 cm above and 5 cm on the sides. Level it by screwing or unscrewing the front feet. After transport, wait at least 3 hours before plugging in. Check that the socket is earthed and the voltage is correct (220-240 V).

USER MANUAL A10 INDESIT

Operating Instructions

2-DOOR FRIDGE

Contents

Operating Instructions, 1

Assistance, 4

Description of the appliance, 8

Start-up and use, 19

Maintenance and care, 20

Precautions and tips, 21

Troubleshooting, 22

ES

Spanish

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre.

Communicating:

type of malfunction - appliance model (Mod.) - serial number (S/N)

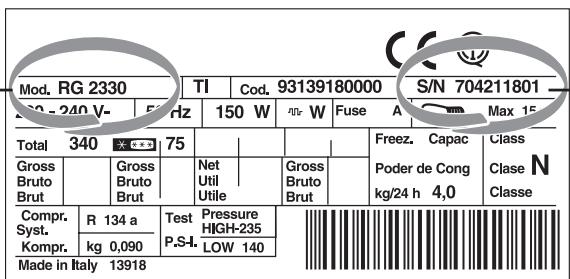

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Assistance

Before calling for assistance:

First try to solve the problem yourself (see "Troubleshooting"). If after the checks the appliance still does not work and you cannot control it further, call the nearest service center.

Give the following information:

Assistance

Before calling for assistance:

• First try to solve the problem yourself (see "Troubleshooting"). If after the checks the appliance still does not work and you cannot control it further, call the nearest service center.

Give the following information:

type of malfunction - appliance model (Mod.) - serial number (S/N)

The appliance must be positioned so that the plug is accessible.

Do not use extension cords or ungrounded plugs.

Technical Service

Before contacting Technical Service:

Check if the malfunction can be resolved independently (see Malfunctions and Solutions). If after all checks, the appliance still does not work and the problem persists, contact the nearest Technical Service Center.

Please provide:

The type of malfunction, the model, the serial number (S/N)

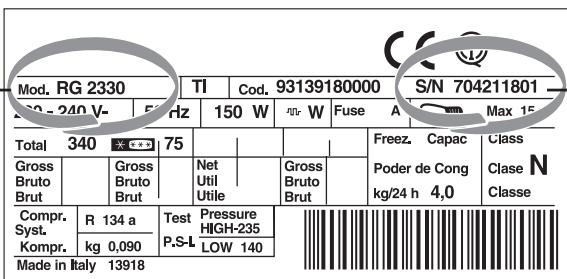

This information is found on the rating plate located inside the appliance on the lower left side.

Never use unauthorized technicians and always refuse to install replacement parts.

Description of the appliance

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET 2 FRUIT and VEGETABLE bin 3 SHELVES 4 TEMPERATURE REGULATING Knob 5 PURE WIND 6 FREEZER and STORAGE compartment 7 Removable multipurpose SHELVES* 8 BOTTLE shelf

Before placing your new appliance into operation, please read these operating instructions carefully. They contain important information for safe use, installation, and care of the appliance. Please keep these operating instructions for future reference and pass them on to any new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated, humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture or side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. To maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket, ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g., 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Insert the plug into the socket and ensure that the internal light illuminates.
2. Turn the TEMPERATURE ADJUSTMENT knob to an average value. After a few hours you will be able to put food in the refrigerator.

Setting the temperature

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the TEMPERATURE ADJUSTMENT knob.

1 = warmest 5 = coldest

We recommend, however, a medium position.

The cooling section of the refrigerator is located inside the back wall of the refrigerator compartment for increased space and improved aesthetics. During operation, the back wall will be covered in frost or water droplets depending on whether the compressor is operating or paused. Do not worry, the refrigerator is functioning normally.

If the TEMPERATURE ADJUSTMENT knob has been set on high values with large quantities of food and with a high ambient temperature, the appliance can operate continuously, resulting in excessive frost formation and excessive energy consumption: compensate for this by shifting the knob towards lower values (defrosting will occur automatically). In static appliances, the air circulates in a natural way: the colder air tends to move downwards as it is heavier. The food should be stored as follows:

Food	Arrangement inside the refrigerator
Fresh fish and meat	Above the fruit and vegetable bins
Fresh cheese	Above the fruit and vegetable bins
Cooked food	On any shelf
Salami, loaves of bread, chocolate	On any shelf
Fruit and vegetables	In the fruit and vegetable compartment bins
Eggs	On the shelf provided
Butter and margarine	On the shelf provided
Bottles, drinks, milk	On the shelves provided

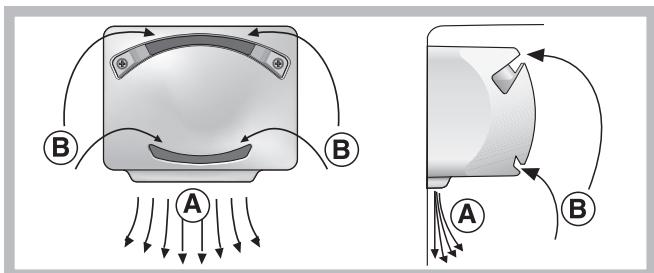

PURE WIND *

It is recognizable due to the presence of the mechanism on the top part of the refrigerator compartment (see diagram).

Pure Wind maximises air circulation, improving the efficiency of the evaporator and helping to achieve the optimal temperature inside the refrigerator as quickly as possible each time it has been opened. The blown air (A) is cooled when it comes into contact with the cold wall, whereas the hotter air (B) is sucked up (see diagram).

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.
• Varies by number and/or position, available only on certain models.

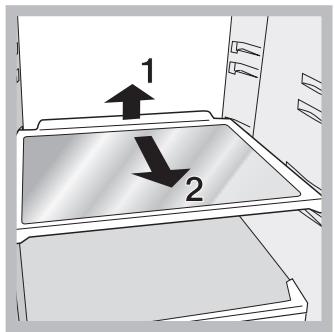

SHELVES: with or without grill.

Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

TEMPERATURE* Indicator light: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher (colder) position and wait approximately 10 hours until the temperature has stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and if possible be in direct contact with the walls (side and rear), where the temperature drops below -18°C and guarantees rapid freezing.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! If the room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced.

• Varies by number and/or position, available only on certain models.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply.

It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Defrosting the appliance

! Follow the instructions below.

Do not speed up the defrosting process by using any devices or tools other than the scraper provided (available only on certain models), you may damage the refrigeration circuit.

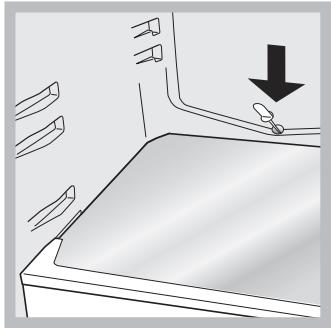

Defrosting the refrigerator compartment

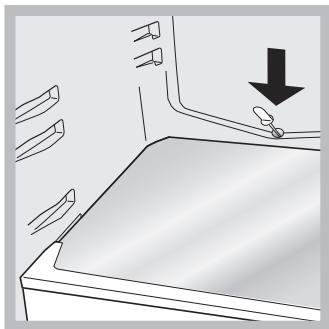

The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily.

Defrosting the freezer compartment

If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1. Set the TEMPERATURE ADJUSTMENT knob to the position
2. Wrap frozen foods in newspaper and place them in another freezer or in a cool place.
3. Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.
4. Clean and dry the freezer compartment carefully before switching the appliance on again.
5. Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.

Replacing the light bulb

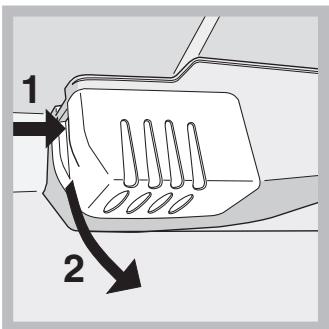

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

• 2006/95/CEE of 12/12/2006 (Low Voltage)
• 2004/108/CEE of 12/12/2004 (Electromagnetic Compatibility).
• 2011/65/EU (RoHS).
• 2012/19/UE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The internal light does not illuminate.

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.
• The refrigerator or the freezer have been over-filled.
• The atmospheric temperature of the area surrounding the appliance is lower than 14°C.

The food inside the refrigerator is beginning to freeze.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.
• The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.
• The thickness of the frost exceeds 2-3 mm (see Maintenance).

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

Some of the external parts of the refrigerator become hot.

• These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.

The back wall of the refrigerator unit is covered in frost or droplets of water.

• This shows the appliance is operating normally.

There is water at the bottom of the refrigerator.

• The water discharge hole is blocked (see Maintenance).

Installation

Leave the appliance to stand for about 9-14 hours.

If during this time the temperature does not drop below 14°C, the required temperatures for freezing food in the freezer compartment will not be reached, and the storage period will be significantly shorter.

Maintenance

Disconnecting from the power supply

During cleaning or maintenance, it is necessary to disconnect the appliance from the power supply.

It is not enough to just turn the knob to the off position (the appliance is disconnected) because the knob is not an electrical contact.

Cleaning the appliance

The external parts, internal parts, and rubber seals can be cleaned with a cloth dampened with lukewarm water and a little bicarbonate of soda or neutral soap. Do not use solvents, abrasives, bleach, or ammonia. Parts that can be removed should be placed in a container of warm water with soap or detergent for dishes. Rinse them afterwards and dry them. Clean the back of the appliance with a vacuum cleaner or a soft brush, after having disconnected the appliance from the power supply, following the instructions given on the label inside.

Avoiding the formation of unpleasant odors

The appliance is made of hygienic materials that do not transmit odors. To preserve this characteristic, it is necessary that food is always well wrapped and closed. This also avoids the formation of ice. - If you wish to disconnect the appliance for a long time, clean the interior and leave the door open.

Disposal of the appliance

Bodite pažljivi i očistite unutrašnjost.

Ne upotrebljavajte proizvode ili sredstva za čišćenje aparata koji mogu oštetiti rashladni sistem.

Kako otapati led.

Hladnjak ima automatsko otapanje: voda otječe sama kroz otvor za otapanje (dno sprijeda) gdje toplota koju proizvodi kompresor isparava. Jedinu intervenciju koju treba da obavite s vremena na vrijeme je čišćenje otvora za pražnjenje kako bi voda neometano oticala.

Kako otapati zamrzivač.

Ako naslaga leda prelazi 5 mm, potrebno je obaviti ručno otapanje:

1. Okrenite prekidač za REGULISANJE TEMPERATURE na poziciju
2. Uvijte zamrzivač hranu u novinski papir i ostavite je na hladnom mjestu.
3. Ostavite vrata otvorena dok se led potpuno ne otopi; operaciju možete ubrzati tako što ćete u zamrzivaču proći sudove sa mlakom vodom.
4. Pažljivo osušite i očistite hladnjak prije nego što ga ponovo uključite.
5. Prije nego što vratite hranu u zamrzivač, sačekajte oko 2 sata kako bi se stekli idealni uslovi za čuvanje hrane.

Zamjena sijalice

Prilikom zamjene sijalice za osvjetljavanje hladnjaka, izvucite utikač iz utičnice.

Caution. To prevent damage, it is necessary to tilt the appliance as shown in the figure. Replace it with the corresponding lamp indicated on the label (15 W or 25 W).

Notes and advice

! The appliance is designed and manufactured in accordance with current international safety standards. Read the notes carefully as they are important for safety reasons.

This appliance complies with the standards:

• 2006/95/CEE of 12/12/2006 (Low Voltage Directive)
• 2004/108/CEE of 12/12/2004 (Electromagnetic Compatibility).
• 2011/65/EU (RoHS).
• 2012/19/UE.

General safety

The appliance is designed for non-professional household use. The appliance should be used for food storage by adults following the instructions in this manual. This appliance must not be placed outdoors, even if the space is covered; it is dangerous to expose the appliance to weather conditions. Do not touch or move the appliance with wet hands or feet. Do not touch the internal cooling parts: it is dangerous as they may cause burns or injuries. Do not unplug the plug from the socket by pulling the cable, as you may pull out the plug. It is necessary to unplug the plug from the power supply before cleaning and maintenance. It is not enough to turn the temperature control knob to the off position (the appliance is off) unless the plug is removed from any electrical contact. - In case of malfunction, never attempt to access the internal mechanisms or try to repair them yourself. - In the interior of the freezer compartment, do not use sharp objects or metal tools or electrical appliances not recommended by the manufacturer. Do not put ice cubes just removed from the freezer into your mouth.

Do not allow children to play with the appliance. In no case should you sit on the appliance or on the open doors. - Packaging is not a toy for children.

Disposal

• Disposal of packaging materials: follow local regulations, in this way you can reuse them. Disposal of the old appliance: OBSERVE THE LAW. The cooling appliance contains in the cooling circuit and insulation gases butane and cyclopentane, which, if released, can be harmful to the environment. AVOID ANY DAMAGE TO THE CIRCUITS.
• Before disposing of the old appliance, disable it to prevent misuse by removing the power cord and breaking the lock on the doors.

Preservation and protection of the environment

• Place the appliance in a dark, well-ventilated area, protected from direct sunlight and far from sources of heat. When loading or unloading food, open the appliance door as briefly as possible.

Each opening of the door causes a significant loss of energy.

Do not place too many items in the appliance: for proper cold air circulation, it must be able to circulate freely. If circulation is obstructed, the compressor will run continuously. Do not place hot food: by raising the internal temperature, you force the compressor to work constantly, with a large waste of energy. - Defrost the appliance when ice forms (see Defrosting); ice acts as an insulator and increases energy consumption. Keep the appliance clean and tidy, in a way that does not require frequent opening of the door and prolonged exposure to cold air (see Maintenance).

Troubleshooting

It may happen that the appliance does not work. Before calling for assistance (see Assistance), check if the problem is something you can fix yourself.
