USER MANUAL 36DaRryLAGRANGEGAUFRIERGAUFRIER DARTY

ZET NOOIT HET APPARAAT AAN

DEU connection and that the cross-section of the wiring is 1 mm² or greater.

• Place your appliance as far as possible from flammable objects (curtains, etc.).
• Never place your appliance on a hot surface or near an open flame.
• Never leave your appliance unsupervised when it is switched on.
• Only use the appliance for domestic uses and as indicated in this manual.
• Never submerse your appliance in water or any kind of liquid for cleaning or any other purposes. Never clean it in a dish-washer.
• Never use or store the appliance outside, in the rain. Store it in a dry location. SAFETY INSTRUCTIONS Please read this manual carefully and ensure you keep it for future reference.
• Ensure that the mains voltage corresponds to the voltage shown on the device’s indicator plate.
• Unwind the cord fully and carefully examine it before use.
• If the power cord is damaged, it must be replaced by , its after-sales service, or a qualified person approved by , to avoid any danger.
• If this appliance is used with an extension cord, it is essential that the cord’s plug has an earthing

• Never move the appliance by pulling its cord. Prevent the appliance accidentally falling by ensuring that the power cord can not become entangled.
• Do not wind the cord around the appliance, do not twist it, and ensure that it does not come into contact with any of the appliance’s hot parts.
• Warning: hot surface. The temperature of accessible surfaces may be high when the appliance is in operation. Do not touch the metal parts of the appliance when in operation as they are hot.
• This appliance can be used by children from the age of 8 and up, and persons with limited physical, sensory or cognitive capacities or who lack adequate experience or knowledge, provided they are supervised or receive instructions for the safe use of the appliance, and insofar as they fully understand the potential dangers. Children should not play with the appliance. Cleaning and upkeep should not be performed by children unless they are over the age of 8 and are under supervision.
• Keep the appliance and its power cord out of the reach of children younger than 8 years old.
• This appliance is intended for use in domestic and similar settings such as:

ENG – staff kitchen facilities in shops, offices, and other professional environments; – farms; – guests in hotels, motels, or other residential environments; – home-stay type environments.

• These appliances are not intended to be used with an external timer or a separate remote control system.
• For cleaning the parts in contact with food, refer to the "Maintenance" paragraph.

NEVER SWITCH ON THE APPLIANCE

WITHOUT FIRST INSTALLING THE

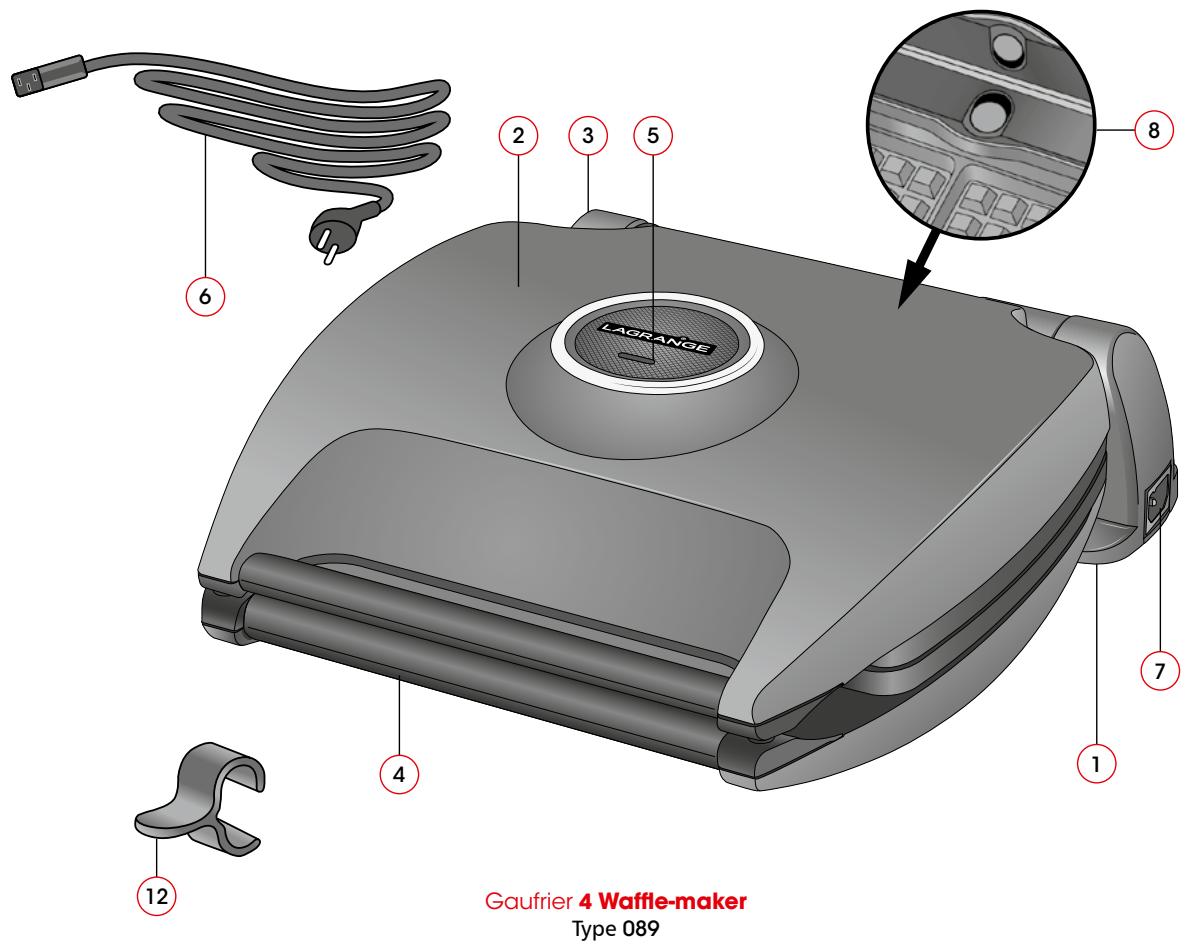

DESCRIPTION OF APPLIANCE

Plug for removable cord

11. Plate 4 waffles 5*8 (sold as an accessory)

A plate 4 Croque-monsieur is coming.

• Sturdy cast aluminium plates with non-stick coating
• Multifunctional with interchangeable plates sold separately

• Safety thermostat and indicator light
• Reversible waffle-iron on its base
• Plate ejection button
• Bakelite covers, handles and base
• 230 Volt – 50 Hz – 1700 Watt
• The cord used is a HO5RR-F 3 x 1 mm² Environmental Protection - 2012/19/EU In order to preserve our environment and our health, electrical appliances must be disposed of at the end of their service life according to specific rules that require the involvement of all, whether they be the supplier or the user. Thus, your appliance must never be discarded in a public or private household waste bin, as indicated by the symbol included on the indicator plate. When disposing of your appliance, it is your responsibility to drop it off at a public waste collection centre appointed to recycle electrical and electronic equipment. To obtain information on collection and recycling centres for discarded appliances, please contact your regional local authorities, your household waste collection services or the shop in which you purchased your appliance. These appliances comply with directives 2014/35/EU, 2014/30/EU, DEEE 2012/19/EU, RoHs 2011/65/EU and regulation EC 1935/2004 for materials in contact with foodstuffs. SET OF COOKING PLATES SOLD SEPARATELY:

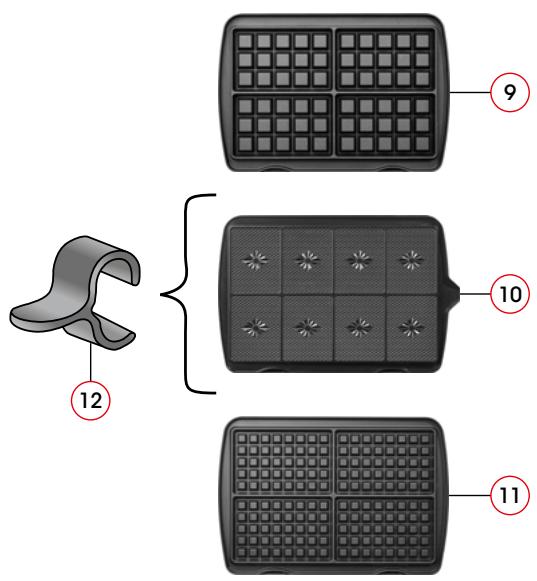

• Plates for 4 Brussels waffles (155 x 100 mm) and non-stick coating (REF 080 622)
• Plates for 8 wafers (100 x 77 mm) and non-stick coating (REF 080 222)
• Plates for 4 toasted sandwiches (100 x 130 mm) and non-stick coating (REF 080 422) – coming soon.
• Plates for 4 x 5*8 waffles (150 x 98 mm) and non-stick coating (REF 080 122) – sold in accessory.

CHANGING THE COOKING PLATES

• Switch the appliance off.
• Let it cool down completely.
• Press the plate ejection buttons, located just above the former.
• Take your plates off and replace them with new ones. FIRST USE
• Place the appliance on a hard, flat and heat-resistant surface.
• We recommend cleaning the cooking plates before using them for the first time with a little hot water and a sponge. Dry thoroughly.
• A new appliance may smoke slightly when used for the first time. To reduce the chance of smoking, heat the appliance for 10 minutes and then let cool for approximately half an hour. SWITCHING ON
• Unroll the cord completely.
• Plug in your appliance.
• Press the “I” button on the appliance.
• Once the ideal cooking temperature is reached, the red light switches off. You may then grease the plates and begin cooking (see Cooking Tips).

SWITCHING OFF THE APPLIANCE

• To switch off, press the “0” button on the appliance. CAUTION: when switching off the appliance, be careful to not burn yourself on the hot cooking plates.

ENG MAINTENANCE USEFUL TIPS IMPORTANT: IMPORTANT: In all cases of use, never grease your appliance before preheating. Instead, grease it just before pouring the batter or any other preparation.

• Always switch off, unplug and let the appliance cool down completely before cleaning.
• Never submerse the appliance in water.
• Never use any stripping products such as oven cleaner.
• Covers and base: clean with a damp sponge, you may use a mild detergent if necessary.
• Non-stick cooking plates: in general, after soaking for a few minutes, use a soft sponge soaked in a mild detergent, then rinse with warm water. Dry thoroughly before replacing the plates on the appliance.
• Heating element holder and thermostat: once your plates removed, you may also clean these two elements with a damp sponge.
• Important: never clean the cooking plates in a dishwasher.

• Heat up your appliance until the red light switches off.
• Although your appliance’s cooking plates include a non-stick coating, we recommend greasing them lightly.
• Open your appliance, grease both plates using a silicone brush, paper towel or piece of cotton (dip your brush into a small cup of cooking oil to cover it well). Grease again only lightly before cooking the next waffle After that, grease again only if the waffles start to stick on opening the lid.
• Pour the batter onto only one plate taking care to cover all squares completely. Use the ladle that came with the device. This will enable you to make 4 large Brussels waffles with only 2 ladles of batter.
• Close the appliance, wait 5 seconds, and rotate the head.
• After 1 minute and 30 seconds more, rotate the head back to its starting position.

WARNING: The rotation process is important for making the best

waffles. . If you do not do this, your waffles will look less appetizing (squares on top tray not filled in completely, making the surface irregular) Even with rotation, this may happen also if you do not use enough batter. However, be careful as hot steam may be released when turning over the appliance. We advise you to wear an oven mitt when rotating.

Similarly, when the waffles are cooking, the waffle iron may open up during cooking due to a release of steam. This is perfectly normal and will have no impact on your waffles’ cooking.

• When the red light switches off, you can open your appliance.

WARNING: Cooking waffles is a subtle art in which any minute

change in proportions or temperature for the batter may lead to differences in aspect and taste. In no case may any discrepancy with your preferred taste be considered as a fault of the appliance. The appliance was designed in accordance with the Lagrange waffle recipe.

• Pick up your waffles using a sharp knife to stab the thick part of the waffle and apply slight pressure to lift it off. You can also remove your waffles with a waffle fork (supplied with your product depending on the reference).
• If used intensively, feel free to let your waffle iron rest between two batches. Wait for an hour and start cooking your next batch of waffles.

• Allow to cool, remove the plates and soak for 5 minutes, brush the plates with a nylon or other plastic dish brush. Wipe and dry the plates thoroughly, insert them again, plug the appliance back in and follow the cooking instructions carefully from the start.
• Apply grease repeatedly if cooking many waffles. If you follow these instructions perfectly, we guarantee a good result. Finally, please note that if you do not fill in the 4 waffle imprints at the same time, your cooking may become irregular.

• Heat up your appliance until the red light switches off.
• Grease the plates just before pouring the batter.
• Spread a tablespoon (or 4 teaspoons if 4 moulds) of thick batter onto the bottom mould.
• Close the appliance and squeeze the handles together for a few seconds to spread the batter evenly. Position the closure clip and lock the appliance with it. N.B. This clip may be left attached to the appliance. Position it at the centre of your handles. Troubleshooting

• Waffle top and bottom coming apart: removing too quickly from mould or not cooked enough. Waffles breaking apart: batter too watery or too dry (not enough fat).

• Waffles burning: cooking too long or forgetting about waffles!
• Waffles burnt on one side, uncooked on the other: filled improperly or batter too watery or appliance not rotated.
• Waffles sticking to moulds: plates greased incorrectly or plates too hot for first waffles or too much sugar or not enough fat in the batter. The non-stick coating may also be damaged.

COOKING WAFERS What to do in the event of problems

• Do not turn the appliance over as for waffles. In all cases:
• Unplug the appliance.

• When cooking wafers, ignore the indicator light as it is not calibrated for wafers. The light was calibrated for a waffle batter. Depending on the recipes used, the cooking time may not be quite the same. In this case, check whether your wafers are cooked enough by opening the appliance. If your wafers are cooked, remove them from the appliance and proceed with the next batch without taking notice of the green light.
• If your wafer appears to be stuck to both plates, do not open the lid any further; if you hold it in its current position for a few moments, the wafer should come away from the top plate under its own weight. If not, introduce a spatula and carefully tease it away from the plate.
• Wafers are soft at first, but will harden very quickly. If you want to roll it up, use a dowel stick directly on the cooking plate. To roll up the wafers, place the dowel on a wafer, lift up one edge of the wafer, roll it up quickly and then remove the dowel.
• You may roll them into cones and either eat as is or fill with ice cream, or fold them into triangles, halves or quarters.
• We remind you that, unlike waffles, wafers are served when fully cooled down. They can be stored for several days in a biscuit tin.

GUARANTEE TERMS Duration of Availability of Spare Parts In accordance with article L 111-2 of the Consumer Code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing. However, this availability is only guaranteed in the country where the product was purchased. Guarantees for household appliances. Your appliance is guaranteed for 2 years. In order to receive an additional year of guarantee free of charge, register on the website (www.lagrange.fr). The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or non‑observance of the instructions for use or breakage due to falling. Shipping Costs for Returns After the first year which benefits from the dealer’s guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible. If you have any other questions about our products, you can contact us at the following address: THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES. The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code In the event of any malfunction or breakdown, contact your retailer. Should any technical defect appear within 8 days of purchase, the appliances will be exchanged. After this period, they will be repaired by the after‑sales service. To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit. Service consommateurs 17, chemin de la Plaine ZA Les Plattes CS30228 69390 VOURLES France E-mail : conso@lagrange.fr
