JBL WAVE_BEAM - Loudspeaker
📄 36 pages English EN ⬇ Download 💬 AI Question ❓ 13 questions ⚙️ Specs
Notice JBL WAVE_BEAM - page 14
14 / 36
View the manual : Français FR English EN မြန်မာ MY
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Wireless in-ear headphones
Brand JBL
Model WAVE BEAM
Speaker size 8 mm (0.315")
Weight 4.4 g per earbud (8.8 g combined)
Earbud battery type Lithium-polymer 53 mAh / 3.7 V
Charging time Less than 2 hours
Music playtime 8 hours
Talk time 4.5 hours
Frequency response 20 Hz - 20 kHz
Impedance 16 ohms
Sensitivity 100 dB SPL at 1 kHz
Maximum sound pressure 95 dB
Microphone sensitivity -38 dBV @ 1 kHz / Pa
Bluetooth version 5.2
Bluetooth profiles A2DP 1.3, AVRCP 1.6, HFP 1.7
Bluetooth frequency band 2.4 GHz - 2.4835 GHz
Bluetooth transmitter power < 15 dBm
Power supply 5 V = 1 A (via charging case)
Maximum operating temperature 45 °C
Main features Touch control, Ambient Aware, TalkThru, compatible with JBL Headphones app
Care and cleaning Clean with a soft, dry cloth. Do not use harsh chemicals.
Safety Avoid exposure to excessive moisture. Do not open or disassemble.

Frequently Asked Questions - WAVE_BEAM JBL

How to turn on and connect the JBL WAVE BEAM for the first time?
Remove the earbuds from the charging case, they turn on automatically. Enable Bluetooth on your device and select 'JBL WAVE BEAM' from the list. The blue light flashes during connection.
What to do if only one earbud works?
Check that both earbuds are fully charged. If the problem persists, perform a factory reset: place the earbuds in the case, press and hold the proximity button (or similar) for 10 seconds until the light flashes white.
How to activate Ambient Aware or TalkThru mode?
These functions are available through the JBL Headphones app after connecting the earbuds. You can also configure them as custom touch controls in the app.
What is the battery life of the JBL WAVE BEAM?
The earbuds offer up to 8 hours of music playback and 4.5 hours of talk time. The charging case provides additional charges (not specified).
How to recharge the earbuds and case?
Place the earbuds in the case to charge. The case charges via a USB-C cable (not included) with a 5V=1A power supply. Full charging time is less than 2 hours.
What do the different LED indicators mean?
White: charging; blue flashing: Bluetooth connection in progress; solid blue: connected; blue off: not connected; red: low battery; orange: medium level; green: high; red-orange-green: charging; off: fully charged.
How to reset the JBL WAVE BEAM to factory settings?
Place the earbuds in the case, then press and hold the touch button on each earbud for about 10 seconds until the light flashes white. The earbuds will be reset and ready to pair.
Are the JBL WAVE BEAM water resistant?
The manual does not mention a specific IP rating. Avoid any exposure to water or excessive moisture to preserve the device.
What touch controls are available?
You can use touch controls for play/pause, calls, volume control, and activating voice assistants (Bixby/Siri). Refer to the JBL Headphones app to customize gestures.
How to connect the earbuds to a new device?
Make sure the earbuds are disconnected from the previous device. Place them in the case, then take them out and press and hold the touch button (or the case button) until the light flashes blue, then search for 'JBL WAVE BEAM' on the new device.

User questions about WAVE_BEAM JBL

3 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

What are the common error codes on the JBL WAVE_BEAM speaker and how can they be resolved?
Frequently Asked Questions - 02/25/2026
Response Notice-Facile

The JBL WAVE BEAM does not have displayed numeric error codes, but instead uses colored LED indicators to communicate the device's status and any potential issues. Here are the meanings of the LED colors according to the official manual:

Battery indicators: A white LED indicates that the earbuds are charging. A red LED means that the battery is low (less than 25% capacity). An orange LED indicates a medium battery level (between 25% and 75%). A green LED means that the battery is well charged (more than 75%). When the LED is off and the earbuds are out of the case, it indicates that the charge is complete.

Bluetooth indicators: A slowly flashing blue LED indicates that the earbuds are in pairing mode and trying to connect to a device. A solid blue LED (not flashing) means that the earbuds are properly connected via Bluetooth. When the blue LED is not displayed, the earbuds are not connected to a Bluetooth device.

Case charging: When the earbuds are in the case, a sequence of flashing red-orange-green LEDs indicates that the case is charging. If the LED is off with the case plugged in, the charging case is fully charged.

Bluetooth connection issues: If the earbuds do not connect or frequently disconnect despite a lit blue LED, remove the JBL WAVE BEAM from your phone or computer's Bluetooth list, then re-pair it by putting the earbuds in pairing mode. If the LED remains red or orange, fully charge the earbuds before trying to connect again.

Battery not charging: If the LED remains off even after several hours of charging, check that the USB-C cable and power adapter are functioning correctly. Try a different charging cable or another USB port. If the problem persists after 2 hours of charging, the lithium-ion battery of the earbuds or the case may be defective and require replacement from JBL service.

No sound or reset needed: If the earbuds produce no sound despite an established Bluetooth connection (solid blue LED), check the volume of your source device and increase it. If the problem persists, perform a factory reset by holding the touch button for 5 seconds on both earbuds simultaneously, or by placing them in the case and then holding the pairing button for 10 seconds. In case of ongoing malfunction, contact JBL technical service, which comes with a 2-year warranty.

Respond (be the first)
Why is the left earbud of my JBL WAVE_BEAM not working and how can I resolve this issue?
Frequently Asked Questions - 01/05/2026
Response Notice-Facile

If the left earbud of your JBL WAVE_BEAM is not working, it is usually related to a charging issue, Bluetooth pairing, or dirt buildup. Here are specific solutions for your TWS in-ear headphone model:

Start by checking the battery and positioning. Place both earbuds in the charging case and wait about 15 to 20 minutes for charging. If the LED indicator turns blue when removed, this indicates proper charging. Check that the left earbud fits correctly in the case: it should click in slightly. If you do not see a blue LED on the left earbud, gently reposition it by moving it slightly until contact is made and the charging indicator appears. Then wait for it to charge completely (white LED indicator according to WAVE_BEAM specifications).

Clean the contact points and grilles. TWS earbuds charge via contact, so dirt or earwax can block the connection. With a soft, dry cloth, gently clean the gold contact points on each earbud and in the case. If the earbud produces no sound despite charging, the blockage may be in the speaker grille. Clean the grille with a small dry toothbrush or a fine brush. For a deeper clean, soak the earbud tip (the acoustic insulator) in warm water with a drop of dish soap for 2 to 3 minutes, then wipe with a clean cloth and let it dry completely before use.

Update the Bluetooth pairing. Forget the device in your Bluetooth settings (phone, tablet, etc.), then re-pair the earbuds: place them in the case, close the case for 10 seconds, then open it. You should see a flashing blue LED indicating pairing mode. Select "JBL WAVE BEAM" in your Bluetooth settings to re-establish the connection. Also, check that you are in stereo mode and not mono mode (refer to the JBL Headphones app to switch between the two if necessary).

Perform a hardware reset. If the previous steps do not work, reset the earbuds to factory settings. Place the earbuds in the closed case for about 30 seconds. Remove the right earbud and hold the touch button for 8 to 10 seconds until you see a rapidly flashing red and blue LED. The earbud will turn off. Repeat the process for the left earbud. Put both earbuds back in the case and wait for them to fully reset.

Test on another device. Connect the earbuds to a different phone or tablet to check if the problem persists. This helps determine if the malfunction is with the JBL WAVE_BEAM or the Bluetooth connection with your original device. Also, check that your device version supports Bluetooth 5.2 (the WAVE_BEAM uses Bluetooth 5.2, older devices may have limitations).

If after these solutions the left earbud still does not work, it is likely defective. Contact JBL customer service or the retailer where you purchased the product: JBL WAVE_BEAM comes with a 2-year warranty. Keep your proof of purchase to facilitate the claim process.

Respond (be the first)
How do I connect my JBL WAVE_BEAM headphones to my phone?
Frequently Asked Questions - 11/25/2025
Response Notice-Facile

To connect your JBL WAVE BEAM headphones to your phone, start by removing the headphones from their charging case. They will automatically turn on and enter Bluetooth pairing mode.

Entering pairing mode: If your headphones are not recognized automatically, press and hold the touch button for 5 seconds until the blue LED light flashes rapidly. This light indication confirms that the headphones are in "BT connection in progress" mode.

Pairing on your phone: Open your phone's Bluetooth settings, look for "JBL WAVE BEAM" in the list of available devices, and select it to start pairing. Your phone will automatically establish the connection without a PIN code required.

Checking the connection: Once paired, the LED light will turn solid blue, indicating that the device is "BT connected". You can now use your headphones to listen to music or make calls.

Using the JBL Headphones app: To access more advanced controls (equalizer, ambient audio management), download the free JBL Headphones app and connect your headphones to it. This will allow you to fully customize your listening experience.

The JBL WAVE BEAM headphones have excellent battery life with 8 hours of music playback and 4.5 hours of talk time. The rechargeable charging case provides additional battery to extend your usage on the go.

If you encounter connection issues: If the connection fails, check that Bluetooth is enabled on your phone, that the headphones are sufficiently charged, and try resetting the pairing by holding the button for 5 seconds. If problems persist, forget "JBL WAVE BEAM" from your phone's Bluetooth list and start the pairing process again.

Respond (be the first)

Download the instructions for your Loudspeaker in PDF format for free! Find your manual WAVE_BEAM - JBL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WAVE_BEAM by JBL.

USER MANUAL WAVE_BEAM JBL

TAP×1 TAP×2 HOLD(5s)

CONNECT TO A NEW BLUETOOTH DEVICEJBL WAVE_BEAM - 1

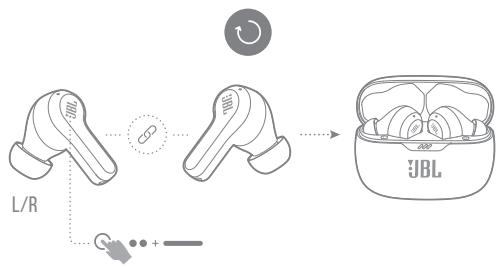

FACTORY RESETJBL WAVE_BEAM - 2

DO MORE WITH THE APP

JBL WAVE_BEAM - DO MORE WITH THE APP - 1

JBL WAVE_BEAM - DO MORE WITH THE APP - 2

JBL WAVE_BEAM - DO MORE WITH THE APP - 3

CHARGING

JBL WAVE_BEAM - CHARGING - 1

JBL WAVE_BEAM - CHARGING - 2

JBL WAVE_BEAM - CHARGING - 3

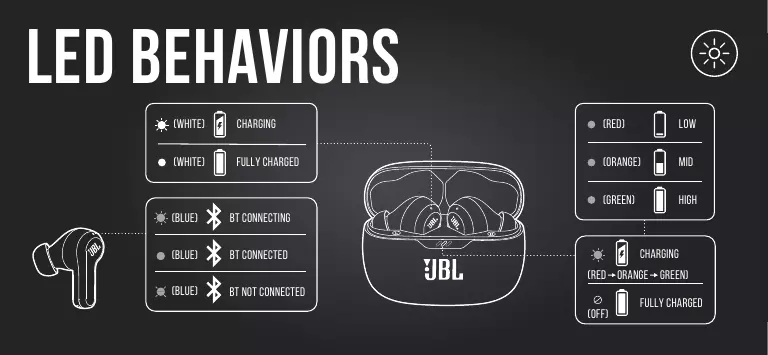

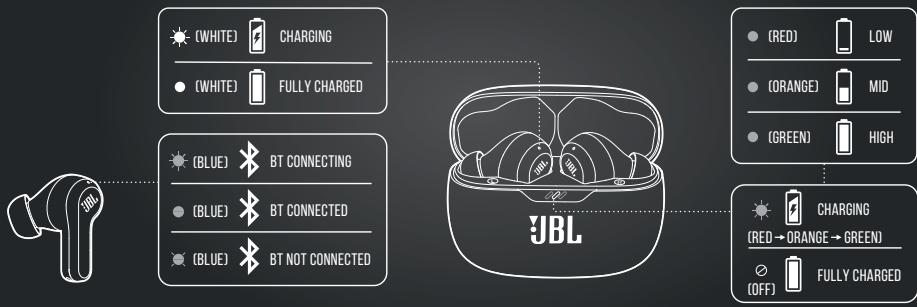

LED BEHAVIORS

JBL WAVE_BEAM - LED BEHAVIORS - 1

TECH SPEC

Model:

WAVE BEAM

Driver size:

8 mm/0.315" Dynamic Driver

Power supply:

5V---1A

Earbud:

4.4 g per pc (8.8 g combined)/

0.0097 lbs per pc (0.0194 lbs combined)

Charging case:

39.5 g/0.0871 lbs

Earbud battery type:

Lithium-ion polymer (48 mAh/ 3.85 V)

Charging case

battery type:

Lithium-ion polymer (530 mAh/3.7 V)

Charging time:

<2 hrs from empty

Music playtime with

BT on:

8 hrs

Talk time:

4.5 hrs

Frequency response:

20 Hz - 20 kHz

Impedance:

16 ohm

Sensitivity:

100 dB SPL@1 kHz

Maximum SPL:

95 dB

Microphone sensitivity:

-38 dBV/Pa@1 kHz

Bluetooth version:

5.2

Bluetooth profile

A2DPV1.3,AVRCPV1.6,HFPV1.7

version:

Bluetooth transmitter

2.4 GHz - 2.4835 GHz

frequency range:

<15dBm

Bluetooth transmitter

power:

GFSK, π/4-DQPSK, 8DPSK

Bluetooth transmitter

modulation:

45℃

Maximum operation

temperature:

JBL WAVE_BEAM - TECH SPEC - 1

FR

CONTENU DE LA BOITE

APPLICATION

(White) Full charge

Forbidden by Bluetooth-enhanced NuStilting ft Fabriskindstoring

DO MORE WITH THE APP

CHARGING

LED SYMBOLS

(White) Charger

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

CHARGING WITH ALKALINE BATTERIES

LED FEATURES

(White) Charging

Connect your JBJ WAVE BEAM to the JBJ Headphones app

VOICEWARE

SHUTDOWN

Frequency response:

Impedance:

Sensitivity:

Maximum SPL:

A2DP V1.3, AVRCP V1.6, HFP V1.7

2.4 GHz - 2.4835 GHz

<15dBm

GFSK, π/4-DQPSK, 8DPSK

JBL WAVE_BEAM - SHUTDOWN - 1

PACKAGE CONTENTS

APP

Select "JBL WAVE BEAM" to connect

DUAL CONNECTION

Stereo mode | Mono mode

CONTROLS

Tap | Press and hold

Ambient Aware*

(Ambient Aware)

Talkthru*

Bixby / Siri®/ Others

(BLUE) BT is connected

Lithium-ion polymer (48 mAh/ 3.85 V)

Charger battery type:

Lithium-ion polymer (530 mAh/ 3.7 V)

Charging time:

<2 hours when empty

MANUAL CONFIGURATION

Connect to a new Bluetooth device

Reset to factory settings

DO MORE WITH THE APP

CHARGING

LED BEHAVIOR

(White) Charging

(White) Full charge

(Blue) BT connecting

(Blue) BT connected

100 dB SPL at 1 kHz

95 dB

-38 dBV @ 1 kHz/Pa

5.2

A2DP V1.3, AVRCP V1.6, HFP V1.7

2.4-2.4835 GHz

<15 dBm

GFSK, π/4-DQPSK, 8DPSK

45°C

PL

PACKAGE CONTENTS

APPLICATION

Torque control

Modulation of transmission

Bluetooth:

Ambient Aware (Ambient

Awareness*)

Talkthru*

Bixby / Siri® / Others

  • JBL WAVE BEAM with JBL Headphones

Sensitivity: 100 dB SPL@1 kHz

Maximum SPL: 95 dB

CrepeopexM | MoHopexM

3IEMHTbI UYPABJIENH

Kacanhue|Udepzahnne

Ambient Aware (Enhanced

CbIIMMOCTbOKpykaiooien

pegb)

Talkthru (NoHHKeHMe yOpBnA

PROMKOMCTH NTH KOMPQFTHORO OBUENHEIN1

Bixby/Siri/Inpoeee

Todoknoucheon olenomethenbene tne menehmta yupanemekpnip

NIDKNIOYENH NAYUHNKOB

JBL WAVE BEAM K npnoxkeHHIO

JBL Headphones I

JBL WAVE_BEAM - 3IEMHTbI UYPABJIENH - 1

VOICEWARE

BbIKIOUeyHNE

PYYHAR HACTPOIKA

IopKIOUOHeH KHOBOMy yCTpoiCTBy

Bluetooth

C6pocdo3aB0dcknxHacTpoek

DIOJIHHTeBhIE

Battery charge status

Charge

Signal indicators

(White) Charge.

(White) Charge level

(Blue) BT connected

(Blue) BT connection

Established

(Blue) BT connection not

Established

(Red) Low charge level

(Orange) Medium level

Charge

(Green) High charge level

(Red-Orange-Green)

Charging time

TECHNICAL SPECIFICATIONS

Model: WAVE BEAM

Membrane size: Dynamic membrane 8 mm/0.315 inches

Power source: 5V-1A

Charging: 4.4 Wh, 8.8 V (in kit)

0.0097 Wh/1 (0.194 Wh in kit)

Charging port: 39.5 g/0.0871 unit

Battery type: Lithium-ion rechargeable battery (48 mAh, 3.85 V)

Battery charging time:

Charging time: <24

Playback time

With noise cancellation off: 8 hours

Talk time: 4.5 hours

Sensitivity: 20f-20Kf

Impedance: 160M

Sensitivity: 100dB/3D at 1 kHz

Max. sound pressure

level: 95

Microphone sensitivity: -38 dBV @ 1 kHz/Pa

Bluetooth version: 5.2

Bluetooth profiles: A2DP V1.3, AVRCP V1.6, HFP V1.7

Frequency range of transmitter

Bluetooth: 2.4-2.4835 GHz

Transmitter power

Bluetooth: <15 dB/MBt

Modulation type

Bluetooth: GFSK, π/4-DQPSK, 8DPSK

Maximum temperature

Kcnnnyataa: 45°C

OTHER APP USES

CHARGING

LED PATTERN

Ambient Aware (0080g:00g)

qgl(3)*

Talkthru*

Bixby/Siri/30

*0JBLWAVEBEAM

JBL Headphones 308

g0000g:gg000

g888:8888

0

VOICEWARE

0101808

LED

(39g) 390:88:64

(39g) 392:39g:39g:39g:

(30g)BTgOgOgOgOgOgOg

(32) (2) B 080808080808

（0g）BTgSoo08oo00:0

(329) 8

（08g）coos

(3)②③

（-8c8g-8g）300g

BT gS S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S GFSK, n/4-DQPSK, 8DPSK
20 Hz - 20 kHz
16 ohm
100 dB SPL@1 kHz
95 dB
-38 dBV@1 kHz/Pa
5.2
A2DP V1.3, AVRCP V1.6, HFP V1.7
2.4 GHz - 2.4835 GHz
<15 dBm
GFSK, n/4-DQPSK, 8DPSK
45 °C

A. CaCO3 NaOH CaCl2 Ca2+ B. CaCl2 NaOH CaCl2 Ca2+ C. JRJ WAVE BEAM Ca2+ NaOH

LID jbj

n'nn- (nnm)

nnn

(D)

n-(n)

()

P7-0nD-(DTNm)

ybnnyu (n)

nXPnX

mnnn mnp

NNNNN

bnnnnnn

mynnnn

1

()

nnnnnnnn

Android™ 6.0+

JBL WAVE BEAM

Ambient Aware

Talkthru

DNN/Bixby/Siri

WAVE BEAM

8mm/0.315"

5V=1A

8.8) n7n 4.4

n n 100.0097/

(0.0194)

39.57

(48 mAh/3.85 V) 100

(530 mAh/3.7V)

P7XnOoynnn

myy8

mvy 4.5

20Hz-20kHz

011N16

100 dB SPL@1 kHz

95dB

-38 dBV@1 kHz/Pa

5.2

2

:DT

77

:bnwn npn

:nnn

mnnn nnnn

Pn) nbn

:

:

nynnnn nn

:bym'mvibay

:

Bluetooth

Bluetooth

Bluetooth

Bluetooth

Bluetooth

45°C

JBL WAVE_BEAM - LED PATTERN - 1

To prolong battery lifespan, full charge at least once every 3 months. Battery life varies by use and settings.

FR POUR PROLONGER LA VIE DE LA BATTIERE, CHARGEZ-LA COMPLÉTÉMENT AU MOINS UNI FOGS TOUS LE 3 MOIS. LA DUREE DE VIE DE LA BATTIERE VARIO EN FONCTION DE L'UTILISATION ET DES RÉAGLIES.
DA FOR AT FOLFINGER BATTERIETS LEVETIO SKAL DU OPLADE DET HELT MINDST EN GANG HVER 3.MANED. BATTERIETS LEVETIO VARIERG AFHENGHOF A BRUG OG INDSTITINGER.
DE ZUM VERLAGNEREN DER AKKULEBESDAUVER MINDETS ENMIAL 1. ZUR MÄNNZUNGSCHÄDE, ZUR MÄNNZUNGSCHÄDE, ZUR MÄNNZUNGSCHÄDE VARIERTJ E. NIC ANWACHUNG UND TISTELLUNG
ELI NA IAPATINEETHE TH IAIPAKZHO ZH TMEIATAPIAZ, FOPTITEZ THE HN IAPOTOSO YAOASTION MIA OOPA KEAG 3 MINEH. HE IAIPAKZHO ZHTH THE MTIATAPIAZIO ANAOKAIAE ANAOKAIEME THE XPHSEHKAI TIE PYGMIEIEME
ES PARA PROLONGAR LA DURACION DE LA BATERIA, CARGALA COMPLETAMENTA POR LO MENOS UNA Veza CADA 3 MESES. LA DURACION DE LA BATERIA DEPENDE DEL USO Y DE LOS AJUSTES.
PI: PIDENNA AKUN KAYTOKIKA LATAAMALLA SE TAYENTE VAHINTAAN KERRIAN 3 KUKAUDESSA. AKUN KAYTOKIKA VAHTLEE KAYTON JA ASETUSTEN MUKAISEISTI.

HU AZ AKUMILUMATOR ELETTARTAMANK NOVELSE EDRKEBKK 3 HAVONTA LEGAL BEGYSUR TOLZE FSL AZ AKUMILUMER ELETTARTAMA A HASNZAITOL AS BEALLITASOKTLO FUGGÖDN VALTOZIK.
IT PER PROLUNGARE L VITA UTILE DILLA BATTERIA, RICARICARE COMPLETAMENTE ALMENO UNA VOITA OGNI 3 MESI. LA VITA UTILE DILLA BATTERIA VIA A SECONDA LULLUSO E DELI IMPOSTAZIONI.
NL OM DE LEVENSIURVAN DE BATERI E TUE OPTIMALISEREN, I KEAR PER 3 MAANDEN VOLVEDIG OPLADEN. DE LEVENSIURVAN DE BATERI IS AFHANKELIK VAN GEBRUK IN INSTELLINGEN.
NO FORLING BATTERIETS LEVEDITED A LADE DET HELT OPN MINST HVER 3 MANED. BATTERIETS LEVEDITED VARIERER AHENGIG AV BRUK OG INSTITINGER.
PL ABY PRZEDUZHÇ YWOTOSC BATERII, NALADUJ JA W PELNI CO NAJMIENI RAZ CO 3 MISEIÇA ZYWOTOSC BATERII JEST ZALEZNIA OSPOSOBU UZYKOWANIA I USTAWIANI.
PT-BR PAGO LONGAR A VIDA UTIL DA BATERIA, CARRGEUE-A ATE A CARGA MAXIMA PERO MENUS OVA ZEE A CADRE TES MESES. A DURABILADUE DA BATERIA PENDENDE DE COMO E ONDE ELA E USADA.
SV LADDA BATTERIESTMINT EN GANV MÄRG VARIETRE MAND FOR ATT DASS DESS LIVSLANGD. BATTERIETS LIVSLANGD VARIERAR BEROENDE P ANVANDING OCH INSTALLINRAR.
PII OLMRUNU UZMATAOK IIN HER 3 YA EN AZ BIR DEFAT TAM SRJ EDINELIM PO MRU, KULLANIM SEKLINE VE AYARLARA GORE DEGISKENLIK GREMÖTERTEKİD.

This equipment complies with Directive 2014/53/EU radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The portable device is designed to meet the requirements for exposure to radio waves established by European Union market (France). These requirements set a SAR limit of 2W/kg averaged over ten grams of tissue. The highest SAR value 0.221W/kg reported under this standard during product certification for use when properly worn on the head.

DO NOT ATTEMPT TO OPEN, VERSIOR, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : JBL

Model : WAVE_BEAM

Category : Loudspeaker
