H5360BD - Video projector ACER - Free user manual and instructions

Product type	DLP projector
Brand	Acer
Model	H5360BD
Native resolution	720p (1280 x 720)
Maximum resolution	UXGA (1600 x 1200), 1080p (1920 x 1080)
Brightness	High brightness (not specified)
Contrast ratio	High (not specified)
Lamp type	200 W, user-replaceable
Keystone correction	Digital, ±40 degrees
Zoom	Manual 1.1x
Speaker	Built-in, 2 W
Connectivity	HDMI, VGA, S-Video, Composite, YPbPr, RS232, 3.5 mm audio
Power supply	100-240 V AC, 50/60 Hz, 248 W (normal), 201 W (ECO)
Dimensions (W x D x H)	268 x 192 x 80 mm
Weight	2.26 kg
Main features	3D mode (NVIDIA 3D Vision, DLP 3D), ColorBoost, keystone correction, 2x digital zoom, ECO mode, password security
Maintenance and cleaning	Clean with a damp cloth, do not use liquid or aerosol cleaners. Clean the air filter regularly.
Safety	Do not look directly into the lens, do not block ventilation openings, turn off before cleaning, use a grounded outlet.
Spare parts and repairability	User-replaceable lamp. Cleanable air filter. Contact a qualified technician for any repairs.
General information	DLP technology, compatible with PC and Mac, video formats NTSC/PAL/SECAM/HDTV, supplied with remote control, VGA and composite cables, user guide.

Frequently Asked Questions - H5360BD ACER

How to install the Acer H5360BD projector on the ceiling?

Use the Acer ceiling mount kit. Drill four holes in a solid part of the ceiling, fix the mount base, then screw the pole and bracket. Attach the projector to the bracket using suitable screws (not included). Adjust the angle if needed. Refer to the Ceiling Installation section of the manual.

How to clean the projector air filter?

Turn off the projector and unplug it. Remove the air filter (if present) and clean it with a vacuum cleaner or warm soapy water. Let it dry completely before reinserting. Do not use harsh cleaners.

How to replace the projector lamp?

Turn off the projector and let it cool for at least 30 minutes. Unplug the power cord. Remove the screws from the lamp cover, then gently pull out the lamp module. Replace with a new lamp (200 W) and screw back in. Reset the lamp hour counter in the Management menu.

Why is the projected image blurry?

Check that the lens cap is removed. Adjust the focus ring on the lens. Make sure the projector is at the correct distance from the screen (1 to 10.3 meters). If necessary, adjust the sharpness in the Image menu.

How to connect a laptop to the projector?

Use a VGA (supplied) or HDMI cable. Connect one end to the projector, the other to the computer. Turn on the projector first, then the computer. Press the Source button on the remote to select the corresponding input. On some PCs, use [Fn]+[F4] or a similar key to activate the video output.

How to adjust a distorted image (keystone effect)?

Use the Keystone function on the remote or in the OSD menu (Image > Manual Keystone). Adjust the sliders until the sides of the image are straight. Correction can be up to ±40 degrees.

How to activate 3D mode on this projector?

In the OSD menu, go to Image > 3D. Choose NVIDIA 3D Vision or DLP 3D depending on your equipment. For NVIDIA, install the drivers and use an IR emitter. For DLP, use DLP glasses and a compatible source. Make sure the signal is 120 Hz for 3D mode.

What to do if the projector displays 'Fan failure'?

Turn off the projector immediately and unplug it. Let it cool down. Check that the ventilation openings are not blocked. If the message persists, contact a qualified technician. Do not continue using the device.

How to reduce the projector's power consumption?

Enable ECO Mode in the Management menu. This reduces lamp power, extends lamp life, and reduces noise. You can also set Auto Off to turn off automatically after a period of inactivity.

What cables are supplied with the H5360BD projector?

The box contents include: a power cord, a VGA cable, a composite video cable, a remote control with battery, a user guide, a quick start guide, and a safety card. A carrying case is also included.

USER MANUAL H5360BD ACER

Acer Projector H5360 Series

Modèle :

No. de série :

Date d'achat :

Lieud'achat:

http://www.nvidia.com/object/3D_Drivers_Downsloads.html

• Stereoscopic Player (essay) : http://www.3dtv.at/Downloads/Index_en.aspx

• DDD TriDef Media Player (essay) :

http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

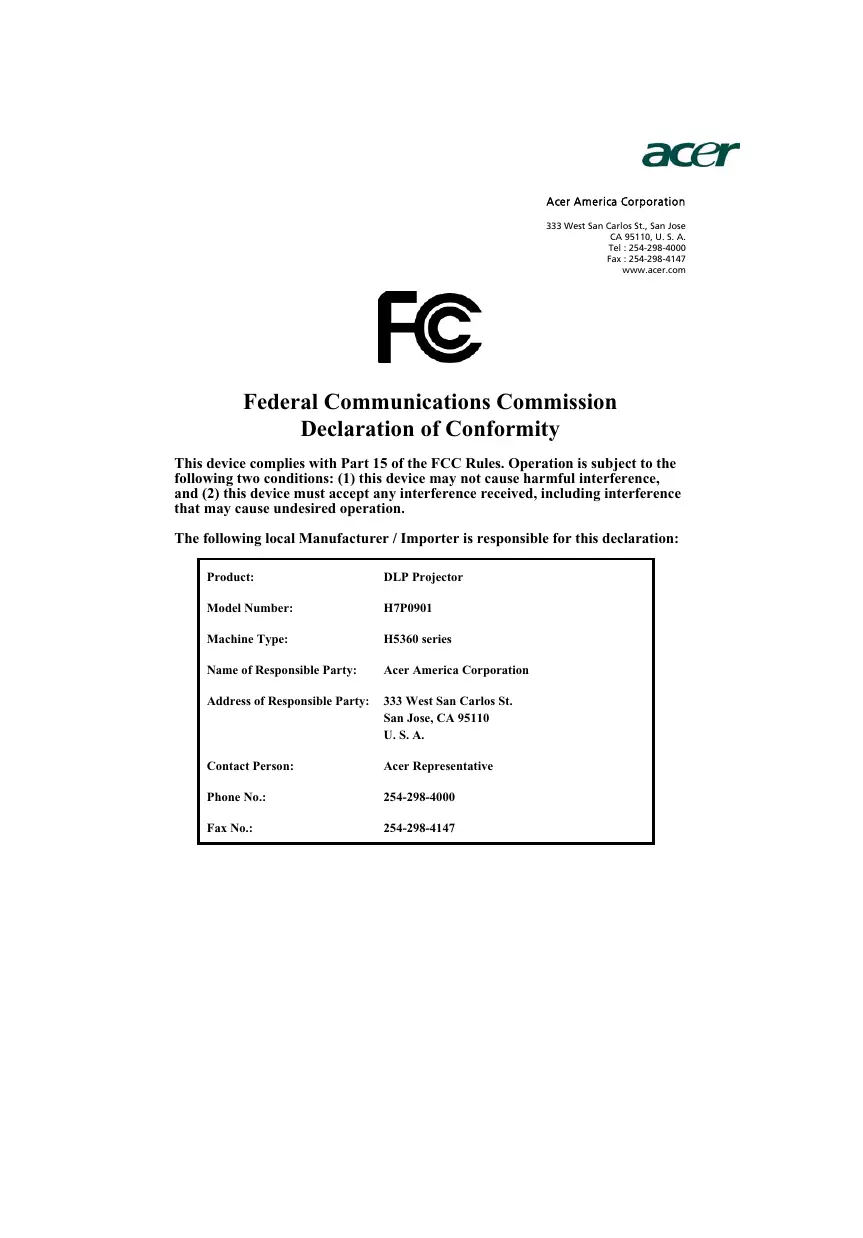

Federal Communications Commission Declaration of Conformity
